S5V-D07M71Tablet PC

Tablet with Android™ Please read this manual before operating your tablet, and keep it for further reference. USER MANUAL Dragon Touch M7 Tablet PC (1) (2) S5V-D07M71 CONTENTS 57 - 70 71 - 84 01 - 1415 - 28 43 - 5629 - 42 12 English Browse the Web Visit your favorite websites. Check your e-mail Keep in touch with friends and family. Watch YouTube™ videos Browse the world’s most popular video- sharing community. Read your favorite books Download thousands of books with the included E-book reader*. Discover thousands of apps for Android™ Games, applications, and more with Play Store (Customer need to download it from Google™ Play Store). Connect to the Internet wirelessly High-speed Wi-Fi 802.11 b/g/n networking. Enjoy your media library anywhere. Portable powerhouse plays popular music, video, and photo formats. MicroSD memory card reader. Increase your storage capacity (up to 128GB supported). Built-in camera Convenient Front Camera 0.3MP / Rear Camera 2.0MP. Automatic orientation detection Read any way you want; the display adjusts automatically! Reading books in the e-Pub format requires the included E-book reader application. FEATURESUNIT AT A GLANCE Front Camera USB Port: Connect to a USB device / Power Port MicroSD Card: Load external microSD memory cards here. Headphone: Audio output connection for headphones. VOL+/VOL- Power Button / Screen Saver Reset Hole Rear Camera Speaker 2 3 4 5 7 6 8 9 1 1 2 3 4 5 6 7 8 9 34 GETTING STARTED Turning on / off the tablet To turn on the tablet: Press and hold the Power button until the LCD screen turns on. Wait until the Home screen appears, the tablet is now ready for use. To turn off the tablet: 1. Press and hold the Power button until the Device Options menu appears. 2. Tap “OK” to turn off the tablet. Turning on / off the screen (Sleep mode) When the tablet is on, you can turn off the screen to save battery power. Simply press the power button once to turn the screen off. Press the power button again to turn the screen back on. To save battery power, the screen can be set to turn off automatically when the tablet is not in use (between 1 minute and 30 minutes). This screen timeout option can be found in the Display menu. Changing the language Many users purchase Android tablets that come with the user interface in English, and they want to have it translated into their language, like Spanish, French, Chinese, German and so on. Tap "settings-system-language & input-languages-add a language". A list is shown with all the available display languages that you can use on your Android device. Tap and hold the lines near the name of the language that you want to use, and drag it to the top of the list. If you do not need a particular display language, you can delete it. Click the three dots in the top-right corner of the screen, near the text Language preferences. A menu is shown, with only one option: "Remove". Tap on it. Home Screen Back: Press to check previous operating display. Home Screen: Press to go to home screen. Background: Press to check applications running on background. Existing idle Apps may provide a better performance. Application Panel: Press to check all available Applications. Wallpaper Tap and hold your finger in any blank space of the home screen, you will see a pop-up menu; you can choose wallpaper from Gallery or your downloaded files or those listed as options;set the one you like to be wall paper. Widgets Tap and hold your finger in any blank space of home screen, you will see a pop-up menu with widget. Tip: 1. Tap one icon and move on to top of another icon, you can create a new folder on home screen. Open the folder; click ‘Unnamed Folder ’ to rename the folder. 2. Swipe down vertically from top part of a display to enter quick notification menu. Screen Lock Set a screen lock to secure your tablet. Tap - Setting-Security-Screen security-Select screen lock, and select a mode from None, Swipe, Pattern, PIN and Password. You can create a Backup PIN as a safety measure in case you forget your code. 56 ABOUT APPLICATIONS To open an application, touch the application icon on the home screen or in the Launcher where you can tap the icon right up on the home screen to get in. Launcher screen: Unlocking the screen When the screen turns off, you will have to unlock the screen when you turn it back on. To unlock the screen, swipe up the lock icon. The screen shown above is for illustrative purposes only. We reserve the right to modify and improve the final list of applications available on the tablet. Screen shot Press and hold the power button and volume “-” at the same time to screenshot. The screenshot will be saved in the photos file. ABOUT APPLICATIONS Preinstalled Applications Some applications have been installed on your tablet for your convenience. These applications include: PREINSTALLED APPLICATIONS Installing Applications You can also download an install additional applications from the device’s applications marketplace, the web browser, or other sources. The tablet must be set to allow installation of applications from non-Market sources. The Unknown sources option can be set in the Application settings menu. Browse the web. Perform simple mathematical operations. Take pictures or videos with the camera. Check your e-mail. Play music. Access the Settings menu to adjust the tablet’s options. 78 CONNECT TO A WI-FI NETWORK The Notification bar displays icons that indicate your tablet’s Wi-Fi status. Notification that an open Wi-Fi network is in range. Connected to a Wi-Fi network (waves indicate connection strength). [no icon] There are no Wi-Fi networks in range, or the Wi-Fi radio is off. 1. Turn on the Wi-Fi radio if it is not already on. To turn on Wi-Fi: a. Go to the Home screen: Press the home button. b. Open the Settings menu: tap the icon right up on the home screen to get into the launcher, then tap settings icon. c. Open the Wireless & networks menu: Slide the icon to ON status. When Wi-Fi is on, the tablet wil…

Text truncated - open the document above for the full version.

PROEXPRESS DISTRIBUTOR LLC Family models declaration letter. 2020-01-07 We Company: PROEXPRESS DISTRIBUTOR LLC Address: 7668 standish place, STE B, Rockville, Maryland, 20855, United States Product: Tablet PC Model Name: M7 Family Model: M7 Pro, M8, M8 Pro All models are the same circuit and RF module, except the model name. Thanks Sincerely, Signature 2020-01-07 Name: Sindy Chan Title: Manager

PROEXPRESS DISTRIBUTOR LLC Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020/01/07 Subject; Request for Confidentiality FCC ID: S5V-D07M71 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name:Sindy Chan Title: Manager Email: [email protected]

PROEXPRESS DISTRIBUTOR LLC Letter of Authorization Company: PROEXPRESS DISTRIBUTOR LLC Address: 7668 standish place, STE B, Rockville, Maryland, 20855, United States Product Name: Tablet PC Model Number: M7, M7 Pro, M8, M8 Pro FCC Identifier: S5V-D07M71 We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Sindy Chan Date: Jan. 07.2020 Title: Manager Signature of applicant:

PROEXPRESS DISTRIBUTOR LLC Date: Jan 07, 2020 FCC ID: S5V-D07M71 Model Number: M7, M7 Pro, M8, M8 Pro To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, PROEXPRESS DISTRIBUTOR LLC, declare that this EUT (FCC ID: S5V-D07M71) will conduct FCC compliance testing, the SDOC part recognized test lab(Shenzhen NTEK Testing Technology Co., Ltd.( ShenZhen Lab.). 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen 518126 P.R. China) Please contact me if you have any question. Sincerely, (Signed) Name / Title: Sindy Chan/ Manager Company: PROEXPRESS DISTRIBUTOR LLC Address: 7668 standish place, STE B, Rockville, Maryland, 20855, United States Phone: 301-670-7335 Fax: 301-859-0491 Email: [email protected]

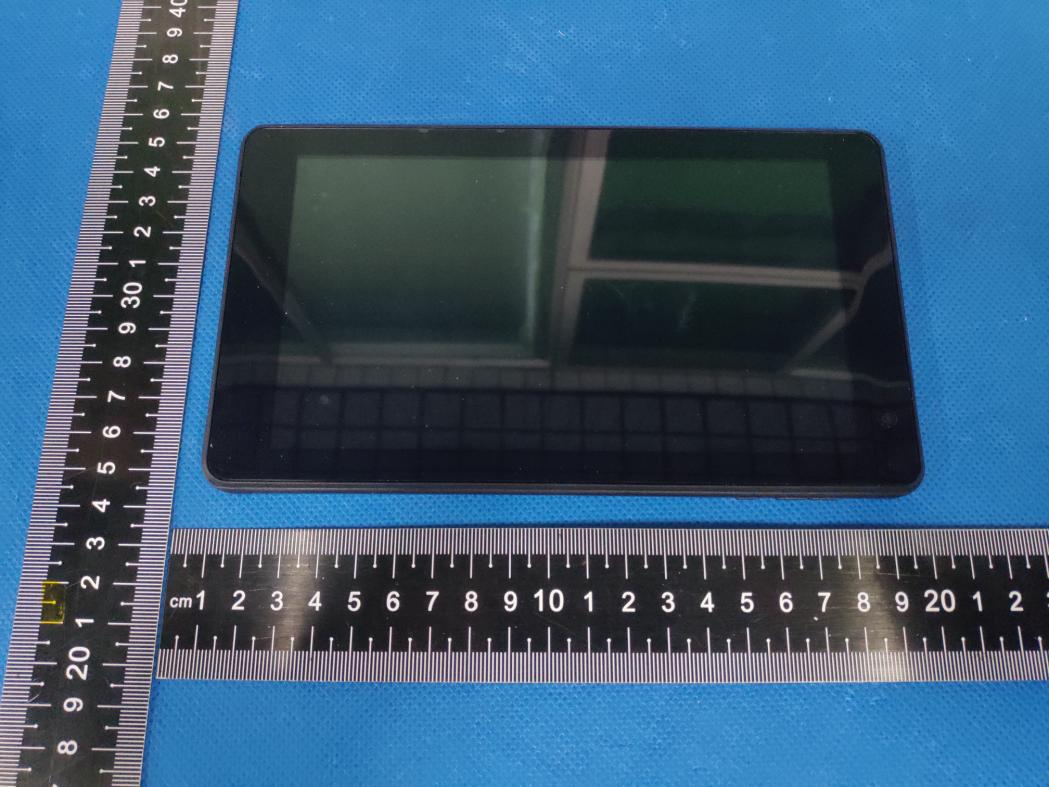

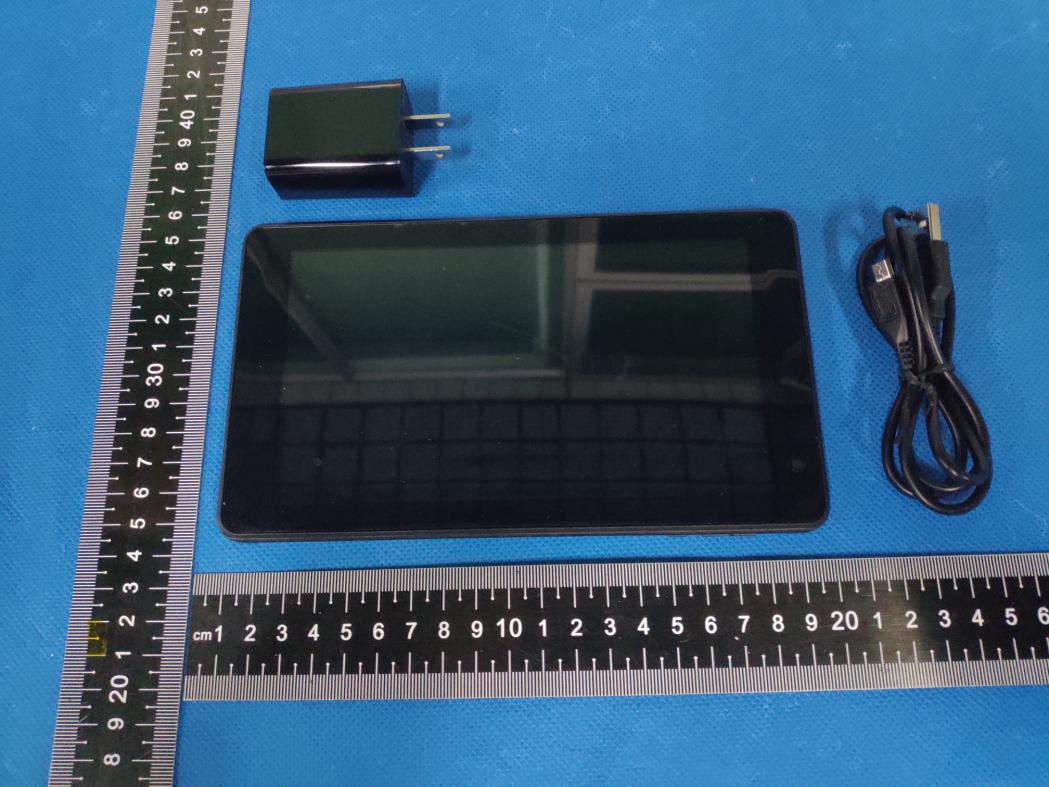

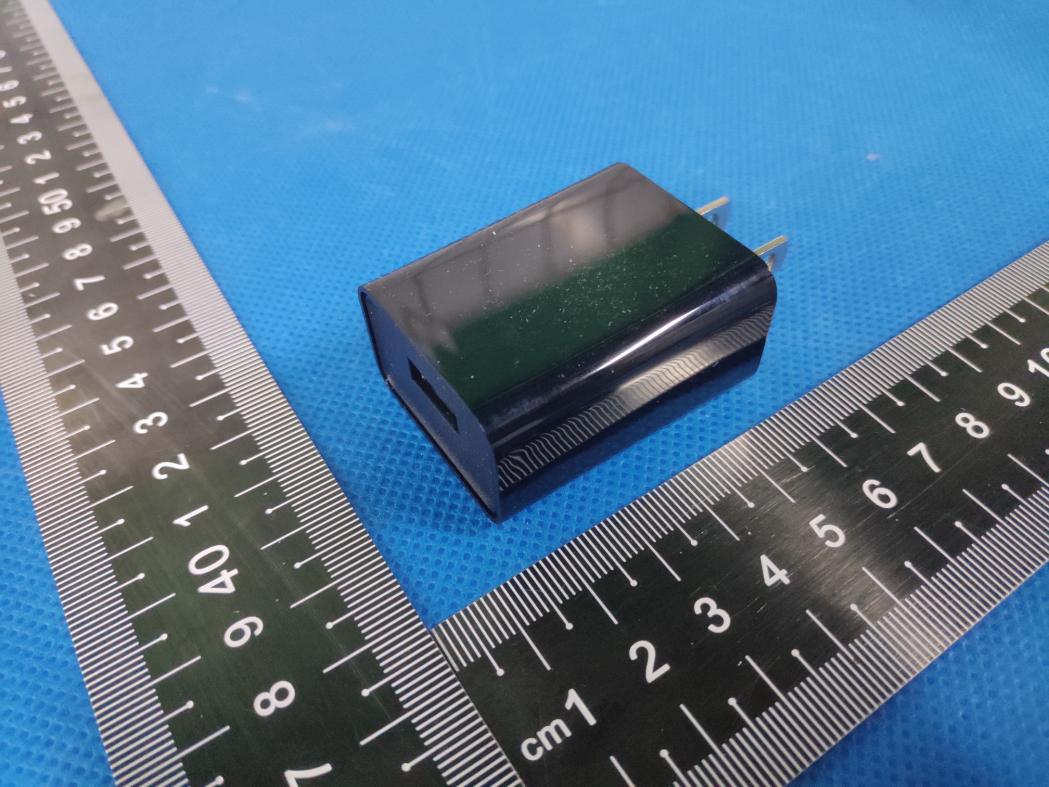

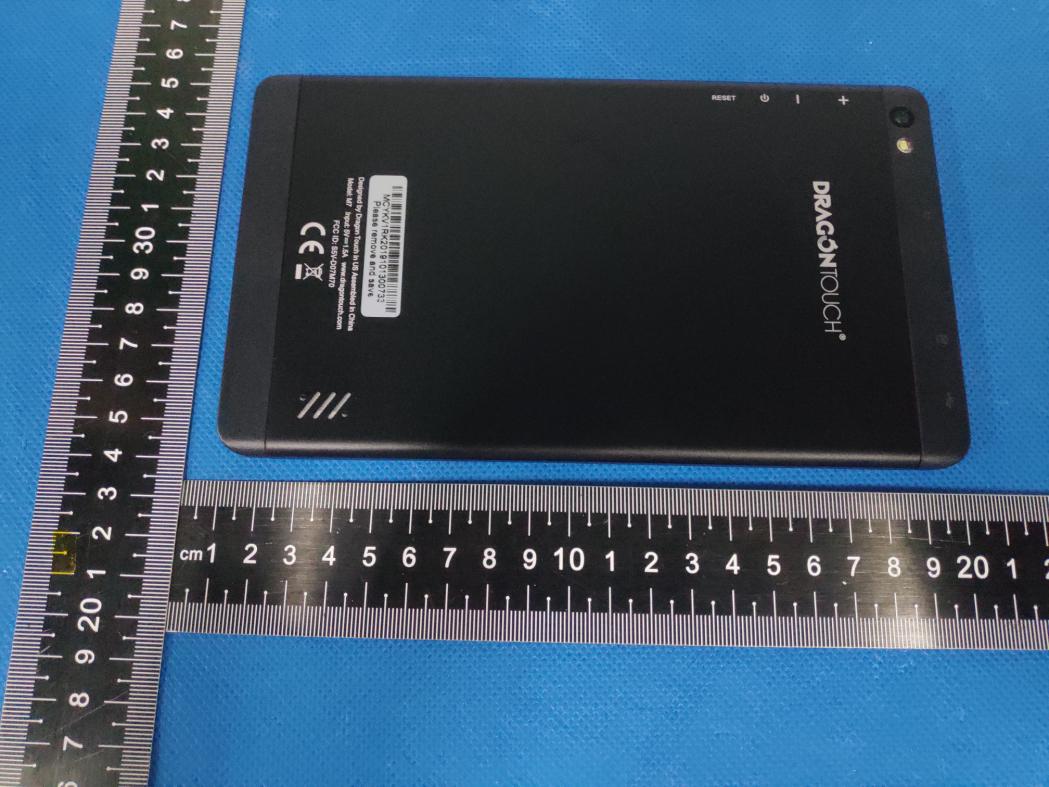

S19091003502 Model: M7 N20190309V1 ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 S19091003502 Model: M7 N20190309V1 Photo 3 Photo 4 S19091003502 Model: M7 N20190309V1 Photo 5 Photo 6 S19091003502 Model: M7 N20190309V1 Photo 7 Photo 8 S19091003502 Model: M7 N20190309V1 Photo 9 Photo 10

M M 7 FCC ID: S5V-D07M71 210-xxxxxx

S19091003502 Model: M7 N20190309V1 ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 S19091003502 Model: M7 N20190309V1 Photo 3 Photo 4 S19091003502 Model: M7 N20190309V1 Photo 5 Photo 6 S19091003502 Model: M7 N20190309V1 Photo 7 Photo 8 S19091003502 Model: M7 N20190309V1 Photo 9 Photo 10 WIFI 2.4G/BT Ant

FCC ID: S5V-D07M71 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. WIFI+BT: Modulation Channel Freq. (GHz) Conducted power (dBm) Conducted power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion 2.412 9.4 8.71 8.7±19.7 9.33<52.898803.00YES 2.442 9.41 8.73 8.7±19.7 9.33<52.916773.00YES 2.462 9.69 9.31 8.7±19.7 9.33<52.928693.00YES 2.412 9.59 9.10 8.8±19.8 9.55<52.966323.00YES 2.442 9.48 8.87 8.8±19.8 9.55<52.984713.00YES 2.462 9.8 9.55 8.8±19.8 9.55<52.996913.00YES 2.412 9.41 8.73 8.7±19.7 9.33<52.898803.00YES 2.442 9.39 8.69 8.7±19.7 9.33<52.916773.00YES 2.462 9.7 9.33 8.7±19.7 9.33<52.928693.00YES 2.422 9.22 8.36 8.5±19.5 8.91<52.774073.00YES 2.442 9.28 8.47 8.5±19.5 8.91<52.785503.00YES 2.452 9.44 8.79 8.5±19.5 8.91<52.791203.00YES 2.402 4.129 2.59 4.6±15.6 3.63<51.125423.00YES 2.441 5.55 3.59 4.6±15.6 3.63<51.134523.00YES 2.48 4.622 2.90 4.6±15.6 3.63<51.143553.00YES 2.402 3.296 2.14 2.5±13.5 2.24<50.693933.00YES 2.441 4.841 3.05 2.5±13.5 2.24<50.699543.00YES 2.48 3.916 2.46 2.5±13.5 2.24<50.705113.00YES 2.402 3.427 2.20 4.1±15.1 3.24<51.003043.00YES 2.441 5.012 3.17 4.1±15.1 3.24<51.011153.00YES 2.48 4.049 2.54 4.1±15.1 3.24<51.019193.00YES 2.402 4.138 2.59 4.6±15.6 3.63<51.125423.00YES 2.44 5.55 3.59 4.6±15.6 3.63<51.134293.00YES 2.48 4.39 2.75 4.6±15.6 3.63<51.143553.00YES BT3.0-8- DPSK BLE-GFSK 802.11n HT20 802.11n HT40 802.11b 802.11g BT3.0- GFSK BT3.0-π/4- DQPSK Conclusion: For the max result : 2.99691 ≤ 3.0 for Max Power Density, compliance RF exposure. Signature: Date: 2020-01-07 NAME AND TITLE (Please print or type): Jason Chen /Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China.
