S5V-Y88X8Tablet PC

Tablet with Android™ Please read this manual before operating your tablet, and keep it for further reference. USER MANUAL Tablet PC (1) (2) S5V-Y88X8 Y88X 7 CONTENTS 57 - 70 71 - 84 01 - 1415 - 28 43 - 5629 - 42 12 English Browse the Web Visit your favorite websites. Check your e-mail Keep in touch with friends and family. Watch YouTube™ videos Browse the world’s most popular video- sharing community. Read your favorite books Download thousands of books with the included E-book reader*. Discover thousands of apps for Android™ Games, applications, and more with Play Store (Customer need to download it from Google™ Play Store). Connect to the Internet wirelessly High-speed Wi-Fi 802.11 b/g/n networking. Enjoy your media library anywhere. Portable powerhouse plays popular music, video, and photo formats. MicroSD memory card reader. Increase your storage capacity (up to 128GB supported). Built-in camera Convenient Front Camera 0.3MP / Rear Camera 2.0MP. Automatic orientation detection Read any way you want; the display adjusts automatically! Reading books in the e-Pub format requires the included E-book reader application. FEATURESUNIT AT A GLANCE Front Camera USB Port: Connect to a USB device / Power Port MicroSD Card: Load external microSD memory cards here. Headphone: Audio output connection for headphones. VOL+/VOL- Power Button / Screen Saver Reset Hole Rear Camera Speaker 2 3 4 5 7 6 8 9 1 1 2 3 4 5 6 7 8 9 34 GETTING STARTED Turning on / off the tablet To turn on the tablet: Press and hold the Power button until the LCD screen turns on. Wait until the Home screen appears, the tablet is now ready for use. To turn off the tablet: 1. Press and hold the Power button until the Device Options menu appears. 2. Tap “OK” to turn off the tablet. Turning on / off the screen (Sleep mode) When the tablet is on, you can turn off the screen to save battery power. Simply press the power button once to turn the screen off. Press the power button again to turn the screen back on. To save battery power, the screen can be set to turn off automatically when the tablet is not in use (between 1 minute and 30 minutes). This screen timeout option can be found in the Display menu. Changing the language Many users purchase Android tablets that come with the user interface in English, and they want to have it translated into their language, like Spanish, French, Chinese, German and so on. Tap "settings-system-language & input-languages-add a language". A list is shown with all the available display languages that you can use on your Android device. Tap and hold the lines near the name of the language that you want to use, and drag it to the top of the list. If you do not need a particular display language, you can delete it. Click the three dots in the top-right corner of the screen, near the text Language preferences. A menu is shown, with only one option: "Remove". Tap on it. Home Screen Back: Press to check previous operating display. Home Screen: Press to go to home screen. Background: Press to check applications running on background. Existing idle Apps may provide a better performance. Application Panel: Press to check all available Applications. Wallpaper Tap and hold your finger in any blank space of the home screen, you will see a pop-up menu; you can choose wallpaper from Gallery or your downloaded files or those listed as options;set the one you like to be wall paper. Widgets Tap and hold your finger in any blank space of home screen, you will see a pop-up menu with widget. Tip: 1. Tap one icon and move on to top of another icon, you can create a new folder on home screen. Open the folder; click ‘Unnamed Folder ’ to rename the folder. 2. Swipe down vertically from top part of a display to enter quick notification menu. Screen Lock Set a screen lock to secure your tablet. Tap - Setting-Security-Screen security-Select screen lock, and select a mode from None, Swipe, Pattern, PIN and Password. You can create a Backup PIN as a safety measure in case you forget your code. 56 ABOUT APPLICATIONS To open an application, touch the application icon on the home screen or in the Launcher where you can tap the icon right up on the home screen to get in. Launcher screen: Unlocking the screen When the screen turns off, you will have to unlock the screen when you turn it back on. To unlock the screen, swipe up the lock icon. The screen shown above is for illustrative purposes only. We reserve the right to modify and improve the final list of applications available on the tablet. Screen shot Press and hold the power button and volume “-” at the same time to screenshot. The screenshot will be saved in the photos file. ABOUT APPLICATIONS Preinstalled Applications Some applications have been installed on your tablet for your convenience. These applications include: PREINSTALLED APPLICATIONS Installing Applications You can also download an install additional applications from the device’s applications marketplace, the web browser, or other sources. The tablet must be set to allow installation of applications from non-Market sources. The Unknown sources option can be set in the Application settings menu. Browse the web. Perform simple mathematical operations. Take pictures or videos with the camera. Check your e-mail. Play music. Access the Settings menu to adjust the tablet’s options. 78 CONNECT TO A WI-FI NETWORK The Notification bar displays icons that indicate your tablet’s Wi-Fi status. Notification that an open Wi-Fi network is in range. Connected to a Wi-Fi network (waves indicate connection strength). [no icon] There are no Wi-Fi networks in range, or the Wi-Fi radio is off. 1. Turn on the Wi-Fi radio if it is not already on. To turn on Wi-Fi: a. Go to the Home screen: Press the home button. b. Open the Settings menu: tap the icon right up on the home screen to get into the launcher, then tap settings icon. c. Open the Wireless & networks menu: Slide the icon to ON status. When Wi-Fi is on, the tablet will look for…

Text truncated - open the document above for the full version.

PROEXPRESS DISTRIBUTOR LLC Date:2020-09-30 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject; Request for Long Term Confidentiality FCC ID: S5V-Y88X8 T o Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. T hese documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure I t is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. S incerely, Signature: N ame: Sindy Chan T itle: engineer

PROEXPRESS DISTRIBUTOR LLC 7668 standish place, STE B, Rockville, Maryland, 20855, United States Statement Produc t: Tablet PC Model: Y88X 7 Additional Model: KidzPad Y88X 8, KidzPad Y88X 9, Notepad_Go_803, kidzpad Y88X, kidzpad Y88X 10, NotePad 101B, KidzPad C3, KidzPad C3 PRO, KidzPad T2, KidzPad T2 PRO, KidzPad E1, KidzPad E1 PRO, KidzPad Y88X 7, Y88X 8 Trademark: DRAGONTOUCH We hereby state that All models above are identical in interior structure, electrical circuits and components, and just model names are different for the marketing requirement. Your assistance on this matter is highly appreciated. You rs sincerely, Signat ure: Date: 2020/09/30 Name: Sindy Chan Company Name : PROEXPRESS DISTRIBUTOR LLC Address: 7668 standish place, STE B, Rockville, Maryland, 20855, United States Tel / Fax: 301-670-7335/301-859-0491 E- Mail: [email protected]

PROEXPRESS DISTRIBUTOR LLC Agent Authorization Company: PROEXPRESS DISTRIBUTOR LLC Address: 7668 standish place, STE B, Rockville, Maryland, 20855, United States Product Name: Tablet PC Model Number(s): Y88X 7, KidzPad Y88X 8, KidzPad Y88X 9, Notepad_Go_803, kidzpad Y88X, kidzpad Y88X 10, NotePad 101B, KidzPad C3, KidzPad C3 PRO, KidzPad T2, KidzPad T2 PRO, KidzPad E1, Kidz Pad E1 PRO, KidzPad Y88X 7, Y88X 8 Product Description: Tablet PC We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to dis cuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-09-30 Name: Sindy Chan Title: engineer Company: PROEXPRESS DISTRIBUTOR LLC

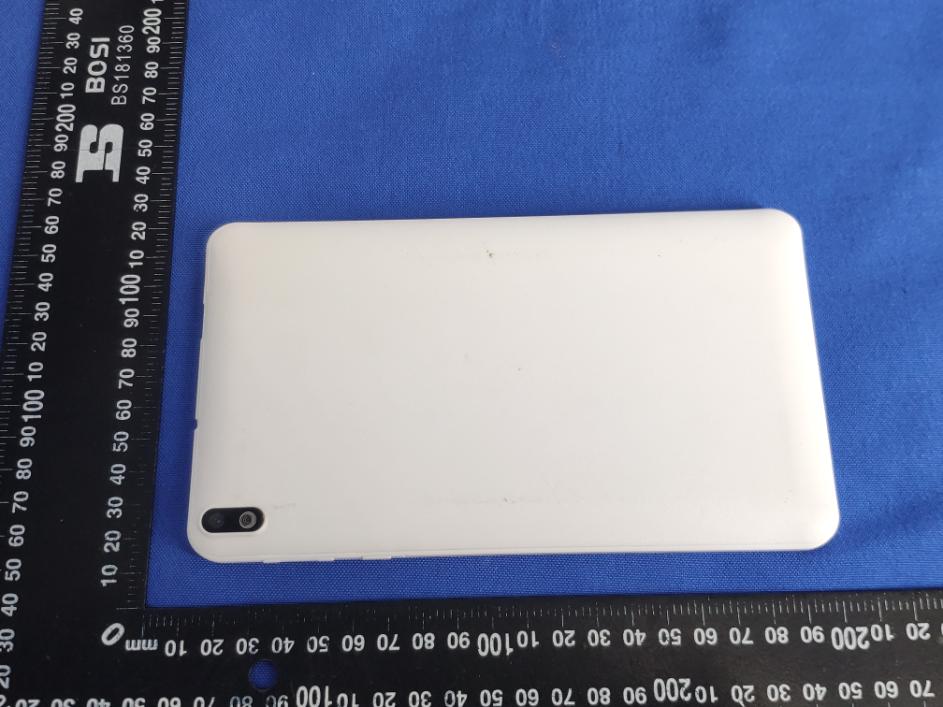

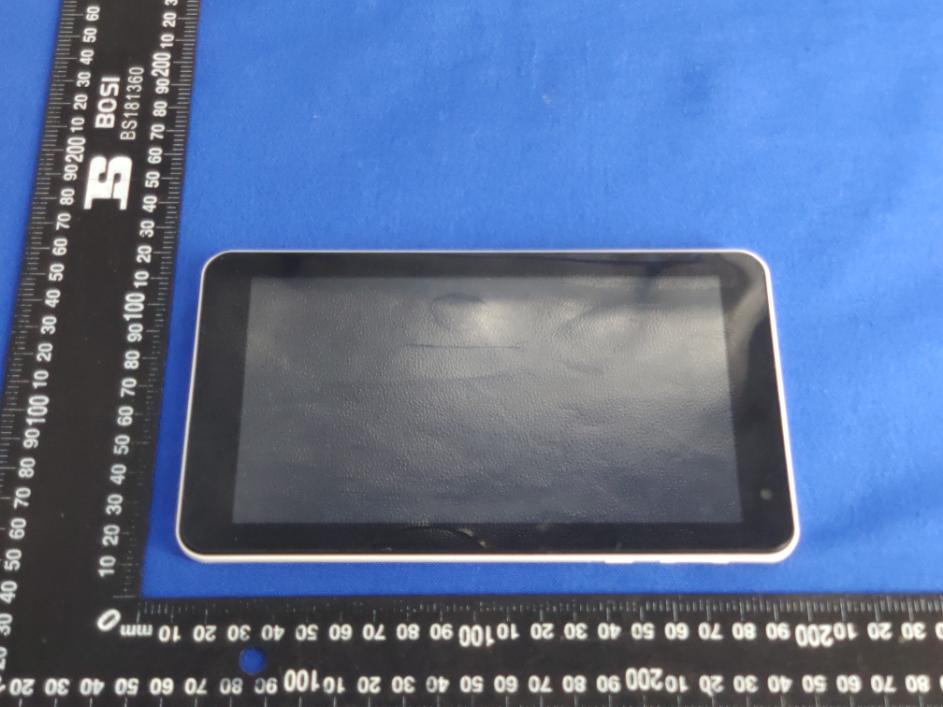

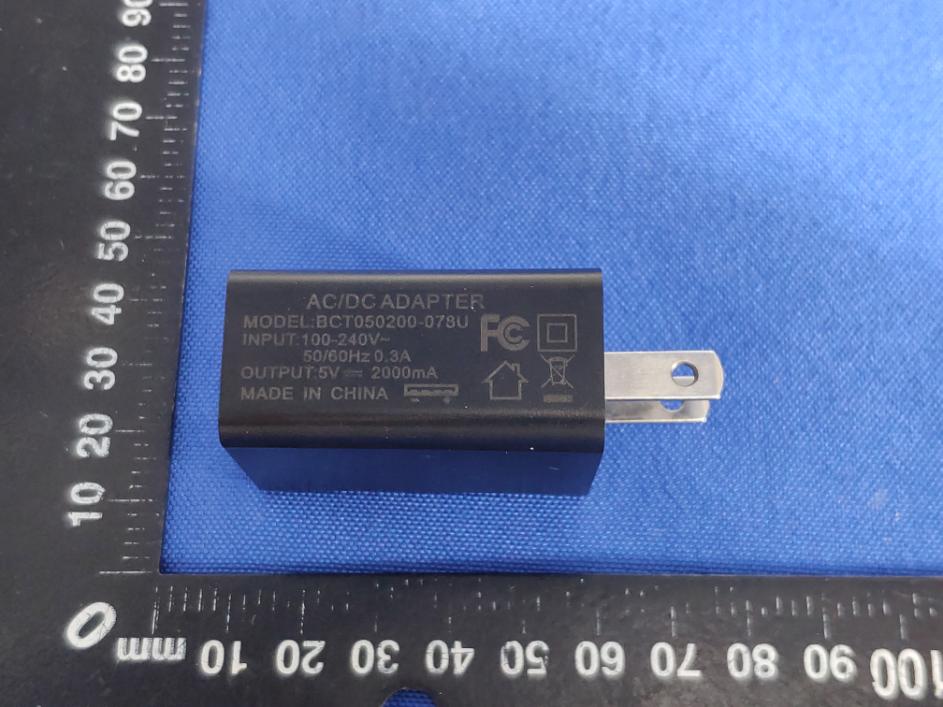

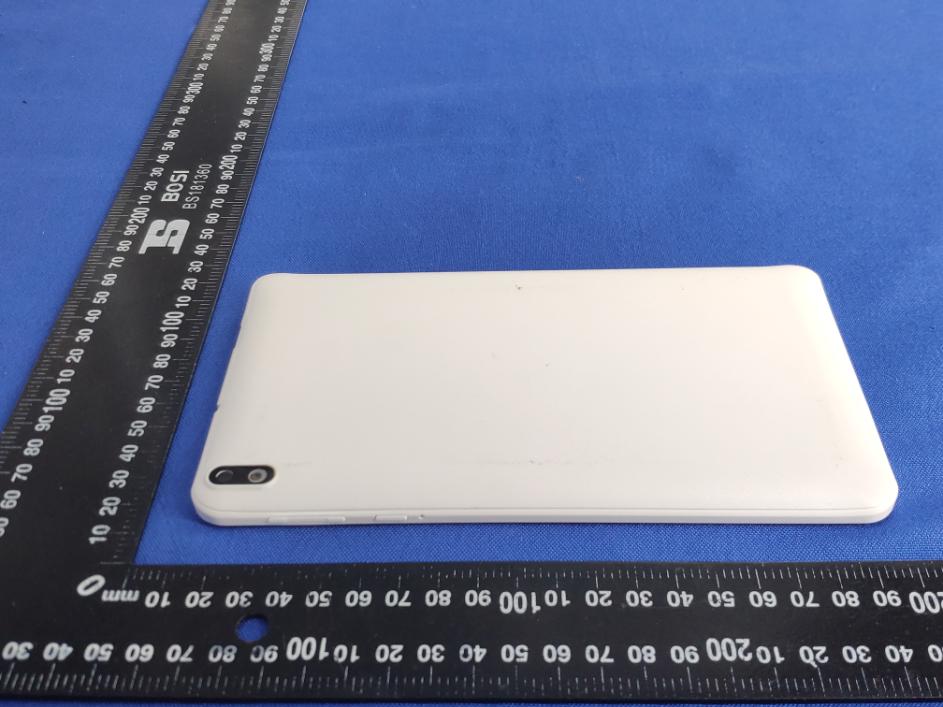

Page 1 of 4 Appendix B: Photographs of EUT Product: Tablet PC Model: Y88X 7 External Photos Page 2 of 4 Page 3 of 4 Page 4 of 4

Label Artwork and Location Model: Y88X 7 Label: Size: L*W=*18*12mm Tablet PC Model: Y88X 7 FCC ID: S5V-Y88X8 5mm 210-147752 Location

Page 1 of 5 Appendix B: Photographs of EUT Product: Tablet PC Model: Y88X 7 Internal Photos Antenna Page 2 of 5 Page 3 of 5 Page 4 of 5 Page 5 of 5

RF exposure evaluation §2.1093 Radiofrequency radiation exposure evaluation: Portable Devices. According to§15.247(i) and§1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidance. The 1-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  When the minimum test separation distance is < 5 mm, a distance of 5 mm according is applied to determine SAR test exclusion.  The result is rounded to one decimal place for comparison For BDR+EDR: Channel Frequency (GHz) Max. Power (dBm) Tune up Power (dBm) Max. Tune up Power (dBm) Max. Tune up Power (mW) Test distance (mm) Result exclusion thresholds for 1-g SAR CH 78 2.480 0.41 0±1 1 1.26 5 0.40 3.0 For WIFI: Channel Frequency (GHz) Max. Power (dBm) Tune up Power (dBm) Max. Tune up Power (dBm) Max. Tune up Power (mW) Test distance (mm) Result exclusion thresholds for 1-g SAR CH 11 2.462 8.80 8±1 9 7.94 5 2.49 3.0 Result: Base on the calculation value, No SAR measurement is required.

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: S5V-Y88X8 Product: Tablet PC Model No.: Y88X 7 Additional Model No.: KidzPad Y88X 8, KidzPad Y88X 9, Notepad_Go_803, kidzpad Y88X, kidzpad Y88X 10, NotePad 101B, KidzPad C3, KidzPad C3 PRO, KidzPad T2, KidzPad T2 PRO, KidzPad E1, KidzPad E1 PRO, KidzPad Y88X 7, Y88X 8 Trade Mark: DragonTouch Report No.: TCT200928E914 Issued Date: Sep. 29, 2020 Issued for: PROEXPRESS DISTRIBUTOR LLC 7668 standish place, STE B, Rockville, Maryland 20855, United States Issued By: Shenzhen Tongce Testing Lab. 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China TEL: +86-755-27673339 FAX: +86-755-27673332 This report refers to TCT200706E031; Change additional model and trade mark. Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT200928E914 Page 2 of 67 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification ..................................................................................... 3 2. Test Result Summary .............................................................................. 4 3. EUT Description ....................................................................................... 5 4. General Information ................................................................................. 7 4.1. Test environment and mode ................................................................................. 7 4.2. Description of Support Units ................................................................................ 8 5. Facilities and Accreditations .................................................................. 9 5.1. Facilities ................................................................................................................. 9 5.2. Location ................................................................................................................. 9 5.3. Measurement Uncertainty ..................................................................................... 9 6. Test Results and Measurement Data ................................................... 10 6.1. Antenna requirement .......................................................................................... 10 6.2. Conducted Emission ........................................................................................... 11 6.3. Maximum Conducted (Average) Output Power ................................................ 15 6.4. Emission Bandwidth ........................................................................................... 16 6.5. Power Spectral Density ....................................................................................... 17 6.6. Conducted Band Edge and Spurious Emission Measurement ....................... 18 6.7. Radiated Spurious Emission Measurement ...................................................... 20 Appendix A: Test Result of Conducted Test Appendix B: Photographs of Test Setup Appendix C: Photographs of EUT Report No.: TCT200928E914 Page 3 of 67 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product: Tablet PC Model No.: Y88X 7 Additional Model No.: KidzPad Y88X 8, KidzPad Y88X 9, Notepad_Go_803, kidzpad Y88X, kidzpad Y88X 10, NotePad 101B, KidzPad C3, KidzPad C3 PRO, KidzPad T2, KidzPad T2 PRO, KidzPad E1, KidzPad E1 PRO, KidzPad Y88X 7, Y88X 8 Trade Mark: DragonTouch Applicant: PROEXPRESS DISTRIBUTOR LLC Address: 7668 standish place, STE B, Rockville, Maryland 20855, United States Manufacturer: Shenzhen Rui Ming Xin Technology Co.LTD Address: 6/F, Building 4, Heng Chang Rong, NO.128, Shang Nan East Road, ShaJing, Baoan, ShenZhen, China Date of Test: Jul. 07, 2020 – Jul. 15, 2020 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10:2013 The above equipment has been tested by Shenzhen Tongce Testing Lab. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date: Jul. 15, 2020 Brave Zeng Reviewed By: Date: Sep. 29, 2020 Beryl Zhao Approved By: Date: Sep. 29, 2020 Tomsin Report No.: TCT200928E914 Page 4 of 67 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Requirement CFR 47 Section Result Antenna requirement §15.203/§15.247 (c) PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247 (b)(3) PASS 6dB Emission Bandwidth §15.247 (a)(2) PASS Power Spectral Density §15.247 (e) PASS Band Edge §15.247(d) PASS Spurious Emission §15.205/§15.209 PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: TCT200928E914 Page 5 of 67 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. EUT Description Product: Tablet PC Model No.: Y88X 7 Additional Model No.: KidzPad Y88X 8, KidzPad Y88X 9, Notepad_Go_803, kidzpad Y88X, kidzpad Y88X 10, NotePad 101B, KidzPad C3, KidzPad C3 PRO, KidzPad T2, KidzPad T2 PRO, KidzPad E1, KidzPad E1 PRO, KidzPad Y88X 7, Y88X 8 Trade Mark: DragonTouch Hardware Version: V2.0 Software Version: Sf983aka_2h10_userdebug_20200428 Op…

Text truncated - open the document above for the full version.

Report No.: TCT200928E914 Page 51 of 67 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200928E914 Page 52 of 67 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Conducted Spurious Emission Test Result Test Mode Antenna Channel Freq Range [Mhz] Ref Level [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 0.70 0.70 --- PASS 30~1000 30~1000 -67.763 <=-29.301 PASS 1000~26500 1000~26500 -42.552 <=-29.301 PASS 2437 Reference -0.32 -0.32 --- PASS 30~1000 30~1000 -68.099 <=-30.318 PASS 1000~26500 1000~26500 -43.202 <=-30.318 PASS 2462 Reference 0.52 0.52 --- PASS 30~1000 30~1000 -68.152 <=-29.483 PASS 1000~26500 1000~26500 -42.979 <=-29.483 PASS 11G Ant1 2412 Reference -4.27 -4.27 --- PASS 30~1000 30~1000 -67.599 <=-34.268 PASS 1000~26500 1000~26500 -43.334 <=-34.268 PASS 2437 Reference -5.51 -5.51 --- PASS 30~1000 30~1000 -68.64 <=-35.505 PASS 1000~26500 1000~26500 -42.52 <=-35.505 PASS 2462 Reference -4.22 -4.22 --- PASS 30~1000 30~1000 -68.809 <=-34.223 PASS 1000~26500 1000~26500 -42.017 <=-34.223 PASS 11N20SISO Ant1 2412 Reference -4.56 -4.56 --- PASS 30~1000 30~1000 -68.342 <=-34.556 PASS 1000~26500 1000~26500 -43.225 <=-34.556 PASS 2437 Reference -5.89 -5.89 --- PASS 30~1000 30~1000 -68.58 <=-35.888 PASS 1000~26500 1000~26500 -43.349 <=-35.888 PASS 2462 Reference -4.38 -4.38 --- PASS 30~1000 30~1000 -69.195 <=-34.38 PASS 1000~26500 1000~26500 -42.781 <=-34.38 PASS Report No.: TCT200928E914 Page 53 of 67 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 Report No.: TCT200928E914 Page 54 of 67 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 11B_Ant1_2437_1000~26500 Report No.: TCT200928E914 Page 55 of 67 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 11B_Ant1_2462_1000~26500 Report No.: TCT200928E914 Page 56 of 67 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_Ant1_2412_0~Reference 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 Report No.: TCT200928E914 Page 57 of 67 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_Ant1_2437_0~Reference 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 Report No.: TCT200928E914 Page 58 of 67 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 Report No.: TCT200928E914 Page 59 of 67 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 11N20SISO_Ant1_2412_1000~26500 Report No.: TCT200928E914 Page 60 of 67 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 11N20SISO_Ant1_2437_1000~26500 Report No.: TCT200928E914 Page 61 of 67 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_Ant1_2462_0~Reference 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 Report No.: TCT200928E914 Page 62 of 67 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200928E914 Page 63 of 67 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Duty Cycle Test Result Test Mode Antenna Channel Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Limit Verdict 11B Ant1 2412 50.00 50.00 100.00 --- PASS 2437 50.00 50.00 100.00 --- PASS 2462 50.00 50.00 100.00 --- PASS 11G Ant1 2412 50.00 50.00 100.00 --- PASS 2437 50.00 50.00 100.00 --- PASS 2462 50.00 50.00 100.00 --- PASS 11N20SISO Ant1 2412 50.00 50.00 100.00 --- PASS 2437 50.00 50.00 100.00 --- PASS 2462 50.00 50.00 100.00 --- PASS Test Graphs 11B_Ant1_2412 11B_Ant1_2437 Report No.: TCT200928E914 Page 64 of 67 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 Report No.: TCT200928E914 Page 65 of 67 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 Report No.: TCT200928E914 Page 66 of 67 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200928E914 Page 67 of 67 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Appendix B: Photographs of Test Setup Refer to the test report No. TCT200928E905 Appendix C: Photographs of EUT Refer to the test report No. TCT200928E905 *****END OF REPORT*****

Page 1 of 2 Appendix A: Photographs of Test Setup Product: Tablet PC Model: Y88X 7 Radiated Emission Page 2 of 2 Conducted Emission
