S5V-TABC10Cloud photo frame

Quick Start Guide Wi-Fi Cloud Photo Frame Classic 10 V1.3 (1) (2) To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna. 25 - 3031 - 36 01 - 0607 - 12 19 - 2413 - 18 CONTENTS CONTENTS OF BOX FRAME FEATURES Dragon Touch Wi-Fi Cloud Photo Frame Classic 10 Stand Power Adapter with Power Cable USB Data Cable Quick Start Guide 7 8 9 10 11 1 2 3 4 5 6 7 8 10.1“ IPS Touch Screen Power Button Wall Mount Hole Security Lock Slot Speakers Stand Port SD Card Slot 3.5mm Headphone Jack USB-A Port 9 Mini USB Port 10 DC Power Port 11 English 12 Quick Start Guide Wi-Fi Cloud Photo Frame Classic 10 2 6 3 5 4 12 Stand 01 02 1 SET UP Install the Stand on the back OPERATING INSTRUCTIONS Step 1: Power On Connect the Power Cable to your frame and plug the Power Adapter into the wall socket. Your frame will power on and enter the system in seconds. Step 2: Connect to Wi-Fi Select the Wi-Fi network you would like to connect and enter the password if required. Note: Classic 10 supports 2.4GHz Wi-Fi only; if your Wi-Fi network is NOT on the list, move your frame closer to your router, wait for seconds and check it again. Classic 10 will let you know once it has successfully connected. Step 3: Download the OurPhoto app in your smartphone/tablet Please download and install the OurPhoto app in your smartphone/tablet by searching OurPhoto in the App Store or Google Play. Step 4: Log in Your Account in the App 1. Open OurPhoto app, select Sign Up and fill in all the required information (if you already have an account, please log in directly and skip to step 5). 2. Click the right arrow icon to verify the email address you provide. A verify code is to be sent to your email address. 3. Collect and fill in the verify code, then click Submit to complete the account registration. Step 5: Bind Your Frame 1. Please confirm you have signed in OurPhoto app. 2. Select Devices. 3. Click the “+” next to My Devices. 4. Enter the Frame ID. Note: Frame ID is a 6-digit series number which can be found in your frame, Settings → Device Info. 5. Create a Device Name for your frame. Note: We recommend you to name your frame after the Frame ID for easy identification, for example, Frame ID is 123456, please name your frame Frame123456 or Grandma's Frame123456. 6. Create a unique email account for your frame so that you and your friends can send photos to your frame via email. Note: In order to create an email account that is unique and easy to remember, we recommend you to create the account with your Frame ID, for example, Frame ID is 123456, please create such an email account [email protected] or [email protected]. You can also find the Wall Mount Hole on the back if you prefer to mount the frame. 03 04 7. Then click Bind. 8. Confirm the binding on your frame, Settings → User Management → Pending User Request, click Accept. 9. Now your account is bound to your frame, and your account has been the main account of your frame. Step 6: Upload Photos App: Follow the app instructions, you can upload the photos and footages in your smartphone/ tablet, or take the new photos and footages and upload them to your frame. Email: You can send photos with your registered email account to the email account of your frame. USB Drive/SD card Step 7: Invite Friends to Upload Photos App: Invite your friends to download the OurPhoto app and log in their accounts in the app (please refer to step 3 & 4). Bind their accounts to your frame. On their way, operate in the app with their accounts, select Devices → Bound Devices, then click "+". On your way, you confirm the binding request on your frame, please refer to Step 5-8 → binding completed. Now your friends can follow the app instructions and upload their photos & footages to your frame. Email: Invite your friends to bind their email account to your frame, ask them to send email with subject "bd + Frame ID" to the email account of your frame, for example, Frame ID is 123456, hence invite your friends to send email with subject "bd123456" to the email account of your frame. Now your friends can send photos with their bundled email account to your frame via email. For any problem with Dragon Touch products, please feel free to contact us, we will respond within 24 hours. E-mail: [email protected] Tel: 1-888-811-1140 (US) Mon-Fri (except holidays) 9am-5pm (EST) Official website: www.dragontouch.com Scan the following QR Code or visit Dragon Touch website to download detailed user manual. USER MANUAL CONTACT US www.dragontouch.com/manual/classic10.pdf English 05 06 LIEFERUMFANG RAHMENFUNKTIONEN Dragon Touch Wi-Fi Cloud Fotorahmen Classic 10 StandNetzteil mit Netzkabel USB-DatenkabelFernbedienung Quick Start Guide Wi-Fi Cloud Photo Frame Classic 10 Deutsch 7 8 9 10 11 1 2 3 4 5 6 7 8 10,1-Zoll-IPS-Touchscreen Ein- / Ausschalter Loch für Wandmontage Slot für Sicherheitsschloss Lautsprecher Stand-Anschluss SD-Kartensteckplatz 3,5 mm Kopfhöreranschluss USB-A-Anschluss 9 Mini-USB-Anschluss 10 Gleichstromanschluss 11 12 2 6 3 5 4 12 Stand 07 08 1 KONFIGURATION Installieren Sie den Ständer auf der Rückseite BEDIENUNGSANLEITUNG Schritt 1: Einschalten Schließen Sie das Netzkabel an Ihren Rahmen an und stecken Sie den Netzadapter in die Steckdose. Ihr Rahmen wird sich einschalten und in Sekunden das System betreten. Schritt 2: Stellen Sie eine Verbindung zu Wi-Fi her Wählen Sie das Wi-Fi-Netzwerk aus, zu dem Sie eine Verbindung herstellen möchten, und geben Sie bei Bedarf das Kennwort ein. Hinweis: Classic 10 unterstützt nur 2,4-GHz-WLAN. Wenn Ihr Wi-Fi-Netzwerk NICHT in der Liste enthalten ist, bewegen Sie den Rahmen näher an den Router, warten Sie einige Sekunden und überprüfen Sie ihn erneut. Classic 10 informiert Sie, sobald die Verbindung erfolgreich hergestellt wurde. Schritt 3: Laden Sie die OurPhoto-App auf Ihr Smartphone / Tablet herunter Laden Sie die …

Text truncated - open the document above for the full version.

PROEXPRESS DISTRIBUTOR LLC Family models declaration letter. 2020-01-19 We Company: PROEXPRESS DISTRIBUTOR LLC Address: 7668 standish place, STE B, Rockville, Maryland, 20855, United States Product: Cloud photo frame Model Name: Classic 10 Family Model: Classic 10 FHD, Modern 10, Modern 10 Charm All models are the same circuit and RF module, except the model name. Thanks Sincerely, Signature 2020-01-19 Name: Sindy Chan Title: Manager

PROEXPRESS DISTRIBUTOR LLC Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020/01/19 Subject; Request for Confidentiality FCC ID: S5V-TABC10 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name:Sindy Chan Title: Manager Email: [email protected]

PROEXPRESS DISTRIBUTOR LLC Letter of Authorization Company: PROEXPRESS DISTRIBUTOR LLC Address: 7668 standish place, STE B, Rockville, Maryland, 20855, United States Product Name: Cloud photo frame Model Number: Classic 10, Classic 10 FHD, Modern 10, Modern 10 Charm FCC Identifier: S5V-TABC10 We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Sindy Chan Date: Jan. 19.2020 Title: Manager Signature of applicant:

PROEXPRESS DISTRIBUTOR LLC Date: Jan 19, 2020 FCC ID: S5V-TABC10 Model Number: Classic 10, Classic 10 FHD, Modern 10, Modern 10 Charm To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, PROEXPRESS DISTRIBUTOR LLC, declare that this EUT (FCC ID: S5V-TABC10) will conduct FCC compliance testing, the SDOC part recognized test lab(Shenzhen NTEK Testing Technology Co., Ltd.( ShenZhen Lab.). 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen 518126 P.R. China) Please contact me if you have any question. Sincerely, (Signed) Name / Title: Sindy Chan/ Manager Company: PROEXPRESS DISTRIBUTOR LLC Address: 7668 standish place, STE B, Rockville, Maryland, 20855, United States Phone: 301-670-7335 Fax: 301-859-0491 Email: [email protected]

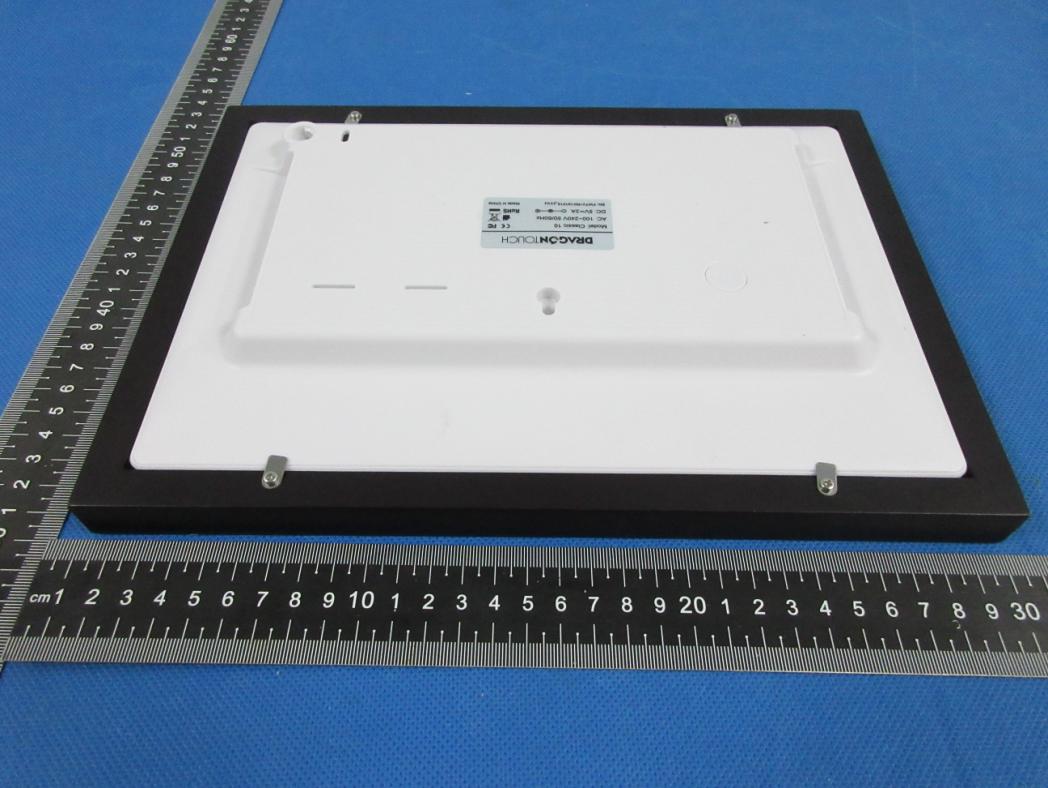

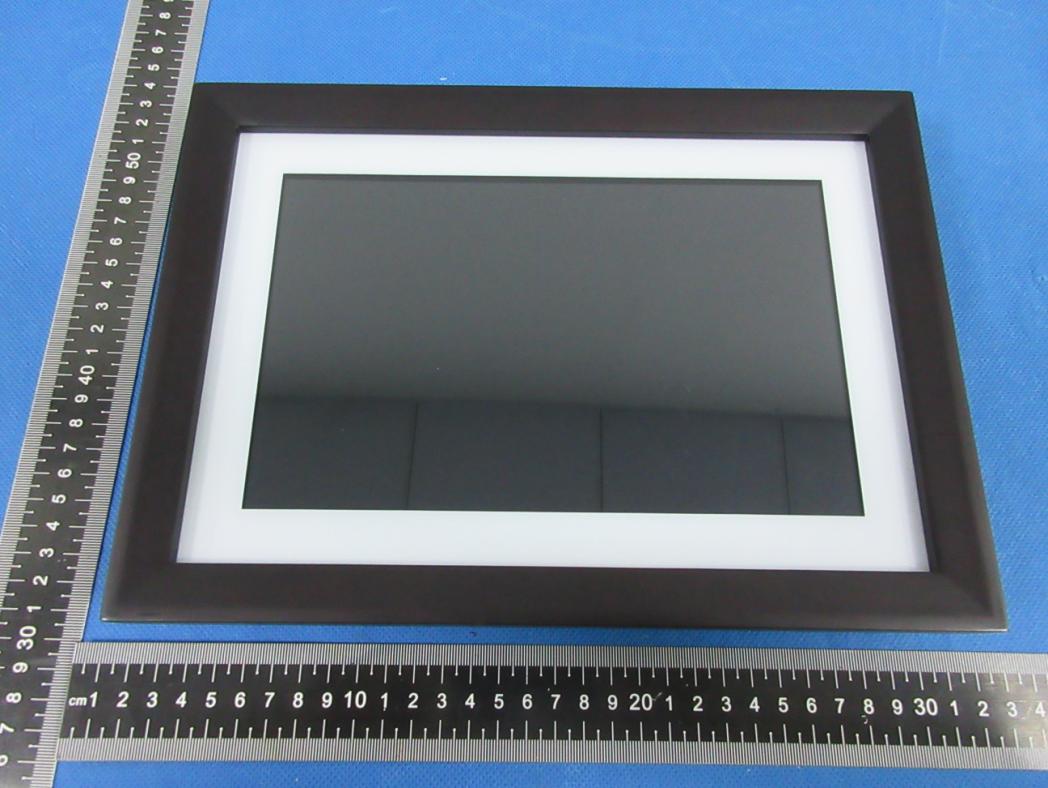

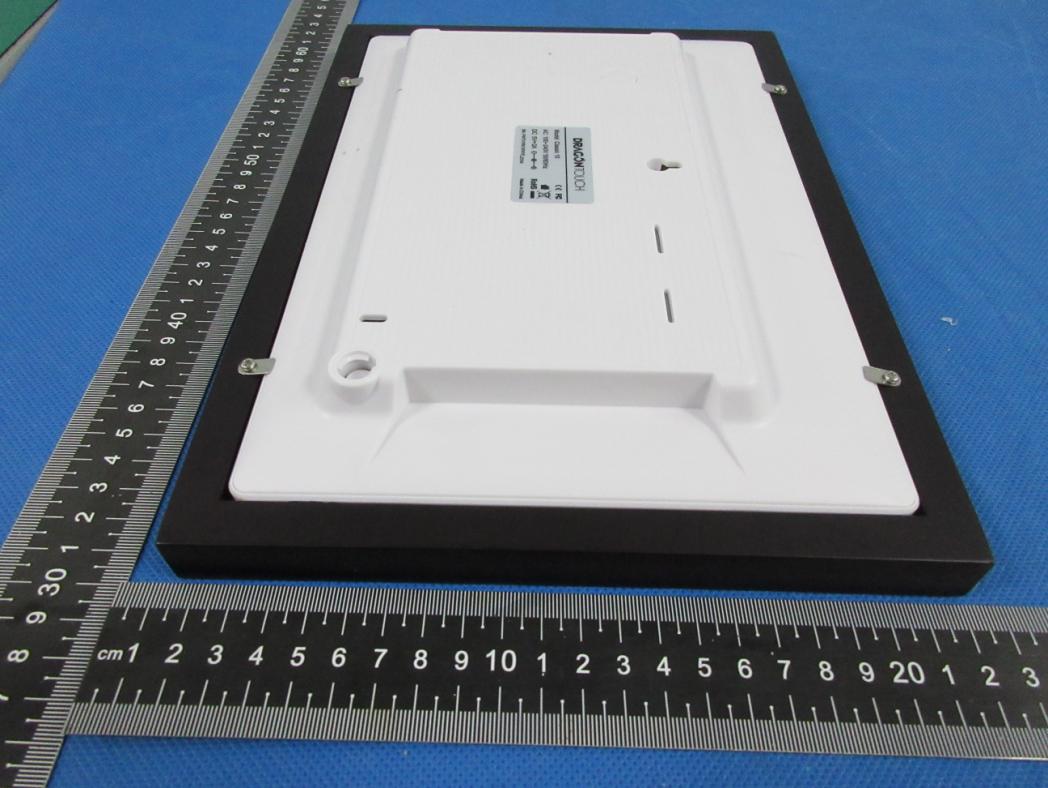

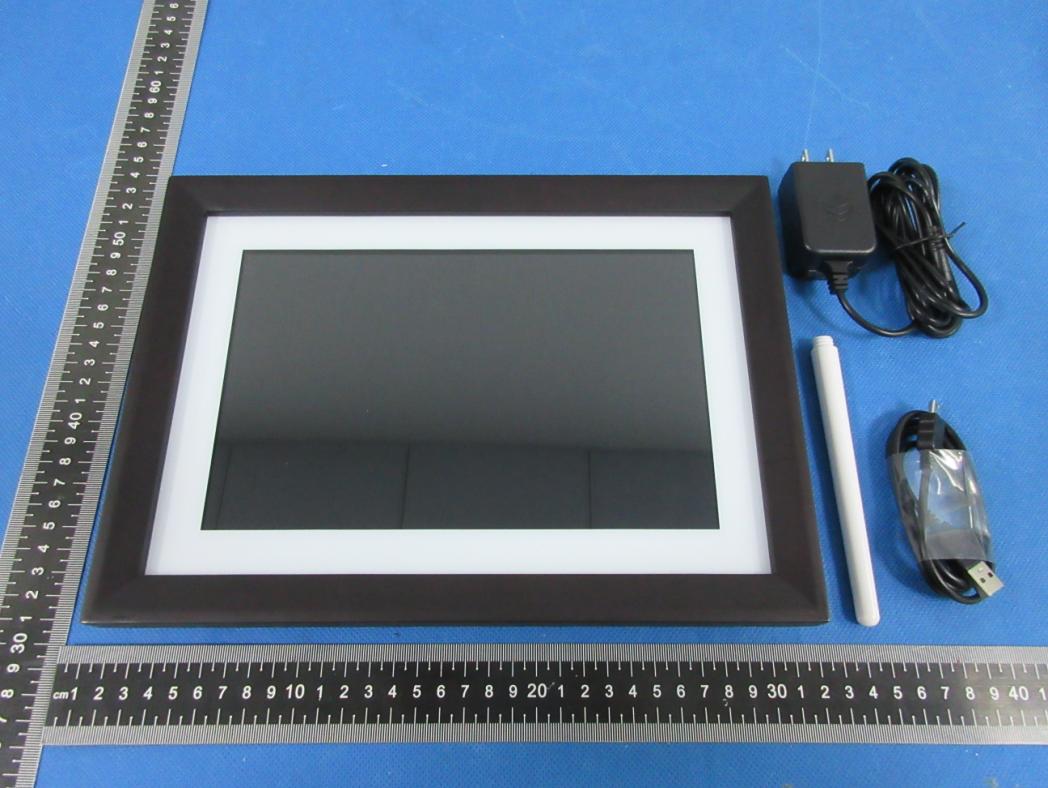

S19120201705 Model: Classic 10 N20190309V1 ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 S19120201705 Model: Classic 10 N20190309V1 Photo 3 Photo 4 S19120201705 Model: Classic 10 N20190309V1 Photo 5 Photo 6 S19120201705 Model: Classic 10 N20190309V1 Photo 7 Photo 8 S19120201705 Model: Classic 10 N20190309V1 Photo 9

Model: Classic 10 AC: 100~240V 50/60Hz DC: 5V 2A 28.2MM 48.2MM

S19120201705 Model: Classic 10 N20190309V1 ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 S19120201705 Model: Classic 10 N20190309V1 Photo 3 Photo 4 S19120201705 Model: Classic 10 N20190309V1 Photo 5 Photo 6 WIFI Ant

FCC ID: S5V-TABC10 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) MPE Calculation Method E (V/m) ＝ d GP**30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 *377 **30 D GP From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Measurement Result Operation Frequency: WIFI: 2412-2462MHz for 802.11b/g/11n(HT20); 2422-2452MHz for 802.11n(HT40); Power density limited: 1mW/ cm 2 Antenna Type: FPCB Antenna Antenna gain: 1.67 dBi, R=20cm WIFI: conducted power Evaluation result Power density Limits (dBm)(mW)(dBi)Numeric 2412 14.14 14±11531.6231.671.470.00921 2437 14.57 14±11531.6231.671.470.00921 2462 14.55 14±11531.6231.671.470.00921 2412 12.93 13±11425.1191.671.470.00731 2437 12.37 13±11425.1191.671.470.00731 2462 13.41 13±11425.1191.671.470.00731 2412 12.56 13±11425.1191.671.470.00731 2437 13.16 13±11425.1191.671.470.00731 2462 13.23 13±11425.1191.671.470.00731 2412 10.8 11±11215.8491.671.470.00461 2437 11.34 11±11215.8491.671.470.00461 2452 10.68 11±11215.8491.671.470.00461 Channel Freq. (MHz) modulation Tune-up power (dBm) (dBm) 802.11g 802.11n HT20 802.11n HT40 (mW/cm2 )(mW/cm2) Antenna Gain Max tune-up power 802.11b Conclusion: For the max result : 0.0092≤ 1.0 for Max Power Density, compliance RF exposure. Signature: Date: 2020-01-19 NAME AND TITLE (Please print or type): Alex Li/Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China.

Report No.: S19120201705001 Version.1.3 Page 1 of 87 FCC RADIO TEST REPORT FCC ID: S5V-TABC10 Product: Cloud photo frame Trade Mark: DragonTouch Model No.: Classic 10 Family Model: Classic 10 FHD, Modern 10, Modern 10 Charm Report No.: S19120201705001 Issue Date: 14 Jan. 2020 Prepared for PROEXPRESS DISTRIBUTOR LLC 7668 standish place, STE B, Rockville, Maryland, 20855, United States Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-755-6115 6588 Fax.: +86-755-6115 6599 Website:http://www.ntek.org.cn Report No.: S19120201705001 Version.1.3 Page 2 of 87 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES ....................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS .................................................................................... 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ......................................................................................................... 10 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ..................................................................... 10 6.2 SUPPORT EQUIPMENT............................................................................................................................... 11 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 12 7 TEST REQUIREMENTS .................................................................................................................................... 14 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 14 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 17 7.3 6DB BANDWIDTH ....................................................................................................................................... 26 7.4 DUTY CYCLE ............................................................................................................................................... 28 7.5 MAXIMUM OUTPUT POWER .................................................................................................................... 30 7.6 POWER SPECTRAL DENSITY ................................................................................................................... 32 7.7 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 34 7.8 SPURIOUS RF CONDUCTED EMISSIONS................................................................................................ 36 7.9 ANTENNA APPLICATION .......................................................................................................................... 37 8 TEST RESULTS ................................................................................................................................................... 38 8.1 DUTY CYCLE ............................................................................................................................................... 38 8.2 MAXIMUM CONDUCTED OUTPUT POWER........................................................................................... 45 8.3 OCCUPIED CHANNEL BANDWIDTH ....................................................................................................... 46 8.4 MAXIMUM POWER SPECTRAL DENSITY LEVEL ................................................................................. 59 8.5 BAND EDGE ................................................................................................................................................. 66 8.6 CONDUCTED RF SPURIOUS EMISSION .................................................................................................. 75 Report No.: S19120201705001 Version.1.3 Page 3 of 87 1 TEST RESULT CERTIFICATION Applicant’s name ......................... : PROEXPRESS DISTRIBUTOR LLC Address ....................................... : 7668 standish place, STE B, Rockville, Maryland, 20855, United States Manufacturer's Name .................. : PROEXPRESS DISTRIBUTOR LLC Address ....................................... : 7668 standish place, STE B, Rockville, Maryland, 20855, United States Product description Product name .............................. : Cloud photo frame Model and/or type reference ..... : Classic 10 Family Model ............................... : Classic 10 FHD, Modern 10, Modern 10 Charm Measurement Procedure Used: APPLICABLE STANDARDS APPLICABLE STANDARD/ TEST PROCEDURE TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C KDB 174176 D01 Line Conducted FAQ v01r01 ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 Complied This device described above has been tested by Shenzhen NTEK Testing Technology Co., Ltd., and the test results show that the equipment un…

Text truncated - open the document above for the full version.

Report No.: S19120201705001 Version.1.3 Page 71 of 87 Band Edge NVNT 802.11n(HT20) 2412MHz Ant1 Emission Band Edge NVNT 802.11n(HT20) 2462MHz Ant1 Ref Report No.: S19120201705001 Version.1.3 Page 72 of 87 Band Edge NVNT 802.11n(HT20) 2462MHz Ant1 Emission Band Edge NVNT 802.11n(HT40) 2422MHz Ant1 Ref Report No.: S19120201705001 Version.1.3 Page 73 of 87 Band Edge NVNT 802.11n(HT40) 2422MHz Ant1 Emission Band Edge NVNT 802.11n(HT40) 2452MHz Ant1 Ref Report No.: S19120201705001 Version.1.3 Page 74 of 87 Band Edge NVNT 802.11n(HT40) 2452MHz Ant1 Emission Report No.: S19120201705001 Version.1.3 Page 75 of 87 8.6 CONDUCTED RF SPURIOUS EMISSION Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT 802.11b 2412 Ant 1 -39.94 -20 Pass NVNT 802.11b 2437 Ant 1 -42.03 -20 Pass NVNT 802.11b 2462 Ant 1 -46.98 -20 Pass NVNT 802.11g 2412 Ant 1 -42.2 -20 Pass NVNT 802.11g 2437 Ant 1 -42.84 -20 Pass NVNT 802.11g 2462 Ant 1 -43.31 -20 Pass NVNT 802.11n(HT20) 2412 Ant 1 -41.84 -20 Pass NVNT 802.11n(HT20) 2437 Ant 1 -43.93 -20 Pass NVNT 802.11n(HT20) 2462 Ant 1 -44.62 -20 Pass NVNT 802.11n(HT40) 2422 Ant 1 -37.01 -20 Pass NVNT 802.11n(HT40) 2437 Ant 1 -38.07 -20 Pass NVNT 802.11n(HT40) 2452 Ant 1 -37.04 -20 Pass Tx. Spurious NVNT 802.11b 2412MHz Ant1 Ref Report No.: S19120201705001 Version.1.3 Page 76 of 87 Tx. Spurious NVNT 802.11b 2412MHz Ant1 Emission Tx. Spurious NVNT 802.11b 2437MHz Ant1 Ref Report No.: S19120201705001 Version.1.3 Page 77 of 87 Tx. Spurious NVNT 802.11b 2437MHz Ant1 Emission Tx. Spurious NVNT 802.11b 2462MHz Ant1 Ref Report No.: S19120201705001 Version.1.3 Page 78 of 87 Tx. Spurious NVNT 802.11b 2462MHz Ant1 Emission Tx. Spurious NVNT 802.11g 2412MHz Ant1 Ref Report No.: S19120201705001 Version.1.3 Page 79 of 87 Tx. Spurious NVNT 802.11g 2412MHz Ant1 Emission Tx. Spurious NVNT 802.11g 2437MHz Ant1 Ref Report No.: S19120201705001 Version.1.3 Page 80 of 87 Tx. Spurious NVNT 802.11g 2437MHz Ant1 Emission Tx. Spurious NVNT 802.11g 2462MHz Ant1 Ref Report No.: S19120201705001 Version.1.3 Page 81 of 87 Tx. Spurious NVNT 802.11g 2462MHz Ant1 Emission Tx. Spurious NVNT 802.11n(HT20) 2412MHz Ant1 Ref Report No.: S19120201705001 Version.1.3 Page 82 of 87 Tx. Spurious NVNT 802.11n(HT20) 2412MHz Ant1 Emission Tx. Spurious NVNT 802.11n(HT20) 2437MHz Ant1 Ref Report No.: S19120201705001 Version.1.3 Page 83 of 87 Tx. Spurious NVNT 802.11n(HT20) 2437MHz Ant1 Emission Tx. Spurious NVNT 802.11n(HT20) 2462MHz Ant1 Ref Report No.: S19120201705001 Version.1.3 Page 84 of 87 Tx. Spurious NVNT 802.11n(HT20) 2462MHz Ant1 Emission Tx. Spurious NVNT 802.11n(HT40) 2422MHz Ant1 Ref Report No.: S19120201705001 Version.1.3 Page 85 of 87 Tx. Spurious NVNT 802.11n(HT40) 2422MHz Ant1 Emission Tx. Spurious NVNT 802.11n(HT40) 2437MHz Ant1 Ref Report No.: S19120201705001 Version.1.3 Page 86 of 87 Tx. Spurious NVNT 802.11n(HT40) 2437MHz Ant1 Emission Tx. Spurious NVNT 802.11n(HT40) 2452MHz Ant1 Ref Report No.: S19120201705001 Version.1.3 Page 87 of 87 Tx. Spurious NVNT 802.11n(HT40) 2452MHz Ant1 Emission END OF REPORT

FCC ID: S5V-TABC10 Radiated Measurement Photos FCC ID: S5V-TABC10 Conducted Measurement Photos
