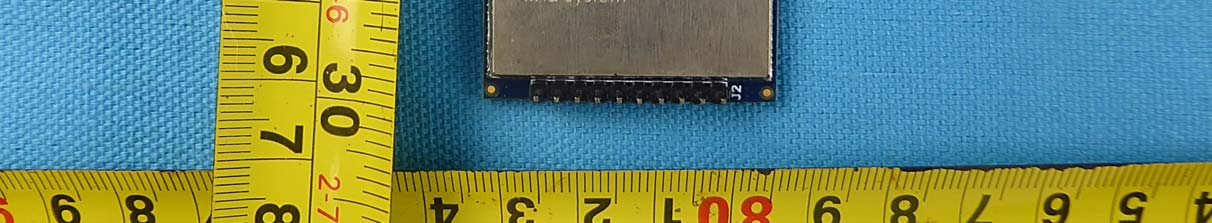

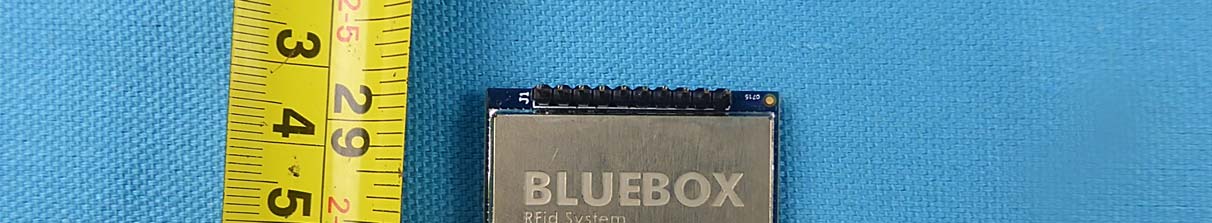

S6A-M900Embedded UHF Module M900

SOLTEC Soluzioni Tecnologiche S.r.l. UHF RFID System BLUEBOX OEM UHF 1 RF PORT, 500mW RF POWER TECHNICAL CONSTRUCTION FILE SOLTEC Soluzioni Tecnologiche S.r.l. OEM UHF 1CH 500mW - TCF Index – Rev. 00 Page 1 of 5 BLUEBOX OEM UHF 1 RF PORT, 500mW RF POWER TECHNICAL DOCUMENTATION The documents listed in the following table form the Technical Construction File of the 1-Port 500mW BLUEBOX OEM UHF module. Description File Revision A TCF index (this document) A - OEM UHF 1Port 500mW - TCF index.pdf 00 of 05.06.2015 B List of products / items coding B - OEM UHF 1Port 500mW - items.pdf 00 of 05.06.2015 C Module description C - OEM UHF 1Port 500mW - desc.pdf 00 of 05.06.2015 D 10B14 electronic board description D - 10B14_desc_00.pdf 00 of 05.06.2015 E 10B14 board schematic, variant 00 (board all populated) E - 10B14 Schematic _00_R0.pdf 0 of 16.12.2014 F 10B14 pcb documentation F - 10B14 PCB Print.pdf 16.12.2014 G 10B14 pcb assembly G - 10B14 PCB Assembly 16.12.2014 H 10B14 component part list, variant 00 (board all populated) H - 10B14_lpc_00_REV0.2.pdf 0.2 of 05.06.2015 I 10B14 component part list, variant 01 (for item 1061U) I - 10B14_lpc_01_REV0.2.pdf 0.2 of 05.06.2015 J 10B14 component part list, variant 02 (for item 1071U) J - 10B14_lpc_02_REV0.2.pdf 0.2 of 05.06.2015 K 10B14 component part list, variant 03 (for item 1061U-S) K - 10B14_lpc_03_REV0.pdf 0 of 05.06.2015 L 10B14 component part list, variant 04 (for item 1071U-S) L - 10B14_lpc_04_REV0.pdf 0 of 05.06.2015 M Module manual M - B1U003103E - OEM UHF 1CH 500mW 103 eng.pdf 1.03 of 13.04.2015 N Module datasheet N - BD1U003000E - OEM UHF 1CH 500mW Rev 0 eng.pdf 0 of 25.11.2014 O Module shield O - MME00077.pdf 25.11.2014 SOLTEC Soluzioni Tecnologiche S.r.l. OEM UHF 1CH 500mW – Module Description – Rev. 00 Page 2 of 5 Connections Connections on J1: Pin No Description 1061U 1071U n.c. 1 Not connected Not connected n.c. 2 Not connected Not connected n.c. 3 Not connected Not connected - Vin (Gnd) 4 DC power supply GND DC power supply GND n.c. 5 Not connected Not connected n.c. 6 Not connected Not connected n.c. 7 Not connected Not connected n.c. 8 Not connected Not connected n.c. 9 Not connected Not connected n.c. 10 Not connected Not connected SOLTEC Soluzioni Tecnologiche S.r.l. OEM UHF 1CH 500mW – Module Description – Rev. 00 Page 3 of 5 Connections on J2: Pin No Description 1061U 1071U RX 1 TTL serial line (from host) RS232 serial line (from host) TX 2 TTL serial line (to host) RS232 serial line (to host) TEST 3 Do not connect!!! Do not connect!!! I/O 1 4 ‘Universal’ digital Input / Output ‘Universal’ digital Input / Output n.c. 5 Not connected Not connected I/O 2 6 ‘Universal’ digital Input / Output ‘Universal’ digital Input / Output Led 2 7 ‘Red’ external led ‘Red’ external led Led 1 8 ‘Green’ external led ‘Green’ external led - Vin (Gnd) 9 DC power supply return DC power supply return + Vin 10 DC power supply DC 5 V +/- 5% DC power supply DC 5 V +/- 5% Notes: Power supply the board with a low noise LDO voltage regulator (for example AS1364 from Austrian Microsystems) to avoid reader performance reduction due to noise interferences. IMPORTANT pin 3 must be leaved unconnected (ABSOLUTLY DO NOT CONNECT) External LEDs wiring: anodes respectively on pin 7 and pin 8, cathodes on pin 9 (GND); when activated, the LED is +5V powered through a limiting 330  resistor mounted on the module SOLTEC Soluzioni Tecnologiche S.r.l. B1U003103E OEM UHF 1CH 500mW Manual – Rev. 1.03 Page 4 of 5 Mechanical Drawings Dimensions in mm. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement The modular can be installed or integrated in mobile or fix devices only. This modular cannot be installed in any portable device, for example, USB dongle like transmitters is forbidden. This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This modular must be installed and operated with a minimum distance of 20 cm between the radiator and user body. If the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: S6A-M900 Or Contains FCC ID: S6A-M900” when the module is installed inside another device, the user m…

Text truncated - open the document above for the full version.

Limit Modular approval Declaration letter We ，iDTRONIC GmbH apply limited modular approval for Product Name: Embedded UHF Module M900 Model: OEM-UHF-M900 FCC ID: S6A-M900 According to 996369 D01 Module Equip Auth Guide v01r04and 15.212 requirement: 1) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must beon the module assembly; Answer ：No，not shielded both side 2)The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal; Answer ：Ye s ；All inputs to the modules are buffered through logic or microprocessor inputs. 3)The modular transmitter must have its own power supply regulation. Answer ：Ye s ；A low drop out regulator is used for modular power supply regulation. 4)The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); Answer ：Ye s ；Device is equipped with integral antenna，and antenna type manufacture and gain are specified in user manual ，refer to user manual. (5)The module must demonstrate compliance in a stand-alone configuration; Answer ：NO，distance between modular and all AEs are shorter than 10cm ，refer to setup photo. (6) The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements); Answer ：Yes ；The modular has a permanent fixed label, and below statement was listed in the Users Manual;The host device must be labelled to display the FCCID of the moduleContains FCC ID: S6A-M900 (7)The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee; Answer ：Yes ；The module comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee, Refer to test report and user manual . (8)The module must comply with RF exposure requirements Answer ：Yes ；Transmitter meets MPE calculation of 47 CFR 1.1307 . Refer to MPEReports and Refer to modular installation manual Signature: Name / title: Roger Kochendoerfer / Product Manager Address: Donnersbergweg 1, 67059 Ludwigshafen am Rhein, Germany

DATE : Jun. 15, 2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: S6A-M900 Product Name: Embedded UHF Module M900 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this Agency agreement expiration date: Jun. 15, 2015 to Jun. 14, 2016 By: Roger Kochendoerfer Signature Printed Title: Product Manager On behalf of : iDTRONIC GmbH Telephone: +49 621 66 9009421

Label information: FCC ID: S6A-M900 Label

1 / 2 RF Exposures Evaluation According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b). LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) CALCULATIONS Given Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 2 / 2 LIMIT Power Density Limit, S=1.0mW/cm 2 TEST RESULTS Pass Minimum separation distance (cm) Output Power (dBm) Antenna Gain (dBi) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) 20 17.66 1.5 0.601833 @ 902.75MHz 0.0164 20 17.14 1.5 0.609833 @ 914.75MHz 0.0146 20 16.59 1.5 0.618500 @ 927.75MHz 0.0128 “This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.”

Report No. : EED32H000521 Page 1 of 43 TEST REPORT Product : Embedded UHF Module M900 Trade mark : N/A Model/Type reference : OEM-UHF-M900 Serial number : N/A Ratings : 5 Vdc FCC ID : S6A-M900 Report number : EED32H000521 Date : Jun. 25, 2015 Regulations : See below Test Standards Results 47 CFR FCC Part 15 Subpart C 15.247: 2014 PASS Prepared for: iDTRONIC GmbH Donnersbergweg 1, Ludwigshafen am Rhein, 67059, Germany Prepared by: Centre Testing International (Shenzhen) Corporation Hongwei Industrial Zone, 70 Area, Bao’an District, Shenzhen, Guangdong, China TEL: +86-755-3368 3668 FAX: +86-755-3368 3385 Tested by: Reviewed by: Approved by: Date: Jun. 25, 2015 Jimmy Li Lab manager Check No.:!1727822002 Report No. : EED32H000521 Page 2 of 43 TABLE OF CONTENTS 1.GENERAL INFORMATION ......................................................................................................................... 4 2.TEST SUMMARY ........................................................................................................................................ 4 3.PRODUCT INFORMATION ......................................................................................................................... 5 4.MEASUREMENT UNCERTAINTY .............................................................................................................. 5 5.SUPPORT EQUIPMENT LIST .................................................................................................................... 5 6.TEST EQUIPMENT LIST ............................................................................................................................. 6 7.20DB BANDWIDTH MEASUREMENT ....................................................................................................... 7 7.1.LIMITS ................................................................................................................................................. 7 7.2.BLOCK DIAGRAM OF TEST SETUP ................................................................................................ 7 7.3.TEST PROCEDURE ........................................................................................................................... 7 7.4.TEST RESULT .................................................................................................................................... 7 8.CARRIER FREQUENCY SEPARATION .................................................................................................. 10 8.1.LIMITS ............................................................................................................................................... 10 8.2.BLOCK DIAGRAM OF TEST SETUP .............................................................................................. 10 8.3.TEST PROCEDURE ......................................................................................................................... 10 8.4.TEST RESULT .................................................................................................................................. 10 9.NUMBER OF HOPPING FREQUENCY .................................................................................................... 13 9.1.LIMITS ............................................................................................................................................... 13 9.2.BLOCK DIAGRAM OF TEST SETUP .............................................................................................. 13 9.3.TEST PROCEDURE ......................................................................................................................... 13 9.4.TEST RESULT .................................................................................................................................. 13 10.TIME OF OCCUPANCY (DWELL TIME) .............................................................................................. 15 10.1.LIMITS ............................................................................................................................................... 15 10.2.BLOCK DIAGRAM OF TEST SETUP .............................................................................................. 15 10.3.TEST PROCEDURE ......................................................................................................................... 15 10.4.TEST RESULT .................................................................................................................................. 15 11.MAXIMUM PEAK CONDUCTED OUTPUT POWER MEASUREMENT .............................................. 19 11.1.LIMITS ............................................................................................................................................... 19 Report No. : EED32H000521 Page 3 of 43 11.2. BLOCK DIAGRAM OF TEST SETUP .............................................................................................. 19  11.3.TEST PROCEDURE ......................................................................................................................... 19  11.4.TEST RESULT .................................................................................................................................. 19  12.CONDUCTED BANDEDGE EMISSION MEASUREMENT .................................................................. 22 12.1.LIMITS ............................................................................................................................................... 22  12.2.BLOCK DIAGRAM OF TEST SETUP .............................................................................................. 22  12.3.TEST PROCEDURE ......................................................................................................................... 22  12.4.TEST RESULT ...................................................................................................................…

Text truncated - open the document above for the full version.
