S6A-STICK-LF-ASSPNF1P-TG CONTROLLER USB PEN 125kHZ MULTITAG

Pagina 1 User manual STICK-LF-ASS Controller USB PEN 125 kHz MULTITAG Index I. Description of the communication protocol .............................................. 2 II. Commands ................................................................................................ 2 III. Description of the command ..................................................................... 3 IV. Conformity ............................................................................................... 6 Pagina 2 I. Description of the communication protocol Preface The controller STICK-LF-ASS USB multi tags allows the reading and writing of the main types of tags based on 125kHz technology. It supports Hitag1, HitagS, Hitag2, EM4x02, EM4x50 and EM4x05. At power on blue led is switch on, when a tag is detected the colour of this led will be green. The colour of led can be changed into red or green colour via serial command. The baud rate of the serial is fixed and equal 9600; the number of bits per character is always 8, there is no parity and 1 bit of stop is designated. The commands can also be issued using a terminal program. The data is transmitted as ASCII characters that can be displayed on any terminal program (for ex. Hyperterminal). Syntaxes In this document all control characters are written in bold-style (ex. CR corresponds on booting in serial to the value 13dec or rather 0Dhex). The constant alphanumerical strings are indicated between quotation marks (ex. “3”). The variable parameters are concluded between the characters < e >, the signification of the parameters will be specified after the description of each command Structure of the commands This protocol has been developed for a very simple administration of the communication. Generally the commands and the answers are forwarded as single ACSII characters and the controller adds CR + LF (Carriage Return + Line Feed) to each answer. Ex. “X” <DATI> CR character ascii 13dec (0D hex) for Carriage Return. LF character ascii 10dec (0D hex) for Line Feed. II. Commands In the following table are specified all the commands that are accepted from the controler. On each command the controller responds to the host apart from explicit indicated cases. The activation of the green led indicates the correct execution of a reading or writing command. Recapitulation Command Description ‘x’ . ‘z’ Reset ‘v’ Version request ‘c’ Reading continues ‘l’ Login ‘r’ Read page ‘w’ Write page ‘d’ Denomination of led ‘p’ Antenna power off Error codes The following table shows all error messages returned from the controller. Code Description ‘?’ Command not valid ‘N’ Command not executed ‘S’ Continuous read stopped Pagina 3 III. Description of the command Reset “x” or “z” This command executes a reset software. The forwarding of this command causes a reset of the controller and of possible transponders in the reading-zone. If the command has been received correctly, the controller answers as following: “MULTITAg-125 a.01” CR LF and enters into the continuous read mode. Get Version “v” This command requests the currently implemented firmware from the controller. If the command has been received correctly, the controller answers as following: “MULTITAG-125 a.01” CR LF Continuous read (default function mode after power on) “c” Following this command, the controller reads and forwards continuously the serial number of the transponder that remains in the reading zone. This command can be interrupted by forwarding any character to the controller. The reader supports different types of tags even if only one type of tag at a time can be identified. In this reading mode the controller effects a fast scanning of all the designated tags and forwards the serial number of the identified tag via serial-line If the command has been received correctly, the controller answers as following: <IdTipo> <SerialNumber> <IdTipo> one-digit character string identifies the single type of the tag. Can be used in order to determine the type of the tag presented to the reader and control tag specific commands. The different types of supported transponders have UID in different lengths, for example the tags EM4x02 use an UID of 5 bytes whereas Hitag 1 and Hitag 2 use only 4 bytes. The following table shows a list of specified IdTipo of all the supported tags IdTipo Description Length UID “U” EM 4x02 5 bytes “T” EM 4x50 4 bytes “Z” ISO FDXB 8 bytes “h” HITAG 1 4 bytes “H” HITAG 2 4 bytes <SerialNumber> n-digit alphanumerical string. Login “l” <Password> This command is necessary for the authentication for tags of the type EM 4x50 and HITAG 2. For the transponder EM 4x50 the command signification of the Login is the same as described on the datasheet of this transponder: it is necessary to forward the Login-command followed by the Password in order to have access to the protected memory area. For example it is necessary to forward this command in order to execute the scripture of the password onto the transponder of the type EM4X50. Keep in mind that, as described in the respective datasheet, the Password on EM4X50 is the Longword n°00 and that it can not be read but only written if it (the current) is known. For the transponder HITAG2 it is necessary to know the password before any access in reading or writing is possible. In both cases the login is effected automatically with the default values based on the ultimate identified type of tag. <Password> 4-bytes alphanumerical string represents the code used for the login If the command has been received correctly, the controller answers as following: “L” CR LF In case of successfully effected login or “N” CR LF In case of Error. Password wrong or tag removed from the reading zone Pagina 4 Read page “r” <PageAddr> This command allows the reading of a block of data of a tag. The dimension of the data returned by an answer depends on the type of tag used. The valid values of the number of the requested page depend also on the type of tag in use. The …

Text truncated - open the document above for the full version.

APROMIX Srl – Contra’ San Giorgio, 148 – 36061 Bassano del Gr. (VI) ITALY Tel. +39 0424 502466 - fax +39 0424 500977 http://www.apromix.com – [email protected] Foto esterne de l lettore STICK-LF-ASS Fronte: Retro: APROMIX Srl – Contra’ San Giorgio, 148 – 36061 Bassano del Gr. (VI) ITALY Tel. +39 0424 502466 - fax +39 0424 500977 http://www.apromix.com – [email protected] Laterali:

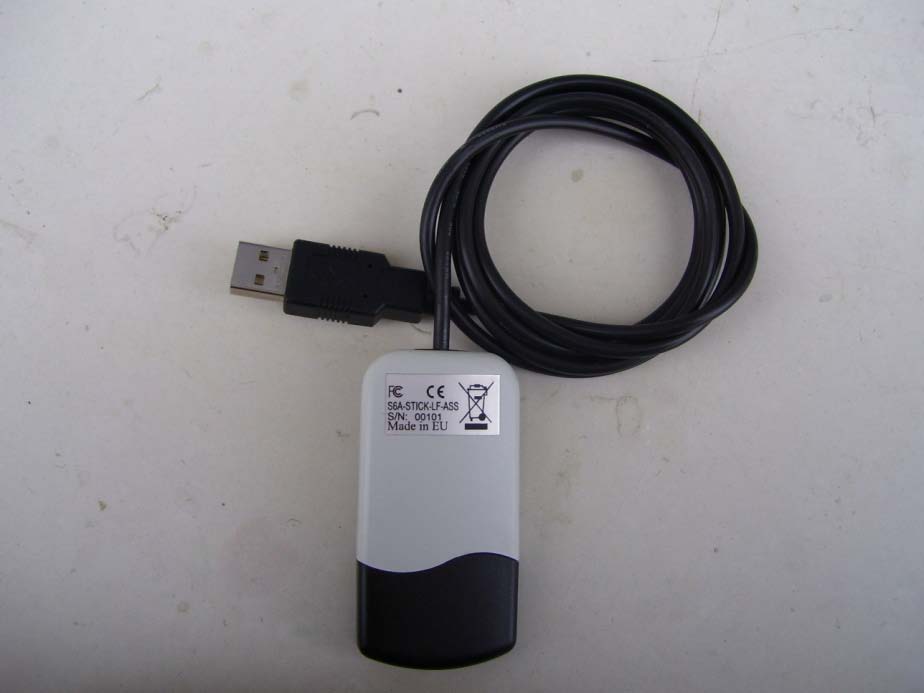

APROMIX Srl – Contra’ San Giorgio, 148 – 36061 Bassano del Gr. (VI) ITALY Tel. +39 0424 502466 - fax +39 0424 500977 http://www.apromix.com – [email protected] Foto etichetta del lettore STICK-LF-ASS

APROMIX Srl – Contra’ San Giorgio, 148 – 36061 Bassano del Gr. (VI) ITALY Tel. +39 0424 502466 - fax +39 0424 500977 http://www.apromix.com – [email protected] Foto interne del lettore STICK-LF-ASS Fronte: Retro: APROMIX Srl – Contra’ San Giorgio, 148 – 36061 Bassano del Gr. (VI) ITALY Tel. +39 0424 502466 - fax +39 0424 500977 http://www.apromix.com – [email protected] Laterale:

Independent Testing Laboratory CMC Centro Misure Compatibilità S.r.l. Via dell’Elettronica, 12/C 36016 Thiene (VI) – ITALY Tel./Fax +39 0445 367702 www.cmclab.it - [email protected] Accredited by ACCREDIA according to UNI CEI EN ISO/IEC 17025 cert. nr. 0168 Accredited by Ministry of Communications – Notified Body EMC Directive 2004/108/EC n° NB 2044 Test report R13031001 Rev. 1.0 Order M130310 page 1 of 20 LAB N° 0168 TEST REPORT nr. R13031001 Federal Communication Commission (FCC) Test item Description ........................ : PNF1P-TG CONTROLLER USB PEN 125kHZ MULTITAG Trademark ......................... : iDTRONIC Model/Type ...................... : STICK-LF-ASS Test Specification Standard ........................... : FCC Rules & Regulations, Title 47 - Part 15.207 and Part 15.209:2011 Client’s name .............. : APROMIX S.r.l. Address .............................. : Contrà San Giorgio, 148 – 36061 Bassano del Grappa (VI) – ITALY Manufacturer’s name : Same as client Address .............................. : -- Report Tested by ........................... : G. Gandini – Technician Approved by .................... : R. Beghetto – Laboratory Manager Date of issue ..................... : 12.03.13 Contents ............................ : 20 pages This test report shall not be reproduced except in full without the written approval of CMC. The test results presented in this report relate only to the item tested. CMC Centro Misure Compatibilità S.r.l. Via dell’Elettronica, 12/C 36016 Thiene (VI) Test report R13031001 Rev. 1.0 Order M130310 page 2 of 20 LAB N° 0168 Index 1. SUMMARY ..................................................................................................................................................3 2. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) .....................................................................................4 2.1 TEST SITE .................................................................................................................................................... 4 3. TESTING AND SAMPLING ..........................................................................................................................4 4. OPERATIVE CONDITIONS ..........................................................................................................................4 5. PHOTOGRAPH(S) OF EUT ..........................................................................................................................5 5.1 PHOTOGRAPH(S) OF SETUP ......................................................................................................................... 5 6. EQUIPMENT LIST .........................................................................................................................................6 7. MEASUREMENT UNCERTAINTY ..................................................................................................................9 8. REFERENCE DOCUMENTS........................................................................................................................10 9. DEVIATION FROM TEST SPECIFICATION .................................................................................................11 10. TEST CASE VERDICTS ...........................................................................................................................11 11. RESULTS ................................................................................................................................................11 11.1 CONTINUOUS DISTURBANCE VOLTAGE TEST (150 KHZ – 30 MHZ) ............................................................... 12 11.2 RADIATED DISTURBANCE TEST (0,009 – 1000 MHZ) ................................................................................... 16 CMC Centro Misure Compatibilità S.r.l. Via dell’Elettronica, 12/C 36016 Thiene (VI) Test report R13031001 Rev. 1.0 Order M130310 page 3 of 20 LAB N° 0168 1. Summary Emission Test: FCC Rules & Regulations, Title 47 - Part 15.207 and Part 15.209:2011 Test specifications Environmental Phenomena Port Tests sequence Result Part 15.207 Continuous disturbance voltage Mains terminal 2 Complies Part 15.209 Radiated disturbance Enclosure 1 Complies The Test Report was given to the Client representatives for necessary documentation of ratification of the tested equipment and it is valid for the FCC certification. CMC Centro Misure Compatibilità S.r.l. Via dell’Elettronica, 12/C 36016 Thiene (VI) Test report R13031001 Rev. 1.0 Order M130310 page 4 of 20 LAB N° 0168 2. Description of Equipment under test (EUT) Power supply .................................................................. : From USB port Power cable ................................................................... : Unshielded Serial Number ................................................................. : -- Components list ............................................................. : Annex 1 2.1 Test Site Company ........................................................................ : CMC Centro Misure Compatibilità S.r.l. Address ............................................................................ : Via dell’Elettronica, 12/C 36016 Thiene (VI) – ITALY 3. Testing and sampling Date of receipt of test item ....................................... : 20.02.13 Testing start date ........................................................... : 01.03.13 Testing end date ........................................................... : 05.03.13 Samples tested nr. ......................................................... : 1 Sampling procedure. ................................................... : Equipment used for testing was picked up by the manufacturer, at the end of the production process with random criterion Internal identification ................................................... : adhesive label with the product number P130166 4. Operative conditions EUT exercising ................................…

Text truncated - open the document above for the full version.

Independent Testing Laboratory CMC Centro Misure Compatibilità S.r.l. Via dell’Elettronica, 12/C 36016 Thiene (VI) – ITALY Tel./Fax +39 0445 367702 www.cmclab.it - [email protected] Accredited by Ministry of Communications – Notified Body EMC Directive 2004/108/EC n° NB 2044 Page 1 of 1 SETUP PHOTO
