BTD-301A Bluetooth Audio Dongle User Manual Thanks for choosing KINGJON BTD-301A Bluetooth Dongle. Please read this user manual before using. Contents Introduction................................. Specification┉........................... Precaution and Warning..................... Legal Notice.............................. Use Dongle........................... Charge BTD-301A.................. Power On/Off..................... Pairing Device..................... Troubleshooting.............................. Warranty ....................................... Introduction BTD-301A Bluetooth dongle is with 3.5mm AV Input port. It can be used for the devices with AV port such as TV, PC & media player etc. You can enjoy the Bluetooth wireless music fully. A. AV Port B. USB Charging Port C. keypad & Indicator Light Specifications Bluetooth specification: V1.2 Bluetooth profile: A2DP Frequency Range: 2402-2480 MHZ Working distance:10m Dimension: 54×29×11(mm) We i g h t : 1 7 g Power: Built in rechargeable battery or USB 5V Built in rechargeable battery using time: 4hours Charging Time: 2-3hours Precaution and warning * BTD-301A Bluetooth dongle is only used for Bluetooth stereo headset with “0000”paring code. * Do not place BTD-301A into liquid or in a moist place. * Keep BTD-301A away from high temperature to avoid inside battery explosion. * Do not try disassembly of BTD-301A.In case of any abnormity, please send it to appointed service center for support. * Over extended periods of time, please put headset in a dry place with good ventilation and far away from high temperature and dust. Legal Notice This product is in line with requirements as per BQB、CE、FCC、ROHS, but it dose not mean that it is in line with any national or regional standard. Please refer to local rules and regulations. BTD-301A USE Charge BTD-301A You need to charge its built-in battery fully before first time use. In charging, Red Indicator light keeps on for 2-3 hours. When Red indicator light is off, it means charging completed and available for use.While charging a battery over extended periods of time, indicator light will not light up until minutes later. *Please use the attached charger or normal USB for charging. Otherwise the dongle will be damaged. Power On/Off In power-off state, press and hold button for 2 seconds, the Dongle is on. In power-on state, press and hold button for 2 seconds, the Dongle is off. Pair device On power-off state, press and hold the key for around 5 seconds, Red LED and Blue LED flash alternately，the dongle enters into pairing state and searches for the last pairing device. Open the Bluetooth stereo headsets with paring code “0000” and make the headset enter into pairing state(please refer to Bluetooth stereo headset user manual).When two devices automatically pair, dongle blue LED flash one time per 3 seconds. Please put the dongle in the AV port, then you can enjoy wireless music. * If above operation fails, please power-off dongle and try it again. Troubleshooting * No power-on: The reason may be the low battery. Please charge headset and then restart. * No search for device : The reason may be the operation of dongle or Bluetooth stereo headset is incorrect or the pair code for Bluetooth stereo headset isn’t “0000”.Please read user manual carefully. Warranty In case of any faults, please do not disassemble the BTD-301A by yourself, but send it to the appointed service center. Thank you for purchasing KINGJON BTD-301A Bluetooth Dongle. May the joy from it.

16MHz 2402~2480MHz

External Photos EUT – Front View EUT – Rear View

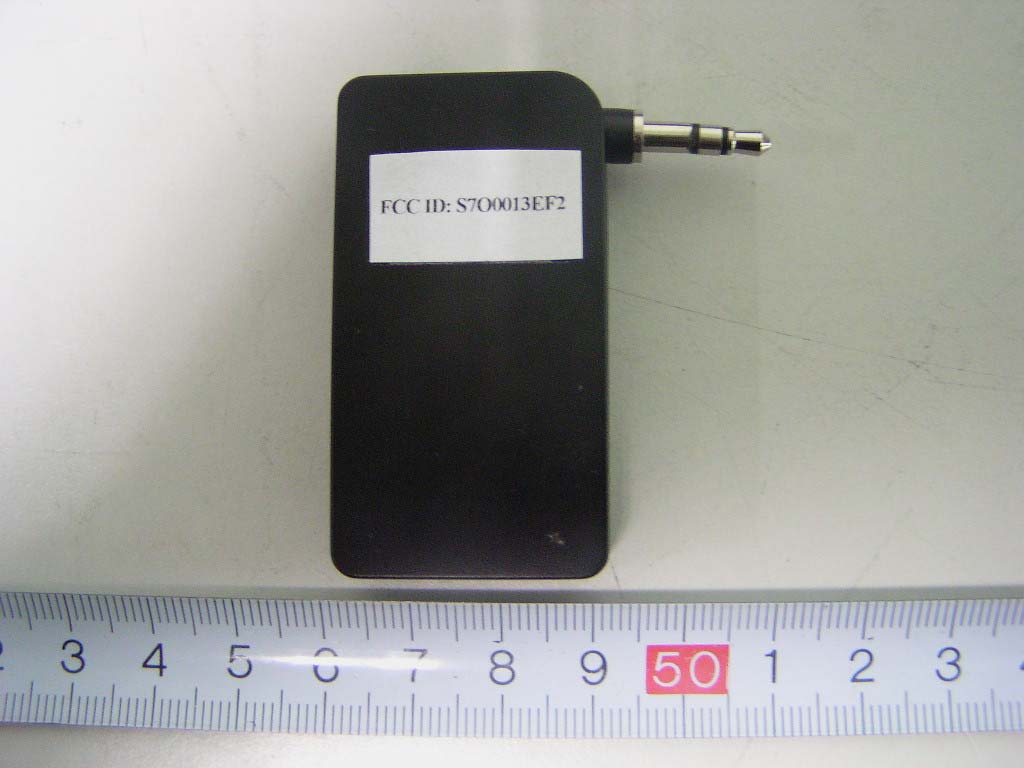

ID Label/Location FCC ID Label Label Location Information Specifications : Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Label Location: FCC ID: S7O0013EF2

Internal Photos EUT – Inside View (1) EUT – Inside View (2) EUT – Main Board Top View EUT – Main Board Bottom View

BTD-301A Bluetooth Audio Dongle 1. Power supply:3.7 recharger lithium battery 2. U1 bluetooth module 3. U2(LPO) provide 3.3V voltage to Bluetooth module V2,U4 provide 1.8V voltege bluttooth to the module V2. 4. V3 Recharger IC 5. V5 composing drive LEC. 6. The Bluetooth Module composing the 2.4GHz radio receiver and transmitter.
