S7O0013EF3Bluetooth stereo headset

BTH-310 User Manual Thanks for choosing BTH-310 Bluetooth Stereo Headset. Please read this user manual before using. Contents Introduction Specification Precaution and Warning Legal Notice Wear Headset Use Headset Charge headset Power On/Off Pairing Device Answer a Call Switch to mobile phone call End a Call Reject a Call Make a Voice Dial call Last Number Redial Listening to Music Pair With More Devices Troubleshooting Warranty Introduction BTH-310 Bluetooth Stereo Headset is an elegant Bluetooth headset that combines entertainment & communication all-in-one. Enjoy HI-FI stereo sound, voice clarity, and comfort-all without wires! BTH-310 Bluetooth stereo headset has slim shape, with clip and hang for option. It switches freely between your phone call and audio music. So you’ll never miss a call while listening wirelessly to your favorite music or movies. It has up to 5 hours talk and audio listening time. Enjoy wireless stereo sound from ipod, laptop, PC, DVD and MP3. Specifications Core chip:CSR BC03MM external Bluetooth specification:V1.2,Class 2 Bluetooth protocol:HSP,HFP,A2DP,AVRCP Frequency Range:2402 -2480 MHZ Working Distance:10m Key: Main function key, Volume+/Volume-, Play / Pause, Previous / Next Main function: Receive a call, Reject a call, End a call, Voice dial, Last number redial, Cancel a call,Player remote control. Dimension:55×28×9.6mm Weight:18g Talking/playing time:5H Standby time:150H Power:Built in rechargeable Li-polymer battery DC 3.7V Charging time:2-3H Charging voltage:DC 5V Support mobile phone:Nokia, ,Motorola, LG, SonyEricson etc. Precaution and warning * Turn off the headset before putting into pocket to avoid connection through which you do not want. * Don’t place headset into liquid or in a moist place. * Don’t clean headset with caustic liquids. * Keep headset away from high temperature and fire to avoid explosion. * Don’t try disassembly of headset. In case of any abnormity, send it to appointed service center for support. * If you don’t use the headset for long periods, be sure to store it in a dry place, free from extreme temperatures and dust. Legal Notice This product is in line with requirements as per BQBCEFCCROHS, but it dose not mean that it is in line with any national or regional standard. Please refer to local rules and regulations. Wear Headset Use Headset Belowing using ways may be different when you you pair different devices. Charge headset * You need to charge its built-in battery fully before first time use. * In charging, Red Indicator light keeps on for 2-3 hours. When Red Indicator Light is off, it means charging completed and available for use. *When the Red indicator light flashes with sound of beep, it means the battery needs to be recharged. *While charging a battery over extended periods of time, indicator light will not light up until minutes later. *Do not attempt to charge the headset with anything other than the charger provided. Power On/Off * Please conform the battery is fully charged before turning your headset on. * Press and hold or 3 seconds, heard one beep and the blue light will flash 3 times, the headset is turned on. * In power-on state, press and hold for 5 seconds, heard one beep and the red light will light 7 seconds, the headset is turned off. Pair device 1.Place the headset and the phone where they are easily viewable and no more than 10meter apart. 2.Press and hold tton of Bluetooth headset about 5 seconds when the power is off, then heard 2 short beep the LED will blink red and blue alternative, which indicates the headset in pairing mode. 3.Please activate Bluetooth function of your devices (such as Bluetooth mobile phone). 4.Please select the name of “BTH-310” and conform. 5.Please input “0000” when the phone ask for pin code, heard one beep and the blue LED flash, it means pair successfully. Please try it again by the same way if pair failed. Note: After first successful pairing, the headset will search the last pairing device automatically when you turn it on, no need pair again. Answer a Call Tap (Volume+/Volume-, Previous / Next ) button to for answering. Switch to mobile phone call Press and hold tton in the talking mode, sound will be transferred to phone. Press again ound will be transferred to headset. End a Call Tap ton for ending the call. Reject a call Press and hold utton for rejecting a call in the talking mode. Make a Voice Dial call Press and hold button for 2 seconds for voice dial call. Last Number Redial Press and hold or for 2 second for last number redial. Listening to music When you listen to music from Bluetooth mobile phone, ipod, laptop, PC, DVD and MP3 etc. : Select next music Select previous music y/pause stop Pair With More Devices To pair with more devices, please refer to Repeat Pairing Device Operation. Troubleshooting * No power-on: The reason may be the low battery. Please charge headset and then restart. * No light-up of charging indicator light: The reason may be the dead battery. Connect secure with power source and charge for another more 10 minutes. * No connection: Check if the headset is in pairing state (Blue indicator keeps lighting), check if mobile phone is searching for audio device. If connection still fails, please turn off the mobile phone and restart for pairing. Warranty In case of any faults, please do not disassemble the Bluetooth headset by yourself, but send it to the appointed service center. Thanks for purchasing BTH-310.May the joy from it. Warning: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance will void the user’s authority to operate the equipment. Any change to the equipment will void FCC grant. This equipment has been test…

Text truncated - open the document above for the full version.

CSR Bluecore03-MM EXT BC352239A 8M Flash Memory Speaker Microphone Antenna 2402MHz-2480MHz Buzzer Indicative Led 1.8V DC/DC XC9216A18 3.3V LDO RT9193-33 Battery Charge LP4054 Balance filter 16M Crystal

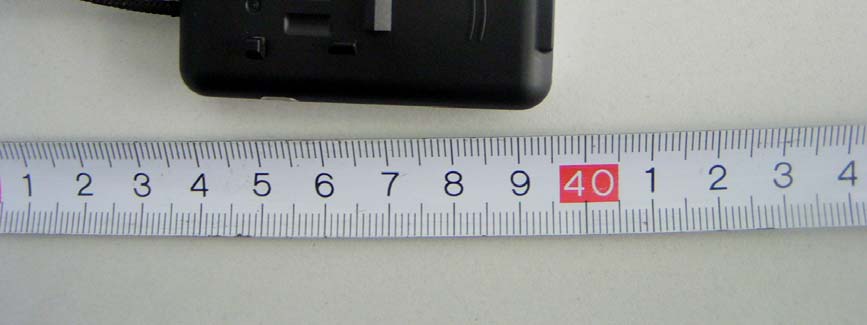

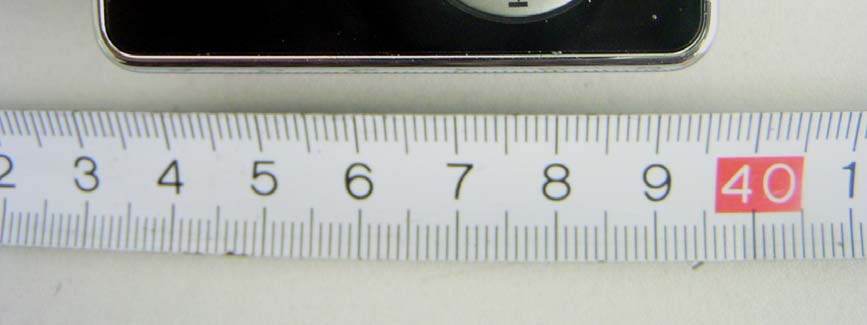

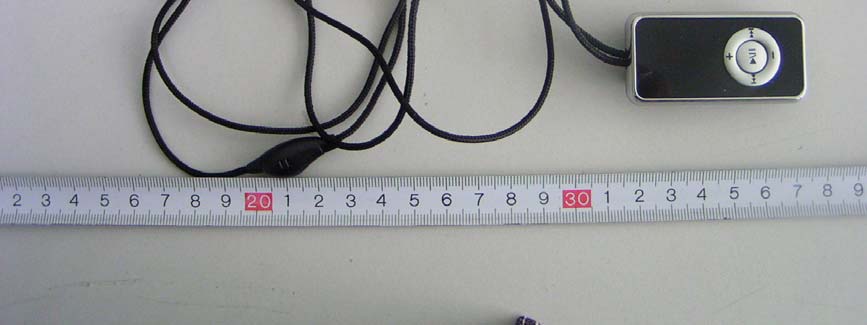

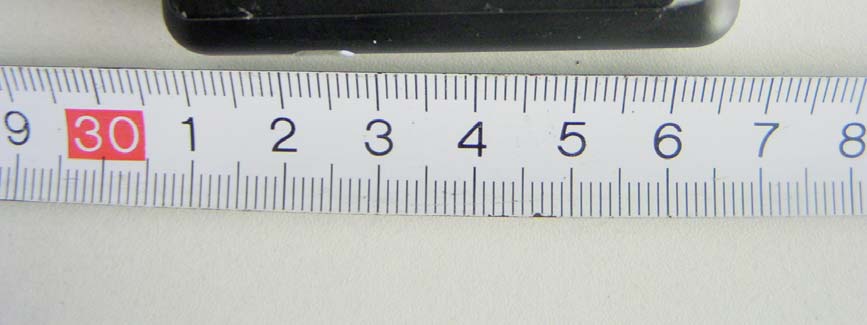

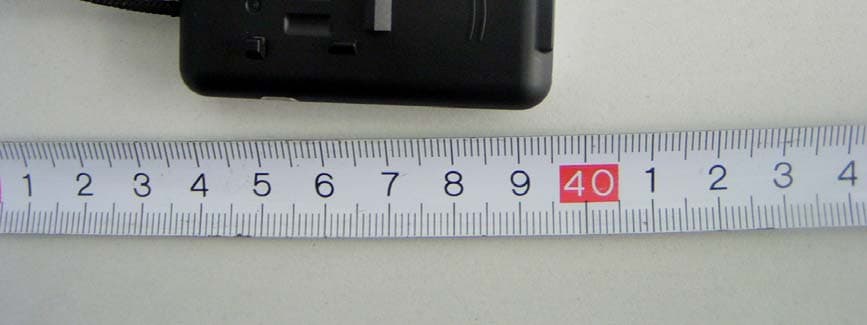

External Photos EUT – All View EUT – Front View EUT – Rear View EUT – Rear Move Clip View EUT – Side View

ID Label/Location FCC ID Label Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Label Location: FCC ID: S7O0013EF3

Internal Photos EUT – Inside View EUT – Main Board Top View EUT – Main Board Bottom View EUT – Main Board and Battery View

BTD-301A Bluetooth Audio Dongle 1. Power supply:3.7 recharged lithium battery 2. U1 Bluetooth module 3. U2(LPO) provide 3.3V voltage to Bluetooth module V2,U4 provide 1.8V voltage Bluetooth to the module V2. 4. V3 Recharges IC 5. V5 composing drive LEC. 6. The Bluetooth Module composing the 2.4GHz radio receiver and transmitter.

Hopping Information 1 Hopping Range Hereby we declare that the maximum frequency of this device is: 2402-2480MHz. This is according the Bluetooth Core Specificati on V1.2 for devices which will be operated in the USA. This was checked during the Bluetooth Qualification tests. Other frequency ranges (e.g. for Spain, France, Japan) which are allowed according the Core Specification are not supported by this device. 2 Hopping Sequence Example of a 79 hopping sequence in data mode: 33,04,21,44,23,42,53,46,55,48,40,59,72,29,76,31,08,73, 07,75,09,45,60,39,58,13,47,11,77,52,35,50,65,54,67,56, 69,62,71,64, 37,25,27,66,57,70,74,61,78,63,10,41,05,43, 15,44,64,68,02,70,06,01,51,03,55,05,03,66,53,49,36,47, 3 Receiver input bandwidth The input bandwidth of the receiver is 1MHz. In every connection one Bluetooth device is the master and the other one is the slave. The master determines the hopping sequence. The slave follows this sequence. Both devices shift between RX and TX time slot according to the clock of the master. Additionally the type of connection is set up at the beginning of the connection. The master adapts its hopping frequency and its TX/RX timing according to the packet type of the connection. Also the slave of the connection will use these settings. Repeating of a packer has no influence on the hopping sequence. The hopping sequence generated by the master of the connection will be followed in any case. That means a repeated packet will not be send on the same frequency, it is send on the next frequency of the hopping sequence.

1 2 3 4 5 6 78 ABCD 8 7 6 5 4 3 2 1 D CBA C210N C112u2 C110N 1V8 1V8 C123p3 C13 10p C3 10N SPI_CLKSPI_MOSISPI_MISOSPI_CSBUART_TXUART_RX R12R2 1 3 2 4 XT116M A0 E1 A1 D1 A2 C1 A3 A1 A4 B1 A5 D2 A6 C2 A7 A2 A8 B5 A9 A5 A10 C5 A11 D5 A12 B6 A13 A6 A14 C6 A15 D6 A16 E6 A17 B2 A18 C3 DQ0 E2 DQ1 H2 DQ2 E3 DQ3 H3 DQ4 H4 DQ5 E4 DQ6 H5 DQ7 E5 DQ8 F2 DQ9 G2 DQ10 F3 DQ11 G3 DQ12 F4 DQ13 G5 DQ14 F5 DQ15/A-1 G6 VCC G4 BYTEB F6 RESETB B4 VSS H1 VSS H6 RY/BYB A3 CEB F1 OEB G1 WEB A4 NC/A19 D4 NC D3 NC C4 NC B3 U5 S29AL008D90BFI020 C1010N 3V3 C910N 3V3 C810N 3V3 C710N 1V8 1V8 TP2 SPI_CLKTP3 SPI_MISOTP4 SPI_MOSI TP5 SPI_CSB TP6 UART_RX TP7 UART_TX TP1 TP_ANT R16 180K 5V C24220N R17 220K 1% R15150k 1% VBAT spk_b_p spk_b_nspk_a_nspk_a_p MIC_L+ MIC_L- INPUT 1 NC 2 ANT1 2402MHz-2480MHz PCBANT REDLED_ENA BLUELED_ENA POWER VOL- VOL+ MIC_ENA S6VOL- S5VOL+ R10150K R11150K 3V3 VOL+ VOL- R1210K R1310K S1 POWER VBAT R8 47K R9 150K POWER R7 4K7 REDLED_ENA BLUELED_ENA VDD_LO J2 VDD_RADIO H2 VDD_CORE C7 VDD_CORE L8 VDD_CORE E13 VDD_PIO A2 VDD_PADS D11 VDD_USB M13 VREG_IN N7 XTAL_IN N1 XTAL_OUT N2 PIO[10] B3 VSS_RADIO H1 VSS_RADIO G2 VSS_RADIO E3 VSS_RADIO E2 VSS_RADIO F2 VSS_ANA H3 VSS_ANA L6 WEB L9 VSS_PADS J13 CSB B4 REB A4 VSS_PADS A12 VSS_PIO A1 VSS_CORE E11 VSS_CORE M9 VSS_CORE C6 VSS_RADIO G3 PIO[2] C2 PIO[3] B2 SPK_B_N L2 MIC_A_P J3 D(15) A10 D(6) A9 D(3) A7 A(16) A11 A(0) C4 A(1) N5 A(10) L10 A(12) M11 D(0) C5 AUX_DAC D2 RF_B F1 RF_A G1 RF_IN E1 AIO[0] N3 RESET B12 TEST_EN B11 RESETB E12 UART_RX K11 UART_TX J12 UART_CTS K12 UART_RTS L12 SPI_CSB C11 SPI_MISO B13 SPI_MOSI D12 SPI_CLK C13 VDD_RADIO D1 VSS_IO J1 VSS F3 VSS_ANA K1 A(2) M5 A(3) L5 A(4) M6 A(5) M7 A(6) L7 A(7) N8 A(8) N10 A(9) M10 A(11) N11 A(13) L11 A(14) N12 A(15) M12 A(17) M8 A(18) N9 D(1) A5 D(2) B6 D(4) B8 D(5) C9 D(7) B10 D(8) B5 D(9) A6 D(10) B7 D(11) C8 D(12) A8 D(13) B9 D(14) C10 MIC_A_N K3 MIC_B_N M3 MIC_B_P L3 SPK_A_P M1 SPK_A_N L1 SPK_B_P M2 AIO(1) L4 AIO(2) M4 AIO(3) N4 USB_DN K13 USB_DP L13 PCM_CLK H13 PCM_OUT G13 PCM_IN J11 PCM_SYNC H11 RXEN PIO(0) C1 TXEN PIO(1) B1 PIO(4) F12 PIO(5) F11 PIO(6) F13 PIO(7) G11 PIO(8) D3 PIO(9) C3 PIO(11) A3 VDD_MEM A13 VDD_ANA N6 VDD_ANA K2 VDD_MEM N13 U2 BC352239A 1 32 Q1BC847W 1 32 Q2 BC847W R1847KR1947K D3 RED R21300R VBAT RED D5 BLUE BLUE R221K 5V 1 1 2 2 3 3 4 4 5 5 J1MINIUSB-5P 54 123 U3 XC9216A18 C21 10UF VBAT L43.3UH C2310uF 1V8 C610N C2615p 54 123 U4 RT9193-33 C25 100N VBAT C2210uF C510N C410N 3V3 D11N4148 CE CE R347K POWER_HOLD R21M CE Unbalanced 1 GND 5 Balanced 4 Balanced 6 GND 7 DC 2 GND 8 NC 3 T1 LFB212G45BA1A220 L315nH C1915P C1815P 1v8 L2NC L1 2.2nH TP9 1V8 TP10 GND TP8 3V3 R28 0R CHRG 1 GND 2 BAT 3 VCC 4 PROG 5 U1 LP4054 RED R14 8K2 C164u7 C14 100N 12 J2 BATTERY C20 10uF C15 100N VBAT R271K D4 BLUE 1234 5678 U6 NE555 VBAT Q33906 12 34 BZ1 DET501 D21N4148 Q5S8050 BUZZER_ENA VBAT R252.2R C29104 R31100R R2920KR3015K C30103 C31103 R2347K R2447K R26100K MIC_ENA C35104P C322.2UF C34 333 R321K C33 333 C36104P R331K C2815P C2715P MIC_L+ MIC_L- R3447RR3547R 1 32 Q4BC847W MIC+ MIC- R20 100K MIC+MIC- spk_b_pspk_b_nspk_a_nspk_a_p S3 PRE R5 47K PRE PRE NEXT TEL 3V3 S4 TEL R6 47K TEL 3V3 S2 NEXT R4 47K NEXT 3V3 BUZZER_ENA 1 1 2 2 3 3 4 4 5 5 6 6 J3CON6 C371UF R36 10K VBAT L52.7nH D7 6.2V D6 6.2V C17 15P C38 15P C4415P C42 15P D13 6.2V D12 6.2V D10 6.2V C40 15P C39 15P D8 6.2V D116.2V C43 15P C41 15P D9 6.2V

Note: This test report is for the customer shown above and their specific product only. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp.(Shenzhen). This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the Federal Government. FCC PART 15.247 MEASUREMENT AND TEST REPORT For KINGJON TECHNOLOGY (HK) CO., LIMITED UNIT D, 10/F, CHINA OVERSEAS BUILDING, 139 HENNESSY ROAD, WANCHAI HK FCC ID: S7O0013EF3 This Report Concerns: Original Report Equipment Type: Bluetooth Stereo Headset Test Engineer: Merry Zhao Report No.: RSZ07102601 Test Date: 2007-10-31 to 2007-11-09 Report Date: 2007-12-05 Reviewed By: EMC Manager: Green Xu Prepared By: Bay Area Compliance Laboratories Corp.(Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 KINGJON TECHNOLOGY (HK) CO., LIMITED FCC ID: S7O0013EF3 Report No.: RSZ07102601 Page 2 of 45 FCC Part 15.247 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................6 EUT EXERCISE SOFTWARE..........................................................................................................................................6 SPECIAL ACCESSORIES.................................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 HOST SYSTEM CONFIGURATION LIST AND DETAILS....................................................................................................6 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................7 EXTERNAL I/O CABLE..................................................................................................................................................7 CONFIGURATION OF TEST SETUP.................................................................................................................................8 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................9 SUMMARY OF TEST RESULTS .............................................................................................................................10 §15.247 (i) & §2.1093 - RF EXPOSURE ....................................................................................................................11 §15.203 - ANTENNA REQUIREMENT....................................................................................................................12 STANDARD APPLICABLE............................................................................................................................................12 §15.207 (a) - CONDUCTED EMISSIONS.................................................................................................................13 MEASUREMENT UNCERTAINTY..................................................................................................................................13 EUT SETUP................................................................................................................................................................13 EMI TEST RECEIVER SETUP.......................................................................................................................................14 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................14 TEST PROCEDURE......................................................................................................................................................14 TEST RESULTS SUMMARY..........................................................................................................................................14 TEST DATA................................................................................................................................................................15 PLOT(S) OF TEST DATA..............................................................................................................................................15 §15.109, §15.205, §15.209, §15.247 - RADIATED EMISSIONS ..............................................................................18 APPLICABLE STANDARD..........................................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos Conducted Emissions - Front View Conducted Emissions - Side View Radiated Emissions - Front View for charging mode Radiated Emissions - Rear View for charging mode Radiated Emissions - Front View (30-1000 MHz) for transmitting mode Radiated Emissions - Rear View (30-1000 MHz) for transmitting mode Radiated Emissions - Rear View (Above 1 GHz) for transmitting mode
