S8C-DSA2LSEmbedded computer

dsa2ls Quick Start Guide 快速安裝指南 快速安装指南 クリックスタートガイド Kurzanleitung Guide de Démarrage Rapide Guía de inicio rápido Краткое руководство пользователя Copyright © 2014, Shuttle Corporation. All Rights Reserved 53R-DSA2L3-2001 Package Contents 包裝內容物 包装内容 パッケージ内容 Packungsinhalt Contenu de l’emballage Contenido de la caja Комплект поставки Supports 75x75mm and 100x100mm VESA standard. 支援 75x75mm 及 100x100mm VESA 標準規格。 支持 75x75mm 及 100x100mm VESA 标准规格。 75x75mm および 100x100mm の VESA 規格に対応 Unterstützt die VESA-Standards 75x75 mm und 100x100 mm. Compatible avec les formats VESA 75x75 mm et 100x100 mm. Soporta los estándares VESA 75x75 mm y 100x100 mm. Поддержка крепления VESA 75x75мм и 100x100мм x4 x4 Product Overview 產品外觀 产品概述 製品概要 Produktübersicht Aperçu du produit Relación de productos Краткое описание ! This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measure. 警告使用者 本產品為甲類資訊技術設備，於居住環境中使用時，可能會造成射頻干擾，在此種情況下，使用者會被要求採取某些適當的對策。 FCC ID: TX2-XXXXXX: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 依據低功率電波輻射性電機管理辦法 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾 現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 2 Pin Dip Switch 2 Pin指撥開關 2 Pin拨动开关 2 ピンディップスイッチ 2-Pin DIP-Schalter Interrupteur 2 Pin Interruptor DIP de 2 pines DIP-переключатель 2pin P: Force Auto Power ON (Default : OFF) P: 強制自動電源偵測開機 (預設值: 關) P: 强制自动开机 (默认值: 关) P: 強制自動パワーオン (初期設定: オフ) P: Automatisches Einschalten erzwingen (standardmäßig: Aus) P: Forcer allumage automatique (standard: éteint) P: Forzar el encendido automático (predeterminado: desactivado) P: Force Auto Power ON (По умолч. Выкл.) Connecting to Power 電源連接 电源连接 電源への接続 Anschließen des Stromkabels Branchement au secteur Conectar a la alimentación Соединяется > 2 secs. 12543 12 11 6 78 9 10 1. Mini-USB 2.0 3. SD Card Reader SD 讀卡槽 SD 读卡器 SD カードリーダー SD-Cardreader Lecteur de cartes SD Lector de tarjetas SD SD Кардридер 5. K-Lock Security Slot 安全鎖 K-Lock 防盗安全锁孔 ケンジントンロック セキュリティースロット K-Lock Sicherungsbefestigung Encoche de sécurité Kensington Fijación del seguro K-Lock Замок K-Lock (Kensington) 7. D-Sub / VGA Video Port D-Sub連接埠 / VGA視訊埠 D-Sub端口 / VGA视讯端口 D-Sub / VGAビデオポート D-Sub / VGA-Videoanschluss D-Sub / Port Video VGA Puerto de vídeo D-Sub / VGA D-Sub / VGA видео порт 9. HDMI Audio / Video Port HDMI 連接埠 HDMI 端口 HDMI オーディオ / ビデオポート HDMI Audio/Video-Anschluss HDMI Audio /Port Video Conector de Audio/Vídeo HDMI HDMI аудио / видео порт 11. RJ45 Gigabit-LAN Port 網路連接埠 网络端口 RJ45 ギガビット-LAN ポート RJ45 Gigabit-LAN-Anschluss Port RJ45 Gigabit Lan Conector LAN Gigabit RJ45 RJ45 Gigabit-LAN порт 2. USB 2.0 (x3) 4. Power Button / Status LED 電源按鈕 / 電源狀態指示燈 电源按钮 / 状态 LED 電源ボタン / ステータス LED Einschaltknopf / Status-LED Bouton de mise sous tension / Status LED Botón de encendido/LED de estado Кнопка вкл/выкл 6. W-LAN Antenna 無線天線 无线天线 W-LAN アンテナ WLAN-Antenne Antenne Wi-Fi Antena WLAN W-LAN антенна 8. Audio Line-out 音源輸出孔 音源输出端口 オーディオラインアウト Audio Line-Out Sortie Audio Salida de línea de Audio Аудио 10. Com Port COM端口 COM端口 コムポート COM-Port Port Série Puerto COM Последовательный порт 12. AC IN 電源接頭 电源输入口 AC IN 端子 AC-Stromanschluss AC IN Conexión de corriente c.a. AC IN Installation of VESA Mount VESA 掛架安裝 VESA 挂架安装 VESA マウントの取り付け Installation der VESA-Halterung Installation de l’attache VESA Instalación del soporte VESA Установка крепления VESA i V: Force VGA ON (Default: OFF) V: 強制 VGA 影像輸出 (預設值: 關) V: 强制 VGA 开机 (默认值: 关) V: 強制 VGA オン（初期設定: オフ） V: VGA Einschalten erzwingen (standardmäßig: Aus) V: Forcer mode VGA (standard: éteint) V: Forzar la activación de VGA (predeterminado: desactivado) V: Force VGA ON (По умолч. Выкл.) x4 x4 1 2 3 1 2 4 3 VESA Mount Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. . Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any oth…

Text truncated - open the document above for the full version.

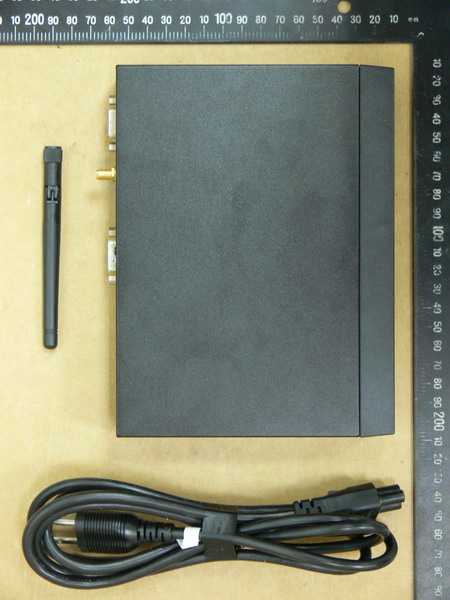

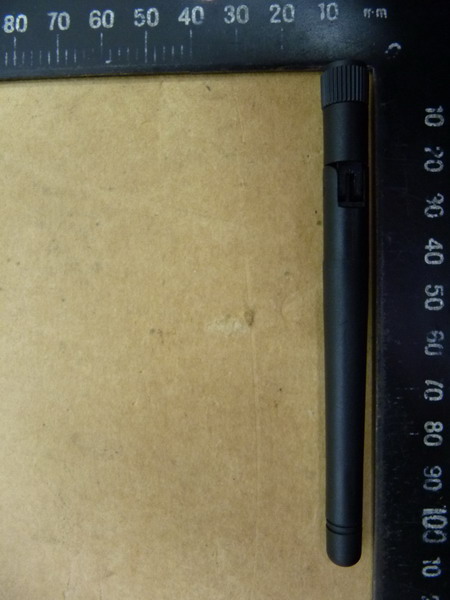

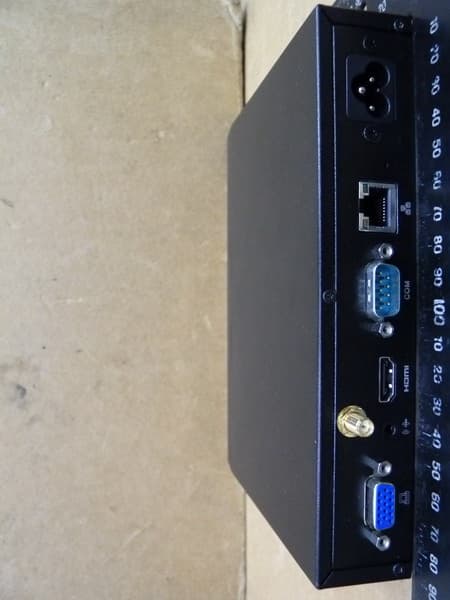

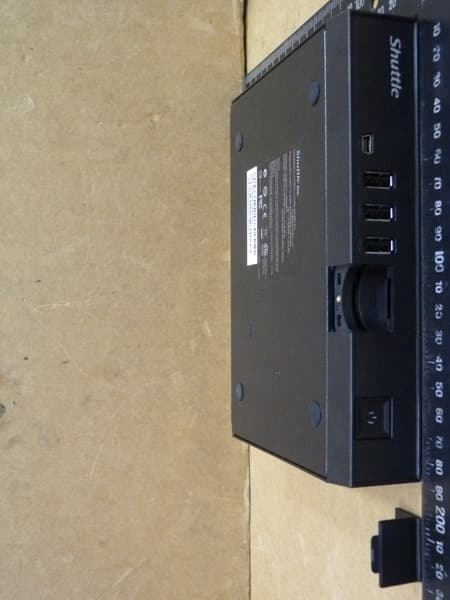

Registration number: W6M21404-14062-FCC FCC ID: S8C-DSA2LS Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 2 of 22 External Photos Registration number: W6M21404-14062-FCC FCC ID: S8C-DSA2LS Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 3 of 22 Registration number: W6M21404-14062-FCC FCC ID: S8C-DSA2LS Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 4 of 22 Registration number: W6M21404-14062-FCC FCC ID: S8C-DSA2LS Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 5 of 22 Registration number: W6M21404-14062-FCC FCC ID: S8C-DSA2LS Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 6 of 22 Registration number: W6M21404-14062-FCC FCC ID: S8C-DSA2LS Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 7 of 22 Registration number: W6M21404-14062-FCC FCC ID: S8C-DSA2LS Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 8 of 22 Registration number: W6M21404-14062-FCC FCC ID: S8C-DSA2LS Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 9 of 22 Registration number: W6M21404-14062-FCC FCC ID: S8C-DSA2LS Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 10 of 22 Registration number: W6M21404-14062-FCC FCC ID: S8C-DSA2LS Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 11 of 22 Registration number: W6M21404-14062-FCC FCC ID: S8C-DSA2LS Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 12 of 22

Registration number: W6M21404-14062-FCC FCC ID: S8C-DSA2LS Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 13 of 22 Internal Photos Registration number: W6M21404-14062-FCC FCC ID: S8C-DSA2LS Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 14 of 22 Registration number: W6M21404-14062-FCC FCC ID: S8C-DSA2LS Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 15 of 22 Registration number: W6M21404-14062-FCC FCC ID: S8C-DSA2LS Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 16 of 22 Registration number: W6M21404-14062-FCC FCC ID: S8C-DSA2LS Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 17 of 22 Registration number: W6M21404-14062-FCC FCC ID: S8C-DSA2LS Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 18 of 22

MPE Prediction FCC Rule: 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See §1.1307(b)(1) of this Chapter. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average time (minutes) (A)Limits For Occupational / Control Exposures 30-300 61.4 0.613 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 PG S = -------------- 4πR² where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 19.64 (dBm) Maximum peak output power at antenna input terminal: 92.04496 (mW) Antenna gain(maximal): 4.87 (dBi) Prediction distance: 20 (cm) Prediction frequency: 2437 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm²) Power density at prediction frequency: 0.05619907 (mW/cm²)

of Applicant: Shuttle Inc. Address: No. 30, Lane 76, Rei Kuang Rd. Nei-Hu Dist., Taipei Taiwan Tested and Prepared by Worldwide Testing Services (Taiwa n) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21404-14062-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for Embedded computer Model No.: DSA2XX FCC ID: S8C-DSA2LS Registration number: W6M21404-14062-C-1 FCC ID: S8C-DSA2LS Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 54 TABLE OF CONTENTS 1 GENERAL INFORMATION ..........................................................................................................2 1.1 N OTES..........................................................................................................................................2 1.2 T ESTING LABORATORY................................................................................................................3 1.2.1 Location ..............................................................................................................................3 1.2.2 Details of accreditation status ............................................................................................3 1.3 DETAILS OF APPROVAL HOLDER...................................................................................................3 1.4 A PPLICATION DETAILS.................................................................................................................4 1.5 G ENERAL INFORMATION OF TEST ITEM........................................................................................4 1.6 TEST STANDARDS.........................................................................................................................5 2 TECHNICAL TEST .........................................................................................................................6 2.1 SUMMARY OF TEST RESULTS........................................................................................................6 2.2 T EST ENVIRONMENT....................................................................................................................6 2.3 TEST EQUIPMENT LIST.................................................................................................................7 2.4 GENERAL TEST PROCEDURE........................................................................................................9 3 TEST RESULTS (ENCLOSURE) ................................................................................................11 3.1 P EAK OUTPUT POWER (TRANSMITTER) ......................................................................................12 3.2 E QUIVALENT ISOTROPIC RADIATED POWER................................................................................19 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS............................................................................19 3.4 T RANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS....................................................20 3.5 S PURIOUS EMISSIONS (TX) .........................................................................................................21 3.6 R ADIATED EMISSION ON THE BAND EDGE..................................................................................31 3.7 MINIMUM 6 DB BANDWIDTH.....................................................................................................36 3.8 PEAK POWER SPECTRAL DENSITY.............................................................................................43 3.9 RADIATED EMISSION FROM DIGITAL PART................................................................................50 3.10 P OWER LINE CONDUCTED EMISSION.........................................................................................51 A PPENDIX..............................................................................................................................................54 Registration number: W6M21404-14062-C-1 FCC ID: S8C-DSA2LS Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 54 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. The test sample is able to work according IEEE 802.11 b/g/n. This report is related to FCC Part 15 C (DSSS and OFDM device). Tester: May 15, 2014 Spencer Yang Date WTS-Lab. Name Signature Technical responsibility for area of testing: May 15, 2014 Kevin Wang Date WTS Name Signature Registration number: W6M21404-14062-C-1 …

Text truncated - open the document above for the full version.

Registration number: W6M21404-14062-FCC FCC ID: S8C-DSA2LS Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 19 of 22 Set Up Photo of Radiated Emission EMI Below 1GHz Registration number: W6M21404-14062-FCC FCC ID: S8C-DSA2LS Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 20 of 22 Above 1GHz Registration number: W6M21404-14062-FCC FCC ID: S8C-DSA2LS Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 21 of 22 RF Registration number: W6M21404-14062-FCC FCC ID: S8C-DSA2LS Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 22 of 22 Set Up Photo of Conducted Emission
