S9G-MPE5AC33A802.11ac mini-PCI Express Radio Module

880 West Maude Avenue, Suite 101 TEL + .650.265.4200 Sunnyvale, CA 94085 USA FAX +.480.738.2065 www.ruckuswireless.com RUCKUS RADIO MODULE GUIDE INTRODUCTION This document describes the required steps that must be taken when utilizing the Ruckus Wireless, Inc. MPE5AC33A radio module in order to comply with regulatory requirements. HOST CONTROLLER This module is only to be used for installation in Ruckus Wireless, Inc. products. The host must supply regulated voltage to the radio module. POWER SETTING Maximum output power must comply with the power limits identified on the FCC Grant, Industry Canada REL listing, or as identified by other regulatory authorities. Power measurements are conducted measurements at the antenna ports. ALLOWED ANTENNAS The module is only to be used with antennas approved by Ruckus Wireless, Inc. Use of an antenna of higher gain or of a different type than the antennas included in the FCC submission requires additional testing and submission to the FCC. ANTENNA PLACEMENT The antennas used with this module may only be collocated as identified on the FCC grant. Simultaneous transmissions are allowed as identified within the FCC submission. This module is not intended for mobile applications. Antenna installation within 20cm of the human body is not permitted. DEVICE LABELING The host device containing this module must either: 1) Make the module label visible so the FCC ID is visible in the end construction 2) Label the end product with the FCC ID and IC ID of the module. For example “Contain FCC ID: S9G-MPE5AC33A” or “Contains IC: 5912A-MPE5AC33A”

Page 1 Federal Communications Commission Notices This product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications to this equipment that have not been approved by Ruckus Wireless may void the user's authority to operate this equipment. For Class B Equipment: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. For Class A Equipment: Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Industry Canada Statement Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall comply with the e.i.r.p. limit; and the maximum antenna gain permitted for devices in the band 5725-5825 MHz shall comply with the e.i.r.p. limits specified for point-to-point and non point-to-point operation as appropriate. Le dispositif de fonctionnement dans la bande 5150-5250 MHz est réservé à une utilisation en intérieur pour réduire le risque d'interférences nuisibles à la co-canal systèmes mobiles par satellite, le gain d'antenne maximal autorisé pour les appareils dans les bandes 5250-5350 MHz et 5470-5725 MHz doit se conformer à la pire limite, et le gain d'antenne maximal autorisé pour les appareils dans la bande 5725-5825 MHz doivent être conformes avec le pire limites spécifiées à point-à-ponctuelles et non point-à-point de fonctionnement selon qu'il convient. Operation in the 5600-5650 MHz band is not allowed in Canada. High-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices. Opération dans la bande 5600-5650 MHz n'est pas autorisée au Canada. Haute puissance radars sont désignés comme utilisateurs principaux (c. -à- utilisateurs prioritaires) des bandes 5250-5350 MHz et 5650-5850 MHz et que ces radars pourraient causer des interférences et / ou des dommages à dispositifs LAN-EL. Radiation Exposure Statement The device has been found to be compliant to the requirements set forth in CFR 47 Sections 2.1091 and Industry Canada RSS-102 for an uncontrolled environment. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Le dispositif a été jugé conforme aux exigences énoncées dans les articles 47 CFR…

Text truncated - open the document above for the full version.

350 West Java Drive TEL + .650.265.4200 Sunnyvale, CA 94089 USA FAX +.480.738.2065 www.ruckuswireless.com FCC Authorization 5/29/2012 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Ruckus Wireless, Inc., the undersigned, hereby authorizes Lisa Tang, and other employees of Bay Area Compliance Laboratory Corporation, to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, Clinton Bradley Compliance Engineer

350 West Java Drive TEL + .650.265.4200 Sunnyvale, CA 94089 USA FAX +.480.738.2065 www.ruckuswireless.com 7/1/2013 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: Ruckus Wireless, Inc. FCC ID: S9G-MPE5AC33A FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 Ruckus Wireless, Inc. hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type File Name Description Schematics MPE5AC33A Schematic.pdf Schematics Operational Description MPE5AC33A Radio Description.pdf Radio Theory of Operation Block Diagram MPE5AC33A Block Diagram.pdf Block Diagram Reason why the material should be withheld from public inspection: These documents contain detailed system, equipment description and related information about the product which Ruckus Wireless, Inc. considers to be proprietary, confidential, and a custom design otherwise not released to the general public. State why the information is a “trade secret;” Since the design is a basis from which future technological products will evolve, Ruckus Wireless, Inc. considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. State whether the information is publicly available anywhere else: This information is not made publically available. Sincerely, Clinton Bradley Compliance Engineer

350 West Java Drive TEL + .650.265.4200 Sunnyvale, CA 94089 USA FAX +.480.738.2065 www.ruckuswireless.com Date: July 1, 2013 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Company name: Ruckus Wireless FCC Part 15 Certification; Limited Single Modular Transmitter; FCC ID: S9G-MPE5AC33A Gentlemen, In accordance with DA 00‐1407 – 26th Jun 2000 “Part 15 Unlicensed Modular Transmitter Approval” and KDB “996369 D01 Module Certification Guide v01r03”, Ruckus Wireless Inc. declares it has met the follow requirements set out in the document for the granting of a limited single modular transmitter approval. Notes Modular requirements Complies The modular transmitter must have its own RF shielding. Complies The modular transmitter must have buffered modulation/data inputs. Power supply regulation provided by host board. The modular transmitter must have its own power supply regulation. Complies The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). Complies The modular transmitter must be tested in a stand‐alone configuration. Complies The modular transmitter must be labeled with its own FCC ID number. Complies The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. Complies The modular transmitter must comply with any applicable RF exposure requirements. Device will be restricted to host devices manufactured by Ruckus Wireless, Inc. Sincerely, Clinton Bradley Compliance Engineer

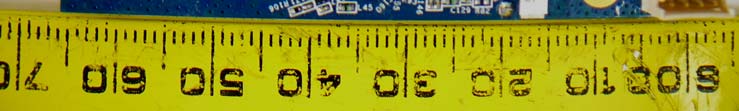

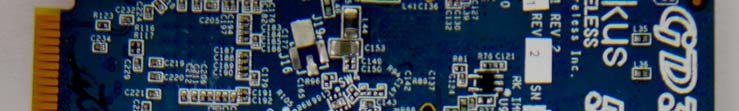

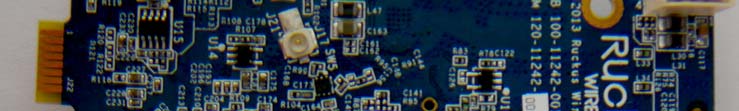

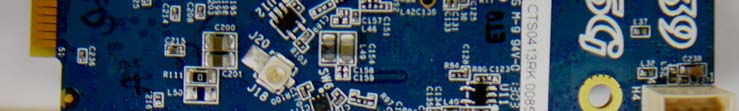

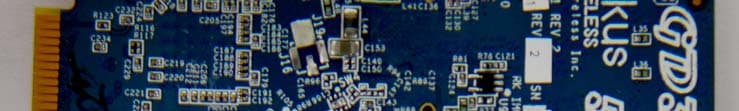

Ruckus Wireless, Inc. FCC ID: S9G-MPE5AC33A, IC: 5912A-MPE5AC33A Report Number: R1302145-247 Page 110 of 113 FCC Part 15C/IC RSS-210 Test Report 16 Exhibit C – EUT Photographs 16.1 EUT – Top View 16.2 EUT – Bottom View

BLACK 1. Dielines/cutlines do not print 2. P/N 877-763681-001 rev. A 3. Colors:

Ruckus Wireless, Inc. FCC ID: S9G-MPE5AC33A, IC: 5912A-MPE5AC33A Report Number: R1302145-247 Page 111 of 113 FCC Part 15C/IC RSS-210 Test Report 16.3 EUT – Top View without shielding 16.4 Supporting Board with EUT View Ruckus Wireless, Inc. FCC ID: S9G-MPE5AC33A, IC: 5912A-MPE5AC33A Report Number: R1302145-247 Page 112 of 113 FCC Part 15C/IC RSS-210 Test Report 16.5 Supporting Board Front View 16.6 Supporting Board Rear View Ruckus Wireless, Inc. FCC ID: S9G-MPE5AC33A, IC: 5912A-MPE5AC33A Report Number: R1302145-247 Page 113 of 113 FCC Part 15C/IC RSS-210 Test Report 16.7 EUT – AC/DC Power Adapter --- END OF REPORT ---

Ruckus Wireless, Inc. FCC ID: S9G-MPE5AC33A, IC: 5912A-MPE5AC33A Report Number: R1302145-247 Page 9 of 113 FCC Part 15C/IC RSS-210 Test Report 4 FCC §15.247 (i), §2.1091 & IC RSS-102 – RF Exposure 4.1 Applicable Standard According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 * (100) 30 1.34-30 824/f 2.19/f * (180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Before equipment certification is granted, the procedure of IC RSS-102 must be followed concerning the exposure of humans to RF fields. According to IC RSS-102 Issue 4 section 4.2, RF limits used for general public will be applied to the EUT. Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m 2 ) Time Averaging (min) 0.003 - 1 280 2.19 - 6 1 - 10 280 / f 2.19 / f - 6 10 - 30 28 2.19 / f - 6 30 – 300 28 0.073 2* 6 300 – 1 500 1.585 f 0.5 0.0042 f 0.5 f / 150 6 1 500 – 15 000 61.4 0.163 10 6 15 000 – 150 000 61.4 0.163 10 616000 / f 1.2 150 000- 300 000 0.158 f 0.5 4.21 x 10 -4 f 0.5 6.67 x 10 -5 f 616000 / f 1.2 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Ruckus Wireless, Inc. FCC ID: S9G-MPE5AC33A, IC: 5912A-MPE5AC33A Report Number: R1302145-247 Page 10 of 113 FCC Part 15C/IC RSS-210 Test Report 4.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4R² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 4.3 MPE Results Maximum peak output power at antenna input terminal (dBm): 25.72 Maximum peak output power at antenna input terminal (mW): 372.39 Prediction distance (cm): 20 Prediction frequency (MHz): 5745 Maximum Antenna Gain, typical (dBi): 3 Maximum Antenna Gain (numeric): 1.99 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.148 Power density of prediction frequency at 20.0 cm (W/m 2 ): 1.48 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 MPE limit for uncontrolled exposure at prediction frequency (W/m 2 ): 10 The device is compliant with the MPE requirement for uncontrolled exposure.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*” (Rev.3) FCC PART 15, SUBPART C IC RSS-210, ISSUE 8, DEC 2010 TEST AND MEASUREMENT REPORT For Ruckus Wireless, Inc. 350 West Java Drive, Sunnyvale, CA 94089, USA Report Type: Original Report Product Type: 802.11ac mini-PCI Express Radio Module Prepared By: Nin g Ma Report Number: R1302145-247 Report Date: 2013-07-03 Reviewed By: Quinn Jian g Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732-9164 FCC ID: S9G-MPE5AC33A IC: 5912A-MPE5AC33A Ruckus Wireless, Inc. FCC ID: S9G-MPE5AC33A, IC: 5912A-MPE5AC33A Report Number: R1302145-247 Page 2 of 113 FCC Part 15C/IC RSS-210 Test Report TABLE OF CONTENTS 1 General Description .................................................................................................................................................. 5 1.1 Product Description for Equipment Under Test (EUT) ...................................................................................... 5 1.2 Mechanical Description of EUT ......................................................................................................................... 5 1.3 Objective ............................................................................................................................................................. 5 1.4 Related Submittal(s)/Grant(s) ............................................................................................................................. 5 1.5 Test Methodology ............................................................................................................................................... 5 1.6 Measurement Uncertainty ................................................................................................................................... 5 1.7 Test Facility ........................................................................................................................................................ 6 2 System Test Configuration....................................................................................................................................... 7 2.1 Justification ......................................................................................................................................................... 7 2.2 EUT Exercise Software....................................................................................................................................... 7 2.3 Local Support Equipment ................................................................................................................................... 7 2.4 EUT Internal Configuration Details .................................................................................................................... 7 2.5 Power Supply List and Details ............................................................................................................................ 7 2.6 Interface Ports and Cables .................................................................................................................................. 7 3 Summary of Test Results ......................................................................................................................................... 8 4 FCC §15.247 (i), §2.1091 & IC RSS-102 – RF Exposure ....................................................................................... 9 4.1 Applicable Standard ............................................................................................................................................ 9 4.2 MPE Prediction ................................................................................................................................................. 10 4.3 MPE Results ..................................................................................................................................................... 10 5 FCC §15.203 & IC RSS-Gen §7.1.2 – Antenna Requirements ............................................................................. 11 5.1 Applicable Standard .......................................................................................................................................... 11 5.2 Result ................................................................................................................................................................ 11 6 FCC §15.207 & IC RSS-Gen §7.2.4 – AC Line Conducted Emissions ................................................................. 12 6.1 Applicable Standards ........................................................................................................................................ 12 6.2 Test Setup ......................................................................................................................................................... 12 6.3 Test Procedure .................................................................................................................................................. 12 6.4 Test Setup Block Diagram ................................................................................................................................ 13 6.5 Corrected Amplitude & Margin Calculation ..................................................................................................... 13 6.6 Test Equipment List and Details ............................................................................................................…

Text truncated - open the document above for the full version.

Ruckus Wireless, Inc. FCC ID: S9G-MPE5AC33A, IC: 5912A-MPE5AC33A Report Number: R1302145-247 Page 107 of 113 FCC Part 15C/IC RSS-210 Test Report 15 Exhibit B – Test Setup Photographs 15.1 AC Line Conducted Emission Front View 15.2 AC Line Conducted Emission Side View Ruckus Wireless, Inc. FCC ID: S9G-MPE5AC33A, IC: 5912A-MPE5AC33A Report Number: R1302145-247 Page 108 of 113 FCC Part 15C/IC RSS-210 Test Report 15.3 Radiated Emission Front View at 3 Meter 15.4 Radiated Emission below 1 GHz Rear View at 3 Meter Ruckus Wireless, Inc. FCC ID: S9G-MPE5AC33A, IC: 5912A-MPE5AC33A Report Number: R1302145-247 Page 109 of 113 FCC Part 15C/IC RSS-210 Test Report 15.5 Radiated Emission above 1 GHz Rear View at 3 Meter
