R350 Access Point Quick Setup Guide This Quick Setup Guide pr ovides step-by-step instructions on how to set up your Ruckus R350 access point. After completing the steps in this guide, you will be able to place the access point (AP) at your site and provide network access to wireless clients. NOTE: Please r ead these operation instructions carefully before start of operation. NOTE: The minimum softwar e revision for the R350 is ZoneDirector (ZD) 10.5 native or later, SmartZone (SZ) 6.0 new AP model or later, or ALTO EAP. FIGURE 1 R350 Top Before You Begin Befor e deploying Ruckus products, please check for the latest software and the release documentation. •Release Notes and other user documentation are available at http://support.ruckuswireless.com/documents. •Software upgrades are available at http:// support.ruckuswireless.com/software. This Guide in Other Languages •请从以下网站获得该指南的简体中文版 https:// support.ruckuswireless.com. •V ous trouverez la version française de ce guide à l'adresse suivante https://support.ruckuswireless.com. •このガイドの日本語版は https://support.ruckuswireless.com で ご覧ください。 •이 가이드의 한국어 버전은 웹 사이트 (https:// support.ruckuswireless.com) 에서 확인하시기 바랍니다. •Veja a versão em português (Brasil) deste guia em https:// support.ruckuswireless.com. •Puede ver la versión en español (América Latina) de esta guía en https://support.ruckuswireless.com. Package Contents A complete R350 installation package includes all of the items listed below: •R350 Access Point •One external T-bar bracket (two unassembled parts) •One unit removal pin •Service Level Agreement/Limited Warranty Statement •Declaration of Conformity •Regulatory Statement •Ruckus AP Getting Started Guide •AP Cloud Management Insert •This Quick Setup Guide CONFIGURING THE AP Step 1: Collecting the AP MAC Address •Write down the MAC address (12 alphanumeric digits) from the outside of the AP. NOTE: If the AP is to be managed b y a Ruckus controller, then follow the controller user documents to connect the AP to your local network and configure it for initial operation. In that case, you may not need to complete the following steps. Step 2: Collecting Setup Requirements, Har dware, and Tools •A computer with Ethernet adapter running Windows 7 or equivalent, with Firefox or equivalent web browser. •One Cat 5e (or better) Ethernet cable. •An AC-to-12VDC power adapter (sold separately) --OR-- an 802.3af-compliant Power over Ethernet (PoE) switch or PoE injector. Step 3: Connecting Your Computer to the AP 1. After removing the AP from its package, place it next to your computer. 2. Using an Ethernet cable, connect your computer’s network port to the POE IN port on the AP. 3. Connect the AC power adapter (sold separately) to the 12V DC AP port, and plug the AC power adapter into a convenient and protected AC power source. Alternatively, connect the POE IN port to a PoE injector or PoE switch for both power and network connectivity. FIGURE 2 AP Rear Panel 4. After bootup, verify that the PWR LED on the AP is a steady gr een. Step 4: Preparing Your Computer for AP Setup NOTE: The follo wing procedures assume that Windows 7 is the operating system. Procedures for other operating systems are similar. 1. On your Windows 7 computer, configur e your network adapter from the Local Area Connection settings as follows: • Start > Control Panel > Network and Sharing Center > Change Adapter Settings 2. Edit the TCP/IPv4 address settings as follows: • Local Area Connection > Properties > Internet Protocol Version 4 (TCP/IPv4) > Properties The Internet Protocol Version 4 (TCP/IPv4) Properties dialog box appears. NOTE: W rite down all of the currently active settings so you can restore your computer to its current configuration when this procedure is completed. 3. Select Use the following IP addr ess (if it is not already selected) and then make the following entries: •IP address: 192.168.0.22 (or any available address in the 192.168.0.x network, except 192.168.0.1, which is the default used by the R350 AP) •Subnet mask: 255.255.255.0 •Leave the DNS server and Default gateway fields empty. 4. Click OK to save your changes. Your changes are put into effect immediately. Step 5: Logging Into the AP Web Interface As specified in Step 4: Preparing Your Computer for AP Setup on page 1, the computer should be connected to your AP through the Ethernet port and powered on, ready for setup. 1. On your computer, open a Web browser window. Copyright © 2021 CommScope, Inc. All rights r eserved.Page 1 of 4 Published June 2021, Part Number 800-72737-001 Rev A 2. In the browser, enter https://192.168.0.1 to connect to the AP . 3. Press <Enter> to initiate the connection. When a security alert dialog box appears, click OK/Yes to proceed. 4. When the Ruckus Wireless Admin login page appears, enter the following: •Username: super •Password: sp-admin 5. Click Login. On your first login, you will be prompted to change the default password. 6. When the Change Password dialog box displays, enter the following: • New Password: Enter a new password. •Confirm Password: Re-enter the new password. 7. Click Submit. 8. Log in using the new password. Step 6: Customizing the Wireless Settings 1. On the AP Web interface menu, click Configuration > Wireless > 5G or Configuration > Wireless > 2.4G. The Configure > Wireless > Common options appear. 2. Verify that the following options are active: •Channel: SmartSelect •Channel Width: 20 MHz, 40 MHz, or 80 MHz (default). •Country Code: Select the country in which the AP will be operating. NOTE: If you pur chased the AP in the United States, then this value is fixed to United States at the factory and is not user configurable. If you purchased the AP outside the United States, then verify that the value is set to your country or region. Selecting the correct country code ensures that the AP uses only the radio channels allowed in your country or region. 3. Click Update Settings if you made any changes. 4. Click any of the eight Wireless # (Wi…

Text truncated - open the document above for the full version.

Business Unit - Ruckus Wireless Inc. 350 West Java Dr. Sunnyvale CA 94089 USA T: +1 650 265 4200 F: +1 408 738 2065 www.commscope.com SDoC Attestation Letter Date: 2021/5/20 We Ruckus Wireless Inc., as the grantee of this project (FCC ID: S9GR350 / Brand Name: RUCKUS / Model: R350), would like to declare that the composite portion has been authorized under the Supplier's Declaration of Conformity procedures (Sporton report No.: FD120214, FCC designation number: TW1131). The final product shall consequently comply with the FCC rule applied for SDoC Procedure. Applicant’s company name: : Ruckus Wireless Inc. Applicant’s company address: : 350 W. Java Dr., Sunnyvale CA 94089 USA Should you have further inquiry, please contact the undersigned below. Sincerely, Signature: Name: Ivaylo Tankov Tittle: Principal Wireless Compliance Engineering Email: [email protected]

Business Unit - Ruckus Wireless Inc. 350 West Java Dr. Sunnyvale CA 94089 USA T: +1 650 265 4200 F: +1 408 738 2065 www.commscope.com Confidentiality Request Federal Communications Commission Date: 02 June 2021 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID：S9GR350 To Whom It May Concern: Long Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request confidential treatment of information accompanying this application as outlined below: ● Block Diagrams ● Schematics ● Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We understand that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Short Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request short-term confidential treatment of information accompanying this application as outlined below until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: ● External Photos ● Internal Photos ● Test Setup photos ● Users Manuals Applicant’s company name: : Ruckus Wireless Inc. Applicant’s company address: : 350 W. Java Dr., Sunnyvale CA 94089 USA Should you have further inquiry, please contact the undersigned below. Sincerely, Signature: Name: Ivaylo Tankov Tittle: Principal Wireless Compliance Engineering Email: [email protected]

Business Unit - Ruckus Wireless Inc. 350 West Java Dr. Sunnyvale CA 94089 USA T: +1 650 265 4200 F: +1 408 738 2065 www.commscope.com Letter of Authorization Date: 02 June 2021 Ruckus Wireless Inc., hereby declare that we entrusted the following person to be a proxy regarding application for Equipment Certification. We are therefore responsible for the contents of the application - FCC ID: S9GR350. Model of the specified radio equipment: R350 Company name: : Sporton International Inc. Company Address: : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Name: : Leo Huang Job Title: : Manager Applicant’s company name: : Ruckus Wireless Inc. Applicant’s company address: : 350 W. Java Dr., Sunnyvale CA 94089 USA Should you have further inquiry, please contact the undersigned below. Sincerely, Signature: Name: Ivaylo Tankov Tittle: Principal Wireless Compliance Engineering Email: [email protected]

Business Unit - Ruckus Wireless Inc. 350 West Java Dr. Sunnyvale CA 94089 USA T: +1 650 265 4200 F: +1 408 738 2065 www.commscope.com TPC Declaration Date: 02 June 2021 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID：S9GR350 To Whom It May Concern: Ruckus Wireless Inc., declare that the device supports the TPC function in final F/W when EUT is sold to FCC market. Applicant’s company name: :Ruckus Wireless Inc. Applicant’s company address: :350 W. Java Dr., Sunnyvale CA 94089 USA Should you have further inquiry, please contact the undersigned below. Sincerely, Signature: Name: Ivaylo Tankov Tittle: Principal Wireless Compliance Engineering Email: [email protected]

PHOTOGRAPHS OF EUT Report No. : EP120214 Sporton International Inc. Hsinchu Laboratory Page Number : 1 of 5 TEL : 886-3-656-9065 Issued Date : Jun. 08, 2021 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP Brand Name: RUCKUS Model Name: R350 PHOTOGRAPHS OF EUT Report No. : EP120214 Sporton International Inc. Hsinchu Laboratory Page Number : 2 of 5 TEL : 886-3-656-9065 Issued Date : Jun. 08, 2021 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP120214 Sporton International Inc. Hsinchu Laboratory Page Number : 3 of 5 TEL : 886-3-656-9065 Issued Date : Jun. 08, 2021 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP120214 Sporton International Inc. Hsinchu Laboratory Page Number : 4 of 5 TEL : 886-3-656-9065 Issued Date : Jun. 08, 2021 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP120214 Sporton International Inc. Hsinchu Laboratory Page Number : 5 of 5 TEL : 886-3-656-9065 Issued Date : Jun. 08, 2021 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP Wallmount kit

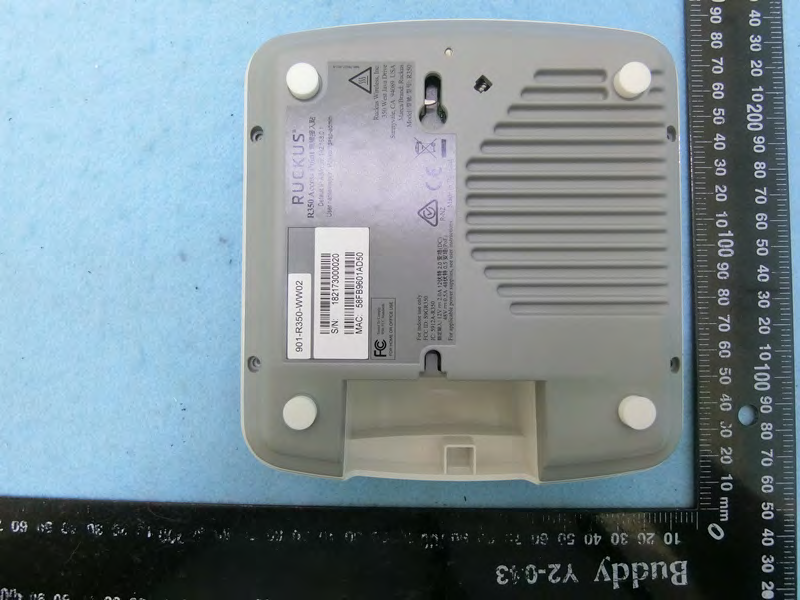

Label Location Label Here <Bottom of the EUT>
