S9G-MPE5N33A802.11n mini-PCI Express Radio Module

880 West Maude Avenue, Suite 101 TEL + .650.265.4200 Sunnyvale, CA 94085 USA FAX +.480.738.2065 www.ruckuswireless.com RUCKUS RADIO MODULE GUIDE INTRODUCTION This document describes the required steps that must be taken when utilizing the Ruckus Wireless, Inc. MPE5N33A radio module in order to comply with regulatory requirements. HOST CONTROLLER This module is only to be used for installation in Ruckus Wireless, Inc. products. The host must supply regulated voltage to the radio module. POWER SETTING Maximum output power must comply with the power limits identified on the FCC Grant, Industry Canada REL listing, or as identified by other regulatory authorities. Power measurements are conducted measurements at the antenna ports. ALLOWED ANTENNAS The module is only to be used with antennas approved by Ruckus Wireless, Inc. Use of an antenna of higher gain or of a different type than the antennas included in the FCC submission requires additional testing and submission to the FCC. ANTENNA PLACEMENT The antennas used with this module may only be collocated as identified on the FCC grant. Simultaneous transmissions is allowed as identified within the FCC submission. This module is not intended for mobile applications. Antenna installation within 20cm of the human body is not permitted. DEVICE LABELING The host device containing this module must either: 1) Make the module label visible so the FCC ID is visible in the end construction 2) Label the end product with the FCC ID and IC ID of the module. For example “Contain FCC ID: S9G-MPE5N33A” or “Contains IC: 5912A-MPE5N33 ”

880 West Maude Avenue, Suite 101 TEL + .650.265.4200 Sunnyvale, CA 94085 USA FAX +.480.738.2065 www.ruckuswireless.com 3/1/2012 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: Ruckus Wireless, Inc. FCC ID: S9G-MPE5N33A FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 Ruckus Wireless, Inc. hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type File Name Description Schematic 140-11183-001_gd30- 5g_rev3p4.pdf Schematic of wireless Module Block Diagram Radio Block Diagram - 140-11183-001_gd30- 5g_rev3p4.pdf Block Diagram of wireless Module Operational Description SnoopDogg-5G-Theory- of-Operation.pdf Operational Description of wireless Module Parts List / BOM 120-11183-001 BOM.pdf Bill of Material OEM Module Guide MPE5N33A - Module Manual.pdf Radio Module Regulatory Installation Guide Note: Exhibit types that are commonly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Operational Descriptions, (4) Parts List / Tune UP Info. Any exhibit NOT granted confidentiality is viewable on the FCC website as soon as a grant is issued. Reason why the material should be withheld from public inspection: These documents contain detailed system, equipment description and related information about the product which Ruckus Wireless, Inc. considers to be proprietary, confidential, and a custom design otherwise not released to the general public. State why the information is a “trade secret;” 880 West Maude Avenue, Suite 101 TEL + .650.265.4200 Sunnyvale, CA 94085 USA FAX +.480.738.2065 www.ruckuswireless.com Since the design is a basis from which future technological products will evolve, Ruckus Wireless, Inc. considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Trade secret” information is information which is not generally known or reasonably ascertainable, by which a business can obtain an economic advantage over competitors. The information is not normally released to any party or person outside the company. State whether the information is publicly available anywhere else: The information contained within these documents is not made publically available. Sincerely, Clinton Bradley Compliance Engineer 1-408-636-4368 [email protected] Ruckus Wireless 880 West Maude Avenue Suite 101 Sunnyvale, CA 94085

880 West Maude Avenue, Suite 101 TEL + .650.265.4200 Sunnyvale, CA 94085 USA FAX +.480.738.2065 www.ruckuswireless.com FCC Software Configuration Control Declaration Date: February 6, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. FCC ID: S9G-MPE5N33A Regarding FCC Country Code Selection guidelines identified in KDB 594280 "Country Code Selection". “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Sincerely, Clinton Bradley Compliance Engineer 1-408-636-4368 [email protected] Ruckus Wireless 880 West Maude Avenue Suite 101 Sunnyvale, CA 94085

880 West Maude Avenue, Suite 101 TEL + .650.265.4200 Sunnyvale, CA 94085 USA FAX +.480.738.2065 www.ruckuswireless.com Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Company name: Ruckus Wireless FCC Part 15 Certification; Limited Single Modular Transmitter, FCC ID: S9G-MPE5N33A Gentlemen, In accordance with DA 00-1407 – 26th Jun 2000 “Part 15 Unlicensed Modular Transmitter Approval” and KDB “996369 D01 Module Certification Guide v01r03”, Ruckus Wireless Inc. declares it has met the follow requirements set out in the document for the granting of a limited single modular transmitter approval. Notes Modular requirements Complies The modular transmitter must have its own RF shielding. Complies The modular transmitter must have buffered modulation/data inputs. Power supply regulation provided by host board. The modular transmitter must have its own power supply regulation. Complies The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). Complies The modular transmitter must be tested in a stand-alone configuration, Complies The modular transmitter must be labeled with its own FCC ID number. Complies The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. Complies The modular transmitter must comply with any applicable RF exposure requirements. Device will be restricted to host devices manufactured by Ruckus Wireless, Inc. Ruckus Wireless does not intend to sell the modules. They will only be used for installation in Ruckus products. Therefore, no description of the module's use is included in the user's manual. The manual only describes the complete product incorporating the module.” Sincerely, Clinton Bradley Compliance Engineer 1-408-636-4368 [email protected]

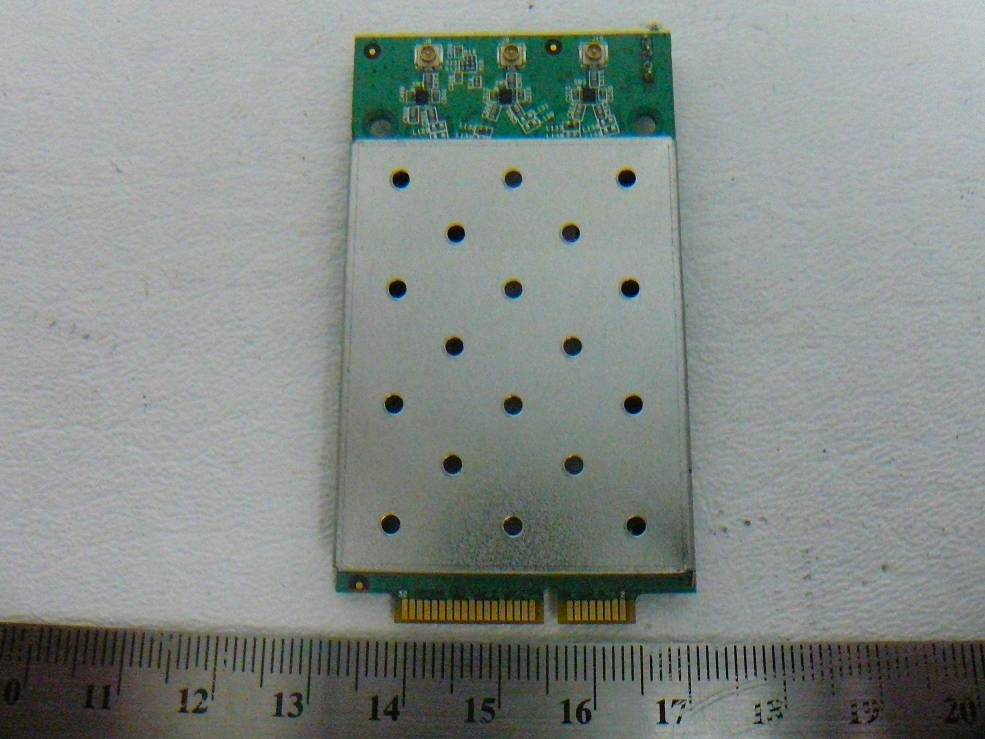

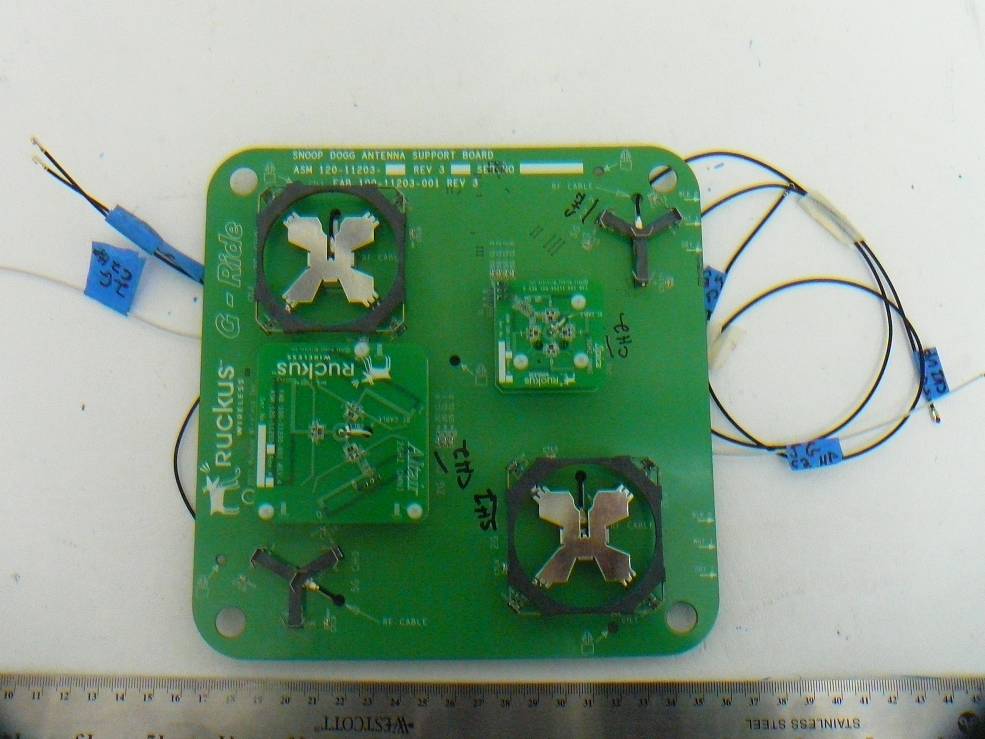

Ruckus Wireless, Inc. FCC ID: S9G-MPE5N33A, IC: 5912A-MPE5N33A Report Number: R1110211-W52 Page 89 of 92 FCC Part 15.407/IC RSS-210 Test Report 17 Exhibit B - EUT Photographs 17.1 EUT – Top View with Shielding 17.2 EUT - Bottom View Ruckus Wireless, Inc. FCC ID: S9G-MPE5N33A, IC: 5912A-MPE5N33A Report Number: R1110211-W52 Page 90 of 92 FCC Part 15.407/IC RSS-210 Test Report 17.3 Antenna Top View 17.4 Antenna Bottom View 2.4 GHz Ant. 2.4 GHz Ant. 2.4 GHz Ant. 5 GHz Ant. 5 GHz Ant. 5 GHz Ant. Ruckus Wireless, Inc. FCC ID: S9G-MPE5N33A, IC: 5912A-MPE5N33A Report Number: R1110211-W52 Page 91 of 92 FCC Part 15.407/IC RSS-210 Test Report 17.5 Supporting Board Top View 17.6 Supporting Board Bottom View

15.0 20.0 BLACK 1. Dielines/cutlines do not print 2. P/N 877-76360-001 rev. A 3. Colors: 880 West Maude Avenue, Suite 101 TEL + .650.265.4200 Sunnyvale, CA 94085 USA FAX +.480.738.2065 www.ruckuswireless.com Label Location

Ruckus Wireless, Inc. FCC ID: S9G-MPE5N33A, IC: 5912A-MPE5N33A Report Number: R1110211-W52 Page 92 of 92 FCC Part 15.407/IC RSS-210 Test Report 17.7 EUT – Top View without Shielding 17.8 AC/DC Power Supply View --- END OF REPORT ---

Ruckus Wireless, Inc. FCC ID: S9G-MPE5N33A, IC: 5912A-MPE5N33A Report Number: R1110211-W52 Page 10 of 92 FCC Part 15.407/IC RSS-210 Test Report 4 FCC §15.407(f), §2.1091 & IC RSS-102 - RF Exposure 4.1 Applicable Standard According to FCC §15.407(f) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 * (100) 30 1.34-30 824/f 2.19/f * (180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Before equipment certification is granted, the procedure of IC RSS-102 must be followed concerning the exposure of humans to RF fields. According to IC RSS-102 Issue 2 section 4.1, RF limits used for general public will be applied to the EUT. Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m 2 ) Time Averaging (minutes) 0.003 - 1 280 2.19 - 6 1 - 10 280 / f 2.19 / f - 6 10 - 30 28 2.19 / f - 6 30 – 300 28 0.073 2* 6 300 – 1 500 1.585 f 0.5 0.0042 f 0.5 f / 150 6 1 500 – 15 000 61.4 0.163 10 6 15 000 – 150 000 61.4 0.163 10 616000 / f 1.2 150 000- 300 000 0.158 f 0.5 4.21 x 10 -4 f 0.5 6.67 x 10 -5 f 616000 / f 1.2 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Ruckus Wireless, Inc. FCC ID: S9G-MPE5N33A, IC: 5912A-MPE5N33A Report Number: R1110211-W52 Page 11 of 92 FCC Part 15.407/IC RSS-210 Test Report 4.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 4.3 MPE Results Maximum peak output power at antenna input terminal (dBm): 16.30 Maximum peak output power at antenna input terminal (mW): 42.66 Prediction distance (cm): 20 Prediction frequency (MHz): 5180 Maximum Antenna Gain, typical (dBi): 3.0 Maximum Antenna Gain (numeric): 1.995 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.0169 Power density of prediction frequency at 20.0 cm (W/m 2 ): 0.169 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 MPE limit for uncontrolled exposure at prediction frequency (W/m 2 ): 10 The device meets FCC/IC MPE requirement for uncontrolled exposure environment at 20 cm distance.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15.407 IC RSS-210, ISSUE 8, DEC 2010 TEST AND MEASUREMENT REPORT For Ruckus Wireless, Inc. 880 West Maude Avenue, Suite 101, Sunnyvale, CA 94085, USA FCC ID: S9G-MPE5N33A IC: 5912A-MPE5N33A Report Type: Original Report Product Type: 802.11 a/n Wireless Module Test Engineers: Quinn Jiang Report Number: R1110211-407 Report Date: 2012-01-29 Reviewed By: Victor Zhang EMC/RF Lead Prepared By: (LH) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Ave. Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732-9164 Ruckus Wireless, Inc. FCC ID: S9G-MPE5N33A, IC: 5912A-MPE5N33A Report Number: R1110211-W52 Page 2 of 92 FCC Part 15.407/IC RSS-210 Test Report TABLE OF CONTENTS 1 GENERAL DESCRIPTION......................................................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)................................................................................. 6 1.2 MECHANICAL DESCRIPTION OF EUT ....................................................................................................................... 6 1.3 OBJECTIVE............................................................................................................................................................... 6 1.4 RELATED SUBMITTAL(S)/GRANT(S) ........................................................................................................................ 6 1.5 TEST METHODOLOGY.............................................................................................................................................. 6 1.6 MEASUREMENT UNCERTAINTY...............................................................................................................................6 1.7 TEST FACILITY........................................................................................................................................................ 7 2 EUT TEST CONFIGURATION .................................................................................................................................. 8 2.1 JUSTIFICATION......................................................................................................................................................... 8 2.2 EUT EXERCISE SOFTWARE...................................................................................................................................... 8 2.3 EQUIPMENT MODIFICATIONS................................................................................................................................... 8 2.4 SPECIAL ACCESSORIES............................................................................................................................................ 8 2.5 LOCAL SUPPORT EQUIPMENT.................................................................................................................................. 8 2.6 EUT INTERNAL CONFIGURATION............................................................................................................................ 8 3 SUMMARY OF TEST RESULTS ............................................................................................................................... 9 4 FCC §15.407(F), §2.1091 & IC RSS-102 - RF EXPOSURE .................................................................................... 10 4.1 APPLICABLE STANDARD........................................................................................................................................ 10 4.2 MPE PREDICTION.................................................................................................................................................. 11 4.3 MPE RESULTS....................................................................................................................................................... 11 5 FCC §15.203 & IC RSS-GEN §7.1.2 – ANTENNA REQUIREMENTS ................................................................. 12 5.1 APPLICABLE STANDARD........................................................................................................................................ 12 5.2 ANTENNA LIST...................................................................................................................................................... 12 6 FCC §15.207 & IC RSS-GEN §7.2.4 - AC POWER LINE CONDUCTED EMISSIONS..................................... 13 6.1 APPLICABLE STANDARDS...................................................................................................................................... 13 6.2 TEST SETUP........................................................................................................................................................... 13 6.3 TEST PROCEDURE.................................................................................................................................................. 13 6.4 TEST SETUP BLOCK DIAGRAM...............................................................................................................................14 6.5 CORRECTED AMPLITUDE & MARGIN CALCULATION............................................................................................. 14 6.6 TEST EQUIPMENT LIST AND DETAILS.................................................................................................................... 15 6.7 TEST ENVIRONMENTAL CONDITIONS.....................................…

Text truncated - open the document above for the full version.

Ruckus Wireless, Inc. FCC ID: S9G-MPE5N33A, IC: 5912A-MPE5N33A Report Number: R1110211-W52 Page 85 of 92 FCC Part 15.407/IC RSS-210 Test Report 16 Exhibit A - Test Setup Photographs 16.1 AC Line Conducted Emission Front View 16.2 AC Line Conducted Emission Side View Ruckus Wireless, Inc. FCC ID: S9G-MPE5N33A, IC: 5912A-MPE5N33A Report Number: R1110211-W52 Page 86 of 92 FCC Part 15.407/IC RSS-210 Test Report 16.3 Radiated Emission Front View 16.4 Radiated Emission below 1 GHz Rear View Ruckus Wireless, Inc. FCC ID: S9G-MPE5N33A, IC: 5912A-MPE5N33A Report Number: R1110211-W52 Page 87 of 92 FCC Part 15.407/IC RSS-210 Test Report 16.5 Radiated Emission above 1 GHz Rear View 16.6 Radiated Emission Front View (Co-location) Ruckus Wireless, Inc. FCC ID: S9G-MPE5N33A, IC: 5912A-MPE5N33A Report Number: R1110211-W52 Page 88 of 92 FCC Part 15.407/IC RSS-210 Test Report 16.7 Radiated Emission Below 1 GHz Rear View (co-location) 16.8 Radiated Emission Above 1 GHz Rear View (co-location)
