H550 Access Point Quick Setup Guide This Quick Setup Guide provides step-by-step instructions on how to set up your RUCKUS H550 Dual Band 802.11ax Multimedia Wi-Fi Access Point Wall Switch. After completing the steps described in this guide, you will be able to access the H550 Access Point Wall Switch and begin providing wired and wireless network access to users. The rest of this document refers to the H550 Access Point Wall Switch as the H550. The H550 has many options: •It can be mounted on a standard USA- or EU-style single-gang wall outlet box. •It can be powered by a customer-supplied IEEE 802.3af- or 802.3at, or IEEE 802.3bt-compliant PoE switch or injector, or can be powered by an optional customer-ordered DC power adapter. •It has side slots for one or two bypass cables. The mounting bracket has locating hooks to keep the bypass cables aligned with the slots when attaching the H550 to the mounting base. •It can have a 3W customer-supplied USB device plugged in. The USB device is very difficult to remove after the H550 is attached to the mounting base. NOTE: The H550 requires RUCKUS base image 104.0 firmware or later. Managed H550 deployments require SmartZone 6.0 or later, or ZoneDirector 10.5 or later. About Peripheral Devices The H550 can supply power to USB devices and PoE-powered devices, and the power supplied depends on the PoE power supplied to the H550. •The USB port can supply power up to a maximum of 3W. The port is intended for customer-specific USB peripherals. •The LAN4 + PoE Out port is intended for PoE-powered peripheral devices such as IP telephones. TABLE 1 H550 Power Options and Available Power for PoE Out and USB H550 Power SourcePower available for PoE Out and USB 802.3af PoEPoE out disabled, USB disabled 802.3at PoE12.95 PoE Out (802.3af Class 3), USB disabled 802.3bt Class 5 PoE or DC power adapter 12.95 PoE Out (802.3af Class 3) 3W USB This Guide in Other Languages •请从以下网站获得该指南的简体中文版 https:// support.ruckuswireless.com. •Vous trouverez la version française de ce guide à l'adresse suivante https://support.ruckuswireless.com. •このガイドの日本語版は https://support.ruckuswireless.com でご覧 ください。 •이 가이드의 한국어 버전은 웹 사이트 (https:// support.ruckuswireless.com) 에서 확인하시기 바랍니다. •Veja a versão em português (Brasil) deste guia em https:// support.ruckuswireless.com. •Puede ver la versión en español (América Latina) de esta guía en https://support.ruckuswireless.com. Before You Begin Before deploying Ruckus products, please check for the latest software and the release documentation. •Release Notes and other user documentation are available at http:// support.ruckuswireless.com/documents. •Software upgrades are available at http://support.ruckuswireless.com/ software. •Open source information is available at http:// opensource.ruckuswireless.com/open_source. Package Contents •H550 Access Point Wall Switch •Mounting bracket •Two 6-mm M3x0.5 Torx flat head machine screws •Two 1-inch 6-32 Phillips pan head machine screws •Product warranty statement •Regulatory flyer •Declaration of Conformity, if required •This Quick Setup Guide Step 1: Collecting Tools and Setup Requirements •No. 2 Phillips screwdriver and T10 Torx driver for the mounting bracket screws •A standard USA- or EU-style single-gang wall outlet box •One of the following: –Customer-supplied IEEE 802.3af/at/bt-compliant PoE switch and customer-supplied Ethernet cable –Customer-supplied IEEE 802.3af/at-compliant PoE injector and customer-supplied Ethernet cable –Customer-ordered DC power adapter (RUCKUS part number 902-2170-XX00, sold separately) •An Ethernet cable with or without PoE run through the wall from your LAN through the wall outlet box •A PC with an Ethernet port and a wireless card with customer-supplied Cat 5e or better Ethernet cable •(Optional) One or two separate bypass cables run through the outlet box Step 2: Connecting the PC to the H550 1.Using an Ethernet cable, connect your PC's network port to the PoE In port on the rear of the H550. FIGURE 1 H550 Front view 2.Using an AC adapter (sold separately), connect the H550 48V DC port to a protected power source. 3.Verify that the PWR LED on the rear of the enclosure is green. LED may be solid or blinking. Copyright © 2020 CommScope, Inc. All rights reserved.Page 1 of 3 Published November 2020, Part Number 800-72461-001 Rev B FIGURE 2 H550 Rear and bottom view 1.LEDs 2.PoE In Port 3.LAN 4 + PoE Out Port 4.48V DC Port Step 3: Preparing Your PC for H550 1. NOTE: The following procedures assume Windows is the operating system. Procedures for other operating systems are similar. On your Windows PC, configure your network adapter from the Local Area Connection settings: Start > Control Panel > Network and Sharing Center > Change Adapter Settings. 2.Edit the TCP/IPv4 address settings: Local Area Connections > Properties > Internet Protocol Version 4 TCP/IPv4 > Properties. The Internet Protocol Version 4 (TCP/IPv4) Properties dialog box is displayed. NOTE: Write down all of the currently active settings so you can restore your PC to its current configuration later, when this process is complete. 3.Select Use the following IP address (if it is not already selected) and then make the following entries: •IP address: 192.168.0.22 (or any available address in the 192.168.0.x network, except 192.168.0.1) •Subnet mask: 255.255.255.0 •Default gateway: 192.168.0.1 Leave the DNS server fields empty. 4.Click OK to save your changes. Your changes are put into effect immediately. Step 4: Logging In to the H550 Access Point As specified in Step 3: Preparing Your PC for H550 on page 2, the H550 should be directly connected to your PC (through the PoE In port on the back of the H550) and powered on, ready for setup. 1.On web browser window. 2.Enter https://192.168.0.1 to connect to the H550. 3.Press Enter to initiate the connection. When a security alert dialog box is displayed, click OK/Yes to proceed. 4.When the Ruckus Wireless Admin login page displays, enter the following: •Userna…

Text truncated - open the document above for the full version.

Page 1 Ruckus Wireless, Inc. 350 West Java Drive Sunnyvale, CA 94089 USA H550 – Indoor Enterprise AP Ruckus Wireless Inc., an ARRIS Company Federal Communications Commission Notices This product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications to this equipment that have not been approved by Ruckus Wireless may void the user's authority to operate this equipment. For Class B Equipment: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different — Consult the dealer or an experienced radio/TV technician for help. from that to which the receiver is connected. This device meets all the other requirements specified in Part 15E, Section 15.407 of the FCC Rules. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Note: The country code selection is for non-US models only and is not available on US model. Per FCC regulation, Wireless product marketed in the US must be restricted to operate only on spectrum allocated per FCC Rules and Regulations. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. Canada Statement Under ISED regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by ISED. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d’ISED, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par ISED. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. This device complies with ISED licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'ISED applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall comply with the e.i.r.p. limit; and the maximum antenna gain permitted for devices in the band 5725-5825 MHz shall comply with the e.i.r.p. limits specified for point-to-point and non point- to-point operation as appropriate. Le dispositif de fonctionnement dans la bande 5150-5250 MHz est réservé à une utilisation en intérieur pour réduire le risque d'interférences nuisibles à la co-canal systèmes mobiles par satellite, le gain d'antenne maximal autorisé pour les appareils dans les bandes 5250-5350 MHz et 5470-5725 MHz doit se conformer à la pire limite, et le gain d'antenne maximal autorisé pour les appareils dans la bande 5725-5825 MHz doivent être conformes avec le pire limites spécifiées à point-à-ponctuelles et non point-à-point de fonctionnement selon qu'il convient. Operation in the 5600-5650 MHz band is not allowed in Canada. High-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices. Opération dans la bande 5600-5650 MHz n'est pas autorisée au Canada. Haute puissance radars sont désignés comme utilisateurs principaux (c.-à- utilisateurs prioritaires) des bandes 5250-5350 MHz et 5650-5850 MHz et que ces radars pourraient causer des interférences et / ou des dommages à dispositifs LAN-EL. Ce produit est destiné à être installé dans un endroit à accès restreint et est marqué d'un avertissement visible que la surface peut être chaude Radiation Exposure Statement The device has been found to be compliant to the requirements set forth in CFR 47 Sections 2.1091 and ISED RSS-102 for an uncontrolled environment. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm fro…

Text truncated - open the document above for the full version.

Business Unit - Ruckus Wireless Inc. 350 W. Java Dr. Sunnyvale CA 94089 USA T: +1 650 265 4200 F: +1 408 738 2065 www.commscope.com Confidentiality Request FEDERAL COMMUNICATIONS COMMISSIONS Date: 27th August 2020 OET - Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 2104 FCC ID：S9GH550 To Whom It May Concern: Long Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request confidential treatment of information accompanying this application as outlined below: ●Block Diagrams ●Electrical Schematics ● Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We understand that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Short Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request short-term confidential treatment of information accompanying this application as outlined below until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: ●External Photos ●Internal Photos ●Test Setup photos ●User Manual Sincerely, Signature: Name: Ivaylo Tankov Tittle: Principal Wireless Compliance Engineering Email: [email protected]

Business Unit - Ruckus Wireless Inc. 350 W. Java Dr. Sunnyvale CA 94089 USA T: +1 650 265 4200 F: +1 408 738 2065 www.commscope.com Date: 27th August 2020 Professional Installation Letter FEDERAL COMMUNICATIONS COMMISSIONS OET - Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 2104 Dear Sir/Madam, Subject: Professional Installation for FCC ID: S9GH550 Ruckus Wireless, Inc. hereby declares that the device with FCC ID: S9GH550 will only be installed by a professional installer. The product is only sold through Authorized Partners. The H550 is not for sale to the general public. Professional installation is guaranteed based on the use of only Authorized Partners and distribution channels. Professional training and support are provided as part of the Authorized Partner programs. Please do not hesitate to contact us if you have any questions Sincerely, Signature: Name: Ivaylo Tankov Tittle: Principal Wireless Compliance Engineering Email: [email protected]

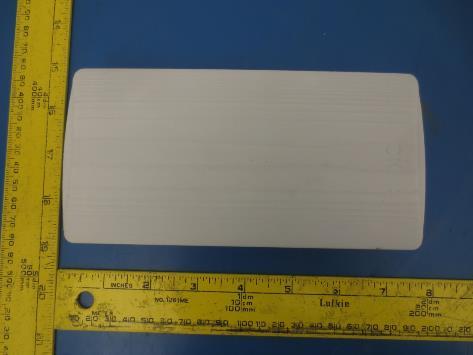

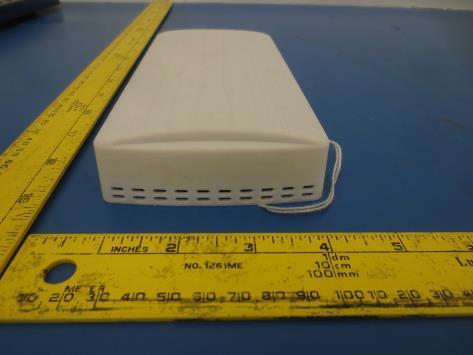

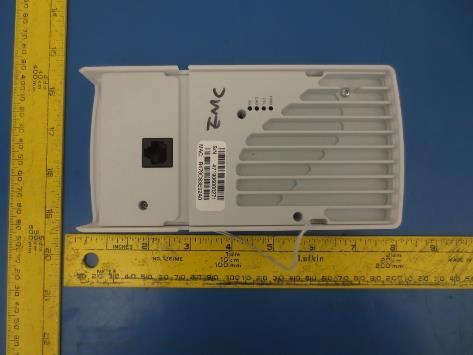

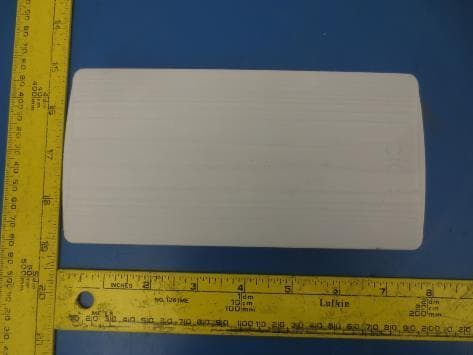

Ruckus Wireless, Inc. FCC ID: S9GH550, IC: 5912A-H550 EUT External Photographs 1.1 UUT – Top View 1.2 UUT – Bottom View Ruckus Wireless, Inc. FCC ID: S9GH550, IC: 5912A-H550 1.3 UUT – Front View 1.4 UUT – Rear View

Label and Label Location

Ruckus Wireless, Inc. FCC ID: S9GH550, IC: 5912A-H550 EUT Internal Photographs 1.1 EUT Internal Board Top View (Shielded) 1.2 EUT Internal Board Top View (Unshielded) Ruckus Wireless, Inc. FCC ID: S9GH550, IC: 5912A-H550 1.3 EUT Internal Board Bottom View

Ruckus Wireless, Inc. FCC ID: S9GH550, IC: 5912A-H550 Report Number: R2007201-01 Page 19 of 102 FCC Part 15C/ISEDC RSS-247 Test Report 5 FCC §2.1091, §15.247(i) & ISEDC RSS-102 – RF Exposure 5.1 Applicable Standards According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB 447 498 Section (7.2), “simultaneous transmission of MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on calculated or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 * (100) 30 1.34-30 824/f 2.19/f * (180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 Where: f = frequency in MHz * = Plane-wave equivalent power density Before equipment certification is granted, the procedure of IC RSS-102 must be followed concerning the exposure of humans to RF field. Ruckus Wireless, Inc. FCC ID: S9GH550, IC: 5912A-H550 Report Number: R2007201-01 Page 20 of 102 FCC Part 15C/ISEDC RSS-247 Test Report According to ISED RSS-102 Issue 5: 5.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4R² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Note: According to MIMOFCC KDB 662911 D02 MIMO with Cross Polarized Antenna v01, Where an FCC rule specifies limits in radiated terms such as EIRP or ERP, the limits apply to the maximum emission that would be observed by a linearly polarized measurement antenna. Therefore, the highest output power from single antenna power was selected to calculate in this section. Ruckus Wireless, Inc. FCC ID: S9GH550, IC: 5912A-H550 Report Number: R2007201-01 Page 21 of 102 FCC Part 15C/ISEDC RSS-247 Test Report 5.3 MPE Results Radio Standalone RF Exposure Configuration 2.4 GHz Wi-Fi: 802.11n40, Mid Channel 2437 MHz Maximum output power at antenna input terminal (dBm): 21.18 Maximum output power at antenna input terminal (mW): 131.22 Prediction distance (cm): 20 Prediction frequency (MHz): 2437 Maximum Antenna Gain, typical (dBi): 0 Maximum Antenna Gain (numeric): 1 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.026 FCC MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 5 GHz Wi-Fi: 802.11ac80, Mid Channel 5610 MHz Maximum output power at antenna input terminal (dBm): 20.90 Maximum output power at antenna input terminal (mW): 123.03 Prediction distance (cm): 20 Prediction frequency (MHz): 5610 Maximum Antenna Gain, typical (dBi): 1 Maximum Antenna Gain (numeric): 1.26 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.031 FCC MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 BLE: High Channel 2480 MHz Maximum output power at antenna input terminal (dBm): 18.626 Maximum output power at antenna input terminal (mW): 72.88 Prediction distance (cm): 20 Prediction frequency (MHz): 2480 Maximum Antenna Gain, typical (dBi): 0 Maximum Antenna Gain (numeric): 1 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.0145 FCC MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 ZigBee: Low Channel 2405 MHz Maximum output power at antenna input terminal (dBm): 19.24 Maximum output power at antenna input terminal (mW): 83.95 Prediction distance (cm): 20 Prediction frequency (MHz): 2405 Maximum Antenna Gain, typical (dBi): 0 Maximum Antenna Gain (numeric): 1 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.0167 FCC MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 The device is compliant with the requirement MPE limit for uncontrolled exposure at 20 cm distance. Ruckus Wireless, Inc. FCC ID: S9GH550, IC: 5912A-H550 Report Number: R2007201-01 Page 22 of 102 FCC Part 15C/ISEDC RSS-247 Test Report Radio Co-location RF Exposure Configuration Radio Standalone MPE (mW/cm 2 ) Standalone MPE Limit (mW/cm 2 ) Ratio (%) Total Ratio for Radio Co-location Configuration (%) Radio Co- location Limit (%) 2.4 GHz Wi-Fi 0.026 1 2.6 8.82 100 5 GHz Wi-Fi 0.031 1 3.1 BLE 0.0145 1 1.45 ZigBee 0.0167 1 1.67 5.4 RF exposure evaluation exemption for IC 2.4 GHz Wi-Fi: 802.11n40, Mid Channel 2437 MHz Maximum EIRP power = 21.18 dBm + 0 dBi = 21.18 dBm, which is less than 1.31×10 -2 f 0.6834 = 2.70 W = 34.31 dBm 5 GHz Wi-Fi: 802.11ac80, Mid Channel 5610 MHz Maximum EIRP power = 20.90dBm + 1 dBi = 21.90 dBm, which is less than 1.31×10 -2 f 0.6834 = 4.88 W = 36.88 dBm BLE: High Channel 2480 MHz Maximum EIRP power = 18.626 dBm + 0 dBi = 18.626 dBm, which is less than 1.31×10 -2 f 0.6834 = 2.74 W = 34.4 dBm Zigbee: Low Channel 2405 MHz Maximum EIRP power = 19.24 dBm + 0 dBi = 19.24 dBm, which is less than 1.31×10 -2 f 0.6834 = 2.68 W = 34.3 dBm Therefore, the RF exposure Evaluation is not required.
