S9GMF2201802.11b/g Access Point

MF 2201 Gateway MF2201 MetroFlex Wireless Access Gateway User’s Guide Part number: 8000003 December 2005 2MF2201 MetroFlex Wireless Access Gateway User’s Guide8000003, December 2005 Copyright © 2005 Ruckus Wireless, Inc. All rights reserved. December 2005. Trademarks Ruckus Wireless, BeamFlex™, MediaFlex™, MediaFlex 2900 Multimedia Access Point, MF 2201 MetroFlex Wireless Access Gateway, MF2900 AP, and MF 2201 Gateway are trademarks of Ruckus Wireless Web Interface All other brand and product names are registered trademarks of their respective holders. Statement of Conditions In the interest of improving internal design, operational function, and/or reliability, Ruckus Wireless, Inc. reserves the right to make changes to the products described in this document without notice. Ruckus Wireless, Inc. does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. Federal Communications Commission (FCC) Compliance Notice: Radio Frequency Notice The device has met the FCC 15.247 requirement. In order to comply with the FCC RF exposure requirement, the user must keep 20cm away from the antenna. This device has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Information to the user The user’s manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. In cases where the manual is provided only in a form other than paper, such as on a computer disk or over the Internet, the information required by this section may be included in the manual in that alternative form, provided the user can reasonably be expected to have the capability to access information in that form. EN 55 022 Declaration of Conformance This is to certify that the MF 2201 MetroFlex Wireless Access Gateway is shielded against the generation of radio interference in accordance with the application of Council Directive 89/336/EEC, Article 4a. Conformity is declared by the application of EN 55 022 Class B (CISPR 22). 8000003, December 2005 MF2201 MetroFlex Wireless Access Gateway User’s Guide3 Contents Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Who Should Use this Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 What You’ll Find in this Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Typographic conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Support and Warranty Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Chapter 1: Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 MetroFlex™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 BeamFlex™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Chapter 2: Installation and Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Packing List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 MF 2201 MetroFlex Wireless Access Gateway . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 LED Status Lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Rear View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Placement Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Establishing a good general location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Using the Air Quality Indicator to fine-tune the placement. . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Conne…

Text truncated - open the document above for the full version.

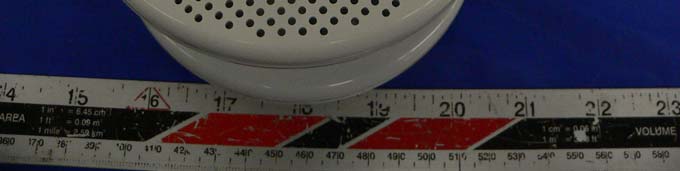

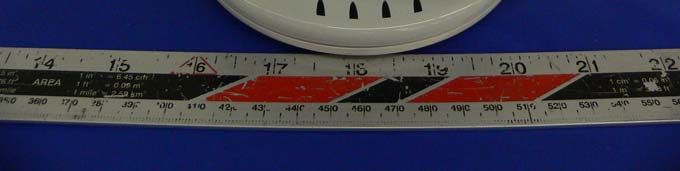

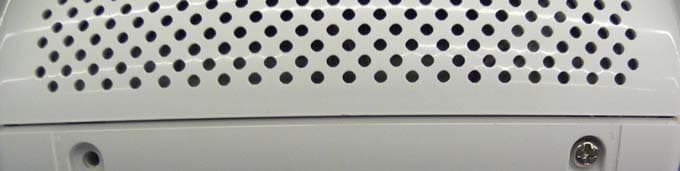

Ruckus Wireless FCC ID: S9GMF2201 EXHIBIT C - EUT PHOTOGRAPHS EUT – Front View EUT – Rear View Ruckus Wireless FCC ID: S9GMF2201 EUT – Bottom View EUT – Port View

EXHIBIT A - FCC ID LABEL INFORMATION Proposed FCC ID Label Proposed Label Location on EUT Back View of EUT/FCC ID Label FCC ID: S9GMF2201 This device complies with Part 15 o the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2.1875" 1.0"

Ruckus Wireless FCC ID: S9GMF2201 EUT – Cover off View EUT – Board Component View Ruckus Wireless FCC ID: S9GMF2201 EUT – Solder View Antenna – Board Top View Ruckus Wireless FCC ID: S9GMF2201 Antenna – Board Bottom View Antenna – Cover off View Ruckus Wireless FCC ID: S9GMF2201 Power Supply Top View Power Supply Rear View Ruckus Wireless FCC ID: S9GMF2201 TX Cover Off Close View

Page 1 Ruckus Wireless Confidential -18.0-16.0-14.0-12.0-10.0 -8.0-6.0-4.0-2.0 0.02.04.0 0 22.5 45 67.5 90 112.5 135 157.5 180 202.5 225 247.5 270 292.5 315 337.5 Antenna Patterns dBi -- Basis subset of measured one and two-element antenna patterns including cable, connector and switch losses, raw antenna gain 1dB higher. -- Peak gain = 3.3dBi results when two adjacent ant elements selected.-- Vertical element patterns

Ruckus Wireless Metro Flex 2201 Wireless Access Gateway Item Metro Flex 2201 Comments 1 MODEL NUMBER Metro Flex 2201 Wireless Access Gateway 2 NAME Hardware 1 Case Clip 2 Power Ext. Switching 5.0V 2.0 A 3 Memory (Flash/RAM) 4 MB Flash / 16 MB RAM 4 CPU Atheros SOC AR2313A 7 10/100 Mbps Ethernet Port 1-port 8 Auto-MDIX-MDI-X Yes 9 Wireless Atheros Super G 10 802.11g standard support Yes 11 Antenna Video 54 Antennas 12 Printserver No 13 Serial Port No 14 Reset switch Yes 15 Grounding connector No 17 LEDs 4 Power, LAN, Wireless, RF Indicator 18 Operating Temperature 0-40 C 19 Operating Humidity 10-90% RH 20 Storage Temperature -20-70 C 21 Storage Humidity 5-95% RH 22 Physical Dimensions 5.72 x 4.92 x 2.9 in (223 x 153 x 75 mm) 23 Weight 0.53 lbs (.2 kg) RF Specification 1 Receive Sensitivity:802.11b:1 Mbps -100 to -108 dBm 2.2 Mbps -96 to -104 dBm 5 Mbps -91 to -98 dBm 11 Mbps -90 to -94 dBm 802.11g6 Mbps -93 to -96 dBm 9 Mbps -90 to -96 dBm 12 Mbps -90 to -94 dBm 18 Mbps -88 to -91 dBm 24 Mbps -85 to -88 dBm 36 Mbps -82 to -86 dBm 48 Mbps -78 to -81 dBm 54 Mbps -76 to -81 dBm 802.11g Turbo72 Mbps N/A 108 Mbps -72 to -74 2 Output Power 19 dBm - 23 dBm (typ) Netgear, Inc. Confidential 2/22/2006 Page 1 Ruckus Wireless Metro Flex 2201 Wireless Access Gateway Item Metro Flex 2201 Comments 1 MODEL NUMBER Metro Flex 2201 Wireless Access Gateway 2 NAME 23 dBm (max) 3 Antenna Gain 3.3 dbi 4 Standards IEEE 802.11b, 802.11g 5 Frequency 2.412 ~ 2.462 GHz (US)2.412 ~ 2.484 GHz (Japan)2.412 ~ 2.472 GHz (Europe ETSI)2.457 ~ 2.472 GHz (Spain)2.457 ~ 2.472 GHz (France) Netgear, Inc. Confidential 2/22/2006 Page 2

§1.1307(b)(1),§2.1091 - RF EXPOSURE According to §15.247(b)(5) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density MPE Prediction Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 24.47(dBm ) Maximum peak output power at antenna input terminal: 279.90 (mW) Prediction distance: 20 (cm) Predication frequency: 2400 (MHz) Antenna Gain (typical): 3.3 (dBi) antenna gain: 2.14 (numeric) Power density at predication frequency at 20 cm: 0.12(mW/cm 2 ) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm 2 ) Test Result The EUT is a mobile device. The power density level at 20 cm is 0.12mW/cm², which is below the uncontrolled exposure limit of 1.0mW/cm² at 2400 MHz.

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 15.247 EMI MEASUREMENT AND TEST REPORT For Ruckus Wireless 883 North Shoreline Blvd, Suite A-100 CA 94043, USA FCC ID: S9GMF2201 This Report Concerns: Original Report Equipment Type: 802.11b/g Access Point Test Engineer: Snell Leong Report No.: R0601241.doc Report Date: 2006-02-14 Reviewed By: James Ma Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 1274 Anvilwood Ave. Sunnyvale, CA 94089 Tel: (408) 732-9162 Fax: (408) 732 9164 Ruckus Wireless FCC ID: S9GMF2201 Report # R0601241Rpt.doc Page 2 of 68 FCC Part 15.247 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 JUSTIFICATION.............................................................................................................................................................6 EUT EXERCISE SOFTWARE..........................................................................................................................................6 SPECIAL ACCESSORIES.................................................................................................................................................6 SCHEMATICS / BLOCK DIAGRAM..................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 POWER SUPPLY............................................................................................................................................................6 LOCAL SUPPORT EQUIPMENT.......................................................................................................................................6 INTERFACE PORTS AND CABLING.................................................................................................................................6 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................7 SUMMARY OF TEST RESULTS ...............................................................................................................................8 §15.203 - ANTENNA REQUIREMENT......................................................................................................................9 STANDARD APPLICABLE..............................................................................................................................................9 §15.207 (A) - CONDUCTED EMISSION ..................................................................................................................10 MEASUREMENT UNCERTAINTY..................................................................................................................................10 TEST SETUP................................................................................................................................................................10 RECEIVER SETUP........................................................................................................................................................10 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 TEST PROCEDURE......................................................................................................................................................10 ENVIRONMENTAL CONDITIONS..................................................................................................................................10 SUMMARY OF TEST RESULTS.....................................................................................................................................11 CONDUCTED EMISSIONS TEST DATA.........................................................................................................................11 PLOT OF CONDUCTED EMISSIONS TEST DATA...........................................................................................................11 §2.1051 & §15.247(D) - SPURIOUS EMISSIONS AT ANTENNA TERMINALS................................................14 STANDARD APPLICABLE............................................................................................................................................14 EQUIPMENT LISTS......................................................................................................................................................14 MEASUREME…

Text truncated - open the document above for the full version.

Ruckus Wireless FCC ID: S9GMF2201 EXHIBIT B - TEST SETUP PHOTOGRAPHS Conducted Emission - Front View Conducted Emission –Side View Ruckus Wireless FCC ID: S9GMF2201 Radiated Emission - Front View Radiated Emission - Rear View
