Ruckus MM2211 Metro Broadband Gateway Quick Setup Guide Packing list •Ruckus MM2211 Metro Broa dband Gateway (MM2211 Gateway) •AC power adapter•Category 5 (CAT5) Ethernet cable•Ruckus MM2211 Metro Broadb and Gateway Quick Setup Guide (this document) Understand the Default Network SettingsDefault SettingsIP Address • The default IP address of the Ruckus MM2211 is 192.168.1.1. • The Subnet Mask address is 255.255.255.0• To gain administrative control of the MM2211, you must set your computer’s network IP address to obtain an IP address automatically. Proceed to the next section for instructions on configuring your IP address. Manually Configure an IP Address on Your Computer1. For Windows 2000: Select Start->Settings->Network and choose Dialup Connections 2. For Windows XP: Select Start->Settings->Control Panel-> Network Connections 3. Double-click the icon for the Local Area Connection designated for your home network. This is not the same icon as your home wireless network. 4. In the Local Area Connection Properties window, select Internet Protocol (TCP/IP) and click Properties . 5. Select Obtain an IP address automatically , and click OK to exit the TCP/IP Properties window. 6. Click OK to exit the Local Area Connection Properties window. Connect and Configure Your Ruckus MM2211 GatewayThe following steps will guide yo u to set up and gain admin- istrative access to your Ruckus MM2211 Metro Broadband Gateway. 1. Remove the Ruckus MM2211 Metro Broadband Gate- way gateway from the packaging and place it next to your computer. 2. Connect the AC power supp ly to the Ruckus MM2211 gateway and plug the other end into a power outlet or to a surge protector that is plugged into a power out- let. 3. Connect the CAT5 Ethernet ca ble to the Ethernet port on your computer, and to the Ethernet port on the Ruckus MM2211 Metro Broadband Gateway . 4. On your PC, open a browser window. Enter the address http://192.168.1.1. 5. When the login screen appears, enter the username admin and leave the password field blank. Then click the Login button. 6. In the Configuration->Wireless menu, you may change the default wireless network Name (SSID) name for this device to match the SSID of the AP you intend to con-nect to. 7. Refer to the information pr ovided under the Help but- ton before attempting to change any other default set-tings in this screen. 8. The initial configuration is now complete. Click Reboot/Reset to make the change take effect. TroubleshootingIf you cannot connect to your Ruckus MM2211 Metro Broad-band Gateway, perform the following steps:If the startup sequence didn’t work, verify that the Network name (SSID) and security settings on the Ruckus MM2211 Metro Broadband Gateway match your wireless network.1. Connect your computer to the Ruckus MM2211 Metro Broadband Gateway by an Ethernet cable. Set your computer’s network to get an IP address automatically. 2. Open a Web browser window. 3. Point your browser to http://192.168.1.1. At the login screen, enter the username admin and leave password field blank. Click Login . 4. Click the System link under the Configuration menu on the left panel of the Ruckus Web user interface. Verify that the Ruckus MM2211 Metro Broadband Gateway ’s wireless settings match those of your remote AP. Check the LED status lights to verify correct operation.1. Make sure you are using the power adapter supplied by Ruckus Wireless. Network Name (SSID): V54-WXYZ Security: Disabled 2. Make sure the Power LED is lit. If it is not lit, make sure that the power cord is properly connected to the Ruckus MM2211 Metro Broadband Gateway , and that the power supply adapter is properly connected to a functioning power outlet. If the error persists, you have a hardware problem and should contact technical sup-port. 3. Make sure your Network LED is lit. Make sure that the Ethernet cable connections are secure at the Ruckus MM2211 Metro Broadband Gateway and your com- puter. The LAN LED on the Ruckus MM2211 Metro Broadband Gateway indicates link when the gateway is fully seated in the port. 4. Make sure the Wireless LED is either steady or flashing Green. If not lit, the Wireless settings may be incorrect between the Ruckus MM2211 Metro Broadband Gate- way and your computer. If necessary, reset the Ru ckus MM2211 Metro Broadband Gateway gateway to its factory defaultsIf you forgot which security settings you assigned to the Ruckus MM2211 Metro Broadband Gateway, you can reset it to factory defaults by inserting the end of a paper clip into the reset button hole located on the back of the unit.Press and hold the reset button for at least eight seconds, until all Dome LEDs start to flash simultaneously. Then you can connect to the Ruckus MM2211 Metro Broadband Gate-way using the default network settings. LED Information

Ruckus MM2225 Metro Broadband Gateway Quick Setup Guide Packing list •Ruckus MM2225 Metro Broa dband Gateway (MM2225 Gateway) •AC power adapter•Category 5 (CAT5) Ethernet cable•Ruckus MM2225 Metro Broadb and Gateway Quick Setup Guide (this document) Understand the Default Network SettingsDefault SettingsIP Address • The default IP address of the Ruckus MM2225 is 192.168.1.1. • The Subnet Mask address is 255.255.255.0• To gain administrative control of the MM2225, you must set your computer’s network IP address to obtain an IP address automatically. Proceed to the next section for instructions on configuring your IP address. Manually Configure an IP Address on Your Computer1. For Windows 2000: Select Start->Settings->Network and choose Dialup Connections 2. For Windows XP: Select Start->Settings->Control Panel-> Network Connections 3. Double-click the icon for the Local Area Connection designated for your home network. This is not the same icon as your home wireless network. 4. In the Local Area Connection Properties window, select Internet Protocol (TCP/IP) and click Properties . 5. Select Obtain an IP address automatically , and click OK to exit the TCP/IP Properties window. 6. Click OK to exit the Local Area Connection Properties window. Connect and Configure Your Ruckus MM2225 GatewayThe following steps will guide you to set up and gain admin-istrative access to your Ruckus MM2225 Metro Broadband Gateway.1. Remove the Ruckus MM2225 Metro Broadband Gate- way gateway from the packaging and place it next to your computer. 2. Connect the AC power supp ly to the Ruckus MM2225 gateway and plug the other end into a power outlet or to a surge protector that is plugged into a power out- let. 3. Connect the CAT5 Ethernet ca ble to the Ethernet port on your computer, and to the Ethernet port on the Ruckus MM2225 Metro Broadband Gateway . 4. On your PC, open a browser window. Enter the address http://192.168.1.1. 5. When the login screen appears, enter the username admin and leave the password field blank. Then click the Login button. 6. In the Configuration->Wireless menu, you may change the default wireless network Name (SSID) name for this device to match the SSID of the AP you intend to con-nect to. 7. Refer to the information pr ovided under the Help but- ton before attempting to change any other default set-tings in this screen. 8. The initial configuration is now complete. Click Reboot/Reset to make the change take effect. TroubleshootingIf you cannot connect to your Ruckus MM2225 Metro Broad-band Gateway, perform the following steps:If the startup sequence didn’t work, verify that the Network name (SSID) and security settings on the Ruckus MM2225 Metro Broadband Gateway match your wireless network.1. Connect your computer to the Ruckus MM2225 Metro Broadband Gateway by an Ethernet cable. Set your computer’s network to get an IP address automatically. 2. Open a Web browser window. 3. Point your browser to http://192.168.1.1. At the login screen, enter the username admin and leave password field blank. Click Login . Network Name (SSID): V54-WXYZ Security: Disabled 4. Click the System link under the Configuration menu on the left panel of the Ruckus Web user interface. Verify that the Ruckus MM2225 Metro Broadband Gateway ’s wireless settings match those of your remote AP. Check the LED status lights to verify correct operation.1. Make sure you are using the power adapter supplied by Ruckus Wireless. 2. Make sure the Power LED is lit. If it is not lit, make sure that the power cord is properly connected to the Ruckus MM2225 Metro Broadband Gateway , and that the power supply adapter is properly connected to a functioning power outlet. If the error persists, you have a hardware problem and should contact technical sup-port. 3. Make sure your Network LED is lit. Make sure that the Ethernet cable connections are secure at the Ruckus MM2225 Metro Broadband Gateway and your com- puter. The LAN LED on the Ruckus MM2225 Metro Broadband Gateway indicates link when the gateway is fully seated in the port. 4. Make sure the Wireless LED is either steady or flashing Green. If not lit, the Wireless settings may be incorrect between the Ruckus MM2225 Metro Broadband Gate- way and your computer. If necessary, reset the Ru ckus MM2225 Metro Broadband Gateway gateway to its factory defaultsIf you forgot which security settings you assigned to the Ruckus MM2225 Metro Broadband Gateway, you can reset it to factory defaults by inserting the end of a paper clip into the reset button hole located on the back of the unit. Press and hold the reset button for at least eight seconds, until all Dome LEDs start to flash simultaneously. Then you can connect to the Ruckus MM2225 Metro Broadband Gate-way using the default network settings. LED Information

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: S9GMM2225 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Thomas Cheng Product Line Manager Ruckus Wireless, Inc. 4/15/2006

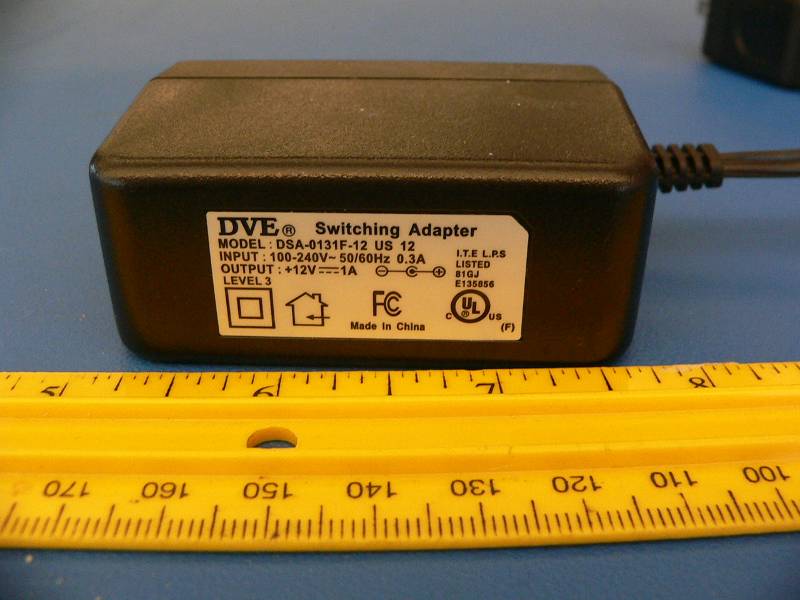

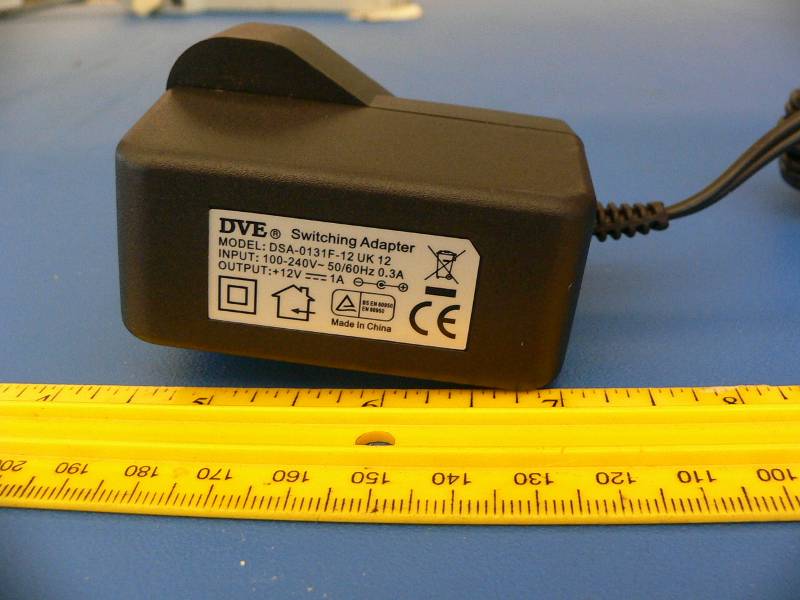

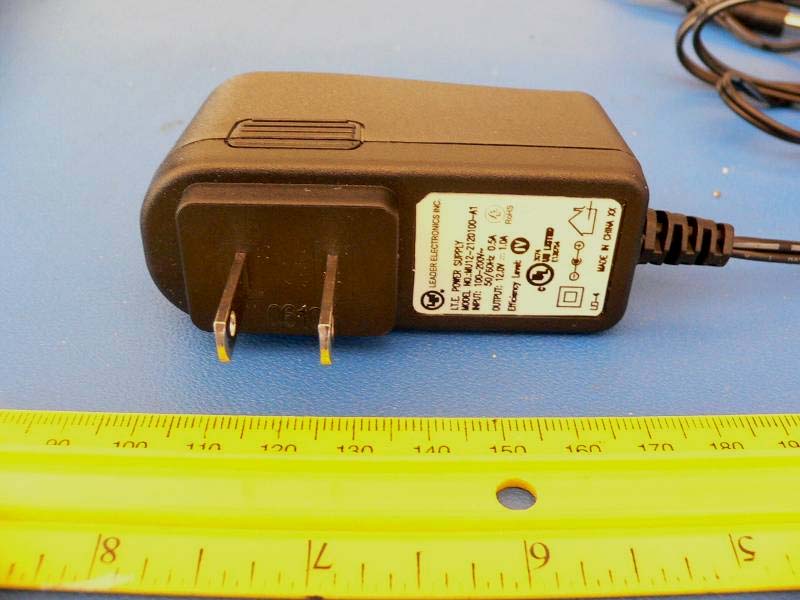

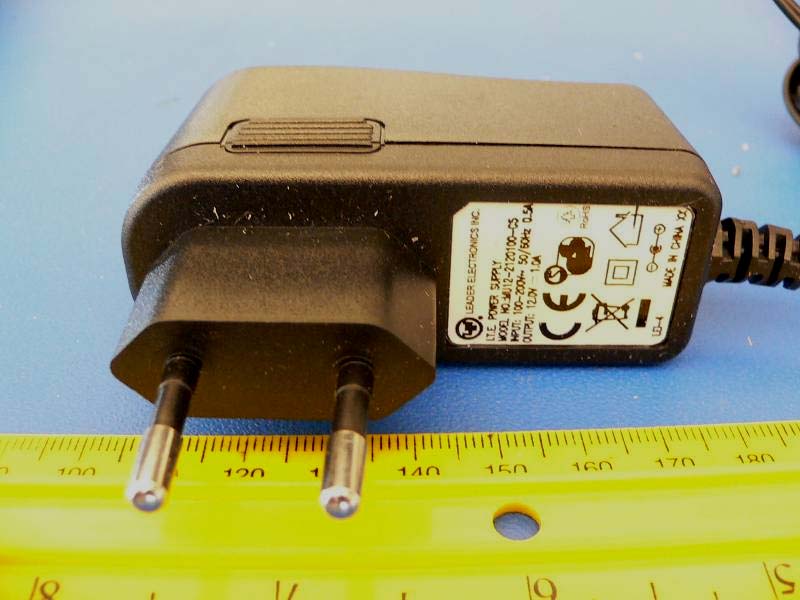

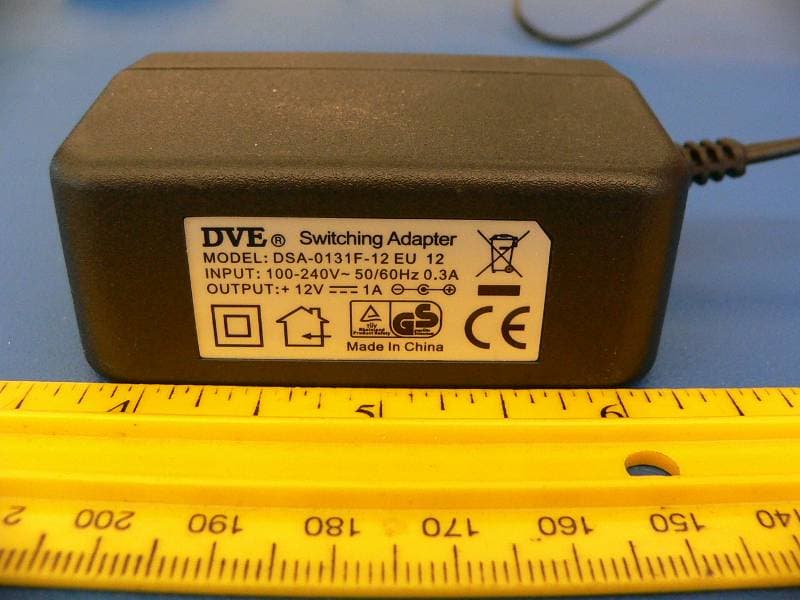

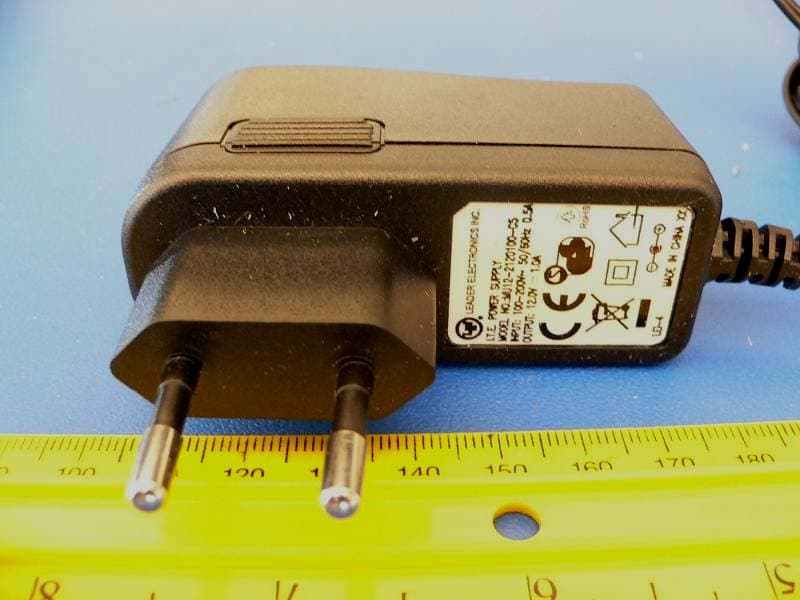

EXHIBIT C - EUT PHOTOGRAPHS MM2225: EUT – Front View MM2225: EUT – Rear View Ruckus Wireless, Inc. FCC ID: S9GMM2225 MM22X1: EUT – Top View MM22X1: EUT – Bottom View Ruckus Wireless, Inc. FCC ID: S9GMM2225 MM22X1: Power Supply Type 1-1 (Front) MM22X1: Power Supply Type 1-1 (Rear) Ruckus Wireless, Inc. FCC ID: S9GMM2225 MM22X1: Power Supply Type 1-2 (Front) MM22X1: Power Supply Type 1-2 (Rear) MM22X1: Power Supply Type 1-3 (Front) Ruckus Wireless, Inc. FCC ID: S9GMM2225 MM22X1: Power Supply Type 1-3 (Rear) MM22X1: Power Supply Type 2-1 (Front) Ruckus Wireless, Inc. FCC ID: S9GMM2225 MM22X1: Power Supply Type 2-1 (Rear) MM22X1: Power Supply Type 2-2 (Front) Ruckus Wireless, Inc. FCC ID: S9GMM2225 MM22X1: Power Supply Type 2-2 (Rear) MM22X1: Power Supply Type 2-3 (Front) Ruckus Wireless, Inc. FCC ID: S9GMM2225 MM22X1: Power Supply Type 2-3 (Rear) MM22X1: Power Supply Type 3-1 (Front) Ruckus Wireless, Inc. FCC ID: S9GMM2225 MM22X1: Power Supply 3-1 (Rear) MM22X1: Power Supply Type 3-2 (Front) Ruckus Wireless, Inc. FCC ID: S9GMM2225 MM22X1: Power Supply Type 3-2 (Rear) MM22X1: Power Supply Type 3-3 (Front) Ruckus Wireless, Inc. FCC ID: S9GMM2225 MM22X1: Power Supply Type 3-3 (Rear) END OF REPORT

EXHIBIT A - FCC ID LABEL INFORMATION Proposed FCC ID Label Proposed Label Location on EUT Rear View of EUT/FCC ID Label This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: S9GMM2225 IC: 5912C-MM2225

MM2225: EUT – Cover Off View 1 MM2225: EUT – Cover Off View 2 MM2225: EUT – Component View with shielding MM2225: EUT – Component View without shielding MM2225: EUT – Solder View MM2225: EUT – Port View MM2225: EUT – Antenna View 1 MM2225: EUT – Antenna View 2 MM22X1: EUT – Cover Off View MM22X1: EUT – Main Board Component View MM22X1: EUT – Main Board Solder View MM22X1: EUT – TX Close Up MM22X1: EUT – Antenna View 1 MM22X1: EUT – Antenna View 2 MM22X1: EUT – Port View

Ruckus Product Family MM2225 Operational Theory Note that the Product Family MM2225 contains two product models: 1. MM2225 2. MM2221 3. MM2211 The MM2225, MM2211, MM2221 are Wireless CPE device designed to process data Traffic. The MM2225, MM2211, MM2221 is a Wireless CPE device designed to process data Traffic. All of these products are certified under the Product Family MM2225. The below diagram provides the Operational Theory of the products. Ruckus MM2225 (Models MM2225, MM2221, MM2211) Transmit and TDK Bandpass Filter SST Power Amplifier MA-COM RX/TX DPDT RF Switch Printed Lowpass Filter 26dB Printed Coupler Antenna(s) Antenna(s) Power Control Power Level Feedback TDK Bandpass Filter Sirenza LNA Power Control Atheros AR2315 SOC IC RF RF tuning range is 2402-2494MHz RF

Ruckus Product Family VX2X25 Models (VF2825 and VC2725) Item Description Comments 1 MODEL NUMBER 1 VF2825 Wireless router designed to support video 2 Model Number 2 VC2725 Wireless router designed to support voice Hardware 1 Case Clip 2 Power Ext. Switching 5.0V 2.0 A 3 Memory (Flash/RAM) 8 MB Flash / 32 MB RAM 4 CPU Atheros SOC AR2315A 7 10/100 Mbps Ethernet Port 5-port 8 Auto-MDIX-MDI-X Yes 9 Wireless Atheros 10 802.11g standard support Yes 11 Antenna Ruckus Antenna 12 Printserver No 13 Serial Port No 14 Reset switch Yes 15 Grounding connector No 17 LEDs 4 Power, LAN, Wireless, RF Indicator 18 Operating Temperature 0-40 C 19 Operating Humidity 10-90% RH 20 Storage Temperature -20-70 C 21 Storage Humidity 5-95% RH 22 Physical Dimensions 5.72 x 4.92 x 2.9 in (223 x 153 x 75 mm) 23 Weight 0.53 lbs (.2 kg) RF Specification 1 Receive Sensitivity:802.11b:1 Mbps -99 to -108 dBm 2.2 Mbps -96 to -104 dBm 5 Mbps -91 to -98 dBm 11 Mbps -90 to -94 dBm 802.11g6 Mbps -93 to -96 dBm 9 Mbps -90 to -96 dBm 12 Mbps -90 to -94 dBm 18 Mbps -88 to -91 dBm 24 Mbps -85 to -88 dBm 36 Mbps -82 to -86 dBm 48 Mbps -78 to -81 dBm 54 Mbps -76 to -81 dBm 2 Output Power 16.4 - 20 dBm (typ)23 dBm (max) 3 Antenna Gain 3.3 dBi max Netgear, Inc. Confidential 6/12/2006 Page 1 Ruckus Product Family VX2X25 Models (VF2825 and VC2725) Item Description Comments 1 MODEL NUMBER 1 VF2825 Wireless router designed to support video 2 Model Number 2 VC2725 Wireless router designed to support voice 4 Standards IEEE 802.11b, 802.11g 5 Frequency 2.412 ~ 2.462 GHz (US)2.412 ~ 2.484 GHz (Japan)2.412 ~ 2.472 GHz (Europe ETSI)2.457 ~ 2.472 GHz (Spain)2.457 ~ 2.472 GHz (France) Netgear, Inc. Confidential 6/12/2006 Page 2

§15.247(e)(i),§2.1091 - RF EXPOSURE According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density MPE Prediction For MM2225 Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 23.0(dBm ) Maximum peak output power at antenna input terminal: 200.00 (mW) Prediction distance: 20 (cm) Predication frequency: 2400 (MHz) Antenna Gain (typical): 3.3 (dBi) antenna gain: 2.14 (numeric) Power density at predication frequency at 20 cm: 0.085(mW/cm 2 ) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm 2 ) For MM22X1 Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 23.0(dBm ) Maximum peak output power at antenna input terminal: 200.00 (mW) Prediction distance: 20 (cm) Predication frequency: 2400 (MHz) Antenna Gain (typical): 3.3 (dBi) Antenna gain: 2.14 (numeric) Power density at predication frequency at 20 cm: 0.085(mW/cm 2 ) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm 2 ) Test Result The EUT is a mobile device. The power density level at 20 cm is 0.085mW/cm², which is below the uncontrolled exposure limit of 1.0mW/cm² at 2400 MHz. for MM2225 and MM22X1

FCC PART 15.247 EMI MEASUREMENT AND TEST REPORT For Ruckus Wireless, Inc. 883 North Shoreline Blvd, Suite A-100 Mountain View CA, USA 94043 FCC ID: S9GMM2225 Model: MM2225/MM22X1 This Report Concerns: Original Report Product name: Wireless 802.11b/g Router Test Engineer: Snell Leong Report No.: R0604185 Report Date: 2006-04-30 Reviewed By: Daniel Deng Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 1274 Anvilwood Ave. Sunnyvale, CA 94089 Tel: (408) 732-9162 Fax: (408) 732 9164 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................4 EUT PHOTO.................................................................................................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................5 SYSTEM TEST CONFIGURATION..........................................................................................................................6 JUSTIFICATION.............................................................................................................................................................6 EUT EXERCISE SOFTWARE..........................................................................................................................................6 SPECIAL ACCESSORIES.................................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................6 POWER SUPPLY INFORMATION.....................................................................................................................................6 INTERFACE PORTS AND CABLING................................................................................................................................6 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................7 SUMMARY OF TEST RESULTS ...............................................................................................................................8 §15.247(E)(I),§2.1091 - RF EXPOSURE ....................................................................................................................9 §15.203 - ANTENNA REQUIREMENT....................................................................................................................11 APPLICABLE STANDARD............................................................................................................................................11 §15.207 (A) - CONDUCTED EMISSIONS ...............................................................................................................12 MEASUREMENT UNCERTAINTY..................................................................................................................................12 TEST SETUP...............................................................................................................................................................12 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................12 TEST PROCEDURE......................................................................................................................................................12 SUMMARY OF TEST RESULTS.....................................................................................................................................13 CONDUCTED EMISSIONS TEST PLOTS AND DATA.......................................................................................................14 §2.1051 & §15.247(D) - SPURIOUS EMISSIONS AT ANTENNA TERMINALS................................................26 APPLICABLE STANDARD............................................................................................................................................26 EQUIPMENT LISTS......................................................................................................................................................26 MEASUREMENT RESULT............................................................................................................................................26 §15.205 & §15.209 & §15.247(C) - SPURIOUS RADIATED EMISSIONS ...........................................................51 MEASUREMENT UNCERTAINTY..................................................................................................................................51 EUT SETUP................................................................................................................................................................52 TEST EQUIPMENT LIST AND DETAILS........................................................................................................................…
