RUCKUS Q950 LTE Access Point Quick Setup Guide Introduction This Quick Setup Guide provides step-by-step instructions on how to set up your RUCKUS Q950 LTE Access Point (AP) Part Number: P01-Q950-US02. After completing the steps described in this guide, you will be able to place the Q950 at your site and provide LTE wireless network access to users. FIGURE 1 Q950 AP Before You Begin Before deploying the RUCKUS Q950, verify that all items listed in Package Contents are included in the package. If any item is damaged or missing, notify your authorized RUCKUS sales representative. Also, make sure that you have the all the hardware and tools mentioned in the Required Hardware and Tools on page 1. You can check for the latest information and release documentation at http://support.ruckuswireless.com/documents Software License and Limited Warranty are available at http://support.ruckuswireless.com/warranty Required Hardware and Tools •13-mm (0.5-in.) flat-blade screwdriver or equivalent •No. 2 Phillips screwdriver •Small flat-blade screwdriver •Torque wrench or torque screwdriver with sockets •Long-nose pliers •Electrical wire-stripping and terminal crimping pliers •Pipe, pole, or a sturdy flat surface •Electric drill with drill bits and customer-supplied wall anchors, flat washers, and hex nuts for flat-surface mount •Ruler Package Contents A complete Q950 field-installation package includes all of the following items: •One RUCKUS Q950 LTE Access Point •One wall/pole mount bracket •Two push-in grommets •Pole-mount bracket kit –Four M4 x 10-mm screws with flat locking washers –Five .250 flat washers –Five .250 split-lock washers –Four 1.5-in. to 2.5-in. pipe clamps –Five .250-28 x .50-in. hex head bolts •Three M25 cable glands •A safety cable kit and quick setup guide •Two zipcord cable glands •One ground wire with lug (1-m length) •One cable gland extender adapter •One cable gland extender gasket •RUCKUS End User License Agreement/Lifetime Warranty Statement •Regulatory Statement •This Quick Setup Guide Connecting the Power Supply Unit to the AP Provide -48 VDC power to the AP or use the AP power supply unit (902- Q950-PWR1). You can connect the AP to the power supply unit (902-Q950-PWR1). 1.Install the black grommets either on both sides or on opposite sides of the AP bracket. NOTE: The DC wire must always go through the side with the double holes. The AC wire can go through either side. 2.Insert the input and output cables through the holes with the grommet, as shown in the following figure. FIGURE 2 Connecting the Power Supply Unit 1.Grommets 3.Mount the power supply unit on the rear side of the AP bracket and fasten the power supply to the bracket with the M4 screws and torque to 2.259 N.m (20 in-lbs). 4.Mount AP bracket to the AP. a.Place the rear side of the AP on the front side of the AP mounting bracket so that the four larger screw holes on the bracket align with the four screw holes on the AP. b.Use four 0.250-28 x 0.5-inch hex bolts with split lock and flat washer sets to mount the AP bracket to the AP. Tighten the bolts to 3.0 N.m (27 in-lbs). CAUTION! Make sure that the screws are no longer than 0.5 inch. If a screw is longer than 0.5 inch, it can damage the AP chassis. FIGURE 3 Attaching the AP to the Mounting Bracket 1.DC Power 2.AC Power 3.Screws 5.Connect the DC wire to the AP with cable gland. NOTE: Cable gland use is mandatory, and the DC wires must first be inserted into the cable gland before making the connection to the unit. Otherwise, you will need to disconnect again to install the cable gland. Refer to Assembling the Cable Gland on page 2. Copyright © 2020 CommScope, Inc. All rights reserved.Page 1 of 5 Published September 2020, Part Number 800-72458-001 Rev A Timestamp: 2020 October 7 6:04 | Codestamp: 2020 May 08 11:00 UTC (OT: 2.5.4)—commscope logo override added FIGURE 4 Connecting DC Power to the AP Assembling the Cable Gland 1.Use a wide flat-blade screwdriver to remove the required blanking cap from the AP. 2.Using a wire stripper, cut and strip the DC source wires. 3.Feed the end of the cable through the cable gland dome, grommet, clamping ring assembly, and cable gland base, as shown in the following figure. FIGURE 5 Cable Gland Assembly 1.Cable gland base 2.Clamping ring assembly 3.Grommet 4.Cable gland dome 4.Insert the +/- wires into the correct positions as labeled on the housing silkscreen. 5.Tighten the terminal block screws to secure the wires. 6.Tighten the cable gland base into the AP chassis to 7 N.m or 62 in-lbs. 7.Wrap the clamping ring assembly and grommet in the cable gland base. Make sure that the clamping ring assembly fully encloses the grommet. 8.Seat the clamping ring assembly and grommet in the cable gland base. 9.Tighten the cable gland dome to 0.79 N.m (7 in-lbs). CAUTION! RUCKUS strongly recommends that you form a drip loop on any cable that is connected to devices that are installed outdoors, to prevent water from running along the cable and entering electrical components. Determining Data Port Usage You can daisy chain up to three Q950 APs at a single installation point. You can use Table 1 to determine SPF trans-receiver and AP ports usage. NOTE: When the AP is not daisy-chained, either the RJ45 or the SFP port may be used for ethernet connection. When two APs are daisy-chained, you can use the RJ45 port on the second AP instead of the SFP port. When three APs are daisy-chained, use following figure. FIGURE 6 Daisy-chaining APs Connecting the SFP Optic Module If the fiber is a single fiber, you use the cable gland as is. If the fiber is a zipcord, you must replace the single hole insert in the cable gland with the zipcord insert. WARNING! The zipcord fiber cable is extremely fragile and must be handled with care. NOTE: Do not insert the cable gland base, grommet, and dome into the extender until the extender has been tightened. Step 5 must be performed before Step 6; otherwise, the fiber cable will twist. Before you begin to connect…

Text truncated - open the document above for the full version.

Page 1 Ruckus Wireless, Inc. T: +1 650 265 4200 350 West Java Drive Sunnyvale, CA 94089 USA Note: Find the complete set of AP documentation for all RUCKUS products at http://docs.commscope.com/?docs-box. Q950 – LTE Access Point Ruckus Wireless Inc., a CommScope Company Federal Communications Commission Notices This product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this equipment that have not been approved by Ruckus Wireless may void the user's authority to operate this equipment. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense This device meets all requirements specified in the FCC Part 96 Rules. This transmitter must not be co-located or operate in conjunction with any other antenna or transmitter. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 75 cm between the radiator & your body. Safety Notices and National Restrictions This product is intended to be installed at a restricted access location and is marked with a visible warning that the surface may be hot Professionally Installed Products The product is to be installed according to the installation instructions. The User/Operator does not have access to the device once the device is installed and in use. Provisions for permanent grounding are provided. 1. Installation personnel: This product is designed for a specific application and is to be installed by qualified personnel with knowledge of RF and applicable rules. General users are not to attempt installation or changing settings. 2. Installation location: The product is to be installed at a location where the radiating antenna can be kept at least 20 cm from any nearby persons in normal operation conditions to meet regulatory RF exposure requirement. 3. Installation procedure: Please refer to installation instructions for details. 4. Warning: Please carefully select the installation position and make sure that the final output power does not exceed the limit set forth in US CFR 47 Part 96. Violation of the rule could lead to serious federal penalty. Products intended to be powered by an external power supply: Warning –This product is intended to be supplied by a Listed Direct Plug-In Power Unit marked Class 2 or LPS (sub-clause 2.5 of standard EN 60950- 1). Available Ruckus power supplies intended for product operation are identified in the product datasheet. The last two digits of the power supply part number represent the country code. For additional applicable power supplies/options, see user instructions and product datasheet. Medical Statement Ruckus Wireless Access Points shall only be used in ME systems where the intended EM ENVIRONMENT does NOT rely on the Wireless radio link for BASIC SAFETY or ESSENTIAL PERFORMANCE of the ME SYSTEM. 800 - 72457 - 001 - A 2

T: +1.650.265.4200 | 350 West Java Dr., Sunnyvale, CA 94089 USA Ruckus Wireless Inc. Federal Communications Commission Date: January 4, 2023 Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Re: Antenna Product Attestation; FCC ID: S9GQ950US02 Q950 LTE Access Point from Ruckus Wireless Inc., deploys wireless interface based on LTE/3GPP standards and protocols utilizing digital modulation (OFDM). This product is designed to deploy with External Antenna and supports 2x2 MIMO in the 3.5 GHz Licensed band (CBRS). External Antenna unit is designed as dual Cross-polarized set of 4 antennas, transmitting 90-degree phase-shift replica of the signal and phase centers of the 2 antennas are co-located. Antenna 1 and Antenna 2 always transmit from the same (first) RF carrier Antenna 3 and Antenna 4 always transmit from the same (second) RF carrier Antennas 1 and 3 are with Horizontal polarization and Antennas 2 and 4 are with Vertical polarization Due to Cross-polarized antennas per Carrier, transmitted EIRP is calculated per Polarization for each Carrier.

Business Unit - Ruckus Wireless Inc. 350 West Java Dr. Sunnyvale CA 94089 USA T: +1 650 265 4200 F: +1 408 738 2065 www.commscope.com Date: November 13, 2020 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for Confidentiality FCC ID: S9GQ950US02 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. ⚫Schematic Diagram ⚫Block Diagram ⚫Part List ⚫Operational Description ⚫Tune-up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705. ⚫External Photos ⚫Internal Photos ⚫Test Setup Photos ⚫User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and that information will be available for public review once the grant of equipment authorization is issued. Sincerely, ______________________ Ivaylo Tankov Principal Wireless Compliance Engineering

Business Unit - Ruckus Wireless Inc. 350 West Java Dr. Sunnyvale CA 94089 USA T: +1 650 265 4200 F: +1 408 738 2065 www.commscope.com Federal Communications Commission Date: November 13, 2020 Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Letter of Authorization Undersigned below as an authorized Company officer on behalf of Ruckus Wireless Inc. a CommScope Company - Ivaylo Tankov, designate Jones Tsai of Sporton International Inc. as the person being responsible for this project, to sign FCC form 731 and other documentation. We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 862. This authorization is limited to the product of as following: FCC ID: S9GQ950US02 and is in place for 90 (ninety) days from the date on this document. If you have any question, please do not hesitate to contact us or Sporton International directly. Sincerely, ______________________ Ivaylo Tankov Principal Wireless Compliance Engineering

Dear FCC Staff, We have worked with the testing laboratory to address the issues that you have identified. They have revised the test reports indicated below: • Part 96 RF tests. • MPE assessment. We have revised the 731 Form to account for the 20+20 modes. This summary should help to illustrate the situation, with specific test report references to support them: As for the EIRP issue you raised, the laboratory determined that the fault lay with a calculation error in the tables of Appendix A, while summing up the total EIRP. According to the manufacturer’s declaration, the device supports two cross-polarized antennas, and that the transmitter outputs is a 90-degress phase-shifted replica of the other, and the phase centers of the antennas are co-located, EIRP shall be individually calculated based on the output ports designed to be in Horizontal polarization and Vertical polarization. Appendix A of the test report has been updated to indicate that all the results are now compliant. Please update the grant if the EIRP power was taken incorrectly. In addition, they updated the MPE report by applying time-averaged effective radiated power for power density calculation. The compliance distance remains unchanged from the original filing. Please let us know if you have any further issues or concerns. Please let us know once/if we can mark previous reports and MPE as supersede. Thanks and regards, TIMCO Engineering, Inc.

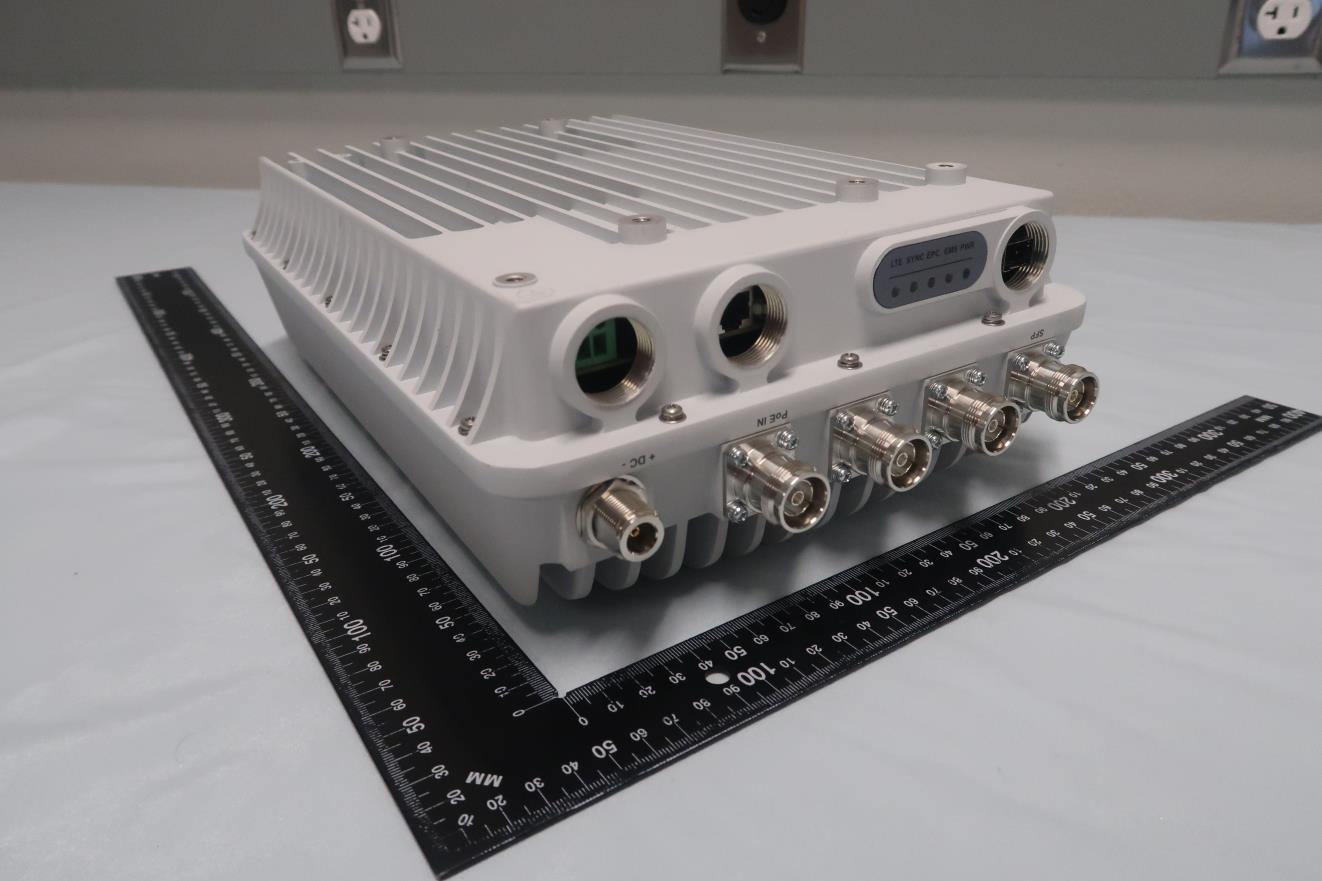

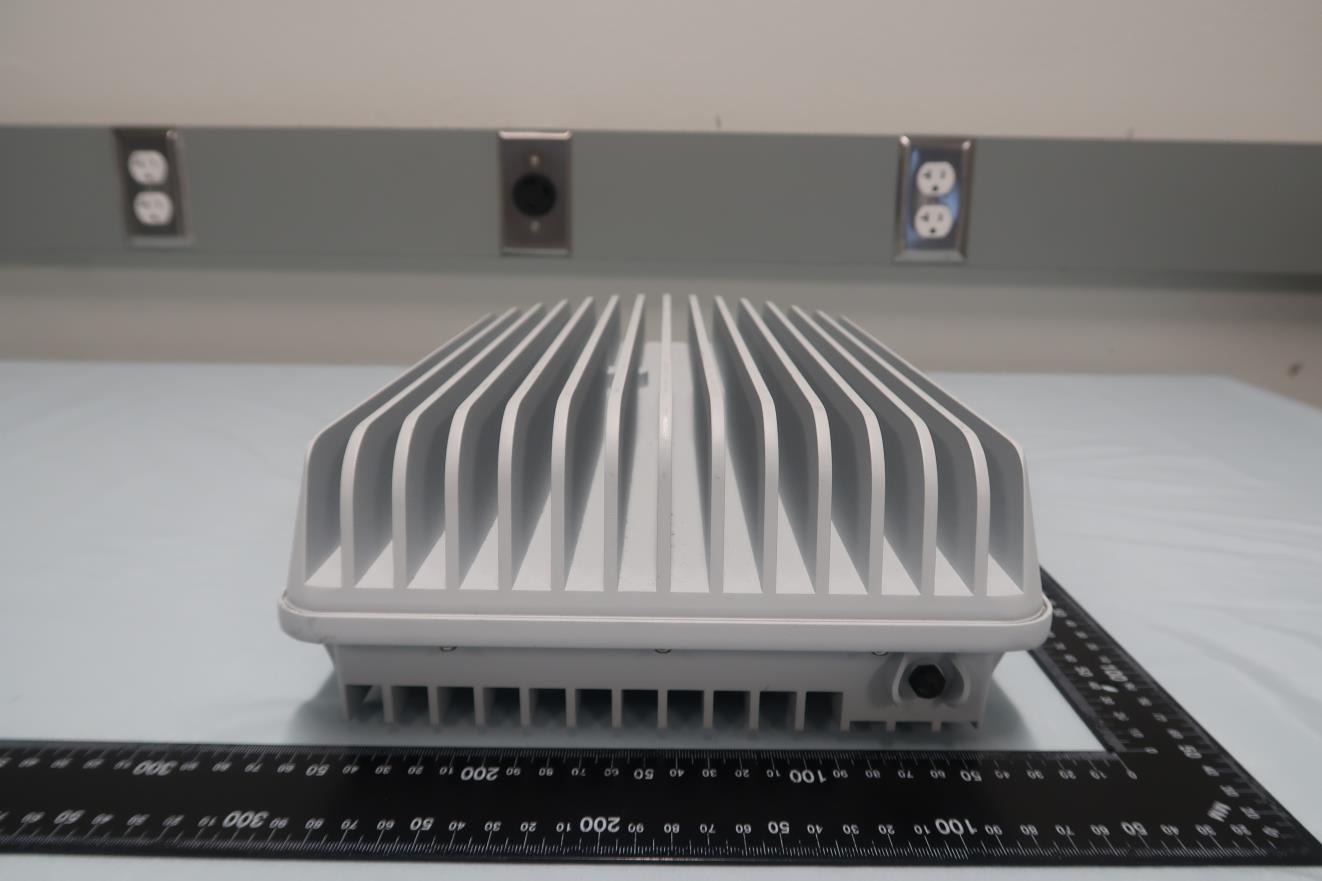

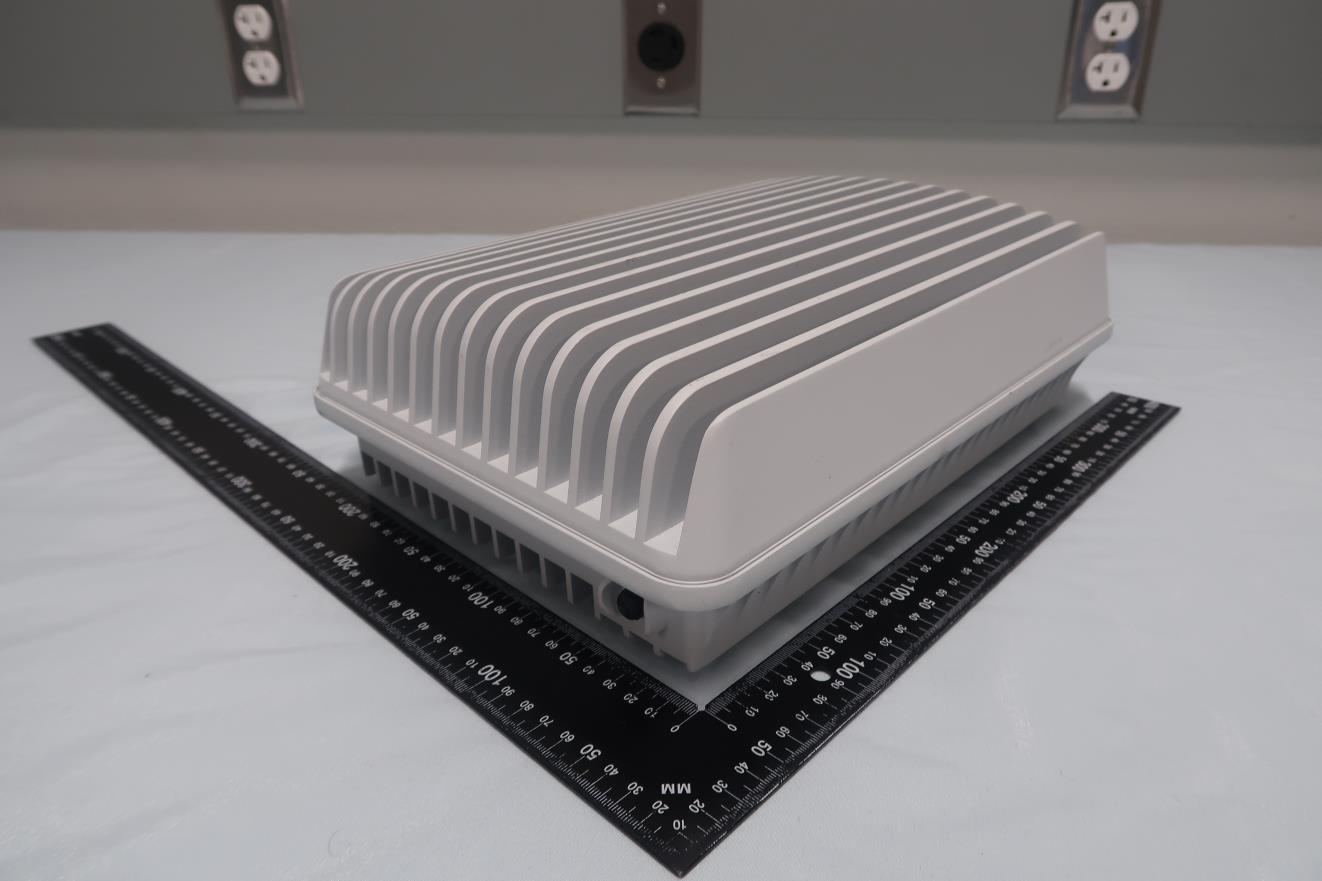

PHOTOGRAPHS OF EUT Report No.: EP200510001 Brand Name: RUCKUS / Model Name: Q950-US02 / Marketing Name: Q950 TEL : 408 9043300 Page Number : 1 of 43 Issued Date : Dec. 18, 2020 Report Version : 01 1. External Photograph of EUT PHOTOGRAPHS OF EUT Report No.: EP200510001 Brand Name: RUCKUS / Model Name: Q950-US02 / Marketing Name: Q950 TEL : 408 9043300 Page Number : 2 of 43 Issued Date : Dec. 18, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP200510001 Brand Name: RUCKUS / Model Name: Q950-US02 / Marketing Name: Q950 TEL : 408 9043300 Page Number : 3 of 43 Issued Date : Dec. 18, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP200510001 Brand Name: RUCKUS / Model Name: Q950-US02 / Marketing Name: Q950 TEL : 408 9043300 Page Number : 4 of 43 Issued Date : Dec. 18, 2020 Report Version : 01 720510
