S9GR600R600 Access Point

Copyright © 2014 Ruckus Wireless, Inc. Page 1 of 4 Published September 2014, Part Number 800-70633-001 Rev B R600 Access Point Quick Setup Guide This Quick Setup Guide provides step-by-step instructions on how to set up your Ruckus Wireless R600 Dual Band 802.11ac Multimedia Wi-Fi A ccess Point. After completing the steps described in this Guid e, you will be able to place the Access Point (AP) at your site and provide wireless network access to users. T HIS G UIDE IN O THER L ANGUAGES • 请从以下网站获得该指南的简体中文版 https://support.ruc kuswireless.com . • Vous trouverez la version française de ce guide à l'adresse suivante https://support.ruckuswireless.com . • このガイドの日本語版は https:// support.ruckuswireless.com でご覧ください。 • 이 가이드의 한국어 버전은 웹 사이트 ( https://support.ruckuswireless.com ) 에서 확인하시기 바 랍니다 . • Veja a versão em português (Brasil) deste guia em https://support.ruc kuswireless.com. • Puede ver la versión en espa ñol (América Latina) de esta guía en https://support.ruckuswireless.com. B EFORE Y OU B EGIN Before deploying Ruckus Wireless products, please check for the latest software and the release documentation.• User Guides and Release Notes are available at http://support.ruckuswireless.com/documents . • Software Upgrades are available at http://support.ruckusw ireless.com/software . • Open Source information is available at http://opensource.ruckuswireless.com . • Software License and Limited Warranty are available at http://support.ruckuswireless.com/warranty . P ACKAGE C ONTENTS • R600 Access Point • One wall-mount anchor kit, including two 1" No. 8 steel pan-head Phillips sheet metal screws, one 5mm M2.5 x 1.06 Torx security screw, and wall-mount anchors • One external T-bar bracket (two unassembled parts) • One unit removal pin • Regulatory flyer • Product warranty statement • Declaration of Conformity, if required •This Quick Setup Guide S TEP 1: C OLLECT T OOLS AND S ETUP R EQUIRE - MENTS• A computer running Windows 7 (procedures for other OS’s are similar) • Two Cat 5e Ethernet cables • No. 2 Phillips screwdriver and T8 Torx driver for wall mount-ing anchor kit • An AC power adapter (sold separately), or an 802.3af- or 802.3at-compliant Power over Ethernet (PoE) switch or PoE injector • When mounting the R600 to a truss or pole, two customer-supplied cable ties S TEP 2: C ONNECT THE AP TO Y OUR C OMPUTER Figure 1: Top view1 After removing your Ruckus Wireless AP from its pack-age, place it next to your computer. 2 Using an Ethernet cable, co nnect your computer’s net- work port to one of the two ports on the AP. 3 Using an AC adapter (sold separately), connect the AP 12VDC port to a protected power source. Alternatively, connect the PoE port to a PoE injector or switch for both power and network connections. 4 Verify that the Power LED on the external enclosure is a steady green. Figure 2: Bottom viewS TEP 3: P REPARE Y OUR C OMPUTER FOR AP S ETUP 1 On your Windows 7 computer, configure your network adapter from the Local Area Connection settings as fol- lows:• Start > Control Panel > Network and Sharing Center > Change Adapter Settings 2 Edit the TCP/IPv4 address settings as follows: • Local Area Connection > Properties > Internet Protocol Version 4 (TCP/IPv4) > Properties The TCP/IPv4 Properties dialog box appears. 3 Select Use the following IP address (if it is not already selected) and then make the following entries:• IP address : 192.168.0.22 (or any address in the 192.168.0.x network) • Subnet mask : 255.255.255.0 • Default gateway : 192.168.0.1 Leave the DNS server fields empty. 4 Click OK to save your changes. Your changes are put into effect immediately. Note: The R600 requires a mini mum of ZoneFlex (ZF) firmware version 9.8.1 or later, or SmartCell Gateway (SCG) firmware version 2.5.1 or later, or virtual SmartCell Gateway (vSCG) 3.0 or later. IMPORTANT! If the AP is deployed with a ZoneDirector, then refer to the ZoneDirector Quick Setup Guide and connect the AP to your local network. Note: The following procedures assume Windows 7 as the operating system. Procedures for other OS’s are similar.Important! Write down all of the currently active settings so you can restore your computer to its current configuration later (when this process is complete). PoE Port 12VDC Port Copyright © 2014 Ruckus Wireless, Inc. Page 2 of 4 Published September 2014, Part Number 800-70633-001 Rev B S TEP 4: L OG I NTO THE AP As specified earlier, the AP sh ould be directly connected to your computer (through o ne of the Ethernet ports) and powered on, ready for setup.1 On your computer, open a Web browser window. 2 In the browser, type this URL to connect to the AP: https://192.168.0.1 3 Press <Enter> to initiate the connection. When a secu- rity alert dialog box appears, click OK/Yes to proceed. 4 When the Ruckus Wireless Admin login page appears, enter the following: • Username : super • Password : sp-admin 5 Click Login . S TEP 5: C USTOMIZE THE W IRELESS S ETTINGS 1 On the Web interface menu, click Configuration > Radio 2.4G or Configuration > Radio 5G . The Configure :: Wireless :: Common options appear. 2 Verify that the following options are active:• Channel : SmartSelect • Country Code : If you are not located in the United States, select your current country. 3 Click Update Settings if you made any changes. 4 Click any of the “Wireless #” tabs at the top of the page. 5 In Wireless Availability , click Enabled . 6 Delete the text in the SSID field, then type a name for your network that will help your users identify the AP in their wireless network connection application. 7 Click Update Settings to save your changes. 8 Repeat Steps 4-7 for each Wireless # interface that you want to enable. 9 Click Logout to exit the Web interface. 10 When the Ruckus Wireless Admin login page reappears, you can exit your browser. 11 Disconnect the AP from the computer and from the cur-rent power source, and then re store your computer to its original network connec tion configuration. S TEP 6: P LACE THE AP…

Text truncated - open the document above for the full version.

Page 1 Federal Communications Commission Notices This product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications to this equipment that have not been approved by Ruckus Wireless may void the user's authority to operate this equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Industry Canada Statement Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall comply with the e.i.r.p. limit; and the maximum antenna gain permitted for devices in the band 5725-5825 MHz shall comply with the e.i.r.p. limits specified for point-to-point and non point-to-point operation as appropriate. Le dispositif de fonctionnement dans la bande 5150-5250 MHz est réservé à une utilisation en intérieur pour réduire le risque d'interférences nuisibles à la co-canal systèmes mobiles par satellite, le gain d'antenne maximal autorisé pour les appareils dans les bandes 5250-5350 MHz et 5470-5725 MHz doit se conformer à la pire limite, et le gain d'antenne maximal autorisé pour les appareils dans la bande 5725-5825 MHz doivent être conformes avec le pire limites spécifiées à point-à-ponctuelles et non point-à-point de fonctionnement selon qu'il convient. Operation in the 5600-5650 MHz band is not allowed in Canada. High-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices. Opération dans la bande 5600-5650 MHz n'est pas autorisée au Canada. Haute puissance radars sont désignés comme utilisateurs principaux (c.-à- utilisateurs prioritaires) des bandes 5250-5350 MHz et 5650-5850 MHz et que ces radars pourraient causer des interférences et / ou des dommages à dispositifs LAN-EL. Radiation Exposure Statement The device has been found to be compliant to the requirements set forth in CFR 47 Sections 2.1091 and Industry Canada RSS-102 for an uncontrolled environment. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Le dispositif a été jugé conforme aux exigences énoncées dans les articles 47 CFR 2.1091 et Industrie Canada RSS-102 pour un environnement non contrôlé. L'antenne (s) utilisée pour ce transmetteur doit être installé pour fournir une distance de séparation d'au moins 20 cm de toutes les personnes et ne doit pas être co-localisés ou fonctionner en conjonction avec une autre antenne ou transmetteur. Mexico Statement “La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada.” Page 2 Professionally Installed Products The product is to be installed according to the installa…

Text truncated - open the document above for the full version.

775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 10/22/2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: S9GR600 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram / R600 Block Diagram.pdf - Schematics / R600 Schematic.pdf - Operational Description / R600 Radio Theory of Operation.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Clinton Bradley / Compliance Engineer 350 West Java Drive, Sunnyvale, CA 94089 [email protected] / 408-636-4368

775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 10/22/2014 To: SIEMIC, Inc. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Ruckus Wireless, Inc., hereby authorize SIEMIC, Inc. to act as Certification Body for certifying for the following project(s): FCC ID: S9GR600 Product Description: R600 Access Point Model: R600 We affirm that between SIEMIC, Inc. and Ruckus Wireless, Inc., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Clinton Bradley / Compliance Engineer 350 West Java Drive, Sunnyvale, CA 94089 [email protected] / 408-636-4368

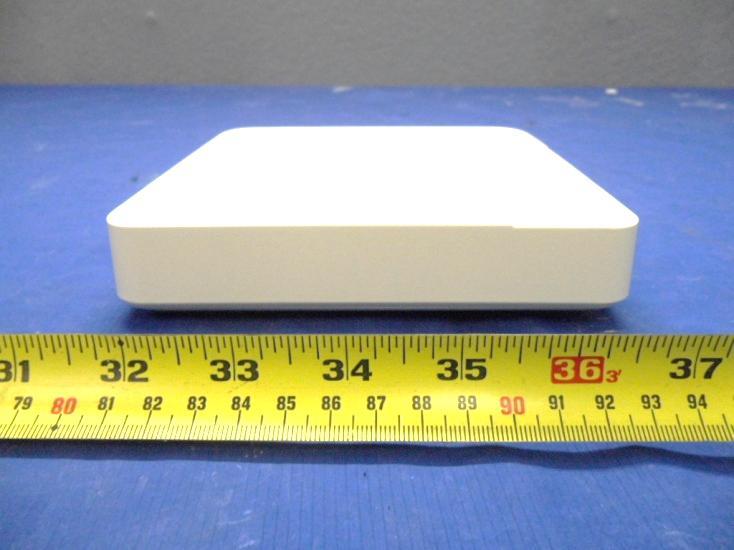

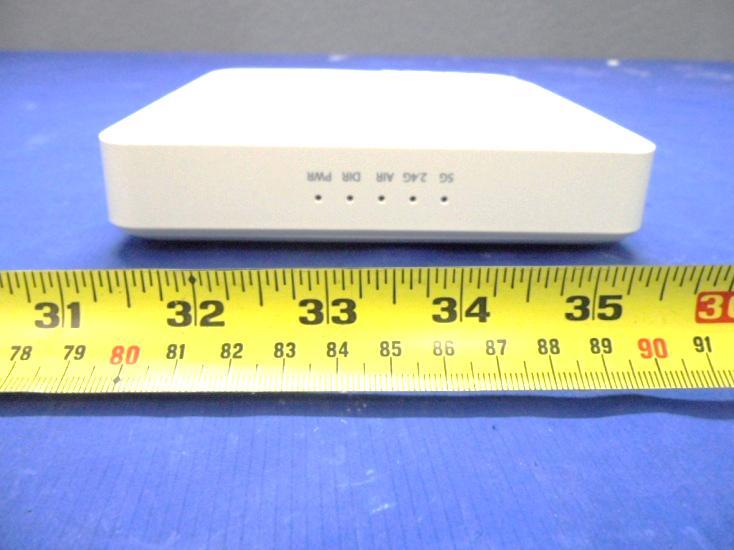

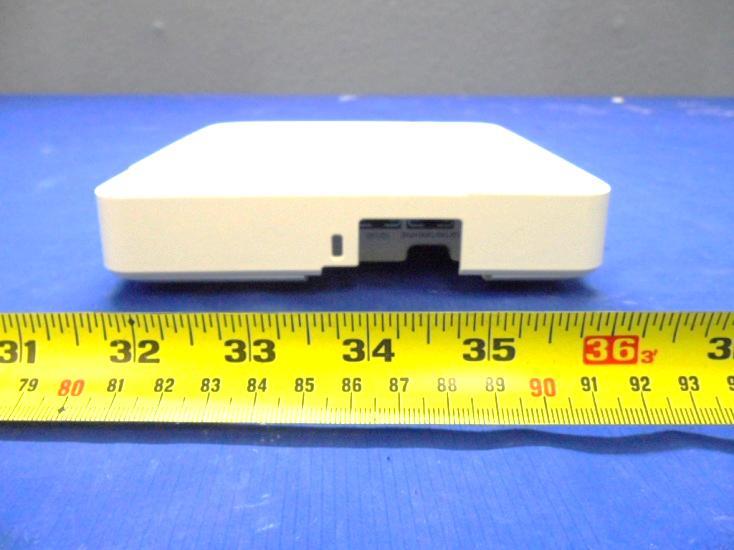

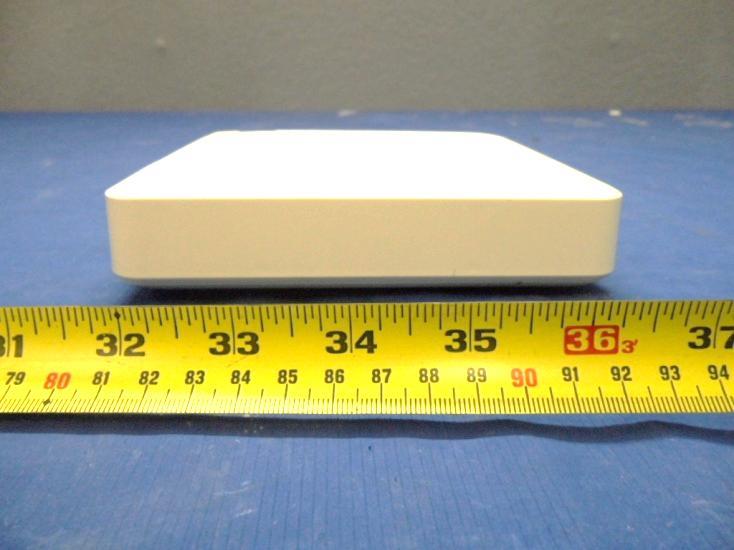

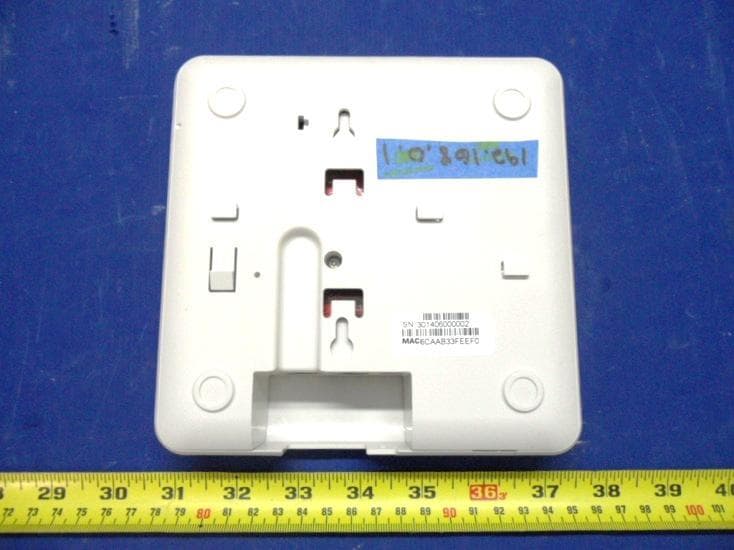

EUT Photos – External EUT – Top View EUT – Bottom View EUT – Front View EUT – Rear View EUT – Right View EUT – Left View

Label & Location

EUT Photos – External EUT – Top View with Shielding EUT– Top View without Shielding EUT – Bottom View with Shielding EUT– Bottom View without Shielding

MPE CALCULATION FCC ID: S9GR600 RF Exposure Requirements: 47 CFR §1.1307(b) RF Radiation Exposure Limits: 47 CFR §1.1310 RF Radiation Exposure Guidelines: FCC OST/OET Bulletin Number 65 EUT Frequency Band: 2412 - 2462 MHz; 5180 – 5240 MHz, 5745 - 5825MHz Limits for General Population/Uncontrolled Exposure in the band of: 1500 - 100,000 MHz Power Density Limit: 1 mW / cm 2 Equation: S = PG / 4R 2 or R = √PG / 4S Where, S = Power Density P = Power Input to Antenna G = Antenna Gain R = distance to the center of radiated antenna ______________________________________________________________________________________________________________________ Prediction distance 20cm EUT: R600 (UNII Band): Power = 26.80dBm, Antenna Gain = 6 dBi, Power density = 0.482 mW/ cm 2 (2.4GHz Band): Power = 25.5dBm, Antenna Gain = 4dBi , Power density = 0.356 mW/ cm 2 Total Ratio= (P 2.4GHz /1) + (P 5GHzUNII /1)= 0.482mW/ cm 2 + 0.356mW/ cm 2 = 0.838 mW/ cm 2 The Above Result had shown that the Device complied with MPE requirement. Completed By: David Zhang SIEMIC, Inc. 775 Montague Expressway, Milpitas, CA 95035 Date: Sep 30th, 2014
