S9GT504IEEE 802.11ac Access Point

T504 Strand Mount Concurrent AP with Integrated Cable Modem Installation Guide Part Number 800-70610-001 Rev A Draft Published December 2, 2014 www.ruckuswireless.com DRAFT T504 Strand Mount Concurrent AP with Integrated CM Installation Guide, 800-70610-001 Rev Aii Copyright Notice and Proprietary Information Copyright 2014. Ruckus Wireless, Inc. All rights reserved. No part of this documentation may be used, reproduced, transmitted, or translated, in any form or by any means, electronic, mechanical, manual, optical, or otherwise, without prior written permission of Ruckus Wireless, Inc. (“Ruckus”), or as expressly provided by under license from Ruckus. Destination Control Statement Technical data contained in this publication may be subject to the export control laws of the United States of America. Disclosure to nationals of other countries contrary to United States law is prohibited. It is the reader’s responsibility to determine the applicable regulations and to comply with them. Disclaimer THIS DOCUMENTATION AND ALL INFORMATION CONTAINED HEREIN (“MATERIAL”) IS PROVIDED FOR GENERAL INFORMATION PURPOSES ONLY. RUCKUS AND ITS LICENSORS MAKE NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARD TO THE MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY, NON-INFRINGEMENT AND FITNESS FOR A PARTICULAR PURPOSE, OR THAT THE MATERIAL IS ERROR-FREE, ACCURATE OR RELIABLE. RUCKUS RESERVES THE RIGHT TO MAKE CHANGES OR UPDATES TO THE MATERIAL AT ANY TIME. Limitation of Liability IN NO EVENT SHALL RUCKUS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUEN- TIAL DAMAGES, OR DAMAGES FOR LOSS OF PROFITS, REVENUE, DATA OR USE, INCURRED BY YOU OR ANY THIRD PARTY, WHETHER IN AN ACTION IN CONTRACT OR TORT, ARISING FROM YOUR ACCESS TO, OR USE OF, THE MATERIAL. Trademarks Ruckus Wireless, Ruckus, Bark Logo, Simply Better Wireless are trademarks of Ruckus Wireless, Inc. in the United States and other countries. All other product or company names may be trademarks of their respective owners. DRAFT T504 Strand Mount Concurrent AP with Integrated CM Installation Guide, 800-70610-001 Rev A3 Contents 1About This Installation Guide Using this Installation Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Terms Used in This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Documentation Feedback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 2Planning the T504 Installation T504 Omni Antenna Coverage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Powering Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Performing a Site Survey. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 3Installing the T504 Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Unpacking the T504 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Finding the AP and CM MAC Addresses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Connectors and Ground Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 LEDs and Reset Button/Diagnostic Ethernet Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Deploying the T504. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Mounting the T504. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Earth Grounding the T504 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Installing the Cable Power Tap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Powering the T504 with POC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Checking the Signal Level with an RF Power Meter (Optional) . . . . . . . . . . . . . . . . . . . 24 Configuring the T504 for the First Time (Optional). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Preparing the Administrative Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Operating the CM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Configuring the AP for Standalone Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Verifying CM and AP Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 4Operating and Troubleshooting the T504 Retrieving the CM’s MAC Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Retrieving the CM’s MAC Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 DRAFT T504 Strand Mount Concurrent AP with Integrated CM Installation Guide, 800-70610-001 Rev A4 Retrieving the CM’s MAC Address using the CM CLI . . . . . . . . . . . . . . . . . . . . . . . . 38 Retrieving the CM’s MAC Address using the AP CLI . . . . . . . . . . . . . . . . . . . . . . . . . 39 Rebooting and Resetting the T504 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 How Radio Frequency Scanning Works . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

Page 1 Federal Communications Commission Notices This product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications to this equipment that have not been approved by Ruckus Wireless may void the user's authority to operate this equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Industry Canada Statement Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall comply with the e.i.r.p. limit; and the maximum antenna gain permitted for devices in the band 5725-5825 MHz shall comply with the e.i.r.p. limits specified for point-to-point and non point-to-point operation as appropriate. Le dispositif de fonctionnement dans la bande 5150-5250 MHz est réservé à une utilisation en intérieur pour réduire le risque d'interférences nuisibles à la co-canal systèmes mobiles par satellite, le gain d'antenne maximal autorisé pour les appareils dans les bandes 5250-5350 MHz et 5470-5725 MHz doit se conformer à la pire limite, et le gain d'antenne maximal autorisé pour les appareils dans la bande 5725-5825 MHz doivent être conformes avec le pire limites spécifiées à point-à-ponctuelles et non point-à-point de fonctionnement selon qu'il convient. Operation in the 5600-5650 MHz band is not allowed in Canada. High-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices. Opération dans la bande 5600-5650 MHz n'est pas autorisée au Canada. Haute puissance radars sont désignés comme utilisateurs principaux (c. -à- utilisateurs prioritaires) des bandes 5250-5350 MHz et 5650-5850 MHz et que ces radars pourraient causer des interférences et / ou des dommages à dispositifs LAN-EL. Radiation Exposure Statement The device has been found to be compliant to the requirements set forth in CFR 47 Sections 2.1091 and Industry Canada RSS-102 for an uncontrolled environment. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Le dispositif a été jugé conforme aux exigences énoncées dans les articles 47 CFR 2.1091 et Industrie Canada RSS-102 pour un environnement non contrôlé. L'antenne (s) utilisée pour ce transmetteur doit être installé pour fournir une distance de séparation d'au moins 20 cm de toutes les personnes et ne doit pas être co-localisés ou fonctionner en conjonction avec une autre antenne ou transmetteur. Mexico Statement “La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada.” Page 2 Professionally Installed Products The product is to be installed according to the install…

Text truncated - open the document above for the full version.

350 West Java Drive TEL + .650.265.4200 Sunnyvale, CA 94089 USA FAX +.480.738.2065 www.ruckuswireless.com FCC Authorization Declaration 2/4/2015 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Ruckus Wireless, Inc., the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Sincerely Yours, Clinton Bradley Compliance Engineer

350 West Java Drive TEL + .650.265.4200 Sunnyvale, CA 94089 USA FAX +.480.738.2065 www.ruckuswireless.com 2/4/2015 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: Ruckus Wireless, Inc. FCC ID: S9GT504 FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 Ruckus Wireless, Inc. hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type File Name Description Schematics T504 Schematic.pdf Schematics Operational Description T504 Radio Description.pdf Radio Theory of Operation Block Diagram T504 Block Diagram.pdf Block Diagram Ruckus Wireless, Inc. hereby requests short term confidentiality of the following documents for the subject application until May 4, 2015, or until the product is released for public availability. Exhibit Type File Name Description User Manual T504 User Manual.pdf User Manual Test Setup Photos Setup Photographs.pdf Test Setup Photos External Photographs T504 External Photographs.pdf External Photographs Internal Photographs T504 Internal Photographs.pdf Internal Photographs Reason why the material should be withheld from public inspection: These documents contain detailed system, equipment description and related information about the product which Ruckus Wireless, Inc. considers to be proprietary, confidential, and a custom design otherwise not released to the general public. 350 West Java Drive TEL + .650.265.4200 Sunnyvale, CA 94089 USA FAX +.480.738.2065 www.ruckuswireless.com Request for Confidentiality Company name: Ruckus Wireless, Inc. FCC ID: S9GT504 FCC Part 15 Certification State why the information is a “trade secret;” Since the design is a basis from which future technological products will evolve, Ruckus Wireless, Inc. considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. State whether the inf ormation is publicly available anywhere else: This information is not made publically available. Sincerely, Clinton Bradley Compliance Engineer

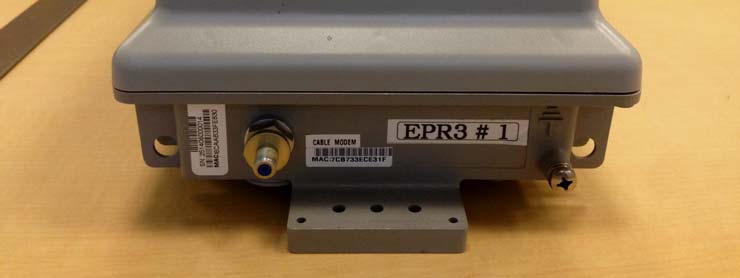

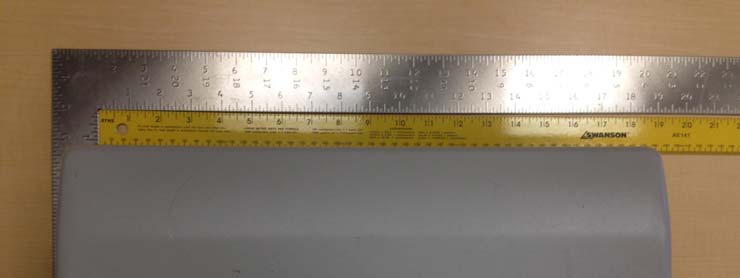

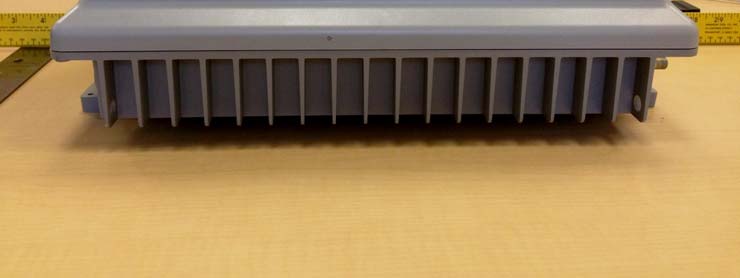

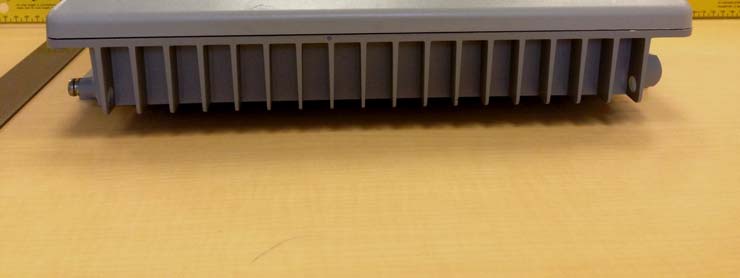

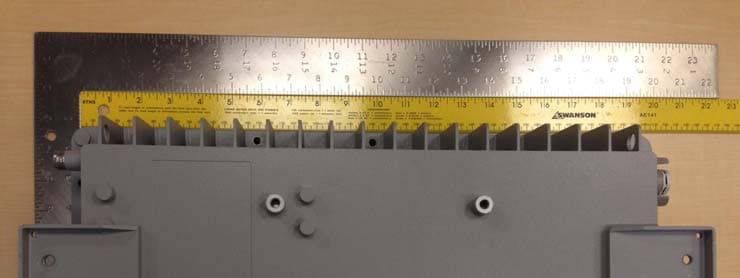

Ruckus Wireless, Inc. FCC ID: S9GT504 Report Number: R1409183-407 W58 Page 67 of 76 FCC Part 15.407 Test Report 14 Exhibit C – EUT Photographs 14.1 EUT Top View 14.2 EUT Rear View Ruckus Wireless, Inc. FCC ID: S9GT504 Report Number: R1409183-407 W58 Page 68 of 76 FCC Part 15.407 Test Report 14.3 EUT Left Side View 14.4 EUT Right Side View Ruckus Wireless, Inc. FCC ID: S9GT504 Report Number: R1409183-407 W58 Page 69 of 76 FCC Part 15.407 Test Report 14.5 EUT Front Side View 14.6 EUT Back Side View

Ruckus Wireless, Inc. FCC ID: S9GT504 Report Number: R1409183-407 W58 Page 70 of 76 FCC Part 15.407 Test Report 14.7 EUT Open Case View 14.8 Antennas Top View Ruckus Wireless, Inc. FCC ID: S9GT504 Report Number: R1409183-407 W58 Page 71 of 76 FCC Part 15.407 Test Report 14.9 Antennas Side View 14.10 PCB Board Location View Ruckus Wireless, Inc. FCC ID: S9GT504 Report Number: R1409183-407 W58 Page 72 of 76 FCC Part 15.407 Test Report 14.11 Main Board Top View 14.12 Main Board Rear View Ruckus Wireless, Inc. FCC ID: S9GT504 Report Number: R1409183-407 W58 Page 73 of 76 FCC Part 15.407 Test Report 14.13 Main Board Shielding off View 14.14 Cable Modem Board Top View Ruckus Wireless, Inc. FCC ID: S9GT504 Report Number: R1409183-407 W58 Page 74 of 76 FCC Part 15.407 Test Report 14.15 Cable Modem Board Rear View 14.16 Power Supply Board Top View Ruckus Wireless, Inc. FCC ID: S9GT504 Report Number: R1409183-407 W58 Page 75 of 76 FCC Part 15.407 Test Report 14.17 Power Supply Board Rear View 14.18 BIAS-T PCB (Power and RF Splitter) Board Top View Ruckus Wireless, Inc. FCC ID: S9GT504 Report Number: R1409183-407 W58 Page 76 of 76 FCC Part 15.407 Test Report 14.19 AC Adapter View --- END OF REPORT ---

Ruckus Wireless, Inc. FCC ID: S9GT504 Report Number: R1409183-407 W58 Page 10 of 76 FCC Part 15.407 Test Report 4 FCC §2.1091 & §15.407(f) - RF Exposure 4.1 Applicable Standard According to FCC §15.407(f) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 * (100) 30 1.34-30 824/f 2.19/f * (180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density 4.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4R² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 4.3 MPE Results 5 GHz Band: Maximum peak output power at antenna input terminal (dBm): 24.26 Maximum peak output power at antenna input terminal (mW): 266.7 Prediction distance (cm): 20 Prediction frequency (MHz): 5795 Maximum Antenna Gain, typical (dBi): 5 Maximum Antenna Gain (numeric): 3.162 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.1679 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 Ruckus Wireless, Inc. FCC ID: S9GT504 Report Number: R1409183-407 W58 Page 11 of 76 FCC Part 15.407 Test Report 2.4 GHz: Maximum peak output power at antenna input terminal (dBm): 24.92 Maximum peak output power at antenna input terminal (mW): 310.46 Prediction distance (cm): 20 Prediction frequency (MHz): 2437 Maximum Antenna Gain, typical (dBi): 3 Maximum Antenna Gain (numeric): 1.995 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.123 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 According to KDB 447498 D01 General RF Exposure Guidance v05r02, EUT has two 2.4 GHz band antenna and two 5 GHz band antenna. The power density for 2.4 GHz band is 0.123 (refer to T504 2.4 GHz band report R1409183-247). So the sum of MPE ratio for four antennas is: 0.1231 + 0.1679 = 0.2909, which is smaller than 1.0. So the colocation exposure exclusion applies.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15.407 TEST AND MEASUREMENT REPORT For Ruckus Wireless, Inc. 350 West Java Drive, Sunnyvale, CA 94089, USA FCC ID: S9GT504 Model: T504 Report Type: Original Report Product Type: 802.11a/b/g/n/ac Access Point Prepared By: Rui Zhou Report Number: R1409183-407 W58 Report Date: 2015-02-19 Reviewed By: Bo Li RF Lead Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732-9164 Ruckus Wireless, Inc. FCC ID: S9GT504 Report Number: R1409183-407 W58 Page 2 of 76 FCC Part 15.407 Test Report TABLE OF CONTENTS 1 GENERAL DESCRIPTION ......................................................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ................................................................................. 5 1.2 MECHANICAL DESCRIPTION OF EUT ....................................................................................................................... 5 1.3 OBJECTIVE ............................................................................................................................................................... 5 1.4 RELATED SUBMITTAL(S)/GRANT(S) ........................................................................................................................ 5 1.5 TEST METHODOLOGY .............................................................................................................................................. 5 1.6 MEASUREMENT UNCERTAINTY ............................................................................................................................... 5 1.7 TEST FACILITY ........................................................................................................................................................ 6 2 EUT TEST CONFIGURATION .................................................................................................................................. 7 2.1 JUSTIFICATION ......................................................................................................................................................... 7 2.2 EUT EXERCISE SOFTWARE ...................................................................................................................................... 7 2.3 SPECIAL EQUIPMENT ............................................................................................................................................... 7 2.4 EQUIPMENT MODIFICATIONS ................................................................................................................................... 7 2.5 LOCAL SUPPORT EQUIPMENT .................................................................................................................................. 7 2.6 EUT INTERNAL CONFIGURATION DETAILS .............................................................................................................. 7 2.7 INTERFACE PORTS AND CABLES .............................................................................................................................. 8 2.8 POWER SUPPLY LIST AND DETAILS ......................................................................................................................... 8 3 SUMMARY OF TEST RESULTS ............................................................................................................................... 9 4 FCC §2.1091 & §15.407(F) - RF EXPOSURE .......................................................................................................... 10 4.1 APPLICABLE STANDARD ........................................................................................................................................ 10 4.2 MPE PREDICTION .................................................................................................................................................. 10 4.3 MPE RESULTS ....................................................................................................................................................... 10 5 FCC §15.203 – ANTENNA REQUIREMENTS ........................................................................................................ 12 5.3 APPLICABLE STANDARD ........................................................................................................................................ 12 5.4 ANTENNA DESCRIPTION ........................................................................................................................................ 12 6 FCC §15.207 - AC POWER LINE CONDUCTED EMISSIONS ............................................................................ 13 6.1 APPLICABLE STANDARDS ...................................................................................................................................... 13 6.2 TEST SETUP ........................................................................................................................................................... 13 6.3 TEST PROCEDURE .................................................................................................................................................. 13 6.4 TEST SETUP BLOCK DIAGRAM ............................................................................................................................... 14 6.5 CORRECTED AMPLITUDE & MARGIN CALCULATION .........................................................…

Text truncated - open the document above for the full version.

Ruckus Wireless, Inc. FCC ID: S9GT504 Report Number: R1409183-407 W58 Page 64 of 76 FCC Part 15.407 Test Report 13 Exhibit B - EUT Setup Photographs 13.1 Radiated Emission below 1 GHz Front View 13.2 Radiated Emission below 1 GHz Rear View Ruckus Wireless, Inc. FCC ID: S9GT504 Report Number: R1409183-407 W58 Page 65 of 76 FCC Part 15.407 Test Report 13.3 Radiated Emission above 1 GHz Front View 13.4 Radiated Emission above 1 GHz Rear View Ruckus Wireless, Inc. FCC ID: S9GT504 Report Number: R1409183-407 W58 Page 66 of 76 FCC Part 15.407 Test Report 13.5 AC Line Conducted Emission Front View 13.6 AC Line Conducted Emission Side View
