S9GVX2XX1Wireless 802.11b/g router

VF2825 VideoFlex 2825 Wireless Multimedia Router Part number: 8000001 March 2006 2VideoFlex 2825 Wireless Multimedia Router8000001, March 2006 Copyright © 2006 Ruckus Wireless, Inc. All rights reserved. March 2006. Trademarks Ruckus Wireless, BeamFlex™, MediaFlex™, MediaFlex 2900 Multimedia Access Point, MediaFlex 2501 Multimedia Wireless Adapter, VF2825, and MF2501 Adapter are trademarks of Ruckus Wireless Web Interface All other brand and product names are registered trademarks of their respective holders. Statement of Conditions In the interest of improving internal design, operational function, and/or reliability, Ruckus Wireless, Inc. reserves the right to make changes to the products described in this document without notice. Ruckus Wireless, Inc. does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. Federal Communications Commission (FCC) Compliance Notice: Radio Frequency Notice The device has met the FCC 15.247 requirement. In order to comply with the FCC RF exposure requirement, the user must keep 20cm away from the antenna. This device has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Information to the user The user’s manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. In cases where the manual is provided only in a form other than paper, such as on a computer disk or over the Internet, the information required by this section may be included in the manual in that alternative form, provided the user can reasonably be expected to have the capability to access information in that form. EN 55 022 Declaration of Conformance This is to certify that the MediaFlex 2900 Multimedia Access Point is shielded against the generation of radio interference in accordance with the application of Council Directive 89/336/EEC, Article 4a. Conformity is declared by the application of EN 55 022 Class B (CISPR 22). 8000001, March 2006VideoFlex 2825 Wireless Multimedia Router3 Contents Who Should Use this Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 What You’ll Find in this Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Typographic conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Support and Warranty Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Chapter 1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 MediaFlex™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 BeamFlex™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Chapter 2 Installation and Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Packing List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 VideoFlex 2825 Wireless Multimedia Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 LED Status Lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Rear View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Placement Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Establishing a good general location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Using the Air Quality Indicator to fine-tune the placement. . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Connecting to the VF2825 . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: S9GVX2XX1 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Part List Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Thomas Cheng Product Line Manager Ruckus Wireless, Inc. 3/20/2006

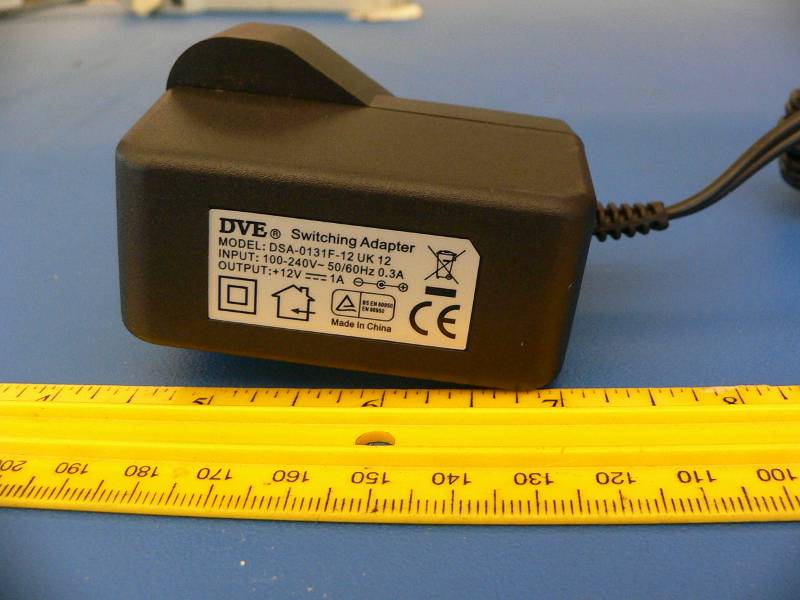

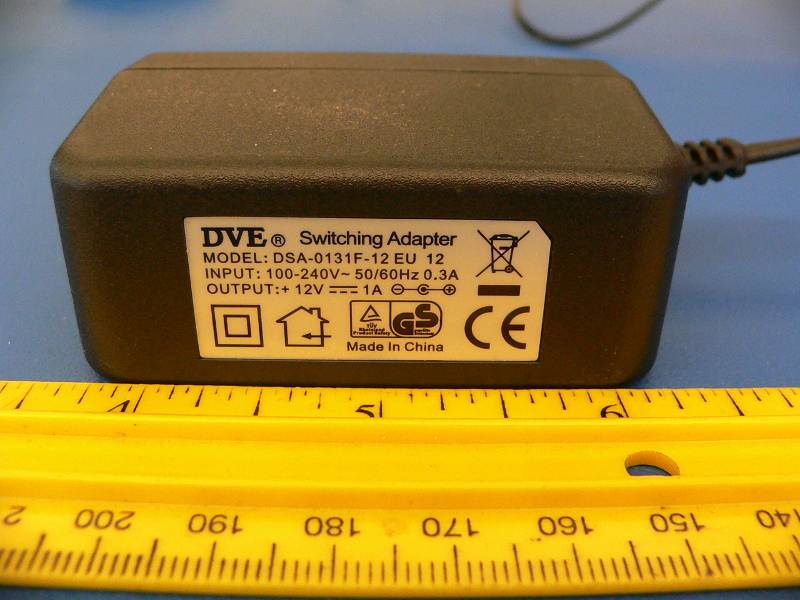

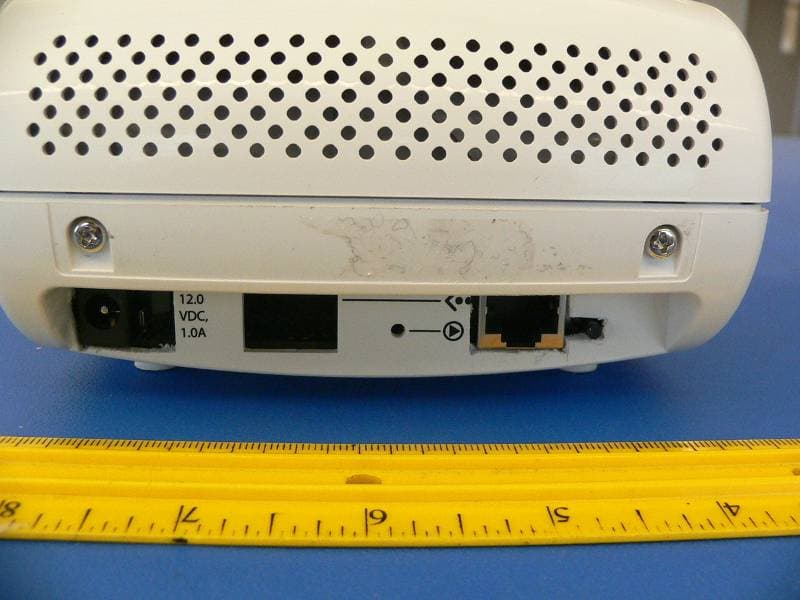

Ruckus Wireless, Inc. FCC ID: S9GVX2XX1 EXHIBIT C - EUT PHOTOGRAPHS EUT – Top View EUT – Bottom View Ruckus Wireless, Inc. FCC ID: S9GVX2XX1 EUT – Port View Power Supply Type 1-1 (Front) Ruckus Wireless, Inc. FCC ID: S9GVX2XX1 Power Supply Type 1-1 (Rear) Power Supply Type 1-2 (Front) Ruckus Wireless, Inc. FCC ID: S9GVX2XX1 Power Supply Type 1-2 (Rear) Power Supply Type 1-3 (Front) Ruckus Wireless, Inc. FCC ID: S9GVX2XX1 Power Supply Type 1-3 (Rear) Power Supply Type 2-1 (Front) Ruckus Wireless, Inc. FCC ID: S9GVX2XX1 Power Supply Type 2-1 (Rear) Power Supply Type 2-2 (Front) Ruckus Wireless, Inc. FCC ID: S9GVX2XX1 Power Supply Type 2-2 (Rear) Power Supply Type 2-3 (Front) Ruckus Wireless, Inc. FCC ID: S9GVX2XX1 Power Supply Type 2-3 (Rear) Power Supply Type 3-1 (Front) Ruckus Wireless, Inc. FCC ID: S9GVX2XX1 Power Supply 3-1 (Rear) Power Supply Type 3-2 (Front) Ruckus Wireless, Inc. FCC ID: S9GVX2XX1 Power Supply Type 3-2 (Rear) Power Supply Type 3-3 (Front) Ruckus Wireless, Inc. FCC ID: S9GVX2XX1 Power Supply Type 3-3 (Rear)

EXHIBIT A - FCC ID LABEL INFORMATION Proposed FCC ID Label Proposed Label Location on EUT Rear View of EUT/FCC ID Label Industry Canada Industrie Canada IC: 5912A- VX2XX1 FCC ID: S9GVX2XX1 This device complies with Part 15 o the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Ruckus Wireless, Inc. FCC ID: S9GVX2XX1 EUT – Cover Off View EUT – Main Board Component View Ruckus Wireless, Inc. FCC ID: S9GVX2XX1 EUT – Main Board Solder View EUT – TX Close Up Ruckus Wireless, Inc. FCC ID: S9GVX2XX1 EUT – Antenna View 1 EUT – Antenna View 2

Ruckus Product Family VX2XX1 Operational Theory Note that the Product Family VX2XX1 contains six product models: 1. VF2811 2. VF2821 3. VC2711 4. VC2721 5. VF2111 6. VF2121 The VF2811 is a Wireless Access Point with 16 MByte of SDRAM, The VF2821 is a Wireless Access Point with 32 Mbyte of SDRAM. Both of these products are designed to process Video Traffic. The VC2711 is a Wireless Access Point with 16 MByte of SDRAM, The VC2821 is a Wireless Access Point with 32 Mbyte of SDRAM. Both of these products are designed to process Voice Traffic. The VF2111 is a Wireless Adapter with 16 MByte of SDRAM, The VF2121 is a Wireless Adapter with 32 Mbyte of SDRAM. Both of these products are designed to process Voice Traffic and Video Traffic. The below diagram provides the Operational Theory of the products. Ruckus VX2XX1 (Models VF2811, VF2821, VC2711, VC2721, VF2111, VF2121) Transmit and Receive TDK Bandpass Filter SST Power Amplifier MA-COM RX/TX DPDT RF Switch Printed Lowpass Filter 26dB Printed Coupler Antenna(s) Antenna(s) Power Control Power Level Feedback TDK Bandpass Filter Sirenza LNA Power Control Atheros AR2315 SOC IC RF RF tuning range is 2402-2494MHz RF

Ruckus Product Family VX2XX1 Models (VF2811, VF2821, VC2711, VC2721, VF2111, VF2121) Item Description Comments 1 MODEL NUMBER 1 VF2811 Wireless Access Point with 16 Mbyte of memory designed to support video 2 Model Number 2 VF2821 Wireless Access Point with 32 Mbyte of memory designed to support video 3 Model Number 3 VC2711 Wireless Access Point with 16 Mbyte of memory designed to support voice 4 Model Number 4 VC2721 Wireless Access Point with 32 Mbyte of memory designed to support voice 5 Model Number 5 VF2111 Wireless Adapter with 16 Mbyte of memory designed to support video and voice 6 Model Number 6 VF2121 Wireless Adapter with 32 Mbyte of memory designed to support video and voice Hardware 1 Case Clip 2 Power Ext. Switching 5.0V 2.0 A 3 Memory (Flash/RAM) 8 MB Flash / 16 or 32 MB RAM 4 CPU Atheros SOC AR2315A 7 10/100 Mbps Ethernet Port 1 8 Auto-MDIX-MDI-X Yes 9 Wireless Atheros 10 802.11g standard support Yes 11 Antenna Ruckus Antenna 12 Printserver No 13 Serial Port No 14 Reset switch Yes 15 Grounding connector No 17 LEDs 4 Power, LAN, Wireless, RF Indicator 18 Operating Temperature 0-40 C 19 Operating Humidity 10-90% RH 20 Storage Temperature -20-70 C 21 Storage Humidity 5-95% RH 22 Physical Dimensions 5.72 x 4.92 x 2.9 in (223 x 153 x 75 mm) 23 Weight 0.53 lbs (.2 kg) RF Specification 1 Receive Sensitivity:802.11b:1 Mbps -99 to -108 dBm 2.2 Mbps -96 to -104 dBm 5 Mbps -91 to -98 dBm 11 Mbps -90 to -94 dBm 802.11g6 Mbps -93 to -96 dBm 9 Mbps -90 to -96 dBm 12 Mbps -90 to -94 dBm 18 Mbps -88 to -91 dBm 24 Mbps -85 to -88 dBm 36 Mbps -82 to -86 dBm 48 Mbps -78 to -81 dBm 54 Mbps -76 to -81 dBm 2 Output Power 16.4 - 20 dBm (typ)23 dBm (max) Netgear, Inc. Confidential 5/4/2006 Page 1 Ruckus Product Family VX2XX1 Models (VF2811, VF2821, VC2711, VC2721, VF2111, VF2121) Item Description Comments 1 MODEL NUMBER 1 VF2811 Wireless Access Point with 16 Mbyte of memory designed to support video 2 Model Number 2 VF2821 Wireless Access Point with 32 Mbyte of memory designed to support video 3 Model Number 3 VC2711 Wireless Access Point with 16 Mbyte of memory designed to support voice 4 Model Number 4 VC2721 Wireless Access Point with 32 Mbyte of memory designed to support voice 5 Model Number 5 VF2111 Wireless Adapter with 16 Mbyte of memory designed to support video and voice 6 Model Number 6 VF2121 Wireless Adapter with 32 Mbyte of memory designed to support video and voice 3 Antenna Gain 3.3 dBi max 4 Standards IEEE 802.11b, 802.11g 5 Frequency 2.412 ~ 2.462 GHz (US)2.412 ~ 2.484 GHz (Japan)2.412 ~ 2.472 GHz (Europe ETSI)2.457 ~ 2.472 GHz (Spain)2.457 ~ 2.472 GHz (France) Netgear, Inc. Confidential 5/4/2006 Page 2

§1.1307(b)(1),§2.1091 - RF EXPOSURE According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density MPE Prediction Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 23.0(dBm ) Maximum peak output power at antenna input terminal: 200.00 (mW) Prediction distance: 20 (cm) Predication frequency: 2400 (MHz) Antenna Gain (typical): 3.3 (dBi) antenna gain: 2.14 (numeric) Power density at predication frequency at 20 cm: 0.085(mW/cm 2 ) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm 2 ) Test Result The EUT is a mobile device. The power density level at 20 cm is 0.085mW/cm², which is below the uncontrolled exposure limit of 1.0mW/cm² at 2400 MHz.

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 15.247 EMI MEASUREMENT AND TEST REPORT For Ruckus Wireless, Inc. 883 North Shoreline Blvd, Suite A-100 Mountain View CA, USA 94043 FCC ID: S9GVX2XX1 This Report Concerns: Original Report Product Type: Wireless 802.11b/g Router Test Engineer: Snell Leong Report No.: R0603171 Report Date: 2006-04-12 Reviewed By: James Ma Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 Ruckus Wireless, Inc. FCC ID: S9GVX2XX1 Report # R0603171Rpt.doc Page 2 of 52 FCC Part 15.247 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 JUSTIFICATION.............................................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................6 POWER SUPPLY INFORMATION.....................................................................................................................................6 INTERFACE PORTS AND CABLING.................................................................................................................................6 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................7 SUMMARY OF TEST RESULTS ...............................................................................................................................8 §15.203 - ANTENNA REQUIREMENT......................................................................................................................9 STANDARD APPLICABLE..............................................................................................................................................9 §15.207 (A) - CONDUCTED EMISSION ..................................................................................................................10 MEASUREMENT UNCERTAINTY..................................................................................................................................10 TEST SETUP................................................................................................................................................................10 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 TEST PROCEDURE......................................................................................................................................................10 ENVIRONMENTAL CONDITIONS..................................................................................................................................10 SUMMARY OF TEST RESULTS.....................................................................................................................................11 CONDUCTED EMISSIONS TEST PLOTS AND DATA.......................................................................................................11 §2.1051 & §15.247(D) - SPURIOUS EMISSIONS AT ANTENNA TERMINALS................................................17 STANDARD APPLICABLE............................................................................................................................................17 EQUIPMENT LISTS......................................................................................................................................................17 MEASUREMENT RESULT............................................................................................................................................17 §15.205 & §15.209 & §15.247(C) - SPURIOUS RADIATED EMISSION..............................................................30 MEASUREMENT UNCERTAINTY..................................................................................................................................30 EUT SETUP................................................................................................................................................................31 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................31 ENVIRONMENTAL CONDITIONS..........................…

Text truncated - open the document above for the full version.

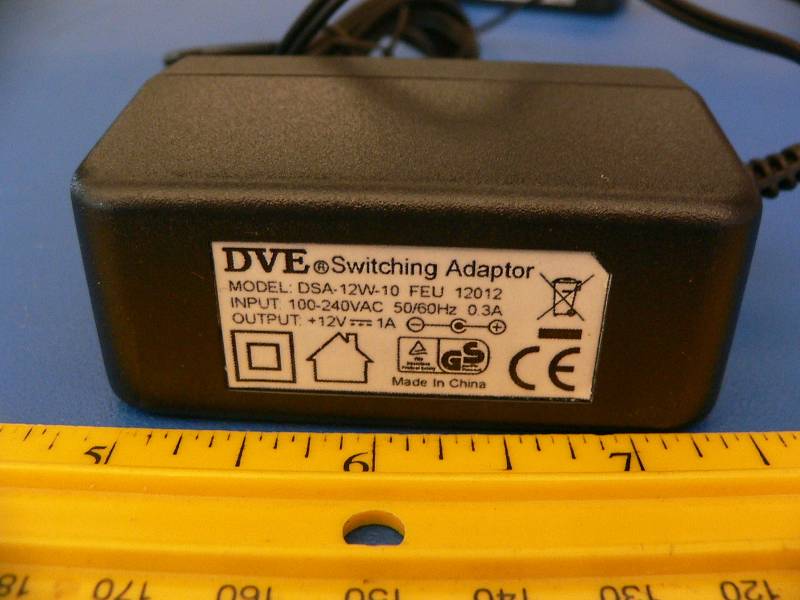

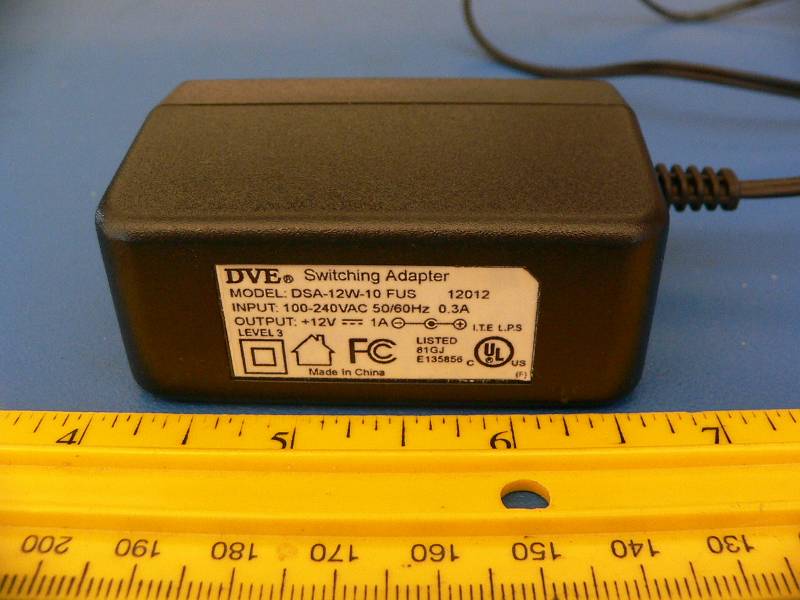

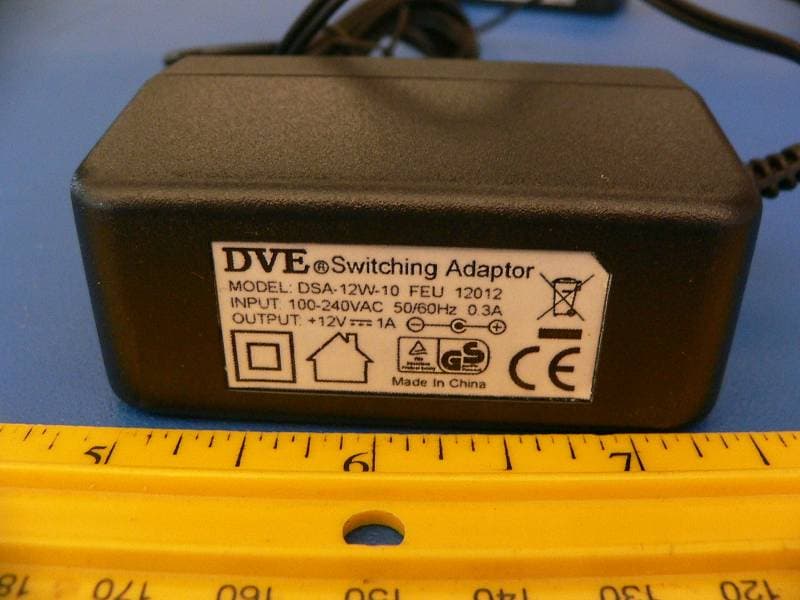

Ruckus Wireless, Inc. FCC ID: S9GVX2XX1 EXHIBIT B - TEST SETUP PHOTOGRAPHS Conducted Emission – (DVE) DSA-12W-10 Fxx Conducted Emission – (DVE) DSA-013 F-12 US 12 Ruckus Wireless, Inc. FCC ID: S9GVX2XX1 Conducted Emission – (Leader Electronic) MU-12-2120100-A1 Radiated Emission- Front View Ruckus Wireless, Inc. FCC ID: S9GVX2XX1 Radiated Emission- Rear View
