S9GZF7025ZoneFlex 7025 Access Point

Copyright © 2010 Ruckus Wireless, Inc. Published September 2010, Part Number 800-70295-001 REV A ZoneFlex 7025 Multimedia Wi-Fi Wall Switch Quick Setup Guide This Quick Setup Guide provides step-by-step instructions on how to set up your Ruckus Wireless ZoneFlex 7025 Multimedia Wi-Fi Wall Switch. After completing the steps described in this Guide, you will be able to access the Wi-Fi Wall Switch and begin providing wired and wireless network access to users. BEFORE YOU BEGIN Before deploying Ruckus Wireless products, please check for the latest software and the release documentation. •Release Notes are available at http://support.ruckuswireless.com/documents. •User Guides are available at http://support.ruckuswireless.com/documents. •Software Upgrades are available at http://support.ruckuswireless.com/software. •Open Source information is available at http://support.ruckuswireless.com/open_source. PACKAGE CONTENTS •ZoneFlex 7025 Wi-Fi Wall Switch (Access Point) •Mounting bracket with two (2) mounting screws •Warranty statement •Software license agreement •Declaration of Conformity •Registration card •This Quick Setup Guide SETUP REQUIREMENTS •A 6mm Phillips screwdriver •A computer running Windows XP, Vista or 7. •A standard US or EU-style wall outlet box, with an Ethernet cable run through the wall from your LAN to the outlet box. •One of the following: •An IEEE 802.3af/at-compliant PoE switch. •An IEEE 802.3af/at-compliant PoE injector. STEP 1: PREPARE YOUR COMPUTER FOR AP SETUP 1On your Windows computer, open the Network Connections (or Network and Dial-up Connections) control panel according to how the Start menu is set up: Win XP: Start > Settings > Network Connections Win 7: Start > Control Panel > Network and Sharing Center > Change Adapter Settings 2When the Network Connections window appears, right- click the icon for Local Area Connection, and then select Properties. 3When the Local Area Connection Properties dialog box appears, select Internet Protocol (TCP/IP) from the scroll- ing list, and then click Properties. The TCP/IP Properties dialog box appears. 4Select Use the following IP address option (if it is not already selected), and then make the following entries: •IP address: 192.168.0.22 (or any address in the 192.168.0.x network--other than 192.168.0.1, which is in use by the AP) •Subnet mask: 255.255.255.0 •Default gateway: 192.168.0.1 Leave the Alternate DNS server field empty. 5Click OK to save your changes, exit first the TCP/IP Prop- erties dialog box, and then the Local Area Connection Properties dialog box. Your changes are put into effect immediately. STEP 2: CONNECT THE AP TO YOUR COMPUTER 1Remove the AP from its packaging and place it near your com- puter. 2Connect one end of an Ethernet cable to the PoE In LAN 5/Uplink port on the rear of the AP, and connect the other end to a PoE switch or the Data Out/Power Out port on the PoE injector. 3Using another Ethernet cable, connect one end to your computer’s network port, and connect the other end to another port on the PoE switch or to the Data In/Network port on the PoE injector. 4Provide power to the PoE injector/switch. 5Verify that the Power and LAN 5 LEDs are steady green. STEP 3: LOG INTO THE AP As specified earlier, the AP should be directly connected to your computer (through one of the LAN ports), and should be receiving power from its PoE uplink port. 1 On your computer, open a Web browser window. 2In the browser, type this URL to connect to the AP: https://192.168.0.1 3Press <Enter> to initiate the connection. When a security alert dialog box appears, click OK/Yes to proceed. 4When the Ruckus Wireless Admin login page appears, enter the following: •Username: super •Password: sp-admin 5Click Login. IMPORTANT! If the AP is deployed with ZoneDirector, follow the ZoneDirector Quick Setup Guide, and connect the AP to your Ethernet network. IMPORTANT! Make sure you do not open the Properties dialog box for the wireless network. IMPORTANT! Write down all of the currently active settings so you can restore your computer to its original configuration later (when this process is complete). EU version US version Copyright © 2010 Ruckus Wireless, Inc. Published September 2010, Part Number 800-70295-001 REV A STEP 4: CUSTOMIZE THE WIRELESS SETTINGS 1On the Web interface menu, click Configuration > Wireless. The Configure::Wireless::Common options appear. 2Verify that the following options are active: •Channel: SmartSelect •Country Code: If you are not located in the United States, select your current country. 3Click Update Settings if you made any changes. 4Click any of the eight “Wireless #” tabs. 5In Wireless Availability, click Enabled. 6Delete the text in the SSID field, and then type the name of your network. If your network does not have a “name,” type a short name that will help your users identify the AP in their wireless network connection application. 7Click Update Settings to save your changes. 8Repeat Step 4-7 for each Wireless # interface that you want to enable. 9Click Logout to exit the Ruckus Web Admin interface. 10When the Web Admin login page reappears, you can exit your browser. 11Disconnect the AP from the computer and from the cur- rent power source, and then restore your computer’s origi- nal network settings. STEP 5: RESTORE YOUR COMPUTER’S NETWORK S ETTINGS 1Click Start > Settings > Network Connections. (If Windows 7, click Start > Control Panel > Network and Sharing Center > Change Adapter Settings.) 2When the Network Connections window appears, right- click the icon for the “Local Area Connection” and choose Properties. 3When the Local Area Connection Properties dialog box appears, select Internet Protocol (TCP/IP) from the scroll- ing list, and click Properties. The TCP/IP Properties dialog box appears. 4Replace the recent AP connection entries with the entries from your original network configuration. 5Click OK to save your settings and exit first the TCP/IP Properties dialog box, then the…

Text truncated - open the document above for the full version.

Federal Communications Commission Notices This product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This equipment shall not be colocated with any other transmitter. Harmful Interference Notice This product has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which is found by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna  Increase the separation between the equipment or devices  Connect the equipment to an outlet other than the receiver's  Consult a dealer or an experienced radio/TV technician for assistance Changes or modifications to this equipment that have not been approved by Ruckus Wireless may void the user's authority to operate this equipment. Industry Canada Statement This device complies with Industry Canada ICES-003 and RSS210 rules. Operation is subject to the following two conditions: 1. This device may not cause interference and 2. This device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil est conforme aux normes NMB003 et RSS210 d'Industrie Canada. Le fonctionnement est soumis aux conditions suivantes : 1. Ce périphérique ne doit pas causer d'interférences; 2. Ce périphérique doit accepter toutes les interférences reçues, y compris celles qui risquent d'entraîner un fonctionnement indésirable. This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Australia Statement This device complies with the ACMA requirements for a Wi-Fi device namely Radio Communications (Low Impact Potential Devices) Class Licence 2000 Amd. 1:2007 and Radiocommunications (Compliance Labelling – Electromagnetic Radiation) Notice 2003. The equipment complies with the ACMA requirements for radiation exposure for a "general user/non-aware user". This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. This equipment complies with the Australian safety requirements and should only used with the specified power adapter carrying a C-tick marking. European Union Notices This product only supplied by Limited Power sources (sub-clause 2.5 of standard EN 60950-1 National Restrictions This product may be used in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Ce produit peut être utilisé dans tous les pays de l’UE (et dans tous les pays ayant transposés la directive 1999/5/CE) sans aucune limitation, excepté pour les pays mentionnés ci-dessous: Questo prodotto è utilizzabile in tutte i paesi EU (ed in tutti gli altri paesi che seguono le direttive EU 1999/5/EC) senza nessuna limitazione, eccetto per i paesii menzionati di seguito: Das Produkt kann in allen EU Staaten ohne Einschränkungen eingesetzt werden (sowie in anderen Staaten die der EU Direktive 1999/5/CE folgen) mit Außnahme der folgenden aufgeführten Staaten: France In case the product is used outdoors, the output power is restricted in some parts of the band. See the table below or check http://www.arcep.fr/ for more details. Dans la cas d’une utilisation en extérieur, la puissance de sortie est limitée pour certaines parties de la bande. Reportezvous à la table 1 ou visitez http://www.arcep.fr/ pour de plus amples détails. Location Frequency Range (MHz) Power (EIRP) Indoor (No restrictions) 2400-2483.5 100 mW (20 dBm) Outdoor 2400-2454 [2454-2483.5] 100 mW (20 dBm) [10 mW(10 dBm)] Italy This product meets the National Radio Interface and the requirements specified in the National Frequency Allocation Table for Italy. Unless operating within the boundaries of the owner’s property, the use of this 2.4 GHz Wireless LAN product requires a ‘general authorization’. Please check with http://www.comunicazioni.it/ for more details. Questo prodotto è conforme alla specifiche di Interfaccia Radio Nazionali e rispetta il Piano Nazionale di ripartizione delle frequenze in Italia. Se non viene installato all’interno del proprio fondo, l’utilizzo di prodotti Wireless LAN a 2.4 GHz richiede una "Autorizzazione Generale". Consultare http://www.comunicazioni.it/ per maggiori dettagli. Belgium The Belgian Institute for Postal Services and Telecommunications (BIPT) must be notified of any outdoor wireless link having a range exceeding 300 meters. Please check http://www.bipt.be for more details. Draadloze verbindingen voor buitengebruik en met een reikwijdte van meer dan 300 meter dienen aangemeld te worden bij het Belgisch Instituut voor postdiensten en telecommunicatie (BIPT). Zie http://www.bipt.be voor meer gegevens. Les liaisons sans fil pour une utilisation en extérieur d’une distance supérieure à 300 mètres doivent être notifiées à l’Institut Belge des services Po…

Text truncated - open the document above for the full version.

880 West Maude Avenue, Suite 101 TEL + .650.265.4200 Sunnyvale, CA 94085 USA FAX +.480.738.2065 www.ruckuswireless.com November 9, 2010 GENERAL DECLARATION We, Ruckus Wireless, Inc. declares that device does not have “Ad Hoc on non-US frequencies” while applying for the follow product. FCC ID: S9GZF7025 If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely, Craig Owens Director, Hardware Engineering [email protected]

880 West Maude Avenue, Suite 101 TEL + .650.265.4200 Sunnyvale, CA 94085 USA FAX +.480.738.2065 www.ruckuswireless.com FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 December 2, 2010 Re: Request for Confidentiality Dear Examiner: In reference to the application under FCC ID: S9GZF7025, and pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of the accompanying information as outlined below: Block Diagram Schematics Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until March 1, 2011: Internal and External Photographs Test Configuration Photographs It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Craig Owens Director, Hardware Engineering

880 West Maude Avenue, Suite 101 TEL + .650.265.4200 Sunnyvale, CA 94085 USA FAX +.480.738.2065 www.ruckuswireless.com November 9, 2010 Agency Authorization Letter We, the undersigned, Ruckus Wireless, Inc., hereby authorize Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all matters relating to all processes in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by BV CPS Taoyuan on our behalf shall have the same effects as acts of our own. This authorization is limited to the following products：FCC ID : S9GZF7025. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely, Craig Owens Director, Hardware Engineering [email protected]

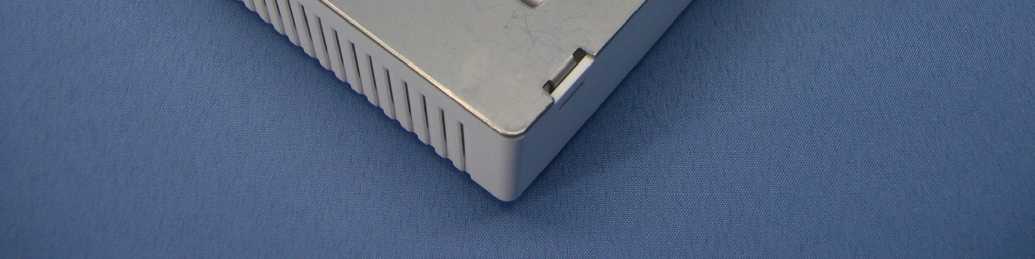

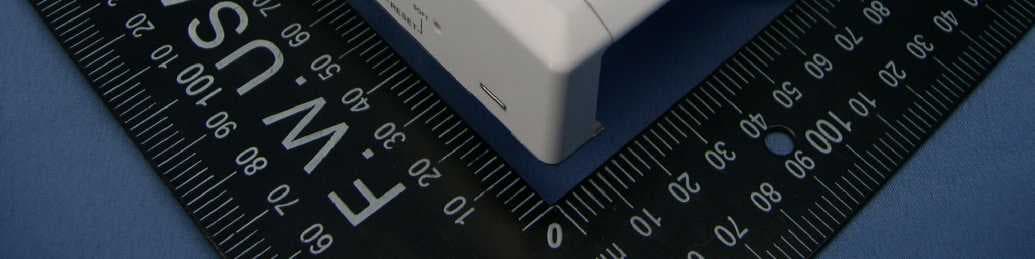

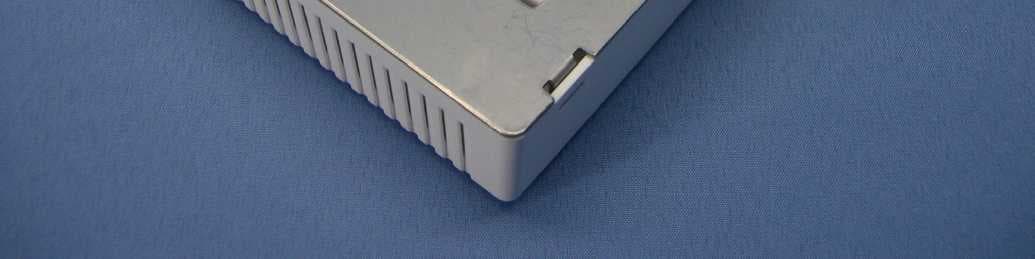

Page 1 CONSTRUCTION PHOTOS OF EUT

(Fig.1) FCC ID: S9GZF7025 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Back Side : LABEL

Page 2 Page 3 Page 4 Page 5

Report No.: SA991026E02 1 Report Format Version 3.0.1 RF EXPOSURE REPORT REPORT NO.: SA991026E02 MODEL NO.: ZoneFlex 7025 Access Point FCC ID: S9GZF7025 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Ruckus Wireless, Inc. ADDRESS: 880 West Maude Ave Suite 101 Sunnyvale, CA. 94085 USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan Report No.: SA991026E02 2 Report Format Version 3.0.1 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in our lab, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA991026E02 3 Report Format Version 3.0.1 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device Report No.: SA991026E02 4 Report Format Version 3.0.1 6. TEST RESULTS 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is Chip antenna: 3.21dBi (numeric) or 2.09411 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 112.2 0.047 1.0 6 2437 107.2 0.045 1.0 11 2462 109.6 0.046 1.0 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 288.4 0.120 1.0 6 2437 281.8 0.117 1.0 11 2462 245.5 0.102 1.0 802.11n (20MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 269.2 0.112 1.0 6 2437 269.2 0.112 1.0 11 2462 218.8 0.091 1.0 802.11n (40MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2422 257.0 0.107 1.0 4 2437 257.0 0.107 1.0 7 2452 134.9 0.056 1.0 --- END ---

Report No.: RF991026E02 1 Report Format Version 3.0.1 FCC TEST REPORT REPORT NO.: RF991026E02 MODEL NO.: ZoneFlex 7025 Access Point FCC ID: S9GZF7025 RECEIVED: Oct. 26, 2010 TESTED: Oct. 29 to Nov. 03, 2010 ISSUED: Nov. 29, 2010 APPLICANT: Ruckus Wireless, Inc. ADDRESS: 880 West Maude Ave Suite 101 Sunnyvale, CA. 94085 USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 80 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF, NVLAP, NIST or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF991026E02 2 Report Format Version 3.0.1 Table of Contents 1. CERTIFICATION....................................................................................................4 2. SUMMARY OF TEST RESULTS............................................................................5 2.1 MEASUREMENT UNCERTAINTY..........................................................................6 3. GENERAL INFORMATION.....................................................................................7 3.1 GENERAL DESCRIPTION OF EUT.......................................................................7 3.2 DESCRIPTION OF TEST MODES.........................................................................9 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL........................10 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................13 3.4 DESCRIPTION OF SUPPORT UNITS..................................................................14 3.5 CONFIGURATION OF SYSTEM UNDER TEST...................................................15 4. TEST TYPES AND RESULTS..............................................................................18 4.1 CONDUCTED EMISSION MEASUREMENT........................................................18 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................18 4.1.2 TEST INSTRUMENTS..........................................................................................18 4.1.3 TEST PROCEDURES..........................................................................................19 4.1.4 DEVIATION FROM TEST STANDARD.................................................................19 4.1.5 TEST SETUP.......................................................................................................20 4.1.6 EUT OPERATING CONDITIONS.........................................................................20 4.1.7 TEST RESULTS...................................................................................................21 4.2 RADIATED EMISSION MEASUREMENT.............................................................25 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...........................................25 4.2.2 TEST INSTRUMENTS..........................................................................................26 4.2.3 TEST PROCEDURES..........................................................................................27 4.2.4 DEVIATION FROM TEST STANDARD.................................................................27 4.2.5 TEST SETUP.......................................................................................................28 4.2.6 EUT OPERATING CONDITIONS.........................................................................28 4.2.7 TEST RESULTS...................................................................................................29 4.3 6dB BANDWIDTH MEASUREMENT....................................................................58 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT..................................................58 4.3.2 TEST INSTRUMENTS..........................................................................................58 4.3.3 TEST PROCEDURE.............................................................................................58 4.3.4 DEVIATION FROM TEST STANDARD.................................................................58 4.3.5 TEST SETUP.......................................................................................................58 4.3.6 EUT OPERATING CONDITIONS.........................................................................58 4.3.7 TEST RESULTS...................................................................................................59 4.4 MAXIMUM PEAK OUTPUT POWER....................................................................63 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.....................63 4.4.2 INSTRUMENTS....................................................................................................63 Report No.: RF991026E02 3 Report Format Version 3.0.1 4.4.3 TEST PROCEDURES..........................................................................................63 4.4.4 DEVIATION FROM TEST STANDARD.................................................................63 4.4.5 TEST SETUP.......................................................................................................63 4.4.6 EUT OPERATING CONDITIONS.........................................................................63 4.4.7 TEST RESULTS...................................................................................................64 4.5 POWER SPECTRAL DENSITY MEASUREMENT................................................65 4.5.1 LIMITS OF POWER SPECTRAL DENSITY…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST(POE Mode) 2 CONDUCTED EMISSION TEST(Adapter Mode) 3 RADIATED EMISSION TEST
