S9N-MKBOXPRODevelopment kit and reference design for prototyping and testing IoT applications. Key features core system board with sensors, ultra-low-power microcontroller, BLE wireless connectivity, optimized firmware libraries, cloud dashboard application.

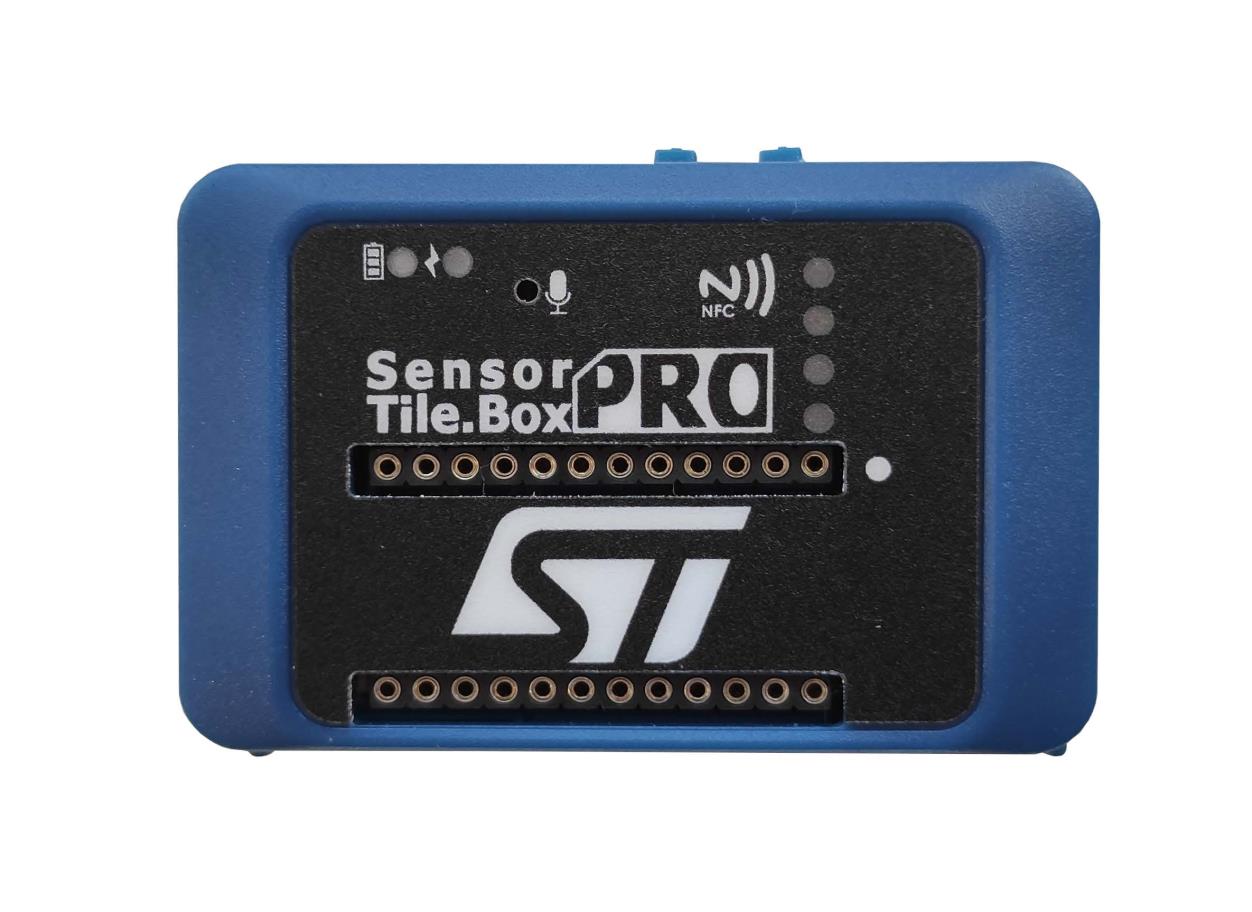

Introduction The STEVAL-MKBOXPRO (SensorTile.box PRO) is the new ready-to-use programmable wireless box kit for developing any IoT application based on remote data gathering and evaluation. It exploits the full kit potential by leveraging both motion and environmental data sensing, along with a digital microphone, and enhances connectivity and smartness in all environments. The hardware node is a board that fits into the palm of your hand (40x63 mm) with a long-life 3.7 V 480 mAh rechargeable battery. The user can connect to the board via Bluetooth® by using the ST BLE Sensor Classic app (available both on Google Play and the Apple Store) on their smartphone and immediately build their own apps through a special interface. Apps can be developed quickly regardless of the level of expertise: •Entry mode: play around with the default apps and see what STMicroelectronics sensors can achieve •Expert mode: create your own app in a simple graphic environment •Pro mode: develop code in an intuitive way using the STM32 open development environment (ODE) and STMicroelectronics function pack libraries The kit board includes an ultra-low power programmable Bluetooth® Low Energy wireless SoC solution BlueNRG-LP 355AC, that is compliant with Bluetooth(R) Low Energy v5.2. This transmitter module is FCC (FCC ID: S9N-MKBOXPRO) certified and IC (IC: 8976C-MKBOXPRO; PMN: STEVAL-MKBOXPRO; HVIN: STEVAL-MKBOXPRO; FVIN: STSW-MKBOXPRO-BL) certified. The board also includes a wireless charger and a programmable NFC tag. In addition, a DIL24 socket for easy MEMS adapter connection and a microSD™ card for storing data are available. Figure 1. STEVAL-MKBOXPRO (SensorTile.box PRO) multi-sensor and wireless connectivity development kit Getting started with SensorTile.box PRO multi-sensors and wireless connectivity development kit for any intelligent IoT node UM3133 User manual UM3133 - Rev 3 - July 2023 For further information contact your local STMicroelectronics sales office. www.st.com 1 Getting started 1.1 Precaution for use Warning:Charge the device with a DC 5 V–500 mA USB charger at a temperature from 10 °C to 35 °C. The kit must be used within the working temperature range. It must never be exposed to excessive heat such as direct sunlight, fire, or heating equipment. Danger:Use only USB chargers equipped with short-circuit protections to prevent fire hazard. Danger:Use only wireless chargers with foreign object detection (FOD) to prevent high temperatures. Danger:Use only the LiPo battery provided with the kit (HiMax 752535). Replacing the battery with an incorrect type can void any safeguards. LiPo batteries can be damaged and even explode if they are short-circuited, overcharged, or through improper usage, such as mechanical crushes, hot oven, or battery cutting. Table 1. Precautions for use Parameter Range Operating temperature10°C to 35°C Charging temperature10°C to 35°C HumidityUp to 80% Operating altitudeUp to 2000 m 1.2 Features •Ultra-low-power with FPU Arm-Cortex-M33 with a TrustZone® microcontroller (STM32U585AI) •High precision sensors to gather high-quality data: –Low-voltage local digital temperature sensor (STTS22H) –6-axis inertial measurement unit (LSM6DSV16X) –3-axis low-power accelerometer (LIS2DU12) –3-axis magnetometer (LIS2MDL) –Pressure sensor (LPS22DF) –Digital microphone/audio sensor (MP23DB01HP) •User interface: –Hardware power switch –Green and orange system LED to display the power supply state –Four programmable status LEDs (green, red, orange, blue) –Two programmable push-buttons –Audio buzzer –Reset button –Qvar with electrodes for user interface experience –Interface for J-Link/SWD debug-probe –Interface for extension board –Socket for DIL24 sensor adapters UM3133 Getting started UM3133 - Rev 3 page 2/47 •Connectivity: –microSD™ card slot –Bluetooth® Low Energy 5.2 (BlueNRG 355AC) –NFC tag (ST25DV04K) •Power and charging options: –USB Type-C® charging and connecting –5 W wireless charging –480 mAh battery 1.3 RF specifications •RF output power for Bluetooth® Low Energy: 0 dBm –Bluetooth® Low Energy frequency range: 2402 - 2480 MHz –Bluetooth(r) Low Energy Channel spacing: 2 MHz –NFC frequency: 13.56 MHz –SMD ferrite coil inductor antenna for passive NFC 1.4 Kit components The STEVAL-MKBOXPRO development kit includes: •the SensorTile.Box Pro (main board) •a plastic case with M2.5 screws •a 480 mAh 3.7 V LiPo battery •Qvar electrodes •wireless charger receiver circuit •programmable NFC tag •microSD™ card •STEVAL-MKIGIBV4 STLINK adapter with programming cable. Figure 2. STEVAL-MKBOXPRO components UM3133 RF specifications UM3133 - Rev 3 page 3/47 1.5 Layout of the STEVAL-MKBOXPRO Figure 3. Layout of the core system board components - top UM3133 Layout of the STEVAL-MKBOXPRO UM3133 - Rev 3 page 4/47 Figure 4. Layout of the core system board components - bottom UM3133 Layout of the STEVAL-MKBOXPRO UM3133 - Rev 3 page 5/47 1.6 Core system board Figure 5. STEVAL-MKBOXPRO block diagram UM3133 Core system board UM3133 - Rev 3 page 6/47 Figure 6. STEVAL-MKBOXPRO evaluation kit - top view Figure 7. STEVAL-MKBOXPRO evaluation kit - bottom view UM3133 Core system board UM3133 - Rev 3 page 7/47 1.7 Functional blocks 1.7.1 Sensing The core system board offers a wide range of sensors specifically designed to support personal electronics applications and to satisfy the demanding requirements of the consumer market. Figure 8. STEVAL-MKBOXPRO - overview of the sensing components The motion and environmental sensors communicate with the STM32U585AI microcontroller via SPI and/or I²C in order to accommodate the data rates. The signal from the digital microphone is directly managed by the audio digital filter (ADF) interface of the MCU. Figure 9. STEVAL-MKBOXPRO - sensors on the top side UM3133 Functional blocks UM3133 - Rev 3 page 8/47 Figure 10. STEVAL-MKBOXPRO - sensors on the bottom side •U10: LPS22DF MEMS pressure sensor •U6: STTS22H digital temperature sensor •U9: LSM6DSV16X IMU, 3D acceleromet…

Text truncated - open the document above for the full version.

Covered Equipment Certification Attestation Letter Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: S9N-MKBOXPRO STMicroelectronics s.r.l. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. STMicroelectronics s.r.l. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Nunzio Dipaola Title: Dr. Company Name: STMicroelectronics srl Date: 6/1/2023

* the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter June 8, 2023 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: S9N-MKBOXPRO Per section 2.911(d)(7) of the FCC rules, STMicroelectronics s.r.l. (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. Designated agent* for service of process: Company Name: STMicroelectronics Inc Physical U.S. Company Address: 200 Summit Drive, Suite 405, Burlington MA, 01803, USA Agent name: Francesco Doddo Agent Email Address: [email protected] FRN: 0033628546 The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Designated Agent Signed: (Required, if different to Applicant): Signed: Signed: Printed name: Nunzio Dipaola Printed name: Francesco Doddo Title: Dr. Title: Applications Director Company Name: STMicroelectronics srl Company Name: STMicroelectronics Inc Date: June 1, 2023 Date: June 8, 2023

6/1/2023 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 AUTHORITY TO ACT AS AGENT - FCC On our behalf, I appoint Nemko Canada Inc, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko North America Inc., still resides still resides with us. Sincerely, Printed name: Nunzio Dipaola

June 1, 2023 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 REQUEST FOR CONFIDENTIALITY - FCC FCC ID: S9N-MKBOXPRO Pursuant to Sections 0.457(d) and 0.459 of the Commission’s Rules and FCC Guidance document 726920, we hereby request permanent confidential treatment of exhibits identified as such in the table below and request they are permanently withheld from public review based on the documents containing trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjustified benefits to its competitors. We also request short-term confidentiality on certain exhibits until the intended date of marketing as outlined below. We request the exhibits be withheld from public view for a period of (NOT APPLICABLE) days. We attest marketing of the product will only commence after the period of short-term confidentiality expires, or if marketing is to commence before the requested number of days listed above, the grantee will inform Nemko to release the Short-Term Confidentiality information withheld on the FCC equipment authorization website. Exhibit Type of Confidentiality Requested Block Diagrams ☒ Permanent ☐ Short Term External Photos ------------------ ☐ Short Term Internal Photos ☐ Permanent* ☐ Short Term Operation Description ☒ Permanent ☐ Short Term Parts List & Placement/BOM ☒ Permanent ☐ Short Term Tune-Up Procedure ☐ Permanent ☐ Short Term Schematic Diagrams ☒ Permanent ☐ Short Term Test Setup Photos ------------------ ☐ Short Term User’s Manual ☐ Permanent* ☐ Short Term The asterisked items (*) require further information to be provided in this justification letter before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. Note: any documents held under the Short-Term confidentiality will automatically become public after the requested time if an appropriate extension request has not been received. Any exhibits (i.e., schematic diagrams) that may have already been requested to have “Permanent” confidentiality as shown above need not be repeated under Short-Term confidentiality request. Sincerely, Signed: Printed name: Nunzio Dipaola Title: Dr. Company Name: STMicroelectronics srl

www.st.com SensorTile.box PRO Your multi-sensor IoT prototyping kit KEY SENSORS: • Low-voltage local digital temperature sensor (STTS22HH) • Six-axis inertial measurement unit (LSM6DSV16X) • Three-axis low-power accelerometer (LIS2DU12) • Three-axis magnetometer (LIS2MDL) • Altimeter / pressure sensor (LPS22DF) • Analog microphone / audio sensor (MP23DB01HP) NOTICE FOR US FEDERAL COMMUNICATION COMMISSION (FCC) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. NOTICE FOR INNOVATION, SCIENCE AND ECONOMIC DEVELOPMENT CANADA (ISED) Innovation, Science and Economic Development Canada Compliance: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CONFORMITÉ À INNOVATION, SCIENCES ET DÉVELOPPEMENT ÉCONOMIQUE CANADA: L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1) L’appareil ne doit pas produire de brouillage; (2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Les changements ou modifications non expressément approuvés par la partie responsable de la conformité pourraient annuler l’autorité de l’utilisateur à faire fonctionner l’équipement. SIMPLIFIED UK DECLARATION OF CONFORMITY Hereby, the manufacturer STMicroelectronics S.r.l. - Via Camillo Olivetti 2, 20864 Agrate Brianza (MB), Italy (UK site: STMicroelectronics Ltd - Atlas House, Third Avenue, Globe Business Park, Marlow, Bucks, SL7 1EY, United Kingdom), declares that the radio equipment type “radio frequency evaluation board” STEVAL-MKBOXPRO is in compliance with The UK Radio Equipment Regulations 2017. The full text of the UK declaration of conformity is available at the following internet address: www.st.com/en/evaluation-tools/steval-mkboxpro.html SIMPLIFIED EU DECLARATION OF CONFORMITY (See dedicated leaflet) FG: STEVAL$MKBOXPROA BEFORE STARTING: Download «STE BLE Sensor» app from the store on your smartphone TO START • Turn on your SensorTile.box PRO by sliding the Power button to ‘ON’. • Open the ST BLE Sensor App (with Bluetooth enabled) and start detecting new devices. • Connect to your SensorTile.box PRO • Upload the latest available firmware to the SensorTile.box PRO using the FOTA function. • Reboot the board, then reconnect using the app. • Your smartphone will show the default splash screen, you can start using the SensorTile.box PRO or upload a new pre-defined app. You may also develop your own app using ST BLE Sensor App. To learn more: Order code: STEVAL-MKBOXPRO www.st.com © STMicroelectronics - November 2022 - Printed in Italy - All rights reserved STMicroelectronics S.r.l. - Via Camillo Olivetti 2 - 20864 Agrate Brianza (MB) - Italy ST and the ST logo are registered and/or unregistered trademarks of STMicroelectronics International NV or its affiliates in the EU and/or elsewhere. In particular, ST and the ST logo are Registered in the US Patent and Trademark Office. For additional information about ST trademarks, please refer to www.st.com/trademarks. All other product or service names are the property of their respective owners. FURTHER KEY PRODUCTS: • STM32U5 series with FPU Arm Cortex-M33 (STM32U585AII6) • BLE ultra-low-power (BlueNRG 355AC) • NFC tag (ST25DV04K) and wireless charger SENSORTILE.BOX PRO WORKING MODES: • Entry: play with the default apps and see what ST sensors can do • Expert: create your own app in a simple graphic environment • Pro: connect to STM32 programmers for full STM32 ODE compatib FCC ID: S9N-MKBOXPRO IC: 8976C-MKBOXPRO By using or installing (as applicable) this evaluation kit you accept all the terms of the EVALUATION BOARD TERMS OF USE available at: www.st.com/epla

Manufacturer: STMicroelectronics S.r.l. Name:Oscar Frau Product:STEVAL-MKBOXPROTitle:Project Handler FCC ID:S9N-MKBOXPROSignature: MPE limits (§1.1310) ModeFrequency Duty Cycle Power Antenna Gain EIRP 1 EIRP Distance PD 2 PD Limit 3 Margin 2.1091 EIRP Limit 2.1091 EIRP Margin PD/PD Limit MHz%dBmdBidBmmWcmmW/cm^2mW/cm^2dBmWdB BLE 4 2402,0100-12,8 1,6-11,200,120 0,000015 1,00048,21126042,20 0,000015 1 EIRP = ( Power dBm + Antenna Gain dBi ) + 10 x Log ( Duty Cycle % / 100 ) 2 PD = EIRP / (4xπxD 2 ) 3 CFR 47 Part 1, §1.1310(e), table 1 4 See Test Report No: 457585-4TRFWL, p.33: Max Conducted Power, p.9: Antenna Gain 2.1091 EIRP Limit 1.1307 (b)(3)(i)(C) exemption limit RF Source FrequencyFRλ λ/2π R/(λ/2π) Threshold ERP Threshold EIRP Threshold EIRPEIRP Margin MHzMHzmmmWWmWmWdB 1500-10000024020,200,1250,019910,10,768001,26012600,142,2

September 2016 Multilayer Antenna For 2400-2484MHz ANT016008LCS2442MA1 1.6x0.8mm [EIA 0603]* * Dimensions Code JIS[EIA] RF Components RF Components • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20160926 / rf_ant_ant016008lcs2442ma1_summary Multilayer Antenna For 2400-2484MHz SHAPES AND DIMENSIONS RECOMMENDED LAND PATTERNSOLDER RESIST PATTERN ANT016008LCS2442MA1 Conformity to RoHS Directive 1.60±0.10 ( 0.1 ) ( 0.1 ) 0.40max. 0.80±0.10 0.63±0.10 0.215±0.100.25±0.10 0.20±0.10 Dimensions in mm [Top view] [Bottom view] 1 Radiator electrode 2 Dummy pad 3 Dummy pad 4 Feed point 5 Dummy pad 6 Dummy pad Terminal functions ( 1 ) ( 4 ) ( 5 )( 6 ) ( 2 )( 3 ) Dimensions in mm 0.7 3 0. 8 0 0.60 0.90 1.60 0.21 Dimensions in mm 0.7 3 0.60 0.90 1.53 0.11 RoHS Directive Compliant Product: See the following for more details.https://product.tdk.com/info/en/environment/rohs/index.html RF Components • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20160926 / rf_ant_ant016008lcs2442ma1_summary ANT016008LCS2442MA1 EVALUATION BOARD Measurement condition for Radiation Pattern PCB size : 50mm x 10mm x 1mm Antenna area : 5 x 3 mm Ft-1 Mt 6.2pF 0. 8pF Component P/N Mt ANT016008LCS2442MA1Ft-1 Z Y X Er θ Eθ Eø ø Chip antenna PCB RF Components • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20160926 / rf_ant_ant016008lcs2442ma1_summary ANT016008LCS2442MA1 ELECTRICAL CHARACTERISTICS This is typical antenna performance with the standard PCB. TEMPERATURE RANGE FREQUENCY CHARACTERISTICS EFFICIENCY AND VSWR • Tested antenna has been soldered. Evaluation board size is 50x20x1 mm. Item Frequency Range (MHz) Min.Typ.Max. VSWR2400 to 2484—1.603.0 PolarizationLinear PCB size (mm)5020 Antenna keep-out area (mm)53 Characteristic Impedance ()50 (Nominal) Operating temperatureStorage temperature °C°C –40 to +85–40 to +85 –10 –9 –8 –6 –7 –3 –4 –1 –5 –2 0 Efficiency ( dB ) 1 11 10 9 8 7 6 5 4 3 2 VSWR Frequency ( GHz ) 2.3002.4002.5002.600 Efficiency Spec ( VSWR ) VSWR RF Components • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20160926 / rf_ant_ant016008lcs2442ma1_summary ANT016008LCS2442MA1 RADIATION PATTERNS 2.4GHz BAND • Tested antenna has been soldered. Evaluation board size is 50×20×1 mm. 270 ̊90 ̊ 0 ̊ X Y Z 180° 270° 315° 135° 45° 225° 90° 0 –10 10 ( dBi ) –20 –30 –40 0° Horizontal polarization Frequency (MHz) Average ( dBi ) Maximum ( dBi ) Minimum ( dBi ) 2400 –21.5 –16.9 –46.0 2442 –21.5 –18.5 –40.8 2484 –21.3 –17.2 –36.4 2400MHz 2442MHz 2484MHz 180° 270° 315° 135° 45° 225° 90° 0 –10 10 ( dBi ) –20 –30 –40 0° Vertical polarization Frequency (MHz) Average ( dBi ) Maximum ( dBi ) Minimum ( dBi ) 2400 0.0 1.3 –2.4 2442 0.3 1.6 –2.2 2484 –0.2 1.2 –3.0 2400MHz 2442MHz 2484MHz 270 ̊ 90 ̊ 0 ̊ Y X Z 180° 270° 315° 135° 45° 225° 90° 0 –10 10 ( dBi ) –20 –30 –40 0° Horizontal polarization Frequency (MHz) Average ( dBi ) Maximum ( dBi ) Minimum ( dBi ) 2400 –2.9 1.3 –21.5 2442 –2.6 1.6 –21.9 2484 –3.1 1.2 –23.6 2400MHz 2442MHz 2484MHz 180° 270° 315° 135° 45° 225° 90° 0 –10 10 ( dBi ) –20 –30 –50 –40 0° Vertical polarization Frequency (MHz) Average ( dBi ) Maximum ( dBi ) Minimum ( dBi ) 2400 –24.1 –20.2 –39.2 2442 –24.7 –19.1 –46.1 2484 –24.8 –21.5 –34.9 2400MHz 2442MHz 2484MHz 270 ̊ 90 ̊ 0 ̊ Y Z X 180° 270° 315° 135° 45° 225° 90° 0 –10 10 ( dBi ) –20 –30 –40 0° Horizontal polarization Frequency (MHz) Average ( dBi ) Maximum ( dBi ) Minimum ( dBi ) 2400 –3.1 0.2 –29.8 2442 –2.7 0.6 –28.5 2484 –3.2 0.1 –31.3 2400MHz 2442MHz 2484MHz 180° 270° 315° 135° 45° 225° 90° 0 –10 10 ( dBi ) –20 –30 –40 0° Vertical polarization Frequency (MHz) Average ( dBi ) Maximum ( dBi ) Minimum ( dBi ) 2400 –12.2 –8.0 –31.2 2442 –11.8 –7.5 –30.5 2484 –12.3 –8.2 –35.8 2400MHz 2442MHz 2484MHz RF Components • All specifications are subject to change without notice. • Bef ore using these products, be sure to request the delivery specifications. RECOMMENDED REFLOW PROFILE  t3 : Time within 5°C of actual peak temperature The maximum number of reflow is 3. Preheating Soldering Critical zone (T3 to T4)Peak Temp.TimeTemp.TimeTemp.Time T1T2t1T3t2T4t3  150°C200°C60 to 120sec217°C60 to 120sec240 to 260°C30sec max. t3 t1 Preheating t2 Soldering T3T3 T4 T2 T1 t: Time T: Temperature Peak 6°C/sec or lower 3°C/sec or lower RF Components • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20160926 / rf_ant_ant016008lcs2442ma1_summary ANT016008LCS2442MA1 PACKAGING STYLE REEL DIMENSIONS TAPE DIMENSIONS PACKAGE QUANTITY Dimensions in mm ABCDEFGHJKt 0.97±0.05 1.8±0.058.0±0.23.5±0.05 1.75±0.14.0±0.12.0±0.054.0±0.1 1.5+0.1/-0 0.55max. 0.25±0.05 Standard package quantity (pieces/reel) 4,000 2.0±0.5 ø21±0.8 Dimensions in mm 13.0±1.0 9.0 +1.0 –0.0 ø180 +0 –1.5 ø13±0.2 ø 60 +1.0–0.0 C D t K E H F G J B A Material of carrier the tape: PS RF Components • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20160926 / rf_ant_ant016008lcs2442ma1_summary REMINDERS FOR USING THESE PRODUCTS Before using these products, be sure to request the delivery specifications. SAFETY REMINDERS Please pay sufficient attention to the warnings for safe designing when using these products. The products listed on this catalog are intended for use in general electronic equipment (AV equipment, telecommunications equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement equipment, industrial robots) under a normal operation and use condition. The products are not designed or warranted to meet the requirements of the applica…
