S9O-WT500Wireless CDMA Barcode Scanner

GET STARTED There are2 standardvariations of the WiredTime system forthecrew scanning method. These are a matter of preference and require minimal setup.By selecting either method a system report would indicate an employee’s exact time of start, travel timetolocation, tasks and duration at location, break period time and duration andfinallytotal time. 1.Task Barcodes are all fixed at the location of service. 2.Task Barcodes are compiled in a binder by location. Service Start, Break and ServiceEndare fixed at location for verification purposes. WiredTime recommends the method that replicates your current systems to maintain consistency. Configuring the system to your company’s practices is simple; we will assist you with this. Contact us at1.866.570.3225. Thank you for selecting WiredTime for your payrolland task management processes. Eric Keller, President Let’s verify that the system has been set-up and ready for use. The initial setup procedure must be completed. The steps for this are outlined below: PREPARATION 1.Please ensure that the scanner is fully charged. This is completed by connecting the supplied wall or cigarette charger and the corresponding power source for 3 hours prior to initial use. Failure to do so may result in decreased battery life and‘power out’conditionprior to your shift end. 2.Ensure your scanner is not damaged or wet and is securely in its case.Neverlookintothe scanning light beam. 3.Ensure you have the Task Barcodes. (Optional) 4.Check that each of yourteam members has their Identification Badges (ID Cards). SCANNING Simply, the procedure is two steps, scan the IDCard (Step 5)and then scan the task barcode(Step 6).When ready to scan, remove the scanner from your belt clip or vehicle. Leaving the scanner in the case, point the scanner at the desired barcode press the scan button and release. Direct the red light beam over the barcode until the “Beep Tone” is heard. The distance from the barcode will depend on the intensity of sunlight and light reflection. 5.Scan the ID card. 5.1.Press scan button- an audible tonesequencewill indicate the scanner is powering up. 5.2.The displayscreenwill automaticallylight. 5.3.Afterthe“BeepTone”, “Scan ID Card” messagewill be displayed. 5.4.Scanthe barcode on your ID Carduntil the “Beep Tone” is heard. 5.4.1.If the scan is not read correctly within10seconds the scanner will shut down. Return to Step5.1 5.4.2.If the display indicates “Bad Barcode” Return to Step 5.1again. 5.4.3.If the displaystillindicates “Bad Barcode” Return to Step5.1, and scanalternateID card. I f successful, a “Beep Tone” is heard. Continue to Step6. If not contact the Help Center at1.866.570.3225. PROCEDURE GUID E 6.Point the scanner at the “Task Barcode”, press the scan button and release. 6.1.The scanner display will indicate a series of 1 to 5 ***** asterisks indicating the progress of the transmission. The first scan of the day(or when the scanner has not been used for 2 consecutive hours)will take up to 15 seconds to connect to the WiredTime Network. Scans after this connection period will transmit in 2 to 6 seconds 6.2.Watch the scanner display until “Task Start” or “Task End” appears to indicate your activity status.In 3 seconds the display will indicate “Scan ID”. You arenowready to scan the next worker.Repeat from Step 5. 6.2.1.If the scan is not read correctly within10seconds the scanner will shut down. Return to Step5 and retry. 6.2.2.If the display indicates “Bad Barcode” again. Return to Step6. 6.2.3.If the display indicates “Bad Barcode” the second time, Contact the Help Center at 1.866.570.3225. LUNCH OR REST BREAK 7.Scan your team as in Steps5and6but this time using the Task Barcode“Lunch”or“break”. 8.Scan your team as in Steps5and6into the post break tasks. SITE COMPLETE 9.When all tasks have been completedon eachsite,scan theTasks Completebarcode as instructed in Steps5and6.You are ready to go to your next location or work site. SAVED SCANS 10.In the event that the WiredTime Network service isinterrupted ornot availableat a location the information will be saved with the time and date information. This information will be transmittedperiodicallywhen the scanner is able to connect to the transmission Network. When there are scans in memory the scanner will automatically wake from power save mode and check for Network service.If service is identified all scans will be sent and recorded in sequence. CHARGING 11.A fully charged scanner should send(pending coverage)approx.6,000 scans.Thechargingprocedure is simple. 11.1.Plug the charger into the charging port under the flap of the protective case. 11.2.Plug the charger into the appropriate power source. The process is the same for car 12v and 110 volt chargers. 11.3.The display will indicate the words “charging”. 11.4.The battery will be charged in 60 to 160 minutes depending on the batterypowerstate. 11.5.When charging is complete the display will indicate the words “charging complete” CARE 12.The WT 500 is a sophisticated electronic device that performs many functions similar to a computer and a cellular phone. The components are not only fixed in placesimilarlybutarealso coated to prevent condensationdamage. Sudden shocks in extreme hot or cold conditions will reduce the life of the scanner.The scanner should be operated only in its case. The case has been designed toabsorb shocks and reduce moisture and dust contamination. Like any electronics it is important to keep the lens clean. Cleaning activities should be conducted similar to the care eye glasses would receive. Leaving the device inenvironments such as a vehicle dash during periods of high heat will have negative impact over a period of time. Generally common sense and care will provide adequate care. If you have any questions or experience any difficulties regarding the safe operation and care of the WT 500 scanner please call 1.866.570.3225 for assistance.Return damaged or unused scanners to WiredTime for repair, service, repla…

Text truncated - open the document above for the full version.

May 25, 2005 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: WIREDTIME.COM INC. FCC ID: S9O-WT500 Part 22/24 Certification Gentlemen: Submitted herewith, on behalf of WIREDTIME.COM, INC., is an application for Part 22/24 Certification of the Wireless CDMA Barcode Scanner. Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: WIREDTIME.COM, INC.

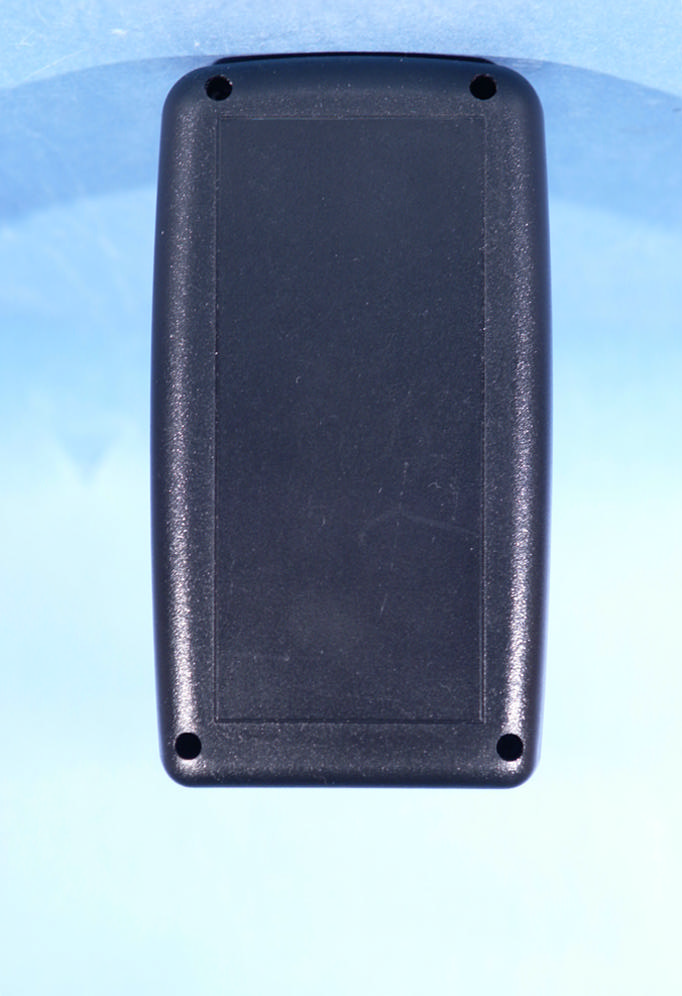

WIREDTIME FCC ID: S9O-WT500 EUT Photographs © 2005 PCTEST Lab. Barcode Scanner w/ Wavecom Wireless Module Model: WT500 WIREDTIME FCC ID: S9O-WT500 EUT Photographs © 2005 PCTEST Lab. Barcode Scanner w/ Wavecom Wireless Module Model: WT500 WIREDTIME FCC ID: S9O-WT500 EUT Photographs © 2005 PCTEST Lab. Barcode Scanner w/ Wavecom Wireless Module Model: WT500 WIREDTIME FCC ID: S9O-WT500 EUT Photographs © 2005 PCTEST Lab. Barcode Scanner w/ Wavecom Wireless Module Model: WT500 WIREDTIME FCC ID: S9O-WT500 EUT Photographs © 2005 PCTEST Lab. Barcode Scanner w/ Wavecom Wireless Module Model: WT500 WIREDTIME FCC ID: S9O-WT500 EUT Photographs © 2005 PCTEST Lab. Barcode Scanner w/ Wavecom Wireless Module Model: WT500

© 2005 PCTEST Lab Sample Label FCC ID: S9O-WT500 Model: WT500 © 2005 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

WIREDTIME FCC ID: S9O-WT500 EUT Photographs © 2005 PCTEST Lab. Barcode Scanner w/ Wavecom Wireless Module Model: WT500 WIREDTIME FCC ID: S9O-WT500 EUT Photographs © 2005 PCTEST Lab. Barcode Scanner w/ Wavecom Wireless Module Model: WT500 WIREDTIME FCC ID: S9O-WT500 EUT Photographs © 2005 PCTEST Lab. Barcode Scanner w/ Wavecom Wireless Module Model: WT500 WIREDTIME FCC ID: S9O-WT500 EUT Photographs © 2005 PCTEST Lab. Barcode Scanner w/ Wavecom Wireless Module Model: WT500 WIREDTIME FCC ID: S9O-WT500 EUT Photographs © 2005 PCTEST Lab. Barcode Scanner w/ Wavecom Wireless Module Model: WT500 WIREDTIME FCC ID: S9O-WT500 EUT Photographs © 2005 PCTEST Lab. Barcode Scanner w/ Wavecom Wireless Module Model: WT500 WIREDTIME FCC ID: S9O-WT500 EUT Photographs © 2005 PCTEST Lab. Barcode Scanner w/ Wavecom Wireless Module Model: WT500

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0502070069 Test Dates: April 25, 2005 Phone Type: Wireless CDMA Barcode Scanner w/ Wavecom Wireless Module FCC ID: S90-T500 Page 1 of 21 © 2005 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: WiredTime.com Inc. Dates of Tests: April 25, 2005 31 Shirley Avenue Test Report S/N: 0504010239 Kitchener ON. Canada N2B 2E2 Test Site: PCTEST Lab, Columbia MD FCC ID: S9O-WT500 APPLICANT NAME: WiredTime.com Inc. EUT Type: Wireless CDMA Barcode Scanner w/ Wavecom Wireless Module Model: Q2438F Tx Frequency: 824.70 – 848.31MHz (CDMA) / 1851.25MHz – 1908.75MHz (PCS CDMA) Rx Frequency: 869.70 – 893.31MHz (CDMA) / 1931.25MHz – 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.218 W ERP CDMA (23.38 dBm) / 24.0 dBm Conducted 0.279 W EIRP PCS CDMA (24.45 dBm) / 23.0 dBm Conducted Max. SAR Measurement: 0.34 W/kg CDMA Head SAR; 0.28 W/kg PCS CDMA Head SAR Trade Name/Model(s): WT500 FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: Identical Prototype [S/N: #1] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528 – 2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 2.0 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0502070069 Test Dates: April 25, 2005 Phone Type: Wireless CDMA Barcode Scanner w/ Wavecom Wireless Module FCC ID: S90-T500 Page 2 of 21 © 2005 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION.................................................................................3 2. SAR MEASUREMENT SETUP.............................................................................................4 3. ALIDX-500 E-FIELD PROBE SYSTEM..................................................................................5 4. PROBE CALIBRATION PROCESS.......................................................................................6 5. PHANTOM & EQUIVALENT TISSUES................................................................................7 6. TEST SYSTEM SPECIFICATIONS.........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS...............................................................9 8. DEFINITION OF REFERENCE POINTS..............................................................................10 9. TEST CONFIGURATION POSITION.................................................................................11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.................................................................12 11. MEASUREMENT UNCERTAINTIES...................................................................................13 12. SAR TEST DATA SUMMARY...........................................................................................14 13. SAR TEST EQUIPMENT...................................................................................................15 14. CONCLUSION...............................................................................................................16 15. REFERENCES..................................................................................................................17 EXHIBIT A. SYSTEM VERIFICATION.......................................................................................18 EXHIBIT A. SAR DATA SUMMARY....................................................................................19-38 PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0502070069 Test Dates: April 25, 2005 Phone Type: Wireless CDMA Barcode Scanner w/ Wavecom Wireless Module FCC ID: S90-T500 Page 3 of 21 © 2005 PCTEST Engineering Laboratory, Inc. 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement …

Text truncated - open the document above for the full version.

WIREDTIME FCC ID: S9O-WT500 EUT Photographs © 2005 PCTEST Lab. Barcode Scanner w/ Wavecom Wireless Module Model: WT500 WIREDTIME FCC ID: S9O-WT500 EUT Photographs © 2005 PCTEST Lab. Barcode Scanner w/ Wavecom Wireless Module Model: WT500 WIREDTIME FCC ID: S9O-WT500 EUT Photographs © 2005 PCTEST Lab. Barcode Scanner w/ Wavecom Wireless Module Model: WT500 WIREDTIME FCC ID: S9O-WT500 EUT Photographs © 2005 PCTEST Lab. Barcode Scanner w/ Wavecom Wireless Module Model: WT500

PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0504010238 Test Dates: April 25,, 2005 EUT Type: Wireless Barcode S canner w/ Wavecom Wireless Module FCC ID: S90-WT500 Page 1 of 24 © 2005 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification WiredTime.com Inc. Dates of Tests: April 25, 2005 31 Shirley Avenue Test Report S/N: 0504010238 Kitchener ON. Canada N2B 2E2 Test Site: PCTEST Lab, Columbia MD FCC ID S9O- WT500 APPLICANT WiredTime.com Inc. Classification: Licensed Portable Transmitter (PCB) FCC Rule Part(s): §24(E), §22(H); §2 EUT Type: Wireless CDMA Barcode Scanner w/ Wavecom Wireless Module Model: Q2438F Model: WT500 Tx Frequency Range: 824.70 – 848.31MHz (CDMA) / 1851.25MHz – 1908.75MHz (PCS CDMA) Rx Frequency Range: 869.70 – 893.31MHz (CDMA) / 1931.25MHz – 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.218 W ERP CDMA (23.38 dBm) / 24.0 dBm Conducted 0.279 W EIRP PCS CDMA (24.45 dBm) / 23.0 dBm Conducted Max. SAR Measurement: 0.34 W/kg CDMA Head SAR; 0.28 W/kg PCS CDMA Head SAR Emission Designator(s): 1M25F9W (CDMA) Test Device Serial No. Identical Prototype [S/N: #1] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24 SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0504010238 Test Dates: April 25,, 2005 EUT Type: Wireless Barcode Scanner w/ Wavecom Wireless Module FCC ID: S90-WT500 Page 2 of 24 © 2005 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: TEST REPORT ATTACHMENT C: ATTESTATION STATEMENT(S) 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 DESCRIPTION OF TESTS 5-8 4.1 EFFECTIVE RADIATED POWER OUTPUT 9 5.1 EQUIVALENT ISOTROPIC RADIATED POWER 10 6.1 RADIATED MEASUREMENTS 11-16 7.1 FREQUENCY STABILITY 17-20 8.1 PLOTS OF EMISSIONS 21 9.1 LIST OF TEST EQUIPMENT 22 10.1 SAMPLE CALCULATIONS 23 11.1 CONCLUSION 24 ATTACHMENT D: TEST PLOTS ATTACHMENT E: TEST SETUP PHOTOGRAPHS ATTACHMENT F: EXTERNAL PHOTOGRAPHS ATTACHMENT G: INTERNAL PHOTOGRAPHS ATTACHMENT H: SAR MEASUREMENT REPORT ATTACHMENT I: SAR TEST DATA ATTACHMENT J: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT K: DIPOLE VALIDATION ATTACHMENT L: PROBE CALIBRATION ATTACHMENT M: COPY OF GRANT PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0504010238 Test Dates: April 25,, 2005 EUT Type: Wireless Barcode S canner w/ Wavecom Wireless Module FCC ID: S90-WT500 Page 3 of 24 © 2005 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: WiredTime.com Inc. Address: 31 Shirley Avenue Kitchener ON. Canada N2B 2E2 • FCC ID: S9O-WT500 • Quantity: Quantity production is planned • Emission Designators: 1M25F9W • Tx Freq. Range: 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Freq. Range: 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Max. Power Rating: 0.218 W ERP CDMA (23.38 dBm) / 25.0 dBm Conducted • 0.279 W EIRP PCS CDMA (24.45 dBm) / 25.0 dBm Conducted • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Wireless CDMA Barcode Scanner w/ Wavecom Wireless Module Model: Q2438F • Modulation(s): CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E), §22(H) • Dates of Tests: April 25, 2005 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 0504010238 PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0504010238 Test Dates: April 25,, 2005 EUT Type: Wireless Barcode Scanner w/ Wavecom Wireless Module FCC ID: S90-WT500 Page 4 of 24 © 2005 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at a 3-meter test range (see Figure2). The equip…

Text truncated - open the document above for the full version.

WIREDTIME FCC ID: S9O-WT500 EUT Photographs © 2005 PCTEST Lab. Barcode Scanner w/ Wavecom Wireless Module Model: WT500 WIREDTIME FCC ID: S9O-WT500 EUT Photographs © 2005 PCTEST Lab. Barcode Scanner w/ Wavecom Wireless Module Model: WT500 WIREDTIME FCC ID: S9O-WT500 EUT Photographs © 2005 PCTEST Lab. Barcode Scanner w/ Wavecom Wireless Module Model: WT500 WIREDTIME FCC ID: S9O-WT500 EUT Photographs © 2005 PCTEST Lab. Barcode Scanner w/ Wavecom Wireless Module Model: WT500 WIREDTIME FCC ID: S9O-WT500 EUT Photographs © 2005 PCTEST Lab. Barcode Scanner w/ Wavecom Wireless Module Model: WT500
