S9X-HB-1303VITASOUND WI-MIC

Paper size: A4Scale = do not scale Designer: HayHEUN Project: VitaSound - Wi-Mic © 2013 Honey Bee (Hong Kong) Limited p.1/5 Rev.03A 15 Mar 2013 Paper size: A4Scale = do not scale Designer: HayHEUN © 2013 Honey Bee (Hong Kong) Limited Charging/Power LED External Mic port Internal Mic Charging port for Base Unit Micro-USB Charging port Reset Power button Mute button Wireless pair button Hook for neck loop Project: VitaSound - Wi-Mic p.2/5 Rev.03A 15 Mar 2013 © 2013 Honey Bee (Hong Kong) Limited Paper size: A4Scale = do not scale Designer: HayHEUN Microphone windshield External microphone Clip Project: VitaSound - Wi-Mic p.3/5 Rev.03A 15 Mar 2013 © 2013 Honey Bee (Hong Kong) Limited Paper size: A4Scale = do not scale Designer: HayHEUN PAE-300 Personal Audio Enhancer Wi-Mic How it Works Wireless Project: VitaSound - Wi-Mic p.4/5 Rev.03A 15 Mar 2013 © 2013 Honey Bee (Hong Kong) Limited Paper size: A4Scale = do not scale Designer: HayHEUN 15 Mar 2013 Rev.03A Project: VitaSound - Wi-Mic p.5/5 Usage Scenarios in Office in Classroom in Chruch

Wi-Mic HB-1303 User Manual 1 1. Power button 2. Mute button 3. Charging/Power LED 4. External Mic port 5. Internal Mic 6. Hook for neck loop 7. Reset button 8. Charging port for Base Unit 9. Micro-USB charging port 10. Wireless pair button Wi-Mic 123 6 5 4 7 8 9 Identifying parts 10 2 Charging the Wi-Mic 1. Turn o the Wi-Mic. 2. Plug the micro-USB charger into micro-USB charging port of the Wi-Mic. RED charging/power LED lights up during charging. (Optional: The Wi-Mic can be charged when placed it into the charging port of the Base Unit.) 3. The charging/power LED is o when charging is completed. 3 Basic operation Power On Press and hold the power button for 2 seconds until GREEN power LED lights up. Power o Press and hold the power button for 2 seconds until power LED is o. Mute On To mute the internal/external Mic, press the mute button once. The GREEN power LED is ashing when Wi-Mic is in mute mode. Mute o To cancel the mute status of Wi-Mic, press mute button once. The GREEN power LED lights up and stops ashing. 4 Pairing with Personal Audio Enhancer (PAE-300) 1. Turn on both Wi-Mic and PAE-300. 2. First, press the TV function button on all of the PAE-300 needed for wireless pairing to set them into TV mode. Then, press and hold the Wireless Pair Button on those PAE-300 until the GREEN power LED on those PAE-300 is ashing. 3. Second, press and hold the Wireless Pair Button of the Wi-Mic until the GREEN power LEDs on both PAE-300 and Wi-Mic are fast ashing for pairing. 4. The GREEN power LEDs on both Wi-Mic and PAE-300 are lit solid when the pairing succeeds. Note: please follow the above procedures; otherwise, it will result in pairing failure. 5 How Wi-Mic Works • Spokesman can speak to the internal mic on Wi-Mic. The voice of the spokesman will go through the Wi-Mic, and then is transmitted to all PAE-300 which are paired with the Wi-Mic. The PAE-300 users are able to listen to the spokesman’s voice through the PAE-300 headset. • External mic can be used by inserting it into the external mic port on the Wi-Mic. Spokesman can speak to the external mic instead of the internal mic without holding the Wi-Mic all the time. Wi-Mic Wireless PAE-300 6 Reset Wi-Mic When the Wi-Mic cannot be operated in any situation, press the reset button by a small pin object to reset the Wi-Mic. www.vitasound.com [email protected] 1-877-967-0742

Honey Bee (Hong Kong) Ltd. Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: Honey Bee (Hong Kong) Ltd. FCC ID:S9X-HB-1303 FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 we hereby requests permanent confidentiality of the following documents for the subject application: Exhibit TypeDescription ☒SchematicsAll circuitry of devices and component values ☒Block DiagramsDetails of device showing the frequency of all oscillators ☒Operational Description Description of the circuit functions Note: Exhibit types that are commonly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Bill Of Materials, (4) Operational Descriptions. Any exhibit NOTgranted confidentiality is viewable on the FCC website as soon as a grant is issued. These documents contain detailed system and equipment description and related information about the product which we considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, we consider that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours sincerely, Signatory NameDanny Ko PositionManager Company Name Honey Bee (Hong Kong) Ltd. Address Flat L,12/F,Phase 4, Kwun Tong Industrial Centre, 436-446 Kwun Tong Road,Kowloon, Hong Kong Tel / Fax 852-2797-2802/ 852-2793-0358 E-Mail [email protected]

Honey Bee (Hong Kong) Ltd. FCC ID: S9X-HB-1305 Declaration August 6,2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 We, Honey Bee (Hong Kong) Ltd. hereby declared that the USB ports of EUT are only used to supply electrical power and that no data can be transferred through these ports. Best Regards. Danny Ko Manager Honey Bee (Hong Kong) Ltd. August 6,2013

HoneyBee(HongKong)Ltd. FCC ID: S9X-HB-1303 POWER OF ATTORNEY August 20,2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, Honey Bee (Hong Kong) Ltd. hereby authorizeShenzhen Super Test Service Technology Co., Ltd.(Terry Yang/ Manager) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out byShenzhen Super Test Service Technology Co., Ltd.(Terry Yang/ Manager)on our behalf shall have the same effect as acts of our own. This authorization expires onAugust 30, 2013. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Honey Bee (Hong Kong) Ltd. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Danny Ko Manager Honey Bee (Hong Kong) Ltd. August 20,2013

Page 1 of 1 Test Lab Attestation Letter Date of Test:July 26,2013-August 09,2013 Applicant Name:HoneyBee(HongKong)Ltd. FCC Id:S9X-HB-1303 Name of Engineer Performing Test:Zhang Ling/Engineer Statement of Compliance: Most Technology Service Co. Ltd. declares that this Unit has been tested in accordance with the test method identified in this test report and that we observed it being tested. It also declares that the Unit complies with the relevant limits. All instrumentation and accessories used to test this unit for compliance to the indicated test method are calibrated regularly in accordance with ISO 17025:2005 requirements by laboratories accredited by A2LA, NVLAP, or ACLAS for the measurement parameters. The measurements were made at: Most Technology Service Co. Ltd. No.5, Langshan 2nd Rd., North Hi-Tech Industrial Park , Nanshan, Shenzhen, Guangdong ,China Test Lab Witness- Signature of Test Lab Witness: Full Name, Typed:Terry Yang Title of Witness:Manager Email Address:[email protected] Phone No.:0755-27958522 M:\Master Documents\Test Lab_Authorization LetterRev 120703.doc

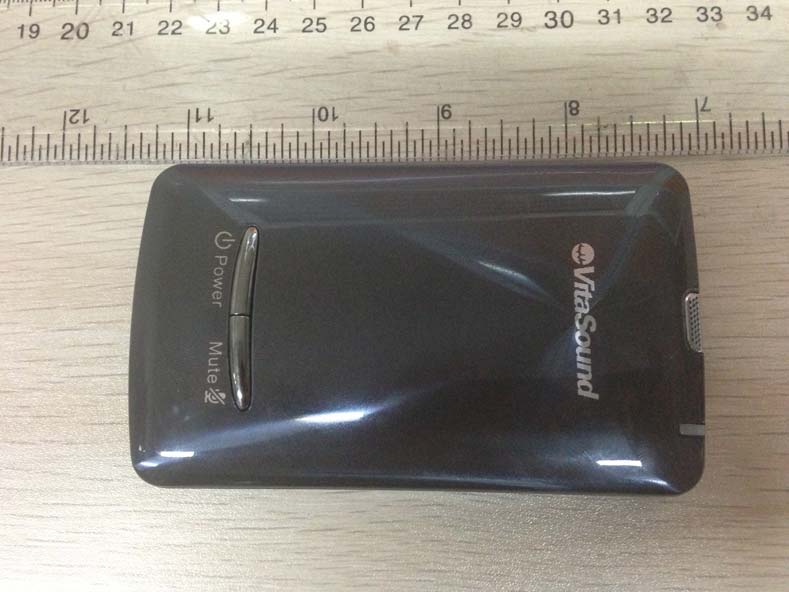

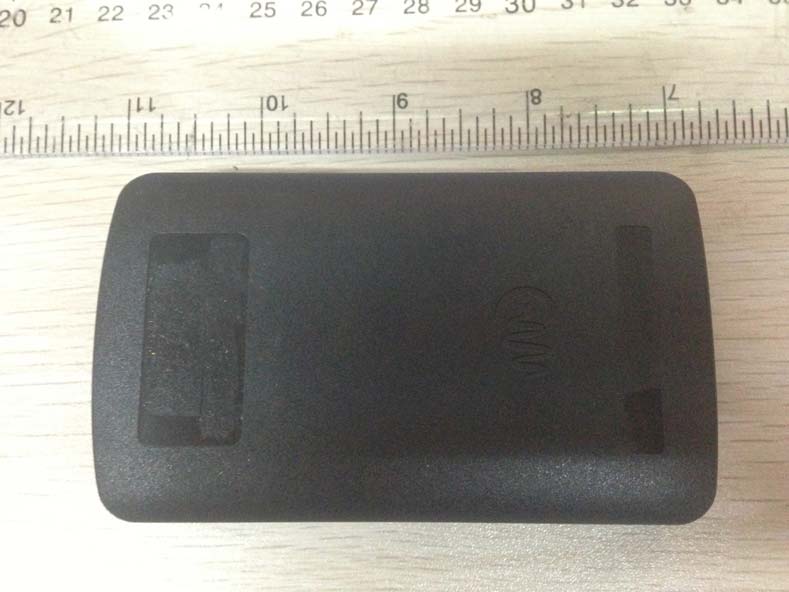

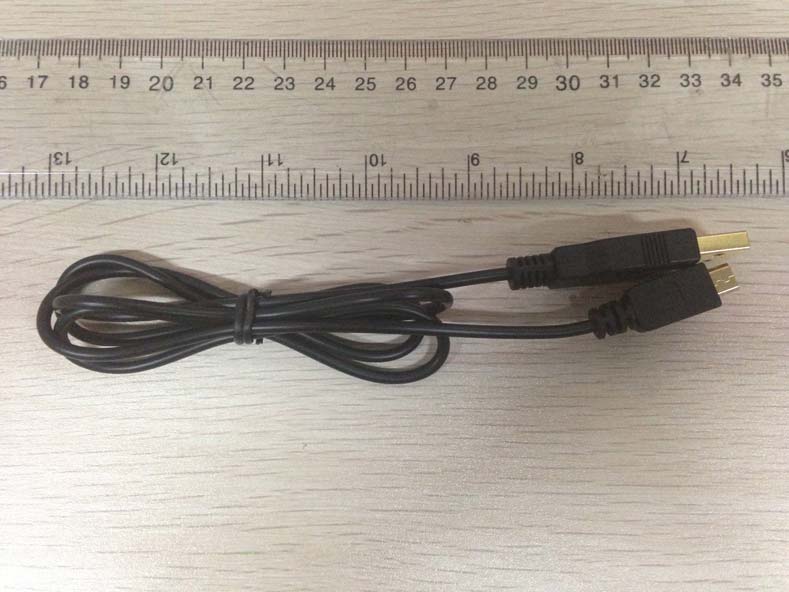

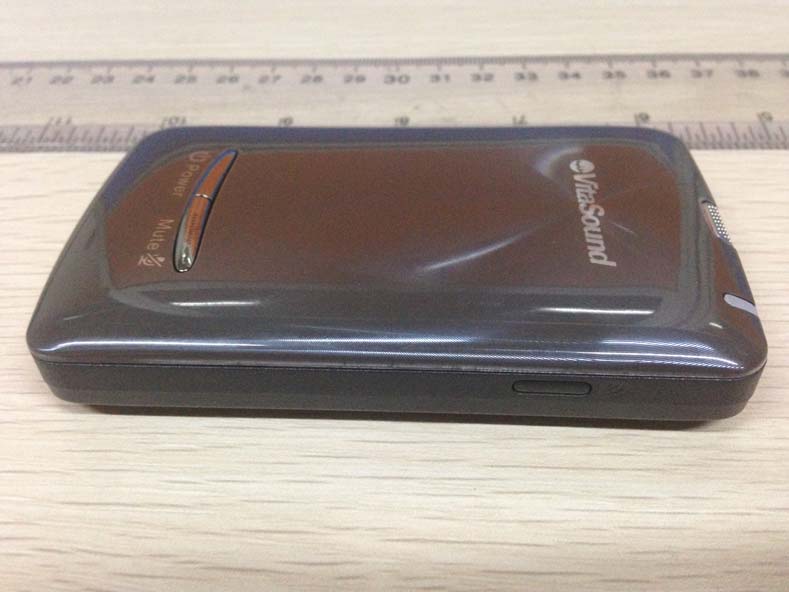

Page 1 of 4 FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE Page 2 of 4 UP VIEW OF SAMPLE DOWN VIEW OF SAMPLE Page 3 of 4 LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE Page 4 of 4 USB Cable Mic

Page 5 of 8 Internal Photo Page 6 of 8 Page 7 of 8 Page 8 of 8

Item Part Number Diagram Color Textures Mold 111 Dark Grey EDM RY 40-50 A3B2 A2B2 Front cover Power Button 2 Bottom Case EDM RY 40-50 A3B2 Bottom Cover pc Dark GreyDark Grey ABS 757 pc 4 ABS 757 HB-1303 Wi-Mic Bill of Material (Plastic) Description 3 ABS 757 A2B2 ABS(Japan 920)/ PET 1 Carbon CD Blue CD Texture 1 汕头经济特区蜜蜂电子有限公司 SHANTOU S.E.Z. HONEY BEE ELECTRONICS CO.LTD pc Material Reference Qty pc 编制 邱一鸣 邱一鸣 批准 姚鸿俊 生效日期 2013.03.20 EM7-95-0A 文件编号 WI04-HB1303-01 A2B2 pc 111 Transparent White Ratio 15g/25kg A2 YS-9298B B2 A2B2 Mic Cover LED Mask Pairing Button Mute Button A2B2 ABS 757ABS 757 pc 6 pc 5 Dark Grey 1 PC 110 pc 表单编码 7 Dark Grey ABS 757 8 Dark Grey 审 核 Item Part Number Reference 1 1pc 2 1pc 3 1pc P3 4 1pc 5 35-0705104003-50 1pc J2 6 38-0342081115-50 2pcs S2 、 S3 7 38-0422011155-50 2pcs S4 ， S1 8 33-202370040-50 1pc VBAT1 9 36-0022400092-50 1pc J4 10 29-0122885201-50 1 pc Y1 11 1 pc M2 12 22-0005102107-50 1 p c U5 MEMS Microphone KT-SM110T42-004 Omni-Directional/-42DB IC MZ5102E L Q FP48 Wires 2pin/L=40mm/26AWG SMD Crystal 12.288 MHZ 20PPM/SMD3225/Load Cap:18PF Micro Switch EVQPQMB55 4.5mm×4.5mm/0.55mm/2.4N Lithium Battery PL655058-2000mAh 3.7V/2000mAh/58mm*50mm*6.5mm MicroUSB USB-926-02B SMD Reel Micro Switch EVQPUCO2K 4.5*6.5*1.75mm/12V50mA/2.2N RF Module MAR20172 V1.0 Antenna D = 3.5mm Main PCB Wireless Mic demo R2.1 FR4/DSS/T=1.6mm/Golded Plated Charger PCB Wireless Mic Charger R1.0 FR4/DSS/T=1.0mm/Golded Plated 汕头经济特区蜜蜂电子有限公司 SHANTOU S.E.Z. HONEY BEE ELECTRONICS CO.LTD HB-1303 Wi-Mic Bill of Material (Electronics) Description Model Specification Qty Remarks p 13 22-0025512102-50 1pc U6 14 19-0073313311-50 3 pcs U3 、 U4 、 U8 15 19-0073311211-50 1 pc U2 16 19-0000032111-50 2 pcs U15 ， U21 17 19-0040545411-50 1 pc U11 18 1 pc U9 19 19-0480535792-50 1 pc U1 20 35-3717514081-50 1pc P2 21 14-7250338811-50 1 pc Q3 22 14-4008050411-50 3pcs Q1 ， Q4 、 Q5 23 25-4000460303-50 1 pc L1 24 16-27030000015-50 1pc D1 25 10-0610033003-50 1pc RP2 26 10-0500003202-50 2pcs R23 ， R24 27 10-0504703403-50 1pc R43 28 10-0533003302-50 2pcs R83 ， R97 29 10-0575003302-50 3pcs R44-R46 30 10-0510013302-50 3 p cs R6 、 R18 、 R42 SMD Resistor 100 Ω SMD 0402 ， +/-5% SMD Resistor 33 Ω SMD 0402 ， +/-5% SMD Resistor 75 Ω SMD 0402 ， +/-5% SMD Resistor 0 Ω SMD 0402 ， +/-5% SMD Resistor 4.7 Ω SMD 0603 ， +/-5% SMD Res-Array 10K Ω CRA034R, ±5 ％ SMD Bead 600 Ω SMD 0603 SMD LED S170USRYG-MTH SMD0805/2x1.2/Red/Blue SMD MOSFET FDN338P SOT-23 SMD 8050 SOT-23 IC AK5357 TSSOP16 3.5mm Socket EJ321S5B0BB0-69R 3.5mm/Stereo Mic/with Switch IC LTC4054LES5-4.2 SOT-23-5 IC MAX9814 14 TDFN IC AP7331-12 SOT-23-5 IC LMV321 SOT23-5 LMV321ILT IC MCF0601(GD25Q512) TX SOP8 IC AP7331-33 SOT-23-5 Q p 31 10-0533011302-50 1pc R63 32 10-0510023202-50 6pcs R11 、 R20 、 R35 、 SMD Resistor 1K Ω SMD 0402 ， +/-5% SMD Resistor 330 Ω SMD 0402 ， +/-1% 33 10-0522021302-50 3pc R28 ， R80 ， R94 34 10-0530021302-50 1pc R64 35 10-0547023202-50 1pc R8 36 10-0556023302-50 1pc R92 37 10-0510033202-50 13 pcs R2~R3 、 R5 、 R7 、 R16 、 R17 、 R19 、 R30-R32 、 R67 、 R68 、 R78 38 10-0556031202-50 7pcs R55 ， R79 ， R81 ， R82 ， R93 ， R95 ， R96 39 10-0510043202-50 3pcs R10 、 R21 、 R29 40 1pc R33 41 12-0318024002-50 3pcs C4 、 C7 、 C12 42 12-0310434002-50 23 pcs C1 、 C3 、 C5 、 C9 、 C11 、 C13~C16 、 C18 、 C20 、 C24 、 C27 、 C31 、 C32 、 C38 、 C40 、 C72 、 C73 、 C75 、 C77 、 C79 、 C85 29 1 pc C36 29 12-0310544003-50 2 pc C39,C8 29 1 pc C42 29 12-0310605003-50 5pcs C2 、 C6 、 C10 、 C21 、 29 12 - 0310604004 - 50 5 pcs C17 、 C19 、 C74 、 C81 、 SMD Capacitor 10uF/6.3V SMD 0603 ， +80%/-20% SMD Capacitor 10uF/6.3V S MD 0805 ， + 80%/ -2 0% SMD Capacitor 1uF SMD 0603 ， +/-20% SMD Capacitor 2.2uF SMD 0603 ， +/-20% SMD Capacitor 0.1uF SMD 0402 ， +/-20% SMD Capacitor 0.47uF SMD 0402 ， +/-20% SMD Resistor 150K Ω SMD 0402 ， +/-5% SMD Capacitor 18pF SMD 0402 ， +/-20% SMD Resistor 56K Ω SMD 0603 ， +/-5% SMD Resistor 100K Ω SMD 0402 ， +/-5% SMD Resistor 5.6K Ω SMD 0402 ， +/-5% SMD Resistor 10K Ω SMD 0402 ， +/-5% SMD Resistor 3K Ω SMD 0402 ， +/-5% SMD Resistor 4.7K Ω SMD 0402 ， +/-5% SMD Resistor 2.2K Ω SMD 0402 ， +/-5% 29 12 0310604004 50 5 pcs 29 12-0347604005-50 5pcs C23 、 C41 、 C44 、 C82 、 编制 陈卫壮 审核 批准 姚鸿俊 生效日期 2013.3.20 EM7-96-1A 文件编号 WI04-HB1303-01 SMD Capacitor 47uF/6.3V SMD 1206 ， +/-20% 表单编码 SMD Capacitor S 0805 ， 80%/ 0% Item Part Number Mold 3 65-0500002400-50 1pc Module Shielded Cover 61-0120120082-50 M2.0×8 / PA / Black pc 22.88mm x14.72mm x2.40mm/T=0..20mm 1 Screws Specification 1 pcs 4 2 Metal Plate T=0.2mm 汕头经济特区蜜蜂电子有限公司 SHANTOU S.E.Z. HONEY BEE ELECTRONICS CO.LTD Description Remarks Qty HB-1303 Wi-Mic Bill of Material (Metal) 编 制 邱一鸣 审 核 批准 姚鸿俊 生效日期 2013.03.20 EM7-129-0A 文件编号 WI04-HB1303-01 表单编码 邱一鸣 Item Part Number 1 1pc 2 66-01000578110-50 4 pcs 3 1pc 4 88-0103000060-50 1pc 汕头经济特区蜜蜂电子有限公司 SHANTOU S.E.Z. HONEY BEE ELECTRONICS CO.LTD Description Model Specification Qty Remark HB-1303 Wi-Mic Bill of Material (Others) Function Keys EVA HB-1303 Silicon Black EVA HB-1101 16mm×5mm×3mm / Black Double-Sided Tape HB-1303 3M 9448 / 90mm x 58mm 产品表面保护贴 HB-1101 105mm x 65mm Material : 1010A 编制 邱一鸣 审 核 批准 姚鸿俊 生效日期 2013.03.20 表单编号 文件编号 EM7-97-0A WI04-HB1303-01

FCC ID: S9 X-HB-1303 Page1 GENERAL INFORMATION 1.1 Product Information ProductVitaSound Wi-Mic Applicant Company Honey Bee (Hong Kong) Ltd. Applicant Address Flat L,12/F,Phase 4, Kwun Tong Industrial Centre, 436-446 Kwun Tong Road,Kowloon, Hong Kong Manufacturer CompanyShantou S.E.Z. Honey Bee Electronics Co., Ltd. Manufacturer Address 5/F, Blk 3, Zhu Hua Industrial Zone, Li Shui Zhuang, Zhong Qu, Long Hu Qu, Shantou City, Guangdong Province, China Brand NameVitaSound Model Number HB-1303 Frequency Range 2403MHz -2477MHz Modulation Technique GFSK Channel Spacing:1MHz Channel Number74(CH Low: 2403MHz, CH Mid: 2440MHz, CH High: 2477MHz) Antenna Type:0.0 dBi, PCB Antenna Power SupplyDC 3.7V by battery (charged by DC 5V form Adapter) NOTE: 1. For a more detailed features description about the EUT, please refer to User’s Manual.

FCC ID: S9 X-HB-1303 Report No.:STS130708F1A Page 1 of 7 SAR Evaluation REPORT For Applicant : Honey Bee (Hong Kong) Ltd. Address : Flat L,12/F,Phase 4, Kwun Tong Industrial Centre, 436-446 Kwu n Tong Road,Kowloon, Hong Kong Product Name : VitaSound Wi-Mic Model Name : HB-1303 Brand Name : VitaSound FCC ID : S9X-HB-1303 Report No. : STS130708F1A Date of Issue : August 9,2013 Issued by : Shenzhen Super Test Service Technology Co., Ltd. Address : No.5, Langshan 2nd Rd., North Hi-Tech Industrial park, Nanshan, Shenzhen, Guangdong, China Tel : 86-755-27958522 Fax : 86-755-27958022 The report consists 7 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by STS. The test results in the report only apply to the tested sample. The test report shall be invalid without all thesignatures of testing engineers, reviewer and approver. FCC ID: S9 X-HB-1303 Report No.:STS130708F1A Page 2 of 7 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................................................................ 2 2. GENERAL INFORMATION ........................................................................................................................................................................... 4 2.1 Product Information .................................................................................................................................................................................. 4 3. TEST FACILITY .............................................................................................................................................................................................. 5 3.1 TEST FACILITY............................................................................................................................................................................................5 4. SAR Evaluation..............................................................................................................................................................................................6 4.1 RF Exposure Compliance Requirement...................................................................................................................................................6 4.1.1 Standard Requirement.............................................................................................................................................................................6 15.247 b(4) requirement: ................................................................................................................................................................................... 6 4.1.2 Limits .......................................................................................................................................................................................................... 6 4.1.3 EUT RF Exposure ..................................................................................................................................................................................... 6 FCC ID: S9 X-HB-1303 Report No.:STS130708F1A Page 3 of 7 1. VERIFICATION OF CONFORMITY Equipment Under Test: VitaSound Wi-Mic Brand Name: VitaSound Model Number: HB-1303 Series Model Name:N/A Difference description:N/A FCC ID: S9X-HB-1303 Applicant: Honey Bee (Hong Kong) Ltd. Flat L,12/F,Phase 4, Kwun Tong Industrial Centre, 436-446 Kwun Tong Road,Kowloon, Hong Kong Manufacturer:Shantou S.E.Z. Honey Bee Electronics Co., Ltd. 5/F, Blk 3, Zhu Hua Industrial Zone, Li Shui Zhuang, Zhong Qu, Long Hu Qu, Shantou City, Guangdong Province, China Technical Standards: 47 CFR Part 1.1307(2011) 47 CFR Part 2.1093(2011) KDB447498D01 General RF Exposure Guidance v05 File Number:STS130708F1A Date of test:July 23,2013~ August 9, 2013 Deviation:None Condition of Test Sample:Normal Test Result:PASS The above equipment was tested bySTSfor compliance with the requirements set forth in FCC rules and the Technical Standards mentioned above. This said equipment inthe configuration described in this report shows the maximum emission levels emanating from equipment and the level of the immunity endurance of the equipment are within the compliance requirements. The test results of this report relate only to the tested sample identified in this report. Tested by (+ signature): Zhang LingAugust 9, 2013 Review by (+ signature): July WenAugust 9, 2013 Approved by (+ signature): Terry YangAugust 9, 2013 FCC ID: S9 X-HB-1303 Report No.:STS130708F1A Page 4 of 7 2. GENERAL INFORMATION 2.1 Product Information ProductVitaSound Wi-Mic Applicant Company Honey Bee (Hong Kong) Ltd. Applicant Address Flat L,12/F,Phase 4, Kwun Tong Industrial Centre, 436-446 Kwun Tong Road,Kowloon, Hong Kong Manufacturer CompanyShantou S.E.Z. Honey Bee Electronics Co., Ltd. Manufacturer Address 5/F, Blk 3, Zhu Hua Industrial Zone, Li Shui Zhuang, Zhong Qu, Long Hu Qu, Shantou City, Guangdong Province, China Brand NameVitaSound Model Number HB-1303 Frequency Range 2403MHz -2477MHz Modulation Technique GFSK Channel Number16(CH Low: 2403MHz, CH Mid: 2440MHz, CH High: 2477MHz) Antenna Type:0.0 dBi, PCB Antenna Power SupplyDC 3.7V by battery (charged by DC 5V form Adapter) NOTE: 1. For a more detailed features descriptionabout the EUT, please refer to User’s Manual. FCC ID: S9 X-HB-1303 Report No.:STS130708F1A Page 5 of 7 3. TEST FACILITY 3.1 TEST FACILITY Test Site: Most Technology Service Co., Ltd. Location: No.5, Langshan 2nd Rd, North Hi-Tech Industrial park, Nanshan, Shenzhen, Guangdong, China Description:There is one 3m semi-anechoic an area test sites and two line conducted labs for final test. The Open Area Test Sites and the Line Conducted labs are constructed and c…

Text truncated - open the document above for the full version.

FCC ID: S9 X-HB-1303 Report No.:STS130708F1 Page 1 of 43 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Applicant : Honey Bee (Hong Kong) Ltd. Address : Flat L,12/F,Phase 4, Kwun Tong Industrial Centre, 436-446 Kwu n Tong Road,Kowloon, Hong Kong Product Name : VitaSound Wi-Mic Model Name : HB-1303 Brand Name : VitaSound FCC ID : S9X-HB-1303 Report No. : STS130708F1 Date of Issue : August 19,2013 Issued by : Shenzhen Super Test Service Technology Co., Ltd. Address : No.5, Langshan 2nd Rd., North Hi-Tech Industrial park, Nanshan, Shenzhen, Guangdong, China Tel : 86-755-27958522 Fax : 86-755-27958022 The report consists 43 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by STS. The test results in the report only apply to the tested sample. The test report shall be invalid without all thesignatures of testing engineers, reviewer and approver. FCC ID: S9 X-HB-1303 Report No.:STS130708F1 Page 2 of 43 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY.............................................................................................................................3 2. GENERAL INFORMATION............................................................................................................................................5 3. TEST FACILITY...............................................................................................................................................................7 4. SETUP OF TEST EQUIPMENT LIST..........................................................................................................................9 5. 47 CFR Part 15 C 15.247 Requirements...................................................................................................................11 5.1 20dB Bandwidth........................................................................................................................................................11 5.1.1Definition........................................................................................................................................................11 5.1.2 Test Description........................................................................................................................................................11 5.1.3Test Result........................................................................................................................................................11 5.2 Peak Output Power...................................................................................................................................................14 5.2.1Definition........................................................................................................................................................14 5.2.2 Test Description........................................................................................................................................................14 5.2.3Test Result........................................................................................................................................................14 5.3Conducted Spurious Emission...................................................................................................................................16 5.3.1Definition........................................................................................................................................................16 5.3.2 Test Description........................................................................................................................................................16 5.3.3Test Result........................................................................................................................................................16 5.4Band Edge........................................................................................................................................................19 5.4.1Definition........................................................................................................................................................19 5.4.2 Test Description........................................................................................................................................................19 5.4.3Test Result........................................................................................................................................................20 5.5 Number of Hopping Frequency................................................................................................................................25 5.5.1Definition........................................................................................................................................................25 5.5.2 Test Description........................................................................................................................................................25 5.5.3Test Result........................................................................................................................................................25 5.6 Carried Frequency Separation..................................................................................................................................26 5.6.1 Definition...................................................................................................................................................................26 5.6.2 Test Description.......................................................................................................................................................26 5.6.3 Test Result...................................................................................................…

Text truncated - open the document above for the full version.

FCC ID: S9 X-HB-1303 Page1 CONDUCTED TEST SETUP RE TEST SETUP FCC ID: S9 X-HB-1303 Page2 CE TEST SETUP
