S9X-PAE-300Personal Audio Enhancer Base Unit

Personal Audio Enhancer PAE-300 User Manual THIS INSTRUCTION MANUAL HIGHLIGHTS KEY INFORMATION ABOUT SAFETY, OPERATION AND MAINTENANCE OF THE PERSONAL AUDIO ENHANCER. PLEASE READ THROUGH THIS MANUAL IN ITS ENTIRETY BEFORE STARTING TO USE THE PRODUCT. IT PROVIDES VALUABLE INFORMATION FOR HOW TO UTILIZE AND MAINTAIN THE PRODUCT AND FOR HOW TO PROTECT USER’S SAFETY DURING OPERATION. PLEASE CAREFULLY FOLLOW THE INSTRUCTIONS OUTLINED IN THIS MANUAL. Note : • This product is not a hearing instrument. Anyone who is experiencing hearing loss is recommended to consult with a doctor. • This product will not restore normal hearing nor reduce hearing loss. • This product has a sound amplifying function and the sound level can cause discomfort or damage hearing if the product is used improperly. Always turn the volume down to a low level before putting on the headset. • To ensure child safety, please keep the package and small parts included in this product out of reach of children. IMPORTANT PRODUCT SAFETY AND OPERATION INSTRUCTIONS IMPORTANT PRODUCT SAFETY AND OPERATION INSTRUCTIONS Operating Your Personal Audio Enhancer • Do not drop, disassemble, burn, paint or insert foreign objects into this product. • Do not use this product if it has been cracked, punctured or damaged by water. Cleaning the Surface of Your Personal Audio Enhancer • Disconnect all power cables and turn o the system before cleaning this product. • Use a soft slightly damp, lint-free cloth to clean this product. • Do not use window cleaners, household cleaners, aerosol sprayers, solvents, alcohol, ammonia, or abrasives to clean this product. Charging • This product use re-chargeable Lithium-ion battery. • This product must be fully charged before the rst use. • Only the Base Unit or Micro-USB charger provided with this product should be used for charging. • The battery must be replaced by qualied personnel. • It may cause explosion if the battery is replaced improperly. • Battery charging should be performed at the temperature of 5 °C (41°F) to 40 °C (104°F). Charger • If some trouble occurs while using the charger, immediately shut o the power by disconnecting the plug from the wall outlet. • To reduce the risk of fire or electric shock, avoid wetting, exposing under water, or placing containers with water on the product. • To completely disconnect the power, unplug the charger from the AC power source. • The rating of the charger is shown on the back of the charger. Maintenance • This product should be repaired by VitaSound authorized dealers, or service center sta only. • Unauthorized persons should not attempt to repair or modify this product. • Any attempted disassembly or repair of the product by a user or unauthorized party will void the product warranty and may irreparably damage the product. Avoid Water or Direct Heat • Do not expose the product into water or under rain. • Do not expose under a temperature over 60 ̊C (140°F) such as directly under sunlight or in a car parked under sunlight. • Do not burn, throw into re, or heat by microwave. Table of contents Introduction VitaSound Personal Audio Enhancer 1 Getting started Checking the accessories supplied 2 Identifying parts 3-4 Installation of Base Unit to television 5-6 Charging Personal Audio Enhancer 7-8 Wireless pair with Base Unit 9-11 Using The Personal Audio Enhancer Power-on 12 Power-o 12 General Operation 13 Select Function Mode 14-17 Select EQ Mode 18 Adjust Volume 19 Low Battery 19 Reset The Personal Audio Enhancer 20 Other Troubleshooting 21-24 Technical specication 25 Introduction Thank you for choosing the Personal Audio Enhancer by VitaSound Audio Inc. This is a multi-functional communication device which delivers high-definition sound for everyday listening situations. Powered by patented neural-based technology, the Personal Audio Enhancer allows users to benefit from improved sound quality where background noise or low volume levels make listening and communication difficult. 1 ® POWERED BY: Using leading-edge brain science, patented Neuro-Compensator technology enforces an optimal electrical signal from the root of the auditory nerve to the brain. Improving the listening experience by delivering a clear and natural sound. ® Personal Audio Enhancer Standard package (Including Base Unit) Personal Audio Enhancer x 1 Headset with microphone x 1 Stereo cable x 1 (For connecting with cell phone or MP3 player) Neck loop x 1 Bag case for headset x 1 Base Unit x 1 A/C adaptor x 1 Analog (RCA) audio cable, 2 meters x 1 Optical audio cable x 1 Coaxial audio cable x 1 User Manual (this manual) x 1 Warranty Card x 1 Other accessory (Optional): Micro-USB Charger for travel Bag case Travel Case Visit www.vitasound.com for more information. 2 Getting started Checking the accessories supplied 3 1. Power button 2. Hook for neck loop 3. Headset port (Connect to headset) 4. Power indicator:  Red:  Solid Red: System is on  O: System is o  Blinking Red: Low battery: Device needs charging.  During Charging: 1. Solid Red: Charging 2. O: Charging completed  Green:  Solid Green: Device is paired successfully with the Base Unit.  Blinking Green:  Connection problem occurring, please re-pairing the device with the Base Unit.  After pressing wireless pairing button: Under pairing process with Base Unit. (Refer to “Wireless Pair with Base Unit” on P.9) 5. EQ mode indicator  1- Normal  2/3/4 - High pitch frequency boost 6. EQ mode button 7. Wireless pair button 8. Function mode indicator 9. Function mode buttons  TV Mode  Talk Mode  Phone Mode  Relaxation Mode 10. Volume level indicator 11. Reset button 12. Stereo port (For connecting with cell phone or MP3 player) 13. Charging port for Base Unit 14. Micro-USB charger port 15. Volume buttons  Volume up  Volume down 16. Lock switch：  Lock mode： All buttons will not be taken effect while being pressed (except power button)  Unlock Mode: All buttons can be taken effect when pressed. Personal Audio Enha…

Text truncated - open the document above for the full version.

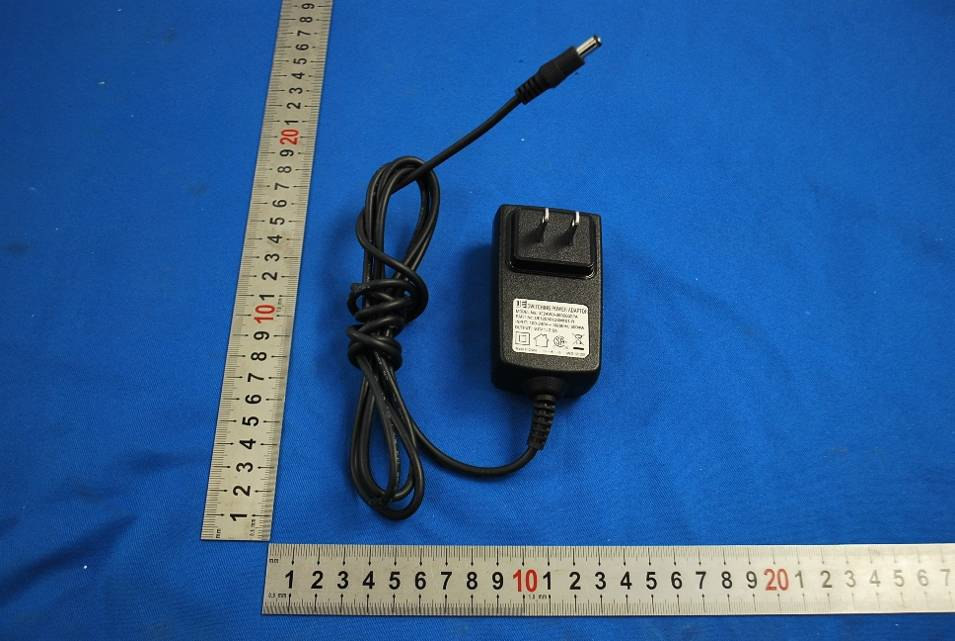

1 Photographs - EUT Constructional Details (Test Model No.: HB-1202) Adapter

Made in China www.vitasound.com VitaSound Audio Inc. FCC ID: S9X-PAE-300 Model: HB-1202

1 Photographs - EUT Constructional Details (Test Model No.: HB-1202) Adapter

Honey Bee (Hong Kong) Ltd. Tune up procedure The output power setting of EUT is set in the factory and followed the max level in below. There is no tune up procedure except factory default setting. GFSK: 3dBm (-2.5~+1.5)dB

SGS-CSTC Standards Technical Services Co., Ltd. No. 1 W orkshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM130100044502 Page: 1 of 5 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page SAR Evaluation Report Application No.: SZEM1301000445RF Applicant: Honey Bee (Hong Kong) Ltd. Manufacturer: Honey Bee (Hong Kong) Ltd. Factory: Shantou S.E.Z. Honey Bee Electronics Co., Ltd. Product Name: Personal Audio Enhancer Base Unit Model No.(EUT): HB-1202 FCC ID: S9X-PAE-300 Standards: 47 CFR Part 1.1307(2011) 47 CFR Part 2.1093 (2011) KDB447498D01 General RF Exposure Guidance v05 Date of Receipt: 2013-01-25 Date of Test: 2013-02-04 to 2013-02-21 Date of Issue: 2013-04-14 Test Result : PASS* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM130100044502 Page: 2 of 5 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Contents Page 1 COVER PAGE .....................................................................................................................................................1 2 CONTENTS ..........................................................................................................................................................2 3 GENERAL INFORMATION ................................................................................................................................3 3.1 CLIENT INFORMATION .........................................................................................................................................3 3.2 GENERAL DESCRIPTION OF EUT ..........................................................................................................................3 3.3 TEST LOCATION ..................................................................................................................................................3 3.4 TEST FACILITY ...................................................................................................................................................4 3.5 DEVIATION FROM STANDARDS ............................................................................................................................4 3.6 ABNORMALITIES FROM STANDARD CONDITIONS ..................................................................................................4 3.7 OTHER INFORMATION REQUESTED BY THE CUSTOMER .........................................................................................4 4 SAR EVALUATION .........................................................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Ltd. No. 1 Workshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM130100044501 Page: 1 of 45 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page FCC REPORT Application No.: SZEM1301000445RF Applicant: Honey Bee (Hong Kong) Ltd. Manufacturer: Honey Bee (Hong Kong) Ltd. Factory: Shantou S.E.Z. Honey Bee Electronics Co., Ltd. Product Name: Personal Audio Enhancer Base Unit Model No.(EUT): HB-1202 FCC ID: S9X-PAE-300 Standards: 47 CFR Part 15, Subpart C (2011) Date of Receipt: 2013-01-25 Date of Test: 2013-02-04 to 2013-02-21 Date of Issue: 2013-03-08 Test Result: PASS * . * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM130100044501 Page: 2 of 45 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Test Summary Test Item Test Requirement Test method Result Antenna Requirement 47 CFR Part 15, Subpart C Section 15.203/15.247 (c) ANSI C63.10 2009 PASS AC Power Line Conducted Emission 47 CFR Part 15, Subpart C Section 15.207 ANSI C63.10 2009 PASS Conducted Peak Output Power 47 CFR Part 15, Subpart C Section 15.247 (b)(3) KDB558074 D01 PASS 6dB Occupied Bandwidth 47 CFR Part 15, Subpart C Section 15.247 (a)(2) KDB558074 D01 PASS Power Spectral Density 47 CFR Part 15, Subpart C Section 15.247 (e) KDB558074 D01 PASS Band-edge for RF Conducted Emissions 47 CFR Part 15, Subpart C Section 15.247(d) KDB558074 D01 PASS RF Conducted Spurious Emissions 47 CFR Part 15, Subpart C Section 15.247(d) KDB558074 D01 PASS Radiated Spurious Emissions 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 2009 PASS Band Edge (Radiated Emission) 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 2009 PASS SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM130100044501 Page: 3 of 45 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercisi…

Text truncated - open the document above for the full version.

1 Photographs- EUT Test Setup (Test Model No.: HB-1202) 1.1 Radiated Spurious Emission Test Setup 1.2 Conducted Emission
