S9X-HB-1305PAE BLUETOOTH DONGLE

Identifying the part 1 2 3 4 5 1. Power / Pairing Button 2. LED Indicator (Blue / Red) 3. Charging port 4. Micro-USB plug (No function) 5. Stereo plug Pairing with cell phone 1. Make sure that the PAE Bluetooth Dongle is powered off first. 3. Only release the Power/Pairing button when the LED is in Red/Blue alternate flashing. Note: Note: The LED lights up and ashes in Blue before the Red/Blue alternate ashing, so please DO NOT release the Power/Pairing Button in this status during pairing process until the Red/Blue alternate ashing occurs. Connecting with PAE-300 Plug the Stereo plug and the Micro-USB plug on the PAE Bluetooth Dongle all the way into the Stereo port and Micro-USB charger port on the PAE-300 respectively. Red Blue 2. Press and hold the Power/Pairing Button for approximate 8 seconds until the LED flashes in Red and Blue alternately. This means the PAE Bluetooth Dongle is searching a device to pair. 1. Power On When the PAE Bluetooth Dongle is off, press and hold the Power/Pairing Button until Blue LED lights up and flash (approximate 5 seconds). 5sec. 2. Power Off When the PAE Bluetooth Dongle is on, press and hold the Power/Pairing Button until Red LED is on (approximate 5 seconds) and then off. 5sec. Basic operation Bluetooth Dongle User Manual Personal Audio Enhancer PAE-300 4. From the cell phone setting menu, seek a Bluetooth device in pairing mode. Once “PAE Bluetooth Dongle” name is displayed, select it. 5. If password is required by the cell phone, enter “0000” for the password. 6. Once the pairing succeeds, the LED will flash in Blue in every 8 seconds. Blue 8sec. Battery charge 1 2 3 1. Plug a micro-USB cable (Optional) into the charging port on the PAE Bluetooth Dongle. 2. Connect the other side of micro-USB cable with a charger adaptor (Optional) with the output of 5V==1A (or 1000 mA) 3. Plug the charger adaptor into the wall socket to start charging. LED Indicator Status - Operation Flash in Blue in every 2 seconds: No connection with any device. Blue 2sec. Flash in Blue in every 8 seconds: Connected with a device successfully. Blue 8sec. Red Blue Red / Blue alternate flashing: PAE Bluetooth Dongle In pairing mode. No light up: PAE Bluetooth Dongle is powered off. Solid Red: Charging Red Solid Blue: Charging completed Blue LED Indicator Status - Charging Low Battery • The LED Indicator will flash in Red when battery level is low. Please turn off and charge immediately. • A short Beep sound will be generated through the headset while battery level is low. Using PAE Bluetooth Dongle to make or receive a call 1. Make sure the PAE-300 is in Phone Mode before using the PAE Bluetooth Dongle to make or receive a call (Press and release the Phone Mode button on the PAE-300.) 2. To make a call, dial a phone number on your cell phone. You will hear ringing tone on the PAE-300 headset when your cell phone is calling. 3. To receive a call, press and release the Power/Pairing Button on the PAE Bluetooth Dongle (or press the relevant button on your cell phone directly.) 4. To hang up the call, press and release the Power/Pairing Button to finish the call (or press the relevant button on your cell phone directly.) Red Certication and Compliance FCC Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - - - - - Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.

Honey Bee (Hong Kong) Ltd. Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: Honey Bee (Hong Kong) Ltd. FCC ID:S9X-HB-1305 FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 we hereby requests permanent confidentiality of the following documents for the subject application: Exhibit TypeDescription ☒SchematicsAll circuitry of devices and component values ☒Block DiagramsDetails of device showing the frequency of all oscillators ☒Operational Description Description of the circuit functions ☒PCB LayoutDescription of the PCB Note: Exhibit types that are commonly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Bill Of Materials, (4) Operational Descriptions. Any exhibit NOTgranted confidentiality is viewable on the FCC website as soon as a grant is issued. These documents contain detailed system and equipment description and related information about the product which we considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, we consider that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours sincerely, Signatory NameDanny Ko PositionManager Company Name Honey Bee (Hong Kong) Ltd. Address Flat L,12/F,Phase 4, Kwun Tong Industrial Centre, 436-446 Kwun Tong Road,Kowloon, Hong Kong Tel / Fax 852-2797-2802/ 852-2793-0358 E-Mail [email protected]

Honey Bee (Hong Kong) Ltd. FCC ID: S9X-HB-1305 Declaration August 6,2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 We, Honey Bee (Hong Kong) Ltd. hereby declared that the USB ports of EUT are only used to supply electrical power and that no data can be transferred through these ports. Best Regards. Danny Ko Manager Honey Bee (Hong Kong) Ltd. August 6,2013

Page 1 of 1 Test Lab Attestation Letter Date of Test:July 26,2013-August 06,2013 Applicant Name:HoneyBee(HongKong)Ltd. FCC Id:S9X-HB-1305 Name of Engineer Performing Test:Zhang Ling/Engineer Statement of Compliance: Most Technology Service Co. Ltd. declares that this Unit has been tested in accordance with the test method identified in this test report and that we observed it being tested. It also declares that the Unit complies with the relevant limits. All instrumentation and accessories used to test this unit for compliance to the indicated test method are calibrated regularly in accordance with ISO 17025:2005 requirements by laboratories accredited by A2LA, NVLAP, or ACLAS for the measurement parameters. The measurements were made at: Most Technology Service Co. Ltd. No.5, Langshan 2nd Rd., North Hi-Tech Industrial Park , Nanshan, Shenzhen, Guangdong ,China Test Lab Witness- Signature of Test Lab Witness: Full Name, Typed:Terry Yang Title of Witness:Manager Email Address:[email protected] Phone No.:0755-27958522 M:\Master Documents\Test Lab_Authorization LetterRev 120703.doc

HoneyBee(HongKong)Ltd. FCC ID: S9X-HB-1305 POWER OF ATTORNEY August 6,2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, Honey Bee (Hong Kong) Ltd. hereby authorizeShenzhen Super Test Service Technology Co., Ltd.(Terry Yang/ Manager) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out byShenzhen Super Test Service Technology Co., Ltd.(Terry Yang/ Manager)on our behalf shall have the same effect as acts of our own. This authorization expires onAugust 30, 2013. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Honey Bee (Hong Kong) Ltd. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Danny Ko Manager Honey Bee (Hong Kong) Ltd. August 6,2013

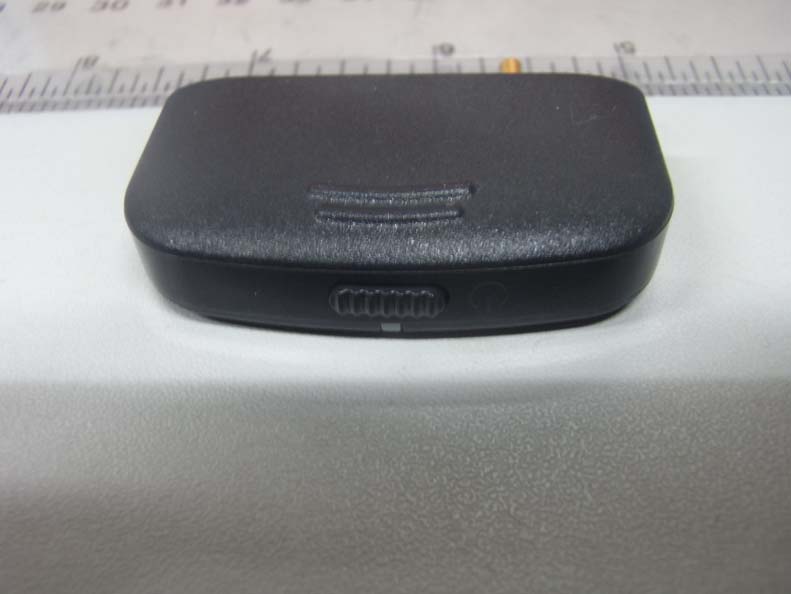

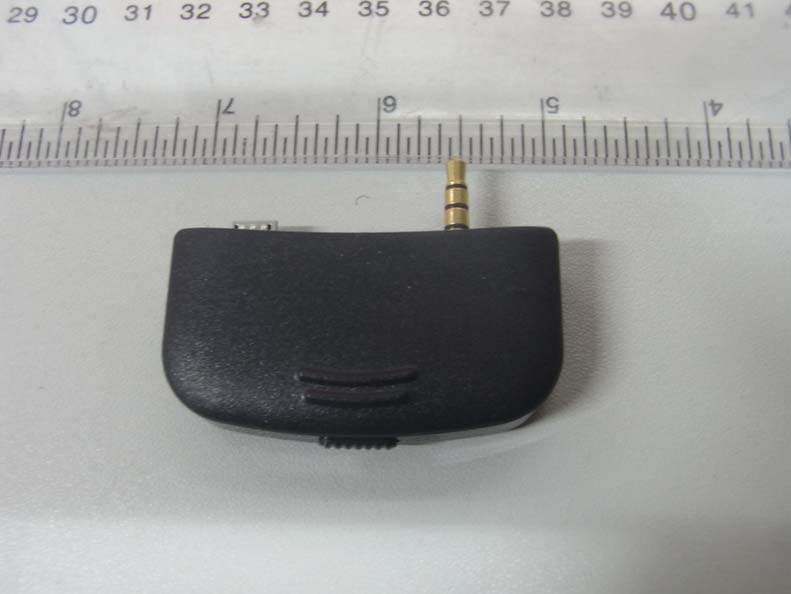

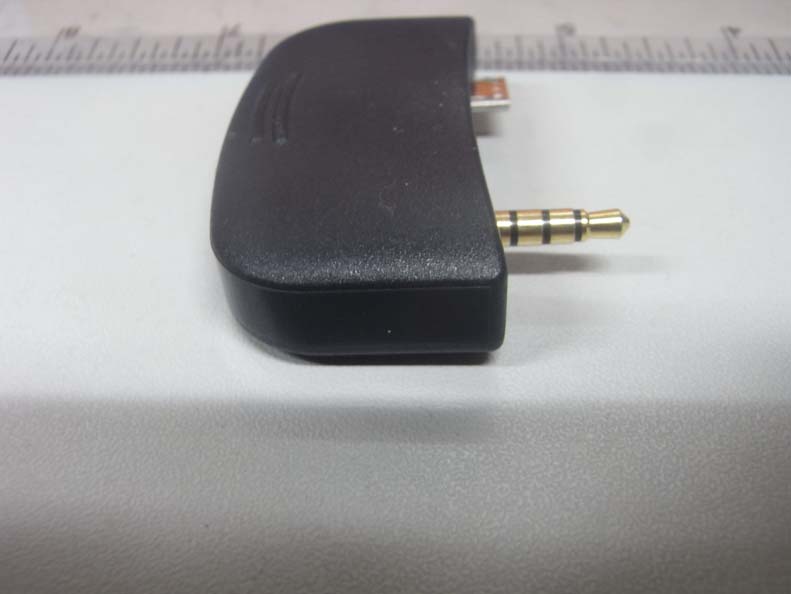

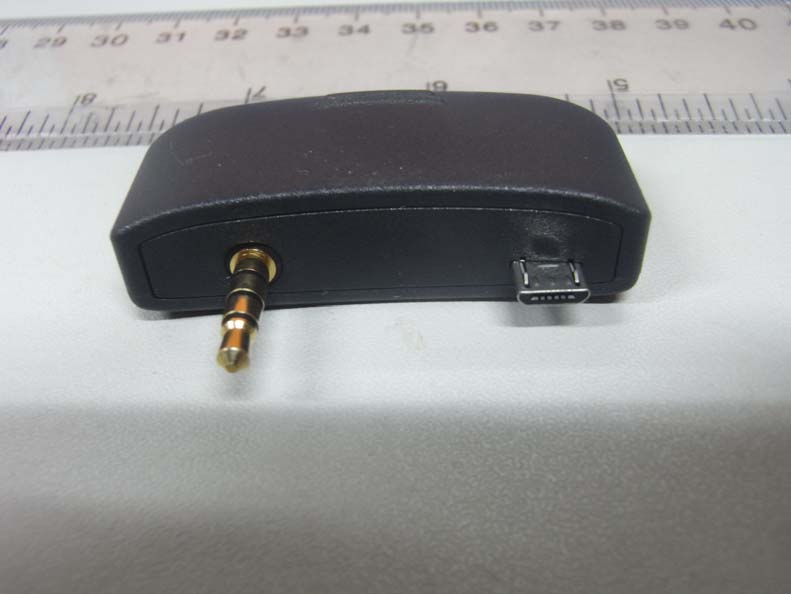

FCC ID: S9X-HB-1305Report No.: STS130709F1 Page1 FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE FCC ID: S9X-HB-1305Report No.: STS130709F1 Page 2 LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE FCC ID: S9X-HB-1305Report No.: STS130709F1 Page 3 TOP VIEW OF SAMPLE BOTTOM VIEW OF SAMPLE

FCC ID: S9X-HB-1305 Page 1 INTERNAL PHOTO OF SAMPLE – 1 INTERNAL PHOTO OF SAMPLE – 2 FCC ID: S9X-HB-1305Report No.: STS130709F1 Page 2 INTERNAL PHOTO OF SAMPLE –3

Item Part Number Diagram Colour Texture Mould ID Dark Grey EDM RY 40-50 B2 pc 3 (HB-1305 Bluetooth dongle) Bill of Materials (Plasti cs) 1 Description 2 Base Cover EDM RY 40-50 A3B2 ABS 757 1 EDM RY 40-50 A3B2 ABS 757 1 ABS 757 pc Dark Grey 1 50-010063000-00 Top Cover Front Cover 50-0100631000-00 汕头经济特区蜜蜂电子有限公司 SHANTOU S.E.Z. HONEY BEE ELECTRONICS CO.LTD pc Material Remarks Qty 50-010062900-00 Dark Grey HB-1305-01 HB-1305-02HB-1305-03 编制 邱一鸣 邱一鸣 批准 姚鸿俊 生效日期 2013.07.15 EM7-95-0A 文件编号 WI04-HB1305-01 Key LED Mask 46 HB-1305-04 50-0100632000-0050-0200050000-00 Transparent White 15g/25kg A2 1 Dark Grey A3B2 1 ABS 757 PC 110 pc pc 表单编码 587 审 核 HB-1305-03 Item Part Number Reference 1 39-0016912494-50 1 pc 2 38-0342081115-50 1 pc SW1 3 33-2141370840-50 1 pc J1 4 35-0705104003-50 1pc USB 5 35-0903073112-50 1 pc J2 6 35-1105153201-50 1 pc 16-5823501205-50 8 29-0160006201-50 1 pc XT1 9 21-0061300073-50 1 pc U1 10 19 - 0000600111 - 50 1 pc U20 7 SMD LED bi-color HL-30-20SURSUBC-S530/TR8 1 pc LD1 M4L-3010QBDSURKC-F S150RB21-MTL 16-5823401205-50 Red/Blue Right-angledRed/Blue Right-angled Main PCB HB-1305 R1.2 T=0.8mm/FR4/4 Layers 44mm×19mm Micro Switch EVQPUCO2K 4.5*6.5*1.75mm/12V50mA/2.2N 汕头经济特区蜜蜂电子有限公司 SHANTOU S.E.Z. HONEY BEE ELECTRONICS CO.LTD (HB-1305 Bluetooth dongle) Bill of Materials (Electr onics) Description Model Specification Qty Remarks 3.5mm Jack ECD-1-1241 4 Segments/3.5mm/Gold plated Micro USB Plug ECD-5-0071 Stand Micro B USB Lithium Battery PL402023-120mAh 120mAh/3.7V/25.5mm×20.2mm×4mm Micro USB USB-926-02B IC BC6130A04-IQQB-R QFN48 IC MCP6001T SOT23 - 5 SMD Crystal 16MHz 5PPM/SMD3225/Load Cap. 9pF 10 19 0000600111 50 1 pc U20 11 23-3100243202-50 1 pc U3 12 19-0720120996-50 1 pc U2 13 25-4390301002-50 1 pc L103 14 25-4470301002-50 1 pc L101 15 25-4820301002-50 1 pc L102 16 25-0151301002-50 2 pcs L1 、 L3 17 25-0222271006-50 1 pc L2 18 14-1245501700-50 1 pc D1 19 14-4008050411-50 1 pc Q2 20 10-0500003202-50 1 pc R999 21 10-0502203202-50 2 pcs R1、R19 22 10-0502203203-50 1 pc R21 23 10-0551013202-50 1 pc R3 24 10-0582013202-50 1 pc R2 25 10-0510023202-50 1 pc R5 26 10-0522023202-50 4 pcs R4、R6、R7、R8 27 10-0522043002-50 1 pc R12 IC MCP6001T SOT23 5 SMD Inductor 3.9nH SMD0402/CH100505-3N9-G SMD Inductor 4.7nH SMD0402/CH100505-4N7-G IC M24C32 TSSOP8 RF Filter BPB2012090A1T 2mm×1.25mm×0.95mm SMD Inductor 22uH SMD0806,±10% wired SMD Diode ESD5Z5.0T1 SOD-523 SMD Inductor 8.2nH SMD0402/CH100505-8N2-G SMD Inductor 15nH SMD0402/CH100505-15N-G SMD Resistor 2.2 Ω SMD0402 ±5% SMD Resistor 2.2 Ω SMD0603 ±5% SMD Transitor KTC8050-D SOT-23 SMD Resistor 0 Ω SMD0402 ±5% SMD Resistor 510 Ω SMD0402 ±5% SMD Resistor 820 Ω SMD0402 ±5% SMD Resistor 1K SMD0402 ±5% SMD Resistor 2.2K SMD0402 ±5% SMD Resistor 220K SMD0402 ±5% 汕头经济特区蜜蜂电子有限公司 SHANTOU S.E.Z. HONEY BEE ELECTRONICS CO.LTD (HB-1305 Bluetooth dongle) Bill of Materials (Electr onics) 28 10-0530021302-50 2 pcs R14 、 R16 29 10-0510033202-50 5 pcs R9 、 R13 、 R15 、 R17 、 R18 30 10-0510043202-50 2 pcs R10 、 R11 32 10-0510053302-50 1 pc R20 33 12-0550044002-50 1 pc C101 34 12-0570044002-50 1 pc C10 35 12-0315024002-50 4 pcs C1 、 C3 、 C22 、 C23 36 12-0318024002-50 1 pc C11 37 12-0322143002-50 2 pcs C30 、 C31 12-0322324002-5012-0322323002-50 39 12-0347325002-50 2 pcs C5、C14 40 12-0310435002-50 11 pcs C6 、 C15~C19 、 C25~C29 41 12 - 0322435002 - 50 1 pc C20 16V or above16V or above 38 22nF 2 pcs C2 、 C13 SMD Capacitor 0.1uF SMD0402 +80%-20% 16V or above SMD Ca p acitor 0.22uF SMD CapacitorSMD Capacitor SMD Resistor 3K SMD0402 ±1% SMD Resistor 10K SMD0402 ±5% SMD Resistor 1M SMD0402 ±5% SMD Capacitor 5pF SMD0402 ±20% 16V or above SMD Resistor 100K SMD0402 ±5% SMD Capacitor 18pF SMD0402 ±20% 16V or above SMD Capacitor 220pF SMD0402 ±20% 16V or above SMD Capacitor 7pF SMD0402 ±20% 16V or above SMD Capacitor 15pF SMD0402 ±20% 16V or above SMD0402 +80%-20% 16V or above SMD0402 +80%-20% SMD Capacitor 47nF SMD0402 +80%-20% 16V or above SMD0402 ±10% 41 12 0322435002 50 pc C20 12-0322505003-5012-0322523003-5012-0347504003-5012-0347503003-50 44 12-0310605003-50 1 pc C8 编制 陈卫壮 审核 批准 姚鸿俊 生效日期 2013.07.15 EM7-96-1A 文件编号 WI04-HB1305-01 SMD CapacitorSMD CapacitorSMD Capacitor 16V or above16V or above16V or above16V or above 43 SMD0603 ±10% 42 2.2uF 4 pcs C4、C12、C21、C24 p 陈卫壮 表单编码 SMD Capacitor 10uF SMD0603 ±20% 16V or above SMD0603 +80%-20%SMD0603 +80%-20% SMD0603 ±10% 4.7uF 2 pcs C7 、 C9 SMD Capacitor Item Part Number 1 66-0100062110-50 2 pcs 2 66-0100065110-50 1pc 汕头经济特区蜜蜂电子有限公司 SHANTOU S.E.Z. HONEY BEE ELECTRONICS CO.LTD Description Model Specification Qty Remarks (HB-1305 Bluetooth dongle) Bill of Materials (Others) Keystroke EVA HB-1101 16mm x 2.5mm x 2mm Battery EVA HB-1305 8mm x 8mm x 3mm 编 制 邱一鸣 审 核 陈卫壮 批 准 姚鸿俊 生效日期 2013.07.15 表单编号 文件编号 EM7-97-0A WI04-HB1305-01

Honey Bee (Hong Kong) Ltd. Tune up procedure The output power setting of EUT is set in the factory and followed the max level in below. There is no tune up procedure except factory default setting. FSK: 0-4dBm (- 1.5~+1.5)dB

FCC 47 CFR PART 15 SUBPART C TEST REPORT For Applicant: Honey Bee (Hong Kong) Ltd. Address: Flat L,12/F,Phase 4, Kwun TongIndustrial Centre, 436-446 Kwun Tong Road,Kowloon, Hong Kong Product Name: PAE Bluetooth Dongle Model Name: HB-1305 Brand Name: VitaSound FCC ID: S9X-HB-1305 Report No.: STS130709F1 Date of Issue: August 06, 2013 Issued by: Shenzhen Super Test Service Technology Co., Ltd. Address: No.5, Langshan 2nd Rd., North Hi-Tech Industrial park, Nanshan, Shenzhen, Guangdong, China Tel: 86-755-2795 8522 Fax: 86-755-2795 8022 The report consists 34 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by STS. The test results in the report only apply to the tested sample. The test report shall be invalid without all thesignatures of testing engineers, reviewer and approver. FCC ID: S9X-HB-1305Report No.: STS130709F1 Page 2 of 34 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................................................................ 3 2. GENERAL INFORMATION ........................................................................................................................................................................... 4 2.1 Product Information ..................................................................................................................................................................................... 4 2.2 Objective ....................................................................................................................................................................................................... 5 2.3 Test Standards and Results.......................................................................................................................................................................5 2.4 Environmental Conditions...........................................................................................................................................................................5 3. TEST FACILITY..............................................................................................................................................................................................6 3.1TEST FACILITY ............................................................................................................................................................................................ 6 3.2 GENERAL TEST PROCEDURES ............................................................................................................................................................. 6 3.3 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ............................................................................................................. 7 4. SETUP OF EQUIPMENT UNDER TEST ................................................................................................................................................... 8 4.1 SUPPORT EQUIPMENT ............................................................................................................................................................................ 8 4.2 TEST EQUIPMENT LIST ............................................................................................................................................................................ 9 5. 47 CFR Part 15C 15.249 Requirements .................................................................................................................................................. 10 5.1 Spurious Emission Test............................................................................................................................................................................10 5.1.1 Requirement...........................................................................................................................................................................................10 5.1.2 Test Description......................................................................................................................................................................................11 5.1.3 Test Description......................................................................................................................................................................................12 5.1.4 Test Result...............................................................................................................................................................................................13 5.2 Band Edge..................................................................................................................................................................................................19 5.2.1 Requirement...........................................................................................................................................................................................19 5.2.2 Test Description ...................................................................................................................................................................................... 19 5.2.3Test Result ................................................................................................................................................................................................ 19 5.3 LINE CONDUCTED EMISSION TEST ................................................................................................................................................... 22 5.3.1. LIMITS OF LINE CONDUCTED EMISSION TEST .............................................................................................…

Text truncated - open the document above for the full version.

FCC ID: S9X-HB-1305 RE TEST SETUP
