SA5YLT-22C1REMOTE CONTROL TRANSMITTER

EASY INSTALLATION: 1. One transmitter operates one receiver. 2. Plug the receiver/switch into a 3-wire indoor outlet, then plug the lights or device to be switched into the receiver/switch. Make sure that there is power to the outlet that the receiver/switch is plugged into. 3. The device must be mounted in a vertical position with the receptacles facing downward. 4. Red indicator light is lit when the indoor unit is powered on. BATTERY INFORMATION AND REPLACEMENT: 1. On the bottom of the remote use your finger to slide out the battery holder. 2. Remove the used battery and insert a new CR2032 Lithium 3-volt battery with the “+” polarity mark facing up. 3. Slide the battery holder back inside so that it sets in place. 4. Dispose of old battery properly. WARNING: Keep batteries away from children and pets. Follow the battery manufacturer’s safety and usage instructions. • Remove battery if product is to be left unused for a long time. • Clean the battery contacts prior to battery installation. • Do not dispose of batteries in fire. Batteries may explode or leak. NOTE: In case of power failure, the system will need to be reset. Remote Control 1. Press: “ON” button on the transmitter, the Receiver is power ON continuously and the red indicator will come on. 2. Press “OFF” button on the transmitter,, the Receiver is power OFF instantly and the red indicator will go out. CAUTION • Risk of Fire. • DO NOT PLUG IN MORE THAN THE RATED LOAD. • This is a Radio Frequency (RF) Device. Therefore the range of the transmitter is affected by obstructions, walls and other electronic devices. ATTENTION: INSTRUCTIONS FOR PROPER USE • USE WITHIN THE ELECTRICAL RATING MARKED ON THE PRODUCT • RATED 125 VOLTS • Inspect periodically WARNING: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment. The user’s manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Notice: Functional Range may be adversely affected by one or more of the following factors: Orientation of the transmitter or receiver, weather, radio frequency interference, low transmitter battery and obstructions between the transmitter and receiver. ON/OFF LED indicator light Receiver Transmitter

Authorization Letter We, (the approval holder) Company name Ningbo Yaling Electrical Appliance Co., Ltd Addresss Zhangqi Town, Cixi City, Ningbo, Zhejiang, China City Ningbo Country China declare that the following representative (agent): Name (person) Bovey.yang Company name NTEK Testing Technology Co., Ltd. Addresss 1/F, Building E, Fenda Science Park Sanwei Community, Xixiang Street, Baoan District City Shenzhen Country China to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Description Remote Control Transmitter Type or Model(s) YLT-22C1 Tradename or Brand(s) Attestation: City and Country: Date:Name: (this must be a person) Function:Signature: (or official company stamp) Ningbo 2012/ 9/21 Zhouzhong Pei Manager

FCC Confidentiality Request To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Ningbo Yaling Electrical Appliance Co., Ltd Addresss Zhangqi Town, Cixi City, Ningbo, Zhejiang, China City Ningbo Country China request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: SA5 YLT-22C1 of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) x Operational Description x Block Diagrams x Schematics Diagrams Bill of Materials Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) Ningbo 2012/9/21 Zhouzhong Pei Manager

Date:2012-09-26 FCC ID: SA5YLT-22C1 Subject: To the declaration of the receiver To Whom it may concern, This device have the transmitter and the receiver, the application of the transmitter is completed, the receiver will be completed later. Thank you. Regards, Yours sincerely, Signatory Signature Name: Zhouzhong Pei Title: manager Company : Ningbo Yaling Electrical Appliance Co., Ltd Add: Zhangqi Town, Cixi City, Ningbo, Zhejiang, China

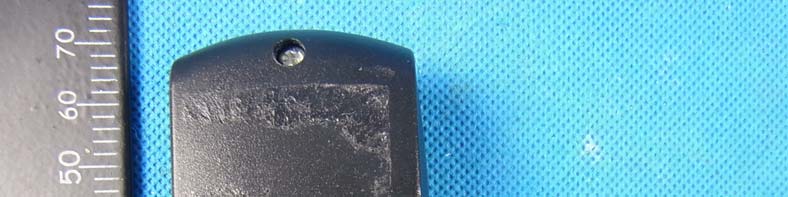

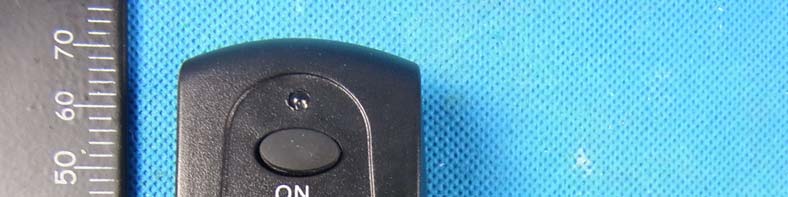

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

FCC ID Label Sample for FCC ID: SA5YLT-22C1_ This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Location on EUT EUT View/ FCC ID Label Location

Photo 7 Photo 8 Photo 9 Photo 10 Photo 11

FCC RADIO TEST REPORT FCC ID: SA5YLT-22C1 Product： Remote Control Transmitter Trade Name： Model Name： YLT-22C1 Serial Model： N/A Report No.： NTEK-2012NT0911831F Prepared for Ningbo Yaling Electrical Appliance Co., Ltd Zhangqi Town, Cixi City, Ningbo, Zhejiang,China Prepared by NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 26 Report No.: NTEK-2012NT0911831F ` TEST RESULT CERTIFICATION Applicant’s name ................. : Ningbo Yaling Electrical Appliance Co., Ltd Address ................................. : Zhangqi Town, Cixi City, Ningbo, Zhejiang,China Manufacture's Name ............ : Ningbo Yaling Electrical Appliance Co., Ltd Address ................................. : Zhangqi Town, Cixi City, Ningbo, Zhejiang,China Product description Product name ........................... : Remote Control Transmitter Model and/or type reference : YLT-22C1 Serial Model： N/A Rating(s) ................................ : DC 3V Standards ............................. : FCC Part15.231 Test procedure ..............................ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 11 Sep 2012 ~20Sep 2012 Date of Issue ........................................... : 20 Sep 2012 Test Result ............................................... : Pass Testing Engineer : (Apple Huang) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 26 Report No.: NTEK-2012NT0911831F ` Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 7 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 3 . ANTENNA REQUIREMENT 11 3.1 STANDARD REQUIREMENT 11 3.2 EUT ANTENNA 11 3.3 CONDUCTED EMISSION MEASUREMENT 12 3.3.1 POWER LINE CONDUCTED EMISSION LIMITS 12 3.3.2 TEST PROCEDURE 13 3.3.3 DEVIATION FROM TEST STANDARD 13 3.3.4 TEST SETUP 13 3.2.5 TEST RESULT 14 3.4 RADIATED EMISSION MEASUREMENT 15 3.4.1 RADIATED EMISSION LIMITS 15 3.4.2 TEST PROCEDURE 16 3.4.3 DEVIATION FROM TEST STANDARD 16 3.4.4 TEST SETUP 17 3.4.5 TEST RESULTS (BLOW 30MHZ) 19 3.4.6 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 20 4 . BANDWIDTH TEST 23 4.1 TEST PROCEDURE 23 4.2 DEVIATION FROM STANDARD 23 4.3 TEST SETUP 23 4.4 TEST RESULTS 24 5 . TRANSMITTER TIMEOUT 25 5.1 REQUIREMENTS 25 6 . EUT TEST PHOTO 26 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 4 of 26 Report No.: NTEK-2012NT0911831F ` 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.231) Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A Note(1) 15.203 Antenna Requirement Pass 15.231 Radiated Spurious Emission Pass 15.231 Occupied Bandwidth Pass 15.231 Transmitter Timeout Pass NOTE: (1) ” N/A” denotes test is not applicable in this Test Report. Page 5 of 26 Report No.: NTEK-2012NT0911831F ` 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 6 of 26 Report No.: NTEK-2012NT0911831F ` 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Remote Control Transmitter Trade Name Model Name YLT-22C1 Serial Model N/A Model Difference N/A Product Description The EUT is a Remote Control Transmitte r Product Type Remote Control Operation Frequency: 315MHz Modulation Type: ASK Number Of Channel 1CH. Antenna Designation: PCB Printed antenna Antenna Gain(Peak) 0.7dBi Output Power: 73.33 dBuV/m @3m(AV Max.) Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Channel List N/A Adapter N/A Battery DC 3.0V Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. 2. Table for Filed Antenna Ant . Brand Model Name Antenna Type Connector Gain (dBi) NOTE 1 N/A N/A PCB Printed antenna NA 0.7 Antenna Page 7 of 26 Report No.: NTEK-2012NT0911831F ` 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Mode 1 TX For Conducted Emission Final Test Mode Description Mode 1 TX For Radiated Emission Final Test Mode Description Mode 1 TX Note: (1) The EUT use new battery. Page 8 of 26 Repo…

Text truncated - open the document above for the full version.

Page 26 of 26 Report No.: NTEK-2012NT0911831F ` 6. EUT TEST PHOTO Radiated Measurement Photos
