SA5YLT-6CRemote Controller

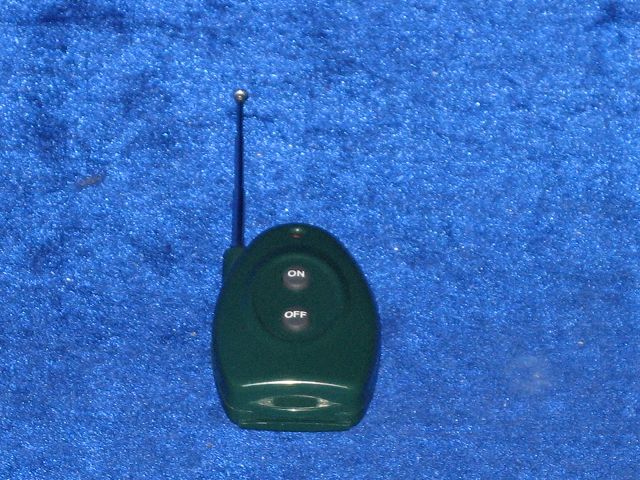

I n s t r u c t i o n m a n u a l f o r Y LT- 6 , Y LT- 6 C YLT-6, YLT-6C is a set of remote control switch for indoor/outdoor use. YLT-6 is a receiver and YLT-6C is a transmitter. Specification: Electrical rating: 120Vac 60Hz 15A resistive 120Vac 60Hz 8A tungsten Control distance: 60 feet Installation: 1, One receiver supplied with transmitter. 2, Plug receiver into 3-wire outlet, make sure that the red indicator is lit, then plug the lights or device to be switched into receiver. 3, The device must be mounted in a vertical position with the receptacle facing downwards and not reaching the ground level. 4, Red indicator light is lit when the receiver is “OFF”. Yellow indicator light is lit when the receiver is “ON” Operation: Press the “ON” button on the transmitter to turn the receiver “ON”. Press the “OFF” button on the receiver to turn the receiver “OFF”. Battery replacement: 1, Move the battery cover from back of transmitter. 2, Replace with type 23A 12V battery. 3, Note polarity. 4, Dispose of old battery properly. Notice: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC ID: SA5YLT-6C This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Proposed Label Location on EUT FCC ID Label Location

Working theory of transmitter First you shall put the battery on the battery cabin, when the battery on the correct place, the remote controller have be power on, the RF indicator light will on, now you can use the equipment, when you press the “on” or “off” key on the JTAG interface, the switch will transmit a pulse to the Microprocessor, microprocessor start to processor the pulse to a signal and transmitting the signal to the wireless chip, the signal be modulate by the modulate and demodulation circuit and transmitting by the antenna to the receiver.

ISO/IEC17025 Accredited Lab. Report No: FCC 0705063 File reference No: 2007-06-22 Applicant: Ningbo Yaling Electrical Appliance Co., Ltd. Product: Remote Controller Model No: YLT-6C Trademark: N/A Test Standards: FCC Part 15 Subpart C, Paragraph 15.231 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.4&FCC Part 15 Subpart C, Paragraph 15.231 regulations for the evaluation of electromagnetic compatibility Approved By Jack Chung Manager Dated: June 22,2007 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO LTD 5/F,Block 4, Anhua Industrial Zone.,No.8 TaiRan Rd.CheGongMiao,FuTian District, Shenzhen,CHINA. Tel (755) 83448688 Fax (755) 83442996 Report No: 0705063 Page 2 of 25 Date: 2007-06-22 TEST REPORT The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement： The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meets with ISO/IEC-17025 requirements, which is approved by CNAS. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAS-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAS-CL01 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:1999 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 899988 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.:899988. IC- Registration No.: IC5205 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration No.: IC 5205. Report No: 0705063 Page 3 of 25 Date: 2007-06-22 TEST REPORT The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT .......................................................................................... 4 1.4 Submitted Sample............................................................................................. 4 1.5 Test Duration.................................................................................................... 5 1.6 Test Uncertainty.................................................................................................5 1.7 Test By.......................................................................................................... 5 2.0 List of Measurement Equipment......................................................................... 5 3.0 Technical Details............................................................................................. 7 3.1 Summary of Test Results..................................................................................... 7 3.2 Test Standards.................................................................................................. 7 4.0 EUT Modification............................................................................................. 7 5.0 Power Line Conducted Emission Test...................................................................... 8 5.1 Schematics of the Test........................................................................................ 8 5.2 Test Method and Test Procedure............................................................................ 8 5.3 Configuration of the EUT.................................................................................... 8 5.4 EUT Operating Condition.......................................…
