SARC677CDMA 1X MOBILE TELEPHONE

I CDMA 1X Mobile TelePhone MSM6025 Series C677 User’s Manual CONTENTS C677 User’s Manual II Safty Information....................................................................................................1 Main Features....................................................................................................... 1 Part Names and Functions.................................................................................... 4 LCD Display............................................................................................................................. 4 Installing the RUIM card........................................................................................................... 8 Installing the Battery................................................................................................................ 8 Charging the Battery ................................................................................................................ 9 Removing the Battery............................................................................................................... 9 Battery Level Indicator ........................................................................................................... 10 Battery performance .............................................................................................................. 10 Basic functions ................................................................................................... 11 Turning Your Phone On and Off .............................................................................................. 11 Making a Call......................................................................................................................... 11 Answering a Call .................................................................................................................... 12 Read a Message .................................................................................................................... 12 Recent Calls .......................................................................................................................... 12 Entering Text ..................................................................................................... 13 Operation procedure of Text-Entry........................................................................................................9 Choosing a Text-Entry Method ................................................................................................ 13 SMS .................................................................................................................... 15 Inbox.................................................................................................................................... 15 Outbox.................................................................................................................................. 15 Create a new message ...........................................................................................................15 Sent message........................................................................................................................ 16 Memory status.....................................................................................................................................11 SMS Setting.........................................................................................................................................11 Multisend Report.................................................................................................................... 17 WAP alert ........................................................................................................................ Inbox .................................................................................................................. Personal Information Management .................................................................... 18 Alarm.................................................................................................................................... 18 Scheduler.............................................................................................................................. 18 Notepad ................................................................................................................................ 19 Calculator.............................................................................................................................. 19 Stopwatch ............................................................................................................................. 19 World Time ........................................................................................................................... 20 Games ................................................................................................................ 21 Black Jack (21 Points) ............................................................................................................ 21 Video Poker ........................................................................................................................... 21 Explorer ............................................................................................................. 22 Picture .................................................................................................................................. 22 Ringtone ............................................................................................................................... 22 Others .................................................................................................................................. 22 Memory Status ...................................................................................................................... 22 Display .........................................…

Text truncated - open the document above for the full version.

confidentiality request (816x1112x256 jpeg)

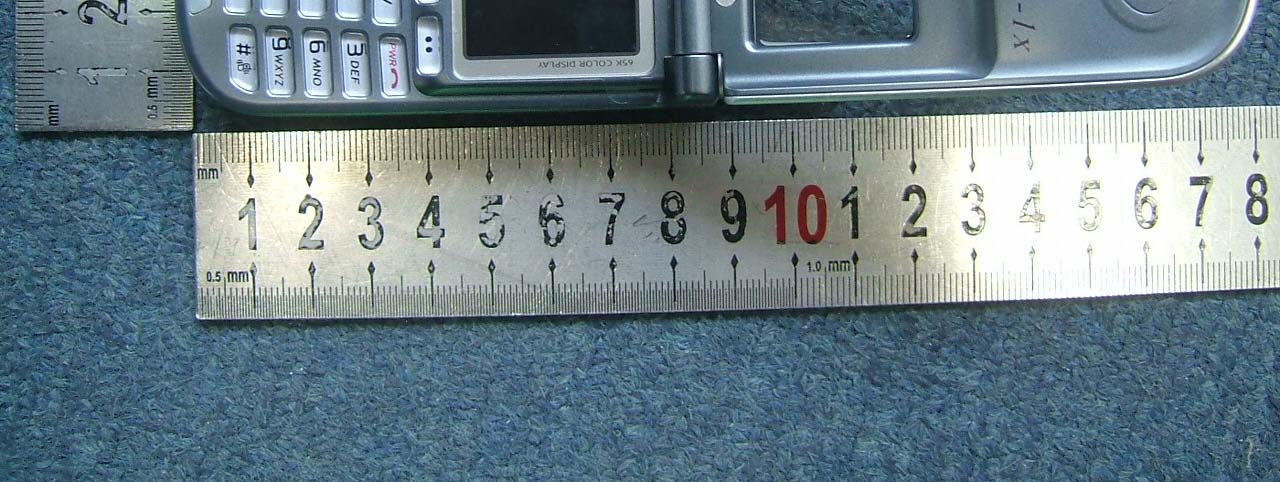

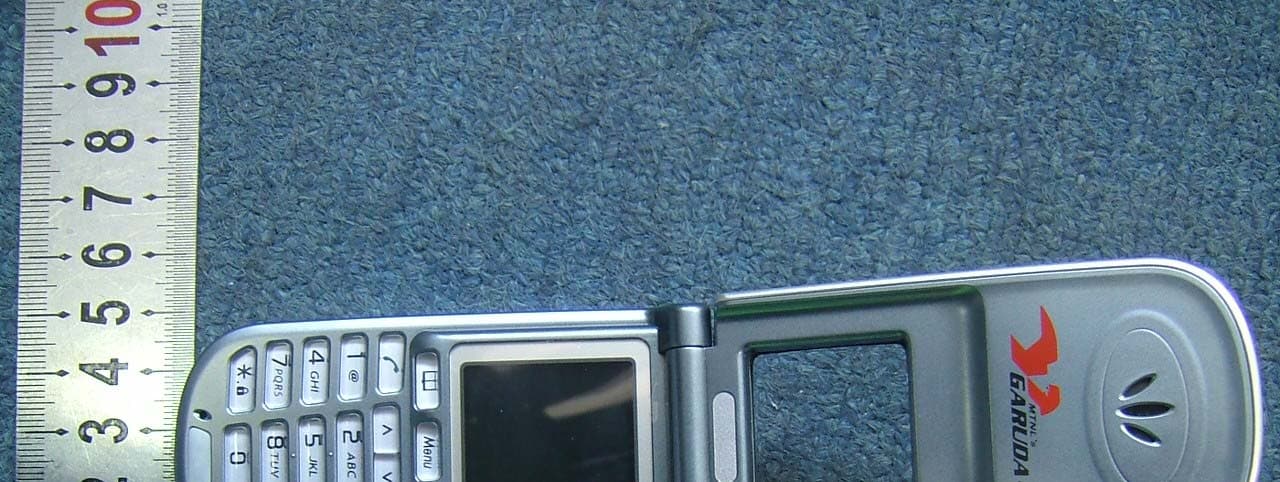

External Photo

Lable with placement

Internal Photo

No.SAR07-007 Page 3 of 56 Contents 1. GENERAL CONDITIONS 2. ADMINISTRATIVE DATA 2.1. Identification of the Responsible Testing Laboratory 2.2. Identification of the Responsible Testing Location(s) 2.3. Organization Item 2.4. Identification of Applicant 2.5. Identification of Manufacture 3. EQUIPMENT UNDER TEST (EUT) 3.1. Identification of the Equipment under Test 3.2. Identification of all used Test Sample of the Equipment under Test 4. OPERATIONAL CONDITIONS DURING TEST 4.1. Schematic Test Configuration 4.2. SAR Measurement System 5. CHARACTERISTICS OF THE TEST 5.1. Applicable Limit Regulations 5.2. Applicable Measurement Standards 6. LABORATORY ENVIRONMENT 7. 3G MEASUREMEAMENT PROCEDURE 8. TEST RESULTS 7.1. Dielectric Performance 7.2. Summary of Measurement Results 7.3. Conclusion 9. MEASUREMENT UNCERTAINTY 10. MAIN TEST INSTRUMENTS This Test Report consists of the following Annexes: Annex A: Accreditation Certificate Annex B: Test Layout Annex C: Sample Photographs Annex D: Graph Test Results Annex E: System Performance Check Data No.SAR07-007 Page 4 of 56 1GENERAL CONDITIONS 1.1 This report only refers to the item that has undergone the test. 1.2 This report standalone dose not constitute or imply by its own an approval of the product by the certification Bodies or competent Authorities. 1.3 This document is only valid if complete; no partial reproduction can be made without written approval of Shenzhen Electronic Product Quality Testing Center. 1.4 This report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of Shenzhen Electronic Product Quality Testing Center and the Accreditation Bodies, if it applies. No.SAR07-007 Page 5 of 56 2. Administrative Date 2.1. Identification of the Responsible Testing Laboratory Company Name: ShenZhen Electronic Product Quality Testing Center Department: Testing Department Address: Electronic Testing Building, ShaHe Road, NanShan District, ShenZhen, P. R. China Telephone: +86-755-26628676 Fax: +86-755-26627238 Responsible Test Lab Managers: Mr. Wu Li’an 2.2. Identification of the Responsible Testing Location(s) Company Name: ShenZhen Electronic Product Quality Testing Center Address: Electronic Testing Building, ShaHe Road, NanShan District, ShenZhen, P. R. China 2.3. Organization Item S.E.T Report No.: SAR07-007 S.E.T Project Leader: Mr. Li Sixiong S.E.T Responsible for accreditation scope: Mr. Wu Li’an Start of Testing: 2007-1-23 End of Testing: 2007-1-29 2.4. Identification of Applicant Company Name: Hisense Communication Co.,Ltd. Address: 218, Qianwangang Road, Economics and Technology Development Area, Qingdao, China Hisense Information Property Park Contact person: Ren Xiaolin Telephone: +86-0532-80878945 Fax: +86-0532-83891771 2.5. Identification of Manufacture Company Name: Hisense Communication Co.,Ltd. Address: 218, Qianwangang Road, Economics and Technology Development Area, Qingdao, China Contact person: Ren Xiaolin Telephone: +86-0532-80878945 Fax: +86-0532-83891771 Notes: This data is based on the information by the applicant. No.SAR07-007 Page 6 of 56 3. Equipment Under Test (EUT) 3.1. Identification of the Equipment under Test Brand Name: Hisense Ty p e N a me : C677 Marking Name: C677 Test frequency CDMA 800MHz Development Stage Identical Prototype Accessories Charger Battery type L13788IsA Battery specification 880mAh 3.7V Antenna type Build inside Operation mode Call established Modulation mode CDMA General description: Max. Power(ERP) 23.58dBm for CDMA 800MHz Band NOTE: 1. The EUT is a model of CDMA Mobile Station (“MS” for short in this report) operating in Cellular 800MHz band. 2. Please refer to Appendix C for the photographs of the EUT. For a more detailed features description about the EUT, please refer to User’s Manual. 3.2. Identification of all used Test Sample of the Equipment under Test EUT Code ESN Hardware VersionSoftware Version SH07010006M01 4F465B63 V 2.00 CD5.5.00.15.IN No.SAR07-007 Page 7 of 56 4 OPERATIONAL CONDITIONS DURING TEST 4.1 Schematic Test Configuration During SAR test, EUT is in Traffic Mode (Channel Allocated) at Normal Voltage Condition. A communication link is set up with a System Simulator (SS) by air link, and a call is established. The TCH is allocated to 9, 384 and 758 respectively in the case of CDMA 800 MHz. The EUT is commanded to operate at maximum transmitting power. The EUT shall use its internal transmitter. The antenna(s), battery and accessories shall be those specified by the manufacturer. The EUT battery must be fully charged and checked periodically during the test to ascertain uniform power output. If a wireless link is used, the antenna connected to the output of the base station simulator shall be placed at least 50 cm away from the handset. The signal transmitted by the simulator to the antenna feeding point shall be lower than the output power level of the handset by at least 35 dB. 4.2 SAR Measurement System The SAR measurement system being used is the IndexSAR SARA2 system, which consists of a Figure1. SAR Lab Test Measurement Set-up Mitsubishi RV-E2 6-axis robot arm and controller, IndexSAR probe and amplifier and SAM phantom No.SAR07-007 Page 8 of 56 Head Shape. The system is controlled remotely from a PC, which contains the software to control the robot and data acquisition equipment. The software also displays the data obtained from test scans. In operation, the system first does an area (2D) scan at a fixed depth within the liquid from the inside wall of the phantom. When the maximum SAR point has been found, the system will then carry out a 3D scan centred at that point to determine volume averaged SAR level. 4.2.1 Robot system specification The robot is used to articulate the probe to programmed positions inside the phantom head to obtain the SAR readings from the DUT. 4.2.2 Probe and amplifier specification IXP-050 Indexsar isotropic immersible SAR probe The probes are constructed using three orthogonal dipol…
