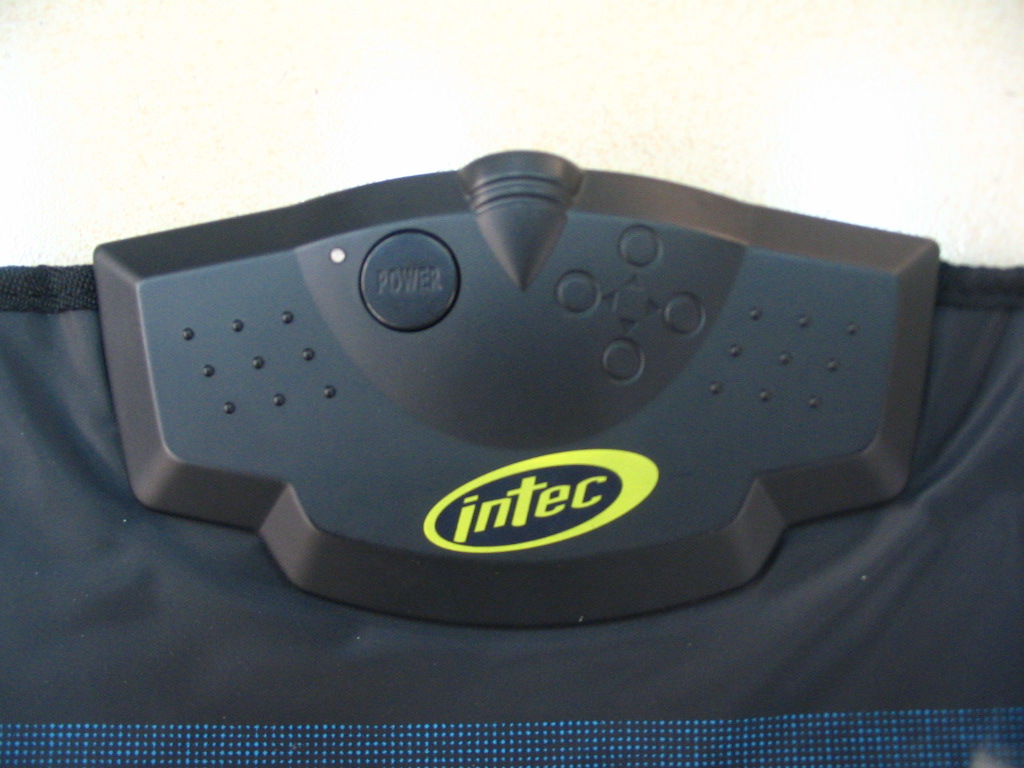

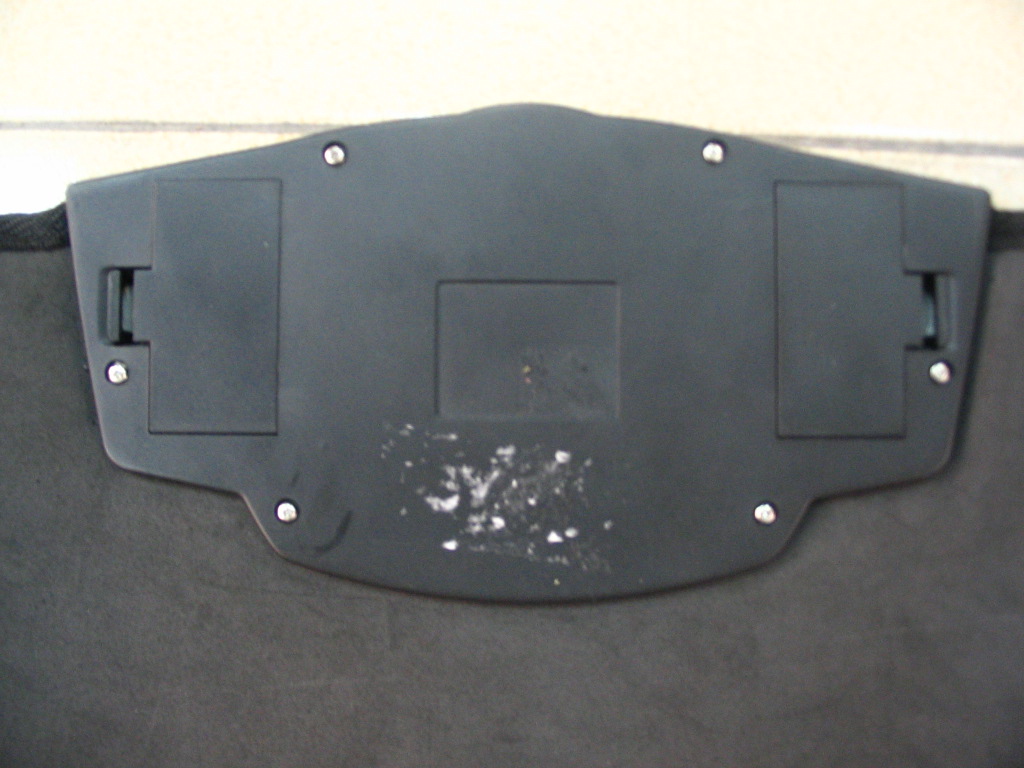

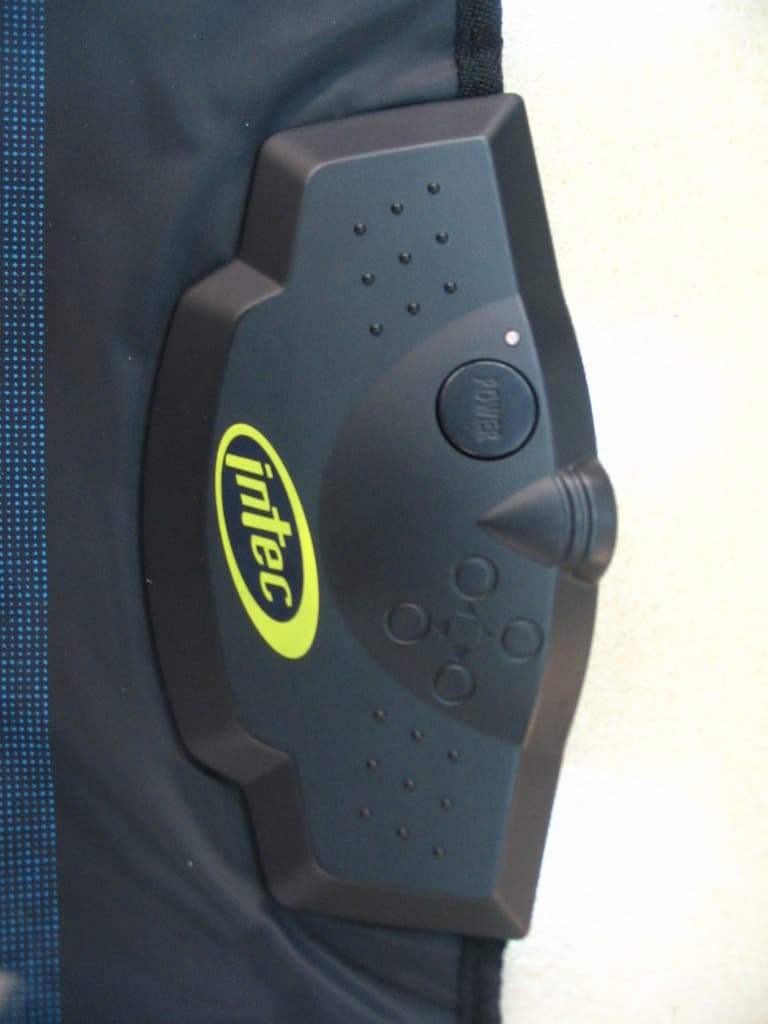

SBIDCM-0012Wireless Dance Mat

Operation Manual of PS2 2.4GHz RF Dance Mat 1. Brief Introduction PS &PS2 wireless 2.4GHz dance mat is designed specially for matching PlayStation2 console. It is compatible with various PS-ONE, PS, PS2 dancing game softwares. 2. Characteristic 1. Compatible with Sony PlayStation, PS One, PlayStation2 consoles and various of dancing game softwares; 2. 10 action buttons: Start, Select, Up, Down, Left, Right, X, O, , ; 3.FC function (Short for “Force Connection”) between the appointed Dance Mat and the appointed receiver; 4.Low Power consumption mode ( sleeping mode ) 5.Low voltage alarming with LED flashing for indication. 6. ISM frequency range from 2.4GHz, 2.4GHz – 2.5GHz; 7. Straight transmitting distance reaches over 7 meters. 8. Maximum available for 20sets of RF Dance Mats playing simultaneously within valid distance. 9. Normal operating voltage: 4V – 7V (4 x AA batteries) 3. Connection and Installation 1. Insert the receiver to the socket of PlayStation Console and turn on the power. 2. Place the 4 x AA batteries inside the Dance mat and turn on its power, the connecting can be realized. 3. Receiver’s LED flashes under the connecting status, after connecting is finished, LED is steady ON. 4.Function description: 1,. Low Power Consumption mode ( sleeping mode ), receiver LED flashes on. To save power and prolong battery life, low power consumption mode is designed for the dance mat, this mode include the following status: a. ( When power is on for wire-connecting ), no receiver available for 15seconds. b. Under connecting status, if there is no any button operation for over 3 seconds. c. Under the sleeping mode, you can press “Start” , X, O, , for wakening it up and receiver LED is steady ON. 2. Alarm function for low voltage When battery voltage is too low, Led will keep on flashing, which shows that the new batteries should be provided, or the original batteries should be recharged. 3. FC function (short for “Force Connection”) between the appointed Dance mat and the appointed receiver 1). You can appoint the RF Dance mat with the appointed receiver when more RF Dance mats work in the same operating circumstance. 2). Press the group button “Select + Right “ on the dance mat ( or the FC button on receiver ), within 15 seconds the FC button on the appointed receiver ( or the group button “Select + Right “ on the dance mat ) must be pressed so that the Force Connection can be achieved. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER AUTHORITY TO OPERATE THE EQUIPMENT .

FCC ID Location FCC ID Label Sample FCC ID: SBIDCM-0012 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

2.4GHz RF PS2 Wireless Controller Device Working Principle 1. It is a 2.4G RF product. It works at the frequency of ISM Band (2.4GHZ). There are up to 80 channels, and the frequency interval between each channel is 1M Hz. 2. Evenly Randomized Frequency Hopping method is implemented in the RF technology. 3. It works in “Slave” Mode. We call it “Device.” The working procedures are: a) When power on, the Device will search all of the channels, to see whether there is a Host. b) If there is a Host, the Device will identity by the data received, to see whether it can be connected with the Host. c) If it can connect to the Host, then the Device will respond to the Host. d) The Host builds up the connection after receiving the response from the Device. e) The Host sends the command request to the Device for getting the Axes and Buttons value. f) The Device sends Button value to the Host. g) The Host identifies the data received and does the error detection and the error correction. h) Repeat from step e) to step i).

Report No.:GLEM0040700574RF Page: 1 of 36 FCC ID: SBIDCM-0012 Authorized Signature: Kent Hsu Laboratory Manager SGS-CSTC Co.,Ltd. This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the SGS PRODUCT CERTIFICATION MARK.. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. Member of the SGS Group (Société Générale de Surveillance) SGS-CSTC Standards Technical Services Ltd. 1/F., Building No. 1 Building, Agriculture Machinery Materials Co. Wushan Road, Shipai, Tianhe District,Guangzhou, China Telephone: +86 (0) 20 3848 1001 Fax: +86 (0) 20 3848 1006 [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 FCC TEST REPORT Application No. : GLEM0040700574 Applicant: Shenzhen Litestar Electronics Technology Co., Ltd FCC ID: SBIDCM-0012 Fundamental Carrier Frequency : 2.402GHz to 2.481GHz Equipment Under Test (EUT): Name: Wireless Dance Mat Model: G6251/G8251 ♣ ♣ Please refer to section 2 of this report which indicates which model was actually tested and which models are electrically identical. Standards: FCC PART 15, SUBPART C : 2003 ( Section 15.247) Date of Receipt: 06 July 2004 Date of Test: 10 to 25 July 2004 Date of Issue: 29 July 2004 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: GLEM0040700574RF Page: 2 of 36 FCC ID: SBIDCM-0012 2 Test Summary Test Test Requirement Stanadard Paragraph Result Conducted Emission (150KHz to 30MHz) FCC PART 15 :2003 Section 15.209 PASS Radiated Emission (30MHz to 25GHz) FCC PART 15 :2003 Section 15.207 PASS * Maximum Peak Output Power FCC PART 15 :2003 Section 15.247 (b1) PASS Hopping Channel Number FCC PART 15 :2003 Section 15.247 (b1) PASS Occupied Bandwidth FCC PART 15 :2003 Section 15.247 (a1) PASS Carrier Frequencies Separated FCC PART 15 :2003 Section 15.247 (a1,iii) PASS Band Edges Measurement FCC PART 15 :2003 Section 15.247 (c) PASS Dell Time FCC PART 15 :2003 Section 15.247 (c) PASS Power Spectral Density Measurement FCC PART 15 :2003 Section 15.247 (d) PASS Remark: Model No.: G6251/G8251 Only one item was tested since the model: G6251 and G8251 were electrically identical. They are the same samples with different item no. and description only. Please refer to the fax mail from Shenzhen Litestar Electronics Technology Co., Ltd ., dated 17 July 2004 for further details. *.: The test sample passed radiated emission after modification. 1. Add two 0.1uF Capacitors power line. 2. For plug: CON1-1, add a 0.1uF Capacitor between each line and ground line. 3. Add a 0.1uF Capacitor at C19, and connect to ground. 4. Cut off the line form cystal to the ground. Please refer Section 7 of the report for the details. SGS-CSTC Standards Technical Services Ltd. Report No.: GLEM0040700574RF Page: 3 of 36 FCC ID: SBIDCM-0012 3 Contents Page 1 COVER PAGE.........................................................................................................................................................1 2 TEST SUMMARY.................................................................................................................................................... 2 3 CONTENTS .............................................................................................................................................................. 3 4 GENERAL INFORMATION.................................................................................................................................. 4 4.1 CLIENT INFORMATION....................................................................................................................................... 4 4.2 GENERAL DESCRIPTION OF E.U.T...................................................................................................................... 4 4.3 DESCRIPTION OF SUPPORT UNITS....................................................................................................................... 4 4.4 STANDARDS APPLICABLE FOR TESTING............................................................................................................. 4 4.5 TEST LOCATION................................................................................................................................................. 4 4.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER...................................................................................... 4 4.7 TEST FACILITY................................................................................................................................................... 5 5 TEST RESULTS....................................................................................................................................................... 6 5.1 TEST INSTRUMENTS........................................................................................................................................... 6 5.2 E.U.T. OPERATION............................................................................................................................................ 6 5.3 TEST RESULT.......................................................................…
