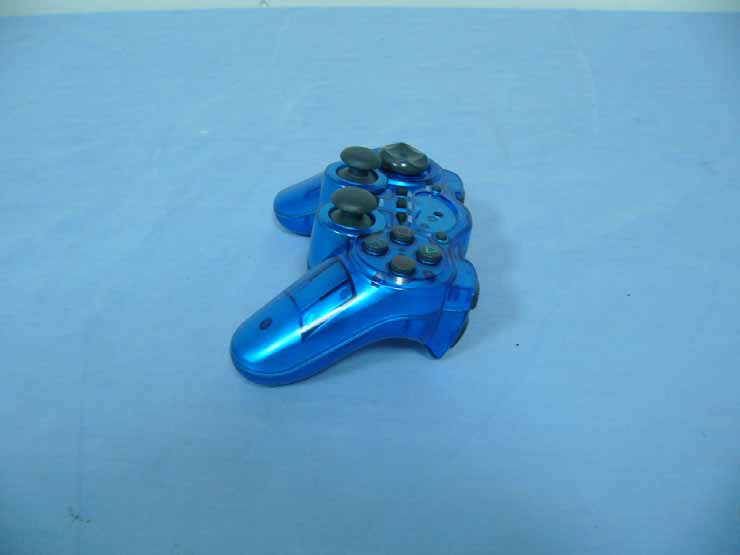

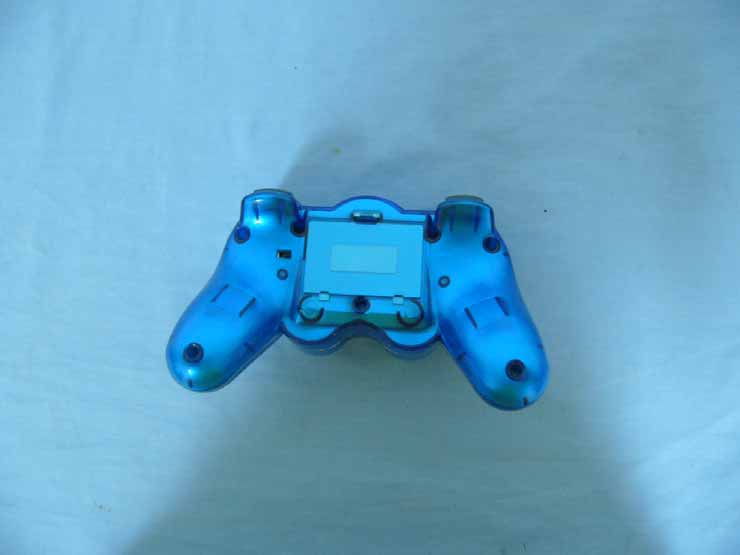

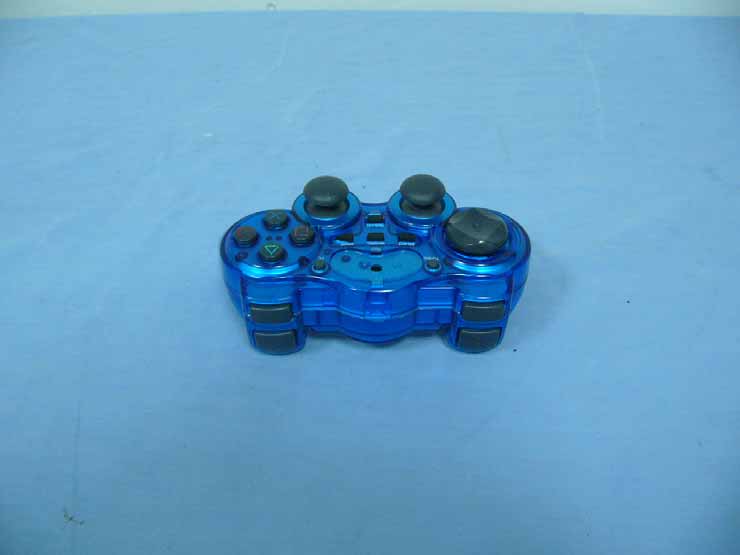

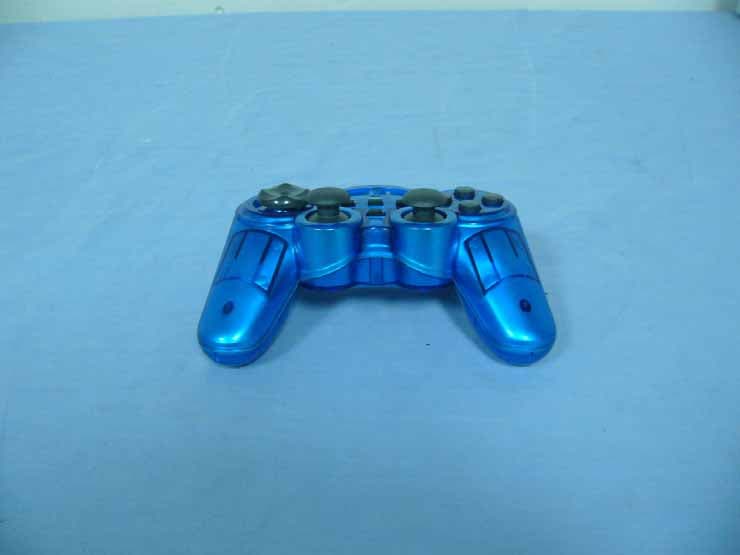

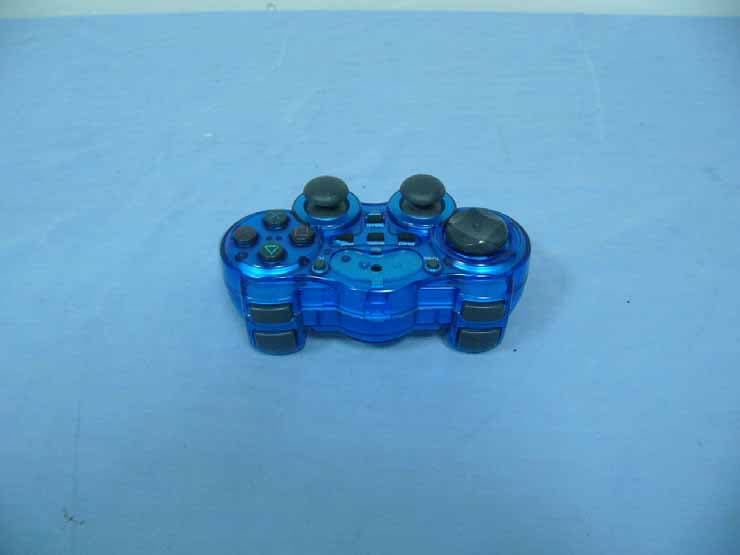

SBIPS2-7002PS2 Wireless Controller

PS2-7002 2.4GHz Wireless Controller Instruction Manual Brief Introduction Thank you for purchasing our PS2 2.4GHz Radio Frequency Wireless Controller. Along with our highest manufacturing standards and testing throughout its development, we ensure you could get the best possible product. To make it fully fits your Playstation®2 Console, please review this user’s instruction manual carefully for operation. Regulation Statement The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons" for the host device, and specify "The antenna(s) used for this transmitter must not be colocated or operating in conjunction with any antenna or transmitter other than those contained in this device." Characteristic 1, Applicable for Sony Playstation2 Console and various of software the console supported; 2, Available for vibration function with two built-in motors, and Non-vibration function without motor built-in. 3, All game software supported with Digital mode and Analog mode, performed by Red LED 4, Special device of low power consumption feature; 5, Turbo/Macro function, performed by Green LED 6, Alarm function for lower voltage; 7, FC function (Short for “Force Connection”) between the appointed controller and the appointed receiver; 8, Available over 7 meter straightaway range; 9, Available 20 RF controllers playing at the same time within valid range; 10, Working voltage: 3.5V – 7V (4 X AAA batteries) Buttons Layout Connection and Installation 1, Insert the receiver to the socket of Sony Playstation2 Console and turn on the power. 2, Place the 4 X AAA batteries inside the controller first, and move the switch to the position of “ON”. 3, The LED of receiver is flicker under connecting, and will last for light when connecting. Function Description 1, Low Power Consumption Mode To save the power consumption, there is a special “sleeping mode” built into this controller. The wastage is 100μA only when the controller is in “sleeping mode”. The general conditions are as follows: a, Under the power-on condition for controller, no receiver is found over 15 seconds; b, Under the power-on condition, no any operation acts on any button or axes over 3 minutes; c. Under low power consumption mode, wake up by pressing START, L3 or R3, LED of receiver is on 2, Definition of Turbo function a, The buttons “, , , X, R1, R2, R3, L1, L2, L3” can be defined with Turbo function. b, Press “Turbo + any action button” at the same time for odd times, the button will be with Turbo function. Press “Turbo + the defined action button” at the same time for even times, the defined Turbo function will vanish. 3, FC function (“Force Connection”) between the appointed controller and the appointed receiver Appoint one RF controller with a appointed receiver when more RF controllers work in the same operating circumstance. The method is to press down the FC group button “Select + L3” on the controller (or the button “FC” on the receiver), then press the button “FC” on the appointed receiver (or the FC group button “Select + L3” on the controller). 4, Macro function 1) PROGRAM sourcing buttons includes: , L1, L2, R1, R2, D-PAD 2) The programmable buttons includes: L2,R2,L3,R3. 3) At most 15 times input of sourcing button can be programmed into each programmable button. 4) The latest program setting can be saved once power off. 5) Select button is used as separator when input the same sourcing buttons to set up the program. 6) PROGRAM method: A. Press MACRO buttons for 3 seconds, the green LED is on. B. Press the programmable button, such as L3, the green LED will be flashing. C. Press the PROGRAM sourcing button, such as L1& R1, green LED will be off, PROGRAM setup is over. Now L3 act as the function of L1& R1. D. Green LED flashes, when the Macro function is performed. 7) PROGRAM clear up method: A. Press MACRO button for 3 seconds, the green LED is on. B. Press the programmable button, such as L3, the green LED will be flashing. C. Press the MACRO button once more, green LED will be off, PROGRAM is cleared up. Now L3 resume its default function. Battery Safety z Batteries are to be inserted with the correct polarity z Use only the recommended batteries z Do not mix old & new batteries z Do not mix Alkaline, Standard(Carbon Zinc) or rechargeable (Nickel-Cadmium) batteries z Dispose of batteries safety & correctly z Do not dispose of batteries in fire, batteries may explode or leak z Remove batteries if the toy will not be used for a long period of time z Exhausted batteries are to be removed from the toy z The supply terminals are not to be short-circuited z Non-rechargeable batteries are not to be recharged

SHENZHEN LITE STAR ELECTRONICS TECHNOLOGY CO. LTD________ #181, Gongyuan Rd., Block 26, Baoan District, Shenzhen, China Date: 2005/10/08 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Shenzhen office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS SZ, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS SZ on our behalf shall have the same effect as acts of our own. In authorizing CCS SZ as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours,

SHENZHEN LITE STAR ELECTRONICS TECHNOLOGY CO. LTD #181, Gongyuan Rd., Block 26, Baoan District, Shenzhen, China Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: SBIPS2-7002 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Best Regards

LABEL SAMPLE FCC ID: SBIPS2-7002 LABEL LOCATION

Compliance Certification Services (Shenzhen) Inc. Report No.: SZ050916B08-RP FCC ID: SBIPS2-7002 Date of Issue: November 15, 2005 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 26 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For PS2 WIRELESS CONTROLLER Model: PS2-7002 / GGE609U Trade Name: N/A Prepared for SHENZHEN LITE STAR ELECTRONICS TECHNOLOGY CO., LTD #181 GONGYUAN ROAD, BLOCK 26, BAO AN DISTRICT, SHENZHEN, CHINA Prepared by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. NO. 6, JINAO INDUSTRIAL PARK, NO. 35 JUKENG ROAD, DASHUIKENG VILLAGE, GUANLAN TOWN, BAOAN DISTRICT, SHENZHEN, CHINA TEL: 86-755-28055000 FAX: 86-755-28055221 LAB CODE:200577-0 Compliance Certification Services (Shenzhen) Inc. Report No.: SZ050916B08-RP FCC ID: SBIPS2-7002 Date of Issue: November 15, 2005 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION...................................................................................................................5 3.2 EUT EXERCISE...............................................................................................................................5 3.3 GENERAL TEST PROCEDURES........................................................................................................5 3.4 MODIFICATION.............................................................................................................................5 3.5 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS....................................................6 3.6 DESCRIPTION OF TEST MODES......................................................................................................6 4. INSTRUMENT CALIBRATION................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES....................................................................................................................................8 5.2 EQUIPMENT...................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING.............................................................................8 6. SETUP OF EQUIPMENT UNDER TEST .................................................................................. 9 6.1 SETUP CONFIGURATION OF EUT....................................................................................................9 6.2 SUPPORT EQUIPMENT ............................................................................................................9 7. FCC PART 15.249 REQUIREMENTS...................................................................................... 10 7.1 BAND EDGES MEASUREMENT ...........................................................................................10 7.2 SPURIOUS EMISSION ............................................................................................................16 7.3 POWERLINE CONDUCTED EMISSIONS..........................................................................................25 APPENDIX 1 PHOTOGRPHS OF TEST SETUP .......................................................................... 26 Compliance Certification Services (Shenzhen) Inc. Report No.: SZ050916B08-RP FCC ID: SBIPS2-7002 Date of Issue: November 15, 2005 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: SHENZHEN LITE STAR ELECTRONICS TECHNOLOGY CO., LTD #181 GONG YUAN ROAD, BLOCK 26, BAO AN DISTRICT, SHENZHEN, CHINA Equipment Under Test: PS2 WIRELESS CONTROLLER Tr a d e N a m e : N/A Model: PS2-7002 / GGE609U Date of Test: September 16-29, 2005 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services (Shenzhen) Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.249. The test results of this report relate only to the tested sample EUT identified in this report. Reviewed and Approved by: Clinton Kao Manager of the EMC testing Division Compliance Certification Services (SZ) Inc. Compliance Certification Services (Shenzhen) Inc. Report No.: SZ050916B08-RP FCC ID: SBIPS2-7002 Date of Issue: November 15, 2005 Page 4 Rev. 00 2. EUT DESCRIPTION Product PS2 WIRELESS CONTROLLER Trade Name N/A Model Number PS2-7002 / GGE609U Model Discrepancy N/A Power Supply Powered by 4 x AAA Batteries (DC6V) Frequency Range 2402 ~ 2480 MHz Number of Channels 32 Channels Antenna Specification Multilayer Ceramic Antenna Gain: 0 dBi (max) Temperature Range 0 ~ +55°C Note: This submittal(s) (test report) is intended for FCC ID: SBIPS2-7002 filing to comply with Section 15.207, 15.209 and 15.247 of the FCC Part 15, Subpart C Rules. Compliance Certification Services (Shenzhen) Inc. Report No.: SZ050916B08-RP FCC ID: SBIPS2-7002 Date of Issue: November 15, 2005 Page 5 Rev. 00 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 2…
