SBL-ST701Stereo Dongle with Bluetooth

ST701 USER MANUAL 1. Before you use this device, please make sure that you: 1.1 Fully charge the device at least 3 hours before you use it the first time. Afterward it takes approximate 2 hours to fully recharge power. Please refer to Section Power and Charging below. 2. Introduction 2.1 Features 2.1.1 Bluetooth stereo audio streaming to other Bluetooth devices 2.1.2 Support 3.5mm earphone jack of MP3 player, PC/NB, TV, DVD system, RCA or 2.5mm line-out jack with 3.5mm adapter 2.1.3 Auto pairing 2.1.4 Fully pin code interoperability by supporting 6 most popular pin code of Bluetooth headset 2.1.5 Installation free and plug-and-play 2.2 Product Specification Bluetooth Specification Bluetooth 1.2 CLASS 2 Bluetooth Profiles A2DP Frequency Band 2.4GHz~2.4835GHz ISM Band Working Distance 10 meters Standby Time 360hr Playing Time 12hr Battery 3.7V Li-Polymer rechargeable battery Weight 25g Packing Contents 1. One Bluetooth transmitter、 2. One 100-240V power adapter 3. One 3.5mm connecting cable 4. One user guide 2.3 Product Outlook： 3. Prepare to use the headphone 3.1 Power Supply and Charging: 3.1.1 Connect the adapter into an electrical outlet. Plug the adapter’s connector into charging port. 3.1.2 While charging, the amber indicator light will stay on and remains light until the charging is completed. When the charging is completed, the green indicator will remained to instead. Charging time is about 2 hours. 3.1.3 You can now take the adapter’s connector out from the headphone and disconnect the adapter from the electrical outlet. 3.1.4 A 3.7V Li-polymer rechargeable battery is equipped. 3.2 Installation Please connect line out jack of your intended audio player or headset jack with ST701 by attached double side 3.5mm connecting cable。 Note ：Some audio playing devices do not equip 3.5mm line out jack，please purchase appropriate adapter to affix RCA or 2.5mm audio output to one end of 3.5mm connecting cable. 3.3 Pairing Please make sure you have paired the product to a Receiver with Bluetooth capability such as Bluetooth Stereo Headset, Bluetooth Speakers or a speaker with a Bluetooth adapter connected to it before you start to use. Kindly following the pairing procedure shows hereunder: 3.3.1 Turn your Bluetooth stereo headset or Bluetooth speaker on and enter to the pairing mode. 3.3.2 Press and hold the button till indication blinks rapidly. At this moment, the product is in the pairing mode and will searching for the activate Bluetooth stereo headset and established the connection automatically. 3.3.3 Since connected, the indication will turn to regular blinking twice every second. Note:If the pairing fails, the blue keep blinking about 60 seconds then blue indicator blink rapidly once every 2 second automatically. A re-pairing procedure is needed. Please refer to step pairing procedure above. 4. Indications： Amber（A）， Blue（B） 4.1 Power On ：（AB）Blink tardily for 4 times 4.2 Pairing ：（B）Blink rapidly 4.3 Connecting to headset ：（B）Regular blinking twice every second 4.4 Searching for last connected headset ：（B）Blink tardily once per second 4.5 Standby ：（B）Blink rapidly once every 2 second 4.6 Low Battery ：（A）continuing blinking, the lower the faster 5. Operation Button： 5.1 Symbol Definition： 5.1.1 「Short Click: “＋”」 ：Click and release less than 1 second 5.1.2 「Long Press: “＋＋”」 ：Press and release for 2 seconds 5.1.3 「Press and Hold: “＋＋＋”」：Press and hold the key for more than 6 seconds 5.2 Function Matrix： Feature Button Conditions Pairing ＋＋ Standby or searching Cancel Pairing ＋＋ Pairing Searching For Last Connected Headset ＋ Standby Cancel Searching ＋ Searching Stop Connection ＋＋ Connected 6. Certification and Safety Approvals/General Information 6.1 The device is CE、FCC and BQB approved. 6.2 This device complies with part 15 of the FCC rules： 6.2.1 Rule15.21：You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. 6.2.2 Rule15.105（b）：This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. 6.3 Bluetooth is a trade mark owned by Bluetooth SIG, Inc. 7. Caution 7.1 Important information regarding safe and efficient operation. Read this information before using the product. Users are not permitted to make changes or modify the device in any way. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 7.2 Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 8. FCC RF Radiation Exposure Statement：This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operation instructions for satisfying RF exposure compliance. This transmitter must not be co-located or oper…

Text truncated - open the document above for the full version.

Report No EF/2005/A0013 ID: SBL-ST701 Issue Date: Nov. 01, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 2 PHOTOGRPHS OF EUT Report No EF/2005/A0013 ID: SBL-ST701 Issue Date: Nov. 01, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw All of EUT Front View of EUT Report No EF/2005/A0013 ID: SBL-ST701 Issue Date: Nov. 01, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Back View of EUT Left View of EUT Report No EF/2005/A0013 ID: SBL-ST701 Issue Date: Nov. 01, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Top View of EUT

FCC ID LABEL FORMAT AND LOCATION Applicant: Global Target Enterprise Inc. FCC ID: SBL-ST701 CE FCC ID: SBL-ST701 20mm 8mm

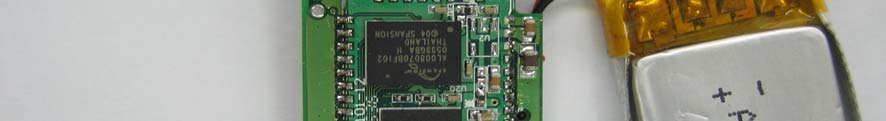

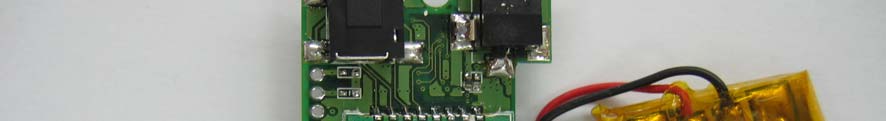

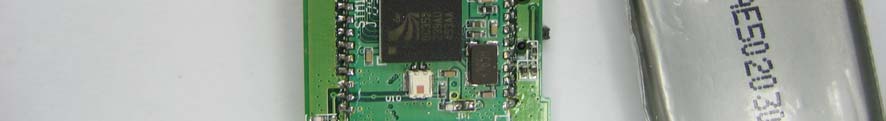

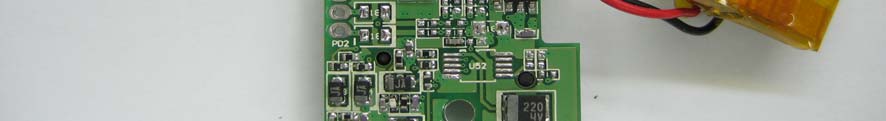

Report No EF/2005/A0013 ID: SBL-ST701 Issue Date: Nov. 01, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 3 PHOTOGRPHS OF EUT Report No EF/2005/A0013 ID: SBL-ST701 Issue Date: Nov. 01, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Open View of EUT Report No EF/2005/A0013 ID: SBL-ST701 Issue Date: Nov. 01, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT – 1 Internal of EUT – 2

Report No EF/2005/A0013 ID: SBL-ST701 Issue Date: Nov. 01, 2005 Page: 1 of 57 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Product Name: Bluetooth stereo dongle Brand Name: Global Target Model Name: ST701 FCC ID: SBL-ST701 Report No.: EF/2005/A0013 Issue Date: Nov. 01, 2005 FCC Rule Part: §15.247 Prepared for: Global Target Enterprise Inc. 5F, No. 186, Sec. 2, Chung Hsin Road, HsinTien, Taipei Hsien Prepared by: SGS Taiwan Ltd. No. 134, Wu Kun g Rd., Wuku Industrial Zone, Taipei County, Taiwan. Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. Report No EF/2005/A0013 ID: SBL-ST701 Issue Date: Nov. 01, 2005 Page: 2 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw VERIFICATION OF COMPLIANCE Applicant: Global Target Enterprise Inc. 5F, No. 186, Sec. 2, Chung Hsin Road, HsinTien, Taipei Hsien Equipment Under Test: Bluetooth stereo dongle Brand Name: Global Target FCC ID Number: SBL-ST701 Model No.: ST701 Model Difference: N/A File Number: EF/2005/A0013 Date of test: Oct. 18, 2005 ~ Oct. 30, 2005 Date of EUT Received: Oct. 18, 2005 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test proce- dures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247 The test results of this report relate only to the tested sample identified in this report. Test By: Date Nov. 01, 2005 Sky Wang Prepared By: Date Nov. 01, 2005 Gigi Yeh Approved By: Date Nov. 01, 2005 Vincent Su Report No EF/2005/A0013 ID: SBL-ST701 Issue Date: Nov. 01, 2005 Page: 3 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Version Version No. Date 00 Nov. 01, 2005 Report No EF/2005/A0013 ID: SBL-ST701 Issue Date: Nov. 01, 2005 Page: 4 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Table of Contents 1. GENERAL INFORMATION .........................................................................................................7 1.1. Product Description ............................................................................................................................7 1.2. Related Submittal(s) / Grant (s) ..........................................................................................................7 1.3. Test Methodology ...............................................................................................................................7 1.4. Test Facility.........................................................................................................................................7 1.5. Special Accessories .............................................................................................................................7 1.6. Equipment Modifications....................................................................................................................7 2. SYSTEM TEST CONFIGURATION ............................................................................................8 2.1. EUT Configuration .............................................................................................................................8 2.2. EUT Exercise ......................................................................................................................................8 2.3. Test Procedure.....................................................................................................................................8 2.4. Configuration of Tested System..........................................................................................................9 3. SUMMARY OF TEST RESULTS ...............................................................................................10 4. DESCRIPTION OF TEST MODES ............................................................................................10 5. CONDUCTED EMISSION TEST................................................................................................11 5.1. Standard Applicable ..........................................................................................................................11 5.2. EUT Setup.....................................................................................................................................…

Text truncated - open the document above for the full version.

Report No EF/2005/A0013 ID: SBL-ST701 Issue Date: Nov. 01, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 1 PHOTOGRPHS OF SET UP Report No EF/2005/A0013 ID: SBL-ST701 Issue Date: Nov. 01, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Radiated Emission Set up Photo
