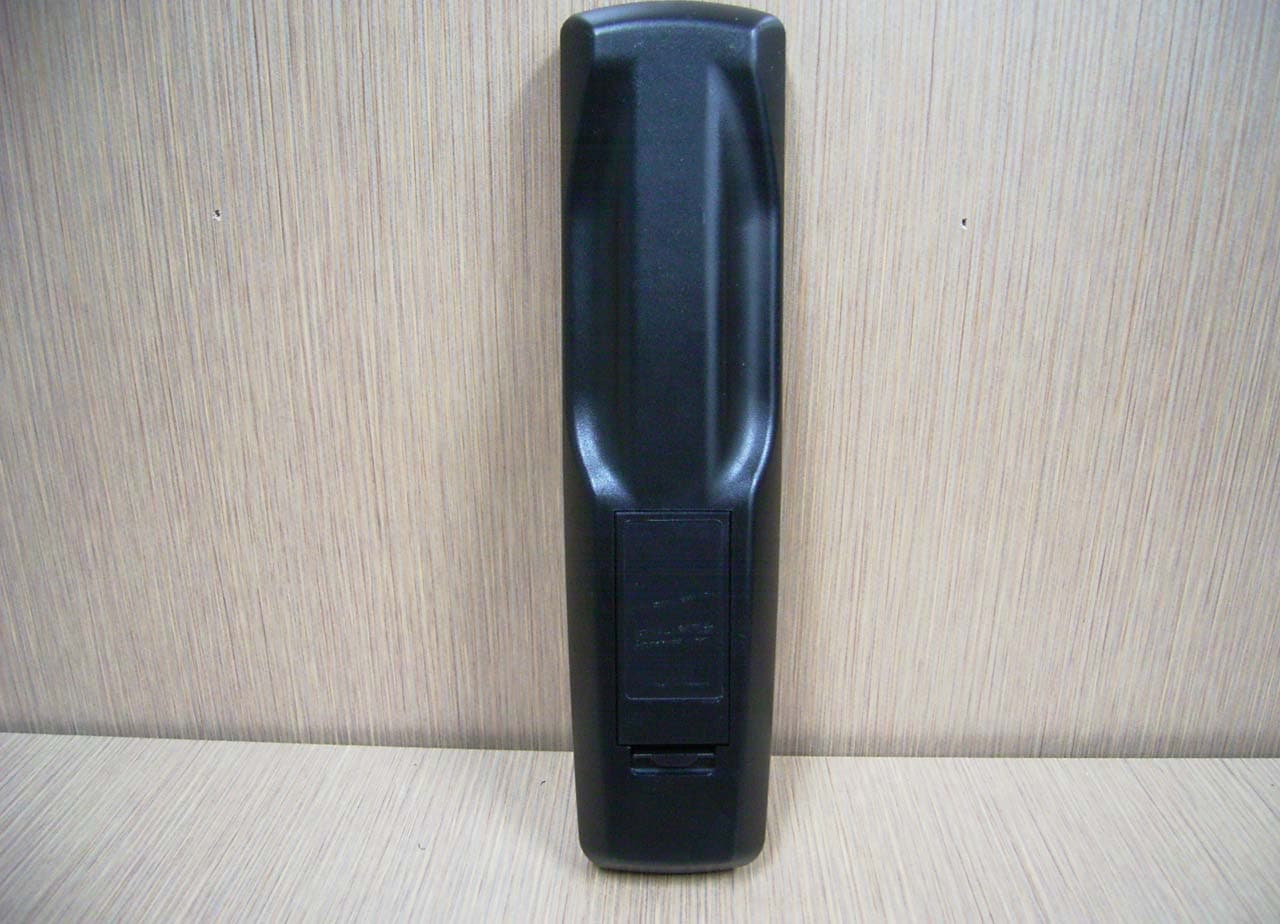

SCBPLZRF Remote Control Unit

1 PLAZZO RF REMOTE CONTROL User’s Manual 1. Introduction : The RF remote control for curtain controller is consist of the keypad like the picture and to use indication LED for operating. 2. Transmitting Frequencies : The RF remote control can transmit a frequencies( 433.92 MHz ). The device will transmit 433.92MHz carrier if press one key of Open, Stop, Close, Reg keys. The device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference. And (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The Manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the User’s authority to operate the equipment. The transmitter will be turn off automatically after 10 seconds if a keypad will be pressed continuously. 3. Electrical Specifications (PLAZZO) Items Specifications Remarks Model Name PLAZZO Frequency 433.92MHz Frequency drift ±100KHz Transmitter Power Max. +0dBm Antenna PCB Pattern Antenna Power Supply 2x AAA Alkaline battery Modulation method ASK/OOK Communication method Simplex Stand by Current Below 1uA Transmit Current Max. 10mA Operating Temperature 0°C ~55°C 2 4 . To Program RF Remote controller ID to Curtain Controller 1. Press for few second a program button on curtain controller. 2. Press for few second a registration button on the remote controller. 3. And the Curtain controller will register your rf remote controller. 5. To operate 1. Register your remote controller to the curtain controller. 2. Press any key on remote controller, and blinks led. 3. Curtain controller makes to operate a curtain (sheer and drapery) (raising, lowering, opening, closing, stopping).

PLAZZO Remote Blockdiagram Open1Stop1Close1 RF Parts Micom Tx_Data LED Power Supply: AAA*2=3Vdc ANT Oscillator Open2Stop2Close2Reg1Reg2 EEPROM

2. Model name: PLAZZO

Operational Description PLAZZO RF Remote control are to control the curtain controller. This product consists of a RF parts for transmitting RF carrier via the air and a micom parts for transmitting key data signal to RF signal. RF Parts consists of Oscillator, antenna and matching network. The oscillation method is a saw resonator, Antenna is a pattern antenna. Micom parts consists of a micom, a eeprom, keys. Micom send a data corresponding to key data and ID to RF parts, and Eeprom have a unique ID. Applications Wireless Curtain control

BUYER : CELADONBUYER MODEL:RF Remote(Plazzo) NoDESCRIPTIONSPECIFICATIONQ'TYRef No. Vendor Remarks 1PCB CHIP MOUNT 2Transmitter MAIN P.C.B37X 184 X 1.6T(XPC, D/S), SBDB6100-100121 FINE 3IC, MICOMS3F80J9-28, SOP28, OTP1IC1 Samsung 4IC, eeprom24AA02T-1/SNG, SOP81IC2 Microchip 5ProgrammedOBJ & ID1 6LED 3ø, Green1D1 7Chip Diode KDR7291 D3KEC 8Chip Diode KDR7291 D2,3KEC 9Chip Transistor 2SC4226(R25)1 Q6NEC 10 Chip Transistor KRC40751 Q4KEC 11 Chip Transistor KRA3061 Q5KEC 12 CHIP CERMIC CAP. (#1608) 4pF/50V, COG,±0.25pF1 C2Samsung 13 CHIP CERMIC CAP. (#1608) 18pF/50V, COG,±0.25pF1 C11Samsung 14 CHIP CERMIC CAP. (#1608) 15pF/50V, COG,J1 C12Samsung 15 CHIP CERMIC CAP. (#1608) 10nF/50V,Z5U, Z2 C14,18Samsung 16 CHIP CERMIC CAP. (#1608) 100pF/50V,X7R, J 1 C15Samsung 17 CHIP CERMIC CAP. (#1608) 27pF/50V, COG, J1 C20Samsung 18 CHIP CERMIC CAP. (#1608) 47pF/50V, COG,J1 C8Samsung 19 CHIP CERMIC CAP. (#2012) 100nF/50V, Z5U, Z2 C21,22Samsung 20 ELECT Capacitor220uF/10V1C23 Samsung 21 CHIP INDUCTOR (#1608) 1uH, J2 L7,8Samsung 22 CHIP INDUCTOR (#1608) 4.7nH, J1 L5Samsung 23 CHIP INDUCTOR (#1608) 47nH, J1 L1Samsung 24 CHIP INDUCTOR (#1608) 15nH, J1 C10Samsung 25 CHIP RESISTOR (#1608) 0ohm, J3 JP3,4,R10Samsung 26 CHIP RESISTOR (#1608) 560R, J1 R8Samsung 27 CHIP RESISTOR (#1608) 10K, J1 R12Samsung 28 CHIP RESISTOR (#2012) 10K, J1 R21Samsung 29 CHIP RESISTOR (#1608) 39K, J1 R13Samsung 30 CHIP RESISTOR (#2012) 4.7K, J2 R23,24Samsung 31 Ceramic Resonator4Mhz, IFR4000T00B02,DIP 1X1 CQ 32 Saw Resonator433.92MHz,T039,±50KHz 1Y2 CQ 33 ALKALINE BATTERYAAA TYPE 2BAT1 34 Bat. SPRING (+)`56(+)EA,DB Spring1 35 Bat. SPRING (-)`56(-)EA,DB Spring1 36 Bat. SPRING,common1 37 TOP CASE COVERABS1 38 BOTTOM CASE COVERABS1 39 BATTERY COVER ABS1 40 Key Rubber1 41 Key Plate1 42 FCC+ETL LABEL STIKER 1 BOM OF Plazzo Remote DATE: 2007.2.23 (주)서비전자개발실

55 44 33 22 11 D D C C B B A A Open1Stop1Close1Config1 Open2 Stop2Close2Config2 CLKData Radio2 LED RF_en LED Radio2 3V 3V3V 3V 3V 3V TitleSize Document Number Rev Date: Sheet of <Doc> V1.2 Celadon Plazzo Remocon Schematic A4 11 Thursday, March 29, 2007 TitleSize Document Number Rev Date: Sheet of <Doc> V1.2 Celadon Plazzo Remocon Schematic A4 11 Thursday, March 29, 2007 TitleSize Document Number Rev Date: Sheet of <Doc> V1.2 Celadon Plazzo Remocon Schematic A4 11 Thursday, March 29, 2007 Technicku Circuit *Note1.RF Frequency: 433.92MHz SHEER DRAFERY 1 TP12PGTP12PG R1210KR1210K 1 2 3 Q5 KRA306 Q5 KRA306 1 TP6PGTP6PG Vss 1 Xo 2 Xi 3 TST 4 P2.5 5 P2.6 6 P2.7 8 RST 7 P1.0 9 P1.1 10 P1.2 11 P1.3 12 P0.0 13 P0.1 14 P0.2 15 P0.3 16 P0.4 17 P0.5 18 P0.6 19 P0.7 20 P2.0 21 P2.1 22 P2.2 23 P2.3 24 P2.4 25 P3.0 26 P3.1 27 VDD 28 IC1 S3F80J9-28 IC1 S3F80J9-28 VCC 8 A2 3 A1 2 SCL 6 SDA 5 WC 7 VSS 4 A0 1 IC2EEPROMIC2EEPROM C13NAC13NA 1 2 A1 ANT1 A1 ANT1 + BT23A + BT23A S4 Keypad S4 Keypad S8 Keypad S8 Keypad 1 TP7PGTP7PG L71uHL71uH S6 Keypad S6 Keypad 1 TP14PGTP14PG 1 TP11PGTP11PG D3 MA729 D3 MA729 C3NAC3NA L5 4.7nH L5 4.7nH C22100nFC22100nF R234.7KR234.7K 1 23 Q62SC4226Q62SC4226 S5 Keypad S5 Keypad S1 Keypad S1 Keypad 1 TP15PGTP15PG C1NAC1NA C1212pFC1212pF L81uHL81uH C23 220uF/10 C23 220uF/10 C1410nFC1410nF Y2 433.92MHz Y2 433.92MHz R244.7KR244.7K S2 Keypad S2 Keypad C1115pFC1115pF 1 TP13PGTP13PG X14MHzX14MHz C15 100pF C15 100pF 1 23 Q4KRC4075Q4KRC4075 C24PFC24PF R2110KR2110K 1 TP9PGTP9PG R1322KR1322K C1015NHC1015NH R8560RR8560R C204pFC204pF S7 Keypad S7 Keypad S3 Keypad S3 Keypad D1LEDD1LED 1 TP10 PG TP10 PG C21100nFC21100nF C1810nFC1810nF 1 TP8PGTP8PG + BT13A + BT13A L147nHL147nH

IST Co., Ltd EMC LABORATORY(Registration Number:400603) TEST REPORT NO. : 07-IST-0117(V1.1) 1 of 21 This Report shall not be reproduced except in full without the written approval of IST EMC Laboratory. Certification of Compliance CFR 47 Part 15 Subpart C Test Report File No. : 07-IST-0117(V1.1) Date of Issue :April 05, 2007 Model(s) : PLAZZO Kind of Product : RF Remote Control Unit FCC ID : SCBPLZ Applicant : Seoby Electronics Co, Ltd. Address : 38-2 Anyang2-dong, Manan-gu, Anayang-city Gyeonggi-Do, Korea Manufacturer : Seoby Electronics Co, Ltd. Address : 38-2 Anyang2-dong, Manan-gu, Anayang-city Gyeonggi-Do, Korea Test Result ■ Positive □ Negative Reviewed By Approved By S.J.CHO / EMC Group Manager J.H.LEE / Chief Comment(s) - Investigations requested : Measurement to the relevant clauses of FCC rules and regulations Part 15 Subpart C. - The test report with appendix consists of 21 pages. - The test result only responds to the tested sample. - It is not allowed to copy this report even partly without the allowance of IST EMC Laboratory. - This equipment as for has been shown to be capable of continued compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4 I assume full responsibility for accuracy and completeness of these data. IST Co., Ltd EMC LABORATORY(Registration Number:400603) TEST REPORT NO. : 07-IST-0117(V1.1) 2 of 21 This Report shall not be reproduced except in full without the written approval of IST EMC Laboratory. TABLE OF CONTENTS Table of contents 2 Information of test laboratory, Environmental conditions, Power used, Product information 3 Summary 4 Equipment Under Test 5 Measurement Uncertainty Calculations 6 - Radiated Emission. 7 Radiated Emission Limits 8 - - Radiated Emission Result 9-13 - Bandwidth 14 - Test Equipment & Limits 14 - Test Result 15 - Transmission time 16 - Test result 17 - Antenna Requirement 18 - Test Photo of Test Setup 19-20 - EUT Photo 21 - Note: IST Co., Ltd EMC LABORATORY(Registration Number:400603) TEST REPORT NO. : 07-IST-0117(V1.1) 3 of 21 This Report shall not be reproduced except in full without the written approval of IST EMC Laboratory. INFORMATIONS OF TEST LABORATORY EMC LABORATORY of IST Co., Ltd. (FCC Filing Lab.) Singal-dong, Giheung-gu, Yongin-City Kyonggi-Do, 400-19, Korea TEL : +82 31 326 6700 FAX : +82 31 326 6797 ENVIRONMENTAL CONDITIONS Temperature 15 °C Humidity 23 % Atmospheric pressure 1010 mbar POWER SUPPLY SYSTEM USED Power supply system DC 3V by Battery(Battery type(Size “AAA”) (Refer to the product information) PRODUCT INFORMATION Items Specifications Model Name PLAZZO Frequency 433.92MHz Channel 1 Frequency drift ±100KHz Transmitter Power Max. +0dBm Antenna Built-in on the PCB Antenna Power Supply 2x AAA Alkaline battery Modulation method ASK/OOK Communication method Simplex Stand by Current Below 1uA Transmit Current Max. 10mA Operating Temperature 0°C ~55°C - EMC suppression device is not used during the test. - Please refer to user’s manual. IST Co., Ltd EMC LABORATORY(Registration Number:400603) TEST REPORT NO. : 07-IST-0117(V1.1) 4 of 21 This Report shall not be reproduced except in full without the written approval of IST EMC Laboratory. SUMMARY Test Descriptions - Radiated Emission PA S S - Radiated Emission Result - Bandwidth PA S S - Test Result - The Transmission time PA S S - Test Result Te s t D a t e Begin of Testing : Mar 23, 2007 - End of Testing : Apr 4, 2007 Prepared By Note : - ■ means the test is applicable, - □ is not applicable. C.W.Kim / Project Engineer IST Co., Ltd EMC LABORATORY(Registration Number:400603) TEST REPORT NO. : 07-IST-0117(V1.1) 5 of 21 This Report shall not be reproduced except in full without the written approval of IST EMC Laboratory. Equipment Under Test EUT Type : † Table-Top. † Floor-Standing. † Table-Top and Floor-Standing(Combination). „ Hand held Operation – mode of the E.U.T. : The equipment under test was operated during the measurement under following conditions : † Standby Mode „ Operational Condition : „ continue Transmit Configuration of the equipment under test : Following peripheral devices and interface cables were connected during the measurement : Equipment Type Brand Serial No. RF Remote Control Unit PLAZZO Seoby Electronics Co, Ltd. N/A EUT exercise Software To get a maximum radiated emission from the EUT, the touch screen o the EUT was pushed to transmit RF signal continuously. To activate continuous transmission, software was changed as above for testing only. To get a maximum emission levels from the EUT, the EUT was moved throughout the X, Y, and Z planes. Test Set-Up Radiated Emissions IST Co., Ltd EMC LABORATORY(Registration Number:400603) TEST REPORT NO. : 07-IST-0117(V1.1) 6 of 21 This Report shall not be reproduced except in full without the written approval of IST EMC Laboratory. Measurement Uncertainty Calculations The measurement uncertainties stated were calculated in accordance with the requirements of NIST Technical Note 1297 and NIS 81 (1994). Uncertainty (±dB) Contribution (Conducted Emissions) Probability Distribution 0.15-30MHz Receiver Specification Rectangular 1.5 LISN Coupling Specification Rectangular 1.5 Cable and Input Attenuator Calibration Normal (k=2) 0.5 Mismatch to Reciver U-Shaped -0.8 / +0.7 System Repeatability Normal (k=1) 0.2 Combined Standard Uncertainty Normal (k=2) -1.85 / +1.71 Expanded Uncertainty U Normal (k=2) -3.7 / +3.42 U c,minus = -1.85, U c,plus = 1.71 U = -3.70 / +3.42 (k=2, 95.45% confidence level) Uncertainties(±dB) Contribution (Radiated Emissions) Probability Distribution 3 m Antenna Factor Frequency Interpolation Height Variation Directivity Difference Phase Center Location Normal (k=2) Rectangular Rectangular Rectangular Rectangular 0.9968 0.1039 -2.6 / +1.5 -1.0 / +0 1.0 Cable Loss Normal (k=2) 0.5 Receiver Voltage Accuracy Pulse Response Absolute Repetition Rate Normal (k=2) Rectangular …
