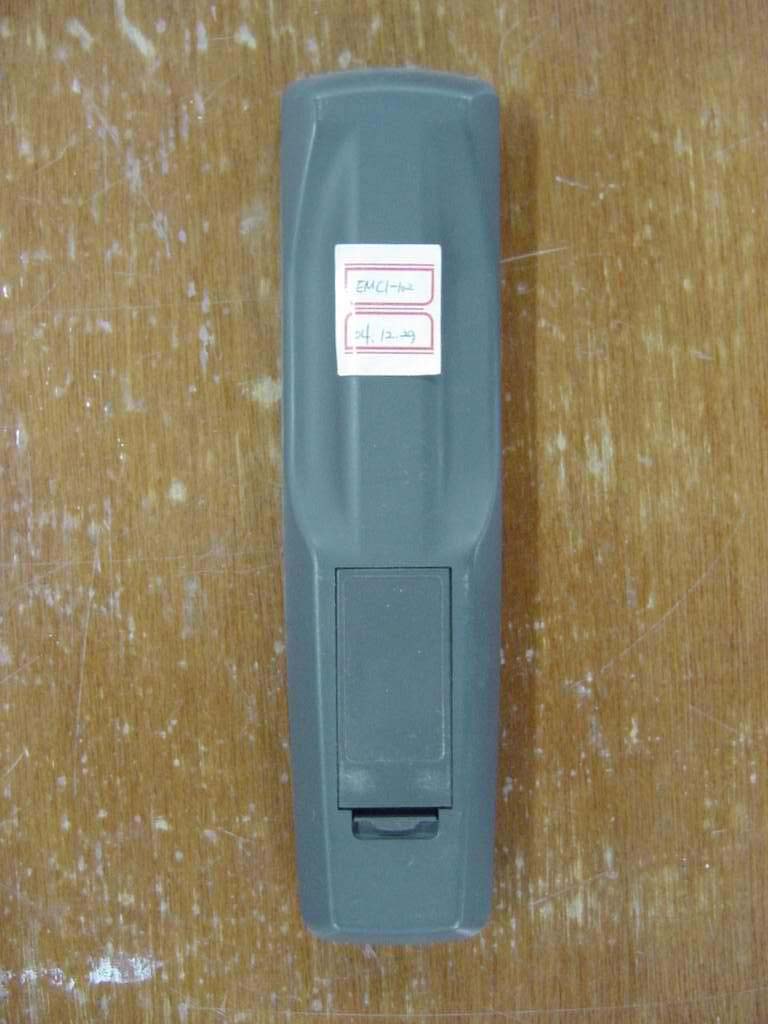

SCBRCJB3Juke Box Remote Controller

3 Commerce Place, 4 th Floor Nun’s Island (Montreal), Quebec H3E 1H7, Canada Tel: +1 (514) 762-6244 - Cell: +1 (514) 947-3929 – Fax: +1 (514) 762-6483 - [email protected] 1 TOUCHTUNES RF REMOTE CONTROL User’s Manual 1. Introduction : The RF remote control for Juke Box is consist of the keypad like the picture and to use indication LED for operating. And the RF remote controller can be changeable for two frequency so an user can choose the frequencies accordingly. 2. Transmitting Frequencies : The RF remote control can transmit two frequencies(not at once) : 27.145 MHz (CB Band) and 433.92 MHz (UHF). The device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference. And (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The Manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the User’s authority to operate the equipment. The transmitter will be turn off automatically within 5 seconds if a keypad will be pressed continuously. The carrier frequency can be selected by pressing key combination as below. Type of Carriers Modulation (type of carrier modulation) 27.145MHz (ASK), 433.92MHz(FSK) 3 Commerce Place, 4 th Floor Nun’s Island (Montreal), Quebec H3E 1H7, Canada Tel: +1 (514) 762-6244 - Cell: +1 (514) 947-3929 – Fax: +1 (514) 762-6483 - [email protected] 2 3. Customer ID programming procedure The RF remote controller can be programmed a Customer ID. To enter programming mode, press keys # 1 (Power) & # 29 (F4) at the same time during 3 seconds then LED twice blinking for confirming to enter customer ID programming mode . And then, input 3 digits code(000 ~ 255) by pressing keypad. As soon as pressing last digit, LED doesn’t turn off during 3 seconds for confirming new memorable customer ID. If it is not available to input a code(impossible), LED will blink 6 times to show the error code. The initial manufacturing of customer ID is 000. The RF remote control is having non-volatile function so it can be stored the IDs even though new battery change. 4. Carrier frequency selection programming procedure The selection method of carrier frequency is as follows. To enter the programming mode, press keys # 3 (Pause) and # 26 (F1) simultaneously During 3 seconds and then, LED will blink 3 seconds for confirming to enter selection model for carrier frequency Then, press keypad by 3 digit keys like (27.145 MHz -> 027 and 433.92 MHz -> 433) And as soon as pressing the final digit key, LED will blink during 3 seconds for confirming to choose wanted frequency. If it is not available to input a code(impossible), LED will blink 6 times to show the error code. The RF remote control is having non-volatile function so it can be stored the using frequency even though new battery change. 5. Range ; The maximum range of RF remote control is between 150 feet and 200feet. (46.02m ~ 61.36m) 6. Batteries : 2 x AAA 1.5v batteries for RF remote control The life time of batteries will be around 1 year which is based to use 60 seconds per day.


ONETECH Corp. http://www.onetech.co.kr 505 SK APT Factory, 223-28 Sangdaewon 1-Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do 462-121, Korea [ Tel ] 82-31-746-8500, [ Fax ] 82-31-746-8700 ONETECH January 18, 2005 FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Attention: Application Examiner Reviewing Engineer Re: Request for confidentiality per Section 0.459 of FCC Rules Applicant: Seoby Electronics Co., Ltd. FCC ID: SCBRCJB3 To whom it may concern, Request is hereby submitted, on behalf of my client, Seoby Electronics Co., Ltd, to withhold from public review certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are requested to be kept confidential: Schematics, Operational Description Rationale for request for confidentiality: Seoby Electronics Co., Ltd, has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would give them competitive advantage in developing similar products. If you have questions or need further information, please contact the undersigned. Sincerely, Y.K. Kwon / Director Onetech Corp. Email: [email protected]

1 Helen Zhao Subject:SEOBY ELECTRONICS CO., LTD., FCC ID: SCBRCJB3, Assessment NO.: AN05T4527, Notice# 1 RCJB3_Setup.docRCJB3_RPT_15.231 .doc RCJB3_RPT_15.227 .doc From: Y. G. Gwon Sent: Wednesday, February 02, 2005 9:34 PM To: Helen Zhao Subject: Re: SEOBY ELECTRONICS CO., LTD., FCC ID: SCBRCJB3, Assessment NO.: AN05T4527, Notice#1 Hi Helen, Thank you for your kind comments. Enclosed please find our revised test reports and setup photo.. Best Regards, Y.G. Gwon > -----Original Message----- > From: Compliance Certification Services [mailto:[email protected]] > Sent: Wednesday, February 02, 2005 4:42 PM > Subject: SEOBY ELECTRONICS CO., LTD., FCC ID: SCBRCJB3, Assessment NO.: > AN05T4527, Notice#1 > > > Question #1: As indicated in the Operational Desciption exhibit, the device will transmit (not simultaneously, one or the other) two carrier frequencies: 27.145 MHz (CB Band) and 433.92 MHz (UHF). So it must comply with FCC Rules Part 15.227 for 27.145 MHz and Part 15.231 for 433.92MHz respectively. Since there are two different rule parts and two equipment classes (DXX and DSC) involved, this device has to be filed as a composite device, which means two separate submissions are necessary. A new application with assessment number of AN05T4539 is for 433.92MHz portion. The current AN05T4527 is for 25.145 MHz portion. > > Below are questions for 27.145MHz portion: > Question #2: Please separate 27.145MHz portion from 433.92MHz portion. Please resubmit a test report to FCC15.227 only for this application. > Question #3: The test report does not show clearly the radiated emission test below 30MHz was done with a loop antenna. > > Suggest you include a standard test procedure and test diagram for below 30MHz, 30MHz-1GHz, above 1GHz in the test report, > > Question #4: Please update the peak limit on the page 7 of the test report. The limit (80dBuV/m) is for average, not for peak. > > Question #5: Please provide a bandewidth plot to show bandedge compliant. Please make sure the field strength of any emissions outside 26.96-27.28MHz band shall not exceed the general radiated emission limits in FCC15.209. > > Question #6: Please add one more setup photo into setup photos exhibit to show three 2 orthogonal planes. > > Best Regards, > Helen Zhao > > > The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

FCC ID.: SCBRCJB3 File No.: E051R-057 ONETECH Testing & Evaluation Lab. FCC ID.: SCBRCJB3 File No.: E051R-057 ONETECH Testing & Evaluation Lab.

FCC ID.: SCBRCJB3 File No.: E051R-057 ONETECH Testing & Evaluation Lab. IDENTIFICATION LABEL: PROPOSED FCC ID LABEL Due to the product size, only the FCC ID shall be permanently affixed to the rear side of the equipment and other information shall be placed in the instruction manual. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operations. Made in Korea FCC ID : SCBRCJB3 FCC ID AREA
