www.gennum.com GR2316 / GR2320 Module GR2316 / GR2320 Advance Information Note Proprietary and Confidential 32197 - C April 20051 of 12 Features •Compliant to the Bluetooth™ specification v1.1 •FCC and CE certified •Class 2 operation •Integrated voice codec •BlueCore™ HCI software stack •Internal 8Mb flash, 16MHz crystal •Power control function supported •Surface mount compatible with standard 1.0mm BGA package interface •GR2316 size: 14.5mm x 14.5mm x 3mm •GR2320 size: 23mm x 14.5mm x 3mm •Temperature range: -20°C to +85°C •Voltage range: +2.2V to +3.6V Description The GR2316 (without on-board antenna) / GR2320 (with on-board antenna) is one of the smallest modules available providing the most flexibility for a wide range of applications. Powered by Cambridge Silicon Radio’s world leading single-chip technology, and combined with Gennum’s packaging technology, the result is a fully integrated module providing a complete system for data and voice communications. Applications •Headsets •Keyboards •Mobile Phones •Personal Digital Assistants (PDAs) Block diagram BlueCore ™ 2 - Flash Bluetooth™ is a trademark owned by the Bluetooth SIG, Inc. and licensed to Gennum Corporation. BlueCore™ is a trademark owned by Cambridge Silicon Radio. To Antenna 8 Mb Flash 16 MHz Crystal Audio Input/Output USB UART PCM Lot No. Programmable Inputs/Outputs Power Supply Decoupling & Filtering GR2316 +3V Lot No. ® GENNUM FCC ID SD7GR2316 XXXXXX GENNUM FCC ID SD7GR2320 XXXXXX GenBlue™ is a trademark owned by Gennum Corporation. GR2316 / GR2320 Advance Information Note Proprietary and Confidential 32197 - C April 20052 of 12 Contents Features ........................................................................................................................1 Description ....................................................................................................................1 Applications ...................................................................................................................1 1. Pinout ........................................................................................................................2 2. Package Information .................................................................................................4 3. Pin Descriptions ........................................................................................................6 4. Typical Application ....................................................................................................9 5. FCC and EU Compliance ........................................................................................10 6. Revision History ......................................................................................................12 1. Pinout Figure 1-1: GR2316 bottom view A14A13A12A11A10 B14 C14 D14 E14 F14 G14 H14 J14 K14 L14 M14 N14 P14P13P12P11P10 B10 C10 D10 E10 F10 G10 A9A8A7A6A5A4A3A2A1 C9C8 D8D9 E9E8 F8F9 G9G8 P9P8P7P6P5P4P3P2P1 N1 M1 L1 K1 J1 H1 G1 F1 E1 D1 C1 B1 PIO[11] PIO[10] PIO[9] PI O[7] PIO[6] PIO[8] NC PIO[3] PIO[2] PIO[4] PIO[5] MIC_N MIC_P RESET PCM_OUT UART_TX UART_RX UART_CTS UART_RTS VDD_USB VDD_CORE VDD_DIG VDD_MEM1 FLASH_EN VDD_MEM0 PCM_CLK PCM_IN VREG_IN USB_DPUSB_DN SPKR_N PIO[0] PIO[1]AIO[0] SPKR_PAIO[1]CEXT D15 D6 D4 D1 D7 D14 D12 D10 D13 D5 D8 D0 PCM_SYNC SPI_MOSI SPI_CLK SPI_CSB SPI_MISO GND D2D11 D3 VDD_PADS GND D9 VDD_PIO GND GND GNDANT GND GND GR2316 / GR2320 Advance Information Note Proprietary and Confidential 32197 - C April 20053 of 12 Figure 1-2: GR2320 bottom view A14A13A12A11A10 B14 C14 D14 E14 F14 G14 H14 J14 K14 L14 M14 N14 P14P13P12P11P10 B10 C10 D10 E10 F10 G10 A9A8A7A6A5A4A3A2A1 C9C8 D8D9 E9E8 F8F9 G9G8 P9P8P7P6P5P4P3P2P1 N1 M1 L1 K1 J1 H1 G1 F1 E1 D1 C1 B1 PIO[11] PIO[10] PIO[9] PIO[7] PIO[6] PIO[8] NC PIO[3] PIO[2] PIO[4] PIO[5] MIC_N MIC_P RESET PCM_OUT UART_TX UART_RX UART_CTS UART_RTS VDD_USB VDD_CORE VDD_DIG VDD_MEM1 FLASH_EN VDD_MEM0 PCM_CLK PCM_IN VREG_IN USB_DPUSB_DN SPKR_N PIO[0] PIO[1]AIO[0] SPKR_PAIO[1]CEXT D15 D6 D4 D1 D7 D14 D12 D10 D13 D5 D8 D0 PCM_SYNC SPI_MOSI SPI_CLK SPI_CSB SPI_MISO GND D2D11 D3 VDD_PADS D9 VDD_PIO GND GND GNDANT GND GND X0 X1 X3 X2 GND GNDGND GR2316 / GR2320 Advance Information Note Proprietary and Confidential 32197 - C April 20054 of 12 2. Package Information Figure 2-1: GR2316 package dimensions NOTE: The following GigaAnt (www.gigaant.com) antennas have been approved for use with the GR2316 module: •Rufa •Picea •Titanis •Flavus •Mica For other types of antennas, please contact Gennum ([email protected]). 0.5720"±0.0030" [14.530mm±0.08mm] 0.5720"±0.0030" [14.530mm±0.08mm] 0.5118"±0.0030" [13.000mm±0.08mm] 0.5118"±0.0030" [13.000mm±0.08mm] 0.0394" [1.000mm] 0.0260"±0.0010" [0.660mm±0.03mm] 0.0394" [1.000mm] Index (A1) TOP VIEWBOTTOM VIEW 0.1200" [3.048mm] MAX 0.0080" [0.200mm] SIDE VIEW XXXXXXSD7GR2316 FCC IDGENNUM GR2316 / GR2320 Advance Information Note Proprietary and Confidential 32197 - C April 20055 of 12 Figure 2-2: GR2320 package dimensions 0.5720"±0.0030" [14.530mm±0.08mm] 0.9050"±0.0030" [23.000mm±0.08mm] 0.5118"±0.0030" [13.000mm±0.08mm] 0.5118"±0.0030" [13.000mm±0.08mm] 0.0394" [1.000mm] 0.0260"±0.0010" [0.660mm±0.03mm] 0.0394" [1.000mm] TOP VIEWBOTTOM VIEW 0.1200" [3.048mm] MAX 0.0080" [0.200mm] SIDE VIEW 0.0040" [0.100mm] Z FCC ID C11 XXXXXXSD7GR2320 C12 R2 GENNUM U3 Index (A1) GR2316 / GR2320 Advance Information Note Proprietary and Confidential 32197 - C April 20056 of 12 3. Pin Descriptions Table 3-1: Pin Descriptions Pin Number Pin Name Description A2GNDGround connection to external low impedance ground plane A3GNDGround connection to external low impedance ground plane A4GNDGround connection to external low impedance ground plane A6GNDGround connection to external low impedance ground plane A7GNDGround connection to external low impedance ground plane A8GNDGround connection to external low impedance ground plane A11GNDGround connection to external low impedance ground plane A5 (GR2316)ANTRF Con…

Text truncated - open the document above for the full version.

Registergerichth registered in:Vorstandh Board of Directors:7 layers AG, Borsigstrasse 11 Ratingen, HRB 3264Dr. Wolfgang Dahm40880 Ratingen, Germany AufsichtsratsvorsitzendehDr. Hans-Jürgen MeckelburgPhone: +49 (0) 2102 749 0 Chairman of the Supervisory Board:Fax: +49 (0) 2102 749 350 Dr. Sabine Grobeckerwww.7Layers.com Torsten Lohoff 30. March 2005 Phone +49 (0) 2102 749 306 Fax +49 (0) 2102 749 350 Email: [email protected] request for a modular approval - FCC ID SD7GR2316 Dear Application Examiner, the Gennum Bluetooth module GR2316 is seeking FCC authorization as a modular transmitter. The requirement of the FCC Public notice DA00-1407 are met. The following requirements are fulfilled: 1. The radio portion of the module is contained in its own RF shielding. See enclosed product photos in exhibit. 2. The modular transmitter must have buffered modulation/data inputs The module has a memory management unit inside of the IC. It buffers the data inputs. 3. The modular transmitter must have its own power supply regulation The IC contains an own voltage regulation. In case of changes in the supply voltage VCC (for example caused by temperature changes or other effects), the internal voltage will be stabilized. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204c Any external antenna to be used with the module must be notified with a class 2 change or a separate FCC ID needs to be obtained for the end product. FCC Federal Communications Commission 4_GENNU_0104_BTT - 2 - 5. The modular transmitter must be tested in a stand-alone configuration The EUT was tested in a stand-alone configuration. The module was fixed in the Casira Development Kit of CSR (Cambridge Silicon Radio) during the test. See also test setup photos in test report. For radiated measurements, the required distance of 10 cm was ensured by a special connector. 6. The modular transmitter must be labelled with its own FCC ID number The EUT will be labelled with its own FCC ID number. If the module is installed inside of an end-product, the label will not be visible. In this case the OEM customer will be instructed to how to apply the exterior label. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. The EUT is compliant with all applicable FCC rules. Detail instructions are given in the product Users Guide. 8. The modular transmitter must comply with any applicable RF exposure requirements. The maximum measured power output of 0,81 mW (-0,93 dBm) together with the maximum antenna gain of +4,4 dBi is far below the low threshold defined as (60/f GHz) mW for d < 2.5 cm in the TCB exclusion list. Please contact us if you have any additional questions. Best Regards 7layers AG

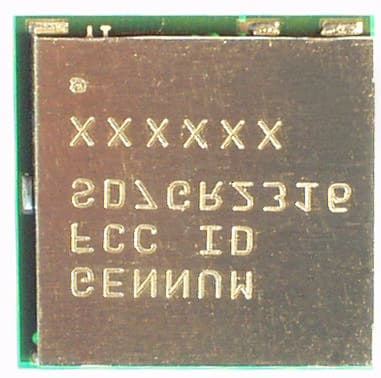

GR2316 GenBlue TM Bluetooth ® Module

GR2316 GenBlue TM Bluetooth ® Module

www.gennum.com GR2316 / GR2320 Module GR2316 / GR2320 Advance Information Note Proprietary and Confidential 32197 - C April 20051 of 12 Features •Compliant to the Bluetooth™ specification v1.1 •FCC and CE certified •Class 2 operation •Integrated voice codec •BlueCore™ HCI software stack •Internal 8Mb flash, 16MHz crystal •Power control function supported •Surface mount compatible with standard 1.0mm BGA package interface •GR2316 size: 14.5mm x 14.5mm x 3mm •GR2320 size: 23mm x 14.5mm x 3mm •Temperature range: -20°C to +85°C •Voltage range: +2.2V to +3.6V Description The GR2316 (without on-board antenna) / GR2320 (with on-board antenna) is one of the smallest modules available providing the most flexibility for a wide range of applications. Powered by Cambridge Silicon Radio’s world leading single-chip technology, and combined with Gennum’s packaging technology, the result is a fully integrated module providing a complete system for data and voice communications. Applications •Headsets •Keyboards •Mobile Phones •Personal Digital Assistants (PDAs) Block diagram BlueCore ™ 2 - Flash Bluetooth™ is a trademark owned by the Bluetooth SIG, Inc. and licensed to Gennum Corporation. BlueCore™ is a trademark owned by Cambridge Silicon Radio. To Antenna 8 Mb Flash 16 MHz Crystal Audio Input/Output USB UART PCM Lot No. Programmable Inputs/Outputs Power Supply Decoupling & Filtering GR2316 +3V Lot No. ® GENNUM FCC ID SD7GR2316 XXXXXX GENNUM FCC ID SD7GR2320 XXXXXX GenBlue™ is a trademark owned by Gennum Corporation.

Product Specification Product Specification Mica 2.4 GHz SMD Antenna Rev : FE010315-G / April 30 2004 Mica 2.4 GHz SMD Antenna 2 (10) 1. FEATURES - Designed for 2.4 GHz applications [Bluetooth TM , WiFi TM (802.11b/g), Zigbee TM , WiMedia TM etc.] - Intended for SMD mounting - Supplied in tape on reel 2. DESCRIPTION - Mobile phones - PDAs - Headsets - Laptops - Medical equipment - Automotive 3. APPLICATION The Mica antenna is intended for use with all 2.4 GHz applications. The antenna requires a groundplane, i.e your device acts as an active part of the antenna and thus demand careful consideration concerning its placement TABLE OF CONTENT 1. Features ......................................................................................................................................................................... 2 2. Description ..................................................................................................................................................................... 2 3. Application ...................................................................................................................................................................... 2 4. Model name .................................................................................................................................................................... 3 5. General data ................................................................................................................................................................... 3 6. Electrical characteristics ................................................................................................................................................. 3 7. Electrical performance .................................................................................................................................................... 4 7.1 Voltage Standing Wave Ratio ............................................................................................................................... 4 7.2 3D-Radiation ........................................................................................................................................................ 4 7.3 Radiation patterns ................................................................................................................................................ 4 8. Antenna Dimensions ....................................................................................................................................................... 5 9. Antenna Foot print .......................................................................................................................................................... 5 10. Electrical interface ........................................................................................................................................................ 6 10.1 Transmission line and matching ......................................................................................................................... 6 10.2 Test board dimensions ....................................................................................................................................... 6 10.3 Test board matching ........................................................................................................................................... 6 11. Soldering ....................................................................................................................................................................... 6 11.1 Recommended soldering conditions ..................................................................................................................... 6 11.2 Leadfree soldering ................................................................................................................................................ 6 12. Reliability ...................................................................................................................................................................... 7 12.1 Temperature and Humidity ................................................................................................................................. 7 12.2 Mechanical ......................................................................................................................................................... 7 12.3 Miscellaneous .................................................................................................................................................... 7 12.4 Judgement standard .......................................................................................................................................... 7 13. Hazardous Material Reguration Conformance .............................................................................................................. 7 14. Application example ...................................................................................................................................................... 8 15. Packaging ..................................................................................................................................................................... 9 15.1 Shelf storage recommendation .......................................................................................................................... 9 15.2 Tape characteristics ........................................................................................................................................... 9 15.3 Reel dimension .................................................................................................................................................. 9 15.4 Box dimension ................................................................................................................................................... 9 15…

Text truncated - open the document above for the full version.

Product Specification Product Specification Flavus 2.4 GHz Snap-In Antenna Rev : FE010320-C / April 30 2004 Flavus 2.4 GHz Snap-In Antenna 2 (9)Subject to changes without prior notice 1. FEATURES - Designed for 2.4 GHz applications [Bluetooth TM , WiFi TM (802.11b/g), Zigbee TM , WiMedia TM etc.] - Intended for Snap-In mounting - Supplied in trays 2. DESCRIPTION - Industrial applications - Network nodes - Access points - Portable PCs - Wireless cable modems 3. APPLICATION The Flavus antenna is intended for use with all 2.4 GHz applications. The antenna is a halfwave type and this makes the antenna less sensitive to ground and surrounding components and facilitates easy antenna placement on the PCB. The antenna uses plastic snap ins to attach to the PCB, no need for soldering. Table of content 1. Features ......................................................................................................................................................................... 2 2. Description ..................................................................................................................................................................... 2 3. Application ...................................................................................................................................................................... 2 4. Model name .................................................................................................................................................................... 3 5. General data ................................................................................................................................................................... 3 6. Electrical characteristics ................................................................................................................................................. 3 7. Electrical performance .................................................................................................................................................... 4 7.1 Voltage Standing Wave Ratio .............................................................................................................................. 4 7.2 3D-Radiation ....................................................................................................................................................... 4 7.3 Radiation patterns ............................................................................................................................................... 4 8. Antenna Dimensions ....................................................................................................................................................... 5 9. Antenna Foot print .......................................................................................................................................................... 5 10. Electrical interface ........................................................................................................................................................ 6 10.1 Transmission line and matching ........................................................................................................................ 6 10.2 Test board dimensions ...................................................................................................................................... 6 10.3 Test board matching ......................................................................................................................................... 6 11. Reliability ....................................................................................................................................................................... 7 11.1 Temperature and Humidity ................................................................................................................................ 7 11.2 Mechanical ........................................................................................................................................................ 7 11.3 Miscellaneous ................................................................................................................................................... 7 11.4 Judgement standard ......................................................................................................................................... 7 12. Hazardous Material Reguration Conformance .............................................................................................................. 7 13. Application example ...................................................................................................................................................... 8 14. Packaging ..................................................................................................................................................................... 9 14.1 Shelf storage recommendation ......................................................................................................................... 9 14.2 Packaging characteristics ................................................................................................................................ 9 14.3 Tray dimension ................................................................................................................................................. 9 14.4 Box dimension ................................................................................................................................................. 9 14.5 Label information .............................................................................................................................................. 9 15. Contact information ...................................................................................................................................................... 9 Rev : FE010320-C / April 30 2004 F…

Text truncated - open the document above for the full version.

Data sheet 2.4 GHz Titanis Swivel Antenna External high performance antenna with SMA connector This external 2.4 GHz Swivel antenna is intended for use with all wireless applications, where very high performance is of utmost importance. The Titanis Swivel antenna is a half-wave antenna independent of groundplane. The design minimizes special considerations for its placement. The Titanis antenna is suitable for Bluetooth TM , Wireless LANs and Home RF products with in the 2.4 GHz range. Typical application areas are: • Desktop PCs • Printers • Instruments • Access points and gateways • Development tools Description The antenna blade is made of a flexible material and can be rotated 360 degrees in order to optimize performance and facilitate transportation. The antenna is fitted with a standard SMA connector. No external matching network is required. Size:15.4x12x50 mm gigaAnt, E-mail: [email protected], www.gigaAnt.com Specification subject to change without notice, AE020078-A, Mar 25-02 Antenna Specification Frequency:2.4-2.5 GHz Type:Ground plane independent Efficiency:>75%* Gain:1.6 dBi* Nominal impedance:50 Ohm VSWR:<1.5:1* Mounting:SMA Connector Operating temperatur:-40 °C – +85 °C Relative humidity:93% at +30°C Weight:7.4 g * Typical values Typical 3D Radiation pattern Product name Titanis 2.4 GHz SMA2010B4844-01Bulk Horizontal cut, xy-planeVertical cut, xz-plane Packaging Dimensions (mm) Article No.

Product Specification Product Specification Picea 2.4 GHz Swivel Antenna Rev : AE020033-C / April 30 2004 Picea 2.4 GHz Swivel Antenna 2 (9)Subject to changes without prior notice 1. FEATURES - Designed for 2.4 GHz applications [Bluetooth TM , WiFi TM (802.11b/g), Zigbee TM , WiMedia TM etc.] - Intended for snap-in mounting - Supplied in bulk 2. DESCRIPTION - Development tools - Test equipment - Instruments - Access points and gateways - Printers 3. APPLICATION The Picea antenna is intended for use with all 2.4 GHz applications. The antenna is intended for snap-in mounting. The blade is made of a flexible material and can be rotated 360 degrees. TABLE OF CONTENT 1. Features ......................................................................................................................................................................... 2 2. Description ..................................................................................................................................................................... 2 3. Application ...................................................................................................................................................................... 2 4. Model names .................................................................................................................................................................. 3 5. General data ................................................................................................................................................................... 3 6. Electrical characteristics ................................................................................................................................................. 3 7. Electrical performance .................................................................................................................................................... 4 7.1 Voltage Standing Wave Ratio ............................................................................................................................... 4 7.2 3D-Radiation ........................................................................................................................................................ 4 7.3 Radiation patterns ................................................................................................................................................ 4 8. Antenna Dimensions ....................................................................................................................................................... 5 9. Antenna Foot print .......................................................................................................................................................... 5 10. Electrical interface ........................................................................................................................................................ 6 10.1 Transmission line and matching ......................................................................................................................... 6 10.2 Test board dimensions ....................................................................................................................................... 6 10.3 Test board matching ........................................................................................................................................... 6 11. Reliability ....................................................................................................................................................................... 7 11.1 Temperature and Humidity ................................................................................................................................. 7 11.2 Judgement standard .......................................................................................................................................... 7 12. Hazardous Material Reguration Conformance .............................................................................................................. 7 13. Application example ...................................................................................................................................................... 8 14. Packaging ..................................................................................................................................................................... 9 14.1 Shelf storage recommendation .......................................................................................................................... 9 14.2 Packaging characteristics .................................................................................................................................. 9 15.3 Bag label information ......................................................................................................................................... 9 15. Contact information ...................................................................................................................................................... 9 Rev : AE020033-C / April 30 2004 Picea 2.4 GHz Swivel Antenna 3 (9)Subject to changes without prior notice 5. GENERAL DATA 4. MODEL NAMES 6. ELECTRICAL CHARACTERISTICS 20 10 B5771 - XX Antenna family Swivel Technology Metal Drawing No PCB Thickness 01 = 0.8 mm 02 = 1.0 mm 03 = 1.2 mm 04 = 1.6 mm 05 = 1.8 mm emaNtcudorPzHG4.2aeciP .oNelcitrA50..10-1775B0102 ycneuqerFzHG5.2-4.2 noitaziraloPraeniL erutarepmetgnitarepOCged58+ot04- ecnadepmImhO05 thgieWmarg2.3 epytannetnAleviwS scitsiretcarahC *snoitidnoC niMpyTxaM niaGkaePiBd1.4 )dleifraen(rebmahcD3niderusaeM,zHG5.2-4.2ycneuqerF ycneiciffE%06 RWSV1:2<rezylanAkrowteNniderusaeM,zHG5.2-4.2ycneuqerF draobecnerefertnAagigehtnodesaberaelbatsihtnidedivorpatadllaetoN* Rev : AE020033-C / April 30 2004 Picea 2.4 GHz Swivel Antenna 4 (9)Subject to changes without prior notice -24.33 -1…

Text truncated - open the document above for the full version.

Product Specification Product Specification Rufa 2.4 GHz SMD Ante…
