SD7GR2320Bluetooth Module

Gennum Corporation

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Apr 18, 2005
Application Purpose: Original Equipment
Date of Application: Apr 18, 2005
Equipment Note: Bluetooth Module
Frequency Range: 2402.00000000 - 2480.00000000
Company: Gennum Corporation
Country: Canada

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

www.gennum.com GR2316 / GR2320 Module GR2316 / GR2320 Advance Information Note Proprietary and Confidential 32197 - C April 20051 of 12 Features •Compliant to the Bluetooth™ specification v1.1 •FCC and CE certified •Class 2 operation •Integrated voice codec •BlueCore™ HCI software stack •Internal 8Mb flash, 16MHz crystal •Power control function supported •Surface mount compatible with standard 1.0mm BGA package interface •GR2316 size: 14.5mm x 14.5mm x 3mm •GR2320 size: 23mm x 14.5mm x 3mm •Temperature range: -20°C to +85°C •Voltage range: +2.2V to +3.6V Description The GR2316 (without on-board antenna) / GR2320 (with on-board antenna) is one of the smallest modules available providing the most flexibility for a wide range of applications. Powered by Cambridge Silicon Radio’s world leading single-chip technology, and combined with Gennum’s packaging technology, the result is a fully integrated module providing a complete system for data and voice communications. Applications •Headsets •Keyboards •Mobile Phones •Personal Digital Assistants (PDAs) Block diagram BlueCore ™ 2 - Flash Bluetooth™ is a trademark owned by the Bluetooth SIG, Inc. and licensed to Gennum Corporation. BlueCore™ is a trademark owned by Cambridge Silicon Radio. To Antenna 8 Mb Flash 16 MHz Crystal Audio Input/Output USB UART PCM Lot No. Programmable Inputs/Outputs Power Supply Decoupling & Filtering GR2316 +3V Lot No. ® GENNUM FCC ID SD7GR2316 XXXXXX GENNUM FCC ID SD7GR2320 XXXXXX GenBlue™ is a trademark owned by Gennum Corporation. GR2316 / GR2320 Advance Information Note Proprietary and Confidential 32197 - C April 20052 of 12 Contents Features ........................................................................................................................1 Description ....................................................................................................................1 Applications ...................................................................................................................1 1. Pinout ........................................................................................................................2 2. Package Information .................................................................................................4 3. Pin Descriptions ........................................................................................................6 4. Typical Application ....................................................................................................9 5. FCC and EU Compliance ........................................................................................10 6. Revision History ......................................................................................................12 1. Pinout Figure 1-1: GR2316 bottom view A14A13A12A11A10 B14 C14 D14 E14 F14 G14 H14 J14 K14 L14 M14 N14 P14P13P12P11P10 B10 C10 D10 E10 F10 G10 A9A8A7A6A5A4A3A2A1 C9C8 D8D9 E9E8 F8F9 G9G8 P9P8P7P6P5P4P3P2P1 N1 M1 L1 K1 J1 H1 G1 F1 E1 D1 C1 B1 PIO[11] PIO[10] PIO[9] PI O[7] PIO[6] PIO[8] NC PIO[3] PIO[2] PIO[4] PIO[5] MIC_N MIC_P RESET PCM_OUT UART_TX UART_RX UART_CTS UART_RTS VDD_USB VDD_CORE VDD_DIG VDD_MEM1 FLASH_EN VDD_MEM0 PCM_CLK PCM_IN VREG_IN USB_DPUSB_DN SPKR_N PIO[0] PIO[1]AIO[0] SPKR_PAIO[1]CEXT D15 D6 D4 D1 D7 D14 D12 D10 D13 D5 D8 D0 PCM_SYNC SPI_MOSI SPI_CLK SPI_CSB SPI_MISO GND D2D11 D3 VDD_PADS GND D9 VDD_PIO GND GND GNDANT GND GND GR2316 / GR2320 Advance Information Note Proprietary and Confidential 32197 - C April 20053 of 12 Figure 1-2: GR2320 bottom view A14A13A12A11A10 B14 C14 D14 E14 F14 G14 H14 J14 K14 L14 M14 N14 P14P13P12P11P10 B10 C10 D10 E10 F10 G10 A9A8A7A6A5A4A3A2A1 C9C8 D8D9 E9E8 F8F9 G9G8 P9P8P7P6P5P4P3P2P1 N1 M1 L1 K1 J1 H1 G1 F1 E1 D1 C1 B1 PIO[11] PIO[10] PIO[9] PIO[7] PIO[6] PIO[8] NC PIO[3] PIO[2] PIO[4] PIO[5] MIC_N MIC_P RESET PCM_OUT UART_TX UART_RX UART_CTS UART_RTS VDD_USB VDD_CORE VDD_DIG VDD_MEM1 FLASH_EN VDD_MEM0 PCM_CLK PCM_IN VREG_IN USB_DPUSB_DN SPKR_N PIO[0] PIO[1]AIO[0] SPKR_PAIO[1]CEXT D15 D6 D4 D1 D7 D14 D12 D10 D13 D5 D8 D0 PCM_SYNC SPI_MOSI SPI_CLK SPI_CSB SPI_MISO GND D2D11 D3 VDD_PADS D9 VDD_PIO GND GND GNDANT GND GND X0 X1 X3 X2 GND GNDGND GR2316 / GR2320 Advance Information Note Proprietary and Confidential 32197 - C April 20054 of 12 2. Package Information Figure 2-1: GR2316 package dimensions NOTE: The following GigaAnt (www.gigaant.com) antennas have been approved for use with the GR2316 module: •Rufa •Picea •Titanis •Flavus •Mica For other types of antennas, please contact Gennum ([email protected]). 0.5720"±0.0030" [14.530mm±0.08mm] 0.5720"±0.0030" [14.530mm±0.08mm] 0.5118"±0.0030" [13.000mm±0.08mm] 0.5118"±0.0030" [13.000mm±0.08mm] 0.0394" [1.000mm] 0.0260"±0.0010" [0.660mm±0.03mm] 0.0394" [1.000mm] Index (A1) TOP VIEWBOTTOM VIEW 0.1200" [3.048mm] MAX 0.0080" [0.200mm] SIDE VIEW XXXXXXSD7GR2316 FCC IDGENNUM GR2316 / GR2320 Advance Information Note Proprietary and Confidential 32197 - C April 20055 of 12 Figure 2-2: GR2320 package dimensions 0.5720"±0.0030" [14.530mm±0.08mm] 0.9050"±0.0030" [23.000mm±0.08mm] 0.5118"±0.0030" [13.000mm±0.08mm] 0.5118"±0.0030" [13.000mm±0.08mm] 0.0394" [1.000mm] 0.0260"±0.0010" [0.660mm±0.03mm] 0.0394" [1.000mm] TOP VIEWBOTTOM VIEW 0.1200" [3.048mm] MAX 0.0080" [0.200mm] SIDE VIEW 0.0040" [0.100mm] Z FCC ID C11 XXXXXXSD7GR2320 C12 R2 GENNUM U3 Index (A1) GR2316 / GR2320 Advance Information Note Proprietary and Confidential 32197 - C April 20056 of 12 3. Pin Descriptions Table 3-1: Pin Descriptions Pin Number Pin Name Description A2GNDGround connection to external low impedance ground plane A3GNDGround connection to external low impedance ground plane A4GNDGround connection to external low impedance ground plane A6GNDGround connection to external low impedance ground plane A7GNDGround connection to external low impedance ground plane A8GNDGround connection to external low impedance ground plane A11GNDGround connection to external low impedance ground plane A5 (GR2316)ANTRF Con…

Text truncated - open the document above for the full version.

Cover Letter(s)

Registergerichth registered in:Vorstandh Board of Directors:7 layers AG, Borsigstrasse 11 Ratingen, HRB 3264Dr. Wolfgang Dahm40880 Ratingen, Germany AufsichtsratsvorsitzendehDr. Hans-Jürgen MeckelburgPhone: +49 (0) 2102 749 0 Chairman of the Supervisory Board:Fax: +49 (0) 2102 749 350 Dr. Sabine Grobeckerwww.7Layers.com Torsten Lohoff 30. March 2005 Phone +49 (0) 2102 749 306 Fax +49 (0) 2102 749 350 Email: [email protected] request for a modular approval - FCC ID SD7GR2320 Dear Application Examiner, the Gennum Bluetooth module GR2320 is seeking FCC authorization as a modular transmitter. The requirement of the FCC Public notice DA00-1407 are met. The following requirements are fulfilled: 1. The radio portion of the module is contained in its own RF shielding. See enclosed product photos in exhibit. 2. The modular transmitter must have buffered modulation/data inputs The module has a memory management unit inside of the IC. It buffers the data inputs. 3. The modular transmitter must have its own power supply regulation The IC contains an own voltage regulation. In case of changes in the supply voltage VCC (for example caused by temperature changes or other effects), the internal voltage will be stabilized. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204c The transmitter shall only be used with the tested integral antenna. FCC Federal Communications Commission 4_GENNU_0104_BTT - 2 - 5. The modular transmitter must be tested in a stand-alone configuration The EUT was tested in a stand-alone configuration. The module was fixed in the Casira Development Kit of CSR (Cambridge Silicon Radio) during the test. See also test setup photos in test report. For radiated measurements, the required distance of 10 cm was ensured by a special connector. 6. The modular transmitter must be labelled with its own FCC ID number The EUT will be labelled with its own FCC ID number. If the module is installed inside of an end-product, the label will not be visible. In this case the OEM customer will be instructed to how to apply the exterior label. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. The EUT is compliant with all applicable FCC rules. Detail instructions are given in the product Users Guide. 8. The modular transmitter must comply with any applicable RF exposure requirements. The maximum measured power output of 0,81 mW (-0,93 dBm) together with the maximum antenna gain of +4,4 dBi is far below the low threshold defined as (60/f GHz) mW for d < 2.5 cm in the TCB exclusion list. Please contact us if you have any additional questions. Best Regards 7layers AG

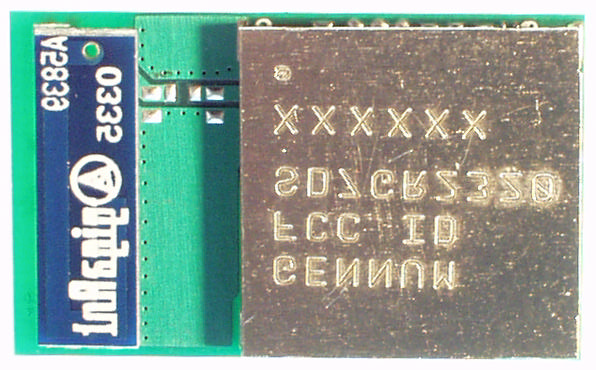

External Photos

GR2320 GenBlue TM Bluetooth ® Module

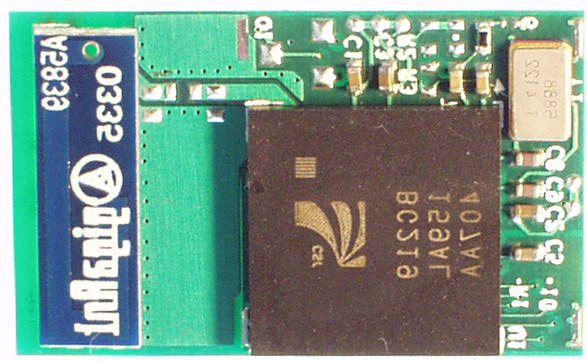

Internal Photos

GR2320 GenBlue TM Bluetooth ® Module

Operational Description

Product Specification Product Specification Rufa 2.4 GHz SMD Antenna Rev : AE020157-D / Aug 18 2003 Rufa 2.4 GHz SMD Antenna 2 (10)Subject to changes without prior notice 1. FEATURES - Designed for 2.4 GHz (Bluetooth TM , WLAN 802.11b, Home RF) - Intended for SMD mounting - Supplied in tape on reel 2. DESCRIPTION - Mobile phones - PDA’s - Headsets - Laptops - PC- Cards - CF- Cards 3. APPLICATION The Rufa antenna is intended for use with all 2.4 GHz applications. The antenna requires a groundplane, i.e your device acts as an active part of the antenna and thus demand careful consideration concerning its placement TABLE OF CONTENT 1. Features ......................................................................................................................................................................... 2 2. Description ..................................................................................................................................................................... 2 3. Application ...................................................................................................................................................................... 2 4. Model names .................................................................................................................................................................. 3 5. General data ................................................................................................................................................................... 3 6. Electrical characteristics ................................................................................................................................................. 3 7. Electrical performance .................................................................................................................................................... 4 7.1 Voltage Standing Wave Ratio ............................................................................................................................... 4 7.2 3D-Radiation ........................................................................................................................................................ 4 7.3 Radiation patterns ................................................................................................................................................ 4 8. Antenna Dimensions ....................................................................................................................................................... 5 9. Antenna Foot print .......................................................................................................................................................... 5 10. Electrical interface ........................................................................................................................................................ 6 10.1 Transmission line and matching ......................................................................................................................... 6 10.2 Test board dimensions ....................................................................................................................................... 6 10.3 Test board matching ........................................................................................................................................... 6 11. Soldering ....................................................................................................................................................................... 6 11.1 Recomended soldering conditions ..................................................................................................................... 6 12. Reliability ...................................................................................................................................................................... 7 12.1 Temperature and Humidity ................................................................................................................................. 7 12.2 Mechanical ......................................................................................................................................................... 7 12.3 Miscellaneous .................................................................................................................................................... 7 12.4 Judgement standard .......................................................................................................................................... 7 13. Hazardous Material Reguration Conformance .............................................................................................................. 7 14. Application example ...................................................................................................................................................... 8 15. Packaging ..................................................................................................................................................................... 9 15.1 Shelf storage recommendation .......................................................................................................................... 9 15.2 Tape characteristics ........................................................................................................................................... 9 15.3 Reel dimension .................................................................................................................................................. 9 15.4 Box dimensions ................................................................................................................................................. 9 15.5 Bag properties ................................................................................................................................................... 9 15.6 Reel label i…

Text truncated - open the document above for the full version.

Test Report

7 layers AG Aufsichtsratsvorsitzenderh Registergerichth registered in: Borsigstrasse 11 Chairman of the Supervisory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Michael Abels USt-IdNr h VAT Nr: Phone: +49 (0) 2102 749 0 Vorstandh Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. Hans-Jürgen Meckelburg www.7Layers.com René Schildknecht InterLab  is a registered trademark of 7 layers AG FCC Measurement/Technical Report on Bluetooth ® transceiver Module GR2316 / GR2320 Report Reference: 4_Gennu_0104_BTT_FCCd Test Laboratory: 7 layers AG Borsigstrasse 11 40880 Ratingen Germany email: [email protected] TTI-P-G 178/99 Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the testing laboratory. Testreport Reference: 4_Gennu_0104_BTT_FCCd Page 2 of 53 Table of Contents 0 Summary 3 0.1 Technical Report Summary 3 0.2 Measurement Summary 4 1 Administrative Data 6 1.1 Testing Laboratory 6 1.2 Project Data 6 1.3 Applicant Data 6 1.4 Manufacturer Data 6 2 Product labelling 7 2.1 FCC ID label 7 2.2 Location of the label on the EUT 7 3 Test object Data 8 3.1 General EUT Description 8 3.2 EUT Main components 9 3.3 Ancillary Equipment 9 3.4 EUT Setups 9 3.5 Operating Modes 9 4 Test Results 10 4.1 Occupied bandwidth 10 4.2 Peak power output 12 4.3 Spurious RF conducted emissions 14 4.4 Spurious radiated emissions 16 4.5 Band edge compliance 20 4.6 Dwell time 22 4.7 Channel separation 24 4.8 Number of hopping frequencies 25 5 Test Equipment 26 6 Photo Report 29 7 Setup Drawings 34 8 Annex 35 Testreport Reference: 4_Gennu_0104_BTT_FCCd Page 3 of 53 0 Summary 0.1 Technical Report Summary Type of Authorization Certification for an Intentional Radiator (Frequency Hopping Spread Spectrum). Applicable FCC Rules Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 2 (2001-10-01 Edition) and 15 (2004-07-12 Edition). The following subparts are applicable to the results in this test report. Part 2, Subpart J - Equipment Authorization Procedures, Certification Part 15, Subpart C – Intentional Radiators § 15.201 Equipment authorization requirement § 15.207 Conducted limits § 15.209 Radiated emission limits; general requirements § 15.247 Operation within the bands 902-928 MHz, 2400-2483,5 MHz and 5725-5850 MHz Note: The tests were selected and performed with reference to the FCC Public Notice DA 00- 705, released March 30, 2000 Instead of applying ANSI C63.4-1992 which is referenced in the FCC Public Note, the newer ANSI C63.4-2003 is applied. Summary Test Results: The EUT complied with all performed tests as listed in chapter 0.2 Measurement Summary. Testreport Reference: 4_Gennu_0104_BTT_FCCd Page 4 of 53 0.2 Measurement Summary FCC Part 15, Subpart C § 15.247 (a) (1) Occupied bandwidth The measurement was performed according to FCC § 15.31 2004 OP-Mode Setup Port Final Result op-mode 1 Setup_b01 Temp.ant.connector passed op-mode 2 Setup_b01 Temp.ant.connector passed op-mode 3 Setup_b01 Temp.ant.connector passed FCC Part 15, Subpart C § 15.247 (b) (1) Peak power output The measurement was performed according to FCC § 15.31 2004 OP-Mode Setup Port Final Result op-mode 1 Setup_b01 Temp.ant.connector passed op-mode 2 Setup_b01 Temp.ant.connector passed op-mode 3 Setup_b01 Temp.ant.connector passed FCC Part 15, Subpart C § 15.247 (d) Spurious RF conducted emissions The measurement was performed according to FCC § 15.31 2004 OP-Mode Setup Port Final Result op-mode 1 Setup_b01 Temp.ant.connector passed op-mode 2 Setup_b01 Temp.ant.connector passed op-mode 3 Setup_b01 Temp.ant.connector passed FCC Part 15, Subpart C § 15.247 (d), § 15.35 (b), § 15.209 Spurious radiated emissions The measurement was performed according to ANSI C63.4 2003 OP-Mode Setup Port Final Result op-mode 1 Setup_a01 Enclosure passed op-mode 2 Setup_a01 Enclosure passed op-mode 3 Setup_a01 Enclosure passed FCC Part 15, Subpart C § 15.247 (d) Band edge compliance The measurement was performed according to FCC § 15.31 (2004) / ANSI C63.4 (2003) 2004 / 2003 OP-Mode Setup Port Final Result op-mode 1 Setup_b01 Temp.ant.connector passed op-mode 3 Setup_a01 Enclosure passed Testreport Reference: 4_Gennu_0104_BTT_FCCd Page 6 of 53 1 Administrative Data 1.1 Testing Laboratory Company Name: 7 Layers AG Address Borsigstr. 11 40880 Ratingen Germany This facility has been fully described in a report submitted to the FCC and accepted under the registration number 96716 . The test facility is also accredited by the following accreditation organisation: - Deutscher Akkreditierungs Rat DAR-Registration no. TTI-P-G 178/99 Responsible for Accreditation Scope: Dipl.-Ing. Bernhard Retka Dipl.-Ing. Arndt Stöcker Dipl.-Ing. Thomas Hoell Report Template Version: 2005-02-01 1.2 Project Data Responsible for testing and report: Dipl.-Ing. Robert Machulec Date of Test(s): 2004-07-08 to 2005-01-24 Date of Report: 2005-04-13 1.3 Applicant Data Company Name: Gennum Corporation Address: 980 Fraser Drive, 489, S L7L 5P5 Burlington, Ontario Canada Canada Contact Person: Mr. Kamal Ali Senior Product Manager Phone: +1-905-632-2999 2156 Fax: +1-905-632-2055 1.4 Manufacturer Data Company Name: please see applicant data Address: Contact Person: Testreport Reference: 4_Gennu_0104_BTT_FCCd Page 7 of 53 2 Product labelling 2.1 FCC ID label At the time of the report there was no FCC label available. 2.2 Location of the label on the EUT see above Testreport Reference: 4_Gennu_0104_BTT_FCCd Page 8 of 53 3 Test object Data 3.1 General EUT Description Equipment under Test Bluetooth ® transceiver Type Designation: Module GR2316 / GR2320 Kind of Device: (optional) Module GR2316 does not have an antenna, module GR2320 is equipped with an integral antenna. Beside this difference the modules are identical. Voltage Type: DC Voltage level: 3,0 V General product description: Bluetooth is a short-range radio link intended to be a cable repla…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Kamal Ali(Certification Contact)

[email protected]9056322999Fax: 9058322055

Test Firm

7layers AGRobert Machulec

[email protected]49-2102-749-313Fax: 49-2102-749-350

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	800.00 µW

Modular Type

Single Modular Approval

Confidentiality

Long Term

Grant Notes

Modular Approval. Output power listed is conducted. Approval is limited to OEM installation only. End users may not be provided with instructions to remove or install this device. This device and its antenna(s) must not be co-located or operated in conjunction with any other antenna or transmitter.
