SDBM420V00Base Station Transceiver

M420 TRANSCEIVER QUICK GUIDE AQG-10120-01 The M420 transceiver is a full duplex FlexNet® transceiver intended for installation into a Sensus FlexNet® M420B or M420D Base Station. By providing dual M420 transceivers, a single base station can simultaneously support communications for both AMI meter reading systems and high value applications such as DA, DR, HAN, and lighting control while transmitting and receiving in a 200 kHz band of spectrum. This bandwidth enables more dedicated channels and higher network traffic capacit y. Specifications Dimensions10”W x 5.25”D x 1.75”H TransceiversSingle, dual Temperature-40°C to +60°C convection, -40°C to +70°C with forced air cooling Humidity95% non-condensing Operating Voltage20V to 30V Output Power+45 dBm nominal, +47dBm nominal in max power mode TX Frequency Stability 0.5 ppm SpectrumLicensed 900 MHz PCS/MAS Compliance FCC CFR47 Part 15, Part 24 and Part 101 IC RSS 119 and RSS 134 UL/CSA 62368-1 – Standard for Safety Audio/Video, information and communication technology equipment Emission Designator5K90F1D/11K8F1D/8K75F1D/17K5F1D Authorized BandwidthPart 24/RSS134 = 20 kHz Part 101/RSS119 = 25 kHz PWR 24VDC SHDN TX TX USB1USB2USB3 BOOT REVFWD STAT USB0 PA PA PWR RXSTATU S CHAIN 1 0 XCVR STATUS OVERLOAD RX LOCK 12 3 456 DIAGNOSTICS GPS RX PPS AL AR M ETH L OC AL ETH BACKHAUL 18 M420 AQG-10120-01 Compliance Statements Warning! Sensus devices are for professional installation only. They are to be servied by pro- fessional personnel only. This product is NOT for consumer installation or servicing. RF Radiation Hazard! In order to satisfy the FCC RF exposure limit for transmitting devices, a separation distance of the following must be maintained: • 366 cm (12 ft.) while operating the Sensus M420 transceiver with the M400G2 PA and a 12.15 dBi antenna • 371 cm (12.17 ft.) while operating the Sensus M420 transceiver with a M420PA and a 12.15 dBi antenna • 918 cm (30.11 ft.) or more while operating the Sensus M420 transceiver with the M400G2 PA and a 20.15 dBi antenna • 931 cm (30.54 ft.) or more while operating the Sensus M420 transceiver with the M420 PA and a 20.15 dBi antenna To ensure compliance, operations at closer than this distance are not recommended. This minimum safe distance is required between personnel and this antenna of this device. Note: CFR 47 Part 101 limits the radiated power to 1,000W in the 941.0 MHz to 941.5 MHz frequency band. Use of a 20.15 dBi antenna may require the use of an inline RF attenuator. Professional installation required. RF Radiation Hazard! In order to satisfy the ISED RF exposure limit for transmitting devices, a separation distance of the following must be maintained: • 544 cm (17.85 ft.) while operating the Sensus M420 transceiver with the M400G2 PA and a 12.15 dBi antenna • 552 cm (18.11 ft.) while operating the Sensus M420 transceiver with a M420PA and a 12.15 dBi antenna • 1367 cm (44.85 ft.) or more while operating the Sensus M420 transceiver with the M400G2 PA and a 20.15 dBi antenna • 1386 cm (45.47 ft.) or more while operating the Sensus M420 transceiver with the M420 PA and a 20.15 dBi antenna To ensure compliance, operations at closer than this distance are not recommended. This minimum safe distance is required between personnel and this antenna of this device. Afin de satisfaire la limite d’exposition RF ISED pour les appareils de transmission, une distance de séparation de éléments suivants doit être maintenue: • 544 cm (17,85 ft.) ou plus pendant le fonctionnement du Sensus appareil (M420 émetteur-récepteur avec le M400G2 PA et un antenne de 12,15 dBi) • 552 cm (18,11 ft.) ou plus pendant le fonctionnement du Sensus appareil (M420 émetteur-récepteur avec le M420 PA et un antenne de 12,15 dBi) • 1367 cm (44,85 ft.) ou plus pendant le fonctionnement du Sensus appareil (M420 émetteur-récepteur avec le M400G2 PA et un antenne de 20,15 dBi) • 1386 cm (45,47 ft.) ou plus pendant le fonctionnement du Sensus appareil (M420 émetteur-récepteur avec le M420 PA et un antenne de 20,15 dBi) Pour assurer la conformité, un fonctionnement à distance inférieure à celle est pas recommandée. Cette distance minimale de sécurité est nécessaire entre le personnel et l’antenne de cet appareil. Note: SRSP-505 limits the radiated power to 250W, 600W, or 2,500W depending on the use case in the 941.0MHz to 941.5MHz frequency band and in the 952.0MHz to 953.0MHz frequency band. SRSP-509 limits the radiated power to 2,500W in the 930.0MHz to 931.0MHz frequency band and in the 940.0MHz to 941.0MHz frequency band. Use of a 20.15 dBi antenna may require the use of an inline RF attenuator. Warning! The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter. Attention! For Class B - Unintentional Radiators: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful in- terference to radio communications. However, there is no guarantee that interfer- ence will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encour- aged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different form that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help Warning! Hazardous voltages are present: to reduce the risk of electric shock and danger to personal health, follo…

Text truncated - open the document above for the full version.

Hardware Test-Regulatory T: 847-983-5508 637 Davis Drive F: 919-317-6210 Morrisville, NC 27560 USA www.sensus.com LETTER OF AUTHORIZATION December 9, 2022 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: I hereby appoint Kirby Munroe of TÜV SÜD to act as our agent in the preparation of an application for equipment authorization of the SDBM420V00 to the FCC Rules and Regulations. I certify that all exhibits contained within this filing properly describe the device or system for which the permissive change is sought. I further certify that appropriate arrangements have been made to assure that production units of this equipment bearing the name M420 and FCC IDENTIFIER SDBM420V00 listed in this application will continue to comply with the Commission's requirements. I further certify by signature below that no party (per 47 CFR 1.2002(b)) to the application is subject to a denial of Federal benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. This authorization is valid for M420 ONLY and shall not be utilized for any other matters on the behalf of Sensus. Sincerely, Rocio Echeverria | VP, Water & Energy Measurement Product Group 637 Davis Drive | Morrisville, NC 27560 USA T: 847-983-5508 | F: 919-317-6210 | [email protected] | www.sensus.com

Confidential 0 NON- DISCLOSURE AGREEMENT This Non-Disclosure Agreement (“Agreement”) is made this DATE (“Effective Date”), between Sensus USA Inc., of 8601 Six Forks Road, Suite 700, Raleigh, North Carolina, 27615 (“Discloser”) and COMPANY NAME, located at ADDRESS (“Recipient”). Whereas, the parties wish to engage in binding contracts that involve BUSINESS REASON FOR NDA; Whereas, the Discloser may disclose Confidential Information, as defined herein, to the Recipient in the course of these activities; Whereas, both parties desire to protect the Confidential Information which may be disclosed to the Recipient. IT IS AGREED: 1. Confidential Information. “Confidential Information” means any and all non-public information disclosed by the Discloser to the Recipient for the Purpose including, without limitation, all technical information about the Discloser’s products or services, product specifications, pricing, marketing, other business or financial information or plans of the Discloser, and all trade secrets of the Discloser. The Confidential Information may be transmitted orally, in writing or electronically. Notwithstanding the foregoing, “Confidential Information” shall not include, (i) any information that is in the public domain other than due to a breach of this Agreement, (ii) any information in the possession of the Recipient prior to disclosure by the Discloser hereunder, or (iii) any information independently developed by the Recipient without reliance on the information disclosed hereunder by the Discloser. 2. Protection. For three (3) years after the date of disclosure, the Recipient shall keep all Confidential Information of the Discloser confidential, provided that trade secret information shall be maintained in confidence until the longer of (i) three years from the date of disclosure; or (ii) until the information is no longer a trade secret under applicable law. Except as provided in Section 3, the Recipient shall not, directly or indirectly, disclose the Confidential Information to any third party, and the Recipient shall take reasonable care to protect the Discloser’s Confidential Information. The Recipient shall not make any copies of any tangible documentation or materials provided hereunder, except to the extent necessary for the Purpose. The Recipient shall not use the Confidential Information of the Discloser for any reason other than for the Purpose. 3. Permitted Disclosures. The Recipient may only disclose the Confidential Information provided hereunder to its employees, agents, consultants and contractors who are directly involved in the Purpose and whom the Recipient has legally bound to comply with reasonable confidentiality obligations. The Recipient may also disclose Confidential Information to the extent it is obliged to do so under applicable laws, so long as it gives the Discloser reasonable notice to enable the Discloser to take protective steps. 4. Return. Upon request of the Discloser, the Recipient shall either (i) return all Confidential Information (including all copies) to the Discloser; or (ii) destroy all Confidential Information (including all copies) and provide written certification of their destruction to the Discloser 5. Term. This Agreement shall commence on the Effective Date and shall continue for three (3) years after the Effective Date. The provisions of this Agreement that are applicable to Confidential 1 circumstances occurring after termination or expiration shall survive such termination or expiration. 6. Warranty. Both parties represent and warrant that they have the right to engage in the discussions, and the Discloser represents that it has the right to disclose all information disclosed in the discussions. Notwithstanding the above, the Discloser does not make any representation or warranty as to the accuracy or completeness of the Confidential Information. 7. No Obligations. The Discloser is under no obligation to disclose Confidential Information. Nothing in this Agreement obligates either party (i) to offer for sale any product or service using or incorporating the Confidential Information; or (ii) to purchase any product or service from the other party. 8. Ownership. All rights in the Confidential Information disclosed remain the property of the Discloser. The Recipient does not acquire any intellectual property rights to the Discloser’s Confidential Information. 9. Entire Agreement. This Agreement constitutes the entire agreement between the parties related to the subject matter hereof, and it supersedes any and all prior agreements, understanding or other communications, whether written or oral, formal or informal, between them. No consent, waiver, alteration, amendment, or modification shall be binding unless in writing and signed by both parties. 10. Assignment. Neither party may assign its rights or delegate its duties or obligations under this Agreement without the prior written consent of the other party. 11. Governing Law and Jury Waiver. This Agreement shall be governed by, construed and enforced in accordance with the laws of the State of Delaware, USA. TO THE MAXIMUM EXTENT PERMITTED BY LAW, THE PARTIES AGREE TO A BENCH TRIAL AND THAT THERE SHALL BE NO JURY IN ANY DISPUTES. 12. Injunctive Relief. Both parties acknowledge that a breach of this Agreement can cause the Discloser to suffer irreparable harm. IF ANY SUCH BREACH OCCURS OR IS THREATENED, THE DISCLOSER MAY SEEK INJUNCTIVE RELIEF, SPECIFIC PERFORMANCE AND OTHER EQUITABLE REMEDIES (IN ADDITION TO ANY AND ALL OTHER REMEDIES AT LAW) WITHOUT PROOF OF MONETARY DAMAGES OR THE INADEQUACY OF OTHER REMEDIES, AND THE RECIPIENTWAIVES ITS RIGHT TO ALL SUCH DEFENSES. 13. Limitation of Liability. The Discloser’s liability in any cause of action arising under, out of, or in relation to this Agreement, its negotiation, performance, breach or termination (collectively, “Cause of Action”) shall be limited to direct damages. The Discloser shall not be liable for any indirect,…

Text truncated - open the document above for the full version.

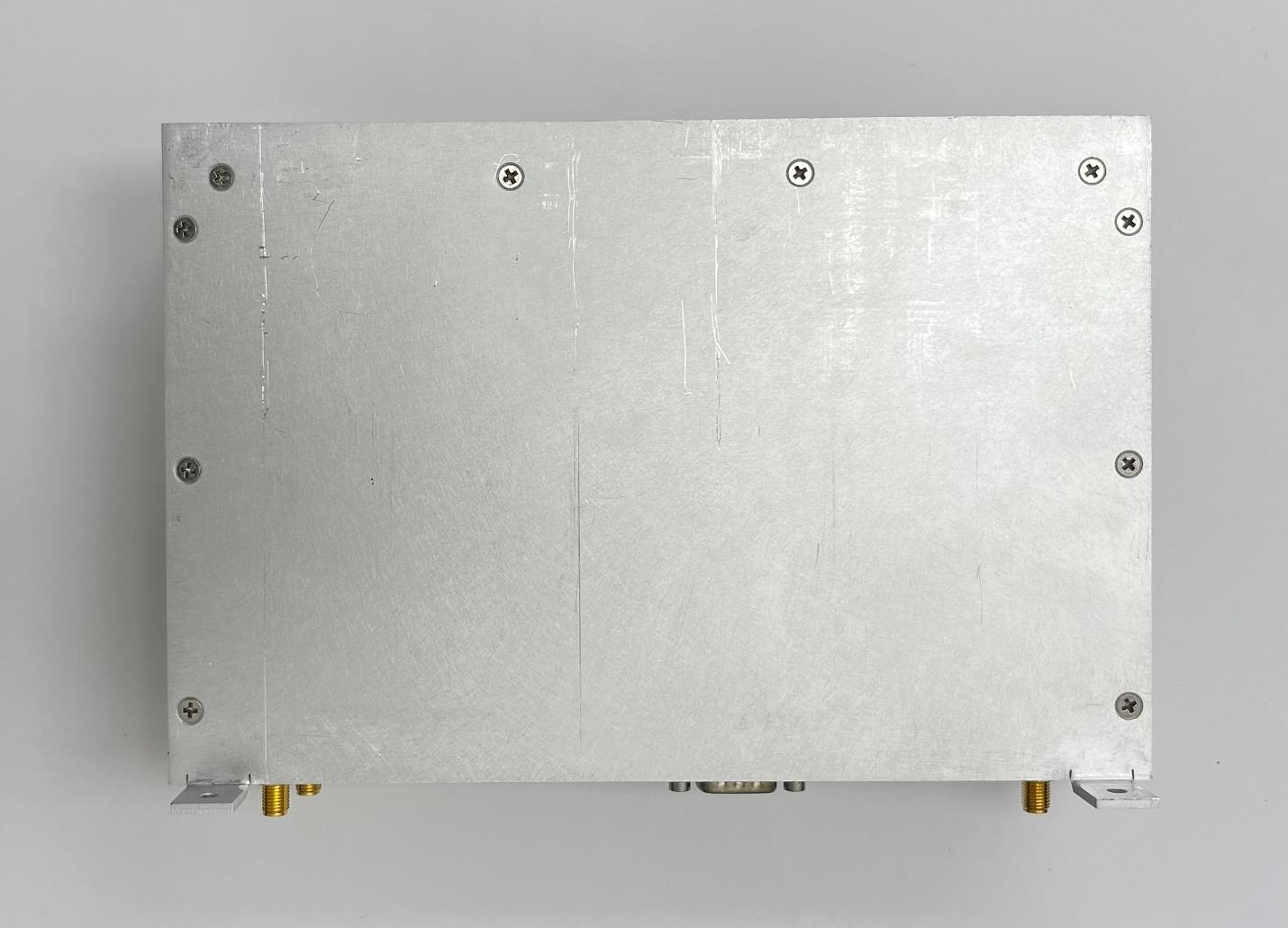

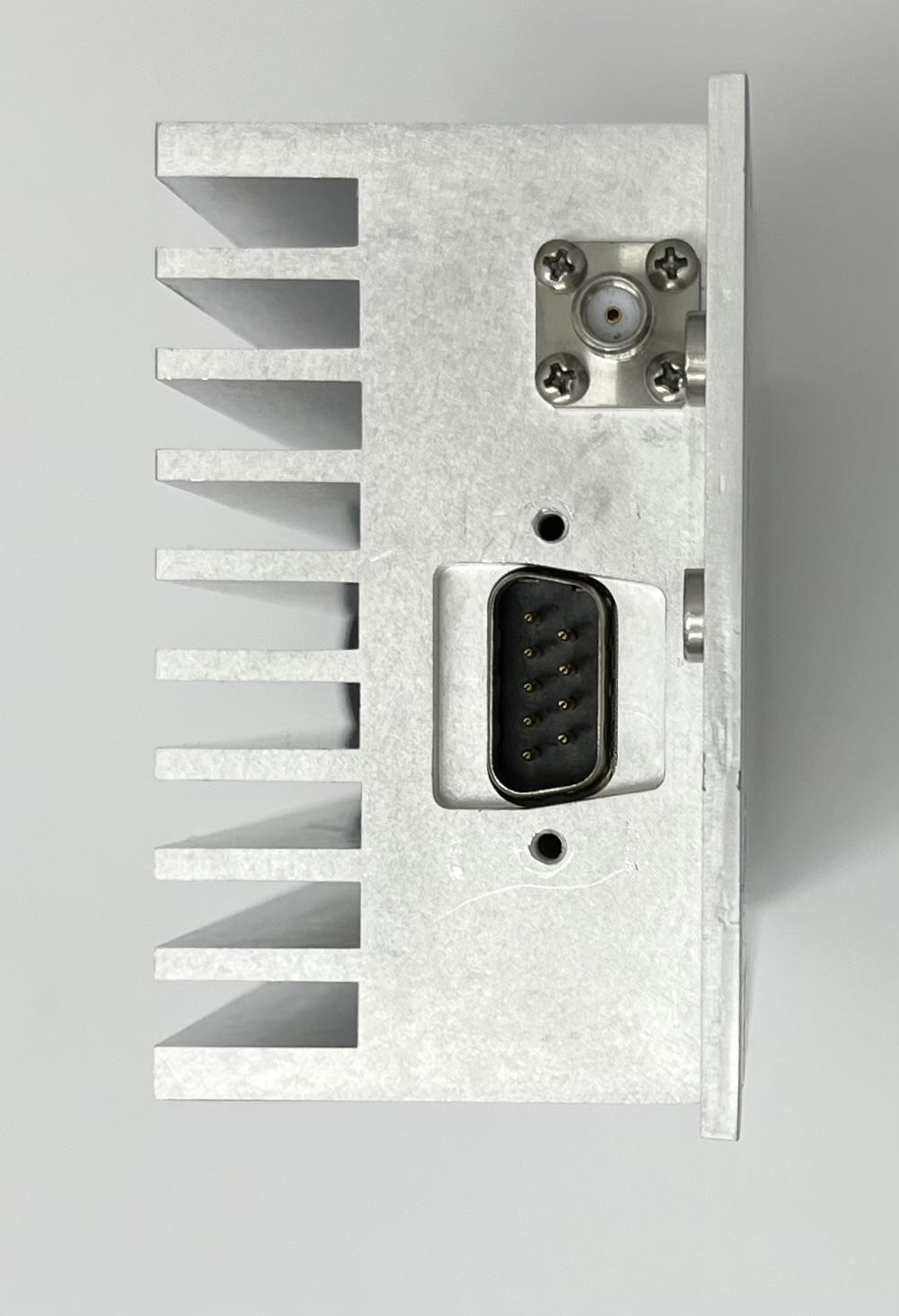

Figure 1: XCVR Front View Figure 2: XCVR Rear View Figure 3: XCVR Top View Figure 4: XCVR Bottom View Figure 5: XCVR Side View Figure 6: M420PA Front View Figure 7: M420PA Rear View Figure 8: M420PA Top View Figure 9: M420PA Side View
