SE4PMS2000-RDUTire Pressure Monitor System (Receiver)

CONFIDENTIALITY FORM INSUNG Electronics Co., Ltd. Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) pertaining to confidential material. INSUNG Electronics Co., Ltd. would like the following documents regarding this submission for FCC ID: SE4PMS2000-RDU to be kept confidential. 1. Schematic 2. Block Diagram 3. Operating Discription The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely,

1 Helen Zhao Subject:FW: INSUNG Electronics Co., Ltd., FCC ID: SE4PMS2000-RDU, Assessment NO.: AN04T4202, Notice#1 confiden_letter(SE4 PMS2000-RDU... RDUTestRpt.doc From: jmkim Sent: Thursday, September 23, 2004 5:10 AM To: Helen Zhao Subject: Re: INSUNG Electronics Co., Ltd., FCC ID: SE4PMS2000-RDU, Assessment NO.: AN04T4202, Notice#1 Dear Helen, Thank you for your cooperations. Please refer the attached files. Best regards, Jeongmin Kim *********************************** Korea Testing Lab. Telecom. Team Senior Engineer > -----Original Message----- > From: Compliance Certification Services [mailto:[email protected]] > Sent: Tuesday, September 21, 2004 5:13 PM > To: Helen Zhao > Subject: INSUNG Electronics Co., Ltd., FCC ID: SE4PMS2000-RDU, > Assessment NO.: AN04T4202, Notice#1 > > > Question #1: Based upon section 10 of ANSI C63.4 - 2001, the test report > shall include calibration information of measuring equipmens along with the > list of test equipment. Please revise the test report to include the > informaton. > > Best regards, > Helen Zhao > > > The items indicated above must be submitted before processing can continue > on the above referenced application. Failure to provide the requested > information within 30 days of the original e-mail date may result in > application dismissal and forfeiture of the filing fee. Also, please note > that partial responses increase processing time and should not be submitted. > Any questions about the content of this correspondence should be directed to > the e-mail address listed below the name of the sender. > 2 > >

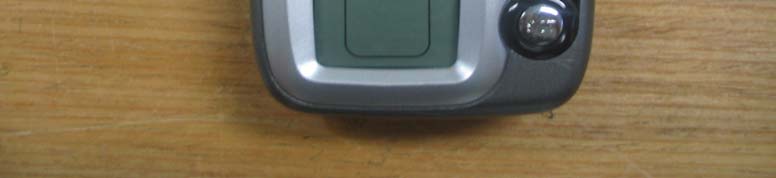

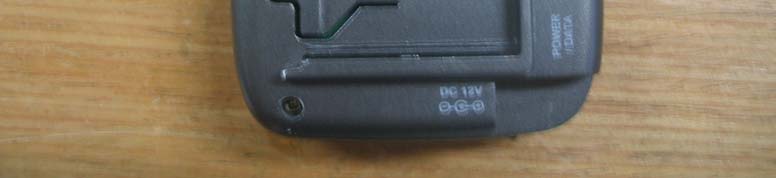

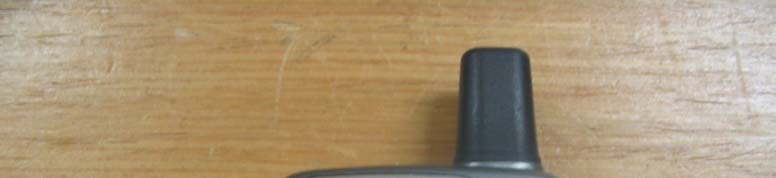

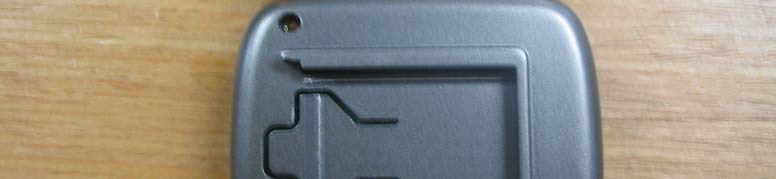

[External Photos]

IDENTIFICATION LABEL: PROPOSED FCC ID LABEL The FCC ID shall be permanently affixed to the rear side of the equipment

[Internal Photos]

KTL Korea Testing Laboratory Page 1 of 8 TEST REPORT This test report only responds to the tested sample and shall not be reproduced except in full without written approval of the Korea Testing Laboratory. Tested and reported by Reviewed by Jeong-Min Kim, Senior Engineer Won-Seo Cho , Telecommunication Team Manager KOREA TESTING LABORATORY FG101-01-02-00 222-13, Guro-Dong Guro-Gu Seoul Korea 152-053 http://www.ktl.re.kr Ref. Report No. 04-1341-014 Name and address of the applicant INSUNG Electronics Co., Ltd. 421, Wonchon-dong, Yongtong-gu, Suwon-shi, Kyungki-do, 442-823, Korea Standard / Test regulation FCC Part 15, Subpart B Test result Pass Incoming date : July 21, 2004 Test item(s) ; Communication Receiver used with Part 15 Transmitter (Tire Pressure Monitor System) Model/type ref. ; RDU-2000 Manufacturer ; INSUNG Electronic Co., Ltd. Additional information ; -Required Authorization : Certification -FCC ID. : SE4PMS2000-RDU Test date : August 27, 2004 Issue date : August 31, 2004 Ref. Report No. 04 - 1341 – 014 Page 2 of 8 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 TABLE OF CONTENTS I. GENERAL INFORMATION 3 1. Grantee’s Name and Mailing Address 2. Manufacturer's Name and Mailing Address 3. Equipment Descriptions 4. Rules and Regulations 5. Measuring Procedure 6. Place of Measurement 7. Date of Measurement ?. GENERAL REQUIREMENTS OF THE EUT 4 1. Labeling Requirement (Section 15.19) 2. Information to User (Sections 15.21) 3. Special Accessories (Section 15.27) ?. RADIATED EMISSION MEASUREMENT (Section 15.109) 5 1. Test Procedure 2. Photograph for the test configuration 3. Sample Calculation 4. Measurement Data ?. TEST EQUIPMENTS USED FOR MEASUREMENT 8 Ref. Report No. 04 - 1341 – 014 Page 3 of 8 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 ?. GENERAL INFORMATION 1. Grantee’s Name and : INSUNG Electronics Co., Ltd. Mailing Address 421, Wonchon-dong, Yongtong-gu, Suwon-shi, Kyungki-do, 442-823, Korea 2. Manufacturer's Name and : INSUNG Electronics Co., Ltd. Mailing Address 421, Wonchon-dong, Yongtong-gu, Suwon-shi, Kyungki-do, 442-823, Korea 3. Equipment Descriptions 3.1 Operating Frequency : 433.92 MHz 3.2 Detect Method : Superheterodyne Detector 3.3 Local Oscillator : Local Osc. Frequency = Operating Frequency – 10.7 MHz (1st IF) 3.4 Power Supply : DC 12 V (Car Battery) 4. Rules and Regulations : FCC Part 15, Subpart B 5. Measuring Procedure : ANSI C63.4-2001 6. Place of Measurement : Absorber-lined Room (KTL) 7. Date of Measurement 7.1 Conducted Emission : Not Applicable 7.2 Radiated Emission : August 27, 2004 Ref. Report No. 04 - 1341 – 014 Page 4 of 8 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 ?. GENERAL REQUIREMENTS OF THE EUT 1. Labeling Requirement (Section 15.19) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interface, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1.1 Location of Label : User’s Guide Manual 1.2 How Applied : Printed 2. Information to User (Section 15.21) The following or similar statements were provided in the manual for user instruction. Please refer page 1 of the attached manual for details. CAUTION : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 3. Special Accessories (Section 15.27) 3.1 Were the special Accessories provided? [ ] yes, [ x ] no 3.2 If yes, details for the special accessories are as follows : 3.3 If yes, were the appropriate instructions provided on the first page of the text concerned with the installation of the device? [ ] yes, [ ] no 3.4 Are these accessories provided of the type which can be readily obtained from multiple retail outlets ? [ ] yes, [ ] no And therefore does the manual specify what additional components or accessories are required to used in order to comply with the Rules? [ ] yes, [ ] no Ref. Report No. 04 - 1341 – 014 Page 5 of 8 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 ?. RADIATED EMISSION MEASUREMENT (Section 15.109) 1. Test Procedure 1.1 Preliminary Testing for Reference Preliminary testing was performed in a KTL absorber-lined room to determine the emission characteristics of the EUT. The EUT was placed on the wooden table which has dimensions of 0.8 meters in height, 1 meter in length and 1.5 meters in width. Receiving antenna (Biconi-Log antenna : 30 to 1000 MHz or Horn Antenna : 1 to 18 GHz) was placed at the distance of 1 meter from the EUT. An attempt was made to maximize the emission level with the various configurations of the EUT. Emission levels from the EUT with various configurations were examined on a spectrum analyzer connected with a RF amplifier and graphed by a plotter. 1.2 Final Radiated Emission Test at an Absorber-Lined Room The final measurement of radiated field strength was carried out in a KTL absorber-lined Room that was listed up at FCC according to the "Radiated Emissions Testing" procedure specified by ANSI C63.4. Based on the test results in preliminary test, measurement was made in same test set up and configuration with 3 orthogonal planes which produced maximum emission level. Receiving antenna was installed at 3-meter distance from the EUT, and was connected to an EMI receiver or spectrum analyzer with a RF amplifier. Turntable was rotated through 360 degrees and receiving antenna height was varied from 1 to 4 meters above the ground plane with horizontal and vertical polarization to read maximum emission level. If necessary, the radiated emission measurements could be performed at a closer distance than specified distance to ensure higher accuracy and their results w…

Text truncated - open the document above for the full version.

Ref. Report No. 04 - 1341 – 014 Page 6 of 8 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 2. Photograph of the test configuration 3. Sample Calculation The emission level measured in decibels above one microvolt (dB?) was converted into microvolt per meter (?/m) as shown in following sample calculation. For example : Measured Value at 423.22 MHz < 30.0 dB? + Antenna Factor 15.8 dB/m + Cable Loss 2.6 dB - Preamplifier 30.0 dB - Distance Correction Factor * 0.0 dB = Radiated Emission < 18.4 dB?/m (< 8.3?/m) * Extrapolated from the measured distance to the specified distance by an inverse linear distance extrapolation.
