Copyright © 2009 Ubisense Limited, All Rights Reserved Ultra-wideband Location System Modular Ubitag V2.0 User’s Manual Written By Andy Ward Ubisense Limited St Andrew’s House St Andrew’s Road Chesterton Cambridge CB4 1DL ENGLAND Tel: +44 (0)1223 535 170 Fax: +44 (0)1223 535 167 Email: [email protected] WWW: http://www.ubisense.net/ Released: October 2009 Copyright © 2009 Ubisense Limited, All Rights Reserved Table of Contents Introduction ...................................................................................................................................... 1 Regulatory Information for the United States of America ................................................................ 1 Regulatory Information for Europe .................................................................................................. 2 Regulatory Information for Canada ................................................................................................. 2 Modular Ubitag V2.0 Specifications................................................................................................. 3 Integration information ..................................................................................................................... 4 Annex A – Additional information pertaining to use of UWB indoors .............................................. 5 United States of America ............................................................................................................. 5 Canada......................................................................................................................................... 5 EU ................................................................................................................................................ 5 1 Ubisense – Ultra-Wideband Location System – Modular Ubitag V2.0
Introduction The Modular Ubitag V2.0 is a wireless module intended to be integrated into other devices for the real-time location of objects within buildings. It transmits ultra-wideband (UWB) pulses which are picked up by a network of basestations (Ubisensors) placed inside the building, allowing the 3D position of the tag to be found. The use of UWB technology enables greater positioning accuracy within buildings than other wireless technologies, because it is much less susceptible to multipath interference effects. Applications of the system include healthcare, workplace productivity, security, retail management and manufacturing. This document describes the features and specifications of the Modular Ubitag and important regulatory information concerning its use and integration into other devices. Regulatory Information for the United States of America The Modular Ubitag V2.0 is approved under subpart F (Part 15.517) and Part 15.249 of the FCC rules as a Modular Transmitter. The product into which the Modular Ubitag V2.0 is incorporated must bear a label per the FCC requirements which shows the FCC ID assigned to the Modular Ubitag V2.0 as follows. Contains FCC ID: SEAMOD21 The following information must be conveyed in the information supplied to the End User of the product into which the Modular Ubitag V2.0 is incorporated: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: This equipment may only be operated indoors. Operation outdoors is in violation of 47 U.S.C. 301 and could subject the operator to serious penalties. The Modular Ubitag V2.0 will only operate (i.e. transmit UWB signals) in conjunction with an in-building UWB sensor network, which should be professionally installed. The installed sensor network will be configured to cover only the area inside the building, preventing Ubitags from emitting UWB signals outdoors. Contact your system administrator if you are unsure as to the extent of the coverage of the Ubisense In-Building Location System in your building. The user’s manual or instruction manual shall caution the user that changes or modifications to the equipment not expressly approved by the party responsible for the grant of equipment authorization issued by the FCC could void the user’s authority to operate the equipment under the grant of equipment authorization, for example: CAUTION: Any changes or modifications made to the Modular Ubitag V2.0 which are not expressly approved by the Ubisense Limited could void the user's authority to operate the equipment. 2 Ubisense – Ultra-Wideband Location System – Modular Ubitag V2.0
Regulatory Information for Europe Hereby, Ubisense declares that this Modular Ubitag V2.0 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the Declaration of Conformity for this equipment may be obtained from: Ubisense St. Andrew's House St. Andrews Road Chesterton Cambridge CB4 1DL United Kingdom This UWB transmitter must not be installed at a fixed outdoor location or used in flying models, aircraft and other forms of aviation. Integrators should note that when the module is integrated into other equipment the combined device must meet all essential requirements and other relevant provisions of European Directives for that combined equipment. See ETSI TR102070-1 and ETSI TR102070-2 for further details. Regulatory Information for Canada The Modular Ubitag V2.0 is approved under Industry Canada documents RSS-GEN, RSS-210 and RSS-220 as a Modular Transmitter. The product into which the Modular Ubitag V2.0 is incorporated must bear a label per Industry Canada requirements which shows the Industry Canada ID assigned to the Modular Ubitag V2.0 as follows. Contains IC: 8673A-MOD21 The following information must be conveyed in the information supplied to the End User of the product into which the Modular Ubitag V2.0 is incor…

Text truncated - open the document above for the full version.

External view – top side External view – bottom side

Part ID: UBIMOD7021 FCC ID: SEAMOD21 0889 IC: 8673A-MOD21 Part ID: UBIMOD7021 FCC ID: SEAMOD21 0889 IC: 8673A-MOD21 Part ID: UBIMOD7021 FCC ID: SEAMOD21 0889 IC: 8673A-MOD21 050-000-000-001 050-000-000-001 Please Note Due to size limitations the following declarations will be made in the manual, rather than on the device: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference, and [2] this device must accept any interference received, including interference that may cause undesired operation.This equipment may only be operated indoors. Operation outdoors is in violation of 47 U.S.C. 301 and could subject the operator to serious legal penalties. View from front of module View from rear of module

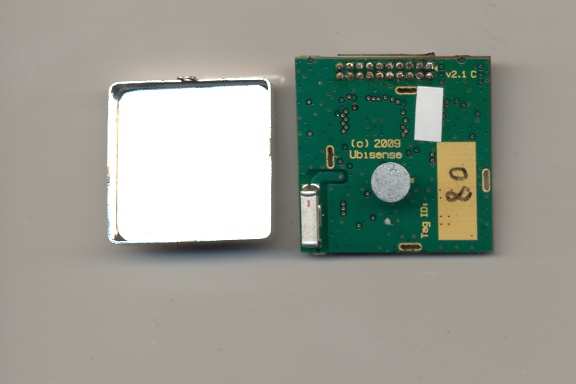

Internal view – top side Internal view – bottom side

OPERATIONAL DESCRIPTION Modular Ubitag V2.0 FCC ID SEAMOD21 The Modular Ubitag V2.0 is a wireless module intended to be integrated into other devices for the real-time location of objects within buildings. It transmits ultra-wideband (UWB) pulses which are picked up by a network of basestations (Ubisensors) placed inside the building, allowing the 3D position of the tag to be found. The use of UWB technology enables greater positioning accuracy within buildings than other wireless technologies, because it is much less susceptible to multipath interference effects. Applications of the system include healthcare, workplace productivity, security, retail management and manufacturing. The Modular Ubitag V2.0 is a composite device consisting of an ultra-wideband transmitter operating in the 6-8GHz region, a conventional radio transceiver operating in the range 2402.5-2480.5MHz, and associated digital circuitry. Both the ultra-wideband transmitter and the conventional radio transceiver utilise permanently attached antennas that are integral to the device. The periodic ultra-wideband transmissions of the device are used by basestations to estimate the location of the device, whilst the device uses its conventional radio transceiver to transfer command and control data between it and the basestations, enabling the system to dynamically change the device’s behaviour (e.g. the rate at which it transmits positioning signals, etc.). It is never the case that both the ultra-wideband transmitter section of the device and the conventional radio transceiver section of the device are active simultaneously. The Modular Ubitag V2.0 is designed to meet the FCC’s Modular Approval requirements.
