Introduction The Modular Ubitag V2.0HH is a wireless module intended to be integrated into other devices for the real-time location of hand-held objects. It transmits ultra-wideband (UWB) pulses which are picked up by a network of basestations (Ubisensors), allowing the 3D position of the tag to be found. The use of UWB technology enables greater positioning accuracy than other wireless technologies, because it is much less susceptible to multipath interference effects. Applications of the system include healthcare, workplace productivity, security, retail management and manufacturing. This document describes the features and specifications of the Modular Ubitag and important regulatory information concerning its use and integration into other devices. Regulatory Information for the United States of America The Modular Ubitag V2.0HH is approved under subpart F (Part 15.519) and Part 15.249 of the FCC rules as a Modular Transmitter. The product into which the Modular Ubitag V2.0HH is incorporated must bear a label per the FCC requirements which shows the FCC ID assigned to the Modular Ubitag V2.0HH as follows. Contains FCC ID: SEAMOD21HH The following information must be conveyed in the information supplied to the End User of the product into which the Modular Ubitag V2.0HH is incorporated: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. UWB devices operating under the provisions of this section must be hand held, i.e., they are relatively small devices that are primarily hand held while being operated and do not employ a fixed infrastructure. The use of antennas mounted on outdoor structures, e.g., antennas mounted on the outside of a building or on a telephone pole, or any fixed outdoors infrastructure is prohibited. Antennas may be mounted only on the hand held UWB device. The user’s manual or instruction manual shall caution the user that changes or modifications to the equipment not expressly approved by the party responsible for the grant of equipment authorization issued by the FCC could void the user’s authority to operate the equipment under the grant of equipment authorization, for example: CAUTION: Any changes or modifications made to the Modular Ubitag V2.0HH which are not expressly approved by the Ubisense Limited could void the user's authority to operate the equipment. 2 Ubisense – Ultra-Wideband Location System – Modular Ubitag V2.0HH
Regulatory Information for Europe Hereby, Ubisense declares that this Modular Ubitag V2.0HH is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the Declaration of Conformity for this equipment may be obtained from: Ubisense St. Andrew's House St. Andrews Road Chesterton Cambridge CB4 1DL United Kingdom This UWB transmitter must not be installed at a fixed outdoor location or used in flying models, aircraft and other forms of aviation. Integrators should note that when the module is integrated into other equipment the combined device must meet all essential requirements and other relevant provisions of European Directives for that combined equipment. See ETSI TR102070-1 and ETSI TR102070-2 for further details. Regulatory Information for Canada The Modular Ubitag V2.0HH is approved under Industry Canada documents RSS-GEN, RSS-210 and RSS-220 as a Modular Transmitter. The product into which the Modular Ubitag V2.0HH is incorporated must bear a label per Industry Canada requirements which shows the Industry Canada ID assigned to the Modular Ubitag V2.0HH as follows. Contains IC: 8673A-MOD21HH The following information must be conveyed in the information supplied to the End User of the product into which the Modular Ubitag V2.0HH is incorporated: Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may…

Text truncated - open the document above for the full version.

External view – top side External view – bottom side

Part ID: UBIMOD7021 FCC ID: SEAMOD21HH 0889 IC: 8673A-MOD21HH 050-000-000-001 050-000-000-001 Please Note Due to size limitations the following declarations will be made in the manual, rather than on the device: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference, and [2] this device must accept any interference received, including interference that may cause undesired operation. View from front of module View from rear of module Part ID: UBIMOD7021 FCC ID: SEAMOD21HH 0889 IC: 8673A-MOD21HH Part ID: UBIMOD7021 FCC ID: SEAMOD21HH 0889 IC: 8673A-MOD21HH

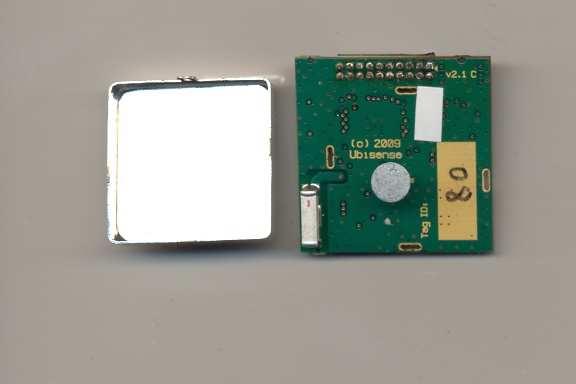

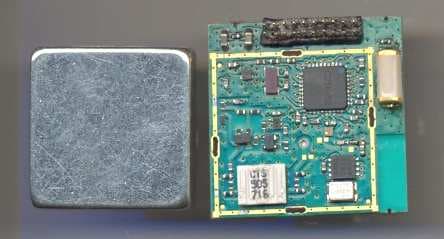

Internal view – top side Internal view – bottom side

OPERATIONAL DESCRIPTION Modular Ubitag V2.0HH FCC ID SEAMOD21HH The Modular Ubitag V2.0HH is a wireless module intended to be integrated into other devices for the real-time location of objects within buildings. It transmits ultra-wideband (UWB) pulses which are picked up by a network of basestations (Ubisensors) placed inside the building, allowing the 3D position of the tag to be found. The use of UWB technology enables greater positioning accuracy within buildings than other wireless technologies, because it is much less susceptible to multipath interference effects. Applications of the system include healthcare, workplace productivity, security, retail management and manufacturing. The Modular Ubitag V2.0HH is a composite device consisting of an ultra-wideband transmitter operating in the 6-8GHz region, a conventional radio transceiver operating in the range 2402.5-2480.5MHz, and associated digital circuitry. Both the ultra-wideband transmitter and the conventional radio transceiver utilise permanently attached antennas that are integral to the device. The periodic ultra-wideband transmissions of the device are used by basestations to estimate the location of the device, whilst the device uses its conventional radio transceiver to transfer command and control data between it and the basestations, enabling the system to dynamically change the device’s behaviour (e.g. the rate at which it transmits positioning signals, etc.). It is never the case that both the ultra-wideband transmitter section of the device and the conventional radio transceiver section of the device are active simultaneously. The Modular Ubitag V2.0HH is designed to meet the FCC’s Modular Approval requirements.

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: Modular Ubitag V2.0HH To: FCC Part 15.249: 2008 Subpart C, RSS-210 Issue 7 June 2007 & RSS-Gen Issue 2 June 2007 Test Report Serial No: RFI/RPT1/RP75860JD08B This Test Report Is Issued Under The Authority Of Brian Watson, Operations Director: Checked By: R. Graham Signature: Date of Issue: 27 November 2009 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI/RPT1/RP75860JD08B ISSUE DATE: 27 NOVEMBER 2009 Page 2 of 27 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI/RPT1/RP75860JD08B ISSUE DATE: 27 NOVEMBER 2009 RFI Global Services Ltd Page 3 of 27 Table of Contents 1. Customer Information .................................................................................................................. 4 2. Summary of Testing ..................................................................................................................... 5 3. Equipment Under Test (EUT) ....................................................................................................... 7 4. Operation and Monitoring of the EUT during Testing ............................................................... 9 5. Measurements, Examinations and Derived Results ................................................................ 10 6. Measurement Uncertainty .......................................................................................................... 26 Appendix 1. Test Equipment Used ................................................................................................27 TEST REPORT SERIAL NO: RFI/RPT1/RP75860JD08B ISSUE DATE: 27 NOVEMBER 2009 Page 4 of 27 RFI Global Services Ltd 1. Customer Information Company Name: Ubisense Ltd. Address: St Andrew's House St Andrew's Road Chesterton, Cambridge Cambridgeshire CB4 1DL United Kingdom TEST REPORT SERIAL NO: RFI/RPT1/RP75860JD08B ISSUE DATE: 27 NOVEMBER 2009 RFI Global Services Ltd Page 5 of 27 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR15.249 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2008: Part 15 Subpart C (Radio Frequency Devices) - Section 15.249 Specification Reference: RSS-210 Issue 7 June 2007 Specification Title: Low-power Licence-exempt Radio communication Devices (All Frequency Bands): Category I Equipment. Specification Reference: RSS-GEN Issue 2 June 2007 Specification Title: General Requirements and Information for the Certification of Radio communication Equipment Site Registration: FCC: 209735; Industry Canada: 3245B-2 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH. Test Dates: 14 September to 09 November 2009 2.2. Summary of Test Results FCC Reference (47CFR) IC Reference Measurement Port Type Result Part 15.107 RSS-Gen 7.2.2 Idle Mode AC Conducted Emissions AC Mains Part 15.109 RSS-Gen 4.10 RSS-Gen 6.0 Receiver/Idle Mode Radiated Spurious Emissions Antenna Part 15.207 RSS-Gen 7.2.2 Transmitter AC Conducted Emissions AC Mains Part 15.249(a) RSS-Gen 4.8 RSS-210 A2.9 Transmitter Fundamental Field Strength Antenna Part 2.1049 RSS-Gen 4.6.1 Transmitter 20 dB Bandwidth Antenna Part 15.249(a)(d)(e) & 15.209 RSS-Gen 4.9 RSS-210 A2.9 Transmitter Radiated Spurious Emissions Antenna Part 15.249(d) & 15.209 RSS-Gen 4.9 RSS-210 A2.9 Transmitter Band Edge Radiated Emissions Antenna Key to Results = Complied = Did not comply TEST REPORT SERIAL NO: RFI/RPT1/RP75860JD08B ISSUE DATE: 27 NOVEMBER 2009 Page 6 of 27 RFI Global Services Ltd 2.3. Methods and Procedures Reference: ANSI C63.4 (2003) Title: American National Standard Methods of Measurement of Electromagnetic Emissions from Low Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: RFI/RPT1/RP75860JD08B ISSUE DATE: 27 NOVEMBER 2009 RFI Global Services Ltd Page 7 of 27 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Brand Name: Ubisense Model Name or Number: Modular Ubitag V2.0HH Serial Number: 2 FCC ID Number: SEAMOD21HH Industry Canada Certification Number: 8673A-MOD21HH 3.2. Description of EUT The equipment under test was a location tag. 3.3. Modifications Incorporated in the EUT No modifications were applied to the EUT during testing. 3.4. Additional Information Related to Testing Tested Technology: Short Range Device (SRD) Type of Radio Device: Transceiver Power Supply Requirement(s): Nominal 3.3 V DC Modulation Type: 125 kbit/s MSK Channel Spacing: Wideband Transmit Frequency Range: 2400 MHz to 2483.5 MHz Channel ID Channel Frequency (MHz) Bottom 2402.5 Middle 2442.0 Transmit Channels Tested: Top 2480.5 Receive Frequency Range: 2400 MHz to 2483.5 MHz Channel ID Channel Frequency (MHz) Bottom 2402.5 Middle 2442.0 Receive Channels Tested: Top 2480.5 TEST REPORT SERIAL NO: RFI/RPT1/RP75860JD08B ISSUE DATE: 27 NOVEMBER 2009 Page 8 of 27 RFI Global Services Ltd 3.5. Support Equipment The following support equipment was used to exercise the EUT during testing: Description: Power Supply Unit Brand Name: Stontronics Model Name or Number: 3A-061WP03 Serial Number: T3915ST TEST REPORT SERIAL NO: RFI/RPT1/RP75860JD08B ISSUE DATE: 27 NOVEMBER 2009 RFI Global Services Ltd Page 9 of 27 4. Operation and Monitoring of the EUT during Testing 4.1. Operating Modes The EUT wa…
