Table of Contents Introduction ...................................................................................................................................... 1 Information to the User .................................................................................................................... 1 Features of the Ubisensor ............................................................................................................... 2 Installation and Operation Instructions ............................................................................................ 3 Mounting options ...................................................................................................................... 3 Setting up a sensor cell ............................................................................................................ 3 Switching on the Ubisensor...................................................................................................... 4 Calibrating the Ubisensor ......................................................................................................... 4 Troubleshooting........................................................................................................................ 5 Ubisensor Specifications ................................................................................................................. 6 Ubisense – Ultra-wideband Location System – Ubisensor V2.0
Introduction The Ubisensor V2.0 is a basestation used by the Ubisense Location System, which supports the real-time location of objects. It detects ultra-wideband (UWB) pulses emitted by wireless tags (Ubitags), allowing the 3D position of the tag to be found. The use of UWB technology enables greater positioning accuracy than other wireless technologies, because it is much less susceptible to multipath interference effects. Applications of the system include healthcare, workplace productivity, security, retail management and manufacturing. This document describes the features and specifications of the Ubisensor, important regulatory information concerning its use, and details on how to diagnose potential problems. Information to the User The Ubisensor V2.0 contains a wireless transceiver certified under FCC Part 15.249. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. CAUTION: Any changes or modifications made to the Ubisensor which are not expressly approved by Ubisense Limited could void the user's authority to operate the equipment. Ubisense – Ultra-wideband Location System – Ubisensor V2.0

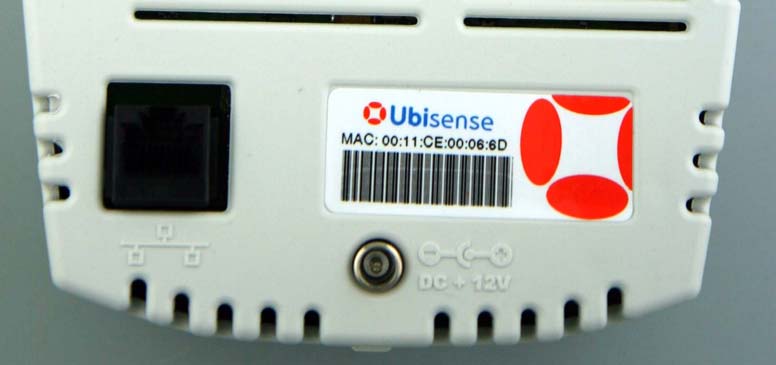

Features of the Ubisensor The diagrams below show several important features of the Ubisensor: Status LED Timing cable sockets Ventilation holes Networking socket MAC address (ID) label Power Supply Socket Ubisense – Ultra-wideband Location System – Ubisensor V2.0

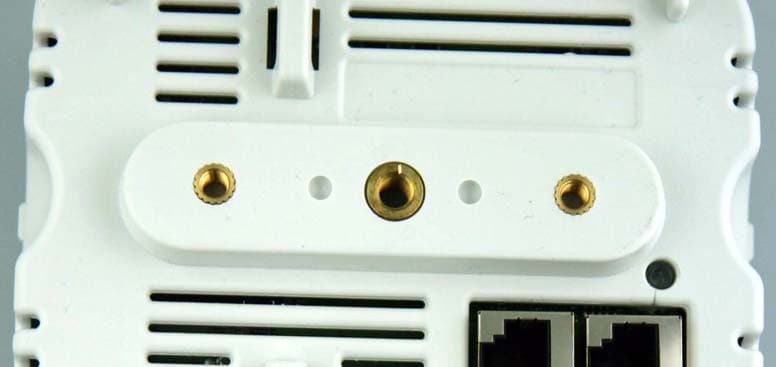

Installation and Operation Instructions Mounting options Ubisensors have three mounting holes in the back of the case, to which external clamps and brackets can be attached. Two holes are M4 size, the other hole is M6 size (and can be used in conjunction with a standard photographic camera mount). Setting up a sensor cell Ubisense will have supplied you with an updated location system database containing configuration information for the equipment you have received. At this point, it’s worth checking that the MAC (Media Access Control) addresses of the Ubisensors you have received match the information in the database, using the Ubisense location system configuration tools. See the software manual for details on how to examine the contents of the configuration database – the MAC address for each Ubisensor is printed on a label affixed to the rear of the unit (see “Features of the Ubisensor”). Once you are sure you have the correct equipment to hand, the sensor cells for the system can be set up. In the Ubisense location system, a large area of space is covered by a number of sensor cells, each of which (individually) covers a smaller area. Each sensor cell has a master unit and number of slave units (usually three or more). The information provided by the Ubisense location system configuration tools will let you identify, for any particular sensor cell, which unit is the master and which are slaves, using the MAC addresses of the devices. The master unit in each sensor cell generates a timing signal which is used by the slave units of that cell. The master unit is connected to the slave units using shielded Category 5e cable (or better). A timing cable from the master to a slave can be plugged into any free timing socket on the master, but must be plugged into the top right…

Text truncated - open the document above for the full version.

Declaration of maximum 2.4GHz link duty cycle for Ubisensor V2.0 Andy Ward Chief Technology Officer Ubisense Limited 4th June 2007 Overview This document describes the maximum possible duty cycle of transmissions of the Ubisensor v2.0 device via its 2.4GHz transceiver, which is to be certified under FCC Part 15.249. Device operation As part of its operation, the Ubisensor V2.0 device utilises a 2.4GHz conventional radio link which is to be certified under FCC Part 15.249. The device transmits only infrequently on the 2.4GHz radio link. The maximum time for which the 2.4GHz transmitter of the Ubisensor may be active in a cycle is 2.2035ms, and the maximum rate at which the device may be cycled is 160Hz, leading to a maximum transmitter ‘on’ time of 2.2035ms every 6.25ms. The maximum transmitter ‘on’ time in any 100ms period is therefore 16 x 2.2035ms = 35.256ms. Conclusion The maximum possible transmitter on time of a sensor is 35.256ms in any 100ms period. Therefore the duty cycle correction factor which should be applied to measurements of a continuous signal during testing = 20log(35.256/100) = -9.055 dB

2400-2483.5 MHz Transceiver Side Antenna Diversity Switch 26MHz Crystal Digital control signals Class A digital circuitry (sensor, signal processing, network interface) not connected with § 15.249 transceiver Class A digital device §15.249 transceiver Composite device Ubisensor V2.0 block diagram Top Antenna Filter TX / RX Switch Power Amplifier TX RX TX / RX Switch PSU 12V DC 3V 3.3V

DUT Exterior Photos




    Putting full Part 15 labelling on the device would block ventilation holes – consequently the required wording has been placed in a prominent place in the user manual, as per §15.19(a)(5) Extract from the user manual: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Putting full Part 15 labelling on the device would block ventilation holes – consequently the required wording has been placed in a prominent place in the user manual, as per §15.19(a)(5) Extract from the user manual: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

DUT Interior Photos

OPERATIONAL DESCRIPTION Ubisensor V2.0 FCC ID SEASENSOR20 The Ubisensor V2.0 is a basestation used by the Ubisense Location System, which supports the real-time location of objects. It detects ultra-wideband (UWB) pulses emitted by wireless tags (Ubitags), allowing the 3D position of the tag to be found. The use of UWB technology enables greater positioning accuracy than other wireless technologies, because it is much less susceptible to multipath interference effects. Applications of the system include healthcare, workplace productivity, security, retail management and manufacturing. The Ubisensor V2.0 is a composite device consisting of a conventional FM radio transceiver operating in the range 2400-2483.5MHz (FCC ID SEASENSOR20, which is subject to certification, the application for which is supported by this document), and an associated Class A digital device (which will be subject to Verification Authorisation under section 15.101b of CFR47). The conventional FM intentional radiator section of the device utilises two antennas for the purposes of antenna diversity. Both antennas are permanently attached and are integral to the device.

FCC Pt 15.249 LOW POWER DEVICE TEST REPORT Applicant Ubisense Limited Address St Andrews House 90 St. Andrews Road Chesterton,Cambridge CB4 1DL UK FCC ID SEASENSOR20 Model Number UBISENSOR7020 Product Description Real-time Location Sensor (Low Power Transmitter) Date Sample Received 5/24/2007 Date Tested 5/24/2007 Tested By Richard Block Approved By Mario de Aranzeta Report Number 2155AUT7TestReport.pdf Test Results PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW State Road 45 Newberry, FL 32669 USA Ph: 888.472.2424 or 352.472.5500 Fax: 352.472.2030 Email: [email protected] Website: www.timcoengr.com Certificate # 0955-01 APPLICANT: Ubisense Limited FCC ID: SEASENSOR20 REPORT: W:\U\Ubisense_SEA\2155AUT7\2155AUT7TestReport.doc Page 2 of 13 TABLE OF CONTENT ATTESTATION STATEMENT................................................................................................... 3 GENERAL INFORMATION ...................................................................................................... 4 TEST ENVIRONMENT ............................................................................................................ 4 TEST SETUP.......................................................................................................................... 4 DUT SPECIFICATION............................................................................................................. 5 EMC EQUIPMENT LIST.......................................................................................................... 6 TEST PROCEDURE................................................................................................................ 7 RADIATION INTERFERENCE ................................................................................................. 8 OCCUPIED BANDWIDTH ..................................................................................................... 11 POWER LINE CONDUCTED INTERFERENCE....................................................................... 13 APPLICANT: Ubisense Limited FCC ID: SEASENSOR20 REPORT: W:\U\Ubisense_SEA\2155AUT7\2155AUT7TestReport.doc Page 3 of 13 ATTESTATION STATEMENT This equipment has been tested in accordance with the standards identified in the referenced test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report and demonstrate that the equipment complies with the appropriate standards. No modifications were made to the equipment during testing in order to demonstrate compliance with these standards. Certificate # 0955-01 All Timco instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. I attest that the necessary measurements were made by me or under my supervision, at TIMCO ENGINEERING, INC. located at 849 N.W. State Road 45, Newberry, Florida 32669. Authorized by: Mario de Aranzeta Signature: On file Function: Engineer Date: June 6, 2007 APPLICANT: Ubisense Limited FCC ID: SEASENSOR20 REPORT: W:\U\Ubisense_SEA\2155AUT7\2155AUT7TestReport.doc Page 4 of 13 GENERAL INFORMATION Disclaimer The test results relate only to the items tested. Purpose of Report To demonstrate the DUT complies with FCC Pt 15.249 requirement for a low power unlicensed device. Applicable Standard/Procedure Part 15.249, ANSI C63.4: 2003 Related Report/Approval R2340_1.pdf TEST ENVIRONMENT Test Facility The test sites used by Timco Engineering Inc. are located at 849 NW State Road 45 Newberry, FL 32669 USA. Test Environment Temperature: 26ºC; Humidity: 55% TEST SETUP Test Supporting Equipment Description: N/A Manufactured by: Model or FCC ID: N/A Test Exercise (e.g. software description, test signal, etc.) The DUT was put in test mode by using applicant’s software and instruction. Deviation from the standard(s) No deviation Modification to the DUT No modification APPLICANT: Ubisense Limited FCC ID: SEASENSOR20 REPORT: W:\U\Ubisense_SEA\2155AUT7\2155AUT7TestReport.doc Page 5 of 13 DUT SPECIFICATION Manufacturer: Ubisense Limited Product Description: Real-time location sensor (Low Power Transmitter) FCC ID: SEASENSOR20 Model Number: UBISENSOR7020 Brand Name: Ubisense Operating Frequency: 2402.50 - 2480.50 MHz Emission Designator: N/A Primary Power – 3 V Battery (coin type cell) EUT Power Source: Secondary Power – N/A Test Item: Prototype Type of Equipment Portable Antennas patch Antenna Connector permanently attached APPLICANT: Ubisense Limited FCC ID: SEASENSOR20 REPORT: W:\U\Ubisense_SEA\2155AUT7\2155AUT7TestReport.doc Page 6 of 13 EMC EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/27/07 3/26/10 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 Antenna: Biconnical Eaton 94455-1 1057 CAL 12/12/05 12/12/07 Antenna: Biconnical Eaton 94455-1 1096 CAL 10/11/06 10/11/08 Antenna: Biconnical Electro- Metrics BIA-25 1171 CAL 4/29/07 4/29/09 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 12/7/05 12/7/07 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 12/7/05 12/7/07 Analyzer Tan Tower Quasi-Peak Adapter HP 85650A 3303A01690 CAL 12/8/05 12/8/07 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 12/8/05 12/8/07 LISN Electro- Metrics ANS-25/2 2604 CAL 10/5/06 10/5/08 LISN Electro- Metrics EM-7820 2682 CAL 4/28/07 4/28/09 Antenna: Log-Periodic Eaton 96005 1243 CAL 12/14/05 12/14/07 APPLICANT: Ubisense Limited FCC ID: SEASENSOR20 REPORT: W:\U\Ubisense_SEA\2155AUT7\2155AUT7TestReport.doc Page 7 of 13 TEST PROCEDURE Radiation Interference: The measurement was made per ANSI C63.4-2003 using an Agilent model 8566B spectrum analyzer, a model 85685A preselector, a model 85650A quasi-peak adapter, and an appropriate antenna. The analyzer was calibrated in dB above a microvolt at the output of the …
