SEATAG20Ultra-wideband In-building Location System

Copyright © 2007 Ubisense Limited, All Rights Reserved Ultra-wideband In-Building Location System Ubitag V2.0 User’s Manual Written By Andy Ward, Paul Webster Ubisense Limited St Andrew’s House, St Andrew’s Road, Chesterton, Cambridge, CB4 1DL, ENGLAND Tel: +44 (0)1223 535170 Fax: +44 (0)1223 535167 Email: [email protected] WWW: http://www.ubisense.net/ Revised: February 2007 Copyright © 2007 Ubisense Limited, All Rights Reserved Table of Contents Introduction................................................................................................................................. 1 Information to the User................................................................................................................ 1 Features of the Ubitag................................................................................................................. 2 Installation and Operation Instructions......................................................................................... 3 Switching the Ubitag on for the first time............................................................................... 3 Replacing the batteries in the Ubitag .................................................................................... 4 Troubleshooting................................................................................................................... 5 Ubitag Specifications................................................................................................................... 6 Requirements for indoor UWB device operation.......................................................................... 6 1 Ubisense – Ultra-wideband In-Building Location System – Ubitag V2.0 Introduction The Ubitag V2.0 is a wireless device intended to be used for the real-time location of objects within buildings. It transmits ultra-wideband (UWB) pulses which are picked up by a network of basestations (Ubisensors) placed inside the building, allowing the 3D position of the tag to be found. The use of UWB technology enables greater positioning accuracy within buildings than other wireless technologies, because it is much less susceptible to multipath interference effects. Applications of the system include healthcare, workplace productivity, security, retail management and manufacturing. This document describes the features and specifications of the Ubitag, important regulatory information concerning its use, and details on how to diagnose potential problems. Information to the User The Ubitag V2.0 is an ultra-wideband (UWB) wireless device certified under FCC Part 15.517. Its use is subject to technical requirements for indoor UWB systems, in particular the stipulation that the devices must only be used indoors. Users should note carefully the following information: š CAUTION: This equipment may only be operated indoors. Operation outdoors is in violation of 47 U.S.C. 301 and could subject the operator to serious penalties. š Ubitags will only operate (i.e. transmit UWB signals) in conjunction with an in-building Ubisensor network, which must be professionally installed. The installed Ubisensor network will be configured to cover only the area inside the building, preventing Ubitags from emitting UWB signals outdoors. Contact your system administrator if you are unsure as to the extent of coverage of the Ubisense In-Building Location System in your building. š This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Users should also carefully note the following information: š CAUTION: Any changes or modifications made to the Ubitag which are not expressly approved by the Ubisense Limited could void the user's authority to operate the equipment. š NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. 2 Ubisense – Ultra-wideband In-Building Location System – Ubitag V2.0 Features of the Ubitag The diagram below shows several important features of the Ubitag: Programmable buttons Belt clip (optional) Buzzer Programmable LEDs UWB antenna Battery lid 3 Ubisense – Ultra-wideband In-Building Location System – Ubitag V2.0 Installation and Operation Instructions Switching the Ubitag on for the first time The Ubitag is supplied with a battery. A paper tab prevents the device from operating and drawing current from the battery until it is removed by the user. The Ubitag can be switched on for the first time by pulling the paper tab directly away from the body of the Ubitag and clear of the device, as shown in the drawing below: The Ubitag will bleep once and flash its LEDs to indicate correct start-up, and the Ubisense In- Building Location System will then be able to determine the Ubitag’s location. PULL 4 Ubisense – Ultra-wideband In-Building Location System – Ubitag V2.0 Re…

Text truncated - open the document above for the full version.

Ubitag V2.0 block diagram CC2510 microcontroller & transceiver AND Gate RF Pulse Generator Attenuator Stripline Filter UWB Antenna Buzzer Buttons LEDs Battery 2.1V Regulator 3V Regulator Trembler Switch 2.4GHz Antenna 26MHz Crystal 32.768kHz Crystal Filter Gate signal6.5MHz pulse train

COVER LETTER 02/20/2006 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Ubisense Limited FCC ID: SEATAG20 To Whom It May Concern: The attached application is for a device that is both a 6 to 8 GHz UWB operating under 15.517 and a 15.249 device operating in the band 2400 to 2483.5 MHz. The assembly consists of a handheld module with integral antennas. The whole device is powered by a 3Vdc coin type cell. Previously a similar device from this applicant was certified as a Part 15.517/15.249 composite device (FCC ID: SEAUBITAG10), and we are again following the FCC’s guidance relating to that previous certification, which included submitting test reports for both the 15.517 and 15.249 transmitters under a single FCC ID. Should you have any questions or require any further information with regards to this, please feel free to contact me. Sincerely, Mario de Aranzeta C.E.T. Engineer

FCC ID: SEATAG20 Front View Rear View

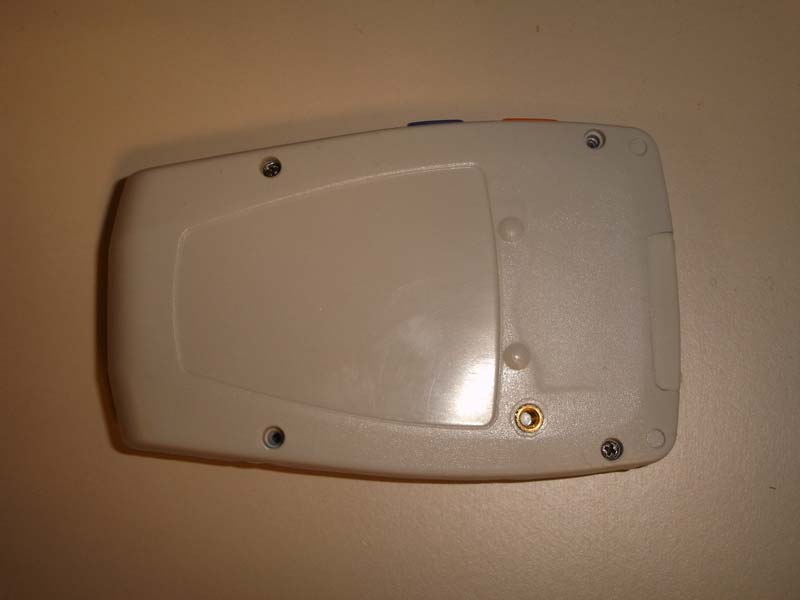

View from rear of tag Ubisense Model: UBITAG7020P FCC ID SEATAG20 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference, and [2] this device must accept any interference received, including interference that may cause undesired operation. This equipment may only beoperated indoors. Operation outdoors is in violation of 47 U.S.C. 301 and could subject the operator to serious legal penalties.

FCC ID: SEATAG20 Component Side Solder Side

OPERATIONAL DESCRIPTION Ubitag V2.0 FCC ID SEATAG20 The Ubitag V2.0 is a wireless device intended to be used for the real-time location of objects within buildings. It transmits ultra-wideband (UWB) pulses which are picked up by a network of basestations (Ubisensors) placed inside the building, allowing the 3D position of the tag to be found. The use of UWB technology enables greater positioning accuracy within buildings than other wireless technologies, because it is much less susceptible to multipath interference effects. Applications of the system include healthcare, workplace productivity, security, retail management and manufacturing. The Ubitag V2.0 is a composite device consisting of an ultra-wideband transmitter, a conventional radio transceiver operating in the range 2402.5-2480.5MHz, and associated digital circuitry. It is never the case that both the ultra-wideband transmitter section of the device and the conventional radio transceiver section of the device are active simultaneously. Both the ultra-wideband transmitter and the conventional radio transceiver utilise permanently attached antennas that are integral to the device.
