SEATAG22HHUWB Tag (UBITAG7025)

Ubitag V2.5 block diagram CC2510 microcontroller & transceiver AND Gate UWB RF Pulse Generator Attenuator Ceramic Filter Button LED Battery 2.1V Regulator 3V Regulator Trembler Switch 2.4GHz Antenna 26MHz Crystal 32.768kHz Crystal Filter Gate signal 6.5MHz clock signal UWB Antenna AND Gate Transmit Power Enable

1 LETTER OF EXPLANATION 4 th October 2007 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Ubisense Limited FCC ID: SEATAG22HH To Whom It May Concern: The attached application is for a device that is both a 6 to 8 GHz UWB transmitter operating under 15.519 and a 15.249 device operating in the band 2400 to 2483.5 MHz. The assembly consists of a handheld module with permanently attached antennas. The whole device is powered by a 3Vdc coin type cell. Previously a similar device from this applicant was certified as a Part 15.517/15.249 composite device (FCC ID: SEATAG22), and we are again following the FCC’s guidance relating to that previous certification, which included submitting test reports for both the 15.519 and 15.249 transmitters under a single FCC ID. Should you have any questions or require any further information with regards to this, please feel free to contact me. Sincerely, Mario de Aranzeta C.E.T. Engineer

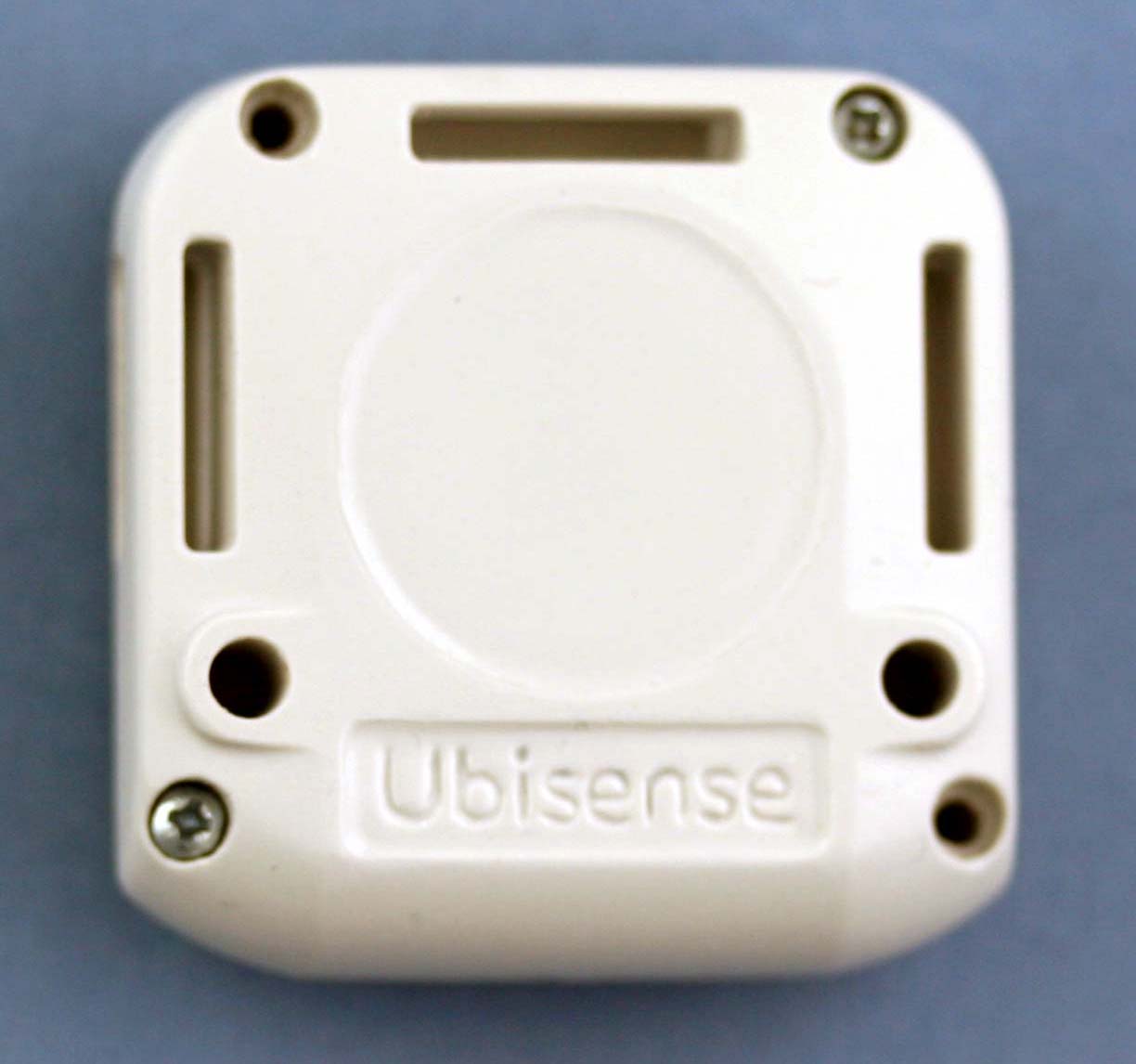

Exterior Photos m Front Side Back Side

View from rear of tag Please Note Due to size limitations the following declarations will be made in the manual, rather than on the device: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference, and [2] this device must accept any interference received, including interference that may cause undesired operation.
     Ext. / Ind. IP 63 / 65 / 67

Interior Photos Front Side Back Side

OPERATIONAL DESCRIPTION Ubitag V2.5 FCC ID SEATAG22HH The UBITAG7025 is a wireless device intended to be used for the real-time location of personnel and hand-held objects. It transmits ultra-wideband (UWB) pulses which are picked up by a network of basestations (Ubisensors), allowing the 3D position of the tag to be found. The use of UWB technology enables greater positioning accuracy within buildings than other wireless technologies, because it is much less susceptible to multipath interference effects. Applications of the system include healthcare, workplace productivity, security and retail management. The UBITAG7025 is a composite device consisting of an ultra-wideband transmitter, a conventional radio transceiver operating in the range 2402.5-2480.5MHz, and associated digital circuitry. It is never the case that both the ultra-wideband transmitter section of the device and the conventional radio transceiver section of the device are active simultaneously. Both the ultra-wideband transmitter and the conventional radio transceiver utilise permanently attached antennas that are integral to the device. The UBITAG7025 will not transmit ultra-wideband signals unless it receives suitable trigger commands (over the range 2402.5-2480.5MHz conventional radio link) from an associated base station. It is programmed to cease transmissions within 10 seconds unless it receives an acknowledgement from an associated receiver that its UWB transmission is being received.

FCC PT 15.519 & PT 15.249 COMPOSITE DEVICE Pt 15.519 UWB TEST REPORT APPLICANT Ubisense Limited ADDRESS St Andrew’s House, 90 St. Andrew’s Road Chesterton, Cambridge CB4 1DL England FCC ID SEATAG22HH MODEL NUMBER UBITAG7025 PRODUCT DESCRIPTION UWB Tag DATE SAMPLE RECEIVED May 22, 2007 DATE TESTED May 22, 2007 TESTED BY Mario de Aranzeta APPROVED BY Mario de Aranzeta TIMCO REPORT NO. SEATAG22HH_15_519_TestReport.PDF TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 Email: [email protected] Email: [email protected] HTTP://WWW.TIMCOENGR.COM Certificate # 0955-01 APPLICANT: Ubisense Limited FCC ID: SEATAG22HH Report#: W:\U\Ubisense_SEA\3319UC7\SEATAG22HH_15_519_TestReport.doc Page 2 of 20 TABLE OF CONTENTS STATEMENT OF COMPLIANCE.................................................................................. 3 REPORT SUMMARY................................................................................................... 4 TEST ENVIRONMENT AND TEST SETUP ................................................................... 4 DUT DESCRIPTION ................................................................................................... 5 EMC EQUIPMENT LIST ............................................................................................. 6 TEST PROCEDURES ................................................................................................. 7 OPERATIONAL RESTRICTIONS.................................................................................. 9 ULTRA-WIDEBAND 10 dB BANDWIDTH .................................................................. 10 FIELD STRENGTH SPURIOUS EMISSIONS (below 960 MHz) .................................... 11 RADIATED EMISSIONS ABOVE 960 MHz ................................................................ 12 RADIATED EMISSIONS GPS BAND.......................................................................... 17 RADIATED EMISSIONS PEAK LEVEL ...................................................................... 19 POWER LINE CONDUCTED INTERFERENCE........................................................... 20 APPLICANT: Ubisense Limited FCC ID: SEATAG22HH Report#: W:\U\Ubisense_SEA\3319UC7\SEATAG22HH_15_519_TestReport.doc Page 3 of 20 STATEMENT OF COMPLIANCE This equipment has been tested in accordance with the standards identified in the referenced test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report and demonstrate that the equipment complies with the appropriate standards. All Timco instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. I attest that the necessary measurements were made by me or under my supervision, at Timco Engineering, Inc. located at 849 N.W. State Road 45, Newberry, Florida 32669 USA. Certificate #0955-01 Authorized by: Mario de Aranzeta Signature: On file Function: Engineer Date: June 18th 2007 APPLICANT: Ubisense Limited FCC ID: SEATAG22HH Report#: W:\U\Ubisense_SEA\3319UC7\SEATAG22HH_15_519_TestReport.doc Page 4 of 20 REPORT SUMMARY Purpose of Test: To demonstrate the DUT in compliance with FCC Pt 15.519 for indoor UWB systems. Disclaimer: The test results relate only to the items tested. Applicable Standards: Pt 15.519, Pt 15.209, Pt 15.207, ANSI C63.4: 2003 Related Reports: 1) SEATAG22HH_15_249_TestReport TEST ENVIRONMENT AND TEST SETUP Test Facilities: All measurements were made at one or more of the test sites of TIMCO ENGINEERING INC. located at 849 N.W. State Road 45, Newberry, FL 32669. Laboratory Test Conditions: Temperature: 26°C, Humidity: 55% Test Exercise (software etc): The DUT was set in continuous transmit mode of operation unless stated otherwise. Deviation to the Standards: No deviation from the standard. Modification to the DUT: No modification was made. Supporting Accessories: None APPLICANT: Ubisense Limited FCC ID: SEATAG22HH Report#: W:\U\Ubisense_SEA\3319UC7\SEATAG22HH_15_519_TestReport.doc Page 5 of 20 DUT DESCRIPTION Manufacturer: Ubisense Product Description: A wireless device intended to be used for the real-time location of personnel and hand-held objects. It transmits an ultra-wideband (UWB) emission which are picked up by a network of base stations, allowing the 3D position of the tag to be found to an accuracy of six inches (15 cm). FCC ID: SEATAG22HH Model Number: UBITAG7025 (Ubitag V2.5) Brand Name: Ubisense Operating Frequency: 6-8 GHz Primary Power – 3 Vdc (Battery) EUT Power Source: Secondary Power – N/A Test Item: Prototype Type of Equipment Portable Antennas Permanently Attached Antenna Connector None APPLICANT: Ubisense Limited FCC ID: SEATAG22HH Report#: W:\U\Ubisense_SEA\3319UC7\SEATAG22HH_15_519_TestReport.doc Page 6 of 20 EMC EQUIPMENT LIST Device Manufacturer Model Number Serial Number Cal/Char Date Due Date 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 Antenna: Biconnical Eaton 94455-1 1057 CAL 12/12/05 12/12/07 Antenna: Biconnical Electro- Metrics BIA-25 1171 CAL 4/29/07 4/29/09 Antenna: DR Horn ETS 3117 CAL 12/29/06 12/29/08 LISN Electro- Metrics EM-7820 2682 CAL 4/28/07 4/28/09 Antenna: Log-Periodic Eaton 96005 1243 CAL 12/14/05 12/14/07 Spectrum Analyzer Rohde & Schwarz ESIB 40 11/15/05 11/15/07 Preamp AH Systems PAM-0126 128 11/05/06 11/05/08 Mixer Agilent 11970A,G,K various 11/15/05 11/15/07 Analyzer Tan Tower Spectrum Analyzer HP 8568B Opt 462 3138A07786 3144A20661 CAL 12/7/05 12/7/07 APPLICANT: Ubisense Limited FCC ID: SEATAG22HH Report#: W:\U\Ubisense_SEA\3319UC7\SEATAG22HH_15_519_TestReport.doc Page 7 of 20 TEST PROCEDURES Bandwidth 10 dB: The measurements were made with the spectrum analyzer using a RMS detector and the procedures outlined by the FCC in 15.521. The test distance was 1 …

Text truncated - open the document above for the full version.

Declaration of maximum 2.4GHz link duty cycle for Ubitag V2.x devices Andy Ward Chief Technology Officer Ubisense Limited 7 October 2007 Overview This document describes the maximum possible duty cycle of transmissions of the Ubitag V2.0, V2.1, V2.2, V2.3, V2.4 and V2.5 devices via their 2.4GHz transceivers, which are to be certified under FCC Part 15.249. Device operation As part of their operation, the Ubitag V2.0, V2.1, V2.2, V2.3, V2.4 and V2.5 devices utilise a 2.4GHz conventional radio link which is to be certified under FCC Part 15.249. To maximise battery lifetime, these devices transmit only infrequently on the 2.4GHz radio link. The maximum time for which the 2.4GHz transmitter of the Ubitag devices may be active in a cycle is 4.6ms, and the maximum rate at which the device may be cycled is 44.5Hz, leading to a maximum transmitter on time of 4.6ms every 22.5ms. The maximum transmitter on time in any 100ms period is therefore 5 x 4.6ms = 23ms, because in the worst-case the 100ms window can happen to capture five complete 4.6ms transmission periods, each with a (22.5ms – 4.6ms) = 17.9ms gap between them. The plot below shows the conducted output from a Ubitag V2.0 device when it is transmitting at maximum duty cycle, across a worst-case 100ms span, and validates the numbers given above. The operating code and 2.4GHz transceivers on the V2.1, V2.2, V2.3, V2.4 and V2.5 Ubitags are identical, and therefore will generate identical results. Conclusion The maximum possible transmitter on time of a Ubitag V2.0, V2.1, V2.2, V2.3, V2.4 or V2.5 device is 23ms in any 100ms period .
