SEATAG23Wide-band Real-time Location Tag




























!




"
 #
$

"
 #



 %&
'(
)* +  * (

,-


.&&
/ 0' 1
212'
34-


.&&
/ 0' 1
212'5
) -


 67
-

-88# # # 77 8

-
3












Table of Contents Introduction ...................................................................................................................................... 1 Information to the User .................................................................................................................... 1 Features of the Ubitag ..................................................................................................................... 2 Installation and Operation Instructions ............................................................................................ 3 Switching the Ubitag on for the first time.................................................................................. 3 Fitting or replacing the batteries in the Ubitag.......................................................................... 3 Troubleshooting........................................................................................................................ 4 Ubitag Specifications ....................................................................................................................... 5 Requirements for device operation.................................................................................................. 5 1 Ubisense – Wideband Location System – Ubitag V2.3
Introduction The Ubitag V2.3 is a wireless device intended to be used for the real-time location of objects. It transmits wideband pulses which are picked up by a network of basestations (Ubisensors), allowing the 3D position of the tag to be found. The use of wideband technology enables greater positioning accuracy than other wireless technologies, because it is much less susceptible to multipath interference effects. Applications of the system include healthcare, workplace productivity, security, retail management and manufacturing. This document describes the features and specifications of the Ubitag, important regulatory information concerning its use, and details on how to diagnose potential problems. Information to the User The Ubitag V2.3 is a wideband wireless device certified under FCC Part 15.250. Its use is subject to technical requirements for wideband systems. Users should note carefully the following information: ∑ Operation on board an aircraft or a satellite is prohibited. ∑ Ubitags will only operate (i.e. transmit wideband signals) in conjunction with an Ubisensor network, which should be professionally installed. ∑ This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Users should also carefully note the following information: ∑ CAUTION: Any changes or modifications made to the Ubitag which are not expressly approved by the Ubisense Limited could void the user's authority to operate the equipment. ∑ NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. 2 Ubisense – Wideband Location System – Ubitag V2.3
Features of the Ubitag The diagram below shows several important features of the Ubitag: Programmable button Programmable LED (visible though enclosure) Wideband antenna Strapping slots Mounting holes 3 Ubisense – Wideband Location System – Ubitag V2.3
Installation and Operation Instructions Switching the Ubitag on for the first time The Ubitag is supplied with a battery, which needs to be fitted prior to operating the tag. Fitting or replacing the batteries in the Ubitag The Ubitag uses a Panasonic CR2477 3V lithium coin cell (or equivalent). Ubitags frequently report their battery health to the system via the Ubisensors, so system administrators should be notified by the system when the battery in a particular tag requires replacement. To replace the battery in a Ubitag: 1. Unscrew the four screws in the back of the enclosure 2. Remove the rear of the enclosure to allow access to the battery 3. Slide out the old battery and dispose of carefully 4. Replace the battery with a new one, being careful to observe correct polarity When the battery has been replaced, the Ubitag will flash its LED to indicate correct start-up, and the Ubisense Location System will then be able to determine the Ubitag’s location. Replace the PCB back into the front of the enclosure, replace the rear enclosure half and then tighten the four screws removed previously to complete reassembly of the de…

Text truncated - open the document above for the full version.

Ubitag V2.3 block diagram CC2510 microcontroller & transceiver Wideband Tx Supply Gate Wideband RF Pulse Generator Attenuator Ceramic Filter Button LED Battery 2.1V Regulator 3V Regulator Trembler Switch 2.4GHz Antenna 26MHz Crystal 32.768kHz Crystal Filter Gate signal 6.5MHz clock signal UWB Antenna AND Gate Transmit Power Enable Discrete Component Filter

LETTER OF EXPLANATION 05/29/2007 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Ubisense Limited FCC ID: SEATAG23 To Whom It May Concern: The attached application is for a device that is both a 6 to 7.25 GHz transmitter operating under 15.250 and a 15.249 device operating in the band 2400 to 2483.5 MHz. The assembly consists of a handheld module with permanently attached antennas. The whole device is powered by a 3Vdc coin type cell. Previously a similar device from this applicant was certified as a Part 15.517/15.249 composite device (FCC ID: SEAUBITAG10-U), and we are again following the FCC’s guidance relating to that previous certification, which included submitting separate test reports for each transmitter under a single FCC ID. Should you have any questions or require any further information with regards to this, please feel free to contact me. Sincerely, Mario de Aranzeta C.E.T. Engineer Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Tel:352.472.5500

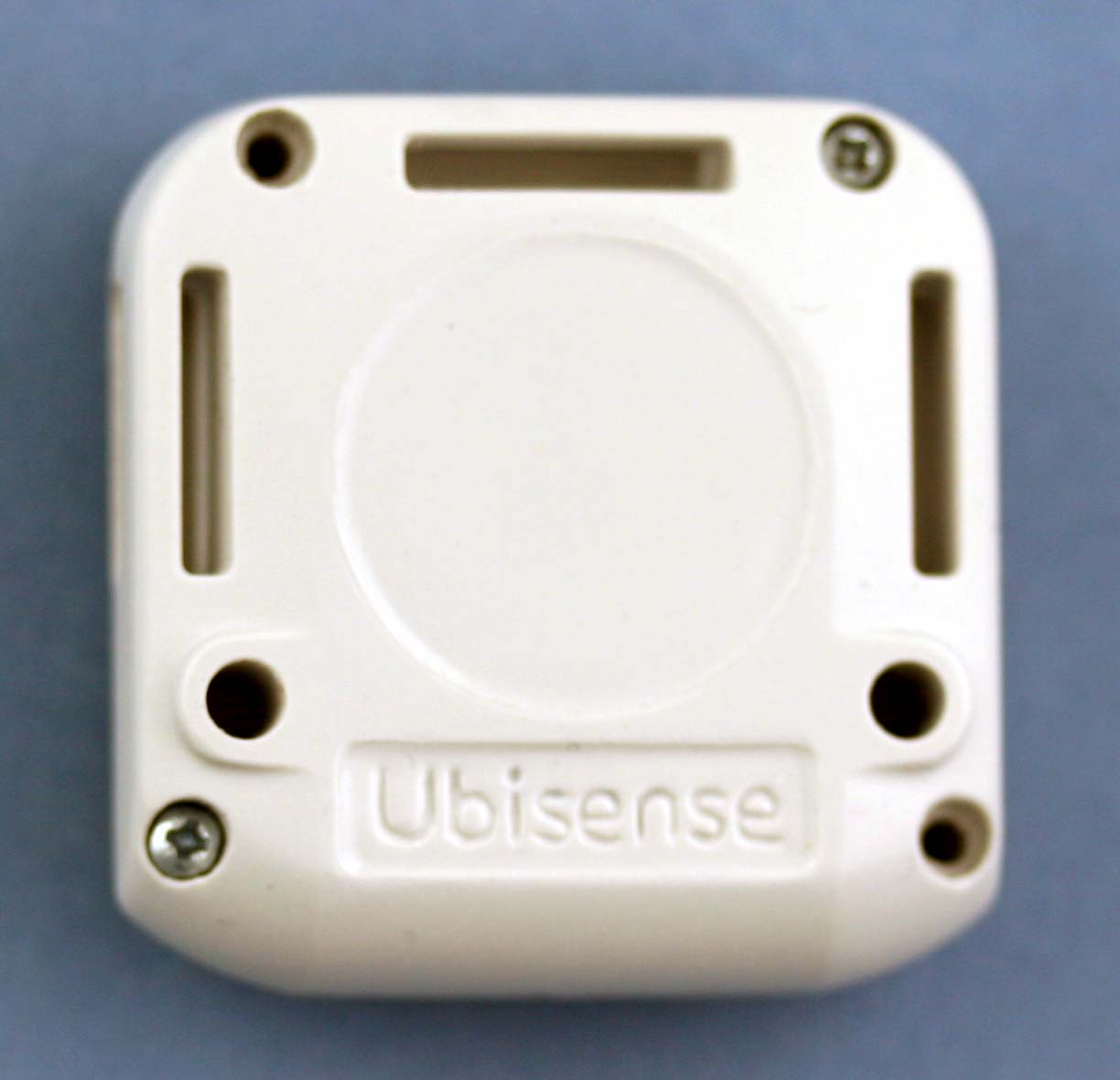

View from rear of tag Please Note Due to size limitations the following declarations will be made in the manual, rather than on the device: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference, and [2] this device must accept any interference received, including interference that may cause undesired operation.
     Ext. / Ind. Temp. IP 63 / 65 / 67

OPERATIONAL DESCRIPTION Ubitag V2.3 FCC ID SEATAG23 The Ubitag V2.3 is a wireless device intended to be used for the real-time location of objects. It transmits wideband pulses which are picked up by a network of basestations (Ubisensors), allowing the 3D position of the tag to be found. The use of wideband technology enables greater positioning accuracy than other wireless technologies, because it is much less susceptible to multipath interference effects. Applications of the system include healthcare, workplace productivity, security, retail management and manufacturing. The Ubitag V2.3 is a composite device consisting of a wideband transmitter, a conventional radio transceiver operating in the range 2402.5-2480.5MHz, and associated digital circuitry. It is never the case that both the wideband transmitter section of the device and the conventional radio transceiver section of the device are active simultaneously. Both the wideband transmitter and the conventional radio transceiver utilise permanently attached antennas that are integral to the device.

FCC PT 15.250 & PT 15.249 COMPOSITE DEVICE Pt 15.249 LOW POWER DEVICE TEST REPORT Applicant Ubisense Limited Address St Andrews House 90 St. Andrews Road Chesterton,Cambridge CB4 1DL UK FCC ID SEATAG23 Model Number UBITAG7023 Product Description Wideband tag Date Sample Received 21/5/2007 Date Tested 21/5/2007 Tested By Richard Block Approved By Mario de Aranzeta Report Number SEATAG23_15_249_TestReport.pdf Test Results PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW State Road 45 Newberry, FL 32669 USA Ph: 888.472.2424 or 352.472.5500 Fax: 352.472.2030 Email: [email protected] Website: www.timcoengr.com Certificate # 0955-01 APPLICANT: Ubisense Limited FCC ID: SEATAG23 REPORT: SEATAG23_15_249_TestReport.doc Page 2 of 12 TABLE OF CONTENT STATEMENT OF COMPLIANCE.............................................................................................. 3 LETTER OF EXPLANATION .................................................................................................... 4 GENERAL INFORMATION ...................................................................................................... 5 TEST ENVIRONMENT ............................................................................................................ 5 TEST SETUP.......................................................................................................................... 5 DUT SPECIFICATION............................................................................................................. 6 EMC EQUIPMENT LIST.......................................................................................................... 7 TEST PROCEDURE................................................................................................................ 8 RADIATION INTERFERENCE ................................................................................................. 9 OCCUPIED BANDWIDTH ..................................................................................................... 11 POWER LINE CONDUCTED INTERFERENCE....................................................................... 12 APPLICANT: Ubisense Limited FCC ID: SEATAG23 REPORT: SEATAG23_15_249_TestReport.doc Page 3 of 12 ATTESTATION OF STATEMENT This equipment has been tested in accordance with the standards identified in the referenced test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report and demonstrate that the equipment complies with the appropriate standards. No modifications were made to the equipment during testing in order to demonstrate compliance with these standards. Certificate # 0955-01 All Timco instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. I attest that the necessary measurements were made by me or under my supervision, at TIMCO ENGINEERING, INC. located at 849 N.W. State Road 45, Newberry, Florida 32669. Authorized by: Mario de Aranzeta Signature: On file Function: Engineer Date: June 1st, 2007 APPLICANT: Ubisense Limited FCC ID: SEATAG23 REPORT: SEATAG23_15_249_TestReport.doc Page 4 of 12 LETTER OF EXPLANATION 06/01/2006 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Ubisense Limited FCC ID: SEATAG23 To Whom It May Concern: The attached application is for a device that is both a 6 to 7.25 GHz wideband transmitter operating under 15.250 and a 15.249 device operating in the band 2400 to 2483.5 MHz. The assembly consists of a handheld module with integral antennas. The whole device is powered by a 3Vdc coin type cell. Previously a similar device from this applicant was certified as a Part 15.517/15.249 composite device (FCC ID: SEAUBITAG10-U), and we are again following the FCC’s guidance relating to that previous certification, which included submitting separate test reports for each transmitter under a single FCC ID. Should you have any questions or require any further information with regards to this, please feel free to contact me. Sincerely, Mario de Aranzeta C.E.T. Engineer APPLICANT: Ubisense Limited FCC ID: SEATAG23 REPORT: SEATAG23_15_249_TestReport.doc Page 5 of 12 GENERAL INFORMATION Disclaimer The test results relate only to the items tested. Purpose of Report To demonstrate the DUT complies with FCC Pt 15.249 requirement for a low power unlicensed device. Applicable Standard Part 15.249, ANSI C63.4: 2003 Related Report/Approval SEATAG23_15_250_TestReport.Pdf TEST ENVIRONMENT Test Facility The test sites used by Timco Engineering Inc. are located at 849 NW State Road 45 Newberry, FL 32669 USA. Test Environment Temperature: 26ºC; Humidity: 55% TEST SETUP Test Supporting Equipment Description: N/A Manufactured by: Model or FCC ID: N/A Test Exercise (e.g. software description, test signal, etc.) The DUT was put in the testing mode by using applicant’s software and instruction. Deviation from the standard(s) No deviation Modification to the DUT No modification APPLICANT: Ubisense Limited FCC ID: SEATAG23 REPORT: SEATAG23_15_249_TestReport.doc Page 6 of 12 DUT SPECIFICATION Manufacturer: Ubisense Limited Product Description: A wireless device intended to be used for the real-time location of objects. It transmits wideband pulses which are picked up by a network of basestations, allowing the 3D position of the tag to be found to an accuracy of six inches (15 cm). FCC ID: SEATAG23 Model Number: UBITAG7023 (Ubitag V2.3) Brand Name: Ubisense Operating Frequency: 2402 - 2480.3 MHz Power Output 77.5 dBuV/m Emission Designator: N/A Primary Power – 3 V Battery (coin type cell) EUT Power Source: Secondary Power – N/A Test Item: Prototype Type of Equipment Portable Antennas Patch Antenna Connector permanently attached APPLICANT: Ubisense Limited FCC ID: SEAT…

Text truncated - open the document above for the full version.

Declaration of maximum 2.4GHz link duty cycle for Ubitag V2.x devices Andy Ward Chief Technology Officer Ubisense Limited 1 June 2007 Overview This document describes the maximum possible duty cycle of transmissions of the Ubitag V2.0, V2.1, V2.2 and V2.3 devices via their 2.4GHz transceivers, which are to be certified under FCC Part 15.249. Device operation As part of their operation, the Ubitag V2.0, V2.1, V2.2 and V2.3 devices utilise a 2.4GHz conventional radio link which is to be certified under FCC Part 15.249. To maximise battery lifetime, these devices transmit only infrequently on the 2.4GHz radio link. The maximum time for which the 2.4GHz transmitter of the Ubitag devices may be active in a cycle is 4.6ms, and the maximum rate at which the device may be cycled is 44.5Hz, leading to a maximum transmitter on time of 4.6ms every 22.5ms. The maximum transmitter on time in any 100ms period is therefore 5 x 4.6ms = 23ms, because in the worst-case the 100ms window can happen to capture five complete 4.6ms transmission periods, each with a (22.5ms – 4.6ms) = 17.9ms gap between them. The plot below shows the conducted output from a Ubitag V2.0 device when it is transmitting at maximum duty cycle, across a worst-case 100ms span, and validates the numbers given above. The operating code and 2.4GHz transceivers on the V2.0, V2.1, V2.2 and V2.3 Ubitags are identical, and therefore will generate identical results. Conclusion The maximum possible transmitter on time of a Ubitag V2.0, V2.1, V2.2 or V2.3 device is 23ms in any 100ms period .
