Table of Contents Introduction .............................................................................................................................................1 Information to the User ..........................................................................................................................1 Features of the Ubisensor .....................................................................................................................2 Installation and Operation Instructions .................................................................................................3 Mounting options ............................................................................................................................3 Setting up a sensor cell..................................................................................................................3 Switching the Ubisensor on ...........................................................................................................4 Tuning the radio power output.......................................................................................................5 Troubleshooting ..............................................................................................................................8 Ubisensor Specifications .......................................................................................................................9 Ubisense – Ultra-wideband In-Building Location System – Ubisensor V1.0
Introduction The Ubisensor V1.0 is a basestation used by the Ubisense In-Building Location System, which supports the real-time location of objects within buildings. It detects ultra-wideband (UWB) pulses emitted by wireless tags (Ubitags) located inside the building, allowing the 3D position of the tag to be found. The use of UWB technology enables greater positioning accuracy within buildings than other wireless technologies, because it is much less susceptible to multipath interference effects. Applications of the system include healthcare, workplace productivity, security, retail management and manufacturing. This document describes the features and specifications of the Ubisensor, important regulatory information concerning its use, and details on how to diagnose potential problems. Information to the User CAUTION: The Ubisensor system must be professionally installed in accordance with these instructions. Improper installation may violate 47 U.S.C. 301 and could subject the operator to serious penalties The Ubisensor V1.0 contains a wireless transceiver certified under FCC Part 15.249. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. CAUTION: Any changes or modifications made to the Ubisensor which are not expressly approved by Ubisense Limited could void the user's authority to operate the equipment. Ubisense – Ultra-wideband In-Building Location System – Ubisensor V1.0

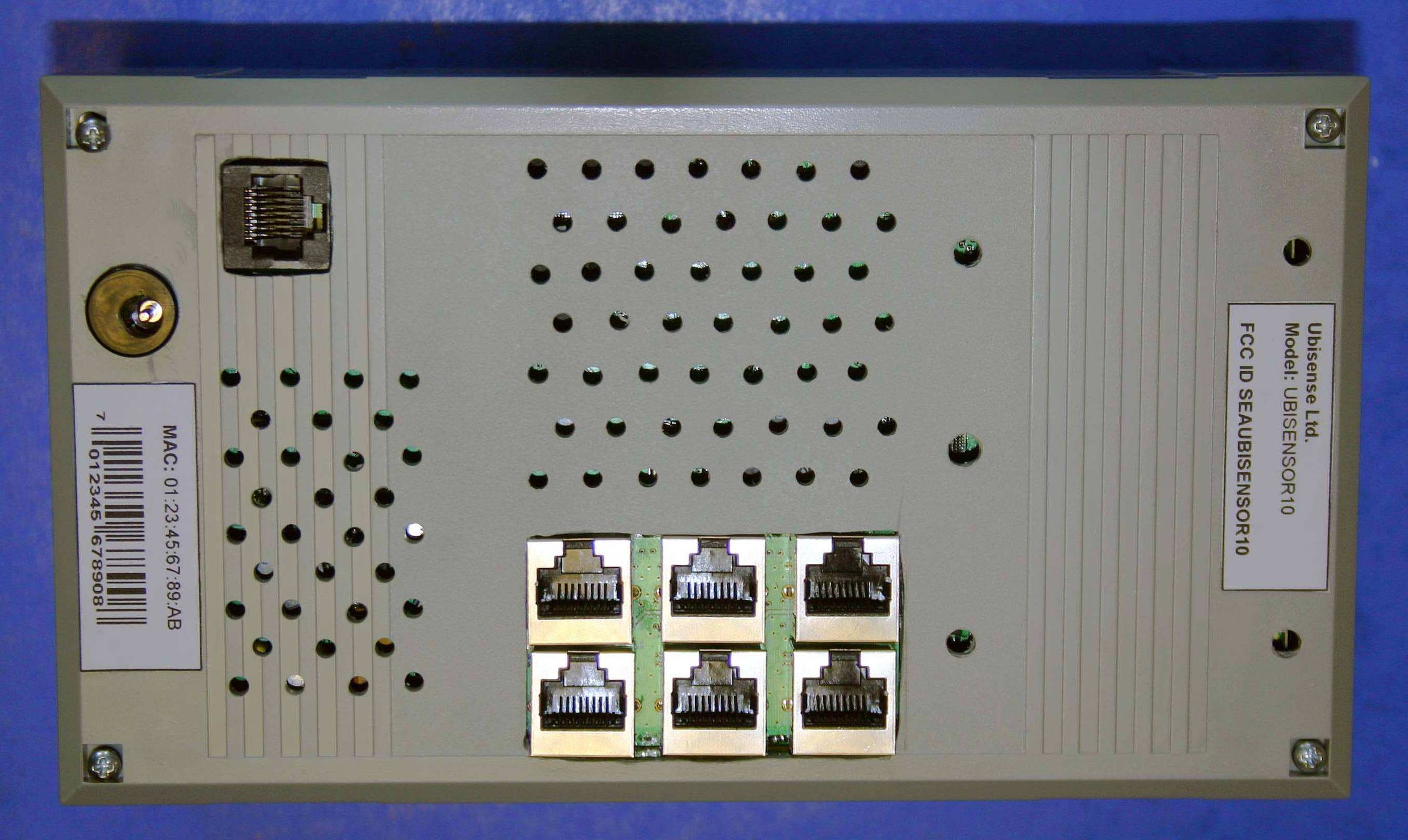

Features of the Ubisensor The diagrams below show several important features of the Ubisensor: Status LED Timing cable sockets Ventilation holes Networking socket Power supply socket MAC address (ID) label Ubisense – Ultra-wideband In-Building Location System – Ubisensor V1.0
Installation and Operation Instructions Mounting options Ubisensors have five holes drilled in the back of the case, to which external clamps and brackets can be attached. Four of the holes are M4 size, the other hole is M6 size (and can be used in conjunction with a standard photographic camera mount). To attach a clamp, bracket or mounting plate to the back of the Ubisensor, it will be necessary to remove the rear of the device by undoing the four retaining screws (as shown in the photograph below). Take care removing the back of the device – the DC power supply socket is attached to it. Once the mounting device is attached to the back of the Ubisensor (normally either by passing bolts from the inside of the case to captive nuts outside, or by screwing nuts inside the case onto a bolt attached to the clamp outside), the rear of the device can be replaced and secured using the four screws removed earlier. When the Ubisensor is mounted in its final position, make sure the ventilation holes on the top, bottom and rear of the device are not obstructed. Setting up a sensor cell Ubisense will have supplied you with an updated location system database containing configuration information for the equipment you have received. At this point, it’s worth checking that the MAC (Media Access Control) addresses of the Ubisensors you have received match the information in the database, using the Ubisense location system configuration tools. See th…

Text truncated - open the document above for the full version.

PIC Micro Controller 908.36- 915MHz Transceiver Antenna Diversity Switch 14.7456MHz Crystal 8MHz Crystal 12V D.C Power Supply and Conditioning Digital control signals Class A digital circuitry (sensor, signal processing, network interface) not connected with § 15.249 transceiver 5V D.C, 3.3V D.C Class A digital device §15.249 transceiver Composite device Ubisensor V1.0 block diagram Antenna

To Reviewing FCC Engineer: From: Marianne Bosley – MET Laboratories [email protected] 410-354-3300 X 412 RE: EA 835567 FCC ID: SEAUBITAG10-U EA 323152 FCC ID: SEAUBITAG10-F EA 699001 FCC ID: SEAUBISENSOR10 Subject: Correction to filings Please add MET Labs as a technical contact. Please use my information above, and I will ensure the correct response is obtained from the appropriate technical person. Thank you. Marianne Bosley

LABEL Ubisense LimitedModel: UBISENSOR10 FCC ID SEAUBISENSOR10 View from rear of unit Putting full Part 15 labelling on the device would block ventilation holes – consequently the required wording has been placed in a prominent place in the user manual, as per §15.19(a)(5) Extract from the user manual: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Putting full Part 15 labelling on the device would block ventilation holes – consequently the required wording has been placed in a prominent place in the user manual, as per §15.19(a)(5) Extract from the user manual: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Photograph showing internal circuitry (§15.249 transceiver and Class A digital device) Photograph showing internal circuitry (§15.249 transceiver and Class A digital device)

OPERATIONAL DESCRIPTION Ubisensor V1.0 FCC ID SEAUBISENSOR10 The Ubisensor V1.0 is a basestation used by the Ubisense In-Building Location System, which supports the real-time location of objects within buildings. It detects ultra- wideband (UWB) pulses emitted by wireless tags (Ubitags) located inside the building, allowing the 3D position of the tag to be found. The use of UWB technology enables greater positioning accuracy within buildings than other wireless technologies, because it is much less susceptible to multipath interference effects. Applications of the system include healthcare, workplace productivity, security, retail management and manufacturing. The Ubisensor V1.0 is a composite device consisting of a conventional FM radio transceiver operating in the range 908.36-915MHz (FCC ID SEAUBISENSOR10, which is subject to certification, the application for which is supported by this document), and an associated Class A digital device (which will be subject to Verification Authorisation under section 15.101b of CFR47). The conventional FM intentional radiator section of the device utilises two antennas for the purposes of antenna diversity. Both antennas are permanently attached and are integral to the device.

|---------- ( Cambridge Ltd. ) ----------| Testing EMCEMC Consultancy EMC Training or : 01223 241140 (accounts) 23, Headington Drive, Cambridge. CB1 9HE Tel : 01954 251974 (test site) Fax : 01954 251907 email: [email protected] web : www.dbtechnology.co.uk REPORT ON ELECTROMAGNETIC COMPATIBILITY TESTS Performed at: TWENTY PENCE TEST SITE Twenty Pence Road, Cottenham, Cambridge U.K. CB4 8PS on Ubisense Ubisensor dated 10 August 2004 Document History Initial release12/08/041 Approved by Revised by Description of modifications Affected page(s) DateIssue Based on report template: v040722 1 of 37 Page: Test Report T1334 Test No: FCC ID: SEAUBISENSOR10 R1908 1 Report No: Issue No: This report shall not be reproduced except in full, without the written approval of: dB Technology (Cambridge) Ltd. Equipment Under Test (EUT):Ubisensor Test Commissioned by:Ubisense 1 Quayside Cambridge CB5 8AB Cambridgshire UK Representative:Andy Ward Test Started: 27 July 2004 Test Completed: 4 August 2004 Test Engineer:Dave Smith Date of Report: 10 August 2004 Report: Written by:Dave SmithChecked by:Derek Barlow Signature:Signature: Date:10th August 2004Date:12th August 2004 dB Technology can only report on the specific unit(s) tested at its site. The responsibility for extrapolating this data to a product line lies solely with the manufacturer. Test Standards Applied CFR 47 : 2004Code of Federal Regulations: Pt 15 Subpart C - Radio Frequency Devices - Intentional Radiators 2 of 37 Page: Test Report T1334 Test No: FCC ID: SEAUBISENSOR10 R1908 1 Report No: Issue No: This report shall not be reproduced except in full, without the written approval of: dB Technology (Cambridge) Ltd. Emissions Test Results Summary CFR 47 : 2004PASS TestPortMethodLimitPASS/FAILNotes Conductedac powerANSI C63.4:1992CISPR22(B)PASS CISPR22(B) Emissions conducted Radiated ANSI C63.4:1992FCC_15B Class APASSFCC_C Emissions & FCC_C (15.249)radiated fcc_v031110 3 of 37 Page: Test Report T1334 Test No: FCC ID: SEAUBISENSOR10 R1908 1 Report No: Issue No: This report shall not be reproduced except in full, without the written approval of: dB Technology (Cambridge) Ltd. Contents 37 PLOT 23 Tx bandwidth - Low Channel - Antenna B (with 3kHz rbw detector) ...................... 36 PLOT 22 Tx bandwidth - High Channel - Antenna B (with 120kHz rbw detector) ................... 35 PLOT 21 Tx bandwidth - High Channel - Antenna A (with 120kHz rbw detector) ................... 34 PLOT 20 Tx bandwidth - Low Channel - Antenna B (with 120kHz rbw detector) .................... 33 PLOT 19 Tx bandwidth - Low Channel - Antenna A (with 120kHz rbw detector) .................... 32 PLOT 18 Radiated Emissions - 6GHz to 10GHz - Hor. - High Channel - Antenna B ................ 31 PLOT 17 Radiated Emissions - 6GHz to 10GHz - Vert. - High Channel - Antenna B ................. 30 PLOT 16 Radiated Emissions - 6GHz to 10GHz - Hor. - High Channel - Antenna A ................. 29 PLOT 15 Radiated Emissions - 6GHz to 10GHz - Vert. - High Channel - Antenna A ................. 28 PLOT 14 Radiated Emissions - 6GHz to 10GHz - Hor. - Low Channel - Antenna B ................. 27 PLOT 13 Radiated Emissions - 6GHz to 10GHz - Vert. - Low Channel - Antenna B ................. 26 PLOT 12 Radiated Emissions - 6GHz to 10GHz - Hor. - Low Channel - Antenna A ................. 25 PLOT 11 Radiated Emissions - 6GHz to 10GHz - Vert. - Low Channel - Antenna A ................. 24 PLOT 10 Radiated Emissions - 1GHz to 6GHz - High Channel - Antenna B ....................... 23 PLOT 9 Radiated Emissions - 1GHz to 6GHz - High Channel - Antenna A ........................ 22 PLOT 8 Radiated Emissions - 1GHz to 6GHz - Low Channel - Antenna B ......................... 21 PLOT 7 Radiated Emissions - 1GHz to 6GHz - Low Channel - Antenna A ......................... 20 PLOT 6 Radiated Emissions - 30MHz to 1GHz - High Channel - Antenna B ....................... 19 PLOT 5 Radiated Emissions - 30MHz to 1GHz - High Channel - Antenna A ....................... 18 PLOT 4 Radiated Emissions - 30MHz to 1GHz - Low Channel - Antenna B ....................... 17 PLOT 3 Radiated Emissions - 30MHz to 1GHz - Low Channel - Antenna A ........................ 16 PLOT 2 Conducted Emissions - 115V - Neutral .............................................. 15 PLOT 1 Conducted Emissions - 115V - Live ................................................. 14 4.3 Radiated Emissions Results - High Channel ............................................... 13 4.2 Radiated Emissions Results - Low Channel ................................................ 12 4.1 Conducted Emission Results ............................................................ 11 4 Test Results ............................................................................ 11 3.2 Radiated Emissions .................................................................... 11 3.1 Conducted Emissions - ac power ........................................................ 11 3 Test Methods ........................................................................... 10 2 Test Equipment ......................................................................... 9 Photograph 4 Radiated Emissions - Back ..................................................... 9 Photograph 3 Radiated Emissions - Front ..................................................... 8 Photograph 2 Conducted Emissions - Back .................................................... 8 Photograph 1 Conducted Emissions - Front ................................................... 7 Figure 1 General Arrangement of EUT and Peripherals ......................................... 6 1.4 EUT Operating Modes ................................................................... 6 1.3 Modifications to EUT and Peripherals ...................................................... 6 1.2 Details of Interconnecting Cables ......................................................... 5 1.1 General ..................................................................…
