Table of Contents Introduction ...................................................................................................................................... 1 Information to the User .................................................................................................................... 1 Features of the Ubitag ..................................................................................................................... 2 Installation and Operation Instructions ............................................................................................ 3 Switching the Ubitag on for the first time.................................................................................. 3 Replacing the batteries in the Ubitag ....................................................................................... 4 Using the mounting cord option................................................................................................ 5 Troubleshooting........................................................................................................................ 6 Ubitag Specifications ....................................................................................................................... 7 Requirements for indoor UWB device operation ............................................................................. 7 Ubisense – Ultra-wideband In-Building Location System – Ubitag V1.0
Introduction The Ubitag V1.0 is a wireless device intended to be used for the real-time location of objects within buildings. It transmits ultra-wideband (UWB) pulses which are picked up by a network of basestations (Ubisensors) placed inside the building, allowing the 3D position of the tag to be found. The use of UWB technology enables greater positioning accuracy within buildings than other wireless technologies, because it is much less susceptible to multipath interference effects. Applications of the system include healthcare, workplace productivity, security, retail management and manufacturing. This document describes the features and specifications of the Ubitag, important regulatory information concerning its use, and details on how to diagnose potential problems. Information to the User The Ubitag V1.0 is an ultra-wideband (UWB) wireless device certified under FCC Part 15.517. Its use is subject to technical requirements for indoor UWB systems, in particular the stipulation that the devices must only be used indoors. Users should note carefully the following information: ∑ CAUTION: This equipment may only be operated indoors. Operation outdoors is in violation of 47 U.S.C. 301 and could subject the operator to serious penalties. ∑ Ubitags will only operate (i.e. transmit UWB signals) in conjunction with an in-building Ubisensor network, which must be professionally installed. The installed Ubisensor network will be configured to cover only the area inside the building, preventing Ubitags from emitting UWB signals outdoors. Contact your system administrator if you are unsure as to the extent of coverage of the Ubisense In-Building Location System in your building. ∑ This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Users should also carefully note the following information: ∑ CAUTION: Any changes or modifications made to the Ubitag which are not expressly approved by the Ubisense Limited could void the user's authority to operate the equipment. ∑ NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Ubisense – Ultra-wideband In-Building Location System – Ubitag V1.0

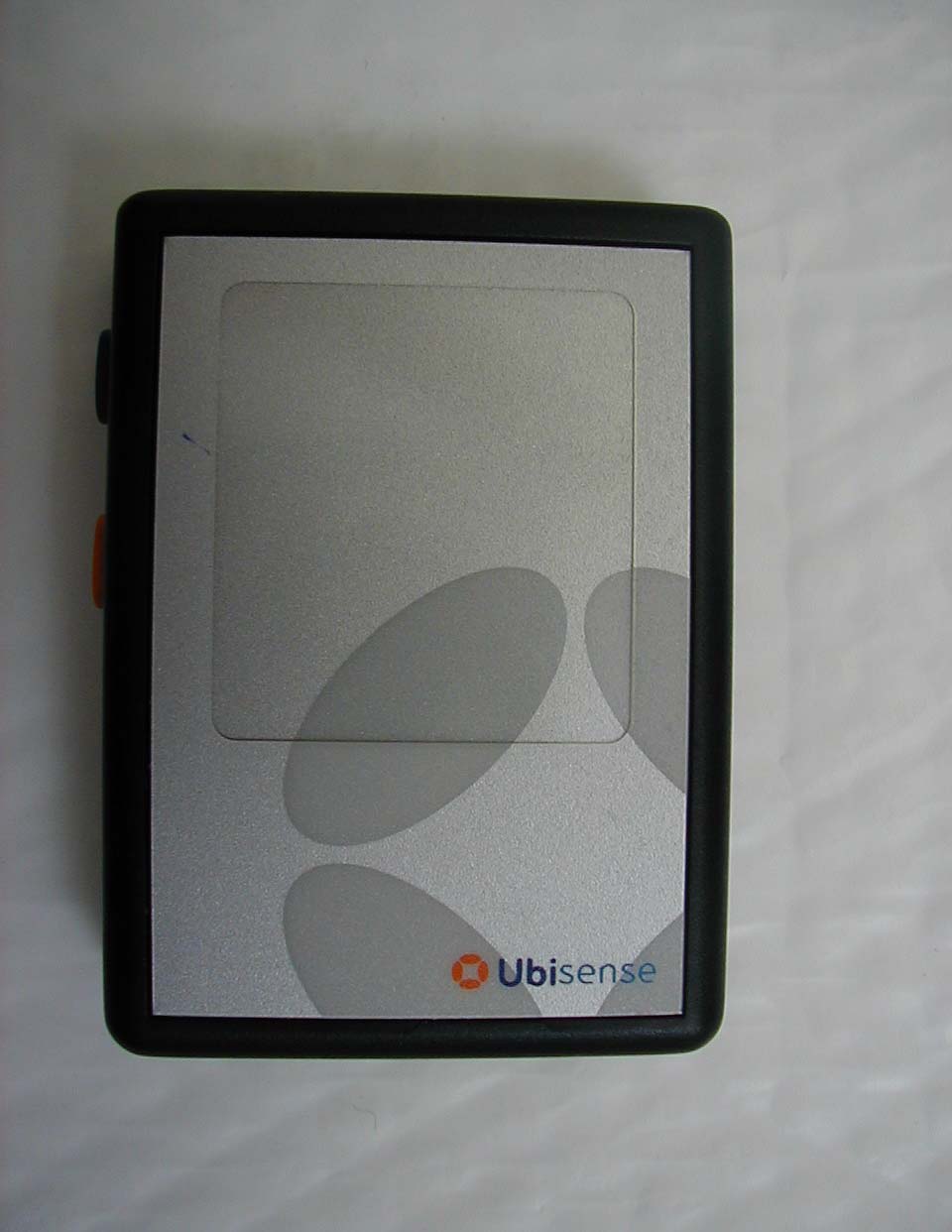

Features of the Ubitag The diagram below shows several important features of the Ubitag: Ubisense – Ultra-wideband In-Building Location System – Ubitag V1.0
Installation and Operation Instructions Switching the Ubitag on for the first time The Ubitag is supplied with batteries. A paper tab prevents the device from operating and drawing current from the batteries until it is removed by the user. The Ubitag can be switched on for the first time by pulling the paper tab directly away from the body of the Ubitag and clear of the device, as shown in the photograph below. The Ubitag will bleep once and flash its LEDs to indicate correct start-up, and the Ubisense In-Building Location System will then be abl…

Text truncated - open the document above for the full version.

PIC Micro Controller Trigger Generator RF Pulse Generator AttenuatorAttenuator Stripline Filter UWB Antenna 908.36- 915MHz Transceiver Buzzer Buttons LEDs Battery 3V Regulator 5V Regulator Trembler Switch Battery Monitoring Antenna Transmit / Receive Switch 14.7456MHz Crystal 8MHz Crystal 32.768kHz Crystal Ubitag V1.0 block diagram

To Reviewing FCC Engineer: From: Marianne Bosley – MET Laboratories [email protected] 410-354-3300 X 412 RE: EA 835567 FCC ID: SEAUBITAG10-U EA 323152 FCC ID: SEAUBITAG10-F EA 699001 FCC ID: SEAUBISENSOR10 Subject: Correction to filings Please add MET Labs as a technical contact. Please use my information above, and I will ensure the correct response is obtained from the appropriate technical person. Thank you. Marianne Bosley

LABEL Ubisense LimitedModel: UBITAG10 FCC IDs SEAUBITAG10-U, SEAUBITAG10-F This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment may only be operated indoors. Operation outdoors is in violation of 47 U.S.C. 301 and could subject the operator to serious legal penalties. View from rear of tag

LABEL Ubisense Limited Model: UBITAG10 FCC ID SEAUBITAG10-U This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment may only be operated indoors. Operation outdoors is in violation of 47 U.S.C. 301 and could subject the operator to serious legal penalties. View from rear of tag

OPERATIONAL DESCRIPTION Ubitag V1.0 FCC IDs SEAUBITAG10-U, SEAUBITAG10-F The Ubitag V1.0 is a wireless device intended to be used for the real-time location of objects within buildings. It transmits ultra-wideband (UWB) pulses which are picked up by a network of basestations (Ubisensors) placed inside the building, allowing the 3D position of the tag to be found. The use of UWB technology enables greater positioning accuracy within buildings than other wireless technologies, because it is much less susceptible to multipath interference effects. Applications of the system include healthcare, workplace productivity, security, retail management and manufacturing. The Ubitag V1.0 is a composite device consisting of an ultra-wideband transmitter (FCC ID SEAUBITAG10-U), a conventional FM radio transceiver operating in the range 908.36-915MHz (FCC ID SEAUBITAG10-F), and associated digital circuitry. It is never the case that both the ultra-wideband transmitter section of the device and the FM radio transceiver section of the device are active simultaneously. Both the ultra-wideband transmitter and the conventional radio transceiver utilise permanently attached antennas that are integral to the device.

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ! BALTIMORE, MARYLAND 21230-3432 ! PHONE (410) 354-3300 ! FAX (410) 354-3313 The Nation’s First Licensed Nationally Recognized Testing Laboratory August 25, 2004 Ubisense Limited 1, Quayside, Cambridge Cambridge CB5 8AB United Kingdom Reference: Ubitag V1.0 FCC ID : SEAUBITAG10-F Dear Andy Ward, Enclosed is the EMC test report for compliance testing of the Ubisense Limited, Ubitag V1.0. The Ubisense Limited, Ubitag V1.0 was tested to the requirements of Title 47 of the CFR Part 15 Subpart C Subsection 15.249 for a Transmitter. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Christina M. Karlhoff Documentation Department Reference: (\Ubisense Limited\ Ubitag V1.0 \ EMC15813-FCC249) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. While use of the National Voluntary Laboratory Accreditation Program (NVLAP) letters or the NVLAP Logo, the Standards Council of Canada Logo, or the Nationally Recognized Testing Laboratory (NRTL) Letters in this report reflects MET Accreditation under these programs, these letters, logo, or statements do not claim product endorsement by NVLAP or any Agency of the U.S. Government. This letter of transmittal is not apart of the attached report. DOC-EMC703 2/26/2004 MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ! BALTIMORE, MARYLAND 21230-3432 ! PHONE (410) 354-3300 ! FAX (410) 354-3313 DOC-EMC703 2/26/2004 Electromagnetic Compatibility Criteria Test Report For the Ubisense Limited Ubitag V1.0 Tested under The FCC Certification Rules contained in Title 47 of the CFR, Part 15 Subpart C For a Transmitter MET Report: 15813-FCC249 August 25, 2004 Prepared For: Ubisense Limited 1, Quayside, Cambridge Cambridge CB5 8AB United Kingdom Prepared By: MET Laboratories, Inc. Baltimore, MD 21230 Ubisense Limited Ubitag V1.0 FCC ID: SEAUBITAG10-F CFR Title 47, Part 15, Subpart C MET Report: EMC15813-FCC249 © 2004, MET Laboratories, Inc. Page ii of vi DOC-EMC703 2/26/2004 Electromagnetic Compatibility Criteria Test Report For the Ubisense Limited Ubitag V1.0 Tested Under The FCC Certification Rules contained in Title 47 of the CFR, Part 15 Subpart C For a Transmitter Kevin Mehaffey, Manager Electromagnetic Compatibility Lab Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Part 15 Subpart C Subsection 15.249, of the FCC Rules under normal use and maintenance. Liming Xu Electromagnetic Compatibility Lab Ubisense Limited Ubitag V1.0 FCC ID: SEAUBITAG10-F CFR Title 47, Part 15, Subpart C MET Report: EMC15813-FCC249 © 2004, MET Laboratories, Inc. Page iii of vi DOC-EMC703 2/26/2004 Report Status Sheet Revision Report Date Reason for Revision ∅ August 25, 2004 Initial Report Issue. Ubisense Limited Table of Contents Ubitag V1.0 FCC ID: SEAUBITAG10-F CFR Title 47, Part 15, Subpart C MET Report: EMC15813-FCC249 © 2004, MET Laboratories, Inc. Page iv of vi DOC-EMC703 2/26/2004 Table of Contents I. Requirements Summary...................................................................................................................................... 1 II. Equipment Configuration ................................................................................................................................... 2 A. Overview......................................................................................................................................................... 2 B. Test Site .......................................................................................................................................................... 3 C. Description of Test Sample............................................................................................................................. 3 D. Equipment Configuration................................................................................................................................ 4 E. Support Equipment ......................................................................................................................................... 4 F. Mode of Operation.......................................................................................................................................... 7 G. Method of Monitoring EUT Operation ........................................................................................................... 8 H. Modifications .................................................................................................................................................. 8 a) Modifications to EUT................................................................................................................ 8 b) Modifications to Test Standard..................................................................................................8 Antenna Evaluation .............................................................................................................................................. 9 Conducted Limits ............................................................................................................................................... 10 Radiated Emission Limits.......................................................…
