SENSP3SSmart Switch

OWNER’S MANUAL EN 1Power button 2.Customizable LED Thank you for purchasing the Smart Switch. The Smart Switch allows you to create scheduled task and turn on or off home appliances from anywhere using your smartphone. Features • Easy to setup and simple to use • Remotely turn on or off your connected home appliances • Program the Smart Switch to do scheduled tasks • Customizable LED, allowing you to choose up to three colors to match your home décor. • Connect additional Smart Switches to your iSmartAlarm™ at any time for greater convenience. How to connect an iSmartAlarm™ Smart Switch 1. Plug the Smart Switch into an power outlet and make sure the power button’s LED is solid white 2. Launch the iSmartAlarm app and go to the Monitor page. 3. Select Safety Monitor at the top. 4. Pull the Safety Monitor page down until you see the Add Devices button and click on it. 5. After the sensors are found, press the Add button to add them to your system. System Requirements iSmartAlarm™ CubeOne. iPhone running iOS 6.0 or later, Android phone running version 4.0 or later. Safety Instructions 1. For indoor use only. 2. Make sure appliances are off before plugging into the SmartSwitch. 3. Do not use this product near water or expose it in a location where there may be splashing or dripping liquid or water. 4. The maximum current for the Smart Switch is 10A and the maximum power capacity is 2000 Watts. Exceeding this capacity may damage your Smart Switch. 5. Avoid placing product near areas of high radiation or heat such as radiators or stoves. 6 .Clean with a soft and dry cloth. Do not use abrasive or solvent-based cleaners. Product Specifications Product Model SP3S Dimensions 2.40" x 2.24" x 2.62" (61mm x 57mm x 66.5mm) Weight 3.35 oz (95g) Maximum Current 10At Voltage 120V 60Hz Maximum Distance 300 feet (100m) Idle Power < 0.8W Temperature 14°F~122°F-10°C~50°C Humidity 85%±5 at 30°C±2 LED Indicator Descriptions LED Solid white LED Red LED flashes two times Solid red LED No LED Description Default LED color when powered on Linking to an iSmartAlarm™ CubeOne Error Powered off Warranty Information • This product comes with a 1-year warranty that cannot be excluded under your local Consumer Law. • You are entitled to a replacement or refund for a major failure of the product and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to major failure. • Opening the Smart Switch shell or in any way re-programming the Smart Switch will void any and all warranties • The manufacturer and distributors are not responsible for any known or unknown legal liability resulting from negligence, incorrect operation, or usage. Regulation Compliance Information • This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. • This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. • Changes or modifications not expressly approved by iSmart Alarm Inc. could void the user’s authority to operate the equipment. • Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. • This device complies with Industry Canada license-exempt RS S standard(s). Operation is subject to the following two conditio ns: (1) this device may not cause interference, and (2) this device must accept any interference, including interf erence that may cause undesired operation of the device. Explantions Of Symbols Symbol for the “Owner’s Manual – Must be read” Symbol for “CAUTION” Symbol for “ENVIRONMENT PROTECTION – Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local Authority or retailer for recycling advice.” Symbol for “KEEP DRY” Symbol for “INDOOR USE ONLY” This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body Manufactured for iSmart Alarm, Inc 1290 Kifer Road, Suite 306 Sunnyvale, CA 94086, USA www.ismartalarm.com 1-888-638-1799 Made in China iSmartAlarm™ is a trademark of iSmart Alarm, Inc. iPhone is a trademark of Apple Inc, Registered in the U.S. and other countries. ©2014-©2015 iSmart Alarm, Inc. All rights reserved. MANUEL DU PROPRIÉTAIRE 1Commutateur Nous vous remercions d'avoir acheté le Smart Switch. Le Smart Switch vous permet de créer une tâche planifiée et d'activer ou de désactiver vos appareils do…

Text truncated - open the document above for the full version.

2014-12-28

Request for Confidentiality Date: 2014-12-28 _ Subject: Confidentiality Request for: FCC ID:SENS P3S Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ iSmart Alarm, Inc. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180 ) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, By: Tision Tian (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

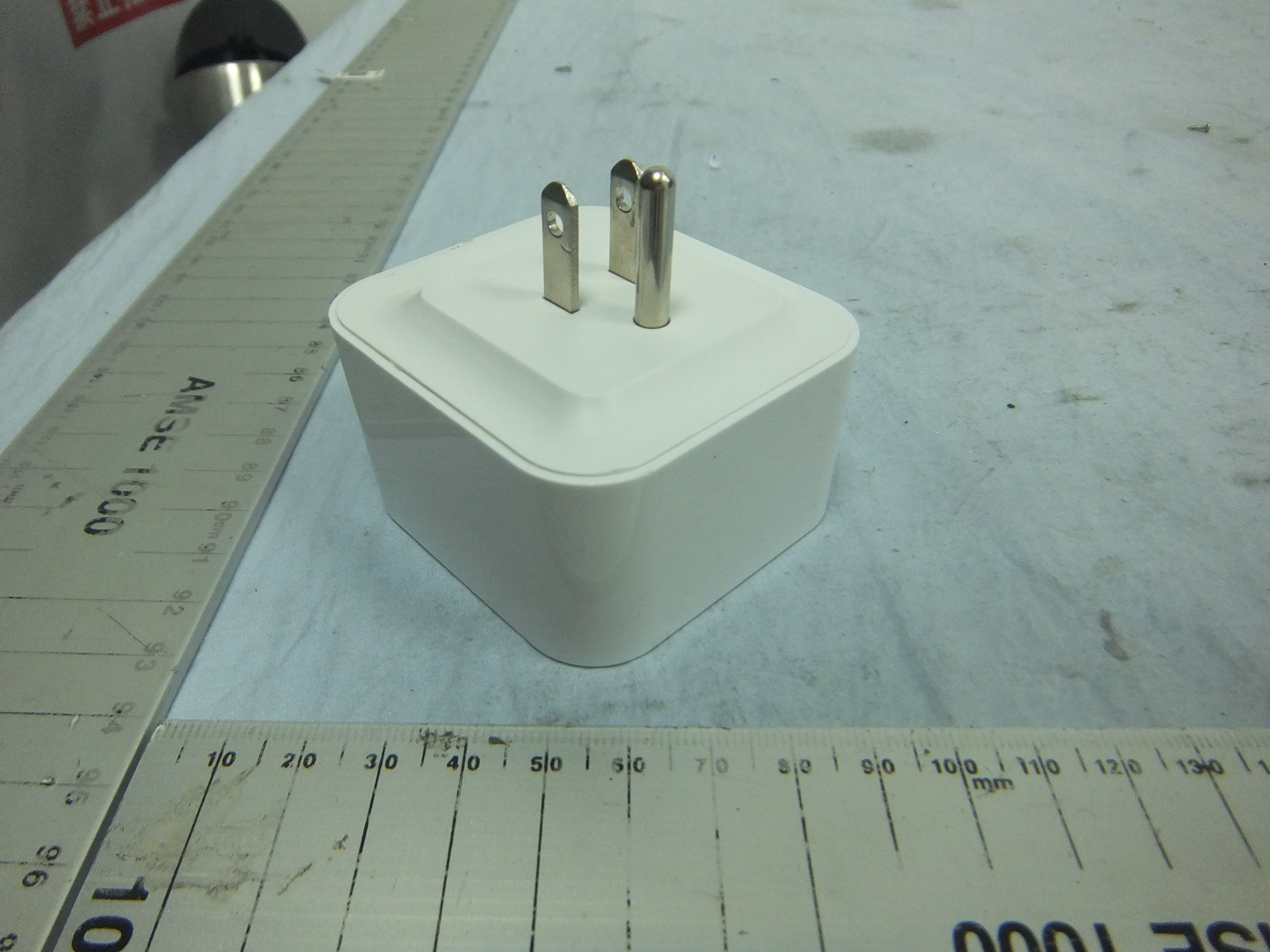

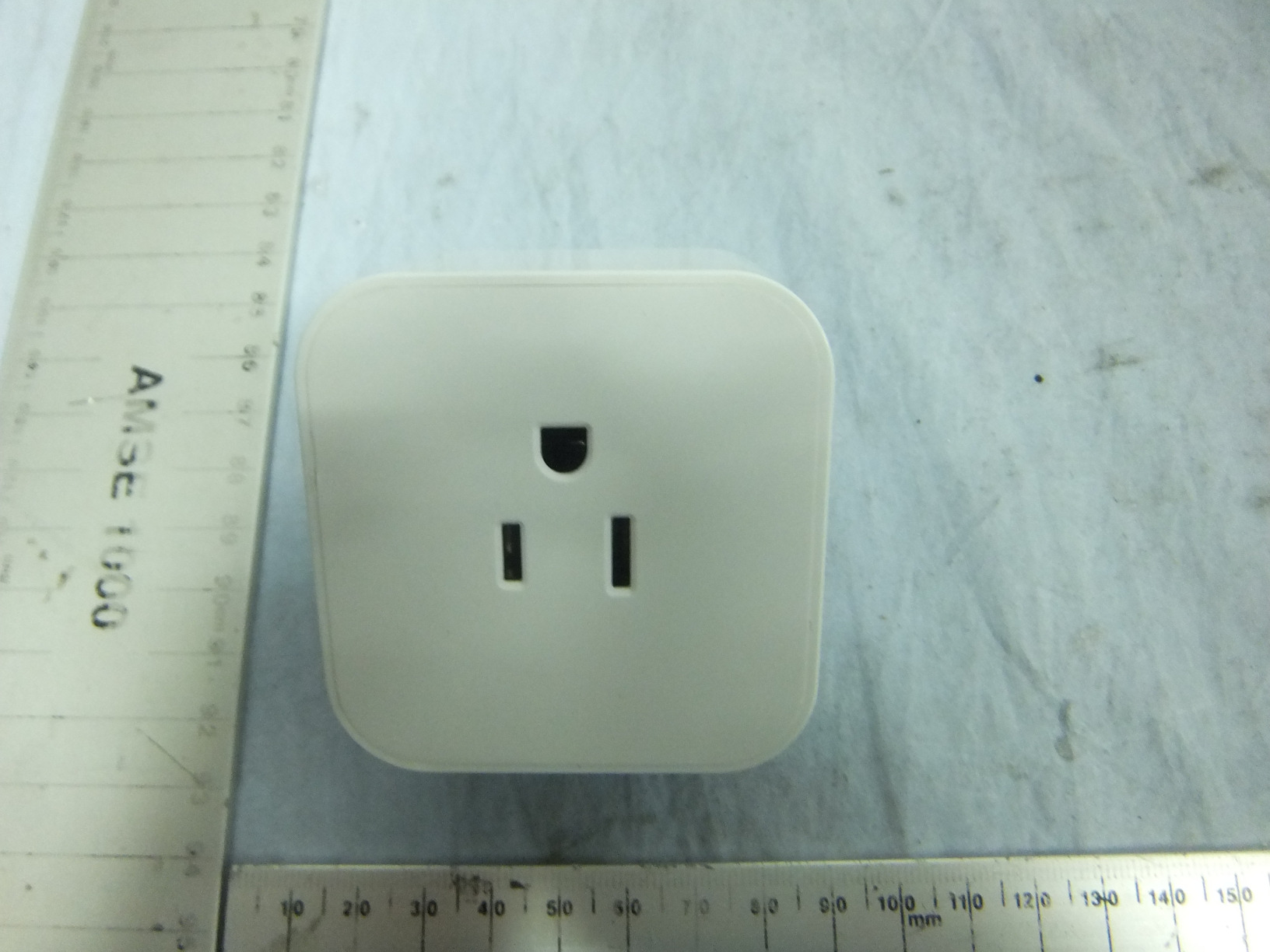

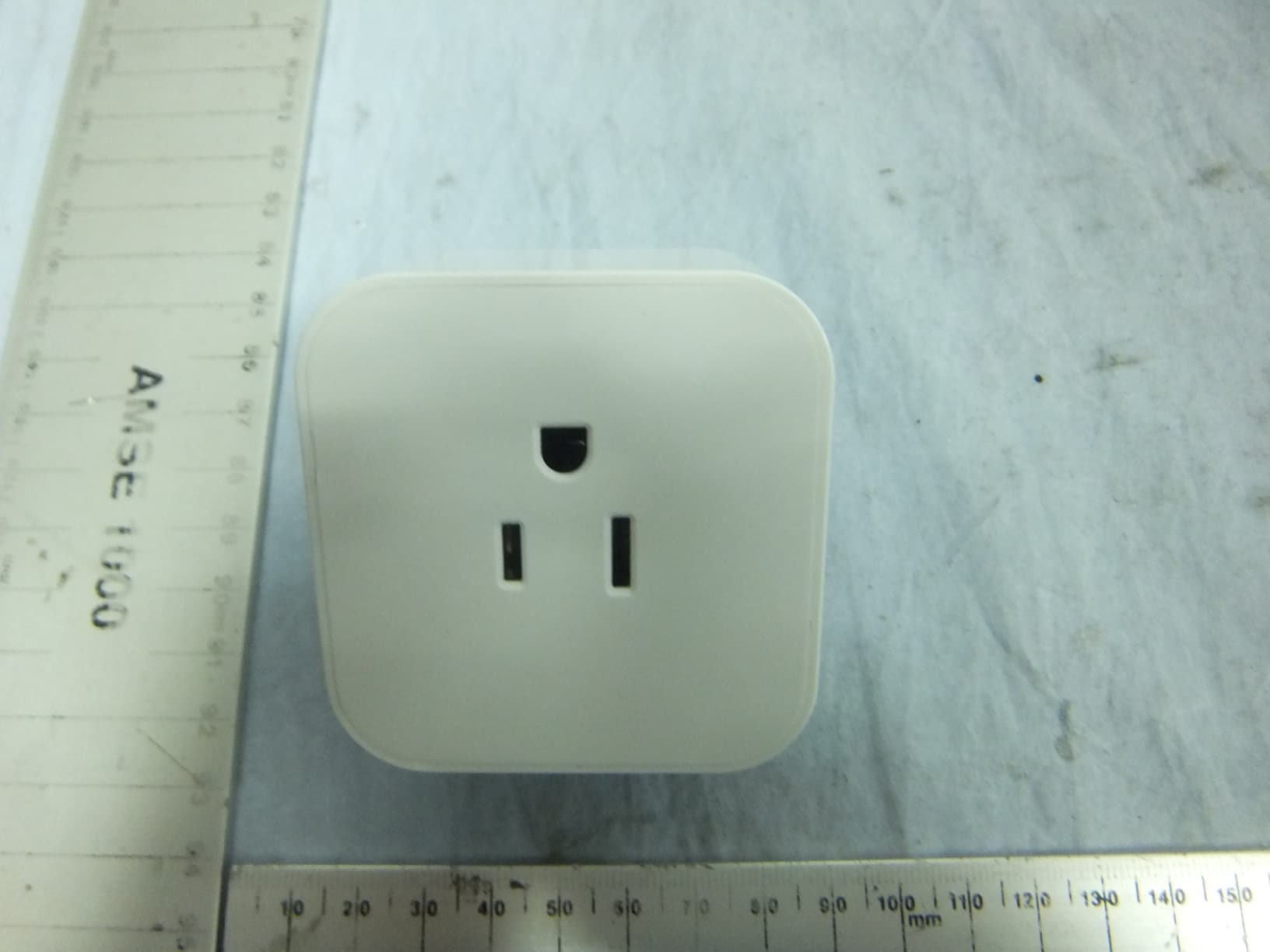

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 4 Page 1 of 4 SP3S_External Photos-FCC Application No.: SHEM1411002976RF Applicant: iSmart Alarm, Inc. Address of Applicant: 1290 Kifer Road, Suite 306, Sunnyvale, CA 94086 USA Equipment Under Test (EUT): Product Name: Smart Switch Brand Name: iSmartAlarm TM Model No.: SP3S FCC ID: SENSP3S IC: 10970A-SP3S SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 4 Page 2 of 4 1 Contents Page 1 CONTENTS.......................................................................................................... 2 2 EXTERNAL PHOTOS ........................................................................................ 3 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 4 Page 3 of 4 2 External Photos SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 4 of 4 Page 4 of 4 End

Label Size: 8*50mm

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 7 Page 1 of 7 SP3S _Internal Photos-FCC Application No.: SHEM1411002976RF Applicant: iSmart Alarm, Inc. Address of Applicant: 1290 Kifer Road, Suite 306, Sunnyvale, CA 94086 USA Equipment Under Test (EUT): Product Name: Smart Switch Brand Name: iSmartAlarm TM Model No.: SP3S FCC ID: SENSP3S IC: 10970A-SP3S SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 7 Page 2 of 7 1 Contents Page 1 CONTENTS.......................................................................................................... 2 2 INTERNAL PHOTOS ......................................................................................... 3 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 7 Page 3 of 7 2 Internal Photos SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 4 of 7 Page 4 of 7 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 5 of 7 Page 5 of 7 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 6 of 7 Page 6 of 7 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 7 of 7 Page 7 of 7 E EE En nn nd dd d

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 588 West Jindu Road,Songjiang District,Shanghai,China Telephone: +86 (0) 21 6191 5666 Fax: +86 (0) 21 6191 5678 [email protected] Report No.: SHEM141100297602 Page: 1 of 24 Tony Wu E&E Section Manager SGS-CSTC (Shanghai) Co., Ltd. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only 1 Cover Page RF TEST REPORT Application No.: SHEM1411002976RF Applicant: iSmart Alarm, Inc. FCC ID: SENSP3S IC: 10970A-SP3S Equipment Under Test (EUT): NOTE: The following sample(s) submitted was/were identified on behalf of the client as Product Name: Smart Switch Model No.(EUT): SP3S Standards: FCC PART 15 Subpart C Section 15.249: 2014 RSS-210 Issue 8 (December 2010) RSS-Gen Issue 4 (November 2014) Date of Receipt: November 24, 2014 Date of Test: December 22, 2014 to January 06, 2014 Date of Issue: January 13, 2015 Test Result: Pass* *In the configuration tested, the EUT detailed in this report complied with the standards specified above. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM141100297602 Page: 2 of 24 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e- document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only 2 Version Revision Record Version Chapter Date Modifier Remark 00 / January 13, 2015 / Original Authorized for issue by: Engineer Eddy Zong Print Name Clerk Susie Liu Print Name Reviewer Keny Xu Print Name This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e- document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM141100297602 Page: 3 of 24 3 Test Summary Test Item Test Requirement IC Reference Test method Result Antenna Requirement FCC Part 15, Subpart C Section 15.203 RSS-Gen 8.1.2 --- PASS AC Power Line Conducted Emission FCC Part 15, Subpart C Section 15.207 RSS-Gen Section 8.8 ANSI C63.10 (2013) Section 6.2 PASS Field Strength of the Fundamental Signal FCC Part 15, Subpart C Section 15.249 (a) RSS-210 Annex 2.9(a) ANS…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 4 Page 1 of 4 SP3S _Test Setup Photos-FCC Application No.: SHEM1411002976RF Applicant: iSmart Alarm, Inc. Address of Applicant: 1290 Kifer Road, Suite 306, Sunnyvale, CA 94086 USA Equipment Under Test (EUT): Product Name: Smart Switch Brand Name: iSmartAlarm TM Model No.: SP3S FCC ID: SENSP3S IC: 10970A-SP3S SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 4 Page 2 of 4 1 Contents Page 1 CONTENTS............................................................................................................... 2 2 EQUIPMENT UNDER TEST PICTURES ............................................................ 3 2.1 Conducted Emission Test Setup ....................................................................... 3 2.2 Spurious emissions ........................................................................................... 3 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 4 Page 3 of 4 2 EQUIPMENT UNDER TEST PICTURES 2.1 Conducted Emission Test Setup 2.2 Spurious emissions Below 3GHz: SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 4 of 4 Page 4 of 4 30MHz-1GHz Above 1GHz End
