SERAOFN200WiFi Module

Sintai Optical (Shenzhen) Co., Ltd.
WiFi Module - FCC ID SERAOFN200 - Sintai Optical (Shenzhen) Co., Ltd.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jul 24, 2021
Application Purpose
Original Equipment
Date of Application
Jul 24, 2021
Equipment Note
WiFi Module
Frequency Range
2412.00000000 - 2462.00000000
Company
Sintai Optical (Shenzhen) Co., Ltd.
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Model: AOFN-200 WLAN Module -WLAN 802.11 b/g/n SDIO Quick Installation Guide Installation steps WLAN 1. First, install Realtek Wireless eCOS Driver of EVM Board. 2. Copy “script.txt” and mp_cmd.txt” files from PC or NB to SD card.(WLAN continuous transmission/receiving mode) 3. Insert Micro SD. 4. Click the Power key, green power LED will light up. 5. Please wait for 10 seconds enter test mode. Power key I. DC/RF Characteristics Operating Voltage Storage Temperature -40°C to +80°C Operating Voltage 3.3Vdc ±10% I/O supply voltage RF Characteristics for IEEE 802.11 b/g/n Specification IEEE 802.11b IEEE 802.11g IEEE 802.11n Data Rate CCK/QPSK/BPSK: Up to 11Mbps OFDM:Up to 54Mbps OFDM:Up to 150Mbps Output Power 17dBm 15dBm 15dBm Operating Channel CH1-13 II. Antenna Information Brand Model Antenna Gain Frequency range Antenna Type Walsin RFANT5220110A0T 2 dBi 2.4 GHz~2.5GHz Monopole (Chip Antenna) Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This module is intended for OEM integrators only. Per FCC KDB 996369 D03 OEM Manual v01 guidance, the following conditions must be strictly followed when using this certified module: KDB 996369 D03 OEM Manual v01 rule sections: 2.2 List of applicable FCC rules This module has been tested for compliance to FCC Part 15 2.3 Summarize the specific operational use conditions The module is tested for standalone mobile RF exposure use condition. Any other usage conditions such as co-location with other transmitter(s) or being used in a portable condition will need a separate reassessment through a class II permissive change application or new certification. 2.4 Limited module procedures Not applicable. 2.5 Trace antenna designs Not applicable. 2.6 RF exposure considerations This equipment complies with FCC mobile radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body. If the module is installed in a portable host, a separate SAR evaluation is required to confirm compliance with relevant FCC portable RF exposure rules. 2.7 Antennas The following antennas have been certified for use with this module; antennas of the same type with equal or lower gain may also be used with this module. The antenna must be installed such that 20 cm can be maintained between the antenna and users. 2.8 Label and compliance information The final end product must be labeled in a visible area with the following: “Contains FCC ID: SERAOFN200”. The grantee's FCC ID can be used only when all FCC compliance requirements are met. 2.9 Information on test modes and additional testing requirements This transmitter is tested in a standalone mobile RF exposure condition and any co-located or simultaneous transmission with other transmitter(s) or portable use will require a separate class II permissive change re-evaluation or new certification. 2.10 Additional testing, Part 15 Subpart B disclaimer This transmitter module is tested as a subsystem and its certification does not cover the FCC Part 15 Subpart B (unintentional radiator) rule requirement applicable to the final host. The final host will still need to be reassessed for compliance to this portion of rule requirements if applicable. As long as all conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end p…

Text truncated - open the document above for the full version.

Attestation Statements

Sintai Optical (Shenzhen) Co., Ltd. Qiwei Ind Sec, 1st, 2nd, &3Rd Bldg, Lisonglang Village, Gongming Town, Bao an District , Shenzhen, Guangdong, China Date: July 21, 2021 We, Sintai Optical (Shenzhen) Co., Ltd. declare that the device does not support channel 12 ~ 13 in 2.4GHz band and any non-US channels in all the operational mode(s) for the following product. FCC ID: SERAOFN200 If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! ------------------------------------------ Qian Yang / Director Sintai Optical (Shenzhen) Co., Ltd. Tel: +86-769-85535435#6745 Fax:+86-755-29168341 E-mail: [email protected]

Cover Letter(s)

Sintai Optical (Shenzhen) Co., Ltd. Qiwei Ind Sec, 1st, 2nd, &3Rd Bldg, Lisonglang Village, Gongming Town, Bao an District , Shenzhen, Guangdong, China Date: 2021-07-21 FCC ID: SERAOFN200 AUTHORIZATION LETTER To Whom It May Concern: Sintai Optical (Shenzhen) Co., Ltd. hereby authorizes Debby Lin / Senior Specialist of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (“BV CPS Taoyuan”), to act on its behalf in all matters relating to the Federal Communication Commission (“FCC”) application for equipment authorization in connection with the FCC ID listed above, including signing of all documents relating to these matters. Any and all acts carried out by Debby Lin / Senior Specialist of BV CPS Taoyuan on Sintai Optical (Shenzhen) Co., Ltd.’s behalf, within the scope of the powers granted herein, shall have the same effect as acts of its own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, ------------------------------------------ Qian Yang / Director Sintai Optical (Shenzhen) Co., Ltd. Tel: +86-769-85535435#6745 Fax:+86-755-29168341 E-mail: [email protected]

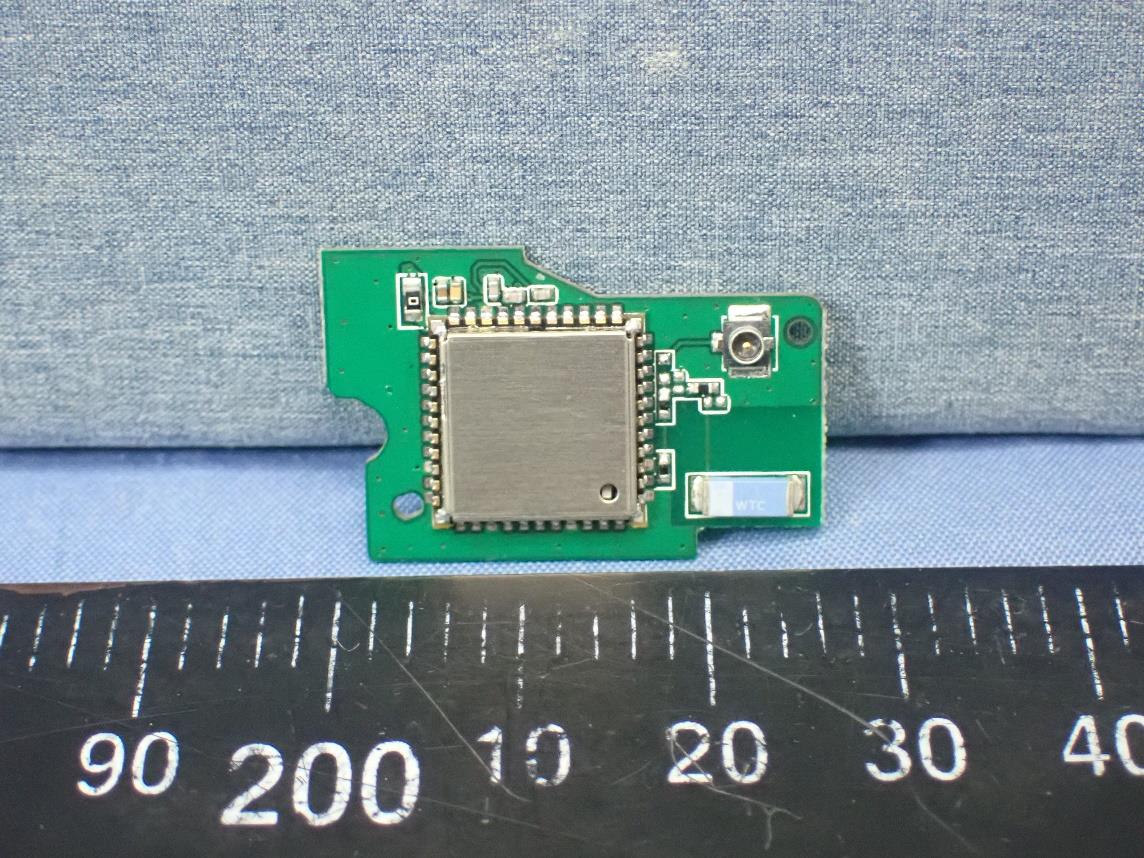

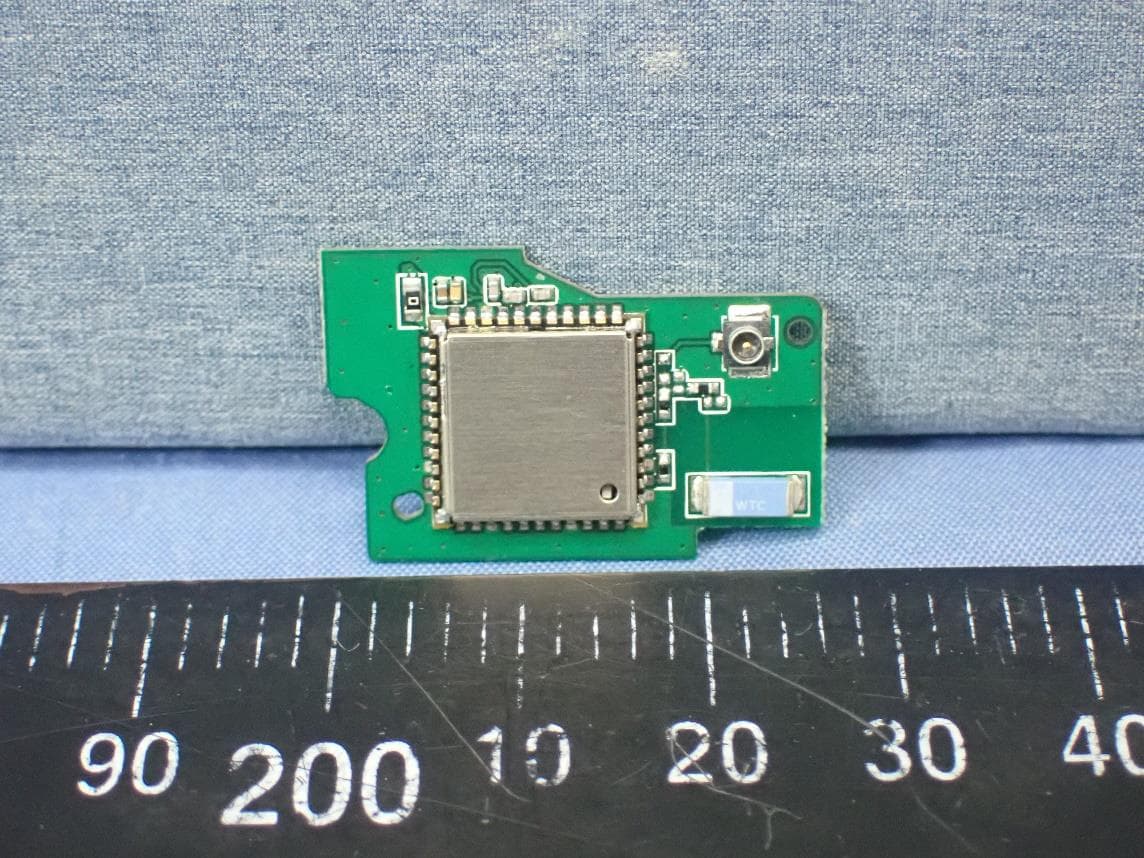

External Photos

Reference No.: BDNB-WTW-P21060086 Page 1/1 CONSTRUCTION PHOTOS OF EUT

ID Label/Location Info

PROPOSED FCC ID LABEL AND LOCATION Top of EUT FCC Label Location (on Shielding cover)

Internal Photos

Reference No.: BDNB-WTW-P21060086 Page 1/2 CONSTRUCTION PHOTOS OF EUT Antenna Reference No.: BDNB-WTW-P21060086 Page 2/2

RF Exposure Info

Report No.: SABDNB-WTW-P21060086 Page No. 1 / 6 Report Format Version: 6.1.1 RF Exposure Report Report No.: SABDNB-WTW-P21060086 FCC ID: SERAOFN200 Test Model: AOFN-200 Received Date: June 02, 2021 Test Date: June 24, 2021 Issued Date: July 20, 2021 Applicant: Sintai Optical (Shenzhen) Co., Ltd. Address: Qiwei Ind Sec, 1st, 2nd, &3Rd Bldg, Lisonglang Village, Gongming Town, Bao’an District , Shenzhen, Guangdong, China Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan Test Location: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan FCC Registration / Designation Number: 723255 / TW2022 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Report No.: SABDNB-WTW-P21060086 Page No. 2 / 6 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 RF Exposure .......................................................................................................................................... 5 2.1 Limits for Maximum Permissible Exposure (MPE) .............................................................................. 5 2.2 MPE Calculation Formula ................................................................................................................... 5 2.3 Classification ....................................................................................................................................... 5 2.4 Antenna Gain ...................................................................................................................................... 6 2.5 Calculation Result of Maximum Conducted Power ............................................................................. 6 Report No.: SABDNB-WTW-P21060086 Page No. 3 / 6 Report Format Version: 6.1.1 Release Control Record Issue No. Description Date Issued SABDNB-WTW-P21060086 Original release. July 20, 2021 Report No.: SABDNB-WTW-P21060086 Page No. 4 / 6 Report Format Version: 6.1.1 1 Certificate of Conformity Product: WiFi Module Brand: Sintai Test Model: AOFN-200 Sample Status: PILOT PRODUCT Applicant: Sintai Optical (Shenzhen) Co., Ltd. Test Date: June 24, 2021 Standards: FCC Part 2 (Section 2.1091) KDB 447498 D01 General RF Exposure Guidance v06 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. Prepared by : , Date: July 20, 2021 Claire Kuan / Specialist Approved by : , Date: July 20, 2021 Clark Lin / Technical Manager Report No.: SABDNB-WTW-P21060086 Page No. 5 / 6 Report Format Version: 6.1.1 2 RF Exposure 2.1 Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) Limits For General Population / Uncontrolled Exposure 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 f = Frequency in MHz ; *Plane-wave equivalent power density 2.2 MPE Calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SABDNB-WTW-P21060086 Page No. 6 / 6 Report Format Version: 6.1.1 2.4 Antenna Gain Brand Model Antenna Net Gain(dBi) Frequency range Antenna Type Connector Type Walsin RFANT5220110A0T 2 2.4~2.4835GHz Monopole ipex(MHF) Note: The above Antenna information is declared by manufacturer and for more detailed features description, please refer to the manufacturer's specifications, the laboratory shall not be held responsible. 2.5 Calculation Result of Maximum Conducted Power Operation Mode Evaluation Frequency (MHz) Max. Average Power (mW) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) WLAN (2.4GHz) 2412~2462 283.792 2 20 0.08948 1 Note: 1. …

Text truncated - open the document above for the full version.

Test Report

Report No.: RFBDNB-WTW-P21060086 Page No. 1 / 57 Report Format Version: 6.1.2 FCC Test Report Report No.: RFBDNB-WTW-P21060086 FCC ID: SERAOFN200 Test Model: AOFN-200 Received Date: June 02, 2021 Test Date: June 19 to 24, 2021 Issued Date: July 20, 2021 Applicant: Sintai Optical (Shenzhen) Co., Ltd. Address: Qiwei Ind Sec, 1st, 2nd, &3Rd Bldg, Lisonglang Village, Gongming Town, Bao’an District , Shenzhen, Guangdong, China Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan Test Location: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan FCC Registration / Designation Number: 723255 / TW2022 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Report No.: RFBDNB-WTW-P21060086 Page No. 2 / 57 Report Format Version: 6.1.2 Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ...................................................................................................................... 5 2 Summary of Test Results ..................................................................................................................... 6 2.1 Measurement Uncertainty ................................................................................................................... 6 2.2 Modification Record ............................................................................................................................ 6 3 General Information .............................................................................................................................. 7 3.1 General Description of EUT ................................................................................................................ 7 3.2 Description of Test Modes ................................................................................................................... 8 3.2.1 Test Mode Applicability and Tested Channel Detail ............................................................................. 9 3.3 Duty Cycle of Test Signal ................................................................................................................... 11 3.4 Description of Support Units ............................................................................................................. 12 3.4.1 Configuration of System under Test .................................................................................................. 12 3.5 General Description of Applied Standards and References ............................................................. 13 4 Test Types and Results ...................................................................................................................... 14 4.1 Radiated Emission and Bandedge Measurement ............................................................................. 14 4.1.1 Limits of Radiated Emission and Bandedge Measurement .............................................................. 14 4.1.2 Test Instruments ................................................................................................................................ 15 4.1.3 Test Procedures ................................................................................................................................. 17 4.1.4 Deviation from Test Standard ............................................................................................................ 18 4.1.5 Test Setup .......................................................................................................................................... 18 4.1.6 EUT Operating Conditions ................................................................................................................. 19 4.1.7 Test Results ....................................................................................................................................... 20 4.2 Conducted Emission Measurement .................................................................................................. 34 4.2.1 Limits of Conducted Emission Measurement .................................................................................... 34 4.2.2 Test Instruments ................................................................................................................................ 34 4.2.3 Test Procedures ................................................................................................................................. 35 4.2.4 Deviation from Test Standard ............................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Reference No.: BDNB-WTW-P21060086 Page No. 1 / 4 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Reference No.: BDNB-WTW-P21060086 Page No. 2 / 4 RADIATED EMISSION TEST (Below 1GHz) Reference No.: BDNB-WTW-P21060086 Page No. 3 / 4 RADIATED EMISSION TEST (Above 1GHz) Reference No.: BDNB-WTW-P21060086 Page No. 4 / 4

Contact Information

Applicant

qian yang
[email protected]+86-769-85535435Fax: +86-755-29168341

Test Firm

Bureau Veritas CPS(H.K.) Ltd., Taoyuan Branch HsinKen Liu
[email protected]+886-3-2600609Fax: +886-3-2115834

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz478.00 mW
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Power listed is maximum conducted output power. This device supports 20 and 40 MHz bandwidth modes. Single modular approval for mobile RF exposure conditions. Co-transmission of this module with other transmitters requires a separate evaluation according to FCC multi-transmitter procedures. The host integrator must follow the integration instructions provided by the module manufacturer and ensure that the composite-system end product complies with the FCC requirements by a technical assessment or evaluation to the FCC rules and to KDB Publication 996369. The module antenna(s) must be installed to meet the RF exposure compliance separation distance of 20 cm and any additional testing and authorization process as required. The module grantee is responsible for providing the documentation to the system integrator on restrictions of use, for continuing compliance of the module. The host integrator installing this module into their product must ensure that the final composite product complies with the FCC requirements by a technical assessment or evaluation to the FCC rules, including the transmitter operation and should refer to guidance in KDB 996369. Approval is limited to OEM installation only. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device.
