SFK-M97RG2MoCa2.5 Wi-Fi Extender

M-97RG2 Hardware Installation Manual ONT M-97RG2 Hardware Installation Manual Mar.2021 Rev.2 M-97RG2 Hardware Installation Manual Notice The CIG name, the CIG logo, and all CIG product names are trademarks of Cambridge Industries Group Co. Ltd (CIG). All other brand and product names are trademarks of their respective holders. Specifications, products, and products names are subject to change without notice. Performance figures and data quoted in this document are typical and must be specifically confirmed in writing by CIG before they become applicable to any particular order or contract. The company reserves the right to make alterations or amendments to the detailed specification at its discretion. Copyright 2021, CIG Shanghai Co., Ltd. All rights reserved. M-97RG2 Hardware Installation Manual Table of Contents Preface .............................................................................................................................................. 4 1.1. Basic Requirements ......................................................................................................................... 5 1.2. Environmental Requirements ........................................................................................................ 5 1.3. Electrical Safety ................................................................................................................................. 6 1.4. Instructions for Cleaning ................................................................................................................. 6 1.5. Other Instructions ............................................................................................................................. 6 1.6. Instructions for Environment Protection .................................................................................... 7 2. Product Description .................................................................................................................. 7 2.1. Introduction ........................................................................................................................................ 7 2.2. Services ............................................................................................................................................... 8 2.2.1. Data ................................................................................................................................................................ 8 2.2.2. Video .............................................................................................................................................................. 9 2.3. Specifications ..................................................................................................................................... 9 3. Hardware Operation ................................................................................................................ 10 3.1. Environmental Requirements ...................................................................................................... 10 3.2. Power Requirements ...................................................................................................................... 10 3.3. Mountings the Gateway ................................................................................................................. 10 3.4. Uninstall the Gateway .................................................................................................................... 11 4. Services enabled ...................................................................................................................... 11 4.1. Connecting Power ........................................................................................................................... 11 4.2. Connecting Ethernet Interface ..................................................................................................... 11 5. Verify the Installation and Services .................................................................................... 12 5.1. Verify the Installation ...................................................................................................................... 12 5.2. Activating the Gateway .................................................................................................................. 12 5.3. Verifying Services ........................................................................................................................... 13 6. Troubleshooting ....................................................................................................................... 13 6.1. Gateway Status LEDs .................................................................................................................... 13 6.2. Troubleshooting Procedures ....................................................................................................... 14 Appendix C: Ordering ................................................................................................................. 19 M-97RG2 Hardware Installation Manual 4 Preface About This Document This guide describes how to install the CIG Wi-Fi extender device unit (Gateway) at the customer premises. Intended Audience This document is intended for technicians responsible for:  Unpacking and mounting the Gateway and power supply  Connecting the Gateway to the MoCa2.5 network  Auto-negotiation and MDI/MDIX auto-sensing  Built-in layer-2 switch  Advanced data features such as VLAN tag manipulation, classification, and filtering  The M-97RG2 supports video service delivered in form of data (by multicast or unicast).  M-97RG2 supports IGMP snooping function. When IGMP snooping is enabled, M-97RG2 monitors the member joining and leaving activities at the Ethernet/WLAN service port, and then selectively delivers the multicast streams. M-97RG2 Hardware Installation Manual 5 Safety Please read and follow all warning …

Text truncated - open the document above for the full version.

The test data, data evaluation, and equipment configuration contained in our test report(s) above was (were) obtained utilizing the test procedures, test instruments, test sites that has been accredited according to the ISO/IEC 17025 quality assessment standard and technical standard(s). The test data contained in the referenced test report relate only to the EUT sample and item(s) tested. Ryan Wang Authorized Signatory BTL INC. No. 29, Jintang Road, Tangzhen Industry Park, Pudong New Area, Shanghai 201210,China TEL: +86-021-61765666 TECHNICAL COMPLIANCE STATEMENT This is to certify that the product listed in follows was (were) tested in the BTL EMC Laboratory to comply with below FCC official limits. Equipment MoCa2.5 Wi-Fi Extender Model Name CIG Brand Name M-97RG2 Applicant CIG Shanghai Co., Ltd. Address 5F, Building 8, NO.2388 CHENGHANG ROAD, MINHANG DISTRTCT, SHANGHAI Standard(s) FCC CFR Title 47,Part 15,Subpart B,Class B ANSI C63.4-2014 Report(s) BTL-FCCE-1-2101H022

CIG SHANGHAI CO., LTD. Ad Hoc Mode Declaration Date: 2021-02-19 We, the undersigned company Company Name: CIG SHANGHAI CO., LTD. Address: 5F, Building 8, No.2388 ChenHang Road, Minghang Di, Shanghai, China Declare that: Product description: MoCa2.5 Wi-Fi Extender Type designation: M-97RG2 Brand: CIG FCC ID: SFK-M97RG2 1. The EUT doesn’t have Ad Hoc Mode function on “non-US frequencies”. 802.11a/n Ad Hoc mode should not be supported even on US DFS frequencies (5.25 ~5.35GHz/5.47 ~5.725GHz). 2. In addition, The product meets all other requirements specified in Part 15E Section 15.407 and no configuration controls are provided to change the frequency of operations outside the grant of certification for US operation. 3. Only channels 1~11 will be used in USA. Country code selection is disabled. If you have any questions regarding the authorization, please do not hesitate to contact us, thank you~ Sincerely, Signature: ________________________ Name: Ma Zhonghua Tel: (86)21-80233300 Email: [email protected]

RF_160, Issue 02 Declaration of Authorization We Name: CIG SHANGHAI CO., LTD. Address: 5F, Building 8, No.2388 ChenHang Road, Minghang District City: Shanghai Country: China Declare that: Name Representative of agent: Ms. Riley Wei Agent Company name: BTL Inc. Address: No. 29, Jintang Road, Tangzhen Industry Park Pudong New Area City: Shanghai Country: China is authorized to apply for Certification and signing related documents of the following product(s), including 731 form(s): Product description: MoCa2.5 Wi-Fi Extender Type designation: M-97RG2 Brand: CIG FCC ID: SFK-M97RG2 on our behalf. Date: 2021-02-19 City: Shanghai Name: Zhonghua Ma Function: Certificate Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

CIG SHANGHAI CO., LTD. Date: 2021-02-19 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: SFK-M97RG2 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ----------------------------------- Grantee Contact’s Signature Zhonghua Ma

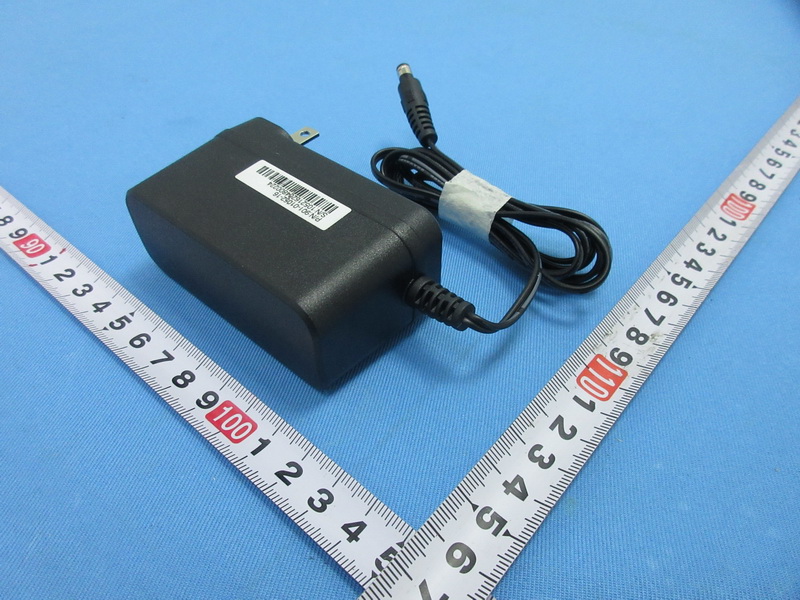

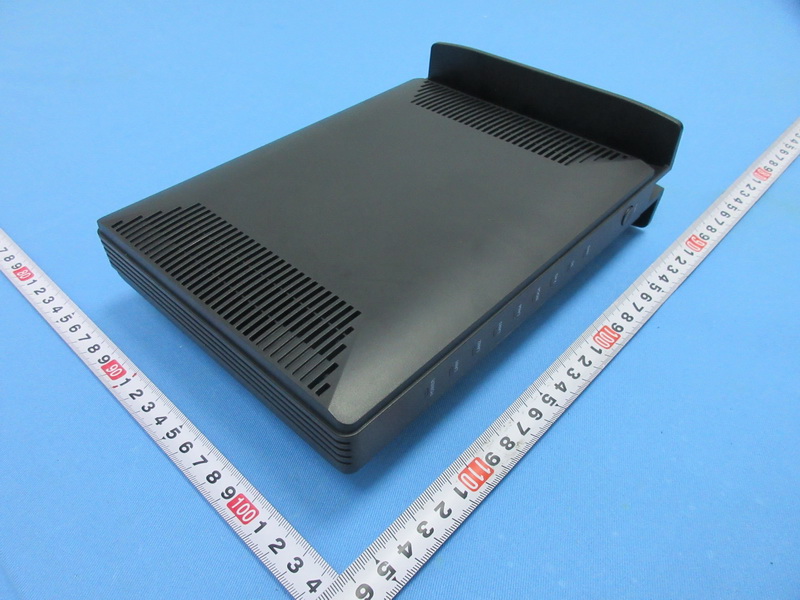

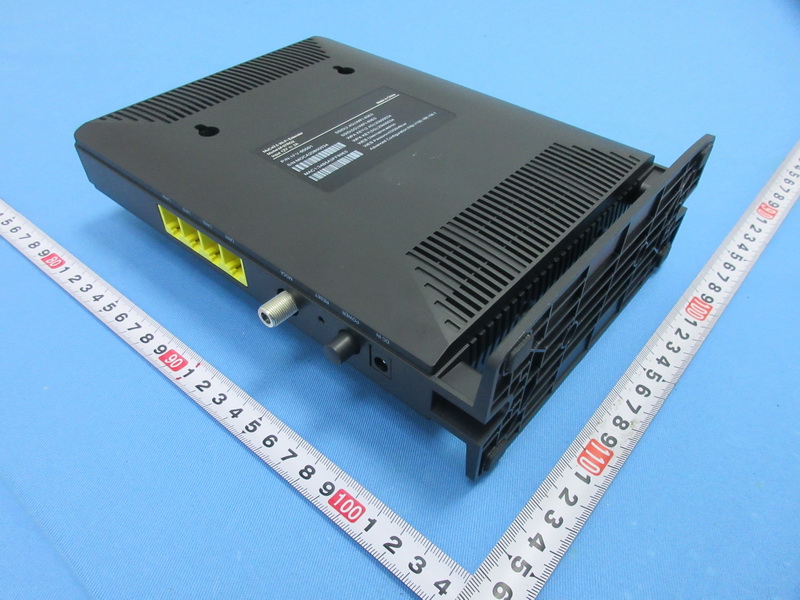

Project No.: 2101H022 Page 1 of 22 ATTACHMENT PHOTOGRAPHS OF EUT Project No.: 2101H022 Page 2 of 22 Project No.: 2101H022 Page 3 of 22 Project No.: 2101H022 Page 4 of 22 Project No.: 2101H022 Page 5 of 22 Project No.: 2101H022 Page 6 of 22 Adapter ：RD1202000-C55-154MG Project No.: 2101H022 Page 7 of 22 Project No.: 2101H022 Page 8 of 22

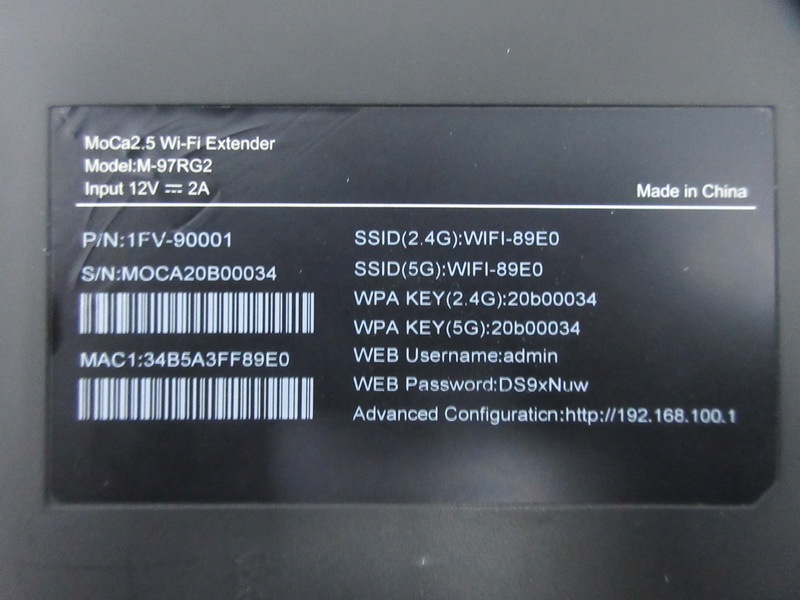

Label Label location

Project No.: 2101H022 Page 9 of 22 Project No.: 2101H022 Page 10 of 22 WIFI 5G ANT.3 WIFI 5G/ 2.4G A N T.1 WIFI 5G/ 2.4G A N T.2 WIFI 5G ANT.4 Project No.: 2101H022 Page 11 of 22 Project No.: 2101H022 Page 12 of 22 Project No.: 2101H022 Page 13 of 22 Project No.: 2101H022 Page 14 of 22 Project No.: 2101H022 Page 15 of 22 Project No.: 2101H022 Page 16 of 22 Project No.: 2101H022 Page 17 of 22 Project No.: 2101H022 Page 18 of 22 Project No.: 2101H022 Page 19 of 22 Project No.: 2101H022 Page 20 of 22 Project No.: 2101H022 Page 21 of 22 Project No.: 2101H022 Page 22 of 22

Report No.: BTL-FCCP-3-2101H022 Page 1 of 5 FCC RF EXPOSURE REPORT FCC ID: SFK-M97RG2 Project No. : 2101H022 Equipment : MoCa2.5 Wi-Fi Extender Brand Name : CIG Test Model : M-97RG2 Series Model : N/A Applicant : CIG Shanghai Co., Ltd. Address : 5F, Building 8, NO.2388 CHENGHANG ROAD, MINHANG DISTRTCT, SHANGHAI Manufacturer : CIG Shanghai Co., Ltd. Address : 5F, Building 8, NO.2388 CHENGHANG ROAD, MINHANG DISTRTCT, SHANGHAI Factory : CIG Shanghai Co., Ltd. Address : 5F, Building 8, NO.2388 CHENGHANG ROAD, MINHANG DISTRTCT, SHANGHAI Date of Receipt : Jan. 19, 2021 Date of Test : Jan. 19, 2021~Mar. 05, 2021 Issued Date : Mar. 18, 2021 Report Version : R00 Test Sample : Engineering Sample No.: SH2021011390-5, SH2021011390-3 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Maker Qi Approved by : Ryan Wang Add: No. 29, Jintang Road, Tangzhen Industry Park, Pudong New Area, Shanghai 201210,China TEL: +86-021-61765666 Web: www.newbtl.com Report No.: BTL-FCCP-3-2101H022 Page 2 of 5 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Mar. 18, 2021 Report No.: BTL-FCCP-3-2101H022 Page 3 of 5 1. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna For 2.4G: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A N/A PCB N/A 3 2 N/A N/A PCB N/A 3 Note: (1) The EUT incorporates a MIMO function. Physically, the EUT provides four completed transmitters and receivers (2T2R), all transmit signals are completely uncorrelated, then, Direction gain = G ANT , that is Directional gain=3 dBi (2) Ant. 2 for 1TX was found to be the worst case and recorded. (3) The antenna gain is provided by the manufacturer. For 5G: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A N/A PCB N/A 3 2 N/A N/A PCB N/A 3 3 N/A N/A PCB N/A 3 4 N/A N/A PCB N/A 3 Note: (1) The EUT incorporates a MIMO function. Physically, the EUT provides four completed transmitters and receivers (4T4R), all transmit signals are completely uncorrelated, then, Direction gain = G ANT , that is Directional gain=3 dBi (2) Ant. 3 for 1TX was found to be the worst case and recorded. (3) The antenna gain is provided by the manufacturer. Report No.: BTL-FCCP-3-2101H022 Page 4 of 5 Table for Antenna Configuration: For 2.4G: Operating Mode TX Mode Ant. 1 Ant. 2 Ant. 1+2 802.11b    802.11g    802.11n(20 MHz)    802.11n(40 MHz)    For 5G: Operating Mode TX Mode 1TX 2TX 3TX 4TX Ant. 1 + Ant. 2+ Ant. 3 + Ant. 4 IEEE 802.11a      IEEE 802.11n (HT20)      IEEE 802.11n (HT40)      IEEE 802.11ac (VHT20)      IEEE 802.11ac (VHT40)      IEEE 802.11ac (VHT80)      Report No.: BTL-FCCP-3-2101H022 Page 5 of 5 2. TEST RESULTS For 2.4GHz SISO: Antenna Gain (dBi) Antenna Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 3 1.9953 30 1000 0.3970 1 Complies For 2.4GHz MIMO: Antenna Gain (dBi) Antenna Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 3 1.9953 30 1000 0.3970 1 Complies For 5GHz SISO: Antenna Gain (dBi) Antenna Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 3 1.9953 27 501.1872 0.1989 1 Complies For 5GHz MIMO: Antenna Gain (dBi) Antenna Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 3 1.9953 28 630.9573 0.2505 1 Complies For the max simultaneous transmission MPE: 2.4G+5G Power Density (S) (mW/cm2) Power Density (S) (mW/cm2) Total Limit of Power Density (S) (mW/cm2) Test Result 2.4GHz 5GHz 0.3970 0.2505 0.6475 1 Complies Note: The calculated distance is 20 cm. Output power including tune up tolerance. End of Test Report

Report No.:BTL-FCCP-2-2101H022 Page 1 of 286 FCC Radio Test Report FCC ID: SFK-M97RG2 This report concerns: Original Grant Project No. : 2101H022 Equipment : MoCa2.5 Wi-Fi Extender Brand Name : CIG Test Model : M-97RG2 Series Model : N/A Applicant : CIG Shanghai Co., Ltd. Address : 5F, Building 8, NO.2388 CHENGHANG ROAD, MINHANG DISTRTCT, SHANGHAI Manufacturer : CIG Shanghai Co., Ltd. Address : 5F, Building 8, NO.2388 CHENGHANG ROAD, MINHANG DISTRTCT, SHANGHAI Factory : CIG Shanghai Co., Ltd. Address : 5F, Building 8, NO.2388 CHENGHANG ROAD, MINHANG DISTRTCT, SHANGHAI Date of Receipt : Jan. 19, 2021 Date of Test : Jan. 19, 2021~Mar. 05, 2021 Issued Date : Mar. 18, 2021 Report Version : R00 Test Sample : Engineering Sample No.: SH2021011390-5, SH2021011390-3 Standard(s) : FCC Part15, Subpart E(15.407) ANSI C63.10-2013 FCC KDB 789033 D02 General UNII Test Procedures New Rules v02r01 FCC KDB 662911 D01 Multiple Transmitter Output v02r01 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Maker Qi Approved by : Ryan Wang Add: No. 29, Jintang Road, Tangzhen Industry Park, Pudong New Area, Shanghai 201210,China TEL: +86-021-61765666 Web: www.newbtl.com Report No.:BTL-FCCP-2-2101H022 Page 2 of 286 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.:BTL-FCCP-2-2101H022 Page 3 of 286 Table of Contents Page REPORT ISSUED HISTORY 5 1 . SUMMARY OF TEST RESULTS 6 1.1 TEST FACILITY 7 1.2 MEASUREMENT UNCERTAINTY 7 1.3 TEST ENVIRONMENT CONDITIONS 7 2 . GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF EUT 8 2.2 TEST MODES 11 2.3 PARAMETERS OF TEST SOFTWARE 13 2.4 DUTY CYCLE 16 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 18 2.6 SUPPORT UNITS 18 3 . AC POWER LINE CONDUCTED EMISSIONS TEST 19 3.1 LIMIT 19 3.2 TEST PROCEDURE 19 3.3 DEVIATION FROM TEST STANDARD 19 3.4 TEST SETUP 20 3.5 EUT OPERATION CONDITIONS 20 3.6 TEST RESULTS 20 4 . RADIATED EMISSIONS TEST 21 4.1 LIMIT 21 4.2 TEST PROCEDURE 22 4.3 DEVIATION FROM TEST STANDARD 22 4.4 TEST SETUP 23 4.5 EUT OPERATION CONDITIONS 25 4.6 TEST RESULTS - 9 KHZ to 30 MHZ 25 4.7 TEST RESULTS - 30 MHz TO 1000 MHz 25 4.8 TEST RESULTS - ABOVE 1000 MHz 25 5 . BANDWIDTH TEST 26 5.1 LIMIT 26 5.2 TEST PROCEDURE 26 5.3 TEST PROCEDURE 26 5.4 TEST SETUP 27 Report No.:BTL-FCCP-2-2101H022 Page 4 of 286 Table of Contents Page 5.5 EUT OPERATION CONDITIONS 27 5.6 TEST RESULTS 27 6 . MAXIMUM OUTPUT POWER TEST 28 6.1 LIMIT 28 6.2 TEST PROCEDURE 29 6.3 DEVIATION FROM STANDARD 29 6.4 TEST SETUP 29 6.5 EUT OPERATION CONDITIONS 29 6.6 TEST RESULTS 29 7 . POWER SPECTRAL DENSITY TEST 30 7.1 LIMIT 30 7.2 TEST PROCEDURE 30 7.3 DEVIATION FROM STANDARD 30 7.4 TEST SETUP 31 7.5 EUT OPERATION CONDITIONS 31 7.6 TEST RESULTS 31 8 . FREQUENCY STABILITY MEASUREMENT 32 8.1 LIMIT 32 8.2 TEST PROCEDURE 32 8.3 DEVIATION FROM STANDARD 32 8.4 TEST SETUP 33 8.5 EUT OPERATION CONDITIONS 33 8.6 TEST RESULTS 33 9 . MEASUREMENT INSTRUMENTS LIST 34 10 . EUT TEST PHOTOS 36 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 39 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 42 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1 GHZ 43 APPENDIX D - RADIATED EMISSION - ABOVE 1000 MHZ 46 APPENDIX E - BANDWIDTH 191 APPENDIX F - CONDUCTED OUTPUT POWER 208 APPENDIX G - POWER SPECTRAL DENSITY 261 Report No.:BTL-FCCP-2-2101H022 Page 5 of 286 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Mar. 18, 2021 Report No.:BTL-FCCP-2-2101H022 Page 6 of 286 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15, Subpart E(15.407) Standard(s) Section Test Item Test Result Judgement Remark 15.207 15.407(b) AC Power Line Conducted Emissions APPENDIX A PA SS ------ 15.407(b) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PA SS ------ 15.407(a) 15.407(e) Spectrum Bandwidth APPENDIX E PA SS ------ 15.407(a) Maximum Output Power APPENDIX F PA SS ------ 15.407(a) Power Spectral Density APPENDIX G PA SS ------ 15.407(g) Frequency Stability APPENDIX H PA SS ------ 15.203 Antenna Requirements ------ P…

Text truncated - open the document above for the full version.

Report No.:BTL-FCCP-2-2101H022 Page 145 of 286 Orthogonal Axis X Test Mode UNII-1_TX AC (VHT20) Mode 5180 MHz Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.:BTL-FCCP-2-2101H022 Page 146 of 286 Orthogonal Axis X Test Mode UNII-1_TX AC (VHT20) Mode 5180 MHz Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.:BTL-FCCP-2-2101H022 Page 147 of 286 Orthogonal Axis X Test Mode UNII-1_TX AC (VHT20) Mode 5200 MHz Vertical REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.:BTL-FCCP-2-2101H022 Page 148 of 286 Orthogonal Axis X Test Mode UNII-1_TX AC (VHT20) Mode 5200 MHz Vertical REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.:BTL-FCCP-2-2101H022 Page 149 of 286 Orthogonal Axis X Test Mode UNII-1_TX AC (VHT20) Mode 5200 MHz Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.:BTL-FCCP-2-2101H022 Page 150 of 286 Orthogonal Axis X Test Mode UNII-1_TX AC (VHT20) Mode 5200 MHz Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.:BTL-FCCP-2-2101H022 Page 151 of 286 Orthogonal Axis X Test Mode UNII-1_TX AC (VHT20) Mode 5240 MHz Vertical REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.:BTL-FCCP-2-2101H022 Page 152 of 286 Orthogonal Axis X Test Mode UNII-1_TX AC (VHT20) Mode 5240 MHz Vertical REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.:BTL-FCCP-2-2101H022 Page 153 of 286 Orthogonal Axis X Test Mode UNII-1_TX AC (VHT20) Mode 5240 MHz Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.:BTL-FCCP-2-2101H022 Page 154 of 286 Orthogonal Axis X Test Mode UNII-1_TX AC (VHT20) Mode 5240 MHz Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.:BTL-FCCP-2-2101H022 Page 155 of 286 Orthogonal Axis X Test Mode UNII-1_TX AC (VHT40) Mode 5190 MHz Vertical REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.:BTL-FCCP-2-2101H022 Page 156 of 286 Orthogonal Axis X Test Mode UNII-1_TX AC (VHT40) Mode 5190 MHz Vertical REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.:BTL-FCCP-2-2101H022 Page 157 of 286 Orthogonal Axis X Test Mode UNII-1_TX AC (VHT40) Mode 5190 MHz Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.:BTL-FCCP-2-2101H022 Page 158 of 286 Orthogonal Axis X Test Mode UNII-1_TX AC (VHT40) Mode 5190 MHz Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.:BTL-FCCP-2-2101H022 Page 159 of 286 Orthogonal Axis X Test Mode UNII-1_TX AC (VHT40) Mode 5230 MHz Vertical REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.:BTL-FCCP-2-2101H022 Page 160 of 286 Orthogonal Axis X Test Mode UNII-1_TX AC (VHT40) Mode 5230 MHz Vertical REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.:BTL-FCCP-2-2101H022 Page 161 of 286 Orthogonal Axis X Test Mode UNII-1_TX AC (VHT40) Mode 5230 MHz Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.:BTL-FCCP-2-2101H022 Page 162 of 286 Orthogonal Axis X Test Mode UNII-1_TX AC (VHT40) Mode 5230 MHz Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.:BTL-FCCP-2-2101H022 Page 163 of 286 Orthogonal Axis X Test Mode UNII-1_TX AC (VHT80) Mode 5210 MHz Vertical REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.:BTL-FCCP-2-2101H022 Page 164 of 286 Orthogonal Axis X Test Mode UNII-1_TX AC (VHT80) Mode 5210 MHz Vertical REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.:BTL-FCCP-2-2101H022 Page 165 of 286 Orthogonal Axis X Test Mode UNII-1_TX AC (VHT80) Mode 5210 MHz Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.:BTL-FCCP-2-2101H022 Page 166 of 286 Orthogonal Axis X Test Mode UNII-1_TX AC (VHT80) Mode 5210 MHz Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.:BTL-FCCP-2-2101H022 Page 167 of 286 Orthogonal Axis X Test Mode UNII-3_TX AC (VHT20) Mode 5745 MHz Vertical REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.:BTL-FCCP-2-2101H022 Page 168 of 286 Orthogonal Axis X Test Mode UNII-3_TX AC (VHT20) Mode 5745 MHz Vertical REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.:BTL-FCCP-2-2101H022 Page 169 of 286 Orthogonal Axis X Test Mode UNII-3_TX AC (VHT20) Mode 5745 MHz Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.:BTL-FCCP-2-2101H022 Page 170 of 286 Orthogonal Axis X Test Mode…

Text truncated - open the document above for the full version.

Report No.:BTL-FCCP-2-2101H022 Page 207 of 286 Test Mode UNII-3_TX AC (VHT80) Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 6 dB Bandwidth Min. Limit (kHz) Result 155 5775 69.20 76.40 500 Complies CH155 99 % Emission Bandwidth Report No.:BTL-FCCP-2-2101H022 Page 208 of 286 APPENDIX F - CONDUCTED OUTPUT POWER Report No.:BTL-FCCP-2-2101H022 Page 209 of 286 SISO-AN T. 1 Test Mode UNII-1_TX A Mode Channel Frequency (MHz) Conducted Output Power (dBm) Duty Factor Conducted Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 23.98 0.66 24.64 30.00 1.00 Complies 40 5200 25.73 0.66 26.39 30.00 1.00 Complies 48 5240 25.27 0.66 25.93 30.00 1.00 Complies Test Mode UNII-1_TX N (HT20) Mode Channel Frequency (MHz) Conducted Output Power (dBm) Duty Factor Conducted Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 22.93 0.65 23.58 30.00 1.00 Complies 40 5200 25.65 0.65 26.30 30.00 1.00 Complies 48 5240 25.27 0.65 25.92 30.00 1.00 Complies Test Mode UNII-1_TX N (HT40) Mode Channel Frequency (MHz) Conducted Output Power (dBm) Duty Factor Conducted Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 38 5190 20.20 1.00 21.20 30.00 1.00 Complies 46 5230 24.87 1.00 25.87 30.00 1.00 Complies Report No.:BTL-FCCP-2-2101H022 Page 210 of 286 Test Mode UNII-3_TX A Mode Channel Frequency (MHz) Conducted Output Power (dBm) Duty Factor Conducted Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 149 5745 23.51 0.66 24.17 30.00 1.00 Complies 157 5785 22.50 0.66 23.16 30.00 1.00 Complies 165 5825 23.42 0.66 24.08 30.00 1.00 Complies Test Mode UNII-3_TX N (HT20) Mode Channel Frequency (MHz) Conducted Output Power (dBm) Duty Factor Conducted Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 149 5745 23.59 0.65 24.25 30.00 1.00 Complies 157 5785 22.51 0.65 23.16 30.00 1.00 Complies 165 5825 22.96 0.65 23.61 30.00 1.00 Complies Test Mode UNII-3_TX N (HT40) Mode Channel Frequency (MHz) Conducted Output Power (dBm) Duty Factor Conducted Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 151 5755 24.93 1.00 25.93 30.00 1.00 Complies 159 5795 23.52 1.00 24.52 30.00 1.00 Complies Report No.:BTL-FCCP-2-2101H022 Page 211 of 286 Test Mode UNII-1_TX AC (VHT20) Mode Channel Frequency (MHz) Conducted Output Power (dBm) Duty Factor Conducted Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 23.06 0.56 23.62 30.00 1.00 Complies 40 5200 25.73 0.56 26.29 30.00 1.00 Complies 48 5240 25.41 0.56 25.97 30.00 1.00 Complies Test Mode UNII-1_TX AC (VHT40) Mode Channel Frequency (MHz) Conducted Output Power (dBm) Duty Factor Conducted Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 38 5190 20.28 1.00 21.28 30.00 1.00 Complies 46 5230 25.06 1.00 26.06 30.00 1.00 Complies Test Mode UNII-1_TX AC (VHT80) Mode Channel Frequency (MHz) Conducted Output Power (dBm) Duty Factor Conducted Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (…

Text truncated - open the document above for the full version.
