WF-3220-Z1 User Manual WF-3220-Z1 Zoomnet Confidential Proprietary @ 2013 Zoomnet Corporation. All rights reserved I FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into and outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Any special accessories needed for compliance must be specified in the instruction manual. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. The minimum distance between this equipment and user should be 40 cm when the equipment operates. History Version Version Author Time Remarks WF-3220-Z1 Zoomnet Confidential Proprietary @ 2013 Zoomnet Corporation. All rights reserved II Preface This manual mainly introduces how to configure the WF-3220-Z1 to users when they install AP device. It’s suggested to read this guide carefully before install the WF-3220-Z1. This part includes the follow contents:
Content introduction
Readers
Conventions  Content introduction This document introduces WEB configuration, CLI confuguration and WEB upgrade. It is divided into six chapters.  Chapter 1 Product Introduction  Chapter 2 WEB Configuration and Management  Chapter 3 CLI Configuration  Chapter 4 Change AP Working Mode  Chapter 5 Common Operation in Fat AP Mode  Chapter 6 Upgrade  Readers This document is for readers as followss:  FAE and technical support  Network manager  Convention of symbols in this manual Format Definition <> Characters in <> means this is a button, such as < OK> [ ] Characters in[ ] means this is a window, menu or a datasheet, like popup a [new user] window. / Multilevel menu will use “/” to separate, such as [File/New/Folder], that means choose folder in the multilevel menu File/ New This document adopts the following symbols to inform readers of special attention when they are operating the device. Notes and tips in the body of manual will be shown in Times New Roman fonts, and separated from surround contents with a horizontal line as followss: WF-3220-Z1 Zoomnet Confidential Proprietary @ 2013 Zoomnet Corporation. All rights reserved III    TIP: Means a complementary description Caution： ：： ： Means reader be careful. Improper operation may cause data loss or damage to equipment. Professinal installation: The device cannot be sold retail, to the general public or by mail order. It must be sold to dealers. It is installed by licensed professionals with special training according to Installation instruction provided by dealer or grantee. WF-3220-Z1 Zoomnet Confidential Proprietary @ 2013 Zoomnet Corporation. All rights reserved IV Contents 1 PRODUCT INTRODUCTION ....................................................................................... 1 2 WEB CONFIGURATION AND MANAGEMENT .......................................................... 2 2.1 NETWORK SETTINGS ......................................................................................... 2 2.1.1 WAN INTERFACE NETWORK SETTINGS ................................................... 2 2.1.2 WIRELESS NETWORK SETTINGS .............................................................. 3 2.2 LOG ON ................................................................................................................. 4 2.3 SYSTEM STATUS ................................................................................................. 4 2.4 WIRELESS SETTINGS ......................................................................................... 4 2.4.1 WIRELESS STATUS ..................................................................................... 4 2.4.2 VAP SETTINGS ............................................................................................. 4 2.4.3 ADVANCED SETTINGS ................................................................................ 5 2.4.4 MULTI SSID-VLAN BINDING ........................................................................ 5 2.5 TCP/IP SETTINGS ................................................................................................ 5 2.5.1 LAN STATUS ................................................................................................. 5 2.5.2 LAN SETTING ................................................................................................ 6 2.6 DEVICE MANAGEMENT ...................................................................................... 6 2.6.1 TIME SETTING .............................................................................................. 6 2.6.2 SYSTEM LOG ................................................................................................ 6 2.6.3 FIRMWARE UPGRADE ................................................................................. 6 2.6.4 CONFIGURATION BACKUP AND RESTORE .............................................. 6 2.6.5 USER MANAGEMENT .................................................................................. 6 3 CLI CONFIGURATION .................................................................…

Text truncated - open the document above for the full version.

Installation Guidelines Systems must be professionally installed by a qualified engineer familiar with WLAN, including trained partners and resellers. Because the access point is a radio device, it is susceptible to common causes of interference that can reduce throughput and range. Follow these basic guidelines to ensure the best possible performance: •Perform a site survey before beginning the installation. •Install the access point in an area where structures, trees, or hills do not obstruct radio signals to and from the access point. •The access points can be installed at any height, but best throughput is achieved when all the access points are mounted at the same height. We recommends installing the access points no higher than 40 feet to allow support for wireless clients on the ground. Site Surveys Every network application is a unique installation. Before installing multiple access points, you should perform a site survey to determine the optimum use of networking components and to maximize range, coverage, and network performance. Consider the following operating and environmental conditions when performing a site survey: •Data rates—Sensitivity and range are inversely proportional to data bit rates. The maximum radio range is achieved at the lowest workable data rate. A decrease in receiver sensitivity occurs as the radio data increases. •Antenna type and placement—Proper antenna configuration is a critical factor in maximizing radio range. As a general rule, range increases in proportion to antenna height. However, do not place the antenna higher than necessary, because the extra height also increases potential interference from other unlicensed radio systems and decreases the wireless coverage from the ground. •Physical environment—Clear or open areas provide better radio range than closed or filled areas. •Obstructions—Physical obstructions such as buildings, trees, or hills can hinder performance of wireless devices. Avoid locating the devices in a location where there is an obstruction between the sending and receiving antennas. Before Beginning the Installation Before you begin the installation process: •Ensure that a site survey has been performed. •Ensure that your network infrastructure devices are operational and properly configured. •Ensure that your controllers are connected to switch trunk ports. •Ensure that your switch is configured with untagged access ports for connecting your access points. •Ensure that a DHCP server with Option 43 configured is reachable by your access points, or manually configure the controller information in the access point •Become familiar with the access point installation components Becoming Familiar with Access Point Installation Components The access point is designed to be installed in an indoor environment, such as an interior wall or ceiling or the exterior roof overhang of a tall building or a streetlight pole. •Components in a typical access point installation 1 Building roof-overhang 6 Ground 2 Shielded outdoor-rated Ethernet (CAT5e or better) cable 7 AC power cord 3 Water drip loop 8 Power injector 4 Grounding wire 9 Shielded Ethernet (CAT5e or better) cable 5 Ground rod 10 Controller (through a switch) Mounting the Access Point This section provides instructions for installing your access points. Personnel installing the access point must understand wireless access points and bridging techniques and grounding methods. Access Point Mounting Orientation When installing an access point on a horizontal or vertical surface, you must ensure that the access point is oriented with the LED indicators pointing down. This positioning allows the LEDs to be visible to someone on the ground below the access point. You must also ensure the access point is mounted with the hinged access cover facing out. Mounting the Access Point on a Wall The optional pole mount kit contain a mounting bracket for wall mounting. You can use the mounting bracket as a template to mark the positions of the mounting holes for your installation. You then install the mounting plate, and attach the access point when you are ready. It lists the material that you will need to provide in addition to the pole mount kit. Materials Required Ground lug and screws (provided with access point) Crimping tool for ground lug, Panduit CT-720 with CD-720-1 die (http://onlinecatalog.panduit.com) Four M8 or 5/16 in. (31 mm) screws Four wall anchors (specified for wall material) Drill bit for wall anchors Electric drill and standard screwdriver #6-AWG ground wire Shielded outdoor-rated Ethernet (CAT5e or better) cable Grounding block Grounding rod 13-mm box-end wrench or socket set

CIG SHANGHAI CO., LTD. Professionally Installed Declaration FCC ID: SFK-OAPDBNA To Whom it may concern: CIG SHANGHAI CO., LTD. addresses the following items to ensure that the above referenced equipment is Professional installed: 1) The WiFi Access Point (Model: WF-3220-Z1) must be sold by CIG SHANGHAI CO., LTD. or one of its authorized dealers. CIG SHANGHAI CO., LTD. and its authorized dealers will be under strict marketing control and will only market and sell the WF-3220-Z1 to professionals. 2) Professional installation is required for WF-3220-Z1 and will be performed only by someone knowledgeable of its use. CIG SHANGHAI CO., LTD. will ensure that the WF-3220-Z1 is only marketed and sold to professionals. 3) The WF-3220-Z1 is not sold to the general public and is sold only for industrial or commercial use by professional installers. Applicant’s Company Name: CIG SHANGHAI CO., LTD. Applicant’s Company Address: Room 309, No. 333, Hongqiao Rd. Shanghai Wei Li Certificate Manager 22 April, 2013

To whom it may concern, Letter of Agency I, an officer of CIG SHANGHAI CO., LTD. do hereby authorize Intertek Testing Services (Mr. Shawn Xing / Billy Li) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2007) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Wei Li Certificate Manager 22 April, 2013

Request for confidentiality Applicant: CIG SHANGHAI CO., LTD. FCC ID: SFK-OAPDBNA To whom it may concern, Permanent Confidentiality Request is hereby submitted by CIG SHANGHAI CO., LTD. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams • Detailed Operational Description If you have questions or need further information, please contact the undersigned. Sincerely, __________________ Wei Li Certificate Manager 22 April, 2013 CIG SHANGHAI CO., LTD.

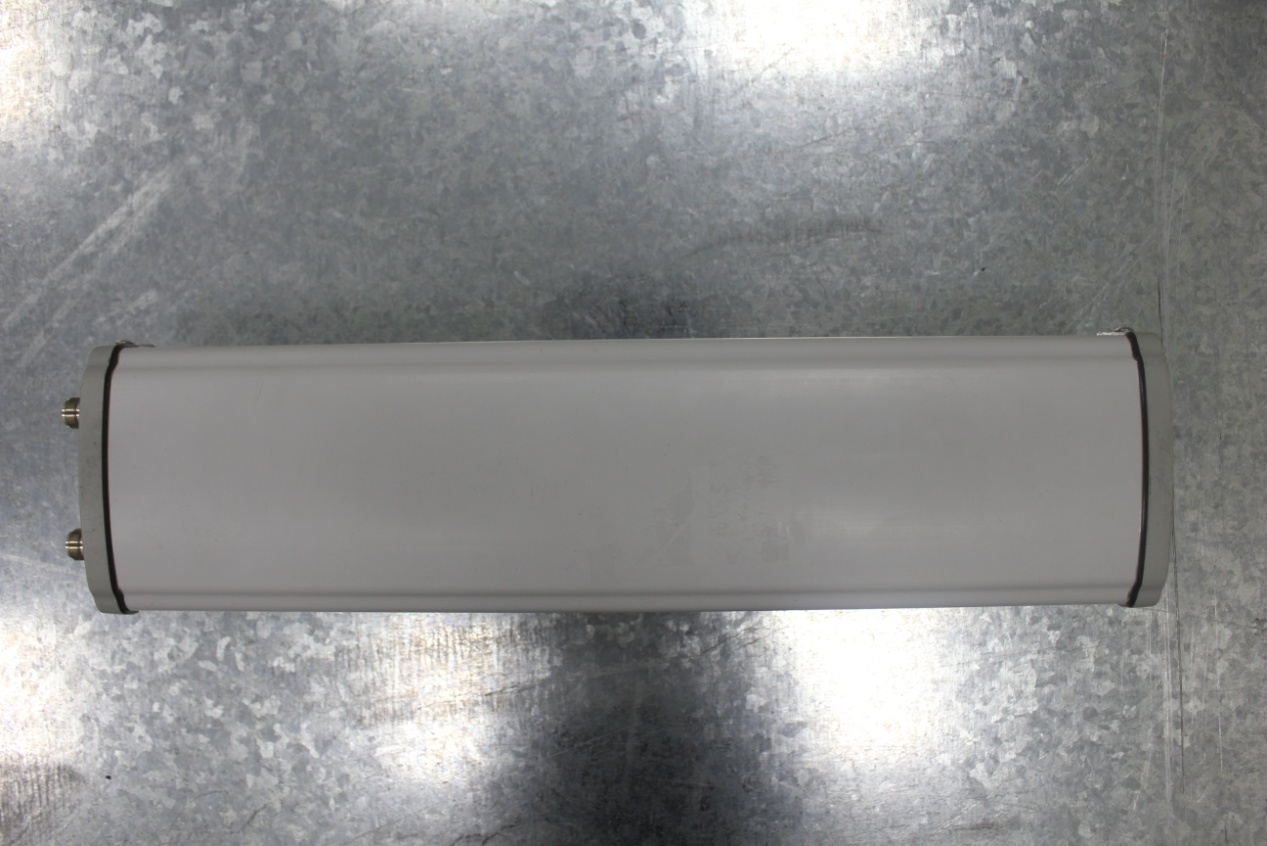

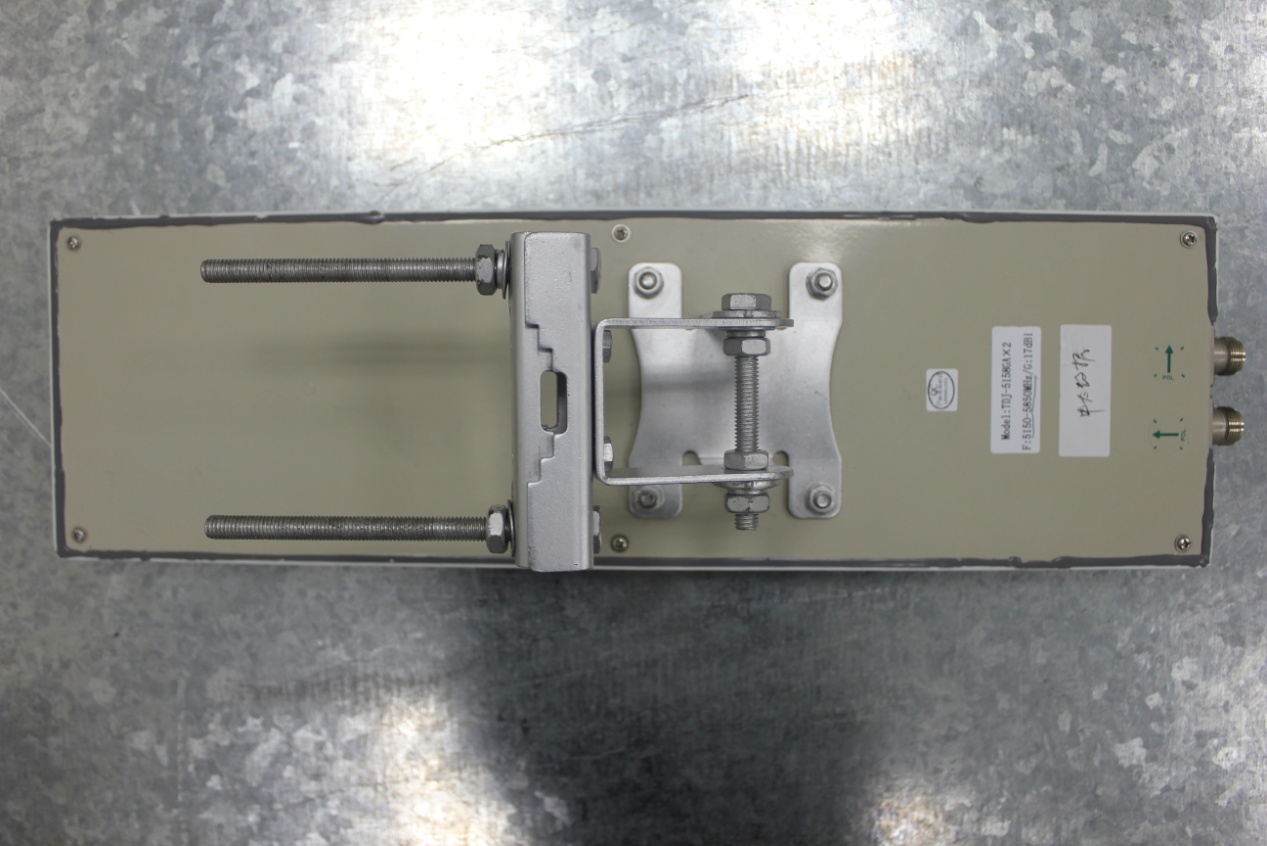

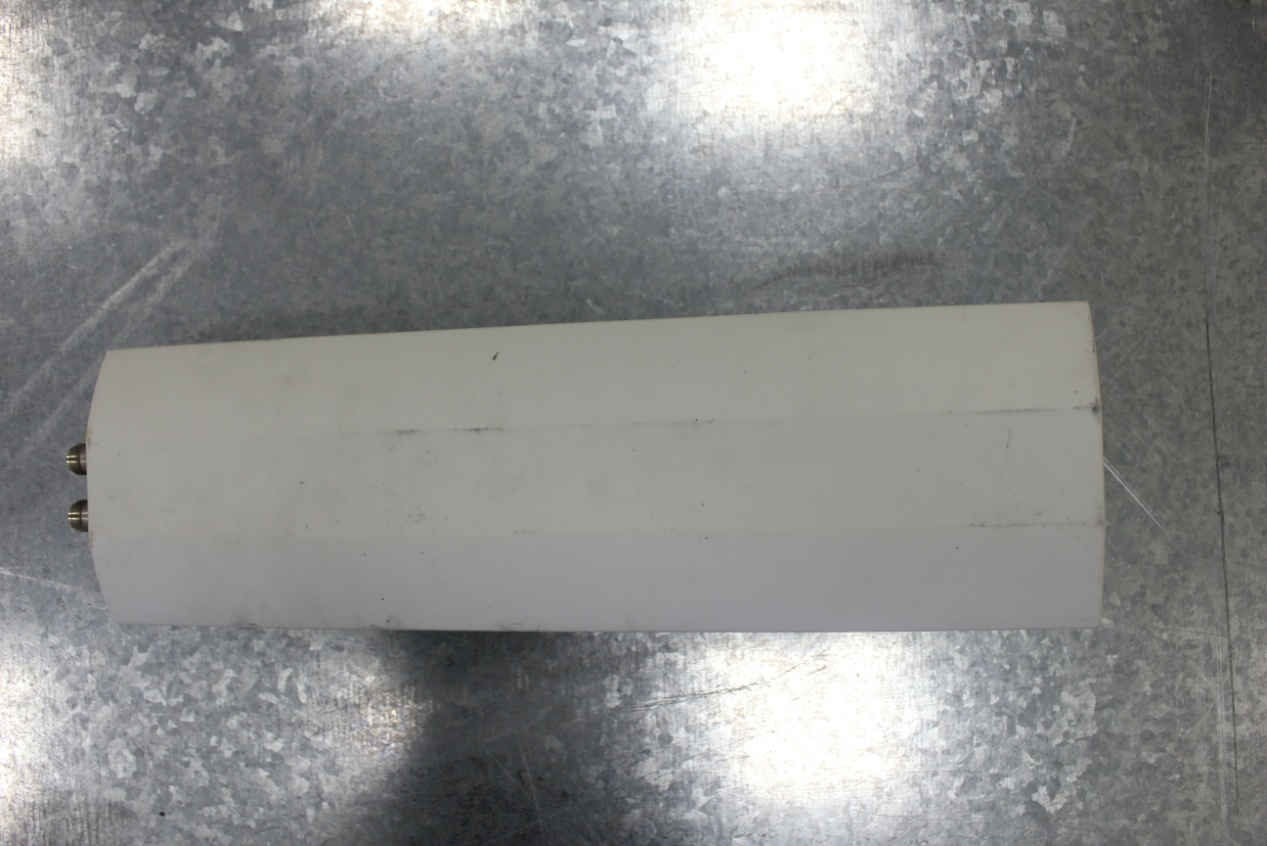

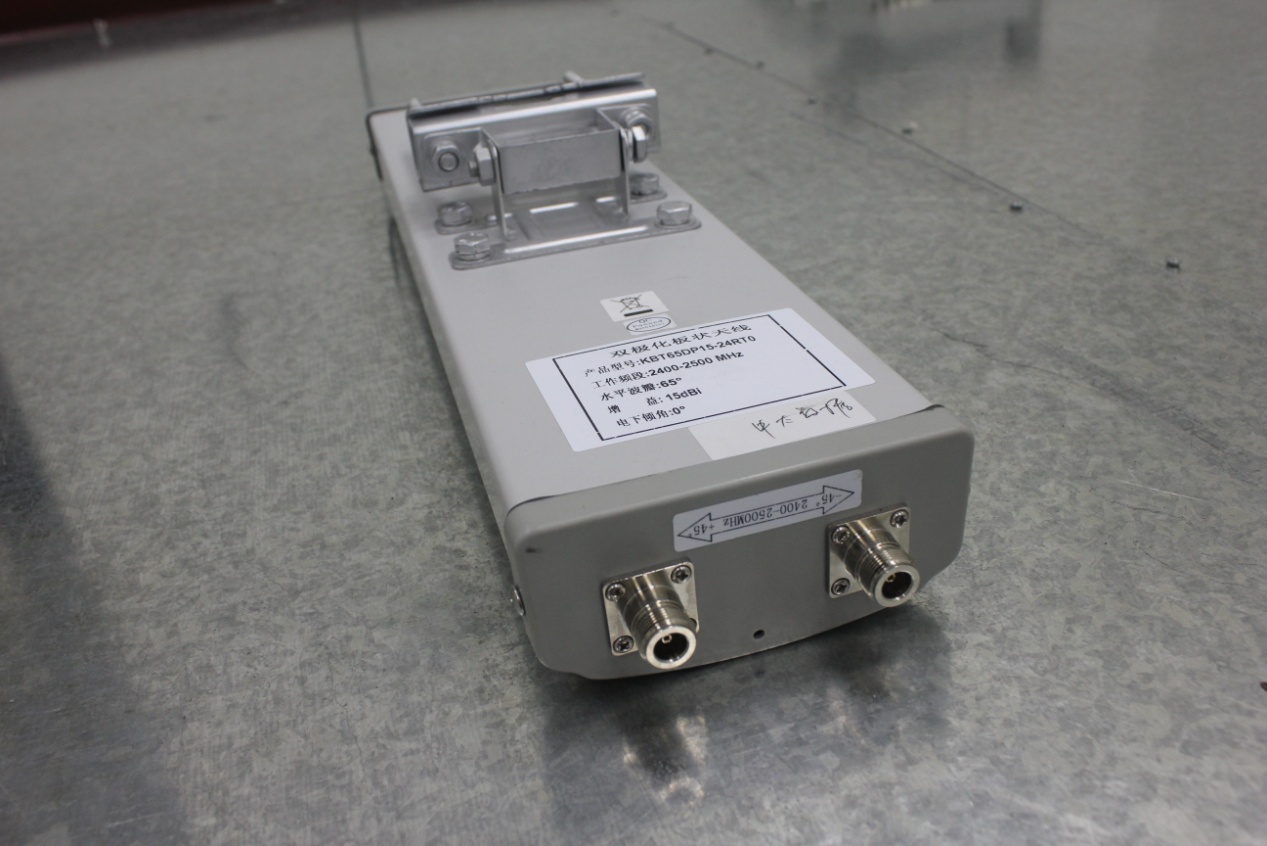

WF-3220-Z1 External photo 2.4G Antenna 5G Antenna

Label Artwork and Location Size: 60.0 x 40.0mm

第1页 WF-3220-Z1 Internal photo 第2页

FCC ID: SFK-OAPDBNA 1 of 2 MAXIMUM PERMISSIBLE EXPOSURE(MPE) Applicable Standard： ：： ：FCC §2.1091 §15.247(i) and 15.407(f) According to FCC §15.247(i) and 15.407(f) subpart§1.1307(b)(l), systems operating under provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure(MPE)( §1.1310, §2.1091) f = frequency in MHz; *=Plane-wave equivalent power density; MPE Calculation Predication of MPE limit at a given distance S = PG/ 4лR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Test Equipment List and Details Manufacturer Description Model Serial Number Calibration Date Calibration Due Date Agilent MXA Series Spectrum Analyzer N9020A MY48011941 2012-6-17 2013-6-17 *statement of traceability: ZTE Corporation Reliability Testing Center attest that all calibration have been performed per the NVLAP requirements, traceable to NIST. Test Procedure For 15.247 802.11 b/g/n 2.4GHz band, the antenna power of the EUT was connected to the input of a power meter. Power was read directly and cable loss correction was added to the reading to obtain power at the EUT antenna terminals. FCC ID: SFK-OAPDBNA 2 of 2 For 15.247 802.11 a/n 5.8GHz band, the RF output of the transmitter was connected to the input of the spectrum analyzer through sufficient attenuation. The resolution bandwidth of the spectrum analyzer was set at 1MHz, and video bandwidth was set at 3MHz. Set the span to fully encompass the DTS bandwidth. Detector = peak, Sweep time = auto couple, Trace mode = max hold. For 15.407 802.11 a 5.15-5.25GHz band, the RF output of the transmitter was connected to the input of the spectrum analyzer through sufficient attenuation. The resolution bandwidth of the spectrum analyzer was set at 1MHz, and video bandwidth was set at 3MHz. Set the Integral bandwidth=26dB emission bandwidth, and the span to fully encompass the DTS bandwidth. Detector = RMS, Sweep time = auto couple, Trace mode = max hold. Sweep point=100. 12.4 Environmental Conditions Temperature: 20 °C Relative Humidity: 53 % ATM Pressure: 1009 mbar 12.5 Test Result: Pass. The device meets FCC MPE limit at 40cm distance. Mode Frequency (MHz) Port power (dBm) Combined power(dBm) Antenna Gain(dBi) Evaluation Distance(cm) Power Density (mW/ cm 2 ) MPE limit (mW/ cm 2 ) 802.11 b 2412-2462 1 18.0 21.0 15 40 0.20 1.0 2 18.0 802.11 g 1 18.0 21.0 15 40 0.20 1.0 2 18.0 802.11 .n20 1 18.0 21.0 15 40 0.20 1.0 2 18.0 802.11 .n40 2422-2452 1 18.0 21.0 15 40 0.20 1.0 2 18.0 Mode Frequency (MHz) Port power (dBm) Combined power(dBm) Antenna Gain(dBi) Evaluation Distance(cm) Power Density (mW/ cm 2 ) MPE limit (mW/ cm 2 ) 802.11 a 5180-5240 1 3.5 6.5 17 40 0.01 1.0 2 3.5 Mode Frequency (MHz) Port power (dBm) Combined power(dBm) Antenna Gain(dBi) Evaluation Distance(cm) Power Density (mW/ cm 2 ) MPE limit (mW/ cm 2 ) 802.11 a 5745-5825 1 16.5 19.5 17 40 0.22 1.0 2 16.5 802.11 .n20 1 16.5 19.5 17 40 0.22 1.0 2 16.5 802.11 .n40 5755-5795 1 16.5 19.5 17 40 0.22 1.0 2 16.5
