SFK-WB60WF-630R1 Radio Module

WF-630R1 APUser Manual Version 2 CAMBRIDGE Industries (Group) Co Ltd. CIG CAMBRIDGE Industries (Group) Co Ltd. CIG Notice CIG has the sole right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice, CIG has the final interpretation. This version is effective in the two months since the release date. TABLE OF CONTENTS 1 Quick Start ................................................................................................................... 3 1.1 Introduction ................................................................................................................................ 3 1.2 Product Overview ...................................................................................................................... 3 1.3 Installation.................................................................................................................................. 4 1.4 LED Definition ............................................................................................................................ 4 1.5 Software Installation .................................................................................................................. 5 1.6 Product Specification ................................................................................................................. 5 1.7 Product Proper Disposal ........................................................................................................... 6 1.8 Safety and Regulatory compliance ........................................................................................... 8 2 AP Network Topology .................................................................................................. 8 2.1 Connect PoE Adapter to AP ...................................................................................................... 9 2.2 Configure PC IP address ......................................................................................................... 10 2.3 Visit AP Web page................................................................................................................... 11 2.4 Configure IP address for AP.................................................................................................... 11 2.5 Connect AP to Switch .............................................................................................................. 12 2.6 Configure location, Language and Country code for AP ........................................................ 12 2.7 Configure detailed WiFi parameters for AP ............................................................................ 13 2.8 Configure Radius parameters for AP ...................................................................................... 13 2.9 Configure Portal parameters for AP ........................................................................................ 14 2.10 Configure security parameters for AP ..................................................................................... 15 2.11 Configure Rate limit rule (Optional) ......................................................................................... 17 2.12 Configure Group ID (Optional) ................................................................................................ 19 2.13 Configure MAC ACL rule (Optional) ........................................................................................ 20 2.14 Configure SSID ........................................................................................................................ 21 3 AP WDS Network Topology ....................................................................................... 23 3.1 Enable WDS function .............................................................................................................. 23 3.2 Configure CPE WDS ............................................................................................................... 24 4 NAWDS Network Topology ........................................................................................ 25 4.1 Configure WDS bridge mode .................................................................................................. 25 4.2 Input remote AP MAC ............................................................................................................. 26 4.3 The configuration in remote AP ............................................................................................... 26 4.4 NAWDS Auto Find ................................................................................................................... 28 5 Station Network Topology .......................................................................................... 29 5.1 Configure Station mode ........................................................................................................... 29 5.2 Station Access to AP ............................................................................................................... 30 5.3 Station Status .......................................................................................................................... 31 6 Troubleshooting ......................................................................................................... 31 6.1 Ping Diagnose ......................................................................................................................... 31 6.2 TraceRT Diagnose .................................................................................................................. 32 6.3 How to backup/restore setting ................................................................................................. 32 6.4 How to upgrade AP ................................................................................................................. 33 6.5 How to reset …

Text truncated - open the document above for the full version.

CIG Shanghai Co., Ltd. Date: August 23, 2015 Federal Communications Commission Authorization and Evaluation Division FCC ID: SFK-WB60 ATTESTATION FCC ID: SFK-WB60 Product: WF-630R1 Radio Module Model: WF-630R1 We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Model Difference: The different of models only for marketing different client, the other was the same. Sincerely, __________________ Name: Mazhonghua Position: Manager CIG Shanghai Co., Ltd.

CIG Shanghai Co., Ltd. Declaration of Authorization We Name: CIG Shanghai Co., Ltd. Address: F/5, 8 Building No.2388 Chenhang Road, Minhang District, Shanghai Declare that: Name Representative of agent: Robin Wu Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone, City: Suzhou Country China is authorized to apply for Certification of the following product(s): Product description: WF-630R1 Radio Module Type designation: WF-630R1 Trademark: CIG on our behalf. Date: August 23, 2015 Name: Mazhonghua Signature:

CIG Shanghai Co., Ltd. Date: August 23, 2015 Federal Communications Commission Authorization and Evaluation Division FCC ID: SFK-WB60 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1. Block Diagram 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ---------------------------------------------------------- Name: Mazhonghua CIG Shanghai Co., Ltd.

Non-SDR (Software Defined Radio) Cover Letter Date: August 23, 2015 Refer to KDB 442812 D01 SDR apps Guide v02r03. The following six questions can be used for determining if a radio can elect to be, or must be an SDR. 1. Can the RF parameters of the device be altered through software? Yes - go to 2. No, not an SDR Yes 2. Can third parties not permitted by the Commission through specific filings modify, configure, or load different software, or make configuration settings to operate the device or host hardware radio frequency parameters (frequency range, modulation type, maximum output power or other radio parameters) in any other way than granted (or expected to be granted)? Yes, must be an SDR. No - go to 3. No 3. Is the device capable of operating in any other in any other way than granted, or will be, granted? Yes, - go to 4. No - go to 5. No 4. Is this a Part 15 client Device as defined in Section 15.202 (as opposed to a master device)? Yes, qualifies as a part 15 client devices - go to 5. No, must be an SDR. 5. Does the manufacturer elect SDR? Yes, elects to be an SDR. No, Not an SDR No Final conclusion: According to the above questions reply, we can confirm this WF-630R1 Radio Module FCC ID: SFK-WB60 must be a Non-SDR. The equipment can only support one exclusive regulation. The hardware devices will be locked to the activated regulatory domain and can’t be modified by any third party through configuration changes or software upgrades. The client only need to download the software/firmware from official website, and these software/ firmware shall be authentication protocol by the manufacturer. Sincerely, __________________ Name: Mazhonghua Position: Manager CIG Shanghai Co., Ltd.

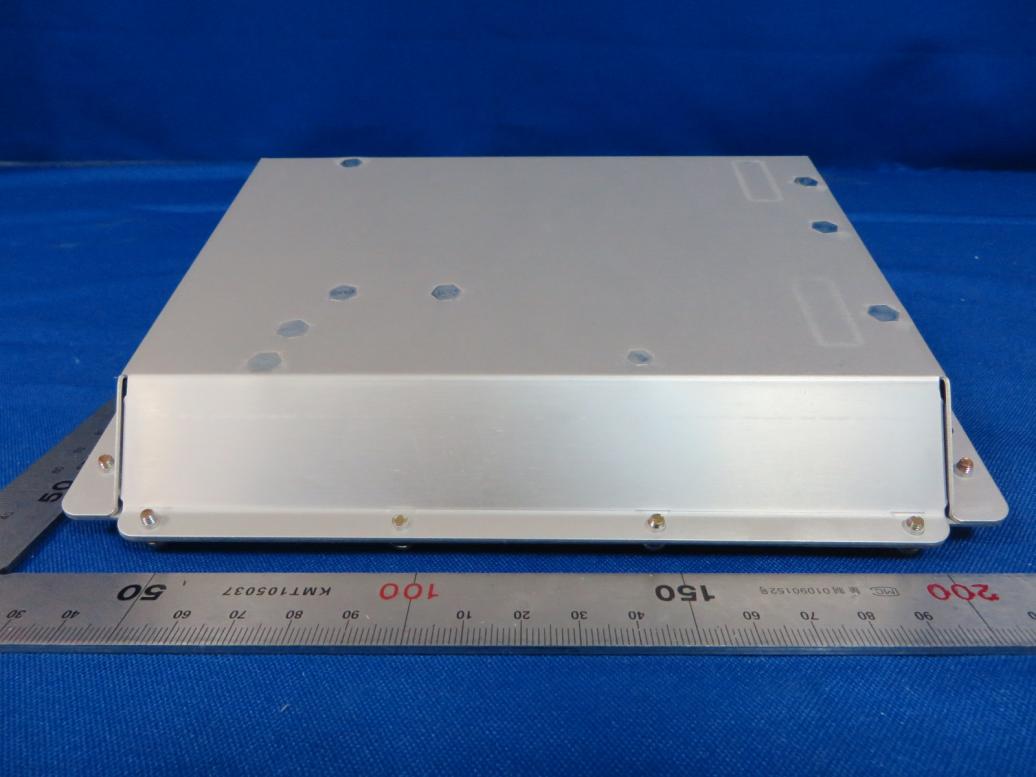

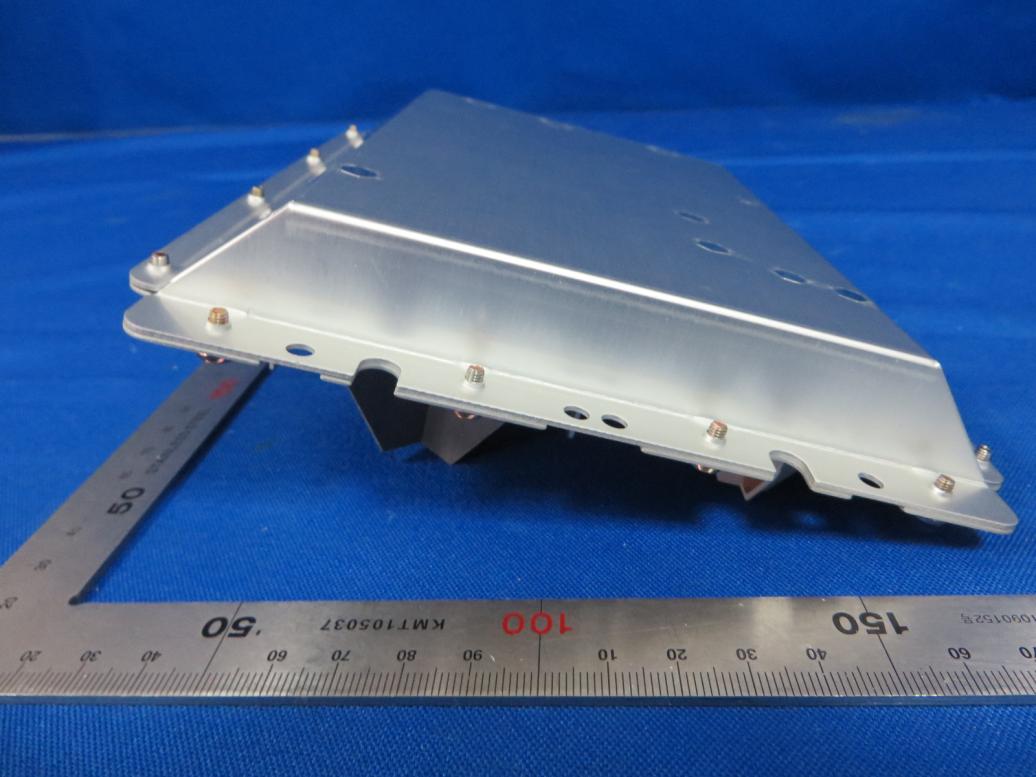

1 of 5 External Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo (10) EUT Photo

Label Label Location

1 of 6 Internal Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo (10) EUT Photo (11) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 1506RSU01404 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 08-23-2015 Web: www.mrt-cert.com FCC ID: SFK-WB60 Page Number: 1 of 7 RF Exposure Evaluation Declaration FCC ID: SFK-WB60 APPLICANT: CIG Shanghai Co., Ltd. Application Type: Certification Product: WF-630R1 Radio Module Model No.: WF-630R1 FCC Classification: Digital Transmission System (DTS) Unlicensed National Information Infrastructure (UNII) Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1506RSU01404 FCC ID: SFK-WB60 Page Number: 2 of 7 Revision History Report No. Version Description Issue Date 1506RSU01404 Rev. 01 Initial report 08-23-2015 Report No.: 1506RSU01404 FCC ID: SFK-WB60 Page Number: 3 of 7 1. PRODUCT INFORMATION 1.1. Equipment Description Product Name WF-630R1 Radio Module Model No. WF-630R1 Frequency Range 2.4GHz: 802.11b/g/n-HT20: 2412 ~ 2462 MHz 802.11n-HT40: 2422 ~ 2452 MHz 5GHz: 802.11a/n-HT20/ac-VHT20: 5180~5240MHz, 5745~5825MHz 802.11n-HT40/ac-VHT40: 5190~5230MHz, 5755~5795MHz 802.11ac-VHT80: 5210MHz, 5775MHz Type of Modulation 802.11b: DSSS 802.11g/a/n/ac: OFDM Maximum Average Output Power For 2.4GHz: 802.11b: 27.60dBm 802.11g: 27.11dBm 802.11n-HT20: 27.09dBm 802.11n-HT40: 27.21dBm For 5GHz: 802.11a: 27.44dBm 802.11n-HT20: 27.56dBm 802.11n-HT40: 26.24dBm 802.11ac-VHT20: 27.57dBm 802.11ac-VHT40: 26.28dBm 802.11ac-VHT80: 18.04dBm Report No.: 1506RSU01404 FCC ID: SFK-WB60 Page Number: 4 of 7 1.2. Antenna Description Antenna Type Frequency Band (GHz) Tx Paths Max Peak Gain (dBi) Beam Forming Directional Gain (dBi) CDD Directional Gain (dBi) PCB Antenna 2.4 2 10 10 10 5 2 12 12 12 Note: The antenna is belong to cross-polarized antenna (horizontal and vertical polarizations) refer to antenna specification. For a system in which the antennas have fixed orientations relative to one another that ensure that the antennas are cross-polarized regardless of any user actions, the directional gain is computed as follows.  Cross-polarized antennas with NANT = 2. In the case of a transmitter with only two outputs driving a pair of antennas that are cross-polarized (e.g., vertical and horizontal), directional gain is the gain of an individual antenna. If the two antennas have different gains, the larger gain applies. Report No.: 1506RSU01404 FCC ID: SFK-WB60 Page Number: 5 of 7 2. RF Exposure Evaluation 2.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- f/1500 6 1500-100,000 -- -- 1 30 f= Frequency in MHz Calculation Formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 r = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1mW/cm². If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No.: 1506RSU01404 FCC ID: SFK-WB60 Page Number: 6 of 7 2.2. Test Result of RF Exposure Evaluation Product WF-630R1 Radio Module Test Item RF Exposure Evaluation Antenna Gain: The maximum Gain measured in fully anechoic chamber is 10dBi for 2.4GHz, 12dBi for 5.2GHz, and 12dBi for 5.8GHz in logarithm scale. For 2.4GHz ISM Band: Test Mode Frequency Band (MHz) Maximum Average Output Power (dBm) Limit of Power Density S(mW/cm 2 ) Safety Distance (cm) 802.11b/g/n-HT20 2412 ~ 2462 27.60 1 21.40 802.11n-HT40 2422 ~ 2452 27.21 1 20.46 For 5GHz UNII Band: Test Mode Frequency Band (MHz) Maximum Average Output Power (dBm) Limit of Power Density S(mW/cm 2 ) Safety Distance (cm) 802.11a/n-HT20/ ac-VHT20 5180 ~ 5240 27.57 1 26.85 5745 ~ 5825 27.44 1 26.45 802.11n-HT40/ ac-VHT40 5190 ~ 5230 25.41 1 20.94 5755 ~ 5795 26.28 1 23.14 802.11ac-VHT80 5210 18.04 1 8.96 5775 14.81 1 6.18 Report No.: 1506RSU01404 FCC ID: SFK-WB60 Page Number: 7 of 7 CONCULISON: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously. The Safety Distance of the WF-630R1 Radio Module FCC ID: SFK-WB60 was 48.25 cm. So the EUT complies with the requirement. The End

MRT Technology (Suzhou) Co., Ltd Report No.: 1506RSU01401 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 08-23-2015 Web: www.mrt-cert.com FCC ID: SFK-WB60 Page Number: 1 of 216 FCC ID: SFK-WB60 APPLICANT: CIG Shanghai Co., Ltd. Application Type: Certification Product: WF-630R1 Radio Module Model No.: WF-630R1 FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Procedure(s): ANSI C63.10-2013, KDB 558074 D01v03r03, KDB 662911 D01v02r01 Test Date: July 13 ~ August 19, 2015 MEASUREMENT REPORT FCC PART 15.247 WLAN 802.11b/g/n Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 D01v03r03. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1506RSU01401 FCC ID: SFK-WB60 Page Number: 2 of 216 Revision History Report No. Version Description Issue Date 1506RSU01401 Rev. 01 Initial report 08-23-2015 Report No.: 1506RSU01401 FCC ID: SFK-WB60 Page Number: 3 of 216 CONTENTS Description Page §2.1033 General Information ......................................................................................................... 5 1. INTRODUCTION ..................................................................................................................... 6 1.1. Scope ........................................................................................................................... 6 1.2. MRT Test Location ....................................................................................................... 6 2. PRODUCT INFORMATION ..................................................................................................... 7 2.1. Equipment Description .................................................................................................. 7 2.2. Frequency / Channel Operation .................................................................................... 7 2.3. Description of Available Antennas ................................................................................ 8 2.4. Description of Antenna RF Port .................................................................................... 9 2.5. Test Mode .................................................................................................................... 9 2.6. Test Software ............................................................................................................... 9 2.7. Device Capabilities ..................................................................................................... 10 2.8. Test Configuration ....................................................................................................... 11 2.9. EMI Suppression Device(s)/Modifications .................................................................... 11 2.10. Labeling Requirements ................................................................................................ 11 3. DESCRIPTION of TEST ........................................................................................................ 12 3.1. Evaluation Procedure ................................................................................................. 12 3.2. AC Line Conducted Emissions ................................................................................... 12 3.3. Radiated Emissions .................................................................................................... 13 4. ANTENNA REQUIREMENTS ................................................................................................ 14 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................ 15 6. MEASUREMENT UNCERTAINTY ......................................................................................... 16 7. TEST RESULT ...................................................................................................................... 17 7.1. Summary .................................................................................................................... 17 7.2. 6dB Bandwidth Measurement ..................................................................................... 18 7.2.1. Test Limit ................................................................................................................ 18 7.2.2. Test Procedure used ............................................................................................... 18 7.2.3. Test Setting ............................................................................................................. 18 7.2.4. Test Setup ............................................................................................................... 18 7.2.5. Test Result .............................................................................................................. 19 7.3. Output Power Measurement ....................................................................................... 28 7.3.1. Test Limit ................................................................................................................ 28 7.3.2. Test Procedure Used .............................................................................................. 28 Report No.: 1506RSU01401 FCC ID: SFK-WB60 Page Number: 4 of 216 7.3.3. Test Setting ............................................................................................................. 28 7.3.4. Test Setup ............................................................................................................... 28 7.3.5. Test Result of Output Power ..........................…

Text truncated - open the document above for the full version.

Report No.: 1506RSU01401 FCC ID: SFK-WB60 Page Number: 51 of 216 802.11n-HT40 PSD - Ant 2 / Ant 1 + 2 Channel 03 (2422MHz) Channel 06 (2437MHz) Channel 09 (2452MHz) Report No.: 1506RSU01401 FCC ID: SFK-WB60 Page Number: 52 of 216 7.5. Conducted Band Edge and Out-of-Band Emissions 7.5.1. Test Limit The limit for out-of-band spurious emissions at the band edge is 30dB below the fundamental emission level, as determined from the in-band power measurement of the DTS channel performed in a 100kHz bandwidth per the PSD procedure. 7.5.2. Test Procedure Used KDB 558074 D01v03r03 - Section 11.2 & Section 11.3 7.5.3. Test Settitng 1. Reference level measurement (a) Set instrument center frequency to DTS channel center frequency (b) Set the span to ≥ 1.5 times the DTS bandwidth (c) Set the RBW = 100 kHz (d) Set the VBW ≥ 3 x RBW (e) Detector = peak (f) Sweep time = auto couple (g) Trace mode = max hold (h) Allow trace to fully stabilize 2. Emission level measurement (a) Set the center frequency and span to encompass frequency range to be measured (b) RBW = 100kHz (c) VBW = 300kHz (d) Detector = Peak (e) Trace mode = max hold (f) Sweep time = auto couple (g) The trace was allowed to stabilize Report No.: 1506RSU01401 FCC ID: SFK-WB60 Page Number: 53 of 216 7.5.4. Test Setup Report No.: 1506RSU01401 FCC ID: SFK-WB60 Page Number: 54 of 216 7.5.5. Test Result Test Mode Data Rate (Mbps) Channel No. Frequency (MHz) Limit Result Ant 1 802.11b 1 01 2412 30dBc Pass 802.11b 1 06 2437 30dBc Pass 802.11b 1 11 2462 30dBc Pass 802.11g 6 01 2412 30dBc Pass 802.11g 6 06 2437 30dBc Pass 802.11g 6 11 2462 30dBc Pass 802.11n-HT20 6.5 01 2412 30dBc Pass 802.11n-HT20 6.5 06 2437 30dBc Pass 802.11n-HT20 6.5 11 2462 30dBc Pass 802.11n-HT40 13.5 03 2422 30dBc Pass 802.11n-HT40 13.5 06 2437 30dBc Pass 802.11n-HT40 13.5 09 2452 30dBc Pass Ant 2 802.11b 1 01 2412 30dBc Pass 802.11b 1 06 2437 30dBc Pass 802.11b 1 11 2462 30dBc Pass 802.11g 6 01 2412 30dBc Pass 802.11g 6 06 2437 30dBc Pass 802.11g 6 11 2462 30dBc Pass 802.11n-HT20 6.5 01 2412 30dBc Pass 802.11n-HT20 6.5 06 2437 30dBc Pass 802.11n-HT20 6.5 11 2462 30dBc Pass 802.11n-HT40 13.5 03 2422 30dBc Pass 802.11n-HT40 13.5 06 2437 30dBc Pass 802.11n-HT40 13.5 09 2452 30dBc Pass Report No.: 1506RSU01401 FCC ID: SFK-WB60 Page Number: 55 of 216 802.11b Out-of-Band Emissions - Ant 1 100kHz PSD reference Level Channel 01 (2412MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1506RSU01401 FCC ID: SFK-WB60 Page Number: 56 of 216 Channel 11 (2462MHz) High Band Edge Spurious Emission Report No.: 1506RSU01401 FCC ID: SFK-WB60 Page Number: 57 of 216 802.11g Out-of-Band Emissions - Ant 1 100kHz PSD reference Level Channel 01 (2412MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1506RSU01401 FCC ID: SFK-WB60 Page Number: 58 of 216 Channel 11 (2462MHz) High Band Edge Spurious Emission Report No.: 1506RSU01401 FCC ID: SFK-WB60 Page Number: 59 of 216 802.11n-HT20 Out-of-Band Emissions - Ant 1 100kHz PSD reference Level Channel 01 (2412MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1506RSU01401 FCC ID: SFK-WB60 Page Number: 60 of 216 Channel 11 (2462MHz) High Band Edge Spurious Emission Report No.: 1506RSU01401 FCC ID: SFK-WB60 Page Number: 61 of 216 802.11n-HT40 Out-of-Band Emissions - Ant 1 100kHz PSD reference Level Channel 03 (2422MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1506RSU01401 FCC ID: SFK-WB60 Page Number: 62 of 216 Channel 09 (2452MHz) High Band Edge Spurious Emission Report No.: 1506RSU01401 FCC ID: SFK-WB60 Page Number: 63 of 216 802.11b Out-of-Band Emissions - Ant 2 100kHz PSD reference Level Channel 01 (2412MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1506RSU01401 FCC ID: SFK-WB60 Page Number: 64 of 216 Channel 11 (2462MHz) High Band Edge Spurious Emission Report No.: 1506RSU01401 FCC ID: SFK-WB60 Page Number: 65 of 216 802.11g Out-of-Band Emissions - Ant 2 100kHz PSD reference Level Channel 01 (2412MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1506RSU01401 FCC ID: SFK-WB60 Page Number: 66 of 216 Channel 11 (2462MHz) High Band Edge Spurious Emission Report No.: 1506RSU01401 FCC ID: SFK-WB60 Page Number: 67 of 216 802.11n-HT20 Out-of-Band Emissions - Ant 2 100kHz PSD reference Level Channel 01 (2412MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1506RSU01401 FCC ID: SFK-WB60 Page Number: 68 of 216 Channel 11 (2462MHz) High Band Edge Spurious Emission Report No.: 1506RSU01401 FCC ID: SFK-WB60 Page Number: 69 of 216 802.11n-HT40 Out-of-Band Emissions - Ant 2 100kHz PSD reference Level Channel 03 (2422MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1506RSU01401 FCC ID: SFK-WB60 Page Number: 70 of 216 Channel 09 (2452MHz) High Band Edge Spurious Emission Report No.: 1506RSU01401 FCC ID: SFK-WB60 Page Number: 71 of 216 7.6. Radiated Spurious Emission Measurement 7.6.1. Test Limit All out of band emissions appearing in a restricted band as specified in Section 15.205 of the Title 47 CFR must not exceed the limits shown in Table per Section 15.209. FCC Part 15 Subpart C Paragraph 15.209 Frequency [MHz] Field Strength [V/m] Measured Distance [Meters] 0.009 - 0.490 2400/F (kHz) 300 0.490 - 1.705 24000/F (kHz) 30 1.705 - 30 30 30 30 - 88 100 3 88 - 216 150 3 216 - 960 200 3 Above 960 500 3 7.6.2. Test Procedure Used KDB 558074 D01v03r03 - Section 12.2.3 (quasi-peak measurements) KDB 558074 D01v03r03 - Section 12.2.4 (peak power measurements) KDB 558074 D01v03r03 - Section 12.2.5 (average power measurements) 7.6.3. Test Setting Peak Field Strength Measurements per Section 12.2.4 of KDB 558074 D01v03r03 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = as specified in Table 1 3. VBW = 3MHz 4. Detector = …

Text truncated - open the document above for the full version.

Report No.: 1506RSU01401 FCC ID: SFK-WB60 Page Number: 101 of 216 Test Mode: 802.11b – Ant 1 + 2 Test Site: AC1 Test Channel: 11 Test Engineer: Roy Cheng Remark: 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization 4927.0 46.1 2.8 48.9 74.0 -25.1 Peak Horizontal 7383.5 40.7 7.9 48.6 74.0 -25.4 Peak Horizontal * 8726.5 36.5 9.0 45.5 96.1 -50.6 Peak Horizontal * 9806.0 34.8 11.5 46.3 96.1 -49.8 Peak Horizontal 4927.0 46.6 2.8 49.4 74.0 -24.6 Peak Vertical 7383.5 36.8 7.9 44.7 74.0 -29.3 Peak Vertical * 8599.0 36.7 8.7 45.4 96.1 -50.7 Peak Vertical * 9602.0 35.1 10.9 46.0 96.1 -50.1 Peak Vertical Note 1: “*” is not in restricted band, its limit is 30dBc of the fundamental emission level (126.1dBμV/m) or 15.209 which is higher. Note 2: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB) Report No.: 1506RSU01401 FCC ID: SFK-WB60 Page Number: 102 of 216 Test Mode: 802.11g – Ant 1 + 2 Test Site: AC1 Test Channel: 01 Test Engineer: Roy Cheng Remark: 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization 4833.5 46.0 2.7 48.7 74.0 -25.3 Peak Horizontal 5386.0 36.1 3.0 39.1 74.0 -34.9 Peak Horizontal * 7230.5 41.4 7.8 49.2 96.5 -47.3 Peak Horizontal * 8769.0 36.3 8.9 45.2 96.5 -51.3 Peak Horizontal 4833.5 38.6 2.7 41.3 74.0 -32.7 Peak Vertical 5411.5 36.1 3.2 39.3 74.0 -34.7 Peak Vertical * 7230.5 38.6 7.8 46.4 96.5 -50.1 Peak Vertical * 8650.0 36.9 8.8 45.7 96.5 -50.8 Peak Vertical Note 1: “*” is not in restricted band, its limit is 30dBc of the fundamental emission level (126.5dBμV/m) or 15.209 which is higher. Note 2: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB) Report No.: 1506RSU01401 FCC ID: SFK-WB60 Page Number: 103 of 216 Test Mode: 802.11g – Ant 1 + 2 Test Site: AC1 Test Channel: 06 Test Engineer: Roy Cheng Remark: 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization 4876.0 51.2 2.7 53.9 74.0 -20.1 Peak Horizontal 7307.0 41.8 8.0 49.8 74.0 -24.2 Peak Horizontal * 8760.5 36.0 9.0 45.0 96.7 -51.7 Peak Horizontal * 9755.0 34.9 11.4 46.3 96.7 -…
