SFK-WF96AWF-96A 802.11ac 2x2 5G CPE

WF-96AUser Manual Version 4 TABLE OF CONTENTS 1 Quick Start ................................................................................................................... 1 1.1 Connect PoE Adapter to WF-96A ............................................................................................. 1 1.2 Configure PC’s IP Address ........................................................................................................ 2 1.3 Visit WF-96A Web Page ............................................................................................................ 2 1.4 Configure Management Interface for WF-96A .......................................................................... 3 1.5 Connect WF-96A to Switch ....................................................................................................... 3 1.6 Configure Location, Language .................................................................................................. 4 1.7 Configure Security Profile for Different Authentication Types................................................... 4 1.7.1 WEP ................................................................................................................................................... 4 1.7.2 WPA2-PSK ....................................................................................................................................... 5 1.7.3 WPA/WPA2-PSK ............................................................................................................................. 5 2 Station Mode ................................................................................................................ 6 2.1 Station Mode Network Topology ............................................................................................... 6 2.2 Enable Station mode ................................................................................................................. 6 2.3 Configure Radio Parameters ..................................................................................................... 6 2.4 Channel Scan ............................................................................................................................ 6 2.5 Station Configuration ................................................................................................................. 7 2.6 Station Status ............................................................................................................................ 8 3 Status ........................................................................................................................... 8 3.1 Overview .................................................................................................................................... 8 3.2 Radio ......................................................................................................................................... 9 4 Management .............................................................................................................. 10 4.1 Backup/Import Configuration ................................................................................................... 10 4.2 Software Upgrade .................................................................................................................... 10 4.3 Factory Reset via WEB ........................................................................................................... 10 4.4 Reboot via WEB ...................................................................................................................... 11 4.5 Factory Reset via Sending Special Packet ............................................................................. 11 4.5.1 Factory Reset One Single Device ............................................................................................... 12 4.5.2 Factory Reset All Devices ............................................................................................................ 14 5 Troubleshooting ......................................................................................................... 15 5.1 Ping Diagnose ......................................................................................................................... 15 5.2 TraceRT Diagnose .................................................................................................................. 15 5.3 LED Definition .......................................................................................................................... 16 5.4 Debug via Telnet ..................................................................................................................... 16 1 1 Quick Start WF-96A can work as the point to point wireless AP. WF-96A can be bridged and provide the high speed wireless connection between two networks. In some cases, it is difficult to connect two wire networks, such as across the river or in the high buildings. WF-96A is an ideal resolution in this scenario. The higher transmitter power make the transmission distance reach 2km. 1.1 Connect PoE Adapter to WF-96A Notes: Now WF-96A can be powered by standard 802.3at PoE PSE.Please connect the Ethernet Port labeled “PWR LAN-OUT” on PoE Adapter to “ETH” port of AP and the Ethernet Port labeled “LAN-IN” on PoE adapter to your PC or Switch. 2 1.2 Configure PC’s IP Address Notes: Connect your PC to the “LAN-IN” port on PoE Adapter of AP, manually configure your wired NIC with a static IP address on the 192.168.188.x subnet (e.g. 192.168.188.202). 1.3 Visit WF-96A Web Page Notes: Input the default IP address “192.168.188.251”in the address bar of browser. Then enter the 3 default username and password (username: admin, password: password) to enter the Web interface of AP. 1.4 Configure Management Interface for WF-96A Notes: You can configure management IP/subnetmask/gateway/DNS here. By default, packets are sent without tag. Packets can b…

Text truncated - open the document above for the full version.

CIG Shanghai Co., Ltd. Date: July 22, 2015 Federal Communications Commission Authorization and Evaluation Division FCC ID: SFK-WF96A ATTESTATION FCC ID: SFK-WF96A Product: WF-96A 802.11ac 2x2 5G CPE Model: WF-96A We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Model Difference: The different of models only for marketing different client, the other was the same. Sincerely, __________________ Name: Mazhonghua Position: Manager CIG Shanghai Co., Ltd.

CIG Shanghai Co., Ltd. Declaration of Authorization We Name: CIG Shanghai Co., Ltd. Address: F/5, 8 Building No.2388 Chenhang Road, Minhang District, Shanghai Declare that: Name Representative of agent: Robin Wu Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone, City: Suzhou Country China is authorized to apply for Certification of the following product(s): Product description: WF-96A 802.11ac 2x2 5G CPE Type designation: WF-96A Trademark: CIG on our behalf. Date: July 22, 2015 Name: Mazhonghua Signature:

CIG Shanghai Co., Ltd. Date: July 7, 2015 Federal Communications Commission Authorization and Evaluation Division FCC ID: SFK-WF96A Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1. Block Diagram 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ---------------------------------------------------------- Name: Mazhonghua CIG Shanghai Co., Ltd.

Non-SDR (Software Defined Radio) Cover Letter Date: July 22, 2015 Refer to KDB 442812 D01 SDR apps Guide v02r03. The following six questions can be used for determining if a radio can elect to be, or must be an SDR. 1. Can the RF parameters of the device be altered through software? Yes - go to 2. No, not an SDR Yes 2. Can third parties not permitted by the Commission through specific filings modify, configure, or load different software, or make configuration settings to operate the device or host hardware radio frequency parameters (frequency range, modulation type, maximum output power or other radio parameters) in any other way than granted (or expected to be granted)? Yes, must be an SDR. No - go to 3. No 3. Is the device capable of operating in any other in any other way than granted, or will be, granted? Yes, - go to 4. No - go to 5. No 4. Is this a Part 15 client Device as defined in Section 15.202 (as opposed to a master device)? Yes, qualifies as a part 15 client devices - go to 5. No, must be an SDR. 5. Does the manufacturer elect SDR? Yes, elects to be an SDR. No, Not an SDR No Final conclusion: According to the above questions reply, we can confirm this WF-96A 802.11ac 2x2 5G CPE FCC ID: SFK-WF96A must be a Non-SDR. The equipment can only support one exclusive regulation. The hardware devices will be locked to the activated regulatory domain and can’t be modified by any third party through configuration changes or software upgrades. The client only need to download the software/firmware from official website, and these software/ firmware shall be authentication protocol by the manufacturer. Sincerely, __________________ Name: Mazhonghua Position: Manager CIG Shanghai Co., Ltd.

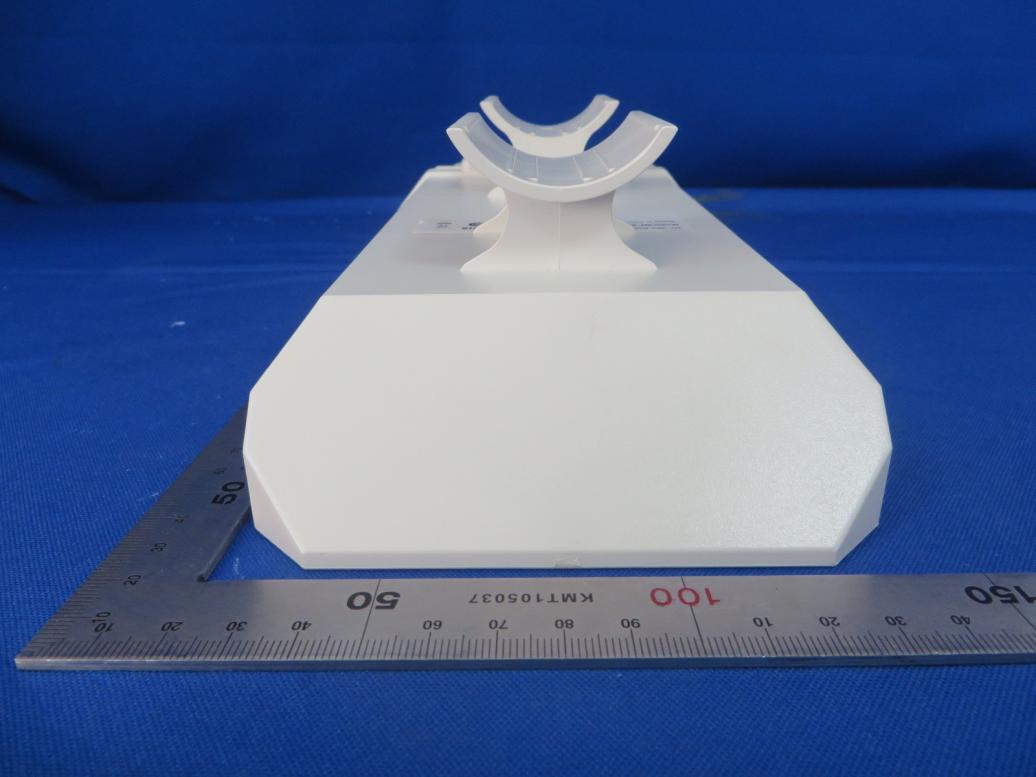

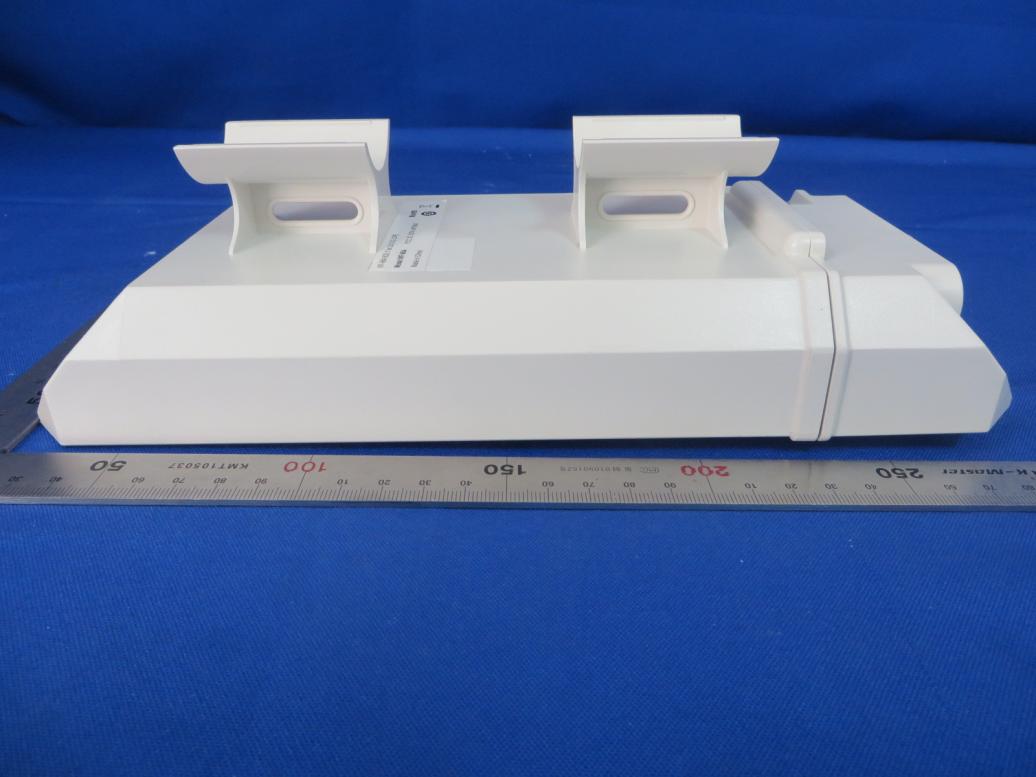

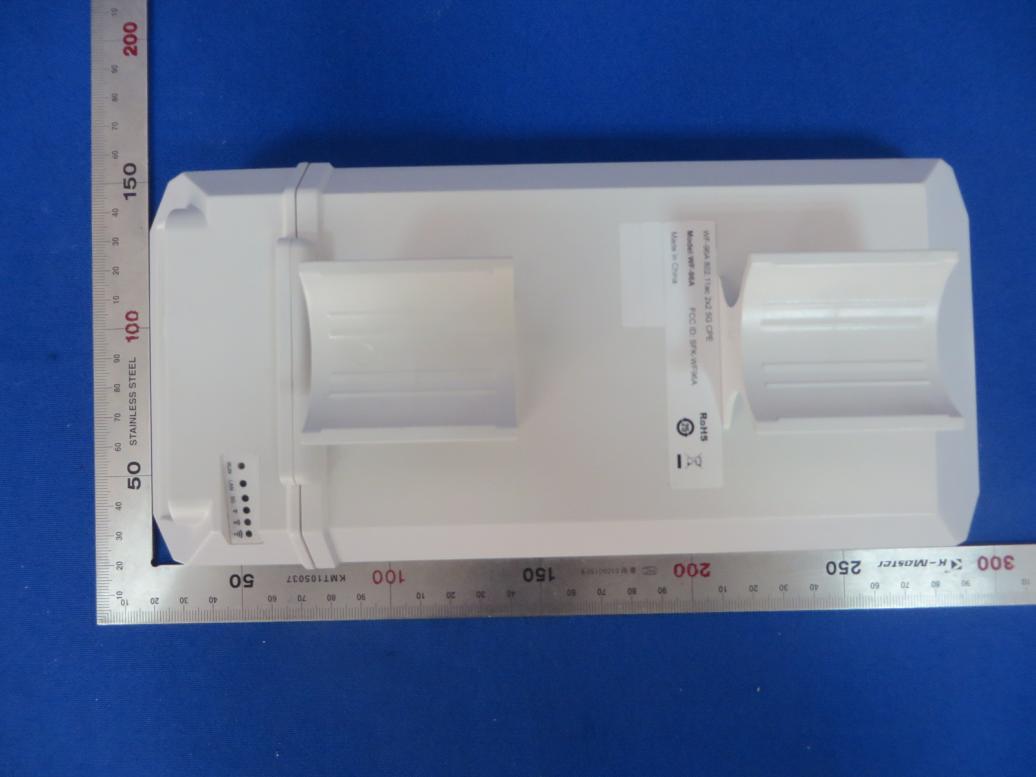

External Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo

Label Label Location

1 of 7 Internal Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo (10) EUT Photo (11) EUT Photo (12) EUT Photo (13) EUT Photo (14) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 1506RSU01502 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 08-04-2015 Web: www.mrt-cert.com FCC ID: SFK-WF96A Page Number: 1 of 6 RF Exposure Evaluation Declaration FCC ID: SFK-WF96A APPLICANT: CIG Shanghai Co., Ltd., Application Type: Certification Product: WF-96A 802.11ac 2x2 5G CPE Model No.: WF-96A FCC Classification: Digital Transmission System (DTS) Unlicensed National Information Infrastructure (UNII) Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1506RSU01502 FCC ID: SFK-WF96A Page Number: 2 of 6 Revision History Report No. Version Description Issue Date 1506RSU01502 Rev. 01 Initial report 08-04-2015 Report No.: 1506RSU01502 FCC ID: SFK-WF96A Page Number: 3 of 6 1. PRODUCT INFORMATION 1.1. Equipment Description 1.2. Description of Support Units The EUT has been tested with associated equipment below: Description Manufacturer Model No. POE Supply by MRT PD-3501G/AC Product Name WF-96A 802.11ac 2x2 5G CPE Model No. WF-96A Frequency Range For 5.0GHz Band: For 802.11a/n-HT20/ac-VHT20: 5180~5240MHz, 5745~5825MHz For 802.11n-HT40/ac-VHT40: 5190~5230MHz, 5755~5795MHz For 802.11ac-VHT80: 5210MHz, 5775MHz Type of Modulation a/n/ac: OFDM Maximum Average Output Power 802.11a: 27.88dBm 802.11n-HT20: 27.72dBm 802.11n-HT40: 23.86dBm 802.11ac-VHT20: 28.83dBm 802.11ac-VHT40: 26.59dBm 802.11ac-VHT80: 16.53dBm Report No.: 1506RSU01502 FCC ID: SFK-WF96A Page Number: 4 of 6 1.3. Antenna Description Antenna Type Frequency Band (GHz) Tx Paths Max Peak Gain (dBi) Beam Forming Directional Gain (dBi) CDD Directional Gain (dBi) For Power For PSD PCB Antenna 5 2 16 19 16 19 1. The EUT supports Cyclic Delay Diversity (CDD) mode, and CDD signals are correlated. For CDD transmissions, directional gain is calculated as follows, N ANT = 2, N SS = 1. 1) If all antennas have the same gain, G ANT , Directional gain = G ANT + Array Gain, where Array Gain is as follows.  For power spectral density (PSD) measurements on all devices, Array Gain = 10 log (N ANT / N SS ) dB = 6.02;  For power measurements on IEEE 802.11 devices, Array Gain = 0 dB for N ANT ≤ 4; 2. The EUT supports Beam Forming mode, and the Beam Forming mode support 802.11n/ac, not include 802.11a. Correlated signals include, but are not limited to, signals transmitted in any of the following modes: Any transmit Beam Forming mode, whether fixed or adaptive (e.g., phased array modes, closed loop MIMO modes, Transmitter Adaptive Antenna modes, Maximum Ratio Transmission (MRT) modes, and Statistical Eigen Beam Forming (EBF) modes).  Unequal antenna gains, with equal transmit powers. For antenna gains given by G 1 , G 2 , ..., G N dBi transmit signals are correlated, then  Directional gain = 10 log[(10 G1/20 + 10 G2/20 + ... + 10 GN/20 ) 2 /N ANT ] dBi [Note the “20”s in the denominator of each exponent and the square of the sum of terms; the object is to combine the signal levels coherently.] Report No.: 1506RSU01502 FCC ID: SFK-WF96A Page Number: 5 of 6 2. RF Exposure Evaluation 2.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- f/1500 6 1500-100,000 -- -- 1 30 f= Frequency in MHz Calculation Formula: Pd = (Pout*G) / (4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 r = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1mW/cm². If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No.: 1506RSU01502 FCC ID: SFK-WF96A Page Number: 6 of 6 2.2. Test Result of RF Exposure Evaluation Product WF-96A 802.11ac 2x2 5G CPE Test Item RF Exposure Evaluation Antenna Gain: The maximum Gain measured in fully anechoic chamber is 19dBi for 5.2GHz, and 19dBi for 5.8GHz in logarithm scale. For 5GHz UNII Band: CONCULISON: The Safety Distance of the WF-96A 802.11ac 2x2 5G CPE FCC ID: SFK-WF96A was 65.60 cm. The End Test Mode Frequency Band (MHz) Maximum Average Output Power (dBm) Limit of Power Density S(mW/cm 2 ) Safety Distance (cm) 802.11a 5180 ~ 5240 27.23 1 57.80 5745 ~ 5825 27.88 1 62.29 802.11n-HT20 5180 ~ 5240 27.59 1 60.24 5745 ~ 5825 27.72 1 61.15 802.11n-HT40 5190 ~ 5230 26.64 1 54.00 5755 ~ 5795 25.13 1 45.38 802.11ac-VHT20 5180 ~ 5240 28.33 1 65.60 5745 ~ 5825 27.72 1 61.15 802.11ac-VHT40 5190 ~ 5230 26.59 1 53.69 5755 ~ 5795 25.13 1 45.38 802.11ac-VHT80 5210 16.53 1 16.86 5775 10.17 1 8.11

MRT Technology (Suzhou) Co., Ltd Report No.: 1506RSU01501 Phone: +86-512-66308358 Report Version: V02 Fax: +86-512-66308368 Issue Date: 08-17-2015 Web: www.mrt-cert.com FCC ID: SFK-WF96A Page Number: 1 of 384 FCC ID: SFK-WF96A APPLICANT: CIG Shanghai Co., Ltd., Application Type: Certification Product: WF-96A 802.11ac 2x2 5G CPE Model No.: WF-96A FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407 Test Procedure(s): KDB 789033 D02v01, KDB 662911 D01v02r01 KDB 644545 D03v01 Test Date: July 01 ~ 24, 2015 MEASUREMENT REPORT FCC PART 15.407 WLAN 802.11a/n/ac Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 789033 D02v01. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1506RSU01501 FCC ID: SFK-WF96A Page Number: 2 of 384 Revision History Report No. Version Description Issue Date 1506RSU01501 Rev. 01 Initial report 08-04-2015 1506RSU01501 Rev. 02 Corrected the PSD limit 08-17-2015 Report No.: 1506RSU01501 FCC ID: SFK-WF96A Page Number: 3 of 384 CONTENTS Description Page §2.1033 General Information ......................................................................................................... 6 1. INTRODUCTION ..................................................................................................................... 7 1.1. Scope ........................................................................................................................... 7 1.2. MRT Test Location ....................................................................................................... 7 2. PRODUCT INFORMATION ..................................................................................................... 8 2.1. Equipment Description .................................................................................................. 8 2.2. Description of Support Units ......................................................................................... 8 2.3. Frequency / Channel Operation .................................................................................... 9 2.4. Description of Available Antennas ............................................................................... 10 2.5. Description of Antenna RF Port.................................................................................... 11 2.6. Test Mode ................................................................................................................... 11 2.7. Test Software ............................................................................................................... 11 2.8. Device Capabilities ..................................................................................................... 12 2.9. Test Configuration ...................................................................................................... 13 2.10. EMI Suppression Device(s)/Modifications ................................................................... 13 2.11. Labeling Requirements ............................................................................................... 13 3. DESCRIPTION OF TEST ...................................................................................................... 14 3.1. Evaluation Procedure ................................................................................................. 14 3.2. AC Line Conducted Emissions.................................................................................... 14 3.3. Radiated Emissions .................................................................................................... 15 4. ANTENNA REQUIREMENTS ................................................................................................ 16 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................ 17 6. MEASUREMENT UNCERTAINTY ......................................................................................... 18 7. TEST RESULT ...................................................................................................................... 19 7.1. Summary .................................................................................................................... 19 7.2. 26dB Bandwidth Measurement ................................................................................... 21 7.2.1. Test Limit .................................................................................................................... 21 7.2.2. Test Procedure used ................................................................................................... 21 7.2.3. Test Setting ................................................................................................................. 21 7.2.4. Test Setup .................................................................................................................. 21 7.2.5. Test Result .................................................................................................................. 22 7.3. 6dB Bandwidth Measurement ..................................................................................... 34 7.3.1. Test Limit .................................................................................................................... 34 Report No.: 1506RSU01501 FCC ID: SFK-WF96A Page Number: 4 of 384 7.3.2. Test Procedure used ................................................................................................... 34 7.3.3. Test Setting .....................................................................................…

Text truncated - open the document above for the full version.

Report No.: 1506RSU01501 FCC ID: SFK-WF96A Page Number: 33 of 384 802.11ac-VHT40 26dB Bandwidth & 99% Bandwidth - Ant 2 Channel 38 (5190MHz) Channel 46 (5230MHz) Channel 151(5755MHz) Channel 159(5795MHz) 802.11ac-VHT80 26dB Bandwidth & 99% Bandwidth - Ant 2 Channel 42 (5210MHz) Channel 155 (5755MHz) Report No.: 1506RSU01501 FCC ID: SFK-WF96A Page Number: 34 of 384 7.3. 6dB Bandwidth Measurement 7.3.1. Test Limit The minimum 6dB bandwidth shall be at least 500 kHz. 7.3.2. Test Procedure used KDB 789033 D02v01 - Section C.2 7.3.3. Test Setting 1. Set center frequency to the nominal EUT channel center frequency. 2. RBW = 100 kHz. 3. VBW ≥ 3 × RBW. 4. Detector = Peak. 5. Trace mode = max hold. 6. Sweep = auto couple. 7. Allow the trace to stabilize. 8. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 6 dB relative to the maximum level measured in the fundamental emission. 7.3.4. Test Setup Report No.: 1506RSU01501 FCC ID: SFK-WF96A Page Number: 35 of 384 7.3.5. Test Result Test Mode Data Rate (Mbps) Channel No. Frequency (MHz) 6dB Bandwidth (MHz) Limit (MHz) Result Ant 1 802.11a 6 149 5745 16.40 ≥0.5 Pass 802.11a 6 157 5785 16.09 ≥0.5 Pass 802.11a 6 165 5825 16.37 ≥0.5 Pass 802.11n-HT20 6.5 149 5745 17.60 ≥0.5 Pass 802.11n-HT20 6.5 157 5785 17.24 ≥0.5 Pass 802.11n-HT20 6.5 165 5825 17.23 ≥0.5 Pass 802.11n-HT40 13.5 151 5755 35.78 ≥0.5 Pass 802.11n-HT40 13.5 159 5795 35.74 ≥0.5 Pass 802.11ac-VHT20 6.5 149 5745 17.60 ≥0.5 Pass 802.11ac-VHT20 6.5 157 5785 16.70 ≥0.5 Pass 802.11ac-VHT20 6.5 165 5825 16.96 ≥0.5 Pass 802.11ac-VHT40 13.5 151 5755 35.81 ≥0.5 Pass 802.11ac-VHT40 13.5 159 5795 35.80 ≥0.5 Pass 802.11ac-VHT80 29.3 155 5775 69.74 ≥0.5 Pass Ant 2 802.11a 6 149 5745 16.36 ≥0.5 Pass 802.11a 6 157 5785 16.38 ≥0.5 Pass 802.11a 6 165 5825 16.38 ≥0.5 Pass 802.11n-HT20 6.5 149 5745 17.59 ≥0.5 Pass 802.11n-HT20 6.5 157 5785 17.25 ≥0.5 Pass 802.11n-HT20 6.5 165 5825 17.33 ≥0.5 Pass 802.11n-HT40 13.5 151 5755 35.75 ≥0.5 Pass 802.11n-HT40 13.5 159 5795 35.76 ≥0.5 Pass 802.11ac-VHT20 6.5 149 5745 17.57 ≥0.5 Pass 802.11ac-VHT20 6.5 157 5785 17.56 ≥0.5 Pass 802.11ac-VHT20 6.5 165 5825 17.59 ≥0.5 Pass 802.11ac-VHT40 13.5 151 5755 35.80 ≥0.5 Pass 802.11ac-VHT40 13.5 159 5795 35.53 ≥0.5 Pass 802.11ac-VHT80 29.3 155 5775 72.07 ≥0.5 Pass Report No.: 1506RSU01501 FCC ID: SFK-WF96A Page Number: 36 of 384 802.11a 6dB Bandwidth - Ant 1 Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) 802.11n-HT20 6dB Bandwidth - Ant 1 Channel 149 (5745MHz) Channel 157 (5785MHz) Report No.: 1506RSU01501 FCC ID: SFK-WF96A Page Number: 37 of 384 Channel 165 (5825MHz) 802.11n-HT40 6dB Bandwidth - Ant 1 Channel 151 (5755MHz) Channel 159 (5795MHz) 802.11ac-VHT20 6dB Bandwidth - Ant 1 Channel 149 (5745MHz) Channel 157 (5785MHz) Report No.: 1506RSU01501 FCC ID: SFK-WF96A Page Number: 38 of 384 Channel 165 (5825MHz) 802.11ac-VHT40 6dB Bandwidth - Ant 1 Channel 151 (5755MHz) Channel 159 (5795MHz) 802.11ac-VHT80 6dB Bandwidth - Ant 1 Channel 155 (5775MHz) Report No.: 1506RSU01501 FCC ID: SFK-WF96A Page Number: 39 of 384 802.11a 6dB Bandwidth - Ant 2 Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) 802.11n-HT20 6dB Bandwidth - Ant 2 Channel 149 (5745MHz) Channel 157 (5785MHz) Report No.: 1506RSU01501 FCC ID: SFK-WF96A Page Number: 40 of 384 Channel 165 (5825MHz) 802.11n-HT40 6dB Bandwidth - Ant 2 Channel 151 (5755MHz) Channel 159 (5795MHz) 802.11ac-VHT20 6dB Bandwidth - Ant 2 Channel 149 (5745MHz) Channel 157 (5785MHz) Report No.: 1506RSU01501 FCC ID: SFK-WF96A Page Number: 41 of 384 Channel 165 (5825MHz) 802.11ac-VHT40 6dB Bandwidth - Ant 2 Channel 151 (5755MHz) Channel 159 (5795MHz) 802.11ac-VHT80 6dB Bandwidth - Ant 2 Channel 155 (5775MHz) Report No.: 1506RSU01501 FCC ID: SFK-WF96A Page Number: 42 of 384 7.4. Output Power Measurement 7.4.1. Test Limit For an outdoor and fixed point-to-point access point operating in the band 5.15-5.25 GHz, the maximum conducted output power over the frequency band of operation shall not exceed 1 W (30dBm). For fixed point-to-point transmitters that employ a directional antenna gain greater than 23 dBi, a 1 dB reduction in maximum conducted output power and maximum power spectral density is required for each 1 dB of antenna gain in excess of 23 dBi. For the band 5.725-5.85 GHz, the maximum conducted output power over the frequency band of operation shall not exceed 1 W (30dBm). Fixed point-to-point U-NII devices operating in this band may employ transmitting antennas with directional gain greater than 6 dBi without any corresponding reduction in transmitter conducted power. 7.4.2. Test Procedure Used KDB 789033 D02v01 - Section E) 3) b) Method PM-G 7.4.3. Test Setting Average power measurements were perform only when the EUT was transmitting at its maximum power control level using a broadband power meter with a pulse sensor. The power meter implemented triggering and gating capabilities which were set up such that power measurements were recorded only during the ON time of the transmitter. The trace was averaged over 100 traces to obtain the final measured average power. 7.4.4. Test Setup Report No.: 1506RSU01501 FCC ID: SFK-WF96A Page Number: 43 of 384 7.4.5. Test Result Output power at various data rates for Ant 1 Test Mode Bandwidth (MHz) Channel Frequency (MHz) Data Rate (Mbps) RMS Power (dBm) 802.11a 20 60 5180 6 19.68 24 19.62 54 19.53 802.11n 20 60 5180 6.5 19.68 7.2 19.57 39.0 19.43 43.3 19.40 65.0 19.35 72.2 19.28 802.11n 40 62 5190 13.5 15.51 15.0 15.48 81.0 15.46 90.0 15.38 135.0 15.31 150.0 15.29 802.11ac 20 60 5180 6.5 19.73 7.2 19.68 39.0 19.64 43.3 19.57 78.0 19.52 86.7 19.42 802.11ac 40 62 5190 13.5 15.56 15.0 15.49 81.0 15.43 90.0 15.41 180.0 15.38 200.0 15.32 Report No.: 1506RSU01501 FCC ID: SFK-WF96A Page Number: 44 of 384 802.11ac 80 58 5210 29.3 13.09 32.5 13.02 175.5 12.87 195.0 12.65 390.0 12.59 433.3 12.50 Report…

Text truncated - open the document above for the full version.

Report No.: 1506RSU01501 FCC ID: SFK-WF96A Page Number: 62 of 384 802.11n-HT20 Power Spectral Density - Ant 2 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 1506RSU01501 FCC ID: SFK-WF96A Page Number: 63 of 384 802.11n-HT40 Power Spectral Density - Ant 2 Channel 38 (5190MHz) Channel 46 (5230MHz) Channel 151 (5755MHz) Channel 159 (5795MHz) Report No.: 1506RSU01501 FCC ID: SFK-WF96A Page Number: 64 of 384 802.11ac-VHT20 Power Spectral Density - Ant 2 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 1506RSU01501 FCC ID: SFK-WF96A Page Number: 65 of 384 802.11ac-VHT40 Power Spectral Density - Ant 2 Channel 38 (5190MHz) Channel 46 (5230MHz) Channel 151 (5755MHz) Channel 159 (5795MHz) Report No.: 1506RSU01501 FCC ID: SFK-WF96A Page Number: 66 of 384 802.11ac-VHT80 Power Spectral Density - Ant 2 Channel 42 (5210MHz) Channel 155 (5775MHz) Report No.: 1506RSU01501 FCC ID: SFK-WF96A Page Number: 67 of 384 802.11a Power Spectral Density - Ant 1 / Ant 1 + 2 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 1506RSU01501 FCC ID: SFK-WF96A Page Number: 68 of 384 802.11n-HT20 Power Spectral Density - Ant 1 / Ant 1 + 2 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 1506RSU01501 FCC ID: SFK-WF96A Page Number: 69 of 384 802.11n-HT40 Power Spectral Density - Ant 1 / Ant 1 + 2 Channel 38 (5190MHz) Channel 46 (5230MHz) Channel 151 (5755MHz) Channel 159 (5795MHz) Report No.: 1506RSU01501 FCC ID: SFK-WF96A Page Number: 70 of 384 802.11ac-VHT20 Power Spectral Density - Ant 1 / Ant 1 + 2 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 1506RSU01501 FCC ID: SFK-WF96A Page Number: 71 of 384 802.11ac-VHT40 Power Spectral Density - Ant 1 / Ant 1 + 2 Channel 38 (5190MHz) Channel 46 (5230MHz) Channel 151 (5755MHz) Channel 159 (5795MHz) Report No.: 1506RSU01501 FCC ID: SFK-WF96A Page Number: 72 of 384 802.11ac-VHT80 Power Spectral Density - Ant 1 / Ant 1 + 2 Channel 42 (5210MHz) Channel 155 (5775MHz) Report No.: 1506RSU01501 FCC ID: SFK-WF96A Page Number: 73 of 384 802.11a Power Spectral Density - Ant 2 / Ant 1 + 2 Chann…
